#include <mitkInteractor.h>

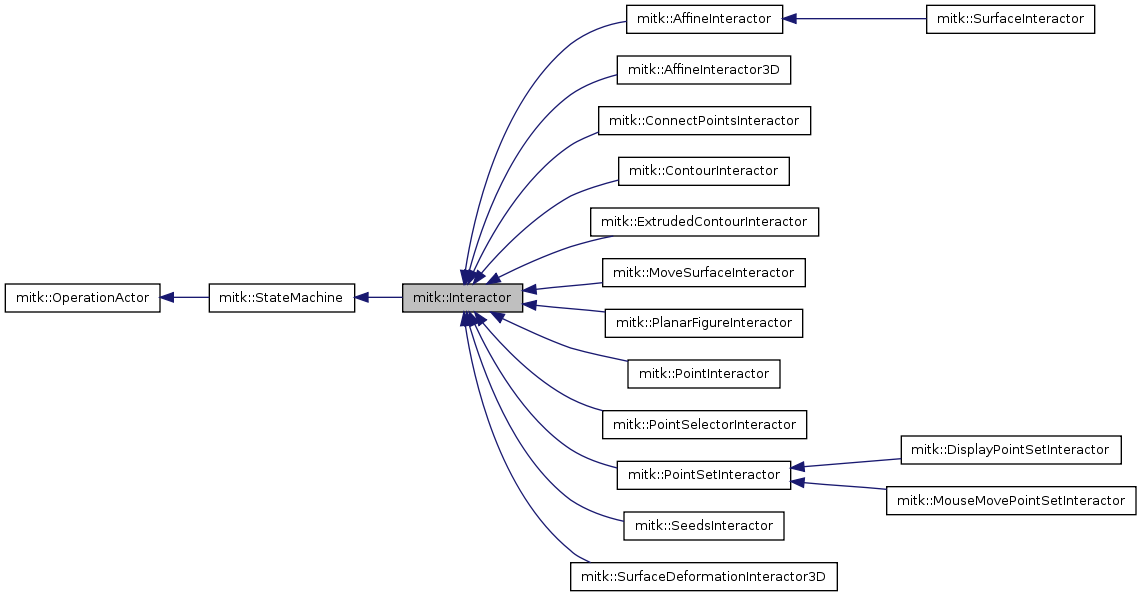

Inheritance diagram for mitk::Interactor:

Collaboration diagram for mitk::Interactor:

Public Types
enum	SMMode { SMDESELECTED = 0, SMSELECTED, SMSUBSELECTED }
	Enumeration of the different modes an Interactor can be into. See class documentation for further details. More...
typedef Interactor	Self
typedef StateMachine	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
typedef SMMode	ModeType
Public Member Functions
virtual const char *	GetClassName () const
SMMode	GetMode () const
	Get the Mode of the Interactor. Use enum SMMode for return parameter.
bool	IsNotSelected () const
	Check the interaction mode.
bool	IsSelected () const
	Check the interaction mode.
virtual float	CanHandleEvent (StateEvent const *stateEvent) const
	calculates how good the data, this statemachine handles, is hit by the event.
bool	HandleEvent (StateEvent const *stateEvent)
	Updates the current TimeStep according to the associated data and calls Superclass::HandleEvent()
virtual void	DataChanged ()
	Method to call if the associated data has changed by the user (loading of data) This method is called by DataNode::SetData() to tell the interactor to reinitialize. This method should be overwritten by specialized interactors. (e.g. PointSetInteractor: go to the right state according to number of loaded points) Note: It will not be called when the data gets modified (e.g. adding / removing points to a PointSet)
Static Public Member Functions
static Pointer	New (const char _arga, DataNode _argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Static Public Attributes
static const std::string	XML_NODE_NAME = "interactor"
Protected Member Functions
	Interactor (const char type, DataNode dataNode)
	Constructor.
	~Interactor ()
	Destructor.
bool	OnModeSelect (Action action, StateEvent const )
bool	OnModeDeselect (Action action, StateEvent const )
bool	OnModeSubSelect (Action action, StateEvent const )
virtual void	ExecuteOperation (Operation *operation)
	adds handling of operations used for mode change. Unrecognized Operations are send to Superclass.
virtual const std::string &	GetXMLNodeName () const
void	CreateModeOperation (ModeType mode)
	creates a ModeOperation with the transmitted mode and sends it to this. Undo supported!
BaseData *	GetData () const
	convenience method for accessing the data contained in the node to which this interactor is associated to
virtual void	SetDataNode (DataNode *dataNode)
	Used by friend class DataNode.
virtual void	UpdateTimeStep (unsigned int timeStep)
	Derived from superclass to also check if enough timesteps are instantiated in m_CurrentStateVector The number of timesteps is read from the dedicated data.
Protected Attributes
DataNode *	m_DataNode
	Pointer to the data, this object handles the Interaction for.
ModeType	m_Mode
	Mode of Selection.
Friends
class	DataNode

Detailed Description

Interface for an Interactor.

The Interactor is held with a SmartPointer by a DataNode and holds its Node with a Pointer. That way Smartpointer doesn't build a circle. Different Modes: In order to not send Events to all StateMachines, a StateMachine can be in three different modes: DESELECTED: this statemachine doesn't wait for an event SELECTED: this statemachine just has handled an event and waits for the next one SUBSELECTED: depricate; was used for hierarchical statemachines before. Guidelines for the modevalues: Selected if the coresponding data is selected, deselected if deselect of data.

In moving the machine is selected. After a new insert the machine is selected, since the data is also selected In method ExecuteAction(..) the different actions are divided up through switch/case statements. Each block has to check the appropriate type of event to process the actions. Especially in guarding states (a state, that checks certain conditions (e.g. is picked) the according Event must be called to continue in states. No return false here!

Definition at line 50 of file mitkInteractor.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::Interactor::ConstPointer

Reimplemented from mitk::StateMachine.

Reimplemented in mitk::AffineInteractor, mitk::MouseMovePointSetInteractor, mitk::MoveSurfaceInteractor, mitk::PointSetInteractor, mitk::AffineInteractor3D, mitk::ConnectPointsInteractor, mitk::ContourInteractor, mitk::DisplayPointSetInteractor, mitk::ExtrudedContourInteractor, mitk::PointInteractor, mitk::PointSelectorInteractor, mitk::SeedsInteractor, mitk::SurfaceDeformationInteractor3D, mitk::SurfaceInteractor, and mitk::PlanarFigureInteractor.

Definition at line 53 of file mitkInteractor.h.

typedef SMMode mitk::Interactor::ModeType

Definition at line 70 of file mitkInteractor.h.

typedef itk::SmartPointer<Self> mitk::Interactor::Pointer

Reimplemented from mitk::StateMachine.

Reimplemented in mitk::AffineInteractor, mitk::MouseMovePointSetInteractor, mitk::MoveSurfaceInteractor, mitk::PointSetInteractor, mitk::AffineInteractor3D, mitk::ConnectPointsInteractor, mitk::ContourInteractor, mitk::DisplayPointSetInteractor, mitk::ExtrudedContourInteractor, mitk::PointInteractor, mitk::PointSelectorInteractor, mitk::SeedsInteractor, mitk::SurfaceDeformationInteractor3D, mitk::SurfaceInteractor, and mitk::PlanarFigureInteractor.

Definition at line 53 of file mitkInteractor.h.

Member Enumeration Documentation

enum mitk::Interactor::SMMode

Enumeration of the different modes an Interactor can be into. See class documentation for further details.

Enumerator:

SMDESELECTED
SMSELECTED
SMSUBSELECTED

Definition at line 63 of file mitkInteractor.h.

  {
    SMDESELECTED = 0,
    SMSELECTED,
    SMSUBSELECTED
  };

Constructor & Destructor Documentation

mitk::Interactor::Interactor	(	const char *	type,
		DataNode *	dataNode
	)		`[protected]`

Constructor.

Parameters:

dataNode	is the node, this Interactor is connected to
type	is the type of StateMachine like declared in the XML-Configure-File

Interactor connects itself to the DataNode-Interactor-pointer through call of SetInteractor(this)

Definition at line 40 of file mitkInteractor.cpp.

References mitk::AcMODEDESELECT, mitk::AcMODESELECT, mitk::AcMODESUBSELECT, CONNECT_ACTION, m_DataNode, OnModeDeselect(), OnModeSelect(), OnModeSubSelect(), and mitk::DataNode::SetInteractor().

: StateMachine(type),
  m_DataNode(dataNode),
  m_Mode(SMDESELECTED)
{
  if (m_DataNode != NULL)
    m_DataNode->SetInteractor(this);

  // handle these actions in those Methods
  CONNECT_ACTION( AcMODEDESELECT,  OnModeDeselect );
  CONNECT_ACTION( AcMODESELECT,    OnModeSelect );
  CONNECT_ACTION( AcMODESUBSELECT, OnModeSubSelect );
}

mitk::Interactor::~Interactor ( ) [inline, protected]

Destructor.

Definition at line 123 of file mitkInteractor.h.

{}

Member Function Documentation

float mitk::Interactor::CanHandleEvent ( StateEvent const * stateEvent ) const [virtual]

calculates how good the data, this statemachine handles, is hit by the event.

Returns a value between 0 and 1 where 0 represents not responsible and 1 represents definitive responsible! Standard function to override if needed. (Used by GlobalInteraction to decide which DESELECTED statemachine to send the event to.)

Reimplemented in mitk::AffineInteractor, mitk::MouseMovePointSetInteractor, mitk::PointSetInteractor, mitk::AffineInteractor3D, mitk::ConnectPointsInteractor, mitk::PointInteractor, mitk::PointSelectorInteractor, mitk::SurfaceDeformationInteractor3D, mitk::SurfaceInteractor, and mitk::PlanarFigureInteractor.

Definition at line 123 of file mitkInteractor.cpp.

References mitk::StateEvent::GetEvent(), mitk::StateEvent::GetId(), mitk::Event::GetType(), QuadProgPP::max(), and mitk::Type_MouseMove.

{
    //return value for boundingbox
  float returnvalueBB = 0.0,
    //return value for a existing transition
    returnvalueTransition = 0.0,
    //return value for an existing key transition
    returnvalueKey = 0.0;

  //if it is a key event that can be handled in the current state
  DisplayPositionEvent const  *disPosEvent = dynamic_cast <const DisplayPositionEvent *> (stateEvent->GetEvent());

  //Key event handling:
  if (disPosEvent == NULL)
  {
    //check, if the current state has a transition waiting for that key event.
    if (this->GetCurrentState()->GetTransition(stateEvent->GetId())!=NULL)
    {
      returnvalueKey = 0.5;
    }
  }

  //Mouse event handling:
  //on MouseMove do nothing! reimplement if needed differently
  if (stateEvent->GetEvent()->GetType() == Type_MouseMove)
  {
    return 0;
  }

  //if the event can be understood and if there is a transition waiting for that event
  if (this->GetCurrentState()->GetTransition(stateEvent->GetId())!=NULL)
  {
    returnvalueTransition = 0.5;//it can be understood
  }

  //compute the center of the data taken care of if != NULL
  if (GetData() != NULL)
  {
    const BoundingBox *bBox = GetData()->GetUpdatedTimeSlicedGeometry()->GetBoundingBox();
    if (bBox == NULL)
      return 0;


    DisplayPositionEvent const  *event = dynamic_cast <const DisplayPositionEvent *> (stateEvent->GetEvent());
    if (event != NULL)
    {
      //transforming the world position to local coordinate system
      Point3D point;
      GetData()->GetTimeSlicedGeometry()->WorldToIndex(event->GetWorldPosition(), point);

      //distance between center and point
      BoundingBox::PointType center = bBox->GetCenter();
      returnvalueBB = point.EuclideanDistanceTo(center);

      // now check if object bounding box has a non-zero size
      float bBoxSize = bBox->GetMaximum().EuclideanDistanceTo(bBox->GetMinimum() );
      if( bBoxSize < 0.00001 ) return 0;      // bounding box too small?

      //now compared to size of bounding box to get value between 0 and 1;
      returnvalueBB = returnvalueBB/bBoxSize;

      //safety: if by now return value is not in [0,1], then return 0!
      if (returnvalueBB>1 || returnvalueBB<0)
        returnvalueBB = 0;

      // A return value of 1 is good, 0 is bad -> reverse value
      returnvalueBB = 1 - returnvalueBB;

      //check if the given position lies inside the data object
      if (bBox->IsInside(point))
      {
        //mapped between 0.5 and 1
        returnvalueBB = 0.5 + (returnvalueBB/ 2);
      }
      else
      {
        //set it in range between 0 and 0.5
        returnvalueBB = returnvalueBB / 2;
      }
    }
  }
  //else
  //  itkWarningMacro("Data of Interactor is NULL! Please check setup of Interactors!");

  return std::max(returnvalueBB, std::max(returnvalueKey, returnvalueTransition));
}

void mitk::Interactor::CreateModeOperation ( ModeType mode ) [protected]

creates a ModeOperation with the transmitted mode and sends it to this. Undo supported!

Definition at line 77 of file mitkInteractor.cpp.

References mitk::OpMODECHANGE.

{
  ModeOperation* doOp = new ModeOperation(OpMODECHANGE, mode);
  if (m_UndoEnabled)
  {
    ModeOperation* undoOp = new ModeOperation(OpMODECHANGE, this->GetMode());
    OperationEvent *operationEvent = new OperationEvent(this, doOp, undoOp);
    m_UndoController->SetOperationEvent(operationEvent);
  }
  this->ExecuteOperation(doOp);
}

virtual void mitk::Interactor::DataChanged ( ) [inline, virtual]

Method to call if the associated data has changed by the user (loading of data) This method is called by DataNode::SetData() to tell the interactor to reinitialize. This method should be overwritten by specialized interactors. (e.g. PointSetInteractor: go to the right state according to number of loaded points) Note: It will not be called when the data gets modified (e.g. adding / removing points to a PointSet)

Reimplemented in mitk::PointSetInteractor.

Definition at line 105 of file mitkInteractor.h.

{};

void mitk::Interactor::ExecuteOperation ( Operation * operation ) [protected, virtual]

adds handling of operations used for mode change. Unrecognized Operations are send to Superclass.

Reimplemented from mitk::StateMachine.

Definition at line 210 of file mitkInteractor.cpp.

References mitk::ModeOperation::GetMode(), mitk::Operation::GetOperationType(), and mitk::OpMODECHANGE.

{
  switch (operation->GetOperationType())
  {
  case OpMODECHANGE:
    {
      ModeOperation *modeOp = dynamic_cast<ModeOperation*>(operation);
      if (modeOp)
      {
        m_Mode = modeOp->GetMode();
      }
    }
    break;
  default:
    Superclass::ExecuteOperation(operation);
  }
}

virtual const char* mitk::Interactor::GetClassName ( ) const [virtual]

Reimplemented from mitk::StateMachine.

Reimplemented in mitk::AffineInteractor, mitk::MouseMovePointSetInteractor, mitk::MoveSurfaceInteractor, mitk::PointSetInteractor, mitk::AffineInteractor3D, mitk::ConnectPointsInteractor, mitk::ContourInteractor, mitk::DisplayPointSetInteractor, mitk::ExtrudedContourInteractor, mitk::PointInteractor, mitk::PointSelectorInteractor, mitk::SeedsInteractor, mitk::SurfaceDeformationInteractor3D, mitk::SurfaceInteractor, and mitk::PlanarFigureInteractor.

mitk::BaseData * mitk::Interactor::GetData ( ) const [protected]

convenience method for accessing the data contained in the node to which this interactor is associated to

Definition at line 54 of file mitkInteractor.cpp.

{
  if (m_DataNode != NULL)
    return m_DataNode->GetData();
  else
    return NULL;
}

mitk::Interactor::SMMode mitk::Interactor::GetMode ( ) const

Get the Mode of the Interactor. Use enum SMMode for return parameter.

Definition at line 62 of file mitkInteractor.cpp.

Referenced by mitk::GlobalInteraction::AddInteractor().

{
  return m_Mode;
}

const std::string & mitk::Interactor::GetXMLNodeName ( ) const [protected, virtual]

Definition at line 228 of file mitkInteractor.cpp.

{
  return XML_NODE_NAME;
}

bool mitk::Interactor::HandleEvent ( StateEvent const * stateEvent ) [virtual]

Updates the current TimeStep according to the associated data and calls Superclass::HandleEvent()

Reimplemented from mitk::StateMachine.

Definition at line 275 of file mitkInteractor.cpp.

References mitk::StateEvent::GetEvent(), and mitk::BaseRenderer::GetTimeStep().

{
  //update the Time and then call Superclass
  if (stateEvent != NULL)
  {
    mitk::Event const* event = stateEvent->GetEvent();
    if (event != NULL)
    {
      mitk::BaseRenderer* sender = event->GetSender();
      if (sender != NULL)
      {
        //Get the TimeStep according to CurrentWorldGeometry2D
        unsigned int currentTimeStep = sender->GetTimeStep();
        if (currentTimeStep != m_TimeStep)
          this->UpdateTimeStep(currentTimeStep);
      }
    }
  }
  return Superclass::HandleEvent(stateEvent);
}

bool mitk::Interactor::IsNotSelected ( ) const

Check the interaction mode.

Definition at line 67 of file mitkInteractor.cpp.

{
  return (m_Mode==SMDESELECTED);
}

bool mitk::Interactor::IsSelected ( ) const

Check the interaction mode.

Definition at line 72 of file mitkInteractor.cpp.

{
  return (m_Mode!=SMDESELECTED);
}

static Pointer mitk::Interactor::New	(	const char *	_arga,
		DataNode *	_argb
	)		`[inline, static]`

NewMacro with two parameters for calling itk::Lightobject::New(..) method.

Reimplemented in mitk::AffineInteractor, mitk::MouseMovePointSetInteractor, mitk::MoveSurfaceInteractor, mitk::PointSetInteractor, mitk::AffineInteractor3D, mitk::ConnectPointsInteractor, mitk::ContourInteractor, mitk::DisplayPointSetInteractor, mitk::ExtrudedContourInteractor, mitk::PointInteractor, mitk::PointSelectorInteractor, mitk::SeedsInteractor, mitk::SurfaceDeformationInteractor3D, mitk::SurfaceInteractor, and mitk::PlanarFigureInteractor.

Definition at line 58 of file mitkInteractor.h.

Referenced by mitkInteractorTest().

bool mitk::Interactor::OnModeDeselect	(	Action *	action,
		StateEvent const *
	)		`[protected]`

Definition at line 89 of file mitkInteractor.cpp.

References mitk::GlobalInteraction::GetInstance(), and mitk::GlobalInteraction::RemoveFromSelectedInteractors().

Referenced by Interactor().

{
  GlobalInteraction* global = GlobalInteraction::GetInstance();
  if (global == NULL)
    itkWarningMacro("Message from Interactor.cpp: GlobalInteraction == NULL! Check use of Interactor!");

  if( this->GetMode() !=  SMDESELECTED)
  {
    this->CreateModeOperation(SMDESELECTED);
    global->RemoveFromSelectedInteractors(this);
  }
  return true;
}

bool mitk::Interactor::OnModeSelect	(	Action *	action,
		StateEvent const *
	)		`[protected]`

Definition at line 103 of file mitkInteractor.cpp.

References mitk::GlobalInteraction::AddToSelectedInteractors(), and mitk::GlobalInteraction::GetInstance().

Referenced by Interactor().

{
  GlobalInteraction* global = GlobalInteraction::GetInstance();
  if (global == NULL)
    itkWarningMacro("Message from Interactor.cpp: GlobalInteraction == NULL! Check use of Interactor!");

  if( this->GetMode() !=  SMSELECTED)
  {
    this->CreateModeOperation(SMSELECTED);
    global->AddToSelectedInteractors(this);
  }
  return true;
}

bool mitk::Interactor::OnModeSubSelect	(	Action *	action,
		StateEvent const *
	)		`[protected]`

Definition at line 117 of file mitkInteractor.cpp.

Referenced by Interactor().

{
  //StatusBar::GetInstance()->DisplayText("Error! in XML-Interaction: an simple Interactor can not set in sub selected", 1102);
  return false;
}

void mitk::Interactor::SetDataNode ( DataNode * dataNode ) [protected, virtual]

Used by friend class DataNode.

Definition at line 233 of file mitkInteractor.cpp.

References mitk::DataNode::GetData(), and mitk::BaseData::GetTimeSteps().

Referenced by mitk::DataNode::SetInteractor().

{
  m_DataNode = dataNode;

  //check for the number of time steps and initialize the vector of CurrentStatePointer accordingly
  if (m_DataNode != NULL)
  {
    mitk::BaseData* data = dataNode->GetData();
    if (data != NULL)
    {
      unsigned int timeSteps = data->GetTimeSteps();
      //expand the list of StartStates according to the number of timesteps in data
      if (timeSteps > 1)
        this->InitializeStartStates(timeSteps);
    }
  }
}

void mitk::Interactor::UpdateTimeStep ( unsigned int timeStep ) [protected, virtual]

Derived from superclass to also check if enough timesteps are instantiated in m_CurrentStateVector The number of timesteps is read from the dedicated data.

Parameters:

[in] timeStep The timeStep that the statemachine has to be set to

Reimplemented from mitk::StateMachine.

Definition at line 251 of file mitkInteractor.cpp.

{
  //check if the vector of StartStates contains enough pointers to use timeStep
  if (timeStep >= 1)
  {
    // Make sure that the data (if time-resolved) has enough entries;
    // if not, create the required extra ones (empty)
    if (m_DataNode!= NULL)
      if (m_DataNode->GetData()!= NULL)
        m_DataNode->GetData()->Expand(timeStep+1); //+1 becuase the vector starts with 0 and the timesteps with 1

    //now check for this object
    this->ExpandStartStateVector(timeStep+1); //nothing is changed if the number of timesteps in data equals the number of startstates held in statemachine
  }

  //set the time to the given time
  Superclass::UpdateTimeStep(timeStep);

  //time has to be up-to-date
  //check and throw an exception if not so
  if (timeStep != m_TimeStep)
    itkExceptionMacro(<<"Time is invalid. Take care of synchonization!");
}

Friends And Related Function Documentation

friend class DataNode [friend]

Definition at line 165 of file mitkInteractor.h.

Member Data Documentation

DataNode* mitk::Interactor::m_DataNode [protected]

Pointer to the data, this object handles the Interaction for.

Definition at line 159 of file mitkInteractor.h.

Referenced by mitk::ContourInteractor::ContourInteractor(), mitk::ExtrudedContourInteractor::ExtrudedContourInteractor(), and Interactor().

ModeType mitk::Interactor::m_Mode [protected]

Mode of Selection.

Definition at line 163 of file mitkInteractor.h.

const std::string mitk::Interactor::XML_NODE_NAME = "interactor" [static]

Definition at line 105 of file mitkInteractor.h.

The documentation for this class was generated from the following files:

mitk::Interactor Class Reference [Interaction Classes]

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

mitk::Interactor Class Reference
[Interaction Classes]
