mitk::ContourInteractor Class Reference [Interaction Classes]

Interactor for the creation of an mitk::Contour. More...

#include <mitkContourInteractor.h>

Inheritance diagram for mitk::ContourInteractor:

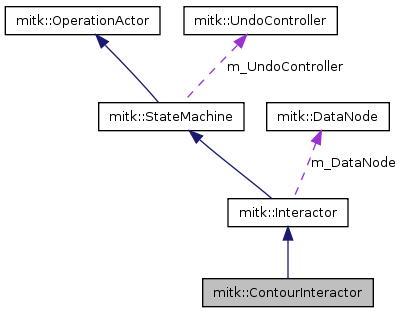

Collaboration diagram for mitk::ContourInteractor:

List of all members.

Public Types
typedef ContourInteractor	Self
typedef Interactor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Static Public Member Functions
static Pointer	New (const char *_arga, DataNode *_argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	ContourInteractor (const char *type, DataNode *dataNode)
virtual	~ContourInteractor ()
virtual bool	ExecuteAction (Action *action, mitk::StateEvent const *stateEvent)
	Method called in HandleEvent after Statechange.
virtual void	Press (mitk::Point3D &op)
virtual void	Release (mitk::Point3D &op)
virtual void	Move (mitk::Point3D &op)
Protected Attributes
bool	m_Positive
bool	m_Started

---

Detailed Description

Interactor for the creation of an mitk::Contour.

Definition at line 31 of file mitkContourInteractor.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ContourInteractor::ConstPointer

Reimplemented from mitk::Interactor.

Definition at line 34 of file mitkContourInteractor.h.

typedef itk::SmartPointer<Self> mitk::ContourInteractor::Pointer

Reimplemented from mitk::Interactor.

Definition at line 34 of file mitkContourInteractor.h.

typedef ContourInteractor mitk::ContourInteractor::Self

Reimplemented from mitk::Interactor.

Definition at line 34 of file mitkContourInteractor.h.

typedef Interactor mitk::ContourInteractor::Superclass

Reimplemented from mitk::Interactor.

Definition at line 34 of file mitkContourInteractor.h.

---

Constructor & Destructor Documentation

mitk::ContourInteractor::ContourInteractor	(	const char *	type,
		mitk::DataNode *	dataNode
	)		[protected]

Definition at line 36 of file mitkContourInteractor.cpp.

References mitk::Interactor::m_DataNode, m_Started, mitk::FloatProperty::New(), mitk::StringProperty::New(), mitk::IntProperty::New(), mitk::DataNode::SetColor(), mitk::DataNode::SetOpacity(), and mitk::DataNode::SetProperty().

  : mitk::Interactor(type, dataNode), m_Started(false)
{
  assert(m_DataNode != NULL);

  m_DataNode->SetProperty("layer", mitk::IntProperty::New(100) );
  m_DataNode->SetProperty("name", mitk::StringProperty::New("InteractiveFeedbackData") );
  m_DataNode->SetOpacity(1);
  m_DataNode->SetColor(0.4,0.9,0.0);
  m_DataNode->SetProperty( "Width", mitk::FloatProperty::New(2.0) );
  m_Started = false;
}

mitk::ContourInteractor::~ContourInteractor

(

)

[protected, virtual]

Definition at line 49 of file mitkContourInteractor.cpp.

{

}

---

Member Function Documentation

bool mitk::ContourInteractor::ExecuteAction	(	mitk::Action *	action,
		mitk::StateEvent const *	stateEvent
	)		[protected, virtual]

Method called in HandleEvent after Statechange.

look up which object method is associated to the given action and call the method

Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent

Reimplemented from mitk::StateMachine.

Definition at line 82 of file mitkContourInteractor.cpp.

References mitk::AcFINISHMOVEMENT, mitk::AcINITMOVEMENT, mitk::AcMOVEPOINT, mitk::AcNEWPOINT, mitk::Action::GetActionId(), mitk::DisplayPositionEvent::GetDisplayPosition(), mitk::StateEvent::GetEvent(), mitk::Event::GetSender(), mitk::BaseRenderer::GetVtkRenderer(), and mitk::DisplayPositionEvent::GetWorldPosition().

{
  mitk::Point3D eventPoint;

  const mitk::PositionEvent* posEvent = dynamic_cast<const mitk::PositionEvent*>(stateEvent->GetEvent());

  if(posEvent==NULL)
  {
    const mitk::DisplayPositionEvent* displayPosEvent = dynamic_cast<const mitk::DisplayPositionEvent*>(stateEvent->GetEvent());
    mitk::VtkPropRenderer* sender = (mitk::VtkPropRenderer*) stateEvent->GetEvent()->GetSender();

    if((displayPosEvent == NULL) || (sender == NULL))
      return false;

    eventPoint[0] = displayPosEvent->GetDisplayPosition()[0];
    eventPoint[1] = displayPosEvent->GetDisplayPosition()[1];
    eventPoint[2] = 0;

#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
  typedef itk::Point<double,3> DoublePoint3D;
  DoublePoint3D p;
  p.CastFrom(eventPoint);
  sender->GetVtkRenderer()->SetDisplayPoint(p.GetDataPointer());
#else
    sender->GetVtkRenderer()->SetDisplayPoint(eventPoint.GetDataPointer());
#endif

    sender->GetVtkRenderer()->DisplayToWorld();
    vtkFloatingPointType *vtkwp = sender->GetVtkRenderer()->GetWorldPoint();
    vtk2itk(vtkwp, eventPoint);
  }
  else
  {
    eventPoint = posEvent->GetWorldPosition();
  }


  bool ok = false;
  switch (action->GetActionId())
  {
  case mitk::AcNEWPOINT:
    {
      Press(eventPoint);
      ok = true;
      m_Started = true;
      break;
    }
  case mitk::AcINITMOVEMENT:
    {
      if (m_Started)
      {
        Move(eventPoint);
        ok = true;
        break;
      }
    }
  case mitk::AcMOVEPOINT:
    {
      if (m_Started)
      {
        Move(eventPoint);
        ok = true;
        break;
      }
    }
  case mitk::AcFINISHMOVEMENT:
    {
      if (m_Started)
      {
        Release(eventPoint);
        ok = true;
        m_Started = false;
      }
      break;
    }
  default:
    ok = false;
    break;
  }
  return ok;
}

virtual const char* mitk::ContourInteractor::GetClassName

(

)

const [virtual]

Reimplemented from mitk::Interactor.

void mitk::ContourInteractor::Move

(

mitk::Point3D &

op )

[protected, virtual]

method is called when the user moves the mouse with left mouse button down

Definition at line 176 of file mitkContourInteractor.cpp.

References mitk::Contour::AddVertex().

{
  mitk::Contour* contour = dynamic_cast<mitk::Contour*>(m_DataNode->GetData());
  assert(contour!=NULL);

  contour->AddVertex( point );
//  m_Parent->UpdateWidgets();
}

static Pointer mitk::ContourInteractor::New	(	const char *	_arga,
		DataNode *	_argb
	)		[inline, static]

NewMacro with two parameters for calling itk::Lightobject::New(..) method.

Reimplemented from mitk::Interactor.

Definition at line 35 of file mitkContourInteractor.h.

Referenced by mitkDataNodeExtTestClass::TestInteractorSetting().

:
    ContourInteractor(const char * type, DataNode* dataNode);

void mitk::ContourInteractor::Press

(

mitk::Point3D &

op )

[protected, virtual]

entry method for any interaction. Method is called if user presses the left mouse button down.

Definition at line 164 of file mitkContourInteractor.cpp.

References mitk::Contour::AddVertex(), and mitk::Contour::Initialize().

{
  mitk::Contour* contour = dynamic_cast<mitk::Contour*>(m_DataNode->GetData());
  assert(contour!=NULL);

  if (!m_Positive)
    m_DataNode->SetColor(1.0,0.0,0.0);

  contour->Initialize();
  contour->AddVertex( point );
}

void mitk::ContourInteractor::Release

(

mitk::Point3D &

op )

[protected, virtual]

this method is finally called after user release the left mouse button

Definition at line 185 of file mitkContourInteractor.cpp.

{
//vermutlich  m_Parent->UpdateWidgets();
}

---

Member Data Documentation

bool mitk::ContourInteractor::m_Positive [protected]

Definition at line 61 of file mitkContourInteractor.h.

bool mitk::ContourInteractor::m_Started [protected]

Definition at line 62 of file mitkContourInteractor.h.

Referenced by ContourInteractor().

---

The documentation for this class was generated from the following files:

• mitkContourInteractor.h
• mitkContourInteractor.cpp
