mitk::SurfaceInteractor Class Reference [Interaction Classes]

Interactor for Affine transformations on one or multiple surfaces. More...

#include <mitkSurfaceInteractor.h>

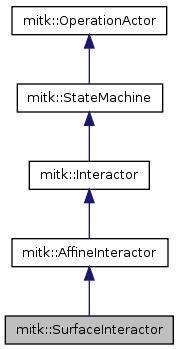

Inheritance diagram for mitk::SurfaceInteractor:

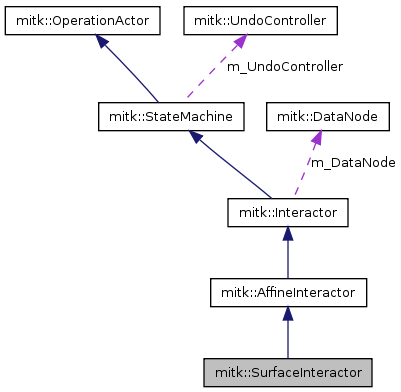

Collaboration diagram for mitk::SurfaceInteractor:

List of all members.

Public Types
typedef SurfaceInteractor	Self
typedef AffineInteractor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Static Public Member Functions
static Pointer	New (const char *_arga, DataNode *_argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	SurfaceInteractor (const char *type, DataNode *dataNode)
	Constructor.
	~SurfaceInteractor ()
	Destructor.
virtual float	CanHandleEvent (StateEvent const *stateEvent) const
	calculates how good the data this state machine handles is hit by the event.

---

Detailed Description

Interactor for Affine transformations on one or multiple surfaces.

A surface interacted by this class can translate, rotate and scale by modifying its geometry. The surface closest to the picking point is chosen for interaction automatically by CanHandleEvent

Definition at line 35 of file mitkSurfaceInteractor.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SurfaceInteractor::ConstPointer

Reimplemented from mitk::AffineInteractor.

Definition at line 38 of file mitkSurfaceInteractor.h.

typedef itk::SmartPointer<Self> mitk::SurfaceInteractor::Pointer

Reimplemented from mitk::AffineInteractor.

Definition at line 38 of file mitkSurfaceInteractor.h.

typedef SurfaceInteractor mitk::SurfaceInteractor::Self

Reimplemented from mitk::AffineInteractor.

Definition at line 38 of file mitkSurfaceInteractor.h.

typedef AffineInteractor mitk::SurfaceInteractor::Superclass

Reimplemented from mitk::AffineInteractor.

Definition at line 38 of file mitkSurfaceInteractor.h.

---

Constructor & Destructor Documentation

mitk::SurfaceInteractor::SurfaceInteractor	(	const char *	type,
		DataNode *	dataNode
	)		[protected]

Constructor.

Parameters:

dataNode	is the node, this Interactor is connected to
type	is the type of StateMachine like declared in the XML-Configure-File

Definition at line 29 of file mitkSurfaceInteractor.cpp.

References mitk::PointLocator::New().

: AffineInteractor(type, dataNode)
{
  m_PtLoc = PLocType::New();
}

mitk::SurfaceInteractor::~SurfaceInteractor

(

)

[inline, protected]

Destructor.

Definition at line 53 of file mitkSurfaceInteractor.h.

{};

---

Member Function Documentation

float mitk::SurfaceInteractor::CanHandleEvent

(

StateEvent const *

stateEvent )

const [protected, virtual]

calculates how good the data this state machine handles is hit by the event.

Returns a value between 0 and 1. (Used by GlobalInteraction to decide which DESELECTED state machine to send the event to.)

This is interactor currently does not work for interaction in 3D. Try using mitkAffineInteractor3D instead.

Reimplemented from mitk::AffineInteractor.

Definition at line 36 of file mitkSurfaceInteractor.cpp.

References mitk::BS_ControlButton, mitk::DataStorage::ComputeBoundingBox(), mitk::Event::GetButtonState(), mitk::BaseRenderer::GetDataStorage(), mitk::StateEvent::GetEvent(), mitk::BaseRenderer::GetMapperID(), mitk::Event::GetSender(), mitk::Event::GetType(), mitk::Surface::GetVtkPolyData(), mitk::DisplayPositionEvent::GetWorldPosition(), QuadProgPP::sqrt(), mitk::BaseRenderer::Standard3D, and mitk::Type_MouseButtonPress.

{
  float jd = 0.0f;

  if( ! ( stateEvent->GetEvent()->GetButtonState() == mitk::BS_ControlButton && stateEvent->GetEvent()->GetType() == mitk::Type_MouseButtonPress ))
    return jd;

  if ( stateEvent->GetEvent()->GetSender()->GetMapperID() == mitk::BaseRenderer::Standard3D )
    return jd;

  mitk::Surface* surf = dynamic_cast<mitk::Surface*>(this->GetData());
  if (surf)
  {
    mitk::DisplayPositionEvent const *event = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
    mitk::PointSet::PointType pt = event->GetWorldPosition();

    // Use ANN to get the point of the polydata closest to the world event
    if( surf->GetVtkPolyData(m_TimeStep) == NULL ) itkExceptionMacro(<< "No polydata at this time step!");
    m_PtLoc->SetPoints(dynamic_cast<vtkPointSet*>(surf->GetVtkPolyData(m_TimeStep)));
    mitk::PointLocator::DistanceType dst = m_PtLoc->GetMinimalDistance(pt);

    mitk::BaseRenderer* ren = stateEvent->GetEvent()->GetSender();

    // Get the diameter of the render window bounding box
    mitk::DataStorage* storage = ren->GetDataStorage();
    mitk::BoundingBox::Pointer bb = storage->ComputeBoundingBox();
    mitk::BoundingBox::AccumulateType dia = std::sqrt(bb->GetDiagonalLength2());

    if (dia > 0.00001) //if diameter not zero
    {
      float verh = dst/dia;
      if (verh>1) verh = 1; //if dst is bigger than dia, then set to 1
      //now inverse (0 = bad and 1 = good) and set between 0.5 and 1
      jd = ((1-verh)/2)+0.5f;
    }
  }
  return jd;
}

virtual const char* mitk::SurfaceInteractor::GetClassName

(

)

const [virtual]

Reimplemented from mitk::AffineInteractor.

static Pointer mitk::SurfaceInteractor::New	(	const char *	_arga,
		DataNode *	_argb
	)		[inline, static]

NewMacro with two parameters for calling itk::Lightobject::New(..) method.

Reimplemented from mitk::AffineInteractor.

Definition at line 40 of file mitkSurfaceInteractor.h.

:

---

The documentation for this class was generated from the following files:

• mitkSurfaceInteractor.h
• mitkSurfaceInteractor.cpp
