Interactor for Affine transformations translate, rotate and scale. More...
#include <mitkAffineInteractor.h>

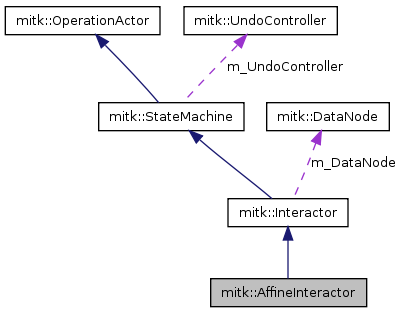

Public Types | |
| typedef AffineInteractor | Self |
| typedef Interactor | Superclass |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer < const Self > | ConstPointer |
Public Member Functions | |
| virtual const char * | GetClassName () const |
Static Public Member Functions | |
| static Pointer | New (const char *_arga, DataNode *_argb) |
| NewMacro with two parameters for calling itk::Lightobject::New(..) method. | |
Protected Member Functions | |
| AffineInteractor (const char *type, DataNode *dataNode) | |
| Constructor. | |
| ~AffineInteractor () | |
| Destructor. | |
| virtual bool | ExecuteAction (Action *action, mitk::StateEvent const *stateEvent) |
| Method called in HandleEvent after Statechange. | |
| virtual float | CanHandleEvent (StateEvent const *stateEvent) const |
| calculates how good the data this state machine handles is hit by the event. | |
| bool | CheckSelected (const mitk::Point3D &worldPoint, int timestep) |
| bool | ConvertDisplayEventToWorldPosition (mitk::DisplayPositionEvent const *displayEvent, mitk::Point3D &worldPoint) |
Protected Attributes | |
| mitk::Point3D | m_LastMousePosition |
Interactor for Affine transformations translate, rotate and scale.
An object of this class can translate, rotate and scale the data objects by modifying its geometry.
Definition at line 35 of file mitkAffineInteractor.h.
| typedef itk::SmartPointer<const Self> mitk::AffineInteractor::ConstPointer |
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 38 of file mitkAffineInteractor.h.
| typedef itk::SmartPointer<Self> mitk::AffineInteractor::Pointer |
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 38 of file mitkAffineInteractor.h.
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 38 of file mitkAffineInteractor.h.
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 38 of file mitkAffineInteractor.h.
| mitk::AffineInteractor::AffineInteractor | ( | const char * | type, |
| DataNode * | dataNode | ||
| ) | [protected] |
Constructor.
| dataNode | is the node, this Interactor is connected to |
| type | is the type of StateMachine like declared in the XML-Configure-File |
Definition at line 56 of file mitkAffineInteractor.cpp.
: Interactor(type, dataNode) { }
| mitk::AffineInteractor::~AffineInteractor | ( | ) | [inline, protected] |
| float mitk::AffineInteractor::CanHandleEvent | ( | StateEvent const * | stateEvent ) | const [protected, virtual] |
calculates how good the data this state machine handles is hit by the event.
Returns a value between 0 and 1. (Used by GlobalInteraction to decide which DESELECTED state machine to send the event to.)
This is interactor currently does not work for interaction in 3D. Try using mitkAffineInteractor3D instead.
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 356 of file mitkAffineInteractor.cpp.
References mitk::StateEvent::GetEvent(), mitk::BaseRenderer::GetMapperID(), mitk::Event::GetSender(), MITK_DEBUG, and mitk::BaseRenderer::Standard3D.
{
float jd = 0.0f;
if ( stateEvent->GetEvent()->GetSender()->GetMapperID() == mitk::BaseRenderer::Standard3D )
{
MITK_DEBUG << "Sorry, mitkAffineInteractor does not support interaction in a 3D view at the moment.";
return jd;
}
return Superclass::CanHandleEvent( stateEvent );
}
| bool mitk::AffineInteractor::CheckSelected | ( | const mitk::Point3D & | worldPoint, |
| int | timestep | ||
| ) | [protected] |
Definition at line 287 of file mitkAffineInteractor.cpp.
References mitk::Geometry3D::IsInside(), and mitk::BoolProperty::New().
{
bool selected = false;
if (m_DataNode->GetBoolProperty("selected", selected) == false) // if property does not exist
m_DataNode->SetProperty("selected", mitk::BoolProperty::New(false)); // create it
// check if mouseclick has hit the object
/*
mitk::BoundingObject::Pointer boundingObject = dynamic_cast<mitk::BoundingObject*>(m_DataNode->GetData());
if(boundingObject.IsNotNull()) // if it is a bounding object, use its inside function for exact hit calculation
{
selected = boundingObject->IsInside(worldPoint); // check if point is inside the object
}
else // use the data objects bounding box to determine if hit
*/
{
const Geometry3D* geometry = GetData()->GetUpdatedTimeSlicedGeometry()->GetGeometry3D( timestep );
selected = geometry->IsInside(worldPoint);
}
return selected;
}
| bool mitk::AffineInteractor::ConvertDisplayEventToWorldPosition | ( | mitk::DisplayPositionEvent const * | displayEvent, |
| mitk::Point3D & | worldPoint | ||
| ) | [protected] |
Definition at line 309 of file mitkAffineInteractor.cpp.
References mitk::DisplayPositionEvent::GetDisplayPosition(), mitk::GlobalInteraction::GetFocus(), mitk::GlobalInteraction::GetInstance(), and mitk::BaseRenderer::GetVtkRenderer().
{
mitk::Point2D displayPoint = displayEvent->GetDisplayPosition();
/* Copied from vtk Sphere widget */
double focalPoint[4], position[4];
double z;
FocusManager::FocusElement* fe = mitk::GlobalInteraction::GetInstance()->GetFocus();
mitk::VtkPropRenderer* glRenderer = dynamic_cast<mitk::VtkPropRenderer*>( fe );
if ( glRenderer == NULL )
{
return false;
}
vtkRenderer *renderer = glRenderer->GetVtkRenderer();
vtkCamera *camera = renderer->GetActiveCamera();
if ( !camera )
{
return false;
}
// Compute the two points defining the motion vector
camera->GetFocalPoint(focalPoint);
//this->ComputeWorldToDisplay(focalPoint[0], focalPoint[1], focalPoint[2], focalPoint);
renderer->SetWorldPoint(focalPoint[0], focalPoint[1], focalPoint[2], 1.0);
renderer->WorldToDisplay();
renderer->GetDisplayPoint(focalPoint);
z = focalPoint[2];
// this->ComputeDisplayToWorld(displayPoint.x, displayPoint.y, z, position);
renderer->SetDisplayPoint(displayPoint[0], displayPoint[1], z);
renderer->DisplayToWorld();
renderer->GetWorldPoint(position);
if (position[3])
{
worldPoint[0] = position[0] / position[3];
worldPoint[1] = position[1] / position[3];
worldPoint[2] = position[2] / position[3];
position[3] = 1.0;
}
else
{
worldPoint[0] = position[0];
worldPoint[1] = position[1];
worldPoint[2] = position[2];
}
return true;
}
| bool mitk::AffineInteractor::ExecuteAction | ( | Action * | action, |
| mitk::StateEvent const * | stateEvent | ||
| ) | [protected, virtual] |
Method called in HandleEvent after Statechange.
look up which object method is associated to the given action and call the method
Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent
Reimplemented from mitk::StateMachine.
Definition at line 61 of file mitkAffineInteractor.cpp.
References mitk::AcADD, mitk::AcCHECKELEMENT, mitk::AcROTATE, mitk::AcROTATEEND, mitk::AcROTATESTART, mitk::AcSCALE, mitk::AcSCALEEND, mitk::AcSCALESTART, mitk::AcTRANSLATE, mitk::AcTRANSLATEEND, mitk::AcTRANSLATESTART, mitk::EIDNO, mitk::EIDYES, mitk::Geometry3D::ExecuteOperation(), mitk::Action::GetActionId(), mitk::Geometry3D::GetAxisVector(), mitk::Geometry3D::GetCenter(), mitk::Geometry3D::GetCornerPoint(), mitk::StateEvent::GetEvent(), mitk::Geometry3D::GetExtentInMM(), mitk::TimeSlicedGeometry::GetGeometry3D(), mitk::RenderingManager::GetInstance(), mitk::Geometry3D::GetVtkTransform(), mitk::ColorProperty::New(), mitk::BoolProperty::New(), mitk::OpMOVE, mitk::OpROTATE, mitk::OpSCALE, and mitk::RenderingManager::RequestUpdateAll().
{
bool ok = false;
TimeSlicedGeometry* inputtimegeometry = GetData()->GetTimeSlicedGeometry();
if (inputtimegeometry == NULL)
return false;
Geometry3D* geometry = inputtimegeometry->GetGeometry3D(m_TimeStep);
mitk::DisplayPositionEvent const *event = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
switch (action->GetActionId())
{
case AcCHECKELEMENT:
{
mitk::Point3D worldPoint = event->GetWorldPosition();
/* now we have a worldpoint. check if it is inside our object and select/deselect it accordingly */
mitk::BoolProperty::Pointer selected;
mitk::ColorProperty::Pointer color;
mitk::StateEvent* newStateEvent = NULL;
selected = dynamic_cast<mitk::BoolProperty*>(m_DataNode->GetProperty("selected"));
if ( selected.IsNull() ) {
selected = mitk::BoolProperty::New();
m_DataNode->GetPropertyList()->SetProperty("selected", selected);
}
color = dynamic_cast<mitk::ColorProperty*>(m_DataNode->GetProperty("color"));
if ( color.IsNull() ) {
color = mitk::ColorProperty::New();
m_DataNode->GetPropertyList()->SetProperty("color", color);
}
if (this->CheckSelected(worldPoint, m_TimeStep))
{
newStateEvent = new mitk::StateEvent(EIDYES, stateEvent->GetEvent());
selected->SetValue(true);
color->SetColor(1.0, 1.0, 0.0);
}
else
{
newStateEvent = new mitk::StateEvent(EIDNO, stateEvent->GetEvent());
selected = mitk::BoolProperty::New(false);
color->SetColor(0.0, 0.0, 1.0);
/*
mitk::BoundingObject* b = dynamic_cast<mitk::BoundingObject*>(m_DataNode->GetData());
if(b != NULL)
{
color = (b->GetPositive())? mitk::ColorProperty::New(0.0, 0.0, 1.0) : mitk::ColorProperty::New(1.0, 0.0, 0.0); // if deselected, a boundingobject is colored according to its positive/negative state
}
else
color = mitk::ColorProperty::New(1.0, 1.0, 1.0); // if deselcted and no bounding object, color is white
*/
}
/* write new state (selected/not selected) to the property */
this->HandleEvent( newStateEvent );
ok = true;
break;
}
case AcADD:
{
mitk::Point3D worldPoint = event->GetWorldPosition();
mitk::StateEvent* newStateEvent = NULL;
if (this->CheckSelected(worldPoint, m_TimeStep))
{
newStateEvent = new mitk::StateEvent(EIDYES, event);
m_DataNode->GetPropertyList()->SetProperty("selected", mitk::BoolProperty::New(true)); // TODO: Generate an Select Operation and send it to the undo controller ?
}
else // if not selected, do nothing (don't deselect)
{
newStateEvent = new mitk::StateEvent(EIDNO, event);
}
//call HandleEvent to leave the guard-state
this->HandleEvent( newStateEvent );
ok = true;
break;
}
case AcTRANSLATESTART:
case AcROTATESTART:
case AcSCALESTART:
{
m_LastMousePosition = event->GetWorldPosition();
ok = true;
break;
}
case AcTRANSLATE:
{
mitk::Point3D newPosition;
newPosition = event->GetWorldPosition();
newPosition -= m_LastMousePosition.GetVectorFromOrigin(); // compute difference between actual and last mouse position
m_LastMousePosition = event->GetWorldPosition(); // save current mouse position as last position
/* create operation with position difference */
mitk::PointOperation* doOp = new mitk::PointOperation(OpMOVE, newPosition, 0); // Index is not used here
if (m_UndoEnabled) //write to UndoMechanism
{
mitk::Point3D oldPosition=geometry->GetCornerPoint(0);
PointOperation* undoOp = new mitk::PointOperation(OpMOVE, oldPosition, 0);
OperationEvent *operationEvent = new OperationEvent(geometry, doOp, undoOp);
m_UndoController->SetOperationEvent(operationEvent);
}
/* execute the Operation */
geometry->ExecuteOperation(doOp);
ok = true;
break;
}
case AcTRANSLATEEND:
{
m_UndoController->SetOperationEvent(new UndoStackItem("Move object"));
break;
}
case AcROTATE:
{
mitk::Point3D p = event->GetWorldPosition();
mitk::Vector3D newPosition = p.GetVectorFromOrigin();
mitk::Point3D dataPosition = geometry->GetCenter();
newPosition = newPosition - dataPosition.GetVectorFromOrigin(); // calculate vector from center of the data object to the current mouse position
mitk::Vector3D startPosition = m_LastMousePosition.GetVectorFromOrigin() - dataPosition.GetVectorFromOrigin(); // calculate vector from center of the data object to the last mouse position
/* calculate rotation axis (by calculating the cross produkt of the vectors) */
mitk::Vector3D rotationaxis;
rotationaxis[0] = startPosition[1] * newPosition[2] - startPosition[2] * newPosition[1];
rotationaxis[1] = startPosition[2] * newPosition[0] - startPosition[0] * newPosition[2];
rotationaxis[2] = startPosition[0] * newPosition[1] - startPosition[1] * newPosition[0];
/* calculate rotation angle in degrees */
mitk::ScalarType angle = atan2((mitk::ScalarType)rotationaxis.GetNorm(), (mitk::ScalarType) (newPosition * startPosition)) * (180/vnl_math::pi);
m_LastMousePosition = p; // save current mouse position as last mouse position
/* create operation with center of rotation, angle and axis and send it to the geometry and Undo controller */
mitk::RotationOperation* doOp = new mitk::RotationOperation(OpROTATE, dataPosition, rotationaxis, angle);
if (m_UndoEnabled) //write to UndoMechanism
{
RotationOperation* undoOp = new mitk::RotationOperation(OpROTATE, dataPosition, rotationaxis, -angle);
OperationEvent *operationEvent = new OperationEvent(geometry, doOp, undoOp);
m_UndoController->SetOperationEvent(operationEvent);
}
/* execute the Operation */
geometry->ExecuteOperation(doOp);
ok = true;
break;
}
case AcROTATEEND:
{
m_UndoController->SetOperationEvent(new UndoStackItem("Rotate object"));
break;
}
case AcSCALE:
{
mitk::Point3D p = event->GetWorldPosition();
mitk::Vector3D v = p - m_LastMousePosition;
/* calculate scale changes */
mitk::Point3D newScale;
newScale[0] = (geometry->GetAxisVector(0) * v) / geometry->GetExtentInMM(0); // Scalarprodukt of normalized Axis
newScale[1] = (geometry->GetAxisVector(1) * v) / geometry->GetExtentInMM(1); // and direction vector of mouse movement
newScale[2] = (geometry->GetAxisVector(2) * v) / geometry->GetExtentInMM(2); // is the length of the movement vectors
// projection onto the axis
/* convert movement to local object coordinate system and mirror it to the positive quadrant */
Vector3D start;
Vector3D end;
mitk::ScalarType convert[3];
itk2vtk(m_LastMousePosition, convert);
geometry->GetVtkTransform()->GetInverse()->TransformPoint(convert, convert); // transform start point to local object coordinates
start[0] = fabs(convert[0]); start[1] = fabs(convert[1]); start[2] = fabs(convert[2]); // mirror it to the positive quadrant
itk2vtk(p, convert);
geometry->GetVtkTransform()->GetInverse()->TransformPoint(convert, convert); // transform end point to local object coordinates
end[0] = fabs(convert[0]); end[1] = fabs(convert[1]); end[2] = fabs(convert[2]); // mirror it to the positive quadrant
/* check if mouse movement is towards or away from the objects axes and adjust scale factors accordingly */
Vector3D vLocal = start - end;
newScale[0] = (vLocal[0] > 0.0) ? -fabs(newScale[0]) : +fabs(newScale[0]);
newScale[1] = (vLocal[1] > 0.0) ? -fabs(newScale[1]) : +fabs(newScale[1]);
newScale[2] = (vLocal[2] > 0.0) ? -fabs(newScale[2]) : +fabs(newScale[2]);
m_LastMousePosition = p; // update lastPosition for next mouse move
/* generate Operation and send it to the receiving geometry */
PointOperation* doOp = new mitk::PointOperation(OpSCALE, newScale, 0); // Index is not used here
if (m_UndoEnabled) //write to UndoMechanism
{
mitk::Point3D oldScaleData;
oldScaleData[0] = -newScale[0];
oldScaleData[1] = -newScale[1];
oldScaleData[2] = -newScale[2];
PointOperation* undoOp = new mitk::PointOperation(OpSCALE, oldScaleData, 0);
OperationEvent *operationEvent = new OperationEvent(geometry, doOp, undoOp);
m_UndoController->SetOperationEvent(operationEvent);
}
/* execute the Operation */
geometry->ExecuteOperation(doOp);
/* Update Volume Property with new value */
/*
mitk::BoundingObject* b = dynamic_cast<mitk::BoundingObject*>(m_DataNode->GetData());
if (b != NULL)
{
m_DataNode->GetPropertyList()->SetProperty("volume", FloatProperty::New(b->GetVolume()));
//MITK_INFO << "Volume of Boundingobject is " << b->GetVolume()/1000.0 << " ml" << std::endl;
}
*/
ok = true;
break;
}
case AcSCALEEND:
{
m_UndoController->SetOperationEvent(new UndoStackItem("Scale object"));
break;
}
default:
ok = Superclass::ExecuteAction(action, stateEvent);//, objectEventId, groupEventId);
}
mitk::RenderingManager::GetInstance()->RequestUpdateAll();
return ok;
}
| virtual const char* mitk::AffineInteractor::GetClassName | ( | ) | const [virtual] |
Reimplemented from mitk::Interactor.

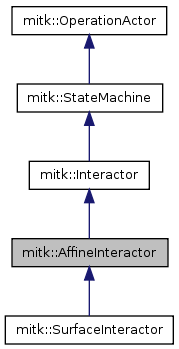

Reimplemented in mitk::SurfaceInteractor.
| static Pointer mitk::AffineInteractor::New | ( | const char * | _arga, |
| DataNode * | _argb | ||
| ) | [inline, static] |
NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Reimplemented from mitk::Interactor.
Reimplemented in mitk::SurfaceInteractor.
Definition at line 40 of file mitkAffineInteractor.h.
Referenced by QmitkImageCropper::CreateBoundingObject(), QmitkBoundingObjectWidget::SelectionChanged(), and mitkDataNodeTestClass::TestInteractorSetting().
:
// AffineInteractor(); //obsolete
mitk::Point3D mitk::AffineInteractor::m_LastMousePosition [protected] |
Definition at line 70 of file mitkAffineInteractor.h.
1.7.2
