Interaction for mitk::Mesh: Connect existing points to lines. More...

#include <mitkConnectPointsInteractor.h>

Inheritance diagram for mitk::ConnectPointsInteractor:

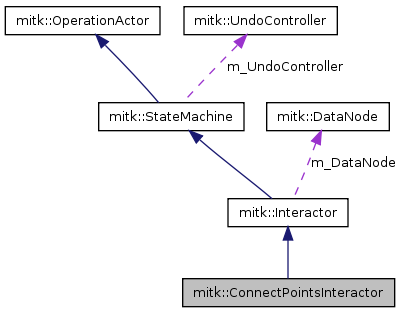

Collaboration diagram for mitk::ConnectPointsInteractor:

Public Types
typedef ConnectPointsInteractor	Self
typedef Interactor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetPrecision (unsigned int precision)
	Sets the amount of precision.
virtual float	CanHandleEvent (StateEvent const *stateEvent) const
	calculates how good the data, this statemachine handles, is hit by the event.
Static Public Member Functions
static Pointer	New (const char _arga, DataNode _argb, int _argc)
static Pointer	New (const char _arga, DataNode _argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	ConnectPointsInteractor (const char type, DataNode dataNode, int n=-1)
	Constructor with Param n for limited Set of Points.
virtual	~ConnectPointsInteractor ()
virtual bool	ExecuteAction (Action action, mitk::StateEvent const stateEvent)
	Method called in HandleEvent after Statechange.
void	UnselectAll ()
	deselects the Points in the PointSet. supports Undo if enabled
void	SelectPoint (int position)
	Selects the point. supports Undo if enabled.

Detailed Description

Interaction for mitk::Mesh: Connect existing points to lines.

Definition at line 33 of file mitkConnectPointsInteractor.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ConnectPointsInteractor::ConstPointer

Reimplemented from mitk::Interactor.

Definition at line 36 of file mitkConnectPointsInteractor.h.

typedef itk::SmartPointer<Self> mitk::ConnectPointsInteractor::Pointer

Reimplemented from mitk::Interactor.

Definition at line 36 of file mitkConnectPointsInteractor.h.

typedef ConnectPointsInteractor mitk::ConnectPointsInteractor::Self

Reimplemented from mitk::Interactor.

Definition at line 36 of file mitkConnectPointsInteractor.h.

typedef Interactor mitk::ConnectPointsInteractor::Superclass

Reimplemented from mitk::Interactor.

Definition at line 36 of file mitkConnectPointsInteractor.h.

Constructor & Destructor Documentation

mitk::ConnectPointsInteractor::ConnectPointsInteractor	(	const char *	type,
		DataNode *	dataNode,
		int	n = `-1`
	)		`[protected]`

Constructor with Param n for limited Set of Points.

if no n is set, then the number of points is unlimited*

Definition at line 35 of file mitkConnectPointsInteractor.cpp.

:Interactor(type, dataNode), m_N(n), m_CurrentCellId(0), m_Precision(PRECISION)
{
  m_LastPoint.Fill(0);
  m_SumVec.Fill(0);
}

mitk::ConnectPointsInteractor::~ConnectPointsInteractor ( ) [protected, virtual]

Definition at line 42 of file mitkConnectPointsInteractor.cpp.

{
}

Member Function Documentation

float mitk::ConnectPointsInteractor::CanHandleEvent ( StateEvent const * stateEvent ) const [virtual]

calculates how good the data, this statemachine handles, is hit by the event.

overwritten, cause we don't look at the boundingbox, we look at each point

overwritten cause this class can handle it better!

Reimplemented from mitk::Interactor.

Definition at line 53 of file mitkConnectPointsInteractor.cpp.

References QuadProgPP::distance(), mitk::StateEvent::GetEvent(), mitk::StateEvent::GetId(), mitk::PointSet::GetPointSet(), mitk::Event::GetType(), mitk::DisplayPositionEvent::GetWorldPosition(), mitk::PointSet::SearchPoint(), and mitk::Type_MouseMove.

{
  float returnValue = 0;

  mitk::PositionEvent const  *posEvent = dynamic_cast <const mitk::PositionEvent *> (stateEvent->GetEvent());
  //checking if a keyevent can be handled:
  if (posEvent == NULL)
  {
    //check, if the current state has a transition waiting for that key event.
    if (this->GetCurrentState()->GetTransition(stateEvent->GetId())!=NULL)
    {
      return 0.5;
    }
    else
    {
      return 0;
    }
  }

  //Mouse event handling:
  //on MouseMove do nothing! reimplement if needed differently
  if (stateEvent->GetEvent()->GetType() == mitk::Type_MouseMove)
  {
    return 0;
  }

  //check on the right data-type
  mitk::PointSet* pointSet = dynamic_cast<mitk::PointSet*>(m_DataNode->GetData());
  if (pointSet == NULL)
    return 0;


  //since we now have 3D picking in GlobalInteraction and all events send are DisplayEvents with 3D information,
  //we concentrate on 3D coordinates
  mitk::Point3D worldPoint = posEvent->GetWorldPosition();
  float p[3];
  itk2vtk(worldPoint, p);
  //transforming the Worldposition to local coordinatesystem
  m_DataNode->GetData()->GetGeometry()->GetVtkTransform()->GetInverse()->TransformPoint(p, p);
  vtk2itk(p, worldPoint);

  float distance = 5;
  int index = pointSet->SearchPoint(worldPoint, distance);
  if (index>-1)
    //how far away is the line from the point?
  {
    //get the point and calculate the jurisdiction out of it.
    mitk::PointSet::PointType point;
    pointSet->GetPointSet()->GetPoint(index, &point);
    returnValue = point.EuclideanDistanceTo(worldPoint);

    //between 1 and 0.     1 if directly hit
    returnValue = 1 - ( returnValue / distance );
    if (returnValue<0 || returnValue>1)
    {
      itkWarningMacro("Difficulties in calculating Jurisdiction. Check PointInteractor");
      return 0;
    }

    //and now between 0,5 and 1
    returnValue = 0.5 + (returnValue / 2);

    return returnValue;
  }
  else //not found
  {
    return 0;
  }
}

bool mitk::ConnectPointsInteractor::ExecuteAction	(	Action *	action,
		mitk::StateEvent const *	stateEvent
	)		`[protected, virtual]`

Method called in HandleEvent after Statechange.

look up which object method is associated to the given action and call the method

Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent

Reimplemented from mitk::StateMachine.

Definition at line 123 of file mitkConnectPointsInteractor.cpp.

References mitk::AcADDPOINT, mitk::AcCHECKELEMENT, mitk::AcCHECKEQUALS1, mitk::AcCHECKNMINUS1, mitk::AcDONOTHING, mitk::AcREMOVEPOINT, mitk::BS_NoButton, mitk::EIDNO, mitk::EIDSTLARGERNMINUS1, mitk::EIDSTSMALERNMINUS1, mitk::EIDYES, mitk::Mesh::ExecuteOperation(), mitk::Action::GetActionId(), mitk::StateEvent::GetEvent(), mitk::Mesh::GetMesh(), mitk::Mesh::GetNewCellId(), mitk::PointSet::GetPoint(), mitk::Event::GetSender(), mitk::PointSet::GetSize(), mitk::DisplayPositionEvent::GetWorldPosition(), int(), mitk::Key_none, mitk::OpADDLINE, mitk::OpDELETECELL, mitk::OpDELETELINE, mitk::OpNEWCELL, mitk::Mesh::SearchFirstCell(), mitk::PointSet::SearchPoint(), and mitk::Type_None.

{
  bool ok = false;//for return type bool

  //checking corresponding Data; has to be a Mesh or a subclass
  mitk::Mesh* mesh = dynamic_cast<mitk::Mesh*>(m_DataNode->GetData());
  if (mesh == NULL)
    return false;

  //for reading on the points, Id's etc
  //mitk::PointSet::DataType *itkpointSet = mesh->GetPointSet();
  //mitk::PointSet::PointsContainer *points = itkpointSet->GetPoints();//Warning Fix: not used!

  /*Each case must watch the type of the event!*/
  switch (action->GetActionId())
  {
  case AcDONOTHING:
    ok = true;
    break;
  case AcADDPOINT:
    {
      mitk::DisplayPositionEvent const  *posEvent = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
      if (posEvent == NULL)
        return false;

      mitk::Point3D worldPoint;
      worldPoint = posEvent->GetWorldPosition();

      int position = mesh->SearchPoint(worldPoint, m_Precision);
      if (position >= 0)//found a point near enough to the given point
      {
        // if the point is the last in current cell, remove it (this has to be moved in a separate action)
        bool deleteLine=false;
        if(mesh->GetMesh()->GetCells()->Size() > 0)
        {
          Mesh::CellAutoPointer cellAutoPointer;
          ok = mesh->GetMesh()->GetCell(m_CurrentCellId, cellAutoPointer);
          if(ok)
          {
            Mesh::PointIdIterator last = cellAutoPointer->PointIdsEnd();
            --last;
            int foundCell = mesh->SearchFirstCell( (unsigned long) position );
            if (foundCell != -1)//not found
              deleteLine = ((unsigned int)foundCell == m_CurrentCellId) && (*last == (unsigned int)position);
          }
        }
        if(deleteLine)
        {
          LineOperation* doOp = new mitk::LineOperation(OpDELETELINE, m_CurrentCellId, position);
          if (m_UndoEnabled)
          {
            LineOperation* undoOp = new mitk::LineOperation(OpADDLINE, m_CurrentCellId, position);
            OperationEvent *operationEvent = new OperationEvent(mesh, doOp, undoOp, "Delete line");
            m_UndoController->SetOperationEvent(operationEvent);
          }
          //execute the Operation
          mesh->ExecuteOperation(doOp );
        }
        else
        {
          // add new cell if necessary
          if(mesh->GetNewCellId() == 0) //allow single line only
            //allow multiple lines:          if((mesh->SearchFirstCell(position) >= 0) || ((m_CurrentCellId == 0) && (mesh->GetNewCellId() == 0)))
          {
            //get the next cellId and set m_CurrentCellId
            m_CurrentCellId = mesh->GetNewCellId();

            //now reserv a new cell in m_ItkData
            LineOperation* doOp = new mitk::LineOperation(OpNEWCELL, m_CurrentCellId);
            if (m_UndoEnabled)
            {
              LineOperation* undoOp = new mitk::LineOperation(OpDELETECELL, m_CurrentCellId);
              OperationEvent *operationEvent = new OperationEvent(mesh, doOp, undoOp, "Add cell");
              m_UndoController->SetOperationEvent(operationEvent);
            }
            mesh->ExecuteOperation(doOp);
          }
          // add line if point is not yet included in current cell
          if(mesh->SearchFirstCell(position) < 0)
          {
            LineOperation* doOp = new mitk::LineOperation(OpADDLINE, m_CurrentCellId, position);
            if (m_UndoEnabled)
            {
              LineOperation* undoOp = new mitk::LineOperation(OpDELETELINE, m_CurrentCellId, position);
              OperationEvent *operationEvent = new OperationEvent(mesh, doOp, undoOp, "Add line");
              m_UndoController->SetOperationEvent(operationEvent);
            }
            //execute the Operation
            mesh->ExecuteOperation(doOp );
          }
        }
      }
      ok = true;
      break;
    }
  case AcREMOVEPOINT:
    {
      //mitk::DisplayPositionEvent const  *posEvent = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
      //if (posEvent == NULL)
      //  return false;

      //mitk::Point3D worldPoint;
      //worldPoint = posEvent->GetWorldPosition();

      //int position = mesh->SearchPoint(worldPoint, m_Precision);
      //if (position>=0)//found a point near enough to the given point
      //{
      //  // if the point is in the current cell, remove it (this has to be moved in a separate action)
      //  if(mesh->SearchFirstCell(position) == m_CurrentCellId)
      //  {
      //    LineOperation* doOp = new mitk::LineOperation(OpDELETELINE, m_CurrentCellId, position);
      //  if (m_UndoEnabled)
      //  {
      //   LineOperation* undoOp = new mitk::LineOperation(OpADDLINE, m_CurrentCellId, position);
      //   OperationEvent *operationEvent = new OperationEvent(mesh, doOp, undoOp);
      //   m_UndoController->SetOperationEvent(operationEvent);
      //  }
      //  //execute the Operation
      //    mesh->ExecuteOperation(doOp );
      //  }
      //}
      ok = true;
      break;
    }
  case AcCHECKELEMENT:
    /*checking if the Point transmitted is close enough to one point. Then generate a new event with the point and let this statemaschine handle the event.*/
    {
      mitk::DisplayPositionEvent const  *posEvent = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
      if (posEvent != NULL)
      {
        mitk::Point3D worldPoint = posEvent->GetWorldPosition();

        int position = mesh->SearchPoint(worldPoint, m_Precision);
        if (position>=0)//found a point near enough to the given point
        {
          PointSet::PointType pt = mesh->GetPoint(position);//get that point, the one meant by the user!
          mitk::Point2D displPoint;
          displPoint[0] = worldPoint[0]; displPoint[1] = worldPoint[1];
          //new Event with information YES and with the correct point
          mitk::PositionEvent const* newPosEvent = new mitk::PositionEvent(posEvent->GetSender(), Type_None, BS_NoButton, BS_NoButton, Key_none, displPoint, pt);
          mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDYES, newPosEvent);
          //call HandleEvent to leave the guard-state
          this->HandleEvent( newStateEvent );
          ok = true;
        }
        else
        {
          //new Event with information NO
          mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDNO, posEvent);
          this->HandleEvent(newStateEvent );
          ok = true;
        }
      }
      else
      {
        mitk::DisplayPositionEvent const  *disPosEvent = dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());
        if (disPosEvent != NULL)
        {//2d Koordinates for 3D Interaction; return false to redo the last statechange
          mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDNO, posEvent);
          this->HandleEvent(newStateEvent );
          ok = true;
        }
      }
      break;
    }
  case AcCHECKNMINUS1://generate Events if the set will be full after the addition of the point or not.
    {
      if (m_N<0)//number of points not limited->pass on "Amount of points in Set is smaller then N-1"
      {
        mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDSTSMALERNMINUS1, stateEvent->GetEvent());
        this->HandleEvent( newStateEvent );
        ok = true;
      }
      else
      {
        if (mesh->GetSize()<(m_N-1))
          //pointset after addition won't be full
        {
          mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDSTSMALERNMINUS1, stateEvent->GetEvent());
          this->HandleEvent( newStateEvent );
          ok = true;
        }
        else //(mesh->GetSize()>=(m_N-1))
          //after the addition of a point, the container will be full
        {
          mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDSTLARGERNMINUS1, stateEvent->GetEvent());
          this->HandleEvent(newStateEvent );
          ok = true;
        }//else
      }//else
    }
    break;
  case AcCHECKEQUALS1:
    {
      if (mesh->GetSize()<=1)//the number of points in the list is 1 (or smaler)
      {
        mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDYES, stateEvent->GetEvent());
        this->HandleEvent( newStateEvent );
        ok = true;
      }
      else //more than 1 points in list, so stay in the state!
      {
        mitk::StateEvent* newStateEvent = new mitk::StateEvent(EIDNO, stateEvent->GetEvent());
        this->HandleEvent(newStateEvent );
        ok = true;
      }
    }
    break;
  default:
    return Superclass::ExecuteAction( action, stateEvent );
    //mitk::StatusBar::GetInstance()->DisplayText("Message from mitkConnectPointsInteractor: I do not understand the Action!", 10000);
    //ok = false;
    //a false here causes the statemachine to undo its last statechange.
    //otherwise it will end up in a different state, but without done Action.
    //if a transition really has no Action, than call donothing
  }

  return ok;
}
