Interaction with a single point by mouse movement. More...

#include <mitkMouseMovePointSetInteractor.h>

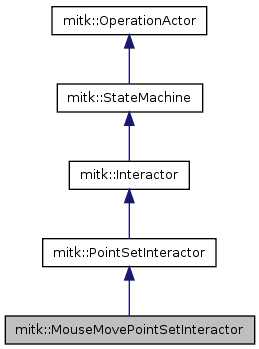

Inheritance diagram for mitk::MouseMovePointSetInteractor:

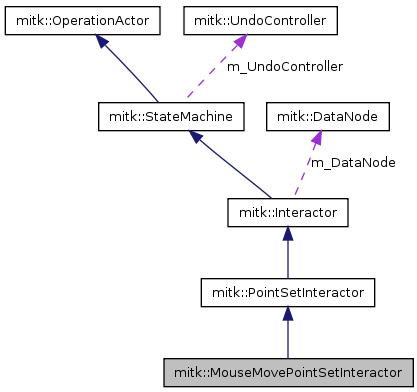

Collaboration diagram for mitk::MouseMovePointSetInteractor:

Public Types
typedef MouseMovePointSetInteractor	Self
typedef Interactor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual float	CanHandleEvent (StateEvent const *stateEvent) const
	calculates how good the data, this statemachine handles, is hit by the event.
Static Public Member Functions
static Pointer	New (const char _arga, DataNode _argb, int _argc)
static Pointer	New (const char _arga, DataNode _argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	MouseMovePointSetInteractor (const char type, DataNode dataNode, int n=-1)
	Constructor with Param n for limited Set of Points.
virtual	~MouseMovePointSetInteractor ()
	Default Destructor.

Detailed Description

Interaction with a single point by mouse movement.

A new point is added by mouse movement, an existing point will be removed before adding a new one.

Definition at line 36 of file mitkMouseMovePointSetInteractor.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::MouseMovePointSetInteractor::ConstPointer

Reimplemented from mitk::PointSetInteractor.

Definition at line 39 of file mitkMouseMovePointSetInteractor.h.

typedef itk::SmartPointer<Self> mitk::MouseMovePointSetInteractor::Pointer

Reimplemented from mitk::PointSetInteractor.

Definition at line 39 of file mitkMouseMovePointSetInteractor.h.

typedef MouseMovePointSetInteractor mitk::MouseMovePointSetInteractor::Self

Reimplemented from mitk::PointSetInteractor.

Definition at line 39 of file mitkMouseMovePointSetInteractor.h.

typedef Interactor mitk::MouseMovePointSetInteractor::Superclass

Reimplemented from mitk::PointSetInteractor.

Definition at line 39 of file mitkMouseMovePointSetInteractor.h.

Constructor & Destructor Documentation

mitk::MouseMovePointSetInteractor::MouseMovePointSetInteractor	(	const char *	type,
		DataNode *	dataNode,
		int	n = `-1`
	)		`[protected]`

Constructor with Param n for limited Set of Points.

if no n is set, then the number of points is unlimited*

Definition at line 25 of file mitkMouseMovePointSetInteractor.cpp.

:PointSetInteractor(type, dataNode, n)
{
}

mitk::MouseMovePointSetInteractor::~MouseMovePointSetInteractor ( ) [protected, virtual]

Default Destructor.

Definition at line 30 of file mitkMouseMovePointSetInteractor.cpp.

{
}

Member Function Documentation

float mitk::MouseMovePointSetInteractor::CanHandleEvent ( StateEvent const * stateEvent ) const [virtual]

calculates how good the data, this statemachine handles, is hit by the event.

overwritten, cause we don't look at the boundingbox, we look at each point and want to accept mouse movement for setting points

overwritten cause this class can handle mouse move events!

Reimplemented from mitk::PointSetInteractor.

Definition at line 36 of file mitkMouseMovePointSetInteractor.cpp.

References mitk::StateEvent::GetEvent(), mitk::StateEvent::GetId(), mitk::Event::GetSender(), mitk::BaseRenderer::GetTimeStep(), and mitk::State::GetTransition().

{
  float returnValue = 0.0;
  //if it is a key event that can be handled in the current state, then return 0.5
  mitk::DisplayPositionEvent const  *disPosEvent =
    dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());

  //Key event handling:
  if (disPosEvent == NULL)
  {
    //check, if the current state has a transition waiting for that key event.
    if (this->GetCurrentState()->GetTransition(stateEvent->GetId())!=NULL)
    {
      return 0.5;
    }
    else
    {
      return 0;
    }
  }

  //get the time of the sender to look for the right transition.
  mitk::BaseRenderer* sender = stateEvent->GetEvent()->GetSender();
  if (sender != NULL)
  {
    unsigned int timeStep = sender->GetTimeStep(m_DataNode->GetData());
    //if the event can be understood and if there is a transition waiting for that event
    mitk::State const* state = this->GetCurrentState(timeStep);
    if (state!= NULL)
      if (state->GetTransition(stateEvent->GetId())!=NULL)
        returnValue = 0.5;//it can be understood
  }
  return returnValue;
}
