SeedsInteractor handles all actions on the seedsimage. More...

#include <mitkSeedsInteractor.h>

Inheritance diagram for mitk::SeedsInteractor:

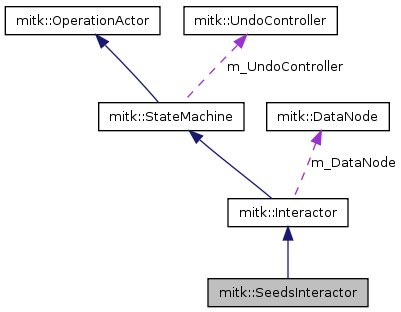

Collaboration diagram for mitk::SeedsInteractor:

Public Types
typedef SeedsInteractor	Self
typedef Interactor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetRadius (int val)
	sets the radius of the seeds.
void	SetCurrentDrawState (int val)
virtual void	SetConfig (unsigned int _arg)
virtual unsigned int	GetConfig ()
Static Public Member Functions
static Pointer	New (const char _arga, DataNode _argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	SeedsInteractor (const char type, DataNode dataNode)
	Default Constructor.
virtual	~SeedsInteractor ()
	Default Destructor.
virtual bool	ExecuteAction (Action action, StateEvent const stateEvent)
	Method called in HandleEvent after Statechange.
Protected Attributes
SeedsImage::Pointer	m_SeedsImage
SeedsImage::Pointer	m_LastSeedsImage
Point3D	event_point
Point3D	last_point
int	m_Radius
int	m_DrawState
int	m_CurrentDrawState
unsigned int	m_Config

Detailed Description

SeedsInteractor handles all actions on the seedsimage.

Definition at line 35 of file mitkSeedsInteractor.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SeedsInteractor::ConstPointer

Reimplemented from mitk::Interactor.

Definition at line 38 of file mitkSeedsInteractor.h.

typedef itk::SmartPointer<Self> mitk::SeedsInteractor::Pointer

Reimplemented from mitk::Interactor.

Definition at line 38 of file mitkSeedsInteractor.h.

typedef SeedsInteractor mitk::SeedsInteractor::Self

Reimplemented from mitk::Interactor.

Definition at line 38 of file mitkSeedsInteractor.h.

typedef Interactor mitk::SeedsInteractor::Superclass

Reimplemented from mitk::Interactor.

Definition at line 38 of file mitkSeedsInteractor.h.

Constructor & Destructor Documentation

mitk::SeedsInteractor::SeedsInteractor	(	const char *	type,
		mitk::DataNode *	dataNode
	)		`[protected]`

Default Constructor.

Definition at line 33 of file mitkSeedsInteractor.cpp.

References m_Config, m_CurrentDrawState, and m_Radius.

  : mitk::Interactor(type, dataNode)
{
  m_Radius = 1;
  m_Config = 0; // default config 254, 255 are added for fore- and backgrund seeds
  m_CurrentDrawState = 255;
}

mitk::SeedsInteractor::~SeedsInteractor ( ) [protected, virtual]

Default Destructor.

Definition at line 41 of file mitkSeedsInteractor.cpp.

{
}

Member Function Documentation

bool mitk::SeedsInteractor::ExecuteAction	(	mitk::Action *	action,
		mitk::StateEvent const *	stateEvent
	)		`[protected, virtual]`

Method called in HandleEvent after Statechange.

look up which object method is associated to the given action and call the method

Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent

Reimplemented from mitk::StateMachine.

Definition at line 46 of file mitkSeedsInteractor.cpp.

References mitk::AcADD, mitk::AcFINISH, mitk::AcINITBACKGROUND, mitk::AcINITFOREGROUND, mitk::AcINITNEUTRAL, mitk::AcMOVE, mitk::Action::GetActionId(), mitk::StateEvent::GetEvent(), mitk::DisplayPositionEvent::GetWorldPosition(), mitk::OpADD, mitk::OpMOVE, mitk::OpUNDOADD, and mitk::OpUNDOMOVE.

{
  const mitk::DisplayPositionEvent* posEvent = dynamic_cast<const mitk::DisplayPositionEvent*>(stateEvent->GetEvent());
  if (posEvent == NULL)
    return false;

  event_point = posEvent->GetWorldPosition();

  m_DataNode->SetVisibility(true);
  m_SeedsImage = dynamic_cast<mitk::SeedsImage*>(m_DataNode->GetData());


  bool ok = false;
  switch (action->GetActionId())
  {
  case mitk::AcINITFOREGROUND:
    {
      if (m_Config == 0)      m_DrawState = m_CurrentDrawState;
      else                    m_DrawState = 1;
      ok = true;
      break;
    }
  case mitk::AcINITBACKGROUND:
    {
      if (m_Config == 0)      m_DrawState = 254;
      else                    m_DrawState = -1;
      ok = true;
      break;
    }
  case mitk::AcINITNEUTRAL:
    {
      m_DrawState = 0;
      ok = true;
      break;
    }
  case mitk::AcADD:
    {
      last_point = event_point;
      mitk::DrawOperation* doOp = new mitk::DrawOperation(OpADD, event_point, last_point, m_DrawState, m_Radius);
      if (m_UndoEnabled){ //write to UndoMechanism/ Can probably be removed!
        mitk::DrawOperation* undoOp = new mitk::DrawOperation(OpUNDOADD, event_point, last_point, m_DrawState, m_Radius);
        mitk::OperationEvent *operationEvent = new mitk::OperationEvent(m_SeedsImage, doOp, undoOp, "Add seed point");
        m_UndoController->SetOperationEvent(operationEvent);
      }
      //execute the Operation
      m_SeedsImage->ExecuteOperation(doOp);
      ok = true;
      break;
    }
  case mitk::AcMOVE:
    {
      last_point = event_point;
      mitk::DrawOperation* doOp = new mitk::DrawOperation(OpMOVE, event_point, last_point, m_DrawState, m_Radius);
      if (m_UndoEnabled){ //write to UndoMechanism/ Can probably be removed!
        mitk::DrawOperation* undoOp = new mitk::DrawOperation(OpUNDOMOVE, event_point, last_point, m_DrawState, m_Radius);
        mitk::OperationEvent *operationEvent = new mitk::OperationEvent(m_SeedsImage, doOp, undoOp, "Move seed point");
        m_UndoController->SetOperationEvent(operationEvent);
      }
      //execute the Operation
      m_SeedsImage->ExecuteOperation(doOp);
      ok = true;
      //this->Modified();
      break;
    }
  case mitk::AcFINISH:
    {
      last_point = event_point;
      ok = true;
      this->Modified();

      this->InvokeEvent( itk::EndEvent() );

      break;
    }
  default:
    return Superclass::ExecuteAction( action, stateEvent );
  }
  return ok;
}
