Interaction with mitk::PlanarFigure objects via control-points. More...

#include <mitkPlanarFigureInteractor.h>

Inheritance diagram for mitk::PlanarFigureInteractor:

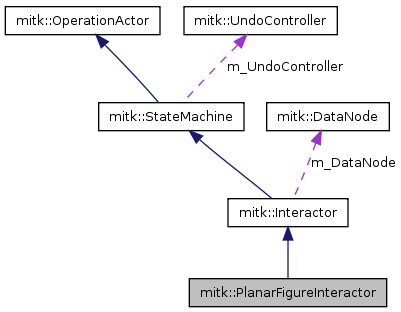

Collaboration diagram for mitk::PlanarFigureInteractor:

Public Types
typedef PlanarFigureInteractor	Self
typedef Interactor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetPrecision (ScalarType precision)
	Sets the amount of precision.
virtual float	CanHandleEvent (StateEvent const *stateEvent) const
	calculates how good the data, this statemachine handles, is hit by the event.
Static Public Member Functions
static Pointer	New (const char _arga, DataNode _argb, int _argc)
static Pointer	New (const char _arga, DataNode _argb)
	NewMacro with two parameters for calling itk::Lightobject::New(..) method.
Protected Member Functions
	PlanarFigureInteractor (const char type, DataNode dataNode, int n=-1)
	Constructor with Param n for limited Set of Points.
virtual	~PlanarFigureInteractor ()
	Default Destructor.
virtual bool	ExecuteAction (Action action, mitk::StateEvent const stateEvent)
	Method called in HandleEvent after Statechange.
bool	TransformPositionEventToPoint2D (const StateEvent stateEvent, Point2D &point2D, const Geometry2D planarFigureGeometry)
bool	TransformObjectToDisplay (const mitk::Point2D &point2D, mitk::Point2D &displayPoint, const mitk::Geometry2D objectGeometry, const mitk::Geometry2D rendererGeometry, const mitk::DisplayGeometry *displayGeometry) const
bool	IsPointNearLine (const mitk::Point2D &point, const mitk::Point2D &startPoint, const mitk::Point2D &endPoint) const
	Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise.
bool	IsPositionOverFigure (const StateEvent StateEvent, PlanarFigure planarFigure, const Geometry2D planarFigureGeometry, const Geometry2D rendererGeometry, const DisplayGeometry *displayGeometry) const
	Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise.
int	IsPositionInsideMarker (const StateEvent StateEvent, const PlanarFigure planarFigure, const Geometry2D planarFigureGeometry, const Geometry2D rendererGeometry, const DisplayGeometry *displayGeometry) const
	Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker.
void	LogPrintPlanarFigureQuantities (const PlanarFigure *planarFigure)

Detailed Description

Interaction with mitk::PlanarFigure objects via control-points.

Definition at line 58 of file mitkPlanarFigureInteractor.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::PlanarFigureInteractor::ConstPointer

Reimplemented from mitk::Interactor.

Definition at line 61 of file mitkPlanarFigureInteractor.h.

typedef itk::SmartPointer<Self> mitk::PlanarFigureInteractor::Pointer

Reimplemented from mitk::Interactor.

Definition at line 61 of file mitkPlanarFigureInteractor.h.

typedef PlanarFigureInteractor mitk::PlanarFigureInteractor::Self

Reimplemented from mitk::Interactor.

Definition at line 61 of file mitkPlanarFigureInteractor.h.

typedef Interactor mitk::PlanarFigureInteractor::Superclass

Reimplemented from mitk::Interactor.

Definition at line 61 of file mitkPlanarFigureInteractor.h.

Constructor & Destructor Documentation

mitk::PlanarFigureInteractor::PlanarFigureInteractor	(	const char *	type,
		DataNode *	dataNode,
		int	n = `-1`
	)		`[protected]`

Constructor with Param n for limited Set of Points.

if no n is set, then the number of points is unlimited*

Definition at line 41 of file mitkPlanarFigureInteractor.cpp.

: Interactor( type, dataNode ),
  m_Precision( 6.5 ),
  m_IsHovering( false )
{
}

mitk::PlanarFigureInteractor::~PlanarFigureInteractor ( ) [protected, virtual]

Default Destructor.

Definition at line 48 of file mitkPlanarFigureInteractor.cpp.

{
}

Member Function Documentation

float mitk::PlanarFigureInteractor::CanHandleEvent ( StateEvent const * stateEvent ) const [virtual]

calculates how good the data, this statemachine handles, is hit by the event.

overwritten, cause we don't look at the boundingbox, we look at each point

Reimplemented from mitk::Interactor.

Definition at line 59 of file mitkPlanarFigureInteractor.cpp.

References mitk::StateEvent::GetEvent(), mitk::StateEvent::GetId(), and mitk::PlanarFigure::GetSelectedControlPoint().

{
  float returnValue = 0.5;


  // If it is a key event that can be handled in the current state,
  // then return 0.5
  mitk::DisplayPositionEvent const *disPosEvent =
    dynamic_cast <const mitk::DisplayPositionEvent *> (stateEvent->GetEvent());

  // Key event handling:
  if (disPosEvent == NULL)
  {
    // Check if the current state has a transition waiting for that key event.
    if (this->GetCurrentState()->GetTransition(stateEvent->GetId())!=NULL)
    {
      return 0.5;
    }
    else
    {
      return 0.0;
    }
  }

  mitk::PlanarFigure *planarFigure = dynamic_cast<mitk::PlanarFigure *>(
    m_DataNode->GetData() );

  if ( planarFigure != NULL )
  {
    // Give higher priority if this figure is currently selected
    if ( planarFigure->GetSelectedControlPoint() >= 0 )
    {
      return 1.0;
    }

  }
  return returnValue;
}

bool mitk::PlanarFigureInteractor::ExecuteAction	(	Action *	action,
		mitk::StateEvent const *	stateEvent
	)		`[protected, virtual]`

Method called in HandleEvent after Statechange.

look up which object method is associated to the given action and call the method

Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent

Reimplemented from mitk::StateMachine.

Definition at line 100 of file mitkPlanarFigureInteractor.cpp.

{
  bool ok = false;

  // Check corresponding data; has to be sub-class of mitk::PlanarFigure
  mitk::PlanarFigure *planarFigure =
    dynamic_cast< mitk::PlanarFigure * >( m_DataNode->GetData() );

  if ( planarFigure == NULL )
  {
    return false;
  }

  // Get the timestep to also support 3D+t
  const mitk::Event *theEvent = stateEvent->GetEvent();
  int timeStep = 0;
  mitk::ScalarType timeInMS = 0.0;

  if ( theEvent )
  {
    if (theEvent->GetSender() != NULL)
    {
      timeStep = theEvent->GetSender()->GetTimeStep( planarFigure );
      timeInMS = theEvent->GetSender()->GetTime();
    }
  }

  // Get Geometry2D of PlanarFigure
  mitk::Geometry2D *planarFigureGeometry =
    dynamic_cast< mitk::Geometry2D * >( planarFigure->GetGeometry( timeStep ) );

  // Get the Geometry2D of the window the user interacts with (for 2D point
  // projection)
  mitk::BaseRenderer *renderer = NULL;
  const Geometry2D *projectionPlane = NULL;
  if ( theEvent )
  {
    renderer = theEvent->GetSender();
    projectionPlane = renderer->GetCurrentWorldGeometry2D();
  }

  // TODO: Check if display and PlanarFigure geometries are parallel (if they are PlaneGeometries)


  switch (action->GetActionId())
  {
  case AcDONOTHING:
    ok = true;
    break;

  case AcCHECKOBJECT:
    {
      if ( planarFigure->IsPlaced() )
      {
        this->HandleEvent( new mitk::StateEvent( EIDYES, NULL ) );
      }
      else
      {
        this->HandleEvent( new mitk::StateEvent( EIDNO, NULL ) );
      }
      ok = false;
      break;
    }

  case AcADD:
    {
      // Invoke event to notify listeners that placement of this PF starts now
      planarFigure->InvokeEvent( StartPlacementPlanarFigureEvent() );

      // Use Geometry2D of the renderer clicked on for this PlanarFigure
      mitk::PlaneGeometry *planeGeometry = const_cast< mitk::PlaneGeometry * >(
        dynamic_cast< const mitk::PlaneGeometry * >(
          renderer->GetSliceNavigationController()->GetCurrentPlaneGeometry() ) );
      if ( planeGeometry != NULL )
      {
        planarFigureGeometry = planeGeometry;
        planarFigure->SetGeometry2D( planeGeometry );
      }
      else
      {
        ok = false;
        break;
      }

      // Extract point in 2D world coordinates (relative to Geometry2D of
      // PlanarFigure)
      Point2D point2D;
      if ( !this->TransformPositionEventToPoint2D( stateEvent, point2D,
        planarFigureGeometry ) )
      {
        ok = false;
        break;
      }

      // Place PlanarFigure at this point
      planarFigure->PlaceFigure( point2D );

      // Re-evaluate features
      planarFigure->EvaluateFeatures();
      //this->LogPrintPlanarFigureQuantities( planarFigure );

      // Set a bool property indicating that the figure has been placed in
      // the current RenderWindow. This is required so that the same render
      // window can be re-aligned to the Geometry2D of the PlanarFigure later
      // on in an application.
      m_DataNode->SetBoolProperty( "PlanarFigureInitializedWindow", true, renderer );

      // Update rendered scene
      renderer->GetRenderingManager()->RequestUpdateAll();

      ok = true;
      break;
    }

  case AcMOVEPOINT:
    {
      // Extract point in 2D world coordinates (relative to Geometry2D of
      // PlanarFigure)
      Point2D point2D;
      if ( !this->TransformPositionEventToPoint2D( stateEvent, point2D,
        planarFigureGeometry ) )
      {
        ok = false;
        break;
      }

      // Move current control point to this point
      planarFigure->SetCurrentControlPoint( point2D );

      // Re-evaluate features
      planarFigure->EvaluateFeatures();
      //this->LogPrintPlanarFigureQuantities( planarFigure );

      // Update rendered scene
      renderer->GetRenderingManager()->RequestUpdateAll();

      ok = true;
      break;
    }


  case AcCHECKNMINUS1:
    {
      if ( planarFigure->GetNumberOfControlPoints() >=
           planarFigure->GetMaximumNumberOfControlPoints() )
      {
        // Initial placement finished: deselect control point and send an
        // event to notify application listeners
        planarFigure->Modified();
        planarFigure->DeselectControlPoint();
        planarFigure->InvokeEvent( EndPlacementPlanarFigureEvent() );
        planarFigure->InvokeEvent( EndInteractionPlanarFigureEvent() );
        m_DataNode->Modified();
        this->HandleEvent( new mitk::StateEvent( EIDYES, stateEvent->GetEvent() ) );
      }
      else
      {
        this->HandleEvent( new mitk::StateEvent( EIDNO, stateEvent->GetEvent() ) );
      }

      // Update rendered scene
      renderer->GetRenderingManager()->RequestUpdateAll();

      ok = true;
      break;
    }


  case AcCHECKEQUALS1:
    {
      // NOTE: Action name is a bit misleading; this action checks whether
      // the figure has already the minimum number of required points to
      // be finished.

      if ( planarFigure->GetNumberOfControlPoints() >=
        planarFigure->GetMinimumNumberOfControlPoints() )
      {
        // Initial placement finished: deselect control point and send an
        // event to notify application listeners
        planarFigure->Modified();
        planarFigure->DeselectControlPoint();
        if ( planarFigure->GetNumberOfControlPoints()-1 >= planarFigure->GetMinimumNumberOfControlPoints() )
        {
          planarFigure->RemoveLastControlPoint();
        }
        planarFigure->InvokeEvent( EndPlacementPlanarFigureEvent() );
        planarFigure->InvokeEvent( EndInteractionPlanarFigureEvent() );
        m_DataNode->Modified();
        this->HandleEvent( new mitk::StateEvent( EIDYES, NULL ) );
      }
      else
      {
        this->HandleEvent( new mitk::StateEvent( EIDNO, NULL ) );
      }

      // Update rendered scene
      renderer->GetRenderingManager()->RequestUpdateAll();

      ok = true;
      break;
    }


  case AcCHECKPOINT:
    {
      // Check if the distance of the current point to the previously set point in display coordinates
      // is sufficient (if a previous point exists)

      // Extract display position
      const mitk::PositionEvent *positionEvent =
        dynamic_cast< const mitk::PositionEvent * > ( stateEvent->GetEvent() );
      if ( positionEvent == NULL )
      {
        ok = false;
        break;
      }

      // Get current display position of the mouse
      mitk::Point2D currentDisplayPosition = positionEvent->GetDisplayPosition();

      // Check if a previous point has been set
      int previousIndex = planarFigure->GetNumberOfControlPoints() - 2;
      if ( previousIndex >= 0 )
      {

        // Try to convert previous point to current display coordinates
        mitk::Point3D previousPoint3D;
        planarFigureGeometry->Map( planarFigure->GetControlPoint( previousIndex ), previousPoint3D );
        if ( renderer->GetDisplayGeometry()->Distance( previousPoint3D ) < 0.1 )
        {
          mitk::Point2D previousDisplayPosition;
          renderer->GetCurrentWorldGeometry2D()->Map( previousPoint3D, previousDisplayPosition );
          renderer->GetDisplayGeometry()->WorldToDisplay( previousDisplayPosition, previousDisplayPosition );

          double a = currentDisplayPosition[0] - previousDisplayPosition[0];
          double b = currentDisplayPosition[1] - previousDisplayPosition[1];

          // If point is to close, do not set a new point
          if ( a * a + b * b < 25.0 )
          {
            this->HandleEvent( new mitk::StateEvent( EIDNO, stateEvent->GetEvent() ) );

            ok = true;
            break;
          }
        }
      }

      this->HandleEvent( new mitk::StateEvent( EIDYES, stateEvent->GetEvent() ) );
      ok = true;
      break;
    }


  case AcADDPOINT:
    {
      // Extract point in 2D world coordinates (relative to Geometry2D of
      // PlanarFigure)
      Point2D point2D;
      if ( !this->TransformPositionEventToPoint2D( stateEvent, point2D,
        planarFigureGeometry ) )
      {
        ok = false;
        break;
      }

      // Add point as new control point
      planarFigure->AddControlPoint( point2D );

      // Re-evaluate features
      planarFigure->EvaluateFeatures();
      //this->LogPrintPlanarFigureQuantities( planarFigure );

      // Update rendered scene
      renderer->GetRenderingManager()->RequestUpdateAll();

      ok = true;
      break;
    }


  case AcDESELECTPOINT:
    {
      planarFigure->DeselectControlPoint();

      // Issue event so that listeners may update themselves
      planarFigure->Modified();
      planarFigure->InvokeEvent( EndInteractionPlanarFigureEvent() );

      m_DataNode->Modified();

      // falls through
    }

  case AcCHECKSELECTED:
    {
      bool isHovering = mitk::PlanarFigureInteractor::IsPositionOverFigure(
        stateEvent, planarFigure,
        planarFigureGeometry,
        renderer->GetCurrentWorldGeometry2D(),
        renderer->GetDisplayGeometry() );

      int pointIndex = mitk::PlanarFigureInteractor::IsPositionInsideMarker(
        stateEvent, planarFigure,
        planarFigureGeometry,
        renderer->GetCurrentWorldGeometry2D(),
        renderer->GetDisplayGeometry() );

      if ( pointIndex >= 0 )
      {
        // If mouse is above control point, mark it as selected
        planarFigure->SelectControlPoint( pointIndex );

        // If mouse is hovering above a marker, it is also hovering above the figure
        isHovering = true;
      }
      else
      {
        // Mouse in not above control point --> deselect point
        planarFigure->DeselectControlPoint();
      }

      if ( isHovering )
      {
        if ( !m_IsHovering )
        {
          // Invoke hover event once when the mouse is entering the figure area
          m_IsHovering = true;
          planarFigure->InvokeEvent( StartHoverPlanarFigureEvent() );

          // Set bool property to indicate that planar figure is currently in "hovering" mode
          m_DataNode->SetBoolProperty( "planarfigure.ishovering", true );
        }

        this->HandleEvent( new mitk::StateEvent( EIDYES, NULL ) );

        // Return true: only this interactor is eligible to react on this event
        ok = true;
      }
      else
      {
        if ( m_IsHovering )
        {
          // Invoke end-hover event once the mouse is exiting the figure area
          m_IsHovering = false;
          planarFigure->InvokeEvent( EndHoverPlanarFigureEvent() );

          // Set bool property to indicate that planar figure is no longer in "hovering" mode
          m_DataNode->SetBoolProperty( "planarfigure.ishovering", false );
        }

        this->HandleEvent( new mitk::StateEvent( EIDNO, NULL ) );

        // Return false so that other (PlanarFigure) Interactors may react on this
        // event as well
        ok = false;
      }

      // Update rendered scene
       renderer->GetRenderingManager()->RequestUpdateAll();
      break;
    }

  case AcSELECTPICKEDOBJECT:
    {
      // Invoke event to notify listeners that this planar figure should be selected
      planarFigure->InvokeEvent( SelectPlanarFigureEvent() );

      // Check if planar figure is marked as "editable"
      bool isEditable = true;
      m_DataNode->GetBoolProperty( "planarfigure.iseditable", isEditable );

      int pointIndex = -1;

      if ( isEditable )
      {
        // If planar figure is editable, check if mouse is over a control point
        pointIndex = mitk::PlanarFigureInteractor::IsPositionInsideMarker(
          stateEvent, planarFigure,
          planarFigureGeometry,
          renderer->GetCurrentWorldGeometry2D(),
          renderer->GetDisplayGeometry() );
      }

      // If editing is enabled and the mouse is currently over a control point, select it
      if ( pointIndex >= 0 )
      {
        this->HandleEvent( new mitk::StateEvent( EIDYES, NULL ) );

        // Return true: only this interactor is eligible to react on this event
        ok = true;
      }
      else
      {
        this->HandleEvent( new mitk::StateEvent( EIDNO, NULL ) );

        // Return false so that other (PlanarFigure) Interactors may react on this
        // event as well
        ok = false;
      }

      ok = true;
      break;
    }


  case AcSELECTPOINT:
    {
      // Invoke event to notify listeners that interaction with this PF starts now
      planarFigure->InvokeEvent( StartInteractionPlanarFigureEvent() );

      // Reset the PlanarFigure if required
      if ( planarFigure->ResetOnPointSelect() )
      {
        this->HandleEvent( new mitk::StateEvent( EIDYES, stateEvent->GetEvent() ) );
      }
      else
      {
        this->HandleEvent( new mitk::StateEvent( EIDNO, stateEvent->GetEvent() ) );
      }

      ok = true;
      break;
    }

  //case AcMOVEPOINT:
  //case AcMOVESELECTED:
  //  {
  //    // Update the display
  //    renderer->GetRenderingManager()->RequestUpdateAll();

  //    ok = true;
  //    break;
  //  }

  //case AcFINISHMOVE:
  //  {
  //    ok = true;
  //    break;
  //  }




  default:
    return Superclass::ExecuteAction( action, stateEvent );
  }

  return ok;
}

virtual const char* mitk::PlanarFigureInteractor::GetClassName ( ) const [virtual]

Reimplemented from mitk::Interactor.

bool mitk::PlanarFigureInteractor::IsPointNearLine	(	const mitk::Point2D &	point,
		const mitk::Point2D &	startPoint,
		const mitk::Point2D &	endPoint
	)		const `[protected]`

Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise.

Proximity is defined as the rectangle around the line with pre-defined distance from the line.

Definition at line 603 of file mitkPlanarFigureInteractor.cpp.

{
  mitk::Vector2D n1 = endPoint - startPoint;
  n1.Normalize();

  // Determine dot products between line vector and startpoint-point / endpoint-point vectors
  double l1 = n1 * (point - startPoint);
  double l2 = -n1 * (point - endPoint);

  // Determine projection of specified point onto line defined by start / end point
  mitk::Point2D crossPoint = startPoint + n1 * l1;

  // Point is inside encompassing rectangle IF
  // - its distance to its projected point is small enough
  // - it is not further outside of the line than the defined tolerance
  if ( (crossPoint.SquaredEuclideanDistanceTo( point ) < 20.0 )
    && ( l1 > -5.0 ) && ( l2 > -5.0 ) )
  {
    return true;
  }

  return false;
}

int mitk::PlanarFigureInteractor::IsPositionInsideMarker	(	const StateEvent *	StateEvent,
		const PlanarFigure *	planarFigure,
		const Geometry2D *	planarFigureGeometry,
		const Geometry2D *	rendererGeometry,
		const DisplayGeometry *	displayGeometry
	)		const `[protected]`

Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker.

Definition at line 697 of file mitkPlanarFigureInteractor.cpp.

References QuadProgPP::abs(), mitk::PlanarFigure::GetControlPoints(), mitk::DisplayPositionEvent::GetDisplayPosition(), and mitk::StateEvent::GetEvent().

Referenced by ExecuteAction().

{
  // Extract display position
  const mitk::PositionEvent *positionEvent =
    dynamic_cast< const mitk::PositionEvent * > ( stateEvent->GetEvent() );
  if ( positionEvent == NULL )
  {
    return -1;
  }

  mitk::Point2D displayPosition = positionEvent->GetDisplayPosition();


  // Iterate over all control points of planar figure, and check if
  // any one is close to the current display position
  typedef mitk::PlanarFigure::VertexContainerType VertexContainerType;
  const VertexContainerType *controlPoints = planarFigure->GetControlPoints();

  mitk::Point2D worldPoint2D, displayControlPoint;
  mitk::Point3D worldPoint3D;

  VertexContainerType::ConstIterator it;
  for ( it = controlPoints->Begin(); it != controlPoints->End(); ++it )
  {
    Point2D displayControlPoint;
    if ( this->TransformObjectToDisplay( it->Value(), displayControlPoint,
      planarFigureGeometry, rendererGeometry, displayGeometry ) )
    {
      // TODO: variable size of markers
      if ( (abs(displayPosition[0] - displayControlPoint[0]) < 4 )
        && (abs(displayPosition[1] - displayControlPoint[1]) < 4 ) )
      {
        return it->Index();
      }
    }
  }

  return -1;
}

bool mitk::PlanarFigureInteractor::IsPositionOverFigure	(	const StateEvent *	StateEvent,
		PlanarFigure *	planarFigure,
		const Geometry2D *	planarFigureGeometry,
		const Geometry2D *	rendererGeometry,
		const DisplayGeometry *	displayGeometry
	)		const `[protected]`

Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise.

Definition at line 630 of file mitkPlanarFigureInteractor.cpp.

References mitk::DisplayPositionEvent::GetDisplayPosition(), mitk::StateEvent::GetEvent(), mitk::PlanarFigure::GetPolyLine(), mitk::PlanarFigure::GetPolyLinesSize(), and mitk::PlanarFigure::IsClosed().

Referenced by ExecuteAction().

{
  // Extract display position
  const mitk::PositionEvent *positionEvent =
    dynamic_cast< const mitk::PositionEvent * > ( stateEvent->GetEvent() );
  if ( positionEvent == NULL )
  {
    return -1;
  }

  mitk::Point2D displayPosition = positionEvent->GetDisplayPosition();


  // Iterate over all polylines of planar figure, and check if
  // any one is close to the current display position
  typedef mitk::PlanarFigure::VertexContainerType VertexContainerType;

  mitk::Point2D worldPoint2D, displayControlPoint;
  mitk::Point3D worldPoint3D;

  for ( unsigned short loop = 0; loop < planarFigure->GetPolyLinesSize(); ++loop )
  {
    const VertexContainerType* polyLine = planarFigure->GetPolyLine( loop );

    Point2D polyLinePoint;
    Point2D firstPolyLinePoint;
    Point2D previousPolyLinePoint;

    bool firstPoint = true;
    for ( VertexContainerType::ConstIterator it = polyLine->Begin(); it != polyLine->End(); ++it )
    {
      // Get plane coordinates of this point of polyline (if possible)
      if ( !this->TransformObjectToDisplay( it->Value(), polyLinePoint,
        planarFigureGeometry, rendererGeometry, displayGeometry ) )
      {
        break; // Poly line invalid (not on current 2D plane) --> skip it
      }

      if ( firstPoint )
      {
        firstPolyLinePoint = polyLinePoint;
        firstPoint = false;
      }
      else if ( this->IsPointNearLine( displayPosition, previousPolyLinePoint, polyLinePoint ) )
      {
        // Return true if the display position is close enough to this line segment
        return true;
      }
      previousPolyLinePoint = polyLinePoint;
    }

    // For closed figures, also check last line segment
    if ( planarFigure->IsClosed()
      && this->IsPointNearLine( displayPosition, polyLinePoint, firstPolyLinePoint ) )
    {
      return true;
    }
  }

  return false;
}

void mitk::PlanarFigureInteractor::LogPrintPlanarFigureQuantities ( const PlanarFigure * planarFigure ) [protected]

Definition at line 742 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlanarFigure::GetFeatureName(), mitk::PlanarFigure::GetFeatureUnit(), mitk::PlanarFigure::GetNumberOfFeatures(), mitk::PlanarFigure::GetQuantity(), and MITK_INFO.

{
  MITK_INFO << "PlanarFigure: " << planarFigure->GetNameOfClass();
  for ( unsigned int i = 0; i < planarFigure->GetNumberOfFeatures(); ++i )
  {
    MITK_INFO << "* " << planarFigure->GetFeatureName( i ) << ": "
      << planarFigure->GetQuantity( i ) << " " << planarFigure->GetFeatureUnit( i );
  }
}

static Pointer mitk::PlanarFigureInteractor::New	(	const char *	_arga,
		DataNode *	_argb,
		int	_argc
	)		`[inline, static]`

Definition at line 62 of file mitkPlanarFigureInteractor.h.

Referenced by QmitkMeasurement::Activated(), and QmitkMeasurement::NodeAddedInDataStorage().

static Pointer mitk::PlanarFigureInteractor::New	(	const char *	_arga,
		DataNode *	_argb
	)		`[inline, static]`

NewMacro with two parameters for calling itk::Lightobject::New(..) method.

Reimplemented from mitk::Interactor.

Definition at line 63 of file mitkPlanarFigureInteractor.h.

void mitk::PlanarFigureInteractor::SetPrecision ( ScalarType precision )

Sets the amount of precision.

bool mitk::PlanarFigureInteractor::TransformObjectToDisplay	(	const mitk::Point2D &	point2D,
		mitk::Point2D &	displayPoint,
		const mitk::Geometry2D *	objectGeometry,
		const mitk::Geometry2D *	rendererGeometry,
		const mitk::DisplayGeometry *	displayGeometry
	)		const `[protected]`

Definition at line 578 of file mitkPlanarFigureInteractor.cpp.

References mitk::Geometry2D::Distance(), mitk::Geometry2D::Map(), and mitk::DisplayGeometry::WorldToDisplay().

{
  mitk::Point3D point3D;

  // Map circle point from local 2D geometry into 3D world space
  objectGeometry->Map( point2D, point3D );

  // TODO: proper handling of distance tolerance
  if ( displayGeometry->Distance( point3D ) < 0.1 )
  {
    // Project 3D world point onto display geometry
    rendererGeometry->Map( point3D, displayPoint );
    displayGeometry->WorldToDisplay( displayPoint, displayPoint );
    return true;
  }

  return false;
}

bool mitk::PlanarFigureInteractor::TransformPositionEventToPoint2D	(	const StateEvent *	stateEvent,
		Point2D &	point2D,
		const Geometry2D *	planarFigureGeometry
	)		`[protected]`

Definition at line 551 of file mitkPlanarFigureInteractor.cpp.

References mitk::Geometry2D::Distance(), mitk::StateEvent::GetEvent(), mitk::DisplayPositionEvent::GetWorldPosition(), and mitk::Geometry2D::Map().

{
  // Extract world position, and from this position on geometry, if
  // available
  const mitk::PositionEvent *positionEvent =
    dynamic_cast< const mitk::PositionEvent * > ( stateEvent->GetEvent() );
  if ( positionEvent == NULL )
  {
    return false;
  }

  mitk::Point3D worldPoint3D = positionEvent->GetWorldPosition();

  // TODO: proper handling of distance tolerance
  if ( planarFigureGeometry->Distance( worldPoint3D ) > 0.1 )
  {
    return false;
  }

  // Project point onto plane of this PlanarFigure
  planarFigureGeometry->Map( worldPoint3D, point2D );
  return true;
}

The documentation for this class was generated from the following files:

mitk::PlanarFigureInteractor Class Reference [Interaction Classes]

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

mitk::PlanarFigureInteractor Class Reference
[Interaction Classes]
