Controls the selection of the slice the associated BaseRenderer will display. More...

#include <mitkSliceNavigationController.h>

Inheritance diagram for mitk::SliceNavigationController:

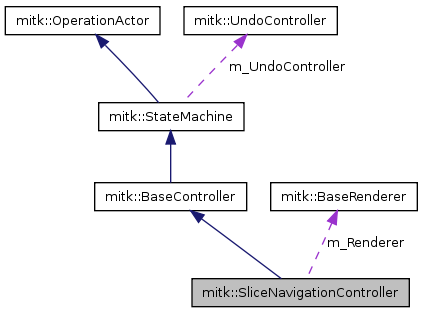

Collaboration diagram for mitk::SliceNavigationController:

Classes
class	GeometrySendEvent
class	GeometrySliceEvent
class	GeometryTimeEvent
class	GeometryUpdateEvent
class	TimeSlicedGeometryEvent
Public Types
enum	ViewDirection { Transversal, Sagittal, Frontal, Original }
	Possible view directions, Original will uses the Geometry2D instances in a SlicedGeometry3D provided as input world geometry (by SetInputWorldGeometry). More...
Public Member Functions
	mitkClassMacro (SliceNavigationController, BaseController)
	mitkNewMacro1Param (Self, const char *)
void	SetInputWorldGeometry (const mitk::Geometry3D *geometry)
	Set the input world geometry out of which the geometries for slicing will be created.
virtual const mitk::Geometry3D *	GetInputWorldGeometry ()
virtual const mitk::Geometry3D *	GetCreatedWorldGeometry ()
	Access the created geometry.
virtual void	SetViewDirection (ViewDirection _arg)
	Set the desired view directions.
virtual ViewDirection	GetViewDirection ()
virtual void	SetDefaultViewDirection (ViewDirection _arg)
	Set the default view direction.
virtual ViewDirection	GetDefaultViewDirection ()
virtual void	SetViewDirectionToDefault ()
virtual void	Update ()
	Do the actual creation and send it to the connected observers (renderers)
virtual void	Update (ViewDirection viewDirection, bool top=true, bool frontside=true, bool rotated=false)
	Extended version of Update, additionally allowing to specify the direction/orientation of the created geometry.
virtual void	SendCreatedWorldGeometry ()
	Send the created geometry to the connected observers (renderers)
virtual void	SendCreatedWorldGeometryUpdate ()
	Tell observers to re-read the currently selected 2D geometry.
virtual void	SendSlice ()
	Send the currently selected slice to the connected observers (renderers)
virtual void	SendTime ()
	Send the currently selected time to the connected observers (renderers)
virtual void	SetRenderingManager (RenderingManager *_arg)
	Set the RenderingManager to be used.
mitk::RenderingManager *	GetRenderingManager () const
	itkEventMacro (UpdateEvent, itk::AnyEvent)
template<typename T >
void	ConnectGeometrySendEvent (T *receiver)
template<typename T >
void	ConnectGeometryUpdateEvent (T *receiver)
template<typename T >
void	ConnectGeometrySliceEvent (T *receiver, bool connectSendEvent=true)
template<typename T >
void	ConnectGeometryTimeEvent (T *receiver, bool connectSendEvent=true)
template<typename T >
void	ConnectGeometryEvents (T *receiver)
virtual void	SetGeometry (const itk::EventObject &geometrySliceEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.
virtual void	SetGeometrySlice (const itk::EventObject &geometrySliceEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.
virtual void	SetGeometryTime (const itk::EventObject &geometryTimeEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.
void	SelectSliceByPoint (const mitk::Point3D &point)
	Positions the SNC according to the specified point.
const mitk::TimeSlicedGeometry *	GetCreatedWorldGeometry ()
	Returns the TimeSlicedGeometry created by the SNC.
const mitk::Geometry3D *	GetCurrentGeometry3D ()
	Returns the Geometry3D of the currently selected time step.
const mitk::PlaneGeometry *	GetCurrentPlaneGeometry ()
	Returns the currently selected Plane in the current Geometry3D (if existent).
void	SetRenderer (BaseRenderer *renderer)
	Sets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC.
BaseRenderer *	GetRenderer () const
	Gets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC. Returns NULL if no BaseRenderer has been specified.
void	ReorientSlices (const mitk::Point3D &point, const mitk::Vector3D &normal)
	Re-orients the slice stack to include the plane specified by the given point an normal vector.
virtual bool	ExecuteAction (Action action, mitk::StateEvent const stateEvent)
	Method called in HandleEvent after Statechange.
void	ExecuteOperation (Operation *operation)
	A statemachine is also an OperationActor due to the UndoMechanism.
virtual void	SetSliceLocked (bool _arg)
	Feature option to lock planes during mouse interaction. This option flag disables the mouse event which causes the center cross to move near by.
virtual bool	GetSliceLocked ()
virtual void	SliceLockedOn ()
virtual void	SliceLockedOff ()
virtual void	SetSliceRotationLocked (bool _arg)
	Feature option to lock slice rotation.
virtual bool	GetSliceRotationLocked ()
virtual void	SliceRotationLockedOn ()
virtual void	SliceRotationLockedOff ()
void	AdjustSliceStepperRange ()
	Adjusts the numerical range of the slice stepper according to the current geometry orientation of this SNC's SlicedGeometry.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	SliceNavigationController (const char *type=NULL)
virtual	~SliceNavigationController ()
virtual void	SetTop (bool _arg)
virtual bool	GetTop ()
virtual void	TopOn ()
virtual void	TopOff ()
virtual void	SetFrontSide (bool _arg)
virtual bool	GetFrontSide ()
virtual void	FrontSideOn ()
virtual void	FrontSideOff ()
virtual void	SetRotated (bool _arg)
virtual bool	GetRotated ()
virtual void	RotatedOn ()
virtual void	RotatedOff ()
Static Protected Member Functions
template<class T >
static void	buildstring (mitkIpPicDescriptor *pic, itk::Point< int, 3 > p, std::string &s, T=0)
Protected Attributes
mitk::Geometry3D::ConstPointer	m_InputWorldGeometry
mitk::Geometry3D::Pointer	m_ExtendedInputWorldGeometry
mitk::TimeSlicedGeometry::Pointer	m_CreatedWorldGeometry
ViewDirection	m_ViewDirection
ViewDirection	m_DefaultViewDirection
mitk::RenderingManager::Pointer	m_RenderingManager
mitk::BaseRenderer *	m_Renderer
bool	m_Top
bool	m_FrontSide
bool	m_Rotated
bool	m_BlockUpdate
bool	m_SliceLocked
bool	m_SliceRotationLocked
unsigned int	m_OldPos

Detailed Description

Controls the selection of the slice the associated BaseRenderer will display.

A SliceNavigationController takes a Geometry3D as input world geometry (TODO what are the exact requirements?) and generates a TimeSlicedGeometry as output. The TimeSlicedGeometry holds a number of SlicedGeometry3Ds and these in turn hold a series of Geometry2Ds. One of these Geometry2Ds is selected as world geometry for the BaseRenderers associated to 2D views.

The SliceNavigationController holds has Steppers (one for the slice, a second for the time step), which control the selection of a single Geometry2D from the TimeSlicedGeometry. SliceNavigationController generates ITK events to tell observers, like a BaseRenderer, when the selected slice or timestep changes.

SliceNavigationControllers are registered as listeners to GlobalInteraction by the QmitkStdMultiWidget. In ExecuteAction, the controllers react to PositionEvents by setting the steppers to the slice which is nearest to the point of the PositionEvent.

Example:

 // Initialization
 sliceCtrl = mitk::SliceNavigationController::New();

 // Tell the navigator the geometry to be sliced (with geometry a
 // Geometry3D::ConstPointer)
 sliceCtrl->SetInputWorldGeometry(geometry.GetPointer());

 // Tell the navigator in which direction it shall slice the data
 sliceCtrl->SetViewDirection(mitk::SliceNavigationController::Transversal);

 // Connect one or more BaseRenderer to this navigator, i.e.: events sent
 // by the navigator when stepping through the slices (e.g. by
 // sliceCtrl->GetSlice()->Next()) will be received by the BaseRenderer
 // (in this example only slice-changes, see also ConnectGeometryTimeEvent
 // and ConnectGeometryEvents.)
 sliceCtrl->ConnectGeometrySliceEvent(renderer.GetPointer());

 //create a world geometry and send the information to the connected renderer(s)
 sliceCtrl->Update();

You can connect visible navigators to a SliceNavigationController, e.g., a QmitkSliderNavigator (for Qt):

 // Create the visible navigator (a slider with a spin-box)
 QmitkSliderNavigator* navigator =
   new QmitkSliderNavigator(parent, "slidernavigator");

 // Connect the navigator to the slice-stepper of the
 // SliceNavigationController. For initialization (position, mininal and
 // maximal values) the values of the SliceNavigationController are used.
 // Thus, accessing methods of a navigator is normally not necessary, since
 // everything can be set via the (Qt-independent) SliceNavigationController.
 // The QmitkStepperAdapter converts the Qt-signals to Qt-independent
 // itk-events.
 new QmitkStepperAdapter(navigator, sliceCtrl->GetSlice(), "navigatoradaptor");

If you do not want that all renderwindows are updated when a new slice is selected, you can use a specific RenderingManager, which updates only those renderwindows that should be updated. This is sometimes useful when a 3D view does not need to be updated when the slices in some 2D views are changed. QmitkSliderNavigator (for Qt):

 // create a specific RenderingManager
 mitk::RenderingManager::Pointer myManager = mitk::RenderingManager::New();

 // tell the RenderingManager to update only renderwindow1 and renderwindow2
 myManager->AddRenderWindow(renderwindow1);
 myManager->AddRenderWindow(renderwindow2);

 // tell the SliceNavigationController of renderwindow1 and renderwindow2
 // to use the specific RenderingManager instead of the global one
 renderwindow1->GetSliceNavigationController()->SetRenderingManager(myManager);
 renderwindow2->GetSliceNavigationController()->SetRenderingManager(myManager);

Definition at line 141 of file mitkSliceNavigationController.h.

Member Enumeration Documentation

enum mitk::SliceNavigationController::ViewDirection

Possible view directions, Original will uses the Geometry2D instances in a SlicedGeometry3D provided as input world geometry (by SetInputWorldGeometry).

Enumerator:

Transversal
Sagittal
Frontal
Original

Definition at line 153 of file mitkSliceNavigationController.h.

{Transversal, Sagittal, Frontal, Original};

Constructor & Destructor Documentation

mitk::SliceNavigationController::SliceNavigationController ( const char * type = NULL ) [protected]

Definition at line 44 of file mitkSliceNavigationController.cpp.

References SendSlice(), and SendTime().

               {

SliceNavigationController::SliceNavigationController( const char *type )
: BaseController( type ),
  m_InputWorldGeometry( NULL ),
  m_CreatedWorldGeometry( NULL ),
  m_ViewDirection( Transversal ),
  m_DefaultViewDirection( Transversal ),
  m_RenderingManager( NULL ),
  m_Renderer( NULL ),
  m_Top( false ),
  m_FrontSide( false ),
  m_Rotated( false ),
  m_BlockUpdate( false ),
  m_SliceLocked( false ),
  m_SliceRotationLocked( false ),
  m_OldPos(0)
{
  typedef itk::SimpleMemberCommand< SliceNavigationController > SNCCommandType;
  SNCCommandType::Pointer sliceStepperChangedCommand, timeStepperChangedCommand;

  sliceStepperChangedCommand = SNCCommandType::New();
  timeStepperChangedCommand = SNCCommandType::New();

  sliceStepperChangedCommand->SetCallbackFunction(
    this, &SliceNavigationController::SendSlice );

  timeStepperChangedCommand->SetCallbackFunction(
    this, &SliceNavigationController::SendTime );

  m_Slice->AddObserver( itk::ModifiedEvent(), sliceStepperChangedCommand );
  m_Time->AddObserver( itk::ModifiedEvent(), timeStepperChangedCommand );

mitk::SliceNavigationController::~SliceNavigationController ( ) [protected, virtual]

Definition at line 84 of file mitkSliceNavigationController.cpp.

Member Function Documentation

void mitk::SliceNavigationController::AdjustSliceStepperRange ( )

Adjusts the numerical range of the slice stepper according to the current geometry orientation of this SNC's SlicedGeometry.

Definition at line 518 of file mitkSliceNavigationController.cpp.

References m_Renderer.

{
  return m_Renderer;
}



void
SliceNavigationController::AdjustSliceStepperRange()
{
  const mitk::SlicedGeometry3D *slicedGeometry =
    dynamic_cast< const mitk::SlicedGeometry3D * >
      ( this->GetCurrentGeometry3D() );

  const Vector3D &direction = slicedGeometry->GetDirectionVector();

  int c = 0;
  int i, k = 0;
  for ( i = 0; i < 3; ++i )
  {
    if ( fabs( (float) direction[i] ) < 0.000000001 ) { ++c; }
    else { k = i; }
  }

  if ( c == 2 )
  {
    ScalarType min = m_InputWorldGeometry->GetOrigin()[k];
    ScalarType max = min + m_InputWorldGeometry->GetExtentInMM( k );

    m_Slice->SetRange( min, max );

template<class T >

static void mitk::SliceNavigationController::buildstring	(	mitkIpPicDescriptor *	pic,
		itk::Point< int, 3 >	p,
		std::string &	s,
		T	= `0`
	)		`[inline, static, protected]`

Definition at line 440 of file mitkSliceNavigationController.h.

    {
      std::string value;
      std::stringstream stream;
      stream<<s<<"; Pixelvalue: ";

      if ( (p[0]>=0 && p[1] >=0 && p[2]>=0) && (unsigned int)p[0] < pic->n[0] && (unsigned int)p[1] < pic->n[1] && (unsigned int)p[2] < pic->n[2] )
      {
        if(pic->bpe!=24)
        {
          stream<<(((T*) pic->data)[ p[0] + p[1]*pic->n[0] + p[2]*pic->n[0]*pic->n[1] ]);
        }
        else
        {
          stream<<(((T*) pic->data)[p[0]*3 + 0 + p[1]*pic->n[0]*3 + p[2]*pic->n[0]*pic->n[1]*3 ]);
          stream<<(((T*) pic->data)[p[0]*3 + 1 + p[1]*pic->n[0]*3 + p[2]*pic->n[0]*pic->n[1]*3 ]);
          stream<<(((T*) pic->data)[p[0]*3 + 2 + p[1]*pic->n[0]*3 + p[2]*pic->n[0]*pic->n[1]*3 ]);
        }

        s = stream.str();
      }
      else
      {
        s+= "point out of data";
      }
    };

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryEvents ( T * receiver ) [inline]

Definition at line 342 of file mitkSliceNavigationController.h.

    {
      //connect sendEvent only once
      ConnectGeometrySliceEvent(receiver, false);
      ConnectGeometryTimeEvent(receiver);
    }

template<typename T >

void mitk::SliceNavigationController::ConnectGeometrySendEvent ( T * receiver ) [inline]

Definition at line 294 of file mitkSliceNavigationController.h.

Referenced by QmitkStdMultiWidget::InitializeWidget(), and mitk::SlicesRotator::OnSliceControllerAdded().

    {
      typedef typename itk::ReceptorMemberCommand<T>::Pointer
        ReceptorMemberCommandPointer;
      ReceptorMemberCommandPointer eventReceptorCommand =
        itk::ReceptorMemberCommand<T>::New();
      eventReceptorCommand->SetCallbackFunction(receiver, &T::SetGeometry);
      AddObserver(GeometrySendEvent(NULL,0), eventReceptorCommand);
    }

template<typename T >

void mitk::SliceNavigationController::ConnectGeometrySliceEvent	(	T *	receiver,
		bool	connectSendEvent = `true`
	)		`[inline]`

Definition at line 316 of file mitkSliceNavigationController.h.

    {
      typedef typename itk::ReceptorMemberCommand<T>::Pointer
        ReceptorMemberCommandPointer;
      ReceptorMemberCommandPointer eventReceptorCommand =
        itk::ReceptorMemberCommand<T>::New();
      eventReceptorCommand->SetCallbackFunction(receiver, &T::SetGeometrySlice);
      AddObserver(GeometrySliceEvent(NULL,0), eventReceptorCommand);
      if(connectSendEvent)
        ConnectGeometrySendEvent(receiver);
    }

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryTimeEvent	(	T *	receiver,
		bool	connectSendEvent = `true`
	)		`[inline]`

Definition at line 329 of file mitkSliceNavigationController.h.

Referenced by QmitkStdMultiWidget::InitializeWidget().

    {
      typedef typename itk::ReceptorMemberCommand<T>::Pointer
        ReceptorMemberCommandPointer;
      ReceptorMemberCommandPointer eventReceptorCommand =
        itk::ReceptorMemberCommand<T>::New();
      eventReceptorCommand->SetCallbackFunction(receiver, &T::SetGeometryTime);
      AddObserver(GeometryTimeEvent(NULL,0), eventReceptorCommand);
      if(connectSendEvent)
        ConnectGeometrySendEvent(receiver);
    }

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryUpdateEvent ( T * receiver ) [inline]

Definition at line 305 of file mitkSliceNavigationController.h.

    {
      typedef typename itk::ReceptorMemberCommand<T>::Pointer
        ReceptorMemberCommandPointer;
      ReceptorMemberCommandPointer eventReceptorCommand =
        itk::ReceptorMemberCommand<T>::New();
      eventReceptorCommand->SetCallbackFunction(receiver, &T::UpdateGeometry);
      AddObserver(GeometryUpdateEvent(NULL,0), eventReceptorCommand);
    }

bool mitk::SliceNavigationController::ExecuteAction	(	Action *	action,
		mitk::StateEvent const *	stateEvent
	)		`[virtual]`

Method called in HandleEvent after Statechange.

look up which object method is associated to the given action and call the method

Each statechange has actions, which can be assigned by it's number. If you are developing a new statemachine, declare all your operations here and send them to Undo-Controller and to the Data. Object- and group-EventId can also be accessed through static methods from OperationEvent

Reimplemented from mitk::StateMachine.

Definition at line 592 of file mitkSliceNavigationController.cpp.

{
  bool ok = false;

  const PositionEvent* posEvent = dynamic_cast< const PositionEvent * >(
    stateEvent->GetEvent() );
  if ( posEvent != NULL )
  {
    if ( m_CreatedWorldGeometry.IsNull() )
    {
      return true;
    }
    switch (action->GetActionId())
    {
    case AcMOVE:
      {
        BaseRenderer *baseRenderer = posEvent->GetSender();
        if ( !baseRenderer )
        {
          baseRenderer = const_cast<BaseRenderer *>(
            GlobalInteraction::GetInstance()->GetFocus() );
        }
        if ( baseRenderer )
          if ( baseRenderer->GetMapperID() == 1 )
          {
            PointOperation* doOp = new mitk::PointOperation(OpMOVE, posEvent->GetWorldPosition());
            if (m_UndoEnabled)
            {
              m_OldPos = this->GetSlice()->GetPos();
              // m_OldPos holds the old slice position. For the undo controller this old position will be stored as index in mitk::PointOperation
              PointOperation* undoOp = new mitk::PointOperation(OpMOVE, posEvent->GetWorldPosition(), m_OldPos);
              OperationEvent *operationEvent = new mitk::OperationEvent(this, doOp, undoOp, "Move slices");
              m_UndoController->SetOperationEvent(operationEvent);
            }

            this->ExecuteOperation( doOp );

            // If click was performed in this render window than we have to update the status bar information about position and pixel value.
            if(baseRenderer == m_Renderer)
            {
              {
                std::string statusText;
                TNodePredicateDataType<mitk::Image>::Pointer isImageData = TNodePredicateDataType<mitk::Image>::New();

                mitk::DataStorage::SetOfObjects::ConstPointer nodes = baseRenderer->GetDataStorage()->GetSubset(isImageData).GetPointer();
                mitk::Point3D worldposition = posEvent->GetWorldPosition();
                int  maxlayer = -32768;
                mitk::Image::Pointer image3D;
                // find image with largest layer, that is the image shown on top in the render window
                for (unsigned int x = 0; x < nodes->size(); x++)
                {
                  if(nodes->at(x)->GetData()->GetGeometry()->IsInside(worldposition))
                  {
                    int layer = 0;
                    if(!(nodes->at(x)->GetIntProperty("layer", layer))) continue;
                    if(layer > maxlayer)
                    {
                      if(static_cast<mitk::DataNode::Pointer>(nodes->at(x))->IsVisible(m_Renderer))
                      {
                        image3D = dynamic_cast<mitk::Image*>(nodes->at(x)->GetData());
                        maxlayer = layer;
                      }
                    }
                  }
                }

                std::stringstream stream;

                // get the position and gray value from the image and build up status bar text
                if(image3D.IsNotNull())
                {
                  Index3D p;
                  image3D->GetGeometry()->WorldToIndex(worldposition, p);
                  stream.precision(2);
                  stream<<"Position: <" << std::fixed <<worldposition[0] << ", " << std::fixed << worldposition[1] << ", " << std::fixed << worldposition[2] << "> mm";
                  stream<<"; Index: <"<<p[0] << ", " << p[1] << ", " << p[2] << "> ";
                  stream<<"; Time: " << baseRenderer->GetTime() << " ms; Pixelvalue: "<<image3D->GetPixelValueByIndex(p, baseRenderer->GetTimeStep())<<"  ";
                }
                else
                {
                  stream << "No image information at this position!";
                }

                statusText = stream.str();
                mitk::StatusBar::GetInstance()->DisplayGreyValueText(statusText.c_str());

              }

            }
            ok = true;
            break;
          }
      }
    default:
      ok = true;
      break;
    }
    return ok;
  }

  const DisplayPositionEvent *displPosEvent =
    dynamic_cast< const DisplayPositionEvent * >( stateEvent->GetEvent() );

void mitk::SliceNavigationController::ExecuteOperation ( Operation * operation ) [virtual]

A statemachine is also an OperationActor due to the UndoMechanism.

The statechange is done in ExecuteOperation, so that the statechange can be undone by UndoMechanism. Is set private here and in superclass it is set public, so UndoController can reach ist, but it can't be overwritten by a subclass

Reimplemented from mitk::StateMachine.

Definition at line 550 of file mitkSliceNavigationController.cpp.

{
  // switch on type
  // - select best slice for a given point
  // - rotate created world geometry according to Operation->SomeInfo()
  if ( !operation )
  {
    return;
  }

  switch ( operation->GetOperationType() )
  {
    case OpMOVE: // should be a point operation
    {
      if ( !m_SliceLocked ) //do not move the cross position
      {
        // select a slice
        PointOperation *po = dynamic_cast< PointOperation * >( operation );
        if ( po && po->GetIndex() == -1 )
        {
          this->SelectSliceByPoint( po->GetPoint() );
        }
        else if ( po && po->GetIndex() != -1 ) // undo case because index != -1, index holds the old position of this slice
        {
          this->GetSlice()->SetPos( po->GetIndex() );
        }
      }
      break;
    }

virtual void mitk::SliceNavigationController::FrontSideOff ( ) [protected, virtual]

virtual void mitk::SliceNavigationController::FrontSideOn ( ) [protected, virtual]

const mitk::TimeSlicedGeometry * mitk::SliceNavigationController::GetCreatedWorldGeometry ( ) [virtual]

Access the created geometry.

Definition at line 462 of file mitkSliceNavigationController.cpp.

Referenced by mitk::SlicesRotator::RotateToPoint(), and mitk::BaseRenderer::SetSliceNavigationController().

const mitk::TimeSlicedGeometry* mitk::SliceNavigationController::GetCreatedWorldGeometry ( )

Returns the TimeSlicedGeometry created by the SNC.

const mitk::Geometry3D * mitk::SliceNavigationController::GetCurrentGeometry3D ( )

Returns the Geometry3D of the currently selected time step.

Definition at line 469 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry.

{
  return m_CreatedWorldGeometry;
}


const mitk::Geometry3D *
SliceNavigationController::GetCurrentGeometry3D()
{
  if ( m_CreatedWorldGeometry.IsNotNull() )
  {

const mitk::PlaneGeometry * mitk::SliceNavigationController::GetCurrentPlaneGeometry ( )

Returns the currently selected Plane in the current Geometry3D (if existent).

Definition at line 483 of file mitkSliceNavigationController.cpp.

Referenced by mitk::PlanarFigureInteractor::ExecuteAction(), QmitkStdMultiWidget::GetCrossPosition(), and mitk::SlicesRotator::RotateToPoint().

  {
    return NULL;
  }
}


const mitk::PlaneGeometry *
SliceNavigationController::GetCurrentPlaneGeometry()
{
  const mitk::SlicedGeometry3D *slicedGeometry =
    dynamic_cast< const mitk::SlicedGeometry3D * >
      ( this->GetCurrentGeometry3D() );

  if ( slicedGeometry )
  {
    const mitk::PlaneGeometry *planeGeometry =
      dynamic_cast< mitk::PlaneGeometry * >
        ( slicedGeometry->GetGeometry2D(this->GetSlice()->GetPos()) );

virtual ViewDirection mitk::SliceNavigationController::GetDefaultViewDirection ( ) [virtual]

virtual bool mitk::SliceNavigationController::GetFrontSide ( ) [protected, virtual]

virtual const mitk::Geometry3D* mitk::SliceNavigationController::GetInputWorldGeometry ( ) [virtual]

BaseRenderer * mitk::SliceNavigationController::GetRenderer ( ) const

Gets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC. Returns NULL if no BaseRenderer has been specified.

Definition at line 510 of file mitkSliceNavigationController.cpp.

References m_Renderer.

Referenced by mitk::SlicesRotator::RotateToPoint().

{
  m_Renderer = renderer;

RenderingManager * mitk::SliceNavigationController::GetRenderingManager ( ) const

Definition at line 109 of file mitkSliceNavigationController.cpp.

References m_InputWorldGeometry.

  {
    m_InputWorldGeometry = geometry;
    this->Modified();
  }
}

RenderingManager *
SliceNavigationController::GetRenderingManager() const
{
  mitk::RenderingManager* renderingManager = m_RenderingManager.GetPointer();

  if (renderingManager != NULL)
    return renderingManager;

  if ( m_Renderer != NULL )
  {
    renderingManager = m_Renderer->GetRenderingManager();

virtual bool mitk::SliceNavigationController::GetRotated ( ) [protected, virtual]

virtual bool mitk::SliceNavigationController::GetSliceLocked ( ) [virtual]

Referenced by QmitkSelectableGLWidget::wheelEvent().

virtual bool mitk::SliceNavigationController::GetSliceRotationLocked ( ) [virtual]

virtual bool mitk::SliceNavigationController::GetTop ( ) [protected, virtual]

virtual ViewDirection mitk::SliceNavigationController::GetViewDirection ( ) [virtual]

mitk::SliceNavigationController::itkEventMacro	(	UpdateEvent	,
		itk::AnyEvent
	)

mitk::SliceNavigationController::mitkClassMacro	(	SliceNavigationController	,
		BaseController
	)

mitk::SliceNavigationController::mitkNewMacro1Param	(	Self	,
		const char *
	)

Method for creation through New

Reimplemented from mitk::BaseController.

static Pointer mitk::SliceNavigationController::New ( ) [static]

Reimplemented from mitk::BaseController.

Referenced by mitk::BaseRenderer::BaseRenderer(), QmitkStdMultiWidget::InitializeWidget(), main(), and testGeometry().

void mitk::SliceNavigationController::ReorientSlices	(	const mitk::Point3D &	point,
		const mitk::Vector3D &	normal
	)

Re-orients the slice stack to include the plane specified by the given point an normal vector.

virtual void mitk::SliceNavigationController::RotatedOff ( ) [protected, virtual]

virtual void mitk::SliceNavigationController::RotatedOn ( ) [protected, virtual]

void mitk::SliceNavigationController::SelectSliceByPoint ( const mitk::Point3D & point )

Positions the SNC according to the specified point.

Referenced by QmitkMeasurement::PlanarFigureSelectionChanged().

void mitk::SliceNavigationController::SendCreatedWorldGeometry ( ) [virtual]

Send the created geometry to the connected observers (renderers)

Called by Update().

Definition at line 295 of file mitkSliceNavigationController.cpp.

void mitk::SliceNavigationController::SendCreatedWorldGeometryUpdate ( ) [virtual]

Tell observers to re-read the currently selected 2D geometry.

Called by mitk::SlicesRotator during rotation.

Definition at line 306 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry.

Referenced by mitk::SlicesRotator::RotateToPoint().

  {
    this->InvokeEvent( GeometrySendEvent(m_CreatedWorldGeometry, 0) );
  }
}

void
SliceNavigationController::SendCreatedWorldGeometryUpdate()

void mitk::SliceNavigationController::SendSlice ( ) [virtual]

Send the currently selected slice to the connected observers (renderers)

Called by Update().

Definition at line 316 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry, and mitk::BaseController::m_Slice.

Referenced by QmitkSlicesInterpolator::OnFrontalTimeChanged(), QmitkSlicesInterpolator::OnSagittalTimeChanged(), QmitkSlicesInterpolator::OnTransversalTimeChanged(), and SliceNavigationController().

  {
    this->InvokeEvent(
      GeometryUpdateEvent(m_CreatedWorldGeometry, m_Slice->GetPos()) );
  }
}

void
SliceNavigationController::SendSlice()
{
  if ( !m_BlockUpdate )
  {
    if ( m_CreatedWorldGeometry.IsNotNull() )
    {
      this->InvokeEvent(

void mitk::SliceNavigationController::SendTime ( ) [virtual]

Send the currently selected time to the connected observers (renderers)

Called by Update().

Definition at line 332 of file mitkSliceNavigationController.cpp.

Referenced by SliceNavigationController().

{
  if ( !m_BlockUpdate )
  {
    if ( m_CreatedWorldGeometry.IsNotNull() )
    {
      this->InvokeEvent(

virtual void mitk::SliceNavigationController::SetDefaultViewDirection ( ViewDirection _arg ) [virtual]

Set the default view direction.

This is used to re-initialize the view direction of the SNC to the default value with SetViewDirectionToDefault()

See also:: ViewDirection; Update(ViewDirection viewDirection, bool top = true, bool frontside = true, bool rotated = false)

Referenced by QmitkStdMultiWidget::InitializeWidget().

virtual void mitk::SliceNavigationController::SetFrontSide ( bool _arg ) [protected, virtual]

void mitk::SliceNavigationController::SetGeometry ( const itk::EventObject & geometrySliceEvent ) [virtual]

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Warning:: not implemented

Definition at line 348 of file mitkSliceNavigationController.cpp.

void mitk::SliceNavigationController::SetGeometrySlice ( const itk::EventObject & geometrySliceEvent ) [virtual]

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Definition at line 377 of file mitkSliceNavigationController.cpp.

void mitk::SliceNavigationController::SetGeometryTime ( const itk::EventObject & geometryTimeEvent ) [virtual]

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Definition at line 354 of file mitkSliceNavigationController.cpp.

{
}

void
SliceNavigationController
::SetGeometryTime( const itk::EventObject &geometryTimeEvent )
{
  const SliceNavigationController::GeometryTimeEvent *timeEvent =
    dynamic_cast< const SliceNavigationController::GeometryTimeEvent * >(
      &geometryTimeEvent);

  assert( timeEvent != NULL );

  TimeSlicedGeometry *timeSlicedGeometry = timeEvent->GetTimeSlicedGeometry();
  assert( timeSlicedGeometry != NULL );

  if ( m_CreatedWorldGeometry.IsNotNull() )
  {

void mitk::SliceNavigationController::SetInputWorldGeometry ( const mitk::Geometry3D * geometry )

Set the input world geometry out of which the geometries for slicing will be created.

Definition at line 90 of file mitkSliceNavigationController.cpp.

Referenced by QmitkSliceWidget::InitWidget(), and mitk::BaseRenderer::SetSliceNavigationController().

{
}


void
SliceNavigationController::SetInputWorldGeometry( const Geometry3D *geometry )
{
  if ( geometry != NULL )
  {
    if ( const_cast< BoundingBox * >( geometry->GetBoundingBox())
         ->GetDiagonalLength2() < eps )
    {
      itkWarningMacro( "setting an empty bounding-box" );
      geometry = NULL;
    }

void mitk::SliceNavigationController::SetRenderer ( BaseRenderer * renderer )

Sets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC.

Definition at line 504 of file mitkSliceNavigationController.cpp.

Referenced by mitk::BaseRenderer::SetSliceNavigationController().

  {
    return NULL;
  }
}

virtual void mitk::SliceNavigationController::SetRenderingManager ( RenderingManager * _arg ) [virtual]

Set the RenderingManager to be used.

If NULL, the default RenderingManager will be used.

virtual void mitk::SliceNavigationController::SetRotated ( bool _arg ) [protected, virtual]

virtual void mitk::SliceNavigationController::SetSliceLocked ( bool _arg ) [virtual]

Feature option to lock planes during mouse interaction. This option flag disables the mouse event which causes the center cross to move near by.

Referenced by QmitkStdMultiWidget::SetWidgetPlanesLocked().

virtual void mitk::SliceNavigationController::SetSliceRotationLocked ( bool _arg ) [virtual]

Feature option to lock slice rotation.

This option flag disables separately the rotation of a slice which is implemented in mitkSliceRotator.

Referenced by QmitkStdMultiWidget::SetWidgetPlanesRotationLocked().

virtual void mitk::SliceNavigationController::SetTop ( bool _arg ) [protected, virtual]

virtual void mitk::SliceNavigationController::SetViewDirection ( ViewDirection _arg ) [virtual]

Set the desired view directions.

See also:: ViewDirection; Update(ViewDirection viewDirection, bool top = true, bool frontside = true, bool rotated = false)

Referenced by QmitkSliceWidget::InitWidget().

void mitk::SliceNavigationController::SetViewDirectionToDefault ( ) [virtual]

Definition at line 128 of file mitkSliceNavigationController.cpp.

virtual void mitk::SliceNavigationController::SliceLockedOff ( ) [virtual]

virtual void mitk::SliceNavigationController::SliceLockedOn ( ) [virtual]

virtual void mitk::SliceNavigationController::SliceRotationLockedOff ( ) [virtual]

virtual void mitk::SliceNavigationController::SliceRotationLockedOn ( ) [virtual]

virtual void mitk::SliceNavigationController::TopOff ( ) [protected, virtual]

virtual void mitk::SliceNavigationController::TopOn ( ) [protected, virtual]

void mitk::SliceNavigationController::Update	(	SliceNavigationController::ViewDirection	viewDirection,
		bool	top = `true`,
		bool	frontside = `true`,
		bool	rotated = `false`
	)		`[virtual]`

Extended version of Update, additionally allowing to specify the direction/orientation of the created geometry.

Definition at line 149 of file mitkSliceNavigationController.cpp.

References m_ViewDirection, and Update().

    {
      this->Update( m_ViewDirection );
    }
  }
}

void
SliceNavigationController::Update(
  SliceNavigationController::ViewDirection viewDirection,
  bool top, bool frontside, bool rotated )
{
  const TimeSlicedGeometry* worldTimeSlicedGeometry =
    dynamic_cast< const TimeSlicedGeometry * >(
      m_InputWorldGeometry.GetPointer() );

  if( m_BlockUpdate ||
      m_InputWorldGeometry.IsNull() ||
      ( (worldTimeSlicedGeometry != NULL) && (worldTimeSlicedGeometry->GetTimeSteps() == 0) )
    )
  {
    return;
  }

  m_BlockUpdate = true;

  if ( m_LastUpdateTime < m_InputWorldGeometry->GetMTime() )
  {
    Modified();
  }

  this->SetViewDirection( viewDirection );
  this->SetTop( top );
  this->SetFrontSide( frontside );
  this->SetRotated( rotated );

  if ( m_LastUpdateTime < GetMTime() )
  {
    m_LastUpdateTime = GetMTime();

    // initialize the viewplane
    SlicedGeometry3D::Pointer slicedWorldGeometry = NULL;

    m_CreatedWorldGeometry = NULL;
    switch ( viewDirection )
    {
    case Original:
      if ( worldTimeSlicedGeometry != NULL )
      {
        m_CreatedWorldGeometry = static_cast< TimeSlicedGeometry * >(
          m_InputWorldGeometry->Clone().GetPointer() );

        worldTimeSlicedGeometry = m_CreatedWorldGeometry.GetPointer();

        slicedWorldGeometry = dynamic_cast< SlicedGeometry3D * >(
          m_CreatedWorldGeometry->GetGeometry3D( this->GetTime()->GetPos() ) );

        if ( slicedWorldGeometry.IsNotNull() )
        {
          break;
        }
      }
      else
      {
        const SlicedGeometry3D *worldSlicedGeometry =
          dynamic_cast< const SlicedGeometry3D * >(
            m_InputWorldGeometry.GetPointer());

        if ( worldSlicedGeometry != NULL )
        {
          slicedWorldGeometry = static_cast< SlicedGeometry3D * >(
            m_InputWorldGeometry->Clone().GetPointer());
          break;
        }
      }
      //else: use Transversal: no "break" here!!

    case Transversal:
      slicedWorldGeometry = SlicedGeometry3D::New();
      slicedWorldGeometry->InitializePlanes(
        m_InputWorldGeometry, PlaneGeometry::Transversal,
        top, frontside, rotated );
      slicedWorldGeometry->SetSliceNavigationController( this );
      break;

    case Frontal:
      slicedWorldGeometry = SlicedGeometry3D::New();
      slicedWorldGeometry->InitializePlanes( m_InputWorldGeometry,
        PlaneGeometry::Frontal, top, frontside, rotated );
      slicedWorldGeometry->SetSliceNavigationController( this );
      break;

    case Sagittal:
      slicedWorldGeometry = SlicedGeometry3D::New();
      slicedWorldGeometry->InitializePlanes( m_InputWorldGeometry,
        PlaneGeometry::Sagittal, top, frontside, rotated );
      slicedWorldGeometry->SetSliceNavigationController( this );
      break;
    default:
      itkExceptionMacro("unknown ViewDirection");
    }

    m_Slice->SetPos( 0 );
    m_Slice->SetSteps( (int)slicedWorldGeometry->GetSlices() );

    if ( m_CreatedWorldGeometry.IsNull() )
    {
      // initialize TimeSlicedGeometry
      m_CreatedWorldGeometry = TimeSlicedGeometry::New();
    }
    if ( worldTimeSlicedGeometry == NULL )
    {
      m_CreatedWorldGeometry->InitializeEvenlyTimed( slicedWorldGeometry, 1 );
      m_Time->SetSteps( 0 );
      m_Time->SetPos( 0 );
      m_Time->InvalidateRange();
    }
    else
    {
      m_BlockUpdate = true;
      m_Time->SetSteps( worldTimeSlicedGeometry->GetTimeSteps() );
      m_Time->SetPos( 0 );

      const TimeBounds &timeBounds = worldTimeSlicedGeometry->GetTimeBounds();
      m_Time->SetRange( timeBounds[0], timeBounds[1] );

      m_BlockUpdate = false;

      assert( worldTimeSlicedGeometry->GetGeometry3D( this->GetTime()->GetPos() ) != NULL );

      slicedWorldGeometry->SetTimeBounds(
        worldTimeSlicedGeometry->GetGeometry3D( this->GetTime()->GetPos() )->GetTimeBounds() );

      //@todo implement for non-evenly-timed geometry!
      m_CreatedWorldGeometry->InitializeEvenlyTimed(
        slicedWorldGeometry, worldTimeSlicedGeometry->GetTimeSteps() );
    }
  }

  // unblock update; we may do this now, because if m_BlockUpdate was already
  // true before this method was entered, then we will never come here.
  m_BlockUpdate = false;

  // Send the geometry. Do this even if nothing was changed, because maybe
  // Update() was only called to re-send the old geometry and time/slice data.

void mitk::SliceNavigationController::Update ( ) [virtual]

Do the actual creation and send it to the connected observers (renderers)

Definition at line 133 of file mitkSliceNavigationController.cpp.

References m_DefaultViewDirection, and m_ViewDirection.

Referenced by mitk::RenderingManager::GetTimeNavigationController(), QmitkSliceWidget::InitWidget(), mitk::BaseRenderer::SetSliceNavigationController(), and Update().

{
  m_ViewDirection = m_DefaultViewDirection;
}

void SliceNavigationController::Update()
{
  if ( !m_BlockUpdate )
  {
    if ( m_ViewDirection == Transversal )
    {
      this->Update( Transversal, false, false, true );
