Manager for coordinating the rendering process. More...

#include <mitkRenderingManager.h>

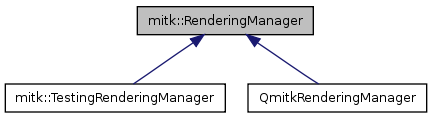

Inheritance diagram for mitk::RenderingManager:

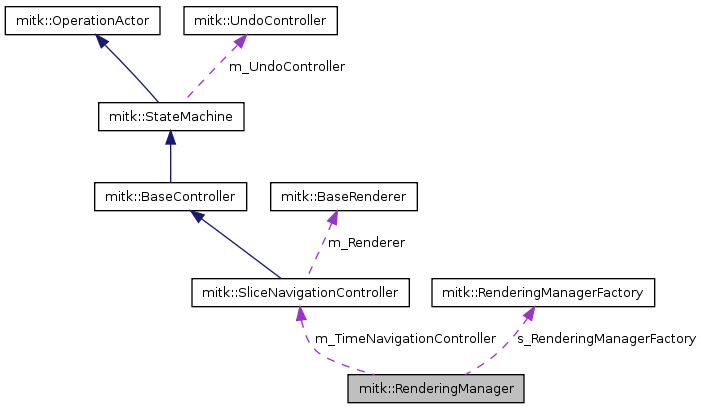

Collaboration diagram for mitk::RenderingManager:

Classes
struct	RenderWindowCallbacks
Public Types
enum	RequestType { REQUEST_UPDATE_ALL = 0, REQUEST_UPDATE_2DWINDOWS, REQUEST_UPDATE_3DWINDOWS }
typedef std::vector < vtkRenderWindow * >	RenderWindowVector
typedef std::vector< float >	FloatVector
typedef std::vector< bool >	BoolVector
typedef itk::SmartPointer < DataStorage >	DataStoragePointer
typedef itk::SmartPointer < GlobalInteraction >	GlobalInteractionPointer
Public Member Functions
	mitkClassMacro (RenderingManager, itk::Object)
void	AddRenderWindow (vtkRenderWindow *renderWindow)
void	RemoveRenderWindow (vtkRenderWindow *renderWindow)
const RenderWindowVector &	GetAllRegisteredRenderWindows ()
void	RequestUpdate (vtkRenderWindow *renderWindow)
void	ForceImmediateUpdate (vtkRenderWindow *renderWindow)
void	RequestUpdateAll (RequestType type=REQUEST_UPDATE_ALL)
void	ForceImmediateUpdateAll (RequestType type=REQUEST_UPDATE_ALL)
virtual bool	InitializeViews (const Geometry3D *geometry, RequestType type=REQUEST_UPDATE_ALL, bool preserveRoughOrientationInWorldSpace=false)
virtual bool	InitializeViews (RequestType type=REQUEST_UPDATE_ALL)
virtual bool	InitializeView (vtkRenderWindow renderWindow, const Geometry3D geometry, bool initializeGlobalTimeSNC=false)
virtual bool	InitializeView (vtkRenderWindow *renderWindow)
void	SetTimeNavigationController (SliceNavigationController *nc)
const SliceNavigationController *	GetTimeNavigationController () const
SliceNavigationController *	GetTimeNavigationController ()
virtual	~RenderingManager ()
virtual void	ExecutePendingRequests ()
bool	IsRendering () const
void	AbortRendering ()
virtual void	SetLODIncreaseBlocked (bool _arg)
virtual bool	GetLODIncreaseBlocked ()
virtual void	LODIncreaseBlockedOn ()
virtual void	LODIncreaseBlockedOff ()
virtual void	SetLODAbortMechanismEnabled (bool _arg)
virtual bool	GetLODAbortMechanismEnabled ()
virtual void	LODAbortMechanismEnabledOn ()
virtual void	LODAbortMechanismEnabledOff ()
void	SetDepthPeelingEnabled (bool enabled)
void	SetMaxNumberOfPeels (int maxNumber)
virtual void	DoStartRendering ()
virtual void	DoMonitorRendering ()
virtual void	DoFinishAbortRendering ()
int	GetNextLOD (BaseRenderer *renderer)
void	SetNextLOD (unsigned int lod, BaseRenderer *renderer=NULL)
void	SetMaximumLOD (unsigned int max)
void	SetShading (bool state, unsigned int lod)
bool	GetShading (unsigned int lod)
void	SetClippingPlaneStatus (bool status)
bool	GetClippingPlaneStatus ()
void	SetShadingValues (float ambient, float diffuse, float specular, float specpower)
FloatVector &	GetShadingValues ()
PropertyList::Pointer	GetPropertyList () const
BaseProperty *	GetProperty (const char *propertyKey) const
void	SetProperty (const char propertyKey, BaseProperty propertyValue)
void	SetDataStorage (mitk::DataStorage *storage)
	Setter / Getter for internal DataStorage.
mitk::DataStorage *	GetDataStorage ()
	Setter / Getter for internal DataStorage.
void	SetGlobalInteraction (mitk::GlobalInteraction *globalInteraction)
	Setter / Getter for internal GloabInteraction.
mitk::GlobalInteraction *	GetGlobalInteraction ()
	Setter / Getter for internal GloabInteraction.
Static Public Member Functions
static Pointer	New ()
static void	SetFactory (RenderingManagerFactory *factory)
static const RenderingManagerFactory *	GetFactory ()
static bool	HasFactory ()
static RenderingManager *	GetInstance ()
static bool	IsInstantiated ()
Protected Types
enum	{ RENDERING_INACTIVE = 0, RENDERING_REQUESTED, RENDERING_INPROGRESS }
typedef std::map< BaseRenderer *, unsigned int >	RendererIntMap
typedef std::map< BaseRenderer *, bool >	RendererBoolMap
typedef std::map < vtkRenderWindow *, int >	RenderWindowList
typedef std::map < vtkRenderWindow *, RenderWindowCallbacks >	RenderWindowCallbacksList
Protected Member Functions
	RenderingManager ()
virtual void	GenerateRenderingRequestEvent ()=0
virtual void	InitializePropertyList ()
Static Protected Member Functions
static void	RenderingStartCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
static void	RenderingProgressCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
static void	RenderingEndCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
Protected Attributes
bool	m_UpdatePending
RendererBoolMap	m_RenderingAbortedMap
RendererIntMap	m_NextLODMap
unsigned int	m_MaxLOD
bool	m_LODIncreaseBlocked
bool	m_LODAbortMechanismEnabled
BoolVector	m_ShadingEnabled
bool	m_ClippingPlaneEnabled
FloatVector	m_ShadingValues
RenderWindowList	m_RenderWindowList
RenderWindowVector	m_AllRenderWindows
RenderWindowCallbacksList	m_RenderWindowCallbacksList
SliceNavigationController *	m_TimeNavigationController
PropertyList::Pointer	m_PropertyList
DataStoragePointer	m_DataStorage
GlobalInteractionPointer	m_GlobalInteraction
Static Protected Attributes
static RenderingManager::Pointer	s_Instance = 0
static RenderingManagerFactory *	s_RenderingManagerFactory = 0

Detailed Description

Manager for coordinating the rendering process.

RenderingManager is a central instance retrieving and executing RenderWindow update requests. Its main purpose is to coordinate distributed requests which cannot be aware of each other - lacking the knowledge of whether they are really necessary or not. For example, two objects might determine that a specific RenderWindow needs to be updated. This would result in one unnecessary update, if both executed the update on their own.

The RenderingManager addresses this by letting each such object request an update, and waiting for other objects to possibly issue the same request. The actual update will then only be executed at a well-defined point in the main event loop (this may be each time after event processing is done).

Convinience methods for updating all RenderWindows which have been registered with the RenderingManager exist. If theses methods are not used, it is not required to register (add) RenderWindows prior to using the RenderingManager.

The methods ForceImmediateUpdate() and ForceImmediateUpdateAll() can be used to force the RenderWindow update execution without any delay, bypassing the request functionality.

The interface of RenderingManager is platform independent. Platform specific subclasses have to be implemented, though, to supply an appropriate event issueing for controlling the update execution process. See method documentation for a description of how this can be done.

See also:: TestingRenderingManager An "empty" RenderingManager implementation which can be used in tests etc.

Definition at line 82 of file mitkRenderingManager.h.

Member Typedef Documentation

typedef std::vector< bool > mitk::RenderingManager::BoolVector

Definition at line 90 of file mitkRenderingManager.h.

typedef itk::SmartPointer< DataStorage > mitk::RenderingManager::DataStoragePointer

Definition at line 92 of file mitkRenderingManager.h.

typedef std::vector< float > mitk::RenderingManager::FloatVector

Definition at line 89 of file mitkRenderingManager.h.

typedef itk::SmartPointer< GlobalInteraction > mitk::RenderingManager::GlobalInteractionPointer

Definition at line 93 of file mitkRenderingManager.h.

typedef std::map< BaseRenderer *, bool > mitk::RenderingManager::RendererBoolMap [protected]

Definition at line 321 of file mitkRenderingManager.h.

typedef std::map< BaseRenderer *, unsigned int > mitk::RenderingManager::RendererIntMap [protected]

Definition at line 320 of file mitkRenderingManager.h.

typedef std::map<vtkRenderWindow*, RenderWindowCallbacks> mitk::RenderingManager::RenderWindowCallbacksList [protected]

Definition at line 357 of file mitkRenderingManager.h.

typedef std::map< vtkRenderWindow *, int > mitk::RenderingManager::RenderWindowList [protected]

Definition at line 347 of file mitkRenderingManager.h.

typedef std::vector< vtkRenderWindow* > mitk::RenderingManager::RenderWindowVector

Definition at line 88 of file mitkRenderingManager.h.

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:

RENDERING_INACTIVE
RENDERING_REQUESTED
RENDERING_INPROGRESS

Definition at line 303 of file mitkRenderingManager.h.

  {
    RENDERING_INACTIVE = 0,
    RENDERING_REQUESTED,
    RENDERING_INPROGRESS
  };

enum mitk::RenderingManager::RequestType

Enumerator:

REQUEST_UPDATE_ALL
REQUEST_UPDATE_2DWINDOWS
REQUEST_UPDATE_3DWINDOWS

Definition at line 95 of file mitkRenderingManager.h.

  {
    REQUEST_UPDATE_ALL = 0,
    REQUEST_UPDATE_2DWINDOWS,
    REQUEST_UPDATE_3DWINDOWS
  };

Constructor & Destructor Documentation

mitk::RenderingManager::~RenderingManager ( ) [virtual]

Definition at line 46 of file mitkRenderingManager.cpp.

References mitk::GlobalInteraction::GetInstance().

{
  m_ShadingEnabled.assign( 3, false );
  m_ShadingValues.assign( 4, 0.0 );

  m_GlobalInteraction = mitk::GlobalInteraction::GetInstance();

  InitializePropertyList();
}


RenderingManager
::~RenderingManager()
{
  // Decrease reference counts of all registered vtkRenderWindows for

mitk::RenderingManager::RenderingManager ( ) [protected]

Definition at line 27 of file mitkRenderingManager.cpp.

References s_Instance, and s_RenderingManagerFactory.

{

RenderingManager::Pointer RenderingManager::s_Instance = 0;
RenderingManagerFactory *RenderingManager::s_RenderingManagerFactory = 0;


RenderingManager
::RenderingManager()
: m_UpdatePending( false ),
  m_MaxLOD( 1 ),

Member Function Documentation

void mitk::RenderingManager::AbortRendering ( )

Definition at line 799 of file mitkRenderingManager.cpp.

  {
    if ( it->second == RENDERING_INPROGRESS )
    {
      return true;
    }
  }
  return false;
}


void

void mitk::RenderingManager::AddRenderWindow ( vtkRenderWindow * renderWindow )

Adds a RenderWindow. This is required if the methods RequestUpdateAll or ForceImmediateUpdate are to be used.

Definition at line 134 of file mitkRenderingManager.cpp.

References s_Instance.

Referenced by mitk::RenderWindowBase::Initialize().

{
  if ( RenderingManager::s_Instance )
    return true;
  else
    return false;
}


void
RenderingManager
::AddRenderWindow( vtkRenderWindow *renderWindow )
{
  if ( renderWindow
    && (m_RenderWindowList.find( renderWindow ) == m_RenderWindowList.end()) )
  {
    m_RenderWindowList[renderWindow] = RENDERING_INACTIVE;
    m_AllRenderWindows.push_back( renderWindow );

    if ( m_DataStorage.IsNotNull() )
      mitk::BaseRenderer::GetInstance( renderWindow )->SetDataStorage( m_DataStorage.GetPointer() );

    // Register vtkRenderWindow instance
    renderWindow->Register( NULL );

    typedef itk::MemberCommand< RenderingManager > MemberCommandType;

    // Add callbacks for rendering abort mechanism
    //BaseRenderer *renderer = BaseRenderer::GetInstance( renderWindow );
    vtkCallbackCommand *startCallbackCommand = vtkCallbackCommand::New();
    startCallbackCommand->SetCallback(
      RenderingManager::RenderingStartCallback );
    renderWindow->AddObserver( vtkCommand::StartEvent, startCallbackCommand );

    vtkCallbackCommand *progressCallbackCommand = vtkCallbackCommand::New();
    progressCallbackCommand->SetCallback(
      RenderingManager::RenderingProgressCallback );
    renderWindow->AddObserver( vtkCommand::AbortCheckEvent, progressCallbackCommand );

    vtkCallbackCommand *endCallbackCommand = vtkCallbackCommand::New();
    endCallbackCommand->SetCallback(
      RenderingManager::RenderingEndCallback );
    renderWindow->AddObserver( vtkCommand::EndEvent, endCallbackCommand );

    RenderWindowCallbacks callbacks;

virtual void mitk::RenderingManager::DoFinishAbortRendering ( ) [inline, virtual]

Reimplemented in QmitkRenderingManager.

Definition at line 230 of file mitkRenderingManager.h.

{};

virtual void mitk::RenderingManager::DoMonitorRendering ( ) [inline, virtual]

Reimplemented in QmitkRenderingManager.

Definition at line 229 of file mitkRenderingManager.h.

Referenced by RenderingEndCallback().

{};

virtual void mitk::RenderingManager::DoStartRendering ( ) [inline, virtual]

Definition at line 228 of file mitkRenderingManager.h.

{};

void mitk::RenderingManager::ExecutePendingRequests ( ) [virtual]

Executes all pending requests. This method has to be called by the system whenever a RenderingManager induced request event occurs in the system pipeline (see concrete RenderingManager implementations).

Definition at line 653 of file mitkRenderingManager.cpp.

References m_TimeNavigationController.

{
  return m_TimeNavigationController;
}


SliceNavigationController* RenderingManager::GetTimeNavigationController()
{
  return m_TimeNavigationController;
}


void RenderingManager::ExecutePendingRequests()
{

void mitk::RenderingManager::ForceImmediateUpdate ( vtkRenderWindow * renderWindow )

Immediately executes an update of the specified RenderWindow.

Definition at line 229 of file mitkRenderingManager.cpp.

Referenced by mitk::RegionGrowingTool::OnMouseMoved(), mitk::SpaceNavigatorVtkCameraController::OnSpaceNavigatorEvent(), mitk::TDMouseVtkCameraController::OnTDMouseEvent(), RenderingStartCallback(), mitk::MovieGenerator::WriteCurrentFrameToMovie(), and mitk::MovieGenerator::WriteMovie().

{
  m_RenderWindowList[renderWindow] = RENDERING_REQUESTED;

  if ( !m_UpdatePending )
  {
    m_UpdatePending = true;
    this->GenerateRenderingRequestEvent();
  }
}


void
RenderingManager
::ForceImmediateUpdate( vtkRenderWindow *renderWindow )
{
  // Erase potentially pending requests for this window

void mitk::RenderingManager::ForceImmediateUpdateAll ( RequestType type = REQUEST_UPDATE_ALL )

Immediately executes an update of all registered RenderWindows. If only 2D or 3D windows should be updated, this can be specified via the parameter requestType.

Definition at line 267 of file mitkRenderingManager.cpp.

    {
      this->RequestUpdate( it->first );
    }
  }
}


void
RenderingManager
::ForceImmediateUpdateAll( RequestType type )
{
  RenderWindowList::iterator it;
  for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )
  {
    int id = BaseRenderer::GetInstance(it->first)->GetMapperID();
    if ( (type == REQUEST_UPDATE_ALL)
      || ((type == REQUEST_UPDATE_2DWINDOWS) && (id == 1))
      || ((type == REQUEST_UPDATE_3DWINDOWS) && (id == 2)) )
    {
      //it->second = RENDERING_INPROGRESS;

      // Immediately repaint this window (implementation platform specific)
      // If the size is 0, it crashes

virtual void mitk::RenderingManager::GenerateRenderingRequestEvent ( ) [protected, pure virtual]

Abstract method for generating a system specific event for rendering request. This method is called whenever an update is requested

Implemented in mitk::TestingRenderingManager, and QmitkRenderingManager.

const RenderingManager::RenderWindowVector & mitk::RenderingManager::GetAllRegisteredRenderWindows ( )

Get a list of all registered RenderWindows

Definition at line 207 of file mitkRenderingManager.cpp.

Referenced by mitk::FeedbackContourTool::FeedbackContourTool().

bool mitk::RenderingManager::GetClippingPlaneStatus ( )

Definition at line 896 of file mitkRenderingManager.cpp.

mitk::DataStorage * mitk::RenderingManager::GetDataStorage ( )

Setter / Getter for internal DataStorage.

Sets / returns the mitk::DataStorage that is used internally. This instance holds all mitk::DataNodes that are rendered by the registered BaseRenderers.

If this DataStorage is changed at runtime by calling SetDataStorage(), all currently registered BaseRenderers are automatically given the correct instance. When a new BaseRenderer is added, it is automatically initialized with the currently active DataStorage.

Definition at line 982 of file mitkRenderingManager.cpp.

References m_DataStorage.

{
  if ( storage != NULL )
  {
    m_DataStorage = storage;

const RenderingManagerFactory * mitk::RenderingManager::GetFactory ( ) [static]

Get the object factory which produces the platform specific RenderingManager instances.

Definition at line 74 of file mitkRenderingManager.cpp.

mitk::GlobalInteraction * mitk::RenderingManager::GetGlobalInteraction ( )

Setter / Getter for internal GloabInteraction.

Sets / returns the instance of mitk::GlobalInteraction that is internally held. It'S not actually used by this class but offers it to all registered BaseRenderers. These need it for their own internal initialization of the FocusManager and the corresponding EventMappers.

Definition at line 996 of file mitkRenderingManager.cpp.

References m_DataStorage.

{
  return m_DataStorage;
}

RenderingManager * mitk::RenderingManager::GetInstance ( ) [static]

Get the RenderingManager singleton instance.

Examples:: mitkMoveSurfaceInteractor.cpp, Step1.cpp, Step10.cpp, Step2.cpp, Step3.cpp, Step6.cpp, Step7.cpp, and Step8.cpp.

Definition at line 107 of file mitkRenderingManager.cpp.

References mitk::RenderingManagerFactory::CreateRenderingManager().

{
  const RenderingManagerFactory* factory = GetFactory();
  if(factory == NULL)
    return NULL;
  return factory->CreateRenderingManager();
}

RenderingManager *

virtual bool mitk::RenderingManager::GetLODAbortMechanismEnabled ( ) [virtual]

En-/Disable LOD abort mechanism.

virtual bool mitk::RenderingManager::GetLODIncreaseBlocked ( ) [virtual]

En-/Disable LOD increase globally.

int mitk::RenderingManager::GetNextLOD ( BaseRenderer * renderer )

Definition at line 815 of file mitkRenderingManager.cpp.

References mitk::BaseRenderer::GetInstance().

Referenced by mitk::GPUVolumeMapper3D::GenerateDataCPU().

  {
    if ( it->second == RENDERING_INPROGRESS )
    {
      it->first->SetAbortRender( true );
      m_RenderingAbortedMap[BaseRenderer::GetInstance(it->first)] = true;
    }
  }
}

BaseProperty * mitk::RenderingManager::GetProperty ( const char * propertyKey ) const

returns a property from m_PropertyList

Definition at line 957 of file mitkRenderingManager.cpp.

PropertyList::Pointer mitk::RenderingManager::GetPropertyList ( ) const

Returns a property list

Definition at line 952 of file mitkRenderingManager.cpp.

References m_PropertyList.

Referenced by QmitkOverlayController::AddOverlay().

{
  if (m_PropertyList.IsNull())

bool mitk::RenderingManager::GetShading ( unsigned int lod )

Definition at line 874 of file mitkRenderingManager.cpp.

{
  if(lod>m_MaxLOD)
  {
    itkWarningMacro(<<"LOD out of range requested: " << lod << " maxLOD: " << m_MaxLOD);
    return;
  }
  m_ShadingEnabled[lod] = state;

RenderingManager::FloatVector & mitk::RenderingManager::GetShadingValues ( )

Definition at line 915 of file mitkRenderingManager.cpp.

SliceNavigationController * mitk::RenderingManager::GetTimeNavigationController ( )

Gets the (global) SliceNavigationController responsible for time-slicing.

Definition at line 647 of file mitkRenderingManager.cpp.

References m_TimeNavigationController.

{
  m_TimeNavigationController = nc;

const SliceNavigationController * mitk::RenderingManager::GetTimeNavigationController ( ) const

Gets the (global) SliceNavigationController responsible for time-slicing.

Definition at line 641 of file mitkRenderingManager.cpp.

References mitk::SliceNavigationController::Update().

  {
    nc->Update();
  }

bool mitk::RenderingManager::HasFactory ( ) [static]

Returns true if a factory has already been set.

Definition at line 82 of file mitkRenderingManager.cpp.

Referenced by mitk::TestingRenderingManagerFactory::TestingRenderingManagerFactory().

{
  return s_RenderingManagerFactory;
}

void mitk::RenderingManager::InitializePropertyList ( ) [protected, virtual]

Definition at line 940 of file mitkRenderingManager.cpp.

{
  RenderWindowList::iterator it;
  for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )
  {
    mitk::BaseRenderer *baseRenderer = mitk::BaseRenderer::GetInstance( it->first );
    baseRenderer->SetMaxNumberOfPeels(maxNumber);
  }

bool mitk::RenderingManager::InitializeView	(	vtkRenderWindow *	renderWindow,
		const Geometry3D *	geometry,
		bool	initializeGlobalTimeSNC = `false`
	)		`[virtual]`

Initializes the specified window to the geometry of the given DataNode. Set "initializeGlobalTimeSNC" to true in order to use this geometry as global TimeSlicedGeometry. PLATFORM SPECIFIC. Initializes the specified window to the given geometry. Set "initializeGlobalTimeSNC" to true in order to use this geometry as global TimeSlicedGeometry. PLATFORM SPECIFIC.

Definition at line 546 of file mitkRenderingManager.cpp.

References mitk::Geometry3D::GetBoundingBox(), GetInstance(), mitk::BaseRenderer::GetMapperID(), and m_TimeNavigationController.

{
  bool boundingBoxInitialized = false;

  int warningLevel = vtkObject::GetGlobalWarningDisplay();
  vtkObject::GlobalWarningDisplayOff();

  if ( (geometry != NULL ) && (const_cast< mitk::BoundingBox * >(
   geometry->GetBoundingBox())->GetDiagonalLength2() > mitk::eps) )
  {
   boundingBoxInitialized = true;
  }

  mitk::BaseRenderer *baseRenderer =
   mitk::BaseRenderer::GetInstance( renderWindow );

  int id = baseRenderer->GetMapperID();

  this->InternalViewInitialization( baseRenderer, geometry,
   boundingBoxInitialized, id );

  if ( m_TimeNavigationController != NULL )
  {

bool mitk::RenderingManager::InitializeView ( vtkRenderWindow * renderWindow ) [virtual]

Initializes the specified window to the default viewing direction (geomtry information is NOT changed). PLATFORM SPECIFIC.

Definition at line 584 of file mitkRenderingManager.cpp.

{
  mitk::BaseRenderer *baseRenderer =
      mitk::BaseRenderer::GetInstance( renderWindow );

bool mitk::RenderingManager::InitializeViews ( RequestType type = REQUEST_UPDATE_ALL ) [virtual]

Initializes the windows to the default viewing direction (geomtry information is NOT changed). PLATFORM SPECIFIC.

Definition at line 482 of file mitkRenderingManager.cpp.

{
  RenderWindowList::iterator it;
  for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )
  {
    mitk::BaseRenderer *baseRenderer =
      mitk::BaseRenderer::GetInstance( it->first );
    int id = baseRenderer->GetMapperID();
    if ( (type == REQUEST_UPDATE_ALL)
      || ((type == REQUEST_UPDATE_2DWINDOWS) && (id == 1))
      || ((type == REQUEST_UPDATE_3DWINDOWS) && (id == 2)) )
    {

      mitk::SliceNavigationController *nc =

      baseRenderer->GetSliceNavigationController();

bool mitk::RenderingManager::InitializeViews	(	const Geometry3D *	geometry,
		RequestType	type = `REQUEST_UPDATE_ALL`,
		bool	preserveRoughOrientationInWorldSpace = `false`
	)		`[virtual]`

Initializes the windows specified by requestType to the geometry of the given DataStorage. Initializes the windows specified by requestType to the given geometry. PLATFORM SPECIFIC.

Definition at line 332 of file mitkRenderingManager.cpp.

References mitk::Geometry3D::Clone(), mitk::BaseRenderer::GetInstance(), mitk::BaseRenderer::GetMapperID(), QuadProgPP::max(), min, MITK_DEBUG, itk::AffineGeometryFrame< TScalarType, NDimensions >::New(), and sign().

{
  MITK_DEBUG << "initializing views";

  bool boundingBoxInitialized = false;

  Geometry3D::ConstPointer geometry = dataGeometry;

  if (dataGeometry && preserveRoughOrientationInWorldSpace)
  {

    // clone the input geometry
    Geometry3D::Pointer modifiedGeometry = dynamic_cast<Geometry3D*>( dataGeometry->Clone().GetPointer() );
    assert(modifiedGeometry.IsNotNull());

    // construct an affine transform from it
    AffineGeometryFrame3D::TransformType::Pointer transform = AffineGeometryFrame3D::TransformType::New();
    assert( modifiedGeometry->GetIndexToWorldTransform() );
    transform->SetMatrix( modifiedGeometry->GetIndexToWorldTransform()->GetMatrix() );
    transform->SetOffset( modifiedGeometry->GetIndexToWorldTransform()->GetOffset() );

    // get transform matrix
    AffineGeometryFrame3D::TransformType::MatrixType::InternalMatrixType& oldMatrix =
      const_cast< AffineGeometryFrame3D::TransformType::MatrixType::InternalMatrixType& > ( transform->GetMatrix().GetVnlMatrix() );
    AffineGeometryFrame3D::TransformType::MatrixType::InternalMatrixType newMatrix(oldMatrix);

    // get offset and bound
    Vector3D offset = modifiedGeometry->GetIndexToWorldTransform()->GetOffset();
    Geometry3D::BoundsArrayType oldBounds = modifiedGeometry->GetBounds();
    Geometry3D::BoundsArrayType newBounds = modifiedGeometry->GetBounds();

    // get rid of rotation other than pi/2 degree
    for ( unsigned int i = 0; i < 3; ++i )
    {

      // i-th column of the direction matrix
      Vector3D currentVector;
      currentVector[0] = oldMatrix(0,i);
      currentVector[1] = oldMatrix(1,i);
      currentVector[2] = oldMatrix(2,i);

      // matchingRow will store the row that holds the biggest
      // value in the column
      unsigned int matchingRow = 0;

      // maximum value in the column
      float max = std::numeric_limits<float>::min();

      // sign of the maximum value (-1 or 1)
      int sign = 1;

      // iterate through the column vector
      for (unsigned int dim = 0; dim < 3; ++dim)
      {
        if ( fabs(currentVector[dim]) > max )
        {
          matchingRow = dim;
          max = fabs(currentVector[dim]);
          if(currentVector[dim]<0)
            sign = -1;
          else
            sign = 1;
        }
      }

      // in case we found a negative maximum,
      // we negate the column and adjust the offset
      // (in order to run through the dimension in the opposite direction)
      if(sign == -1)
      {
        currentVector *= sign;
        offset += modifiedGeometry->GetAxisVector(i);
      }


      // matchingRow is now used as column index to place currentVector
      // correctly in the new matrix
      vnl_vector<ScalarType> newMatrixColumn(3);
      newMatrixColumn[0] = currentVector[0];
      newMatrixColumn[1] = currentVector[1];
      newMatrixColumn[2] = currentVector[2];
      newMatrix.set_column( matchingRow, newMatrixColumn );

      // if a column is moved, we also have to adjust the bounding
      // box accordingly, this is done here
      newBounds[2*matchingRow  ] = oldBounds[2*i  ];
      newBounds[2*matchingRow+1] = oldBounds[2*i+1];
    }

    // set the newly calculated bounds array
    modifiedGeometry->SetBounds(newBounds);

    // set new offset and direction matrix
    AffineGeometryFrame3D::TransformType::MatrixType newMatrixITK( newMatrix );
    transform->SetMatrix( newMatrixITK );
    transform->SetOffset( offset );
    modifiedGeometry->SetIndexToWorldTransform( transform );
    geometry = modifiedGeometry;

  }


  int warningLevel = vtkObject::GetGlobalWarningDisplay();
  vtkObject::GlobalWarningDisplayOff();

  if ( (geometry.IsNotNull() ) && (const_cast< mitk::BoundingBox * >(
    geometry->GetBoundingBox())->GetDiagonalLength2() > mitk::eps) )
  {
    boundingBoxInitialized = true;
  }

  RenderWindowList::iterator it;
  for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )
  {
    mitk::BaseRenderer *baseRenderer =
      mitk::BaseRenderer::GetInstance( it->first );
    int id = baseRenderer->GetMapperID();
    if ( ((type == REQUEST_UPDATE_ALL)
      || ((type == REQUEST_UPDATE_2DWINDOWS) && (id == 1))
      || ((type == REQUEST_UPDATE_3DWINDOWS) && (id == 2)))
      )
    {
      this->InternalViewInitialization( baseRenderer, geometry,
        boundingBoxInitialized, id );
    }
  }

  if ( m_TimeNavigationController != NULL )
  {
    if ( boundingBoxInitialized )
    {
      m_TimeNavigationController->SetInputWorldGeometry( geometry );
    }

bool mitk::RenderingManager::IsInstantiated ( ) [static]

Returns true if the singleton instance does already exist.

Definition at line 123 of file mitkRenderingManager.cpp.

  {
    if ( s_RenderingManagerFactory )
    {
      s_Instance = s_RenderingManagerFactory->CreateRenderingManager();
    }
  }

bool mitk::RenderingManager::IsRendering ( ) const

Definition at line 783 of file mitkRenderingManager.cpp.

References RequestUpdate().

        {
          renman->RequestUpdate( renderer->GetRenderWindow() );
        }
      }
    }
  }
}


bool

virtual void mitk::RenderingManager::LODAbortMechanismEnabledOff ( ) [virtual]

virtual void mitk::RenderingManager::LODAbortMechanismEnabledOn ( ) [virtual]

En-/Disable LOD abort mechanism.

virtual void mitk::RenderingManager::LODIncreaseBlockedOff ( ) [virtual]

virtual void mitk::RenderingManager::LODIncreaseBlockedOn ( ) [virtual]

En-/Disable LOD increase globally.

mitk::RenderingManager::mitkClassMacro	(	RenderingManager	,
		itk::Object
	)

RenderingManager::Pointer mitk::RenderingManager::New ( ) [static]

Reimplemented in mitk::TestingRenderingManager.

Definition at line 97 of file mitkRenderingManager.cpp.

Referenced by QmitkRenderingManagerFactory::CreateRenderingManager(), mitkPointSetInteractorTest(), and mitkRenderingManagerTest().

  {
    return true;
  }
  else
  {
    return false;

void mitk::RenderingManager::RemoveRenderWindow ( vtkRenderWindow * renderWindow )

Removes a RenderWindow.

Definition at line 185 of file mitkRenderingManager.cpp.

{
  if (m_RenderWindowList.erase( renderWindow ))
  {
    RenderWindowCallbacksList::iterator callbacks_it = this->m_RenderWindowCallbacksList.find(renderWindow);

void mitk::RenderingManager::RenderingEndCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)		`[static, protected]`

Definition at line 708 of file mitkRenderingManager.cpp.

References DoMonitorRendering(), mitk::BaseRenderer::GetInstance(), and mitk::BaseRenderer::GetNumberOfVisibleLODEnabledMappers().

    {
      BaseRenderer *renderer = BaseRenderer::GetInstance( renderWindow );
      if ( renderer && (renderer->GetNumberOfVisibleLODEnabledMappers() > 0) )
      {
        renman->DoMonitorRendering();
      }
    }
  }
}

void
RenderingManager
::RenderingEndCallback( vtkObject *caller, unsigned long , void *, void * )
{
  vtkRenderWindow *renderWindow  = dynamic_cast< vtkRenderWindow * >( caller );
  mitk::RenderingManager* renman = mitk::BaseRenderer::GetInstance(renderWindow)->GetRenderingManager();

  RenderWindowList &renderWindowList = renman->m_RenderWindowList;
  RendererBoolMap &renderingAbortedMap = renman->m_RenderingAbortedMap;
  RendererIntMap &nextLODMap = renman->m_NextLODMap;
  unsigned int &maxLOD = renman->m_MaxLOD;
  bool &lodIncreaseBlocked = renman->m_LODIncreaseBlocked;


  if ( renderWindow )
  {
    BaseRenderer *renderer = BaseRenderer::GetInstance( renderWindow );
    if ( renderer )
    {
      renderWindowList[renderer->GetRenderWindow()] = RENDERING_INACTIVE;

      // Level-of-Detail handling
      if ( renderer->GetNumberOfVisibleLODEnabledMappers() > 0 )
      {
        bool newRenderingRequest = false;

        // Check if rendering has been aborted
        if ( renderingAbortedMap[renderer] )
        {
          // YES: reset LOD counter and request next update
          renderingAbortedMap[renderer] = false;
          nextLODMap[renderer] = 0;
          newRenderingRequest = true;
        }
        else
        {
          // NO: Make sure that LOD-increase is currently not blocked
          // (by mouse-movement)
          if ( !lodIncreaseBlocked )
          {
            // Check if the maximum LOD level has already been reached
            if ( nextLODMap[renderer] < maxLOD )
            {
              // NO: increase the level for this renderer...
              nextLODMap[renderer]++;

              // ... and request new update for this window
              newRenderingRequest = true;
            }
            else
            {
              // YES: Reset to level 0 for next rendering request (by user)
              nextLODMap[renderer] = 0;
            }
          }
        }


        mitk::RenderingManager* renman = mitk::BaseRenderer::GetInstance(renderWindow)->GetRenderingManager();

void mitk::RenderingManager::RenderingProgressCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)		`[static, protected]`

Definition at line 687 of file mitkRenderingManager.cpp.

References RENDERING_INPROGRESS.

  {
    renderWindowList[renderWindow] = RENDERING_INPROGRESS;
  }

  renman->m_UpdatePending = false;
}


void
RenderingManager
::RenderingProgressCallback( vtkObject *caller, unsigned long , void *, void * )
{
  vtkRenderWindow *renderWindow  = dynamic_cast< vtkRenderWindow * >( caller );
  mitk::RenderingManager* renman = mitk::BaseRenderer::GetInstance(renderWindow)->GetRenderingManager();

void mitk::RenderingManager::RenderingStartCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)		`[static, protected]`

Definition at line 670 of file mitkRenderingManager.cpp.

References ForceImmediateUpdate(), and RENDERING_REQUESTED.

  {
    if ( it->second == RENDERING_REQUESTED )
    {
      this->ForceImmediateUpdate( it->first );
    }
  }
}

void mitk::RenderingManager::RequestUpdate ( vtkRenderWindow * renderWindow )

Requests an update for the specified RenderWindow, to be executed as soon as the main loop is ready for rendering.

Definition at line 215 of file mitkRenderingManager.cpp.

Referenced by mitk::DisplayInteractor::ExecuteOperation(), IsRendering(), mitk::SetRegionTool::OnInvertLogic(), mitk::PaintbrushTool::OnMouseMoved(), mitk::CorrectorTool2D::OnMouseMoved(), mitk::ContourTool::OnMouseMoved(), mitk::SetRegionTool::OnMousePressed(), mitk::ContourTool::OnMousePressed(), mitk::RegionGrowingTool::OnMousePressedInside(), mitk::RegionGrowingTool::OnMousePressedOutside(), mitk::SetRegionTool::OnMouseReleased(), mitk::RegionGrowingTool::OnMouseReleased(), mitk::CorrectorTool2D::OnMouseReleased(), mitk::ContourTool::OnMouseReleased(), and mitk::CameraRotationController::RotateCamera().

{
  return m_AllRenderWindows;
}

void mitk::RenderingManager::RequestUpdateAll ( RequestType type = REQUEST_UPDATE_ALL )

Requests all currently registered RenderWindows to be updated. If only 2D or 3D windows should be updated, this can be specified via the parameter requestType.

Examples:: mitkMoveSurfaceInteractor.cpp.

Definition at line 249 of file mitkRenderingManager.cpp.

Referenced by mitk::BinaryThresholdULTool::AcceptCurrentThresholdValue(), mitk::BinaryThresholdTool::AcceptCurrentThresholdValue(), mitk::MorphologicTool::AcceptPreview(), mitk::MorphologicTool::Deactivated(), mitk::BinaryThresholdULTool::Deactivated(), mitk::BinaryThresholdTool::Deactivated(), mitk::SurfaceDeformationInteractor3D::ExecuteAction(), mitk::SlicesRotator::ExecuteAction(), mitk::PositionTracker::ExecuteAction(), mitk::PointSetInteractor::ExecuteAction(), mitk::PlanarFigureInteractor::ExecuteAction(), mitk::MoveSurfaceInteractor::ExecuteAction(), mitk::AffineInteractor::ExecuteAction(), mitk::SeedsImage::ExecuteOperation(), mitk::DiffImageApplier::ExecuteOperation(), mitk::SegmentationSink::InsertBelowGroupNode(), mitk::SpaceNavigatorVtkCameraController::OnSpaceNavigatorKeyDown(), mitk::TDMouseVtkCameraController::OnTDMouseKeyDown(), mitk::UndoController::Redo(), mitk::LimitedLinearUndo::Redo(), mitk::CameraController::SetStandardView(), mitk::BinaryThresholdTool::SetThresholdValue(), mitk::BinaryThresholdULTool::SetThresholdValues(), mitk::UndoController::Undo(), mitk::LimitedLinearUndo::Undo(), and mitk::MorphologicTool::UpdatePreview().

  {
    // Execute rendering
    renderWindow->Render();
  }
}


void
RenderingManager
::RequestUpdateAll( RequestType type )

void mitk::RenderingManager::SetClippingPlaneStatus ( bool status )

Definition at line 888 of file mitkRenderingManager.cpp.

Referenced by mitk::VolumeDataVtkMapper3D::GenerateData().

{
  if(lod>m_MaxLOD)
  {
    itkWarningMacro(<<"LOD out of range requested: " << lod << " maxLOD: " << m_MaxLOD);

void mitk::RenderingManager::SetDataStorage ( mitk::DataStorage * storage )

Setter / Getter for internal DataStorage.

Sets / returns the mitk::DataStorage that is used internally. This instance holds all mitk::DataNodes that are rendered by the registered BaseRenderers.

If this DataStorage is changed at runtime by calling SetDataStorage(), all currently registered BaseRenderers are automatically given the correct instance. When a new BaseRenderer is added, it is automatically initialized with the currently active DataStorage.

Definition at line 968 of file mitkRenderingManager.cpp.

Referenced by SetGlobalInteraction().

{
  return m_PropertyList->GetProperty(propertyKey);
}

void RenderingManager::SetProperty(const char *propertyKey, BaseProperty* propertyValue)
{
  m_PropertyList->SetProperty(propertyKey, propertyValue);
}

void mitk::RenderingManager::SetDepthPeelingEnabled ( bool enabled )

En-/Disable depth peeling for all renderers

Definition at line 920 of file mitkRenderingManager.cpp.

void mitk::RenderingManager::SetFactory ( RenderingManagerFactory * factory ) [static]

Set the object factory which produces the desired platform specific RenderingManager singleton instance.

Definition at line 66 of file mitkRenderingManager.cpp.

Referenced by QmitkRenderingManagerFactory::QmitkRenderingManagerFactory(), and mitk::TestingRenderingManagerFactory::TestingRenderingManagerFactory().

void mitk::RenderingManager::SetGlobalInteraction ( mitk::GlobalInteraction * globalInteraction )

Setter / Getter for internal GloabInteraction.

Sets / returns the instance of mitk::GlobalInteraction that is internally held. It'S not actually used by this class but offers it to all registered BaseRenderers. These need it for their own internal initialization of the FocusManager and the corresponding EventMappers.

Definition at line 988 of file mitkRenderingManager.cpp.

References GetInstance(), m_DataStorage, and SetDataStorage().

    {
      mitk::BaseRenderer::GetInstance( (*iter) )->SetDataStorage( m_DataStorage.GetPointer() );
    }
  }
}

virtual void mitk::RenderingManager::SetLODAbortMechanismEnabled ( bool _arg ) [virtual]

En-/Disable LOD abort mechanism.

virtual void mitk::RenderingManager::SetLODIncreaseBlocked ( bool _arg ) [virtual]

En-/Disable LOD increase globally.

void mitk::RenderingManager::SetMaximumLOD ( unsigned int max )

Definition at line 852 of file mitkRenderingManager.cpp.

References mitk::BaseRenderer::GetInstance().

  {
    // Set next LOD for all renderers
    RenderWindowList::iterator it;
    for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )

void mitk::RenderingManager::SetMaxNumberOfPeels ( int maxNumber )

Set maximum number of peels for all renderers

Definition at line 930 of file mitkRenderingManager.cpp.

{
  RenderWindowList::iterator it;
  for ( it = m_RenderWindowList.begin(); it != m_RenderWindowList.end(); ++it )
  {
    mitk::BaseRenderer *baseRenderer = mitk::BaseRenderer::GetInstance( it->first );

void mitk::RenderingManager::SetNextLOD	(	unsigned int	lod,
		BaseRenderer *	renderer = `NULL`
	)

Set current LOD (NULL means all renderers)

Definition at line 830 of file mitkRenderingManager.cpp.

Referenced by mitk::VolumeDataVtkMapper3D::GenerateData().

  {
    return m_NextLODMap[renderer];
  }
  else
  {
    return 0;
  }
}


void
RenderingManager
::SetNextLOD( unsigned int lod, BaseRenderer *renderer )
{
  unsigned int newLOD = lod < m_MaxLOD ? lod : m_MaxLOD;

  if ( renderer != NULL )
