mitk: mitk::BaseController Class Reference

Baseclass for renderer slice-/camera-control. More...

#include <mitkBaseController.h>

Inheritance diagram for mitk::BaseController:

Inheritance graph

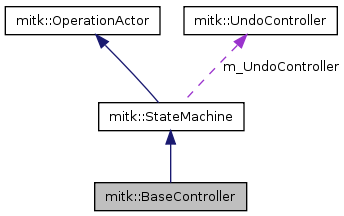

Collaboration diagram for mitk::BaseController:

Collaboration graph

List of all members.

Public Member Functions
	mitkClassMacro (BaseController, StateMachine)
	mitkNewMacro1Param (Self, const char *)
mitk::Stepper *	GetSlice ()
	Get the Stepper through the slices.
mitk::Stepper *	GetTime ()
	Get the Stepper through the time.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	BaseController (const char *type=NULL)
	Default Constructor.
virtual	~BaseController ()
	Default Destructor.
Protected Attributes
Stepper::Pointer	m_Time
Stepper::Pointer	m_Slice
unsigned long	m_LastUpdateTime

Detailed Description

Baseclass for renderer slice-/camera-control.

Tells the render (subclass of BaseRenderer) which slice (subclass SliceNavigationController) or from which direction (subclass CameraController) it has to render. Contains two Stepper for stepping through the slices or through different camera views (e.g., for the creation of a movie around the data), respectively, and through time, if there is 3D+t data.

Note:: not yet implemented

Definition at line 42 of file mitkBaseController.h.

Constructor & Destructor Documentation

mitk::BaseController::BaseController ( const char * type = NULL ) [protected]

Default Constructor.

Definition at line 22 of file mitkBaseController.cpp.

References m_Slice, m_Time, and New().

                                                    : StateMachine(type), m_LastUpdateTime(0)
{
  m_Slice = Stepper::New();
  m_Time  = Stepper::New();
}

mitk::BaseController::~BaseController ( ) [protected, virtual]

Default Destructor.

Definition at line 28 of file mitkBaseController.cpp.

{
}

Member Function Documentation

mitk::Stepper * mitk::BaseController::GetSlice ( )

Get the Stepper through the slices.

Examples:: Step1.cpp, and Step2.cpp.

Definition at line 32 of file mitkBaseController.cpp.

Referenced by QmitkImageNavigatorView::CreateQtPartControl(), QmitkSimpleExampleView::generateMovie(), QmitkSliceWidget::InitWidget(), main(), QmitkSliceWidget::QmitkSliceWidget(), QmitkSimpleExampleView::StdMultiWidgetAvailable(), and QmitkSelectableGLWidget::wheelEvent().

{
  return m_Slice.GetPointer();
}

mitk::Stepper * mitk::BaseController::GetTime ( )

Get the Stepper through the time.

Definition at line 37 of file mitkBaseController.cpp.

Referenced by QmitkMovieMaker::Activated(), QmitkImageNavigatorView::CreateQtPartControl(), QmitkMovieMaker::Deactivated(), QmitkRigidRegistrationView::FixedSelected(), QmitkSlicesInterpolator::Initialize(), QmitkSimpleExampleView::StdMultiWidgetAvailable(), QmitkImageStatistics::UpdateStatistics(), and QmitkSelectableGLWidget::wheelEvent().

{
  return m_Time.GetPointer();
}

mitk::BaseController::mitkClassMacro	(	BaseController	,
		StateMachine
	)

Standard class typedefs.

mitk::BaseController::mitkNewMacro1Param	(	Self	,
		const char *
	)

Method for creation through New

Reimplemented in mitk::CameraController, mitk::CameraRotationController, and mitk::SliceNavigationController.

static Pointer mitk::BaseController::New ( ) [static]

Reimplemented in mitk::CameraRotationController, mitk::SliceNavigationController, mitk::VtkInteractorCameraController, mitk::SpaceNavigatorVtkCameraController, mitk::WiiMoteVtkCameraController, and mitk::TDMouseVtkCameraController.

Referenced by BaseController(), and mitk::BaseRenderer::BaseRenderer().

Member Data Documentation

unsigned long mitk::BaseController::m_LastUpdateTime [protected]

Definition at line 76 of file mitkBaseController.h.

Stepper::Pointer mitk::BaseController::m_Slice [protected]

Definition at line 74 of file mitkBaseController.h.

Referenced by BaseController(), mitk::CameraRotationController::CameraRotationController(), and mitk::SliceNavigationController::SendSlice().

Stepper::Pointer mitk::BaseController::m_Time [protected]

Definition at line 72 of file mitkBaseController.h.

Referenced by BaseController().

The documentation for this class was generated from the following files:
