mitk::RenderWindow Class Reference [Renderer and RenderWindow Classes]

mitkRenderWindow integrates the MITK rendering mechanism into VTK and is NOT QT dependent More...

#include <mitkRenderWindow.h>

Inheritance diagram for mitk::RenderWindow:

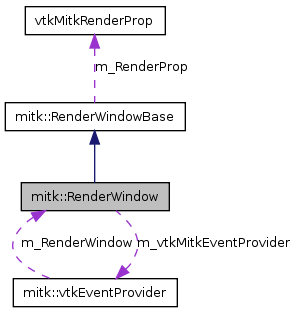

Collaboration diagram for mitk::RenderWindow:

List of all members.

Public Types
typedef RenderWindow	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual	~RenderWindow ()
virtual vtkRenderWindow *	GetVtkRenderWindow ()
virtual vtkRenderWindowInteractor *	GetVtkRenderWindowInteractor ()
void	SetLayoutIndex (unsigned int layoutIndex)
unsigned int	GetLayoutIndex ()
void	LayoutDesignListChanged (int layoutDesignIndex)
void	FullScreenMode (bool state)
Static Public Member Functions
static Pointer	New ()
static Pointer	New (vtkRenderWindow *_arg)
static Pointer	New (vtkRenderWindow *_arga, const char *_argb)
Protected Member Functions
	RenderWindow (vtkRenderWindow *existingRenderWindow=NULL, const char *name="unnamed renderer")
void	ResetView ()
Protected Attributes
vtkRenderWindow *	m_vtkRenderWindow
vtkRenderWindowInteractor *	m_vtkRenderWindowInteractor
vtkEventProvider *	m_vtkMitkEventProvider

---

Detailed Description

mitkRenderWindow integrates the MITK rendering mechanism into VTK and is NOT QT dependent

Definition at line 38 of file mitkRenderWindow.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::RenderWindow::ConstPointer

Definition at line 43 of file mitkRenderWindow.h.

typedef itk::SmartPointer<Self> mitk::RenderWindow::Pointer

Definition at line 43 of file mitkRenderWindow.h.

typedef RenderWindow mitk::RenderWindow::Self

Definition at line 43 of file mitkRenderWindow.h.

typedef itk::Object mitk::RenderWindow::Superclass

Definition at line 43 of file mitkRenderWindow.h.

---

Constructor & Destructor Documentation

mitk::RenderWindow::~RenderWindow

(

)

[virtual]

Definition at line 50 of file mitkRenderWindow.cpp.

{
  Destroy();
  m_vtkRenderWindow->Delete();
  m_vtkRenderWindowInteractor->Delete();
  m_vtkMitkEventProvider->Delete();
}

mitk::RenderWindow::RenderWindow	(	vtkRenderWindow *	existingRenderWindow = NULL,
		const char *	name = "unnamed renderer"
	)		[protected]

Definition at line 29 of file mitkRenderWindow.cpp.

References GetVtkRenderWindowInteractor(), mitk::RenderWindowBase::Initialize(), m_vtkMitkEventProvider, m_vtkRenderWindow, m_vtkRenderWindowInteractor, New(), mitk::vtkEventProvider::SetEnabled(), mitk::vtkEventProvider::SetInteractor(), and mitk::vtkEventProvider::SetMitkRenderWindow().

: m_vtkRenderWindow(renWin)
{

  if(m_vtkRenderWindow == NULL)
    m_vtkRenderWindow = vtkRenderWindow::New();

  m_vtkRenderWindowInteractor = vtkRenderWindowInteractor::New();

  // initialize from RenderWindowBase
  Initialize(NULL,name);

  m_vtkMitkEventProvider = vtkEventProvider::New();
  m_vtkMitkEventProvider->SetInteractor(this->GetVtkRenderWindowInteractor());
  m_vtkMitkEventProvider->SetMitkRenderWindow(this);
  m_vtkMitkEventProvider->SetEnabled(1);

  m_vtkRenderWindowInteractor->SetRenderWindow(m_vtkRenderWindow);
  m_vtkRenderWindowInteractor->Initialize();
}

---

Member Function Documentation

void mitk::RenderWindow::FullScreenMode

(

bool

state )

virtual const char* mitk::RenderWindow::GetClassName

(

)

const [virtual]

unsigned int mitk::RenderWindow::GetLayoutIndex

(

)

vtkRenderWindow * mitk::RenderWindow::GetVtkRenderWindow

(

)

[virtual]

Implements mitk::RenderWindowBase.

Definition at line 58 of file mitkRenderWindow.cpp.

{
  return m_vtkRenderWindow;
}

vtkRenderWindowInteractor * mitk::RenderWindow::GetVtkRenderWindowInteractor

(

)

[virtual]

Implements mitk::RenderWindowBase.

Definition at line 63 of file mitkRenderWindow.cpp.

Referenced by RenderWindow().

{
  return m_vtkRenderWindowInteractor;
}

void mitk::RenderWindow::LayoutDesignListChanged

(

int

layoutDesignIndex )

static Pointer mitk::RenderWindow::New	(	vtkRenderWindow *	_arga,
		const char *	_argb
	)		[inline, static]

Definition at line 46 of file mitkRenderWindow.h.

:
    RenderWindow(vtkRenderWindow * existingRenderWindow = NULL , const char* name = "unnamed renderer");

static Pointer mitk::RenderWindow::New

(

)

[static]

Examples:

QtFreeRender.cpp.

Referenced by main(), and RenderWindow().

static Pointer mitk::RenderWindow::New

(

vtkRenderWindow *

_arg )

[inline, static]

Definition at line 45 of file mitkRenderWindow.h.

:
    RenderWindow(vtkRenderWindow * existingRenderWindow = NULL , const char* name = "unnamed renderer");

void mitk::RenderWindow::ResetView

(

)

[protected]

void mitk::RenderWindow::SetLayoutIndex

(

unsigned int

layoutIndex )

---

Member Data Documentation

vtkEventProvider* mitk::RenderWindow::m_vtkMitkEventProvider [protected]

Definition at line 74 of file mitkRenderWindow.h.

Referenced by RenderWindow().

vtkRenderWindow* mitk::RenderWindow::m_vtkRenderWindow [protected]

Definition at line 71 of file mitkRenderWindow.h.

Referenced by RenderWindow().

vtkRenderWindowInteractor* mitk::RenderWindow::m_vtkRenderWindowInteractor [protected]

Definition at line 72 of file mitkRenderWindow.h.

Referenced by RenderWindow().

---

The documentation for this class was generated from the following files:

• mitkRenderWindow.h
• mitkRenderWindow.cpp
