mitk::BaseProperty Class Reference [Data Management Classes]

Abstract base class for properties. More...

#include <mitkBaseProperty.h>

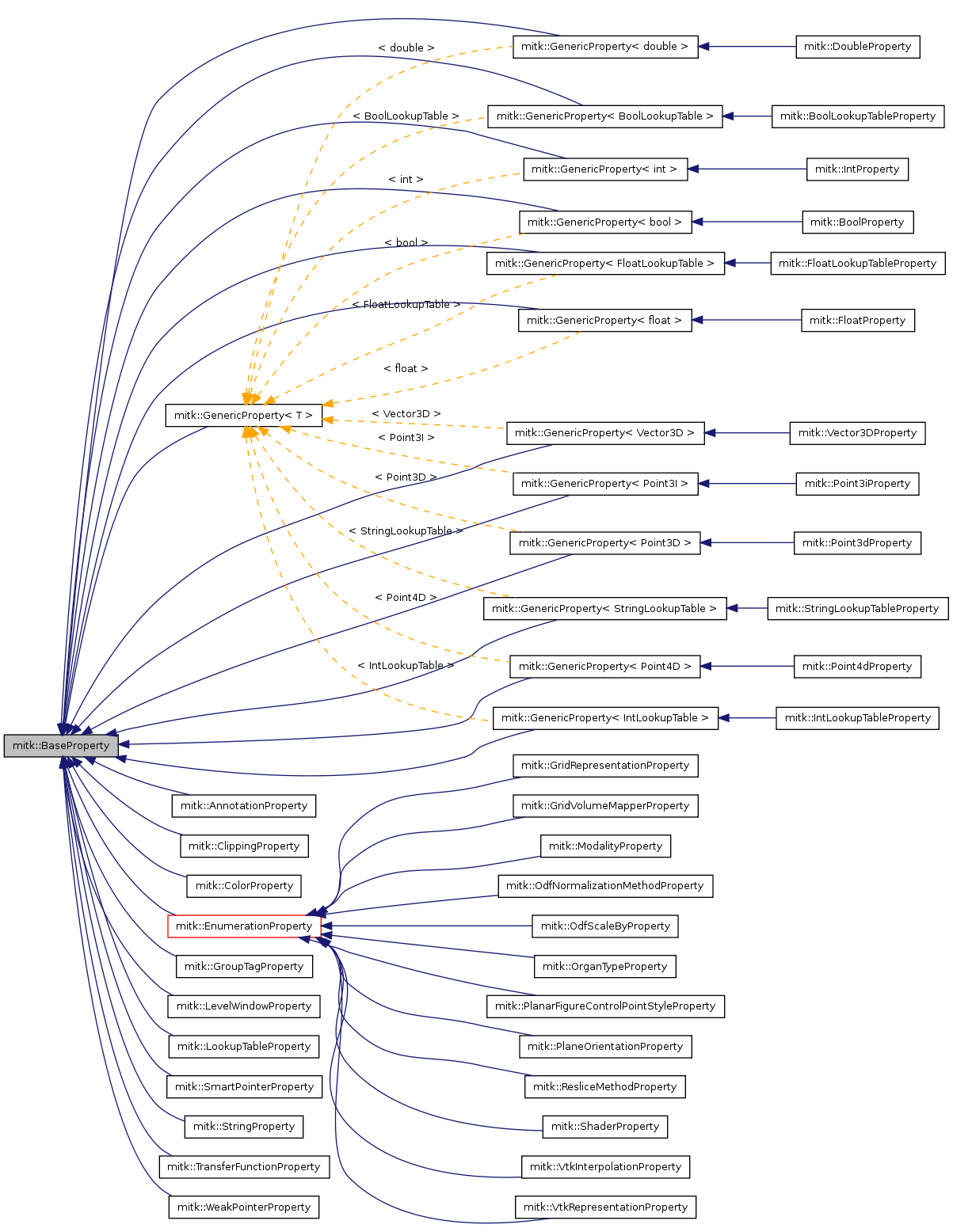

Inheritance diagram for mitk::BaseProperty:

List of all members.

Public Types
typedef BaseProperty	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual bool	operator== (const BaseProperty &property) const =0
	Subclasses must implement this operator==. Operator== which is used by PropertyList to check whether a property has been changed.
virtual BaseProperty &	operator= (const BaseProperty &property)
virtual std::string	GetValueAsString () const
virtual bool	Assignable (const BaseProperty &) const
Protected Member Functions
	BaseProperty ()
virtual	~BaseProperty ()
Static Protected Attributes
static std::string	VALUE
Friends
class	PropertyList

---

Detailed Description

Abstract base class for properties.

Base class for properties. Properties are arbitrary additional information (to define a new type of information you have to define a subclass of BaseProperty) that can be added to a PropertyList. Concrete subclasses of BaseProperty should define Set-/Get-methods to assess the property value, which should be stored by value (not by reference). Subclasses must implement an operator==(const BaseProperty& property), which is used by PropertyList to check whether a property has been changed.

Definition at line 40 of file mitkBaseProperty.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::BaseProperty::ConstPointer

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::BoolProperty, mitk::IntProperty, mitk::FloatProperty, mitk::DoubleProperty, mitk::Vector3DProperty, mitk::Point3dProperty, mitk::Point4dProperty, mitk::Point3iProperty, mitk::FloatLookupTableProperty, mitk::BoolLookupTableProperty, mitk::IntLookupTableProperty, mitk::StringLookupTableProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, mitk::PlanarFigureControlPointStyleProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 44 of file mitkBaseProperty.h.

typedef itk::SmartPointer<Self> mitk::BaseProperty::Pointer

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::BoolProperty, mitk::IntProperty, mitk::FloatProperty, mitk::DoubleProperty, mitk::Vector3DProperty, mitk::Point3dProperty, mitk::Point4dProperty, mitk::Point3iProperty, mitk::FloatLookupTableProperty, mitk::BoolLookupTableProperty, mitk::IntLookupTableProperty, mitk::StringLookupTableProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, mitk::PlanarFigureControlPointStyleProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 44 of file mitkBaseProperty.h.

typedef BaseProperty mitk::BaseProperty::Self

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::BoolProperty, mitk::IntProperty, mitk::FloatProperty, mitk::DoubleProperty, mitk::Vector3DProperty, mitk::Point3dProperty, mitk::Point4dProperty, mitk::Point3iProperty, mitk::FloatLookupTableProperty, mitk::BoolLookupTableProperty, mitk::IntLookupTableProperty, mitk::StringLookupTableProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, mitk::PlanarFigureControlPointStyleProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 44 of file mitkBaseProperty.h.

typedef itk::Object mitk::BaseProperty::Superclass

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::BoolProperty, mitk::IntProperty, mitk::FloatProperty, mitk::DoubleProperty, mitk::Vector3DProperty, mitk::Point3dProperty, mitk::Point4dProperty, mitk::Point3iProperty, mitk::FloatLookupTableProperty, mitk::BoolLookupTableProperty, mitk::IntLookupTableProperty, mitk::StringLookupTableProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, mitk::PlanarFigureControlPointStyleProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 44 of file mitkBaseProperty.h.

---

Constructor & Destructor Documentation

mitk::BaseProperty::BaseProperty

(

)

[protected]

Definition at line 22 of file mitkBaseProperty.cpp.

{
}

mitk::BaseProperty::~BaseProperty

(

)

[protected, virtual]

Definition at line 26 of file mitkBaseProperty.cpp.

{
}

---

Member Function Documentation

bool mitk::BaseProperty::Assignable

(

const BaseProperty &

)

const [virtual]

Should be implemented by subclasses to indicate whether they can accept the parameter as the right-hand-side argument of an assignment. This test will most probably include some dynamic_cast.

Reimplemented in mitk::ColorProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 40 of file mitkBaseProperty.cpp.

{
  return false;
}

virtual const char* mitk::BaseProperty::GetClassName

(

)

const [virtual]

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::BoolProperty, mitk::IntProperty, mitk::FloatProperty, mitk::DoubleProperty, mitk::Vector3DProperty, mitk::Point3dProperty, mitk::Point4dProperty, mitk::Point3iProperty, mitk::FloatLookupTableProperty, mitk::BoolLookupTableProperty, mitk::IntLookupTableProperty, mitk::StringLookupTableProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, mitk::PlanarFigureControlPointStyleProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

std::string mitk::BaseProperty::GetValueAsString

(

)

const [virtual]

Reimplemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::LevelWindowProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 30 of file mitkBaseProperty.cpp.

Referenced by QmitkPropertiesTableModel::data(), QmitkDataStorageComboBox::InsertNode(), and QmitkBasePropertyView::PropertyChanged().

{
  return std::string("n/a");
}

mitk::BaseProperty & mitk::BaseProperty::operator=

(

const BaseProperty &

rhs )

[virtual]

To be implemented more meaningful by subclasses. This version just accepts the assignment of BaseProperty objects to others, but the assignment has NO MEANING, values are not changed at all!

Reimplemented in mitk::ColorProperty, mitk::GenericProperty< T >, mitk::SmartPointerProperty, mitk::StringProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

Definition at line 49 of file mitkBaseProperty.cpp.

{
  if (this == &rhs) return *this; // no self assignment

  // place meaningful copy code here (nothing possible with BaseProeprties)

  return *this;
}

virtual bool mitk::BaseProperty::operator==

(

const BaseProperty &

property )

const [pure virtual]

Subclasses must implement this operator==. Operator== which is used by PropertyList to check whether a property has been changed.

Implemented in mitk::AnnotationProperty, mitk::ClippingProperty, mitk::ColorProperty, mitk::EnumerationProperty, mitk::GenericProperty< T >, mitk::GroupTagProperty, mitk::LevelWindowProperty, mitk::SmartPointerProperty, mitk::StringProperty, mitk::TransferFunctionProperty, mitk::WeakPointerProperty, mitk::LookupTableProperty, mitk::GenericProperty< Point4D >, mitk::GenericProperty< double >, mitk::GenericProperty< IntLookupTable >, mitk::GenericProperty< float >, mitk::GenericProperty< Point3I >, mitk::GenericProperty< int >, mitk::GenericProperty< FloatLookupTable >, mitk::GenericProperty< Vector3D >, mitk::GenericProperty< BoolLookupTable >, mitk::GenericProperty< Point3D >, mitk::GenericProperty< bool >, and mitk::GenericProperty< StringLookupTable >.

---

Friends And Related Function Documentation

friend class PropertyList [friend]

Definition at line 62 of file mitkBaseProperty.h.

---

Member Data Documentation

std::string mitk::BaseProperty::VALUE [static, protected]

Definition at line 64 of file mitkBaseProperty.h.

---

The documentation for this class was generated from the following files:

• mitkBaseProperty.h
• mitkBaseProperty.cpp
