itk::AffineGeometryFrame< TScalarType, NDimensions > Class Template Reference

Describes the geometry of a data object. More...

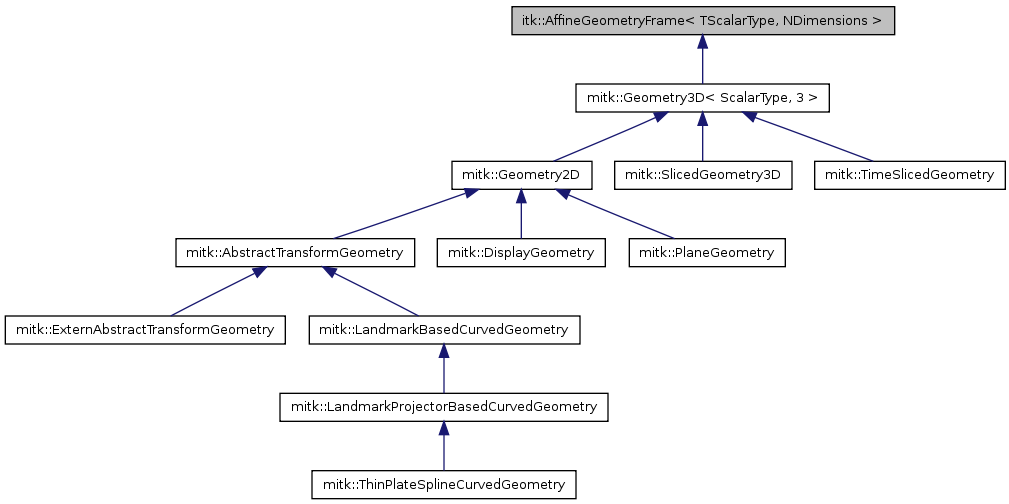

Inheritance diagram for itk::AffineGeometryFrame< TScalarType, NDimensions >:
Inheritance graph
[legend]

List of all members.

Public Types

typedef AffineGeometryFrame Self
typedef itk::Object Superclass
typedef SmartPointer< Self > Pointer
typedef SmartPointer< const Self > ConstPointer
typedef
ScalableAffineTransform
< TScalarType, NDimensions > 		TransformType
typedef BoundingBox< unsigned
long, NDimensions, TScalarType > 		BoundingBoxType
typedef
BoundingBoxType::BoundsArrayType 		BoundsArrayType
typedef BoundingBoxType::Pointer BoundingBoxPointer

Public Member Functions

virtual const char * GetClassName () const
 Method for creation through the object factory.
virtual const BoundingBoxType * GetBoundingBox ()
 Get the bounding box.
const BoundsArrayType GetBounds () const
virtual void SetBounds (const BoundsArrayType &bounds)
 Set the bounding box Only possible via the BoundsArray to make clear that a copy of the bounding-box is stored, not a reference to it.
TScalarType GetExtent (unsigned int direction) const
 Get the extent of the bounding box.
virtual const TransformType * GetIndexToObjectTransform ()
 Set/Get the IndexToObjectTransform.
virtual TransformType * GetIndexToObjectTransform ()
virtual void SetIndexToObjectTransform (TransformType *_arg)
virtual const TransformType * GetObjectToNodeTransform ()
 Set/Get the ObjectToNodeTransform.
virtual TransformType * GetObjectToNodeTransform ()
virtual void SetObjectToNodeTransform (TransformType *_arg)
virtual const TransformType * GetIndexToWorldTransform ()
 Set/Get the IndexToWorldTransform.
virtual TransformType * GetIndexToWorldTransform ()
virtual void SetIndexToWorldTransform (TransformType *_arg)
virtual const TransformType * GetIndexToNodeTransform ()
 Get the IndexToNodeTransform This Transform cannot be set, and is just computed internally.
virtual void Initialize ()
 Initialize the geometry frame.
virtual Pointer Clone () const

Static Public Member Functions

static Pointer New ()

Protected Member Functions

 AffineGeometryFrame ()
virtual ~AffineGeometryFrame ()
virtual void InitializeGeometry (Self *newGeometry) const
 used in clone to initialize the newly created geometry
void SetBoundsArray (const BoundsArrayType &bounds, BoundingBoxPointer &boundingBox)

Protected Attributes

BoundingBoxPointer m_BoundingBox
TransformType::Pointer m_IndexToObjectTransform
 Transform from unit coordinates to object coordinates.
TransformType::Pointer m_ObjectToNodeTransform
TransformType::Pointer m_IndexToNodeTransform
TransformType::Pointer m_IndexToWorldTransform

Detailed Description

template<class TScalarType = double, unsigned int NDimensions = 3>
class itk::AffineGeometryFrame< TScalarType, NDimensions >

Describes the geometry of a data object.

Definition at line 34 of file itkAffineGeometryFrame.h.dox.

Member Typedef Documentation

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef BoundingBoxType::Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::BoundingBoxPointer

Definition at line 45 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef BoundingBox<unsigned long, NDimensions, TScalarType> itk::AffineGeometryFrame< TScalarType, NDimensions >::BoundingBoxType

Definition at line 43 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef BoundingBoxType::BoundsArrayType itk::AffineGeometryFrame< TScalarType, NDimensions >::BoundsArrayType

Definition at line 44 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef SmartPointer<const Self> itk::AffineGeometryFrame< TScalarType, NDimensions >::ConstPointer

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::LandmarkBasedCurvedGeometry, mitk::LandmarkProjectorBasedCurvedGeometry, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

Definition at line 40 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef SmartPointer<Self> itk::AffineGeometryFrame< TScalarType, NDimensions >::Pointer

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::LandmarkBasedCurvedGeometry, mitk::LandmarkProjectorBasedCurvedGeometry, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

Definition at line 39 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef AffineGeometryFrame itk::AffineGeometryFrame< TScalarType, NDimensions >::Self

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::LandmarkBasedCurvedGeometry, mitk::LandmarkProjectorBasedCurvedGeometry, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

Definition at line 37 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef itk::Object itk::AffineGeometryFrame< TScalarType, NDimensions >::Superclass

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::LandmarkBasedCurvedGeometry, mitk::LandmarkProjectorBasedCurvedGeometry, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

Definition at line 38 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
typedef ScalableAffineTransform<TScalarType, NDimensions> itk::AffineGeometryFrame< TScalarType, NDimensions >::TransformType

Definition at line 42 of file itkAffineGeometryFrame.h.dox.

Constructor & Destructor Documentation

template<class TScalarType = double, unsigned int NDimensions = 3>
itk::AffineGeometryFrame< TScalarType, NDimensions >::AffineGeometryFrame (  ) [protected]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual itk::AffineGeometryFrame< TScalarType, NDimensions >::~AffineGeometryFrame (  ) [protected, virtual]

Member Function Documentation

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::Clone (  ) const [virtual]

Clone the geometry frame

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const BoundingBoxType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetBoundingBox (  ) [virtual]

Get the bounding box.

Reimplemented in mitk::Geometry3D.

template<class TScalarType = double, unsigned int NDimensions = 3>
const BoundsArrayType itk::AffineGeometryFrame< TScalarType, NDimensions >::GetBounds (  ) const [inline]

Reimplemented in mitk::Geometry3D.

Definition at line 56 of file itkAffineGeometryFrame.h.dox.

References itk::AffineGeometryFrame< TScalarType, NDimensions >::m_BoundingBox.

    {
    assert(m_BoundingBox.IsNotNull());
    return m_BoundingBox->GetBounds();
    }
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const char* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetClassName (  ) const [virtual]

Method for creation through the object factory.

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::LandmarkBasedCurvedGeometry, mitk::LandmarkProjectorBasedCurvedGeometry, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

template<class TScalarType = double, unsigned int NDimensions = 3>
TScalarType itk::AffineGeometryFrame< TScalarType, NDimensions >::GetExtent ( unsigned int  direction ) const [inline]

Get the extent of the bounding box.

Reimplemented in mitk::Geometry3D.

Definition at line 68 of file itkAffineGeometryFrame.h.dox.

References itk::AffineGeometryFrame< TScalarType, NDimensions >::m_BoundingBox.

    {
    assert(direction<NDimensions);
    assert(m_BoundingBox.IsNotNull());
    BoundsArrayType bounds = m_BoundingBox->GetBounds();
    return bounds[direction*2+1]-bounds[direction*2];
    }
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetIndexToNodeTransform (  ) [virtual]

Get the IndexToNodeTransform This Transform cannot be set, and is just computed internally.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetIndexToObjectTransform (  ) [virtual]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetIndexToObjectTransform (  ) [virtual]

Set/Get the IndexToObjectTransform.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetIndexToWorldTransform (  ) [virtual]

Set/Get the IndexToWorldTransform.

Reimplemented in mitk::Geometry3D.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetIndexToWorldTransform (  ) [virtual]

Reimplemented in mitk::Geometry3D.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual const TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetObjectToNodeTransform (  ) [virtual]

Set/Get the ObjectToNodeTransform.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual TransformType* itk::AffineGeometryFrame< TScalarType, NDimensions >::GetObjectToNodeTransform (  ) [virtual]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::Initialize (  ) [virtual]

Initialize the geometry frame.

Reimplemented in mitk::AbstractTransformGeometry, mitk::Geometry3D, and mitk::PlaneGeometry.

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::InitializeGeometry ( Self *  newGeometry ) const [protected, virtual]

used in clone to initialize the newly created geometry

template<class TScalarType = double, unsigned int NDimensions = 3>
static Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::New (  ) [static]

Method for creation through the object factory.

Reimplemented in mitk::AbstractTransformGeometry, mitk::DisplayGeometry, mitk::Geometry2D, mitk::Geometry3D, mitk::PlaneGeometry, mitk::SlicedGeometry3D, mitk::ThinPlateSplineCurvedGeometry, mitk::TimeSlicedGeometry, and mitk::ExternAbstractTransformGeometry.

Referenced by mitk::RenderingManager::InitializeViews().

template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::SetBounds ( const BoundsArrayType &  bounds ) [virtual]

Set the bounding box Only possible via the BoundsArray to make clear that a copy of the bounding-box is stored, not a reference to it.

Reimplemented in mitk::Geometry3D.

template<class TScalarType = double, unsigned int NDimensions = 3>
void itk::AffineGeometryFrame< TScalarType, NDimensions >::SetBoundsArray ( const BoundsArrayType &  bounds,
BoundingBoxPointer &  boundingBox
) [protected]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::SetIndexToObjectTransform ( TransformType *  _arg ) [virtual]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::SetIndexToWorldTransform ( TransformType *  _arg ) [virtual]
template<class TScalarType = double, unsigned int NDimensions = 3>
virtual void itk::AffineGeometryFrame< TScalarType, NDimensions >::SetObjectToNodeTransform ( TransformType *  _arg ) [virtual]

Member Data Documentation

template<class TScalarType = double, unsigned int NDimensions = 3>
BoundingBoxPointer itk::AffineGeometryFrame< TScalarType, NDimensions >::m_BoundingBox [mutable, protected]

Definition at line 111 of file itkAffineGeometryFrame.h.dox.

Referenced by itk::AffineGeometryFrame< TScalarType, NDimensions >::GetBounds(), itk::AffineGeometryFrame< TScalarType, NDimensions >::GetExtent(), and mitk::TimeSlicedGeometry::UpdateInformation().

template<class TScalarType = double, unsigned int NDimensions = 3>
TransformType::Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::m_IndexToNodeTransform [protected]

Definition at line 116 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
TransformType::Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::m_IndexToObjectTransform [protected]

Transform from unit coordinates to object coordinates.

Definition at line 114 of file itkAffineGeometryFrame.h.dox.

template<class TScalarType = double, unsigned int NDimensions = 3>
TransformType::Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::m_IndexToWorldTransform [protected]

Definition at line 117 of file itkAffineGeometryFrame.h.dox.

Referenced by mitk::PlaneGeometry::DistanceFromPlane().

template<class TScalarType = double, unsigned int NDimensions = 3>
TransformType::Pointer itk::AffineGeometryFrame< TScalarType, NDimensions >::m_ObjectToNodeTransform [protected]

Definition at line 115 of file itkAffineGeometryFrame.h.dox.

The documentation for this class was generated from the following file:
