Base class of MITK RenderWindows. More...

#include <mitkRenderWindowBase.h>

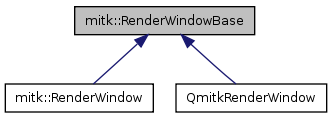

Inheritance diagram for mitk::RenderWindowBase:

Collaboration diagram for mitk::RenderWindowBase:

Public Member Functions
virtual	~RenderWindowBase ()
void	InitRenderer ()
virtual mitk::SliceNavigationController *	GetSliceNavigationController ()
virtual mitk::CameraRotationController *	GetCameraRotationController ()
virtual mitk::BaseController *	GetController ()
virtual mitk::VtkPropRenderer *	GetRenderer ()
virtual vtkRenderWindow *	GetVtkRenderWindow ()=0
virtual vtkRenderWindowInteractor *	GetVtkRenderWindowInteractor ()=0
void	SetProcessWheelEvents (bool state)
bool	GetProcessWheelEvents ()
virtual void	mousePressMitkEvent (mitk::MouseEvent *me)
virtual void	mouseReleaseMitkEvent (mitk::MouseEvent *me)
virtual void	mouseMoveMitkEvent (mitk::MouseEvent *me)
virtual void	wheelMitkEvent (mitk::WheelEvent *we)
virtual void	keyPressMitkEvent (mitk::KeyEvent *mke)
virtual void	resizeMitkEvent (int width, int height)
Protected Member Functions
	RenderWindowBase ()
void	Initialize (mitk::RenderingManager renderingManager=NULL, const char name="unnamed renderer")
void	Destroy ()
Protected Attributes
mitk::VtkPropRenderer::Pointer	m_Renderer
vtkMitkRenderProp *	m_RenderProp
bool	m_InResize
bool	m_ProcessWheelEvents

Detailed Description

Base class of MITK RenderWindows.

This class sets up the MITK rendering mechanism and it's integration into VTK.

Currently, there are two specific implementations of this abstract class: QmitkRenderWindow, inerhits from the QVTKWidget and is the matured way for MITK rendering mitkRenderWindow is a new, QT-independent RenderWindow implementation

Definition at line 43 of file mitkRenderWindowBase.h.

Constructor & Destructor Documentation

mitk::RenderWindowBase::~RenderWindowBase ( ) [virtual]

Definition at line 77 of file mitkRenderWindowBase.cpp.

{

}

mitk::RenderWindowBase::RenderWindowBase ( ) [protected]

Definition at line 26 of file mitkRenderWindowBase.cpp.

                                        : m_ProcessWheelEvents(true)
{

}

Member Function Documentation

void mitk::RenderWindowBase::Destroy ( ) [protected]

Definition at line 69 of file mitkRenderWindowBase.cpp.

References mitk::BaseRenderer::RemoveInstance().

Referenced by QmitkRenderWindow::~QmitkRenderWindow().

{
  m_Renderer->GetRenderingManager()->RemoveRenderWindow(GetVtkRenderWindow());
  mitk::BaseRenderer::RemoveInstance(GetVtkRenderWindow());
  m_Renderer->GetVtkRenderer()->RemoveViewProp(m_RenderProp);
  m_RenderProp->Delete();
}

mitk::CameraRotationController * mitk::RenderWindowBase::GetCameraRotationController ( ) [virtual]

Definition at line 158 of file mitkRenderWindowBase.cpp.

References mitk::BaseRenderer::GetCameraRotationController(), and mitk::BaseRenderer::GetInstance().

Referenced by QmitkSliceWidget::GetCameraRotationController().

{
  return mitk::BaseRenderer::GetInstance(this->GetVtkRenderWindow())->GetCameraRotationController();
}

mitk::BaseController * mitk::RenderWindowBase::GetController ( ) [virtual]

Definition at line 163 of file mitkRenderWindowBase.cpp.

References mitk::BaseRenderer::GetInstance(), mitk::BaseRenderer::GetMapperID(), mitk::BaseRenderer::Standard2D, and mitk::BaseRenderer::Standard3D.

Referenced by QmitkSliceWidget::GetController().

{
  mitk::BaseRenderer * renderer = mitk::BaseRenderer::GetInstance(GetVtkRenderWindow());
  switch ( renderer->GetMapperID() )
  {
    case mitk::BaseRenderer::Standard2D:
      return GetSliceNavigationController();

    case mitk::BaseRenderer::Standard3D:
      return GetCameraRotationController();

    default:
      return GetSliceNavigationController();
  }
}

bool mitk::RenderWindowBase::GetProcessWheelEvents ( )

Definition at line 191 of file mitkRenderWindowBase.cpp.

{
  return m_ProcessWheelEvents;
}

mitk::VtkPropRenderer * mitk::RenderWindowBase::GetRenderer ( ) [virtual]

mitk::SliceNavigationController * mitk::RenderWindowBase::GetSliceNavigationController ( ) [virtual]

Examples:: Step1.cpp, and Step2.cpp.

Definition at line 153 of file mitkRenderWindowBase.cpp.

References mitk::BaseRenderer::GetInstance(), and mitk::BaseRenderer::GetSliceNavigationController().

{
  return mitk::BaseRenderer::GetInstance(this->GetVtkRenderWindow())->GetSliceNavigationController();
}

virtual vtkRenderWindow* mitk::RenderWindowBase::GetVtkRenderWindow ( ) [pure virtual]

Implemented in mitk::RenderWindow, and QmitkRenderWindow.

virtual vtkRenderWindowInteractor* mitk::RenderWindowBase::GetVtkRenderWindowInteractor ( ) [pure virtual]

Implemented in mitk::RenderWindow, and QmitkRenderWindow.

void mitk::RenderWindowBase::Initialize	(	mitk::RenderingManager *	renderingManager = `NULL`,
		const char *	name = `"unnamed renderer"`
	)		`[protected]`

Definition at line 40 of file mitkRenderWindowBase.cpp.

References mitk::BaseRenderer::AddInstance(), mitk::RenderingManager::AddRenderWindow(), mitk::RenderingManager::GetInstance(), vtkMitkRenderProp::New(), and mitk::VtkPropRenderer::New().

Referenced by QmitkRenderWindow::QmitkRenderWindow(), and mitk::RenderWindow::RenderWindow().

{
  if ( renderingManager == NULL )
  {
    renderingManager = mitk::RenderingManager::GetInstance();
  }

  if(m_Renderer.IsNull())
  {
      m_Renderer = mitk::VtkPropRenderer::New( name , GetVtkRenderWindow(), renderingManager );
  }

  m_Renderer->InitRenderer(this->GetVtkRenderWindow());

  mitk::BaseRenderer::AddInstance(GetVtkRenderWindow(),m_Renderer);

  renderingManager->AddRenderWindow(GetVtkRenderWindow());

  m_RenderProp = vtkMitkRenderProp::New();
  m_RenderProp->SetPropRenderer(m_Renderer);
  m_Renderer->GetVtkRenderer()->AddViewProp(m_RenderProp);

  if((this->GetVtkRenderWindow()->GetSize()[0] > 10)
      && (this->GetVtkRenderWindow()->GetSize()[1] > 10))
    m_Renderer->InitSize(this->GetVtkRenderWindow()->GetSize()[0], this->GetVtkRenderWindow()->GetSize()[1]);

  m_InResize = false;
}

void mitk::RenderWindowBase::InitRenderer ( )

void mitk::RenderWindowBase::keyPressMitkEvent ( mitk::KeyEvent * mke ) [virtual]

Definition at line 131 of file mitkRenderWindowBase.cpp.

Referenced by QmitkRenderWindow::keyPressEvent().

{
  if (m_Renderer.IsNotNull())
    m_Renderer->KeyPressEvent(mke);
}

void mitk::RenderWindowBase::mouseMoveMitkEvent ( mitk::MouseEvent * me ) [virtual]

Definition at line 94 of file mitkRenderWindowBase.cpp.

Referenced by QmitkRenderWindow::mouseMoveEvent().

{
  if (m_Renderer.IsNotNull())
     m_Renderer->MouseMoveEvent(me);
}

void mitk::RenderWindowBase::mousePressMitkEvent ( mitk::MouseEvent * me ) [virtual]

Definition at line 82 of file mitkRenderWindowBase.cpp.

Referenced by QmitkRenderWindow::mousePressEvent().

{
  if (m_Renderer.IsNotNull())
    m_Renderer->MousePressEvent(me);
}

void mitk::RenderWindowBase::mouseReleaseMitkEvent ( mitk::MouseEvent * me ) [virtual]

Definition at line 88 of file mitkRenderWindowBase.cpp.

Referenced by QmitkRenderWindow::mouseReleaseEvent().

{
  if(m_Renderer.IsNotNull())
    m_Renderer->MouseReleaseEvent(me);
}

void mitk::RenderWindowBase::resizeMitkEvent	(	int	width,
		int	height
	)		`[virtual]`

Definition at line 138 of file mitkRenderWindowBase.cpp.

Referenced by QmitkRenderWindow::resizeEvent().

{
  if(m_InResize) //@FIXME CRITICAL probably related to VtkSizeBug
    return;
  m_InResize = true;

  if(m_Renderer.IsNotNull())
  {
    m_Renderer->Resize(width, height);
  }

  m_InResize = false;
}

void mitk::RenderWindowBase::SetProcessWheelEvents ( bool state )

Definition at line 186 of file mitkRenderWindowBase.cpp.

{
  m_ProcessWheelEvents = state;
}

void mitk::RenderWindowBase::wheelMitkEvent ( mitk::WheelEvent * we ) [virtual]

Definition at line 100 of file mitkRenderWindowBase.cpp.

References mitk::WheelEvent::GetDelta(), mitk::Stepper::GetSteps(), mitk::Stepper::Next(), and mitk::Stepper::Previous().

Referenced by QmitkRenderWindow::wheelEvent().

{
  if ( !m_ProcessWheelEvents )
    return;

  if ( !GetSliceNavigationController()->GetSliceLocked() )
  {
    mitk::Stepper* stepper = GetSliceNavigationController()->GetSlice();

    if (stepper->GetSteps() <= 1)
    {
      stepper = GetSliceNavigationController()->GetTime();
    }

    //if (we->orientation() * we->GetDelta()  > 0)
    if (we->GetDelta()  > 0)
    {
      stepper->Next();
    }
    else
    {
      stepper->Previous();
    }

    //also send to Renderer to send if to MITK interaction mechanism
    if(m_Renderer.IsNotNull())
      m_Renderer->WheelEvent(we);

  }
}
