Event that stores coordinates. More...

#include <mitkDisplayPositionEvent.h>

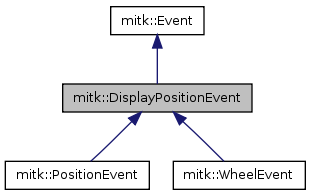

Inheritance diagram for mitk::DisplayPositionEvent:

Collaboration diagram for mitk::DisplayPositionEvent:

Public Member Functions
	DisplayPositionEvent (BaseRenderer *sender, int type, int button, int buttonState, int key, const Point2D &displPosition)
	Constructor with all necessary arguments.
const Point2D &	GetDisplayPosition () const
void	SetDisplayPosition (const Point2D &displPosition)
const Point3D &	GetWorldPosition () const
mitk::DataNode *	GetPickedObjectNode () const
mitk::BaseData *	GetPickedObject () const
Protected Attributes
Point2D	m_DisplayPosition
Point3D	m_WorldPosition
bool	m_WorldPositionIsSet
mitk::DataNode::Pointer	m_PickedObjectNode
bool	m_PickedObjectIsSet

Detailed Description

Event that stores coordinates.

Stores display position of the mouse.

If requested, the correspondent 3D world position in mm is calculated via picking (delegated to the BaseRenderer). Additionally, the mitk::BaseData or mitk::DataNode corresponding to the picked object in the (3D) scene can be retrieved.

Examples:: mitkMoveSurfaceInteractor.cpp.

Definition at line 41 of file mitkDisplayPositionEvent.h.

Constructor & Destructor Documentation

mitk::DisplayPositionEvent::DisplayPositionEvent	(	BaseRenderer *	sender,
		int	type,
		int	button,
		int	buttonState,
		int	key,
		const Point2D &	displPosition
	)

Constructor with all necessary arguments.

Parameters:

sender	is the renderer that caused that event
type,button,buttonState,key,:	information from the Event
displPosition	is the 2D Position of the mouse

Member Function Documentation

const Point2D& mitk::DisplayPositionEvent::GetDisplayPosition ( ) const [inline]

Definition at line 52 of file mitkDisplayPositionEvent.h.

Referenced by mitk::AffineInteractor::ConvertDisplayEventToWorldPosition(), mitk::SurfaceDeformationInteractor3D::ExecuteAction(), mitk::PointSetInteractor::ExecuteAction(), mitk::PlanarFigureInteractor::ExecuteAction(), mitk::ExtrudedContourInteractor::ExecuteAction(), mitk::DisplayVectorInteractor::ExecuteAction(), mitk::DisplayPointSetInteractor::ExecuteAction(), mitk::ContourInteractor::ExecuteAction(), mitk::PlanarFigureInteractor::IsPositionInsideMarker(), mitk::PlanarFigureInteractor::IsPositionOverFigure(), mitk::VtkInteractorCameraController::MouseMoveEvent(), mitk::BaseRenderer::MouseMoveEvent(), mitk::VtkInteractorCameraController::MousePressEvent(), mitk::BaseRenderer::MousePressEvent(), mitk::VtkInteractorCameraController::MouseReleaseEvent(), mitk::BaseRenderer::MouseReleaseEvent(), and mitk::BaseRenderer::WheelEvent().

  {
      return m_DisplayPosition;
  }

mitk::BaseData * mitk::DisplayPositionEvent::GetPickedObject ( ) const

Returns object at the current position (NULL if not applicable)

Definition at line 65 of file mitkDisplayPositionEvent.cpp.

References mitk::DataNode::GetData().

{
  mitk::DataNode *node = this->GetPickedObjectNode();

  if ( node != NULL )
  {
    return node->GetData();
  }
  else
  {
    return NULL;
  }
}

mitk::DataNode * mitk::DisplayPositionEvent::GetPickedObjectNode ( ) const

Returns node with object at the current position (NULL if not applicable)

Definition at line 47 of file mitkDisplayPositionEvent.cpp.

Referenced by mitk::SurfaceDeformationInteractor3D::ExecuteAction().

{
  // Method performs object picking and sets both object and world position
  if ( m_PickedObjectIsSet )
  {
    return m_PickedObjectNode;
  }

  assert( m_Sender != NULL );

  m_PickedObjectNode = m_Sender->PickObject( m_DisplayPosition, m_WorldPosition );

  m_PickedObjectIsSet = true;
  m_WorldPositionIsSet = true;

  return m_PickedObjectNode;
}

const mitk::Point3D & mitk::DisplayPositionEvent::GetWorldPosition ( ) const

Examples:: mitkMoveSurfaceInteractor.cpp.

Definition at line 32 of file mitkDisplayPositionEvent.cpp.

{
  // Method performs position picking and sets world position
  if ( m_WorldPositionIsSet )
    return m_WorldPosition;

  assert( m_Sender != NULL );

  m_Sender->PickWorldPoint( m_DisplayPosition, m_WorldPosition );

  m_WorldPositionIsSet = true;

  return m_WorldPosition;
}
