reads xml representations of mitk::PlanarFigure from a file More...

#include <mitkPlanarFigureReader.h>

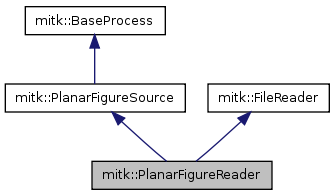

Inheritance diagram for mitk::PlanarFigureReader:

Collaboration diagram for mitk::PlanarFigureReader:

Public Types
typedef PlanarFigureReader	Self
typedef FileReader	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetFileName (const char *_arg)
	Sets the filename of the file to be read.
virtual const char *	GetFileName () const
	Returns the filename of the point set xml-file.
virtual void	SetFilePrefix (const char *_arg)
virtual const char *	GetFilePrefix () const
virtual void	SetFilePattern (const char *_arg)
virtual const char *	GetFilePattern () const
virtual bool	GetSuccess () const
virtual DataObjectPointer	MakeOutput (unsigned int idx)
Static Public Member Functions
static Pointer	New ()
static bool	CanReadFile (const std::string filename, const std::string filePrefix, const std::string filePattern)
Protected Types
typedef std::list< double >	DoubleList
Protected Member Functions
	PlanarFigureReader ()
virtual	~PlanarFigureReader ()
virtual void	GenerateData ()
virtual void	GenerateOutputInformation ()
virtual void	ResizeOutputs (const unsigned int &num)
virtual int	CanReadFile (const char *name)
mitk::Vector3D	GetVectorFromXMLNode (TiXmlElement *e)
	parses the element for the attributes x,y,z and returns a mitk::Vector3D filled with these values
mitk::Point3D	GetPointFromXMLNode (TiXmlElement *e)
	parses the element for the attributes x,y,z and returns a mitk::Point3D filled with these values
DoubleList	GetDoubleAttributeListFromXMLNode (TiXmlElement e, const char attributeNameBase, unsigned int count)
	parses the element for the attributes name0 to nameN, where "name" and the number of attributes to read are passed as argument. Returns a list of double vales.
Protected Attributes
std::string	m_FileName
std::string	m_FilePrefix
std::string	m_FilePattern
bool	m_Success

Detailed Description

reads xml representations of mitk::PlanarFigure from a file

Reader for xml files containing one or multiple xml represenations of mitk::PlanarFigure. If multiple mitk::PlanarFigure are stored in one file, these are assigned to multiple outputs of the filter.

Definition at line 40 of file mitkPlanarFigureReader.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::PlanarFigureReader::ConstPointer

Reimplemented from mitk::PlanarFigureSource.

Definition at line 44 of file mitkPlanarFigureReader.h.

typedef std::list< double > mitk::PlanarFigureReader::DoubleList [protected]

Definition at line 97 of file mitkPlanarFigureReader.h.

typedef itk::SmartPointer<Self> mitk::PlanarFigureReader::Pointer

Reimplemented from mitk::PlanarFigureSource.

Definition at line 44 of file mitkPlanarFigureReader.h.

typedef PlanarFigureReader mitk::PlanarFigureReader::Self

Reimplemented from mitk::PlanarFigureSource.

Definition at line 44 of file mitkPlanarFigureReader.h.

typedef FileReader mitk::PlanarFigureReader::Superclass

Reimplemented from mitk::PlanarFigureSource.

Definition at line 44 of file mitkPlanarFigureReader.h.

Constructor & Destructor Documentation

mitk::PlanarFigureReader::PlanarFigureReader ( ) [protected]

Constructor

Definition at line 37 of file mitkPlanarFigureReader.cpp.

References MakeOutput(), and mitk::BaseProcess::SetNthOutput().

                                           : PlanarFigureSource(), FileReader(),
m_FileName(""), m_FilePrefix(""), m_FilePattern(""), m_Success(false)
{
  this->SetNumberOfRequiredOutputs(1);
  this->SetNumberOfOutputs(1);
  this->SetNthOutput(0, this->MakeOutput(0));


  //this->Modified();
  //this->GetOutput()->Modified();
  //this->GetOutput()->ReleaseData();
}

mitk::PlanarFigureReader::~PlanarFigureReader ( ) [protected, virtual]

Virtual destructor

Definition at line 51 of file mitkPlanarFigureReader.cpp.

{}

Member Function Documentation

bool mitk::PlanarFigureReader::CanReadFile	(	const std::string	filename,
		const std::string	filePrefix,
		const std::string	filePattern
	)		`[static]`

Definition at line 376 of file mitkPlanarFigureReader.cpp.

{
  if (filename.empty())
    return false;

  return (itksys::SystemTools::LowerCase(itksys::SystemTools::GetFilenameLastExtension(filename)) == ".pf");  //assume, we can read all .pf files

  //TiXmlDocument document(filename);
  //if (document.LoadFile() == false)
  //  return false;
  //return (document.FirstChildElement("PlanarFigure") != NULL);
}

int mitk::PlanarFigureReader::CanReadFile ( const char * name ) [protected, virtual]

Checks if the given file has appropriate read access.

Returns:: true if the file exists and may be read or false otherwise.

Definition at line 363 of file mitkPlanarFigureReader.cpp.

{
  if (std::string(name).empty())
    return false;

  return (itksys::SystemTools::LowerCase(itksys::SystemTools::GetFilenameLastExtension(name)) == ".pf");  //assume, we can read all .pf files

  //TiXmlDocument document(name);
  //if (document.LoadFile() == false)
  //  return false;
  //return (document.FirstChildElement("PlanarFigure") != NULL);
}

void mitk::PlanarFigureReader::GenerateData ( ) [protected, virtual]

Actually reads the point sets from the given file

Definition at line 61 of file mitkPlanarFigureReader.cpp.

References TiXmlDocument::ErrorCol(), TiXmlDocument::ErrorDesc(), TiXmlDocument::ErrorRow(), TiXmlNode::FirstChildElement(), TiXmlDocument::LoadFile(), MITK_ERROR, MITK_WARN, mitk::PlaneGeometry::New(), mitk::PlanarArrow::New(), mitk::PlanarRectangle::New(), mitk::PlanarPolygon::New(), mitk::PlanarLine::New(), mitk::PlanarFourPointAngle::New(), mitk::PlanarCross::New(), mitk::PlanarCircle::New(), mitk::PlanarAngle::New(), TiXmlNode::NextSiblingElement(), TiXmlElement::QueryIntAttribute(), TIXML_SUCCESS, and TIXML_WRONG_TYPE.

{
  m_Success = false;
  this->SetNumberOfOutputs(0); // reset all outputs, we add new ones depending on the file content

  if (m_FileName.empty())
  {
    itkWarningMacro( << "Sorry, filename has not been set!" );
    return;
  }
  if (this->CanReadFile( m_FileName.c_str()) == false)
  {
    itkWarningMacro( << "Sorry, can't read file " << m_FileName << "!" );
    return;
  }

  TiXmlDocument document( m_FileName);
  if (!document.LoadFile())
  {
    MITK_ERROR << "Could not open/read/parse " << m_FileName << ". TinyXML reports: '" << document.ErrorDesc() << "'. "
              << "The error occurred in row " << document.ErrorRow() << ", column " << document.ErrorCol() << ".";
    return;
  }
  int fileVersion = 1;
  TiXmlElement* versionObject = document.FirstChildElement("Version");
  if (versionObject != NULL)
  {
    if ( versionObject->QueryIntAttribute( "FileVersion", &fileVersion ) != TIXML_SUCCESS )
    {
      MITK_WARN << m_FileName << " does not contain version information! Trying version 1 format." << std::endl;
    }
  }
  else
  {
    MITK_WARN << m_FileName << " does not contain version information! Trying version 1 format." << std::endl;
  }
  if (fileVersion != 1)  // add file version selection and version specific file parsing here, if newer file versions are created
  {
    MITK_WARN << "File version > 1 is not supported by this reader.";
      return;
  }

  /* file version 1 reader code */
  for( TiXmlElement* pfElement = document.FirstChildElement("PlanarFigure");
       pfElement != NULL;
       pfElement = pfElement->NextSiblingElement("PlanarFigure") )
  {
    if (pfElement == NULL)
      continue;

    std::string type = pfElement->Attribute("type");

    mitk::PlanarFigure::Pointer planarFigure = NULL;
    if (type == "PlanarAngle")
    {
      planarFigure = mitk::PlanarAngle::New();
    }
    else if (type == "PlanarCircle")
    {
      planarFigure = mitk::PlanarCircle::New();
    }
    else if (type == "PlanarCross")
    {
      planarFigure = mitk::PlanarCross::New();
    }
    else if (type == "PlanarFourPointAngle")
    {
      planarFigure = mitk::PlanarFourPointAngle::New();
    }
    else if (type == "PlanarLine")
    {
      planarFigure = mitk::PlanarLine::New();
    }
    else if (type == "PlanarPolygon")
    {
      planarFigure = mitk::PlanarPolygon::New();
    }
    else if (type == "PlanarRectangle")
    {
      planarFigure = mitk::PlanarRectangle::New();
    }
    else if (type == "PlanarArrow")
    {
      planarFigure = mitk::PlanarArrow::New();
    }
    else
    {
      // unknown type
      MITK_WARN << "encountered unknown planar figure type '" << type << "'. Skipping this element.";
      continue;
    }


    // Read properties of the planar figure
    for( TiXmlElement* propertyElement = pfElement->FirstChildElement("property");
         propertyElement != NULL;
         propertyElement = propertyElement->NextSiblingElement("property") )
    {
      const char* keya = propertyElement->Attribute("key");
      std::string key( keya ? keya : "");

      const char* typea = propertyElement->Attribute("type");
      std::string type( typea ? typea : "");

      // hand propertyElement to specific reader
      std::stringstream propertyDeserializerClassName;
      propertyDeserializerClassName << type << "Deserializer";

      std::list<itk::LightObject::Pointer> readers =
        itk::ObjectFactoryBase::CreateAllInstance(propertyDeserializerClassName.str().c_str());
      if (readers.size() < 1)
      {
        MITK_ERROR << "No property reader found for " << type;
      }
      if (readers.size() > 1)
      {
        MITK_WARN << "Multiple property readers found for " << type << ". Using arbitrary first one.";
      }

      for ( std::list<itk::LightObject::Pointer>::iterator iter = readers.begin();
        iter != readers.end();
        ++iter )
      {
        if (BasePropertyDeserializer* reader = dynamic_cast<BasePropertyDeserializer*>( iter->GetPointer() ) )
        {
          BaseProperty::Pointer property = reader->Deserialize( propertyElement->FirstChildElement() );
          if (property.IsNotNull())
          {
            planarFigure->GetPropertyList()->ReplaceProperty(key, property);
          }
          else
          {
            MITK_ERROR << "There were errors while loading property '" << key << "' of type " << type << ". Your data may be corrupted";
          }
          break;
        }
      }
    }


    // Read geometry of containing plane
    TiXmlElement* geoElement = pfElement->FirstChildElement("Geometry");
    if (geoElement != NULL)
    {
      try
      {
        // Create plane geometry
        mitk::PlaneGeometry::Pointer planeGeo = mitk::PlaneGeometry::New();

        // Extract and set plane transform parameters
        DoubleList transformList = this->GetDoubleAttributeListFromXMLNode( geoElement->FirstChildElement( "transformParam" ), "param", 12 );

        typedef mitk::AffineGeometryFrame3D::TransformType TransformType;
        TransformType::ParametersType parameters;
        parameters.SetSize( 12 );

        unsigned int i;
        DoubleList::iterator it;
        for ( it = transformList.begin(), i = 0;
              it != transformList.end();
              ++it, ++i )
        {
          parameters.SetElement( i, *it );
        }

        typedef mitk::AffineGeometryFrame3D::TransformType TransformType;
        TransformType::Pointer affineGeometry = TransformType::New();
        affineGeometry->SetParameters( parameters );
        planeGeo->SetIndexToWorldTransform( affineGeometry );


        // Extract and set plane bounds
        DoubleList boundsList = this->GetDoubleAttributeListFromXMLNode( geoElement->FirstChildElement( "boundsParam" ), "bound", 6 );

        typedef mitk::Geometry3D::BoundsArrayType BoundsArrayType;

        BoundsArrayType bounds;
        for ( it = boundsList.begin(), i = 0;
              it != boundsList.end();
              ++it, ++i )
        {
          bounds[i] = *it;
        }

        planeGeo->SetBounds( bounds );


        // Extract and set spacing and origin
        Vector3D spacing = this->GetVectorFromXMLNode(geoElement->FirstChildElement("Spacing"));
        planeGeo->SetSpacing( spacing );

        Point3D origin = this->GetPointFromXMLNode(geoElement->FirstChildElement("Origin"));
        planeGeo->SetOrigin( origin );
        planarFigure->SetGeometry2D(planeGeo);
      }
      catch (...)
      {
      }
    }
    TiXmlElement* cpElement = pfElement->FirstChildElement("ControlPoints");
    bool first = true;
    if (cpElement != NULL)
      for( TiXmlElement* vertElement = cpElement->FirstChildElement("Vertex"); vertElement != NULL; vertElement = vertElement->NextSiblingElement("Vertex"))
      {
        if (vertElement == NULL)
          continue;
        int id = 0;
        mitk::Point2D::ValueType x = 0.0;
        mitk::Point2D::ValueType y = 0.0;
        if (vertElement->QueryIntAttribute("id", &id) == TIXML_WRONG_TYPE)
          return; // TODO: can we do a better error handling?
        if (vertElement->QueryFloatAttribute("x", &x) == TIXML_WRONG_TYPE)
          return; // TODO: can we do a better error handling?
        if (vertElement->QueryFloatAttribute("y", &y) == TIXML_WRONG_TYPE)
          return; // TODO: can we do a better error handling?
        Point2D p;
        p.SetElement(0, x);
        p.SetElement(1, y);
        if (first == true)  // needed to set m_FigurePlaced to true
        {
          planarFigure->PlaceFigure(p);
          first = false;
        }
        planarFigure->SetControlPoint(id, p, true);
      }

    // Calculate feature quantities of this PlanarFigure
    planarFigure->EvaluateFeatures();

    // Make sure that no control point is currently selected
    planarFigure->DeselectControlPoint();

    // \TODO: what about m_FigurePlaced and m_SelectedControlPoint ??
    this->SetNthOutput( this->GetNumberOfOutputs(), planarFigure );  // add planarFigure as new output of this filter
  }
  m_Success = true;
}

void mitk::PlanarFigureReader::GenerateOutputInformation ( void ) [protected, virtual]

Does nothing in the current implementation

Definition at line 359 of file mitkPlanarFigureReader.cpp.

{
}

virtual const char* mitk::PlanarFigureReader::GetClassName ( ) const [virtual]

Reimplemented from mitk::PlanarFigureSource.

mitk::PlanarFigureReader::DoubleList mitk::PlanarFigureReader::GetDoubleAttributeListFromXMLNode	(	TiXmlElement *	e,
		const char *	attributeNameBase,
		unsigned int	count
	)		`[protected]`

parses the element for the attributes name0 to nameN, where "name" and the number of attributes to read are passed as argument. Returns a list of double vales.

Parameters:

[in]	e	the TiXmlElement that will be parsed
[in]	attributeNameBase	the basic name of the parameters
[in]	count	the number of parameters

Returns:: returns a mitk::Point3D with the values x,y,z

Definition at line 337 of file mitkPlanarFigureReader.cpp.

References TiXmlElement::QueryFloatAttribute(), and TIXML_WRONG_TYPE.

{
  DoubleList list;

  if (e == NULL)
    throw std::invalid_argument("node invalid"); // TODO: can we do a better error handling?

  for ( unsigned int i = 0; i < count; ++i )
  {
    mitk::ScalarType p(-1.0);
    std::stringstream attributeName;
    attributeName << attributeNameBase << i;

    if (e->QueryFloatAttribute( attributeName.str().c_str(), &p ) == TIXML_WRONG_TYPE)
      throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
    list.push_back( p );
  }


  return list;
}

virtual const char* mitk::PlanarFigureReader::GetFileName ( ) const [virtual]

Returns the filename of the point set xml-file.

Returns:: the filename of the point set xml-file.

Implements mitk::FileReader.

virtual const char* mitk::PlanarFigureReader::GetFilePattern ( ) const [virtual]

Warning:: multiple load not (yet) supported

Implements mitk::FileReader.

virtual const char* mitk::PlanarFigureReader::GetFilePrefix ( ) const [virtual]

Warning:: multiple load not (yet) supported

Implements mitk::FileReader.

mitk::Point3D mitk::PlanarFigureReader::GetPointFromXMLNode ( TiXmlElement * e ) [protected]

parses the element for the attributes x,y,z and returns a mitk::Point3D filled with these values

Parameters:

[in] e the TiXmlElement that will be parsed

Returns:: returns a mitk::Point3D with the values x,y,z

Definition at line 299 of file mitkPlanarFigureReader.cpp.

References TiXmlElement::QueryFloatAttribute(), and TIXML_WRONG_TYPE.

{
  if (e == NULL)
    throw std::invalid_argument("node invalid"); // TODO: can we do a better error handling?
  mitk::Point3D point;
  mitk::ScalarType p(-1.0);
  if (e->QueryFloatAttribute("x", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  point.SetElement(0, p);
  if (e->QueryFloatAttribute("y", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  point.SetElement(1, p);
  if (e->QueryFloatAttribute("z", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  point.SetElement(2, p);
  return point;
}

virtual bool mitk::PlanarFigureReader::GetSuccess ( ) const [virtual]

Returns:: whether the last read attempt was successful or not.

mitk::Vector3D mitk::PlanarFigureReader::GetVectorFromXMLNode ( TiXmlElement * e ) [protected]

parses the element for the attributes x,y,z and returns a mitk::Vector3D filled with these values

Parameters:

[in] e the TiXmlElement that will be parsed

Returns:: returns a mitk::Vector3D with the values x,y,z

Definition at line 318 of file mitkPlanarFigureReader.cpp.

References TiXmlElement::QueryFloatAttribute(), and TIXML_WRONG_TYPE.

{
  if (e == NULL)
    throw std::invalid_argument("node invalid"); // TODO: can we do a better error handling?
  mitk::Vector3D vector;
  mitk::ScalarType p(-1.0);
  if (e->QueryFloatAttribute("x", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  vector.SetElement(0, p);
  if (e->QueryFloatAttribute("y", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  vector.SetElement(1, p);
  if (e->QueryFloatAttribute("z", &p) == TIXML_WRONG_TYPE)
    throw std::invalid_argument("node malformatted"); // TODO: can we do a better error handling?
  vector.SetElement(2, p);
  return vector;
}

mitk::PlanarFigureSource::DataObjectPointer mitk::PlanarFigureReader::MakeOutput ( unsigned int idx ) [virtual]

Allocates a new dummy output object and returns it. GenerateData() will overwrite the outputs with specific types,

Parameters:

idx	the index of the output for which an object should be created

Returns:: the dummy object

Reimplemented from mitk::PlanarFigureSource.

Definition at line 55 of file mitkPlanarFigureReader.cpp.

References mitk::PlanarCircle::New().

Referenced by PlanarFigureReader().

{
  return static_cast<itk::DataObject*>(PlanarCircle::New().GetPointer()); // just as a stand in for the pipeline update mechanism. This will be overwritten in GenerateData()
}

static Pointer mitk::PlanarFigureReader::New ( ) [static]

Reimplemented from mitk::PlanarFigureSource.

Referenced by PlanarFigureIOTestClass::DeserializePlanarFigures().

void mitk::PlanarFigureReader::ResizeOutputs ( const unsigned int & num ) [protected, virtual]

Resizes the output-objects according to the given number.

Parameters:

num	the new number of output objects.

Definition at line 389 of file mitkPlanarFigureReader.cpp.

{
  unsigned int prevNum = this->GetNumberOfOutputs();
  this->SetNumberOfOutputs( num );
  for ( unsigned int i = prevNum; i < num; ++i )
  {
    this->SetNthOutput( i, this->MakeOutput( i ).GetPointer() );
  }
}

virtual void mitk::PlanarFigureReader::SetFileName ( const char * _arg ) [virtual]

Sets the filename of the file to be read.

Parameters:
