#include <tinyxml.h>
Public Types | |
| enum | NodeType { TINYXML_DOCUMENT, TINYXML_ELEMENT, TINYXML_COMMENT, TINYXML_UNKNOWN, TINYXML_TEXT, TINYXML_DECLARATION, TINYXML_TYPECOUNT } |
Public Member Functions | |
| virtual | ~TiXmlNode () |
| const char * | Value () const |
| const std::string & | ValueStr () const |
| const TiXmlString & | ValueTStr () const |
| void | SetValue (const char *_value) |
| void | SetValue (const std::string &_value) |
| STL std::string form. | |
| void | Clear () |
| Delete all the children of this node. Does not affect 'this'. | |
| TiXmlNode * | Parent () |
| One step up the DOM. | |
| const TiXmlNode * | Parent () const |
| const TiXmlNode * | FirstChild () const |
| The first child of this node. Will be null if there are no children. | |
| TiXmlNode * | FirstChild () |
| const TiXmlNode * | FirstChild (const char *value) const |
| TiXmlNode * | FirstChild (const char *_value) |
| The first child of this node with the matching 'value'. Will be null if none found. | |
| const TiXmlNode * | LastChild () const |
| TiXmlNode * | LastChild () |
| The last child of this node. Will be null if there are no children. | |
| const TiXmlNode * | LastChild (const char *value) const |
| TiXmlNode * | LastChild (const char *_value) |
| The last child of this node matching 'value'. Will be null if there are no children. | |
| const TiXmlNode * | FirstChild (const std::string &_value) const |
| STL std::string form. | |
| TiXmlNode * | FirstChild (const std::string &_value) |
| STL std::string form. | |
| const TiXmlNode * | LastChild (const std::string &_value) const |
| STL std::string form. | |
| TiXmlNode * | LastChild (const std::string &_value) |
| STL std::string form. | |
| const TiXmlNode * | IterateChildren (const TiXmlNode *previous) const |
| TiXmlNode * | IterateChildren (const TiXmlNode *previous) |
| const TiXmlNode * | IterateChildren (const char *value, const TiXmlNode *previous) const |
| This flavor of IterateChildren searches for children with a particular 'value'. | |
| TiXmlNode * | IterateChildren (const char *_value, const TiXmlNode *previous) |
| const TiXmlNode * | IterateChildren (const std::string &_value, const TiXmlNode *previous) const |
| STL std::string form. | |
| TiXmlNode * | IterateChildren (const std::string &_value, const TiXmlNode *previous) |
| STL std::string form. | |
| TiXmlNode * | InsertEndChild (const TiXmlNode &addThis) |
| TiXmlNode * | LinkEndChild (TiXmlNode *addThis) |
| TiXmlNode * | InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis) |
| TiXmlNode * | InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis) |
| TiXmlNode * | ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis) |
| bool | RemoveChild (TiXmlNode *removeThis) |
| Delete a child of this node. | |
| const TiXmlNode * | PreviousSibling () const |
| Navigate to a sibling node. | |
| TiXmlNode * | PreviousSibling () |
| const TiXmlNode * | PreviousSibling (const char *) const |
| Navigate to a sibling node. | |
| TiXmlNode * | PreviousSibling (const char *_prev) |
| const TiXmlNode * | PreviousSibling (const std::string &_value) const |
| STL std::string form. | |
| TiXmlNode * | PreviousSibling (const std::string &_value) |
| STL std::string form. | |
| const TiXmlNode * | NextSibling (const std::string &_value) const |
| STL std::string form. | |
| TiXmlNode * | NextSibling (const std::string &_value) |
| STL std::string form. | |
| const TiXmlNode * | NextSibling () const |
| Navigate to a sibling node. | |
| TiXmlNode * | NextSibling () |
| const TiXmlNode * | NextSibling (const char *) const |
| Navigate to a sibling node with the given 'value'. | |
| TiXmlNode * | NextSibling (const char *_next) |
| const TiXmlElement * | NextSiblingElement () const |
| TiXmlElement * | NextSiblingElement () |
| const TiXmlElement * | NextSiblingElement (const char *) const |
| TiXmlElement * | NextSiblingElement (const char *_next) |
| const TiXmlElement * | NextSiblingElement (const std::string &_value) const |
| STL std::string form. | |
| TiXmlElement * | NextSiblingElement (const std::string &_value) |
| STL std::string form. | |
| const TiXmlElement * | FirstChildElement () const |
| Convenience function to get through elements. | |
| TiXmlElement * | FirstChildElement () |
| const TiXmlElement * | FirstChildElement (const char *_value) const |
| Convenience function to get through elements. | |
| TiXmlElement * | FirstChildElement (const char *_value) |
| const TiXmlElement * | FirstChildElement (const std::string &_value) const |
| STL std::string form. | |
| TiXmlElement * | FirstChildElement (const std::string &_value) |
| STL std::string form. | |
| int | Type () const |
| const TiXmlDocument * | GetDocument () const |
| TiXmlDocument * | GetDocument () |
| bool | NoChildren () const |
| Returns true if this node has no children. | |
| virtual const TiXmlDocument * | ToDocument () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual const TiXmlElement * | ToElement () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual const TiXmlComment * | ToComment () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual const TiXmlUnknown * | ToUnknown () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual const TiXmlText * | ToText () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual const TiXmlDeclaration * | ToDeclaration () const |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlDocument * | ToDocument () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlElement * | ToElement () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlComment * | ToComment () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlUnknown * | ToUnknown () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlText * | ToText () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlDeclaration * | ToDeclaration () |
| Cast to a more defined type. Will return null if not of the requested type. | |
| virtual TiXmlNode * | Clone () const =0 |
| virtual bool | Accept (TiXmlVisitor *visitor) const =0 |
Protected Member Functions | |
| TiXmlNode (NodeType _type) | |
| void | CopyTo (TiXmlNode *target) const |
| virtual void | StreamIn (std::istream *in, TiXmlString *tag)=0 |
| TiXmlNode * | Identify (const char *start, TiXmlEncoding encoding) |
Protected Attributes | |
| TiXmlNode * | parent |
| NodeType | type |
| TiXmlNode * | firstChild |
| TiXmlNode * | lastChild |
| TiXmlString | value |
| TiXmlNode * | prev |
| TiXmlNode * | next |
Friends | |
| class | TiXmlDocument |
| class | TiXmlElement |
| std::istream & | operator>> (std::istream &in, TiXmlNode &base) |
| std::ostream & | operator<< (std::ostream &out, const TiXmlNode &base) |
| std::string & | operator<< (std::string &out, const TiXmlNode &base) |
| Appends the XML node or attribute to a std::string. | |

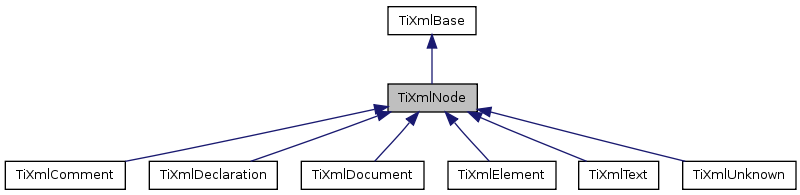

The parent class for everything in the Document Object Model. (Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.
Definition at line 428 of file tinyxml.h.
| enum TiXmlNode::NodeType |
| TiXmlNode::~TiXmlNode | ( | ) | [virtual] |
Definition at line 147 of file tinyxml.cpp.
References firstChild, and next.
{
TiXmlNode* node = firstChild;
TiXmlNode* temp = 0;
while ( node )
{
temp = node;
node = node->next;
delete temp;
}
}
| TiXmlNode::TiXmlNode | ( | NodeType | _type ) | [protected] |
Definition at line 136 of file tinyxml.cpp.
References firstChild, lastChild, next, parent, prev, and type.
| virtual bool TiXmlNode::Accept | ( | TiXmlVisitor * | visitor ) | const [pure virtual] |
Accept a hierchical visit the nodes in the TinyXML DOM. Every node in the XML tree will be conditionally visited and the host will be called back via the TiXmlVisitor interface.
This is essentially a SAX interface for TinyXML. (Note however it doesn't re-parse the XML for the callbacks, so the performance of TinyXML is unchanged by using this interface versus any other.)
The interface has been based on ideas from:
Which are both good references for "visiting".
An example of using Accept():
TiXmlPrinter printer; tinyxmlDoc.Accept( &printer ); const char* xmlcstr = printer.CStr();
Implemented in TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
Referenced by TiXmlDocument::Accept(), and operator<<().
| void TiXmlNode::Clear | ( | ) |
Delete all the children of this node. Does not affect 'this'.
Definition at line 169 of file tinyxml.cpp.
References firstChild, lastChild, and next.
Referenced by TiXmlElement::ClearThis(), TiXmlDocument::LoadFile(), TiXmlDeclaration::operator=(), TiXmlComment::operator=(), and TiXmlDocument::operator=().
{
TiXmlNode* node = firstChild;
TiXmlNode* temp = 0;
while ( node )
{
temp = node;
node = node->next;
delete temp;
}
firstChild = 0;
lastChild = 0;
}
| virtual TiXmlNode* TiXmlNode::Clone | ( | ) | const [pure virtual] |
Create an exact duplicate of this node and return it. The memory must be deleted by the caller.
Implemented in TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
Referenced by TiXmlElement::CopyTo(), InsertAfterChild(), InsertBeforeChild(), InsertEndChild(), and ReplaceChild().
| void TiXmlNode::CopyTo | ( | TiXmlNode * | target ) | const [protected] |
Definition at line 161 of file tinyxml.cpp.
References TiXmlBase::location, SetValue(), TiXmlBase::userData, and value.
| const TiXmlNode* TiXmlNode::FirstChild | ( | ) | const [inline] |
The first child of this node. Will be null if there are no children.
Definition at line 527 of file tinyxml.h.
References firstChild.
Referenced by TiXmlDocument::Accept(), TiXmlElement::Accept(), TiXmlHandle::Child(), TiXmlHandle::FirstChild(), FirstChildElement(), TiXmlElement::GetText(), IterateChildren(), TiXmlDocument::Print(), TiXmlPrinter::VisitEnter(), and TiXmlPrinter::VisitExit().
| const TiXmlNode* TiXmlNode::FirstChild | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 545 of file tinyxml.h.
References FirstChild().
Referenced by FirstChild().
| TiXmlNode* TiXmlNode::FirstChild | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 546 of file tinyxml.h.
References FirstChild().
Referenced by FirstChild().
| TiXmlNode* TiXmlNode::FirstChild | ( | ) | [inline] |
| const TiXmlNode * TiXmlNode::FirstChild | ( | const char * | value ) | const |
The first child of this node with the matching 'value'. Will be null if none found.
Definition at line 357 of file tinyxml.cpp.
References firstChild, next, and Value().
{
const TiXmlNode* node;
for ( node = firstChild; node; node = node->next )
{
if ( strcmp( node->Value(), _value ) == 0 )
return node;
}
return 0;
}
| TiXmlNode* TiXmlNode::FirstChild | ( | const char * | _value ) | [inline] |
The first child of this node with the matching 'value'. Will be null if none found.
| const TiXmlElement * TiXmlNode::FirstChildElement | ( | ) | const |
Convenience function to get through elements.
Definition at line 448 of file tinyxml.cpp.
References FirstChild(), NextSibling(), and ToElement().
Referenced by TiXmlHandle::ChildElement(), mitk::SceneReaderV1::DecorateNodeWithProperties(), mitk::TransferFunctionPropertyDeserializer::Deserialize(), mitk::StringLookupTablePropertyDeserializer::Deserialize(), mitk::PropertyListDeserializerV1::Deserialize(), mitk::PropertyListDeserializer::Deserialize(), mitk::LookupTablePropertyDeserializer::Deserialize(), mitk::LevelWindowPropertyDeserializer::Deserialize(), mitk::IntLookupTablePropertyDeserializer::Deserialize(), mitk::FloatLookupTablePropertyDeserializer::Deserialize(), mitk::ClippingPropertyDeserializer::Deserialize(), mitk::BoolLookupTablePropertyDeserializer::Deserialize(), mitk::TransferFunctionPropertyDeserializer::DeserializeTransferFunction(), TiXmlHandle::FirstChildElement(), mitk::PointSetReader::GenerateData(), mitk::PlanarFigureReader::GenerateData(), mitk::SceneReaderV1::LoadScene(), mitk::SceneReader::LoadScene(), mitk::PointSetReader::ReadPoint(), mitk::NavigationDataSequentialPlayer::ReinitXML(), and TiXmlDocument::RootElement().
{
const TiXmlNode* node;
for ( node = FirstChild();
node;
node = node->NextSibling() )
{
if ( node->ToElement() )
return node->ToElement();
}
return 0;
}
| TiXmlElement* TiXmlNode::FirstChildElement | ( | ) | [inline] |
Definition at line 670 of file tinyxml.h.
{
return const_cast< TiXmlElement* >( (const_cast< const TiXmlNode* >(this))->FirstChildElement() );
}
| const TiXmlElement * TiXmlNode::FirstChildElement | ( | const char * | _value ) | const |
Convenience function to get through elements.
Definition at line 463 of file tinyxml.cpp.
References FirstChild(), NextSibling(), and ToElement().
{
const TiXmlNode* node;
for ( node = FirstChild( _value );
node;
node = node->NextSibling( _value ) )
{
if ( node->ToElement() )
return node->ToElement();
}
return 0;
}
| TiXmlElement* TiXmlNode::FirstChildElement | ( | const char * | _value ) | [inline] |
Definition at line 676 of file tinyxml.h.
{
return const_cast< TiXmlElement* >( (const_cast< const TiXmlNode* >(this))->FirstChildElement( _value ) );
}
| const TiXmlElement* TiXmlNode::FirstChildElement | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 681 of file tinyxml.h.
References FirstChildElement().
Referenced by FirstChildElement().
| TiXmlElement* TiXmlNode::FirstChildElement | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 682 of file tinyxml.h.
References FirstChildElement().
Referenced by FirstChildElement().
| const TiXmlDocument * TiXmlNode::GetDocument | ( | ) | const |
Return a pointer to the Document this node lives in. Returns null if not in a document.
Definition at line 508 of file tinyxml.cpp.
References parent, and ToDocument().
Referenced by InsertAfterChild(), InsertBeforeChild(), InsertEndChild(), LinkEndChild(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlElement::ReadValue(), ReplaceChild(), TiXmlDeclaration::StreamIn(), TiXmlText::StreamIn(), TiXmlComment::StreamIn(), TiXmlUnknown::StreamIn(), and TiXmlElement::StreamIn().
{
const TiXmlNode* node;
for( node = this; node; node = node->parent )
{
if ( node->ToDocument() )
return node->ToDocument();
}
return 0;
}
| TiXmlDocument* TiXmlNode::GetDocument | ( | ) | [inline] |
Definition at line 695 of file tinyxml.h.
{
return const_cast< TiXmlDocument* >( (const_cast< const TiXmlNode* >(this))->GetDocument() );
}
| TiXmlNode * TiXmlNode::Identify | ( | const char * | start, |
| TiXmlEncoding | encoding | ||
| ) | [protected] |
Definition at line 818 of file tinyxmlparser.cpp.
References TiXmlBase::IsAlpha(), parent, TiXmlText::SetCDATA(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), and TiXmlElement.
Referenced by TiXmlDocument::Parse(), TiXmlElement::ReadValue(), TiXmlElement::StreamIn(), and TiXmlDocument::StreamIn().
{
TiXmlNode* returnNode = 0;
p = SkipWhiteSpace( p, encoding );
if( !p || !*p || *p != '<' )
{
return 0;
}
p = SkipWhiteSpace( p, encoding );
if ( !p || !*p )
{
return 0;
}
// What is this thing?
// - Elements start with a letter or underscore, but xml is reserved.
// - Comments: <!--
// - Decleration: <?xml
// - Everthing else is unknown to tinyxml.
//
const char* xmlHeader = { "<?xml" };
const char* commentHeader = { "<!--" };
const char* dtdHeader = { "<!" };
const char* cdataHeader = { "<![CDATA[" };
if ( StringEqual( p, xmlHeader, true, encoding ) )
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing Declaration\n" );
#endif
returnNode = new TiXmlDeclaration();
}
else if ( StringEqual( p, commentHeader, false, encoding ) )
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing Comment\n" );
#endif
returnNode = new TiXmlComment();
}
else if ( StringEqual( p, cdataHeader, false, encoding ) )
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing CDATA\n" );
#endif
TiXmlText* text = new TiXmlText( "" );
text->SetCDATA( true );
returnNode = text;
}
else if ( StringEqual( p, dtdHeader, false, encoding ) )
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing Unknown(1)\n" );
#endif
returnNode = new TiXmlUnknown();
}
else if ( IsAlpha( *(p+1), encoding )
|| *(p+1) == '_' )
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing Element\n" );
#endif
returnNode = new TiXmlElement( "" );
}
else
{
#ifdef DEBUG_PARSER
TIXML_LOG( "XML parsing Unknown(2)\n" );
#endif
returnNode = new TiXmlUnknown();
}
if ( returnNode )
{
// Set the parent, so it can report errors
returnNode->parent = this;
}
return returnNode;
}
Add a new node related to this. Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.
Definition at line 260 of file tinyxml.cpp.
References Clone(), GetDocument(), lastChild, next, parent, prev, TiXmlDocument::SetError(), TINYXML_DOCUMENT, TIXML_ENCODING_UNKNOWN, TiXmlBase::TIXML_ERROR_DOCUMENT_TOP_ONLY, and Type().
{
if ( !afterThis || afterThis->parent != this ) {
return 0;
}
if ( addThis.Type() == TiXmlNode::TINYXML_DOCUMENT )
{
if ( GetDocument() ) GetDocument()->SetError( TIXML_ERROR_DOCUMENT_TOP_ONLY, 0, 0, TIXML_ENCODING_UNKNOWN );
return 0;
}
TiXmlNode* node = addThis.Clone();
if ( !node )
return 0;
node->parent = this;
node->prev = afterThis;
node->next = afterThis->next;
if ( afterThis->next )
{
afterThis->next->prev = node;
}
else
{
assert( lastChild == afterThis );
lastChild = node;
}
afterThis->next = node;
return node;
}
Add a new node related to this. Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.
Definition at line 228 of file tinyxml.cpp.
References Clone(), firstChild, GetDocument(), next, parent, prev, TiXmlDocument::SetError(), TINYXML_DOCUMENT, TIXML_ENCODING_UNKNOWN, TiXmlBase::TIXML_ERROR_DOCUMENT_TOP_ONLY, and Type().
{
if ( !beforeThis || beforeThis->parent != this ) {
return 0;
}
if ( addThis.Type() == TiXmlNode::TINYXML_DOCUMENT )
{
if ( GetDocument() ) GetDocument()->SetError( TIXML_ERROR_DOCUMENT_TOP_ONLY, 0, 0, TIXML_ENCODING_UNKNOWN );
return 0;
}
TiXmlNode* node = addThis.Clone();
if ( !node )
return 0;
node->parent = this;
node->next = beforeThis;
node->prev = beforeThis->prev;
if ( beforeThis->prev )
{
beforeThis->prev->next = node;
}
else
{
assert( firstChild == beforeThis );
firstChild = node;
}
beforeThis->prev = node;
return node;
}
Add a new node related to this. Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.
Definition at line 213 of file tinyxml.cpp.
References Clone(), GetDocument(), LinkEndChild(), TiXmlDocument::SetError(), TINYXML_DOCUMENT, TIXML_ENCODING_UNKNOWN, TiXmlBase::TIXML_ERROR_DOCUMENT_TOP_ONLY, and Type().
{
if ( addThis.Type() == TiXmlNode::TINYXML_DOCUMENT )
{
if ( GetDocument() ) GetDocument()->SetError( TIXML_ERROR_DOCUMENT_TOP_ONLY, 0, 0, TIXML_ENCODING_UNKNOWN );
return 0;
}
TiXmlNode* node = addThis.Clone();
if ( !node )
return 0;
return LinkEndChild( node );
}
An alternate way to walk the children of a node. One way to iterate over nodes is:
for( child = parent->FirstChild(); child; child = child->NextSibling() )
IterateChildren does the same thing with the syntax:
child = 0; while( child = parent->IterateChildren( child ) )
IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.
Definition at line 381 of file tinyxml.cpp.
References FirstChild(), NextSibling(), and parent.
{
if ( !previous )
{
return FirstChild();
}
else
{
assert( previous->parent == this );
return previous->NextSibling();
}
}
| const TiXmlNode * TiXmlNode::IterateChildren | ( | const char * | value, |
| const TiXmlNode * | previous | ||
| ) | const |
This flavor of IterateChildren searches for children with a particular 'value'.
Definition at line 395 of file tinyxml.cpp.
References FirstChild(), NextSibling(), and parent.
{
if ( !previous )
{
return FirstChild( val );
}
else
{
assert( previous->parent == this );
return previous->NextSibling( val );
}
}
| const TiXmlNode* TiXmlNode::IterateChildren | ( | const std::string & | _value, |
| const TiXmlNode * | previous | ||
| ) | const [inline] |
STL std::string form.
Definition at line 579 of file tinyxml.h.
References IterateChildren().
Referenced by IterateChildren().
| TiXmlNode* TiXmlNode::IterateChildren | ( | const std::string & | _value, |
| const TiXmlNode * | previous | ||
| ) | [inline] |
STL std::string form.
Definition at line 580 of file tinyxml.h.
References IterateChildren().
Referenced by IterateChildren().
| TiXmlNode* TiXmlNode::LastChild | ( | const char * | _value ) | [inline] |
| const TiXmlNode* TiXmlNode::LastChild | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 547 of file tinyxml.h.
References LastChild().
Referenced by LastChild().
| TiXmlNode* TiXmlNode::LastChild | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 548 of file tinyxml.h.
References LastChild().
Referenced by LastChild().
| const TiXmlNode* TiXmlNode::LastChild | ( | ) | const [inline] |
Definition at line 536 of file tinyxml.h.
References lastChild.
Referenced by TiXmlPrinter::VisitEnter().
{ return lastChild; }
| TiXmlNode* TiXmlNode::LastChild | ( | ) | [inline] |
| const TiXmlNode * TiXmlNode::LastChild | ( | const char * | value ) | const |
Add a new node related to this. Adds a child past the LastChild.
NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.
Definition at line 186 of file tinyxml.cpp.
References firstChild, GetDocument(), lastChild, next, parent, prev, TiXmlDocument::SetError(), TINYXML_DOCUMENT, TIXML_ENCODING_UNKNOWN, TiXmlBase::TIXML_ERROR_DOCUMENT_TOP_ONLY, and Type().
Referenced by TiXmlElement::CopyTo(), mitk::PlanarFigureWriter::GenerateData(), InsertEndChild(), TiXmlDocument::Parse(), TiXmlElement::ReadValue(), mitk::SceneIO::SaveScene(), mitk::TransferFunctionPropertySerializer::Serialize(), mitk::StringLookupTablePropertySerializer::Serialize(), mitk::LookupTablePropertySerializer::Serialize(), mitk::LevelWindowPropertySerializer::Serialize(), mitk::IntLookupTablePropertySerializer::Serialize(), mitk::FloatLookupTablePropertySerializer::Serialize(), mitk::ClippingPropertySerializer::Serialize(), mitk::BoolLookupTablePropertySerializer::Serialize(), mitk::PropertyListSerializer::SerializeOneProperty(), and mitk::TransferFunctionPropertySerializer::SerializeTransferFunction().
{
assert( node->parent == 0 || node->parent == this );
assert( node->GetDocument() == 0 || node->GetDocument() == this->GetDocument() );
if ( node->Type() == TiXmlNode::TINYXML_DOCUMENT )
{
delete node;
if ( GetDocument() ) GetDocument()->SetError( TIXML_ERROR_DOCUMENT_TOP_ONLY, 0, 0, TIXML_ENCODING_UNKNOWN );
return 0;
}
node->parent = this;
node->prev = lastChild;
node->next = 0;
if ( lastChild )
lastChild->next = node;
else
firstChild = node; // it was an empty list.
lastChild = node;
return node;
}
| const TiXmlNode * TiXmlNode::NextSibling | ( | const char * | _value ) | const |
| const TiXmlNode* TiXmlNode::NextSibling | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 631 of file tinyxml.h.
References NextSibling().
Referenced by TiXmlDocument::Accept(), TiXmlElement::Accept(), TiXmlHandle::Child(), TiXmlElement::CopyTo(), FirstChildElement(), IterateChildren(), NextSibling(), NextSiblingElement(), TiXmlDocument::Print(), and TiXmlElement::Print().
| TiXmlNode* TiXmlNode::NextSibling | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 632 of file tinyxml.h.
References NextSibling().
Referenced by NextSibling().
| const TiXmlNode* TiXmlNode::NextSibling | ( | ) | const [inline] |
Navigate to a sibling node.
Definition at line 636 of file tinyxml.h.
References next.
Referenced by NextSiblingElement().
{ return next; }
| TiXmlNode* TiXmlNode::NextSibling | ( | ) | [inline] |
| TiXmlNode* TiXmlNode::NextSibling | ( | const char * | _next ) | [inline] |
| const TiXmlElement * TiXmlNode::NextSiblingElement | ( | ) | const |
Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.
Definition at line 478 of file tinyxml.cpp.
References NextSibling(), and ToElement().
Referenced by TiXmlHandle::ChildElement(), mitk::SceneReaderV1::DecorateNodeWithProperties(), mitk::TransferFunctionPropertyDeserializer::Deserialize(), mitk::StringLookupTablePropertyDeserializer::Deserialize(), mitk::PropertyListDeserializerV1::Deserialize(), mitk::LookupTablePropertyDeserializer::Deserialize(), mitk::IntLookupTablePropertyDeserializer::Deserialize(), mitk::FloatLookupTablePropertyDeserializer::Deserialize(), mitk::BoolLookupTablePropertyDeserializer::Deserialize(), mitk::PointSetReader::GenerateData(), mitk::PlanarFigureReader::GenerateData(), mitk::SceneReaderV1::LoadScene(), mitk::PointSetReader::ReadPoint(), and mitk::NavigationDataSequentialPlayer::ReinitXML().
{
const TiXmlNode* node;
for ( node = NextSibling();
node;
node = node->NextSibling() )
{
if ( node->ToElement() )
return node->ToElement();
}
return 0;
}
| TiXmlElement* TiXmlNode::NextSiblingElement | ( | ) | [inline] |
Definition at line 650 of file tinyxml.h.
{
return const_cast< TiXmlElement* >( (const_cast< const TiXmlNode* >(this))->NextSiblingElement() );
}
| TiXmlElement* TiXmlNode::NextSiblingElement | ( | const char * | _next ) | [inline] |
Definition at line 659 of file tinyxml.h.
{
return const_cast< TiXmlElement* >( (const_cast< const TiXmlNode* >(this))->NextSiblingElement( _next ) );
}
| const TiXmlElement* TiXmlNode::NextSiblingElement | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 664 of file tinyxml.h.
References NextSiblingElement().
Referenced by NextSiblingElement().
| TiXmlElement* TiXmlNode::NextSiblingElement | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 665 of file tinyxml.h.
References NextSiblingElement().
Referenced by NextSiblingElement().
| const TiXmlElement * TiXmlNode::NextSiblingElement | ( | const char * | _value ) | const |
Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.
Definition at line 493 of file tinyxml.cpp.
References NextSibling(), and ToElement().
{
const TiXmlNode* node;
for ( node = NextSibling( _value );
node;
node = node->NextSibling( _value ) )
{
if ( node->ToElement() )
return node->ToElement();
}
return 0;
}
| bool TiXmlNode::NoChildren | ( | ) | const [inline] |
Returns true if this node has no children.
Definition at line 700 of file tinyxml.h.
References firstChild.
{ return !firstChild; }
| const TiXmlNode* TiXmlNode::Parent | ( | ) | const [inline] |
| TiXmlNode* TiXmlNode::Parent | ( | ) | [inline] |
| const TiXmlNode* TiXmlNode::PreviousSibling | ( | ) | const [inline] |
| TiXmlNode* TiXmlNode::PreviousSibling | ( | ) | [inline] |
| const TiXmlNode * TiXmlNode::PreviousSibling | ( | const char * | _value ) | const |
| TiXmlNode* TiXmlNode::PreviousSibling | ( | const std::string & | _value ) | [inline] |
STL std::string form.
Definition at line 630 of file tinyxml.h.
References PreviousSibling().
Referenced by PreviousSibling().
| TiXmlNode* TiXmlNode::PreviousSibling | ( | const char * | _prev ) | [inline] |
| const TiXmlNode* TiXmlNode::PreviousSibling | ( | const std::string & | _value ) | const [inline] |
STL std::string form.
Definition at line 629 of file tinyxml.h.
References PreviousSibling().
Referenced by PreviousSibling().
| bool TiXmlNode::RemoveChild | ( | TiXmlNode * | removeThis ) |
Delete a child of this node.
Definition at line 331 of file tinyxml.cpp.
References firstChild, lastChild, next, parent, and prev.
{
if ( !removeThis ) {
return false;
}
if ( removeThis->parent != this )
{
assert( 0 );
return false;
}
if ( removeThis->next )
removeThis->next->prev = removeThis->prev;
else
lastChild = removeThis->prev;
if ( removeThis->prev )
removeThis->prev->next = removeThis->next;
else
firstChild = removeThis->next;
delete removeThis;
return true;
}
Replace a child of this node. Returns a pointer to the new object or NULL if an error occured.
Definition at line 292 of file tinyxml.cpp.
References Clone(), firstChild, GetDocument(), lastChild, next, parent, prev, TiXmlDocument::SetError(), TIXML_ENCODING_UNKNOWN, TiXmlBase::TIXML_ERROR_DOCUMENT_TOP_ONLY, and ToDocument().
{
if ( !replaceThis )
return 0;
if ( replaceThis->parent != this )
return 0;
if ( withThis.ToDocument() ) {
// A document can never be a child. Thanks to Noam.
TiXmlDocument* document = GetDocument();
if ( document )
document->SetError( TIXML_ERROR_DOCUMENT_TOP_ONLY, 0, 0, TIXML_ENCODING_UNKNOWN );
return 0;
}
TiXmlNode* node = withThis.Clone();
if ( !node )
return 0;
node->next = replaceThis->next;
node->prev = replaceThis->prev;
if ( replaceThis->next )
replaceThis->next->prev = node;
else
lastChild = node;
if ( replaceThis->prev )
replaceThis->prev->next = node;
else
firstChild = node;
delete replaceThis;
node->parent = this;
return node;
}
| void TiXmlNode::SetValue | ( | const std::string & | _value ) | [inline] |
| void TiXmlNode::SetValue | ( | const char * | _value ) | [inline] |
Changes the value of the node. Defined as:
Document: filename of the xml file Element: name of the element Comment: the comment text Unknown: the tag contents Text: the text string
Definition at line 513 of file tinyxml.h.
References value.
Referenced by CopyTo(), TiXmlComment::TiXmlComment(), and TiXmlText::TiXmlText().
{ value = _value;}
| virtual void TiXmlNode::StreamIn | ( | std::istream * | in, |
| TiXmlString * | tag | ||
| ) | [protected, pure virtual] |
Implemented in TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
Referenced by operator>>(), TiXmlElement::StreamIn(), and TiXmlDocument::StreamIn().
| virtual TiXmlComment* TiXmlNode::ToComment | ( | ) | [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlComment.
| virtual const TiXmlComment* TiXmlNode::ToComment | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlComment.
| virtual TiXmlDeclaration* TiXmlNode::ToDeclaration | ( | ) | [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlDeclaration.
| virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlDeclaration.
Definition at line 707 of file tinyxml.h.
Referenced by TiXmlDocument::Parse().
| virtual const TiXmlDocument* TiXmlNode::ToDocument | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlDocument.
Definition at line 702 of file tinyxml.h.
Referenced by GetDocument(), and ReplaceChild().
| virtual TiXmlDocument* TiXmlNode::ToDocument | ( | ) | [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlDocument.
| virtual TiXmlElement* TiXmlNode::ToElement | ( | ) | [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlElement.
| virtual const TiXmlElement* TiXmlNode::ToElement | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlElement.
Definition at line 703 of file tinyxml.h.
Referenced by FirstChildElement(), NextSiblingElement(), TiXmlDocument::StreamIn(), and TiXmlHandle::ToElement().
| virtual const TiXmlText* TiXmlNode::ToText | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlText.
Definition at line 706 of file tinyxml.h.
Referenced by TiXmlElement::GetText(), TiXmlElement::Print(), TiXmlHandle::ToText(), and TiXmlPrinter::VisitEnter().
| virtual TiXmlText* TiXmlNode::ToText | ( | ) | [inline, virtual] |
| virtual const TiXmlUnknown* TiXmlNode::ToUnknown | ( | ) | const [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlUnknown.
Definition at line 705 of file tinyxml.h.
Referenced by TiXmlHandle::ToUnknown().
| virtual TiXmlUnknown* TiXmlNode::ToUnknown | ( | ) | [inline, virtual] |
Cast to a more defined type. Will return null if not of the requested type.
Reimplemented in TiXmlUnknown.
| int TiXmlNode::Type | ( | ) | const [inline] |
Query the type (as an enumerated value, above) of this node. The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.
Definition at line 689 of file tinyxml.h.
References type.
Referenced by InsertAfterChild(), InsertBeforeChild(), InsertEndChild(), and LinkEndChild().
{ return type; }
| const char* TiXmlNode::Value | ( | void | ) | const [inline] |
The meaning of 'value' changes for the specific type of TiXmlNode.
Document: filename of the xml file Element: name of the element Comment: the comment text Unknown: the tag contents Text: the text string
The subclasses will wrap this function.
Definition at line 492 of file tinyxml.h.
References value.
Referenced by TiXmlElement::Clone(), FirstChild(), TiXmlElement::GetText(), LastChild(), TiXmlDocument::LoadFile(), NextSibling(), PreviousSibling(), TiXmlDocument::SaveFile(), TiXmlPrinter::Visit(), TiXmlPrinter::VisitEnter(), and TiXmlPrinter::VisitExit().
{ return value.c_str (); }
| const std::string& TiXmlNode::ValueStr | ( | ) | const [inline] |
| const TiXmlString& TiXmlNode::ValueTStr | ( | ) | const [inline] |
Definition at line 502 of file tinyxml.h.
References value.
Referenced by TiXmlPrinter::Visit().
{ return value; }
| std::ostream& operator<< | ( | std::ostream & | out, |
| const TiXmlNode & | base | ||
| ) | [friend] |
An output stream operator, for every class. Note that this outputs without any newlines or formatting, as opposed to Print(), which includes tabs and new lines.
The operator<< and operator>> are not completely symmetric. Writing a node to a stream is very well defined. You'll get a nice stream of output, without any extra whitespace or newlines.
But reading is not as well defined. (As it always is.) If you create a TiXmlElement (for example) and read that from an input stream, the text needs to define an element or junk will result. This is true of all input streams, but it's worth keeping in mind.
A TiXmlDocument will read nodes until it reads a root element, and all the children of that root element.
Definition at line 1562 of file tinyxml.cpp.
{
TiXmlPrinter printer;
printer.SetStreamPrinting();
base.Accept( &printer );
out << printer.Str();
return out;
}
| std::string& operator<< | ( | std::string & | out, |
| const TiXmlNode & | base | ||
| ) | [friend] |
Appends the XML node or attribute to a std::string.
Definition at line 1573 of file tinyxml.cpp.
{
TiXmlPrinter printer;
printer.SetStreamPrinting();
base.Accept( &printer );
out.append( printer.Str() );
return out;
}
| std::istream& operator>> | ( | std::istream & | in, |
| TiXmlNode & | base | ||
| ) | [friend] |
An input stream operator, for every class. Tolerant of newlines and formatting, but doesn't expect them.
Definition at line 1549 of file tinyxml.cpp.
{
TIXML_STRING tag;
tag.reserve( 8 * 1000 );
base.StreamIn( &in, &tag );
base.Parse( tag.c_str(), 0, TIXML_DEFAULT_ENCODING );
return in;
}
friend class TiXmlDocument [friend] |
friend class TiXmlElement [friend] |
Reimplemented from TiXmlBase.
Reimplemented in TiXmlText.
Definition at line 431 of file tinyxml.h.
Referenced by Identify().
TiXmlNode* TiXmlNode::firstChild [protected] |
Definition at line 763 of file tinyxml.h.
Referenced by Clear(), TiXmlElement::CopyTo(), FirstChild(), InsertBeforeChild(), LinkEndChild(), NoChildren(), TiXmlDocument::Parse(), TiXmlElement::Print(), RemoveChild(), ReplaceChild(), TiXmlElement::TiXmlElement(), TiXmlNode(), and ~TiXmlNode().
TiXmlNode* TiXmlNode::lastChild [protected] |
Definition at line 764 of file tinyxml.h.
Referenced by Clear(), InsertAfterChild(), LastChild(), LinkEndChild(), TiXmlElement::Print(), RemoveChild(), ReplaceChild(), TiXmlElement::TiXmlElement(), and TiXmlNode().
TiXmlNode* TiXmlNode::next [protected] |
Definition at line 769 of file tinyxml.h.
Referenced by Clear(), TiXmlAttributeSet::Find(), FirstChild(), InsertAfterChild(), InsertBeforeChild(), LinkEndChild(), NextSibling(), RemoveChild(), ReplaceChild(), TiXmlNode(), and ~TiXmlNode().
TiXmlNode* TiXmlNode::parent [protected] |
Definition at line 760 of file tinyxml.h.
Referenced by GetDocument(), Identify(), InsertAfterChild(), InsertBeforeChild(), IterateChildren(), LinkEndChild(), Parent(), RemoveChild(), ReplaceChild(), and TiXmlNode().
TiXmlNode* TiXmlNode::prev [protected] |
Definition at line 768 of file tinyxml.h.
Referenced by InsertAfterChild(), InsertBeforeChild(), LastChild(), LinkEndChild(), PreviousSibling(), RemoveChild(), ReplaceChild(), and TiXmlNode().
NodeType TiXmlNode::type [protected] |
Definition at line 761 of file tinyxml.h.
Referenced by TiXmlNode(), and Type().
TiXmlString TiXmlNode::value [protected] |
Definition at line 766 of file tinyxml.h.
Referenced by TiXmlText::Blank(), CopyTo(), TiXmlDocument::LoadFile(), TiXmlText::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlUnknown::Print(), TiXmlText::Print(), TiXmlComment::Print(), TiXmlElement::Print(), SetValue(), TiXmlDocument::TiXmlDocument(), TiXmlElement::TiXmlElement(), Value(), ValueStr(), and ValueTStr().
1.7.2
