mitk::PlanarFourPointAngle Class Reference

Implementation of PlanarFigure representing a four point angle, which is defined by two non-intersecting lines in 2D. Each of those lines is defined by two control points. More...

#include <mitkPlanarFourPointAngle.h>

Inheritance diagram for mitk::PlanarFourPointAngle:

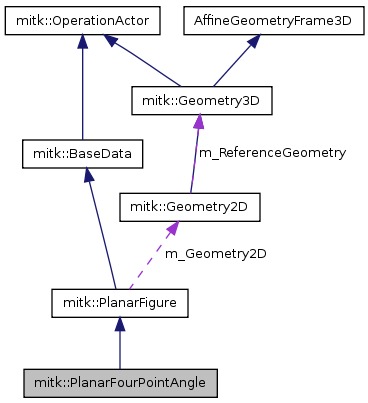

Collaboration diagram for mitk::PlanarFourPointAngle:

List of all members.

Public Types
typedef PlanarFourPointAngle	Self
typedef PlanarFigure	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
unsigned int	GetMinimumNumberOfControlPoints () const
	Place figure in its minimal configuration (a point at least) onto the given 2D geometry.
unsigned int	GetMaximumNumberOfControlPoints () const
	Four point angle has 4 control points per definition.
Static Public Member Functions
static Pointer	New ()
Public Attributes
const unsigned int	FEATURE_ID_ANGLE
Protected Member Functions
	PlanarFourPointAngle ()
virtual	~PlanarFourPointAngle ()
virtual void	GeneratePolyLine ()
	Generates the poly-line representation of the planar figure.
virtual void	GenerateHelperPolyLine (double mmPerDisplayUnit, unsigned int displayHeight)
	Generates the poly-lines that should be drawn the same size regardless of zoom.
virtual void	EvaluateFeaturesInternal ()
	Calculates feature quantities of the planar figure.
virtual void	PrintSelf (std::ostream &os, itk::Indent indent) const

---

Detailed Description

Implementation of PlanarFigure representing a four point angle, which is defined by two non-intersecting lines in 2D. Each of those lines is defined by two control points.

Definition at line 36 of file mitkPlanarFourPointAngle.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::PlanarFourPointAngle::ConstPointer

Reimplemented from mitk::PlanarFigure.

Definition at line 39 of file mitkPlanarFourPointAngle.h.

typedef itk::SmartPointer<Self> mitk::PlanarFourPointAngle::Pointer

Reimplemented from mitk::PlanarFigure.

Definition at line 39 of file mitkPlanarFourPointAngle.h.

typedef PlanarFourPointAngle mitk::PlanarFourPointAngle::Self

Reimplemented from mitk::PlanarFigure.

Definition at line 39 of file mitkPlanarFourPointAngle.h.

typedef PlanarFigure mitk::PlanarFourPointAngle::Superclass

Reimplemented from mitk::PlanarFigure.

Definition at line 39 of file mitkPlanarFourPointAngle.h.

---

Constructor & Destructor Documentation

mitk::PlanarFourPointAngle::PlanarFourPointAngle

(

)

[protected]

Definition at line 23 of file mitkPlanarFourPointAngle.cpp.

References mitk::PlanarFigure::m_PolyLines, and mitk::PlanarFigure::ResetNumberOfControlPoints().

: FEATURE_ID_ANGLE( this->AddFeature( "Angle", "deg" ) )
{
  // Four point angle has two control points
  this->ResetNumberOfControlPoints( 2 );

  m_PolyLines->InsertElement( 0, VertexContainerType::New());
  m_PolyLines->InsertElement( 1, VertexContainerType::New());
}

mitk::PlanarFourPointAngle::~PlanarFourPointAngle

(

)

[protected, virtual]

Definition at line 34 of file mitkPlanarFourPointAngle.cpp.

{
}

---

Member Function Documentation

void mitk::PlanarFourPointAngle::EvaluateFeaturesInternal

(

)

[protected, virtual]

Calculates feature quantities of the planar figure.

Implements mitk::PlanarFigure.

Definition at line 68 of file mitkPlanarFourPointAngle.cpp.

{
  if ( this->GetNumberOfControlPoints() < 4 )
  {
    // Angle not yet complete.
    return;
  }

  // Calculate angle between lines
  const Point2D &p0 = this->GetControlPoint( 0 );
  const Point2D &p1 = this->GetControlPoint( 1 );
  const Point2D &p2 = this->GetControlPoint( 2 );
  const Point2D &p3 = this->GetControlPoint( 3 );

  Vector2D v0 = p1 - p0;
  Vector2D v1 = p3 - p2;

  v0.Normalize();
  v1.Normalize();
  double angle = acos( v0 * v1 );

  this->SetQuantity( FEATURE_ID_ANGLE, angle );
}

void mitk::PlanarFourPointAngle::GenerateHelperPolyLine	(	double	mmPerDisplayUnit,
		unsigned int	displayHeight
	)		[protected, virtual]

Generates the poly-lines that should be drawn the same size regardless of zoom.

Implements mitk::PlanarFigure.

Definition at line 62 of file mitkPlanarFourPointAngle.cpp.

{
  // Generate helper-poly-line for an four point angle
  // Need to discuss a sensible implementation
}

void mitk::PlanarFourPointAngle::GeneratePolyLine

(

)

[protected, virtual]

Generates the poly-line representation of the planar figure.

Implements mitk::PlanarFigure.

Definition at line 39 of file mitkPlanarFourPointAngle.cpp.

{
  // TODO: start line at specified start point...
  // Generate poly-line
  m_PolyLines->ElementAt( 0 )->Reserve( 2 );
  if (m_ControlPoints->Size() > 2)
  {
    m_PolyLines->ElementAt( 1 )->Reserve( this->GetNumberOfControlPoints() - 2 );
  }

  for ( unsigned int i = 0; i < this->GetNumberOfControlPoints(); ++i )
  {
    if (i < 2)
    {
      m_PolyLines->ElementAt( 0 )->ElementAt( i ) = m_ControlPoints->ElementAt( i );
    }
    if (i > 1)
    {
      m_PolyLines->ElementAt( 1 )->ElementAt( i-2 ) = m_ControlPoints->ElementAt( i );
    }
  }
}

virtual const char* mitk::PlanarFourPointAngle::GetClassName

(

)

const [virtual]

Reimplemented from mitk::PlanarFigure.

unsigned int mitk::PlanarFourPointAngle::GetMaximumNumberOfControlPoints

(

)

const [inline, virtual]

Four point angle has 4 control points per definition.

Implements mitk::PlanarFigure.

Definition at line 62 of file mitkPlanarFourPointAngle.h.

  {
    return 4;
  }

unsigned int mitk::PlanarFourPointAngle::GetMinimumNumberOfControlPoints

(

)

const [inline, virtual]

Place figure in its minimal configuration (a point at least) onto the given 2D geometry.

Must be implemented in sub-classes.Four point angle has 4 control points per definition.

Implements mitk::PlanarFigure.

Definition at line 55 of file mitkPlanarFourPointAngle.h.

  {
    return 4;
  }

static Pointer mitk::PlanarFourPointAngle::New

(

)

[static]

Referenced by QmitkMeasurement::ActionDrawFourPointAngleTriggered(), PlanarFigureIOTestClass::CreatePlanarFigures(), and mitk::PlanarFigureReader::GenerateData().

void mitk::PlanarFourPointAngle::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const [protected, virtual]

Reimplemented from mitk::PlanarFigure.

Definition at line 93 of file mitkPlanarFourPointAngle.cpp.

{
  Superclass::PrintSelf( os, indent );

}

---

Member Data Documentation

const unsigned int mitk::PlanarFourPointAngle::FEATURE_ID_ANGLE

Definition at line 41 of file mitkPlanarFourPointAngle.h.

Referenced by QmitkMeasurement::PlanarFigureSelectionChanged().

---

The documentation for this class was generated from the following files:

• mitkPlanarFourPointAngle.h
• mitkPlanarFourPointAngle.cpp
