mitk::BoundingObjectToSegmentationFilter Class Reference

#include <mitkBoundingObjectToSegmentationFilter.h>

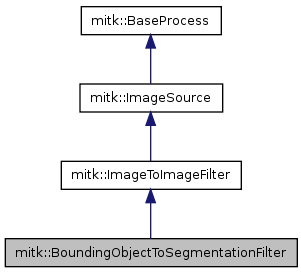

Inheritance diagram for mitk::BoundingObjectToSegmentationFilter:

Collaboration diagram for mitk::BoundingObjectToSegmentationFilter:

List of all members.

Public Types
typedef BoundingObjectToSegmentationFilter	Self
typedef ImageToImageFilter	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetBoundingObject (mitk::BoundingObject::Pointer boundingObject)
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	BoundingObjectToSegmentationFilter ()
virtual	~BoundingObjectToSegmentationFilter ()
virtual void	GenerateData ()
	A version of GenerateData() specific for image processing filters.
Protected Attributes
mitk::BoundingObjectGroup::Pointer	m_boundingObjectGroup

---

Detailed Description

Definition at line 8 of file mitkBoundingObjectToSegmentationFilter.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::BoundingObjectToSegmentationFilter::ConstPointer

Definition at line 11 of file mitkBoundingObjectToSegmentationFilter.h.

typedef itk::SmartPointer<Self> mitk::BoundingObjectToSegmentationFilter::Pointer

Definition at line 11 of file mitkBoundingObjectToSegmentationFilter.h.

typedef BoundingObjectToSegmentationFilter mitk::BoundingObjectToSegmentationFilter::Self

Definition at line 11 of file mitkBoundingObjectToSegmentationFilter.h.

typedef ImageToImageFilter mitk::BoundingObjectToSegmentationFilter::Superclass

Definition at line 11 of file mitkBoundingObjectToSegmentationFilter.h.

---

Constructor & Destructor Documentation

mitk::BoundingObjectToSegmentationFilter::BoundingObjectToSegmentationFilter

(

)

[protected]

Definition at line 4 of file mitkBoundingObjectToSegmentationFilter.cpp.

{
  this->SetNumberOfRequiredInputs(1);

}

mitk::BoundingObjectToSegmentationFilter::~BoundingObjectToSegmentationFilter

(

)

[protected, virtual]

Definition at line 10 of file mitkBoundingObjectToSegmentationFilter.cpp.

{

}

---

Member Function Documentation

void mitk::BoundingObjectToSegmentationFilter::GenerateData

(

)

[protected, virtual]

A version of GenerateData() specific for image processing filters.

This implementation will split the processing across multiple threads. The buffer is allocated by this method. Then the BeforeThreadedGenerateData() method is called (if provided). Then, a series of threads are spawned each calling ThreadedGenerateData(). After all the threads have completed processing, the AfterThreadedGenerateData() method is called (if provided). If an image processing filter cannot be threaded, the filter should provide an implementation of GenerateData(). That implementation is responsible for allocating the output buffer. If a filter an be threaded, it should NOT provide a GenerateData() method but should provide a ThreadedGenerateData() instead.

See also:

ThreadedGenerateData()

Reimplemented from mitk::ImageSource.

Definition at line 27 of file mitkBoundingObjectToSegmentationFilter.cpp.

References mitk::Geometry3D::CalculateBoundingBoxRelativeToTransform(), mitk::CastToItkImage(), mitk::CastToMitkImage(), mitk::BaseData::GetGeometry(), mitk::Geometry3D::GetIndexToWorldTransform(), mitk::BoundingObject::GetPositive(), mitk::Geometry3D::IndexToWorld(), mitk::Image::Initialize(), mitk::BoundingObject::IsInside(), QuadProgPP::max(), and min.

{
  typedef itk::Image<unsigned char, 3> itkImageType;
  mitk::Image::Pointer outputImage = this->GetOutput();
  mitk::Image::Pointer inputImage = const_cast<mitk::Image*> (this->GetInput());
  outputImage->Initialize(this->GetInput());

  itkImageType::Pointer itkImage;
  CastToItkImage(outputImage, itkImage);
  itkImage->FillBuffer(0);

  for (unsigned int i=0; i<m_boundingObjectGroup->GetCount(); i++)
  {
    //create region for boundingobject
    mitk::BoundingObject* boundingObject = m_boundingObjectGroup->GetBoundingObjects().at(i);
    mitk::Geometry3D* boGeometry = boundingObject->GetGeometry();
    mitk::Geometry3D* inputImageGeometry = inputImage->GetSlicedGeometry();
    mitk::BoundingBox::Pointer boToIm = boGeometry->CalculateBoundingBoxRelativeToTransform(inputImageGeometry->GetIndexToWorldTransform());

    itkImageType::IndexType boIndex;
    mitk::BoundingBox::PointType min = boToIm->GetMinimum();
    boIndex[0] = (mitk::SlicedData::IndexType::IndexValueType)(min[0]);
    boIndex[1] = (mitk::SlicedData::IndexType::IndexValueType)(min[1]);
    boIndex[2] = (mitk::SlicedData::IndexType::IndexValueType)(min[2]);


    itkImageType::SizeType boSize;
    mitk::BoundingBox::PointType max = boToIm->GetMaximum();
    boSize[0] = (mitk::SlicedData::IndexType::IndexValueType) (max[0]-min[0]+1);
    boSize[1] = (mitk::SlicedData::IndexType::IndexValueType) (max[1]-min[1]+1);
    boSize[2] = (mitk::SlicedData::IndexType::IndexValueType) (max[2]-min[2]+1);

    itkImageType::RegionType region(boIndex, boSize);

    //create region iterator
    itk::ImageRegionIteratorWithIndex<itkImageType> itBoundingObject =  itk::ImageRegionIteratorWithIndex<itkImageType>(itkImage, region );
    itBoundingObject.GoToBegin();

    while(!itBoundingObject.IsAtEnd())
    {
      itkImageType::IndexType index = itBoundingObject.GetIndex();
      mitk::Point3D p;
      p[0] = index[0];
      p[1] = index[1];
      p[2] = index[2];
      inputImageGeometry->IndexToWorld(p,p);

      if (boundingObject->IsInside(p) && boundingObject->GetPositive())
        itBoundingObject.Set(1);
      else if (boundingObject->IsInside(p) && !boundingObject->GetPositive())
        itBoundingObject.Set(0);

      ++itBoundingObject;
    }
  }
  CastToMitkImage(itkImage, outputImage);
}

virtual const char* mitk::BoundingObjectToSegmentationFilter::GetClassName

(

)

const [virtual]

static Pointer mitk::BoundingObjectToSegmentationFilter::New

(

)

[static]

Method for creation through the object factory.

Reimplemented from mitk::ImageToImageFilter.

Referenced by mitk::MorphologicTool::OnRoiDataChanged(), mitk::BinaryThresholdULTool::OnRoiDataChanged(), and mitk::BinaryThresholdTool::OnRoiDataChanged().

void mitk::BoundingObjectToSegmentationFilter::SetBoundingObject

(

mitk::BoundingObject::Pointer

boundingObject )

Definition at line 15 of file mitkBoundingObjectToSegmentationFilter.cpp.

References mitk::BoundingObjectGroup::New().

{
  mitk::BoundingObjectGroup* testgroup = dynamic_cast<mitk::BoundingObjectGroup*> (boundingObject.GetPointer());
  if (testgroup)
    m_boundingObjectGroup = testgroup;
  else
  {
    m_boundingObjectGroup = mitk::BoundingObjectGroup::New();
    m_boundingObjectGroup->AddBoundingObject(boundingObject);
  }
}

---

Member Data Documentation

mitk::BoundingObjectGroup::Pointer mitk::BoundingObjectToSegmentationFilter::m_boundingObjectGroup [protected]

Definition at line 21 of file mitkBoundingObjectToSegmentationFilter.h.

---

The documentation for this class was generated from the following files:

• mitkBoundingObjectToSegmentationFilter.h
• mitkBoundingObjectToSegmentationFilter.cpp
