group object, that contains several mitk::BoundingObjects More...

#include <mitkBoundingObjectGroup.h>

Inheritance diagram for mitk::BoundingObjectGroup:

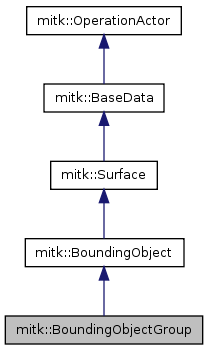

Collaboration diagram for mitk::BoundingObjectGroup:

Public Types
enum	CSGMode { Union, Intersection, Difference }
typedef BoundingObjectGroup	Self
typedef mitk::BoundingObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	UpdateOutputInformation ()
	Update the information for this BaseData (the geometry in particular) so that it can be used as an output of a BaseProcess.
virtual bool	IsInside (const mitk::Point3D &p) const
void	SetBoundingObjects (const std::deque< mitk::BoundingObject::Pointer > boundingObjects)
std::deque < mitk::BoundingObject::Pointer >	GetBoundingObjects ()
virtual void	SetCSGMode (mitk::BoundingObjectGroup::CSGMode _arg)
virtual mitk::BoundingObjectGroup::CSGMode	GetCSGMode ()
void	AddBoundingObject (mitk::BoundingObject::Pointer boundingObject)
void	RemoveBoundingObject (mitk::BoundingObject::Pointer boundingObject)
unsigned int	GetCount () const
mitk::Geometry3D *	GetGeometry (int t=0) const
	Return the geometry, which is a TimeSlicedGeometry, of the data as non-const pointer.
virtual bool	VerifyRequestedRegion ()
	Verify that the RequestedRegion is within the LargestPossibleRegion.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	BoundingObjectGroup ()
virtual	~BoundingObjectGroup ()
Protected Attributes
std::deque < mitk::BoundingObject::Pointer >	m_BoundingObjects
unsigned int	m_Counter
CSGMode	m_CSGMode

Detailed Description

group object, that contains several mitk::BoundingObjects

Calculates a bounding box that contains all sub-bounding boxes.

Definition at line 31 of file mitkBoundingObjectGroup.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::BoundingObjectGroup::ConstPointer

Reimplemented from mitk::BoundingObject.

Definition at line 42 of file mitkBoundingObjectGroup.h.

typedef itk::SmartPointer<Self> mitk::BoundingObjectGroup::Pointer

Reimplemented from mitk::BoundingObject.

Definition at line 42 of file mitkBoundingObjectGroup.h.

typedef BoundingObjectGroup mitk::BoundingObjectGroup::Self

Reimplemented from mitk::BoundingObject.

Definition at line 42 of file mitkBoundingObjectGroup.h.

typedef mitk::BoundingObject mitk::BoundingObjectGroup::Superclass

Reimplemented from mitk::BoundingObject.

Definition at line 42 of file mitkBoundingObjectGroup.h.

Member Enumeration Documentation

enum mitk::BoundingObjectGroup::CSGMode

Enumerator:

Union
Intersection
Difference

Definition at line 35 of file mitkBoundingObjectGroup.h.

    {
      Union,
      Intersection,
      Difference
    };

Constructor & Destructor Documentation

mitk::BoundingObjectGroup::BoundingObjectGroup ( ) [protected]

Definition at line 25 of file mitkBoundingObjectGroup.cpp.

References GetGeometry(), mitk::BaseData::GetTimeSlicedGeometry(), mitk::TimeSlicedGeometry::Initialize(), mitk::Geometry3D::SetIndexToWorldTransform(), and mitk::Surface::SetVtkPolyData().

:m_BoundingObjects(0),
m_Counter(0),
m_CSGMode(Union)// m_CSGMode(Difference) //m_CSGMode(Intersection)
{
  GetTimeSlicedGeometry()->Initialize(1);
  GetGeometry(0)->SetIndexToWorldTransform(GetTimeSlicedGeometry()->GetIndexToWorldTransform());
  SetVtkPolyData(NULL);
}

mitk::BoundingObjectGroup::~BoundingObjectGroup ( ) [protected, virtual]

Definition at line 35 of file mitkBoundingObjectGroup.cpp.

{
}

Member Function Documentation

void mitk::BoundingObjectGroup::AddBoundingObject ( mitk::BoundingObject::Pointer boundingObject )

Definition at line 110 of file mitkBoundingObjectGroup.cpp.

{
  if (boundingObject->GetPositive())
    m_BoundingObjects.push_front(boundingObject);
  else
    m_BoundingObjects.push_back(boundingObject);
  ++m_Counter;
  UpdateOutputInformation();
}

std::deque< mitk::BoundingObject::Pointer > mitk::BoundingObjectGroup::GetBoundingObjects ( )

Definition at line 212 of file mitkBoundingObjectGroup.cpp.

{
  return m_BoundingObjects;
}

virtual const char* mitk::BoundingObjectGroup::GetClassName ( ) const [virtual]

Reimplemented from mitk::BoundingObject.

unsigned int mitk::BoundingObjectGroup::GetCount ( ) const

Definition at line 179 of file mitkBoundingObjectGroup.cpp.

{
  return m_Counter;
}

virtual mitk::BoundingObjectGroup::CSGMode mitk::BoundingObjectGroup::GetCSGMode ( ) [virtual]

mitk::Geometry3D * mitk::BoundingObjectGroup::GetGeometry ( int t = 0 ) const

Return the geometry, which is a TimeSlicedGeometry, of the data as non-const pointer.

Warning:: No update will be called. Use GetUpdatedGeometry() if you cannot be sure that the geometry is up-to-date.

Normally used in GenerateOutputInformation of subclasses of BaseProcess.

Reimplemented from mitk::BaseData.

Definition at line 189 of file mitkBoundingObjectGroup.cpp.

Referenced by BoundingObjectGroup().

{
  //if ( m_BoundingObjects == NULL )
  return Superclass::GetGeometry(t);

  //mitk::BoundingObjectGroup::BoundingObjectContainer::ConstIterator boI = m_BoundingObjects->Begin();
  //const mitk::BoundingObjectGroup::BoundingObjectContainer::ConstIterator boIEnd = m_BoundingObjects->End();
  //mitk::Geometry3D* currentGeometry = NULL;

  //while ( boI != boIEnd )
  //{
  //  currentGeometry = boI.Value()->GetGeometry( t );
  //  boI++;
  //}

  //return currentGeometry;
}

bool mitk::BoundingObjectGroup::IsInside ( const mitk::Point3D & p ) const [virtual]

Implements mitk::BoundingObject.

Definition at line 133 of file mitkBoundingObjectGroup.cpp.

{
  bool inside = false; // initialize with true for intersection, with false for union
  bool posInside = false;
  bool negInside = false;

  for (unsigned int i = 0; i<m_BoundingObjects.size();i++)
  {
    switch(m_CSGMode)
    {
    case Intersection:
      inside = true;
      // calculate intersection: each point, that is inside each BoundingObject is considered inside the group
      inside = m_BoundingObjects.at(i)->IsInside(p) && inside;
      if (!inside) // shortcut, it is enough to find one object that does not contain the point
        i=m_BoundingObjects.size();
      break;

    case Union:
    case Difference:
      posInside = false;
      negInside = false;
      // calculate union: each point, that is inside least one BoundingObject is considered inside the group
      if (m_BoundingObjects.at(i)->GetPositive())
        posInside = m_BoundingObjects.at(i)->IsInside(p) || posInside;
      else
        negInside = m_BoundingObjects.at(i)->IsInside(p) || negInside;

      if (posInside && !negInside)
        inside = true;
      else
        inside = false;
      break;

    default:
      inside = false;
      // calculate union: each point, that is inside least one BoundingObject is considered inside the group
      inside = m_BoundingObjects.at(i)->IsInside(p) || inside;
      if (inside) // shortcut, it is enough to find one object that contains the point
        i=m_BoundingObjects.size();
      break;
    }
  }
  return inside;
}

static Pointer mitk::BoundingObjectGroup::New ( ) [static]

Reimplemented from mitk::Surface.

Referenced by QmitkBoundingObjectWidget::GetAllBoundingObjects(), and mitk::BoundingObjectToSegmentationFilter::SetBoundingObject().

void mitk::BoundingObjectGroup::RemoveBoundingObject ( mitk::BoundingObject::Pointer boundingObject )

Definition at line 120 of file mitkBoundingObjectGroup.cpp.

{
  std::deque<mitk::BoundingObject::Pointer>::iterator it = m_BoundingObjects.begin();
  for (unsigned int i=0 ; i<m_BoundingObjects.size();i++)
  {
    if (m_BoundingObjects.at(i) == boundingObject)
      m_BoundingObjects.erase(it);
    ++it;
  }
  --m_Counter;
  UpdateOutputInformation();
}

void mitk::BoundingObjectGroup::SetBoundingObjects ( const std::deque< mitk::BoundingObject::Pointer > boundingObjects )

Definition at line 207 of file mitkBoundingObjectGroup.cpp.

{
  m_BoundingObjects = boundingObjects;
}

virtual void mitk::BoundingObjectGroup::SetCSGMode ( mitk::BoundingObjectGroup::CSGMode _arg ) [virtual]

void mitk::BoundingObjectGroup::UpdateOutputInformation ( ) [virtual]

Update the information for this BaseData (the geometry in particular) so that it can be used as an output of a BaseProcess.

This method is used in the pipeline mechanism to propagate information and initialize the meta data associated with a BaseData. Any implementation of this method in a derived class is assumed to call its source's BaseProcess::UpdateOutputInformation() which determines modified times, LargestPossibleRegions, and any extra meta data like spacing, origin, etc. Default implementation simply call's it's source's UpdateOutputInformation().

Note:: Implementations of this methods in derived classes must take care that the geometry is updated by calling GetTimeSlicedGeometry()->UpdateInformation() after calling its source's BaseProcess::UpdateOutputInformation().

Reimplemented from mitk::Surface.

Definition at line 39 of file mitkBoundingObjectGroup.cpp.

References mitk::Geometry3D::GetCornerPoint(), inverse, mitk::Geometry3D::SetBounds(), and mitk::Geometry3D::SetIndexToWorldTransform().

{
  if ( this->GetSource() )
  {
    this->GetSource()->UpdateOutputInformation();
  }

  // calculate global bounding box
  if(m_BoundingObjects.size()  < 1 ) // if there is no BoundingObject, the bounding box is zero
  {
    mitk::BoundingBox::BoundsArrayType boundsArray;
    boundsArray.Fill(0);
    GetTimeSlicedGeometry()->Initialize(1);
    GetGeometry()->SetBounds(boundsArray);
    GetTimeSlicedGeometry()->UpdateInformation();
    return;
  }

  // initialize container
  mitk::BoundingBox::PointsContainer::Pointer pointscontainer=mitk::BoundingBox::PointsContainer::New();

  mitk::BoundingBox::PointIdentifier pointid=0;
  mitk::Point3D point;

  mitk::AffineTransform3D* transform = GetTimeSlicedGeometry()->GetIndexToWorldTransform();
  mitk::AffineTransform3D::Pointer inverse = mitk::AffineTransform3D::New();
  transform->GetInverse(inverse);

  // calculate a bounding box that includes all BoundingObjects
  // \todo probably we should do this additionally for each time-step
  //while (boundingObjectsIterator != boundingObjectsIteratorEnd)
  for(unsigned int j = 0; j<m_BoundingObjects.size();j++)
  {
    const Geometry3D* geometry = m_BoundingObjects.at(j)->GetUpdatedTimeSlicedGeometry();
    unsigned char i;
    for(i=0; i<8; ++i)
    {
      point = inverse->TransformPoint(geometry->GetCornerPoint(i));
      if(point[0]*point[0]+point[1]*point[1]+point[2]*point[2] < mitk::large)
        pointscontainer->InsertElement( pointid++, point);
      else
      {
        itkGenericOutputMacro( << "Unrealistically distant corner point encountered. Ignored. BoundingObject: " << m_BoundingObjects.at(j) );
      }
    }
  }

  mitk::BoundingBox::Pointer boundingBox = mitk::BoundingBox::New();
  boundingBox->SetPoints(pointscontainer);
  boundingBox->ComputeBoundingBox();

  /* BoundingBox is centered around the center of all sub bounding objects */
  //Point3D center = boundingBox->GetCenter();

  //Point3D minimum, maximum;
  //minimum.Fill(0); maximum.Fill(0);
  //minimum += boundingBox->GetMinimum() - center;
  //maximum += boundingBox->GetMaximum() - center;

  //boundingBox->SetMinimum(minimum);
  //boundingBox->SetMaximum(maximum);

  Geometry3D* geometry3d = GetGeometry(0);
  geometry3d->SetIndexToWorldTransform(transform);
  geometry3d->SetBounds(boundingBox->GetBounds());
  /* the objects position is the center of all sub bounding objects */
  //geometry3d->SetOrigin(center);

  GetTimeSlicedGeometry()->InitializeEvenlyTimed(geometry3d, GetTimeSlicedGeometry()->GetTimeSteps());
}

bool mitk::BoundingObjectGroup::VerifyRequestedRegion ( ) [virtual]

Verify that the RequestedRegion is within the LargestPossibleRegion.

If the RequestedRegion is not within the LargestPossibleRegion, then the filter cannot possibly satisfy the request. This method returns true if the request can be satisfied (even if it will be necessary to process the entire LargestPossibleRegion) and returns false otherwise. This method is used by PropagateRequestedRegion(). PropagateRequestedRegion() throws a InvalidRequestedRegionError exception if the requested region is not within the LargestPossibleRegion.

Reimplemented from mitk::Surface.

Definition at line 184 of file mitkBoundingObjectGroup.cpp.
