This functionality allows you to register 2D as well as 3D images in a rigid manner. More...

#include <QmitkRigidRegistrationView.h>

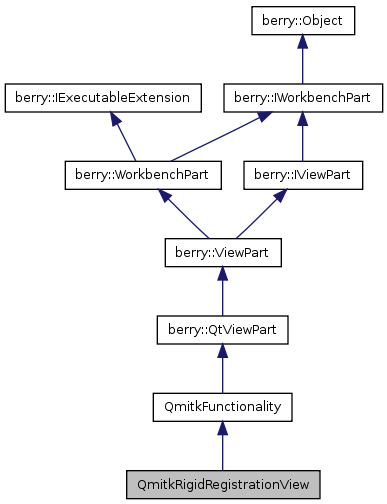

Inheritance diagram for QmitkRigidRegistrationView:

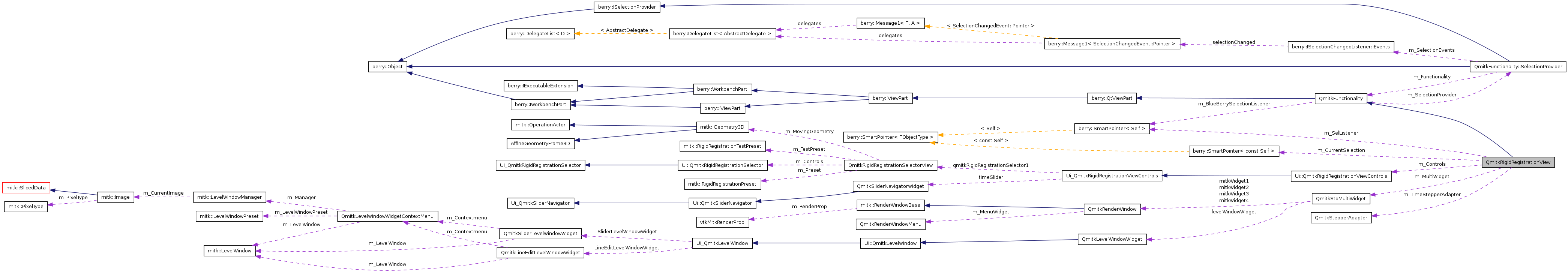

Collaboration diagram for QmitkRigidRegistrationView:

Public Member Functions
	QmitkRigidRegistrationView (QObject parent=0, const char name=0)
	default constructor
virtual	~QmitkRigidRegistrationView ()
	default destructor
virtual void	CreateQtPartControl (QWidget *parent)
	method for creating the applications main widget
virtual void	StdMultiWidgetAvailable (QmitkStdMultiWidget &stdMultiWidget)
	Sets the StdMultiWidget and connects it to the functionality.
virtual void	StdMultiWidgetNotAvailable ()
	Removes the StdMultiWidget and disconnects it from the functionality.
virtual void	CreateConnections ()
	method for creating the connections of main and control widget
virtual void	Activated ()
	Method which is called when this functionality is selected in MITK.
virtual void	Deactivated ()
	Method which is called whenever the functionality is deselected in MITK.
virtual void	Visible ()
virtual void	Hidden ()
void	DataNodeHasBeenRemoved (const mitk::DataNode *node)
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.rigidregistration"
Protected Slots
void	FixedSelected (mitk::DataNode::Pointer fixedImage)
void	MovingSelected (mitk::DataNode::Pointer movingImage)
bool	CheckCalculate ()
void	UndoTransformation ()
	Undo the last registration.
void	RedoTransformation ()
	Redo the last registration.
void	AddNewTransformationToUndoList ()
	Adds a new Transformation to the undo list and enables the undo button.
void	Translate (int *translateVector)
	Translates the moving image in x, y and z direction given by translateVector.
void	Rotate (int *rotateVector)
	Rotates the moving image in x, y and z direction given by rotateVector.
void	Scale (int *scaleVector)
	Scales the moving image in x, y and z direction given by scaleVector.
void	AlignCenters ()
	Automatically aligns the image centers.
void	ShowRedGreen (bool show)
	Stores whether the image will be shown in gray values or in red for fixed image and green for moving image.
void	ShowManualRegistrationFrame (bool show)
	Changes the visibility of the manual registration methods accordingly to the checkbox "Manual Registration" in GUI.
void	OpacityUpdate (float opacity)
	Sets the selected opacity for moving image.
void	OpacityUpdate (int opacity)
	Sets the selected opacity for moving image.
void	SetImageColor (bool redGreen)
	Sets the images to grayvalues or fixed image to red and moving image to green.
void	ClearTransformationLists ()
	Clears the undo and redo lists and sets the undo and redo buttons to disabled.
void	SetUndoEnabled (bool enable)
void	SetRedoEnabled (bool enable)
void	CheckCalculateEnabled ()
void	xTrans_valueChanged (int v)
void	yTrans_valueChanged (int v)
void	zTrans_valueChanged (int v)
void	xRot_valueChanged (int v)
void	yRot_valueChanged (int v)
void	zRot_valueChanged (int v)
void	xScale_valueChanged (int v)
void	yScale_valueChanged (int v)
void	zScale_valueChanged (int v)
void	MovingImageChanged ()
void	Calculate ()
	Starts the registration process.
void	SetOptimizerValue (double value)
void	StopOptimizationClicked ()
void	UpdateTimestep ()
void	SetImagesVisible (berry::ISelection::ConstPointer)
void	CheckForMaskImages ()
void	UseFixedMaskImageChecked (bool checked)
void	UseMovingMaskImageChecked (bool checked)
void	TabChanged (int index)
void	SwitchImages ()
Protected Attributes
berry::ISelectionListener::Pointer	m_SelListener
berry::IStructuredSelection::ConstPointer	m_CurrentSelection
QmitkStdMultiWidget *	m_MultiWidget
Ui::QmitkRigidRegistrationViewControls	m_Controls
mitk::DataNode::Pointer	m_MovingNode
mitk::DataNode::Pointer	m_MovingMaskNode
mitk::DataNode::Pointer	m_FixedNode
mitk::DataNode::Pointer	m_FixedMaskNode
std::list < mitk::Geometry3D::Pointer >	m_UndoGeometryList
std::list< std::map < mitk::DataNode::Pointer, mitk::Geometry3D * > >	m_UndoChildGeometryList
std::list < mitk::Geometry3D::Pointer >	m_RedoGeometryList
std::list< std::map < mitk::DataNode::Pointer, mitk::Geometry3D * > >	m_RedoChildGeometryList
bool	m_ShowRedGreen
float	m_Opacity
float	m_OriginalOpacity
bool	m_Deactivated
int	m_FixedDimension
int	m_MovingDimension
int *	translationParams
int *	rotationParams
int *	scalingParams
mitk::Color	m_FixedColor
mitk::Color	m_MovingColor
int	m_TranslateSliderPos [3]
int	m_RotateSliderPos [3]
int	m_ScaleSliderPos [3]
QmitkStepperAdapter *	m_TimeStepperAdapter
Friends
struct	SelListenerRigidRegistration

Detailed Description

This functionality allows you to register 2D as well as 3D images in a rigid manner.

Register means to align two images, so that they become as similar as possible. Therefore you can select from different transforms, metrics and optimizers. Registration results will directly be applied to the Moving Image.

See also:: QmitkFunctionality

Author:: Daniel Stein

Definition at line 47 of file QmitkRigidRegistrationView.h.

Constructor & Destructor Documentation

QmitkRigidRegistrationView::QmitkRigidRegistrationView	(	QObject *	parent = `0`,
		const char *	name = `0`
	)

default constructor

Definition at line 154 of file QmitkRigidRegistrationView.cpp.

References DataNodeHasBeenRemoved(), QmitkFunctionality::GetDataStorage(), m_RotateSliderPos, m_ScaleSliderPos, m_TimeStepperAdapter, m_TranslateSliderPos, rotationParams, scalingParams, and translationParams.

: QmitkFunctionality(), m_MultiWidget(NULL), m_MovingNode(NULL), m_MovingMaskNode(NULL), m_FixedNode(NULL), m_FixedMaskNode(NULL),
  m_ShowRedGreen(false), m_Opacity(0.5), m_OriginalOpacity(1.0), m_Deactivated(false),m_FixedDimension(0), m_MovingDimension(0)
{
  m_TranslateSliderPos[0] = 0;
  m_TranslateSliderPos[1] = 0;
  m_TranslateSliderPos[2] = 0;

  m_RotateSliderPos[0] = 0;
  m_RotateSliderPos[1] = 0;
  m_RotateSliderPos[2] = 0;

  m_ScaleSliderPos[0] = 0;
  m_ScaleSliderPos[1] = 0;
  m_ScaleSliderPos[2] = 0;

  translationParams = new int[3];
  rotationParams = new int[3];
  scalingParams = new int[3];

  m_TimeStepperAdapter = NULL;

  this->GetDataStorage()->RemoveNodeEvent.AddListener(mitk::MessageDelegate1<QmitkRigidRegistrationView,
    const mitk::DataNode*> ( this, &QmitkRigidRegistrationView::DataNodeHasBeenRemoved ));
}

QmitkRigidRegistrationView::~QmitkRigidRegistrationView ( ) [virtual]

default destructor

Definition at line 180 of file QmitkRigidRegistrationView.cpp.

References berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNotNull(), m_SelListener, and berry::ISelectionService::RemovePostSelectionListener().

{
  if(m_SelListener.IsNotNull())
  {
    berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
    if(s)
      s->RemovePostSelectionListener(m_SelListener);
    m_SelListener = NULL;
  }
}

Member Function Documentation

void QmitkRigidRegistrationView::Activated ( ) [virtual]

Method which is called when this functionality is selected in MITK.

Reimplemented from QmitkFunctionality.

Definition at line 268 of file QmitkRigidRegistrationView.cpp.

References berry::SmartPointer< TObjectType >::Cast(), CheckCalculateEnabled(), ClearTransformationLists(), mitk::RenderingManager::GetInstance(), berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNull(), m_Controls, m_CurrentSelection, m_Deactivated, Ui_QmitkRigidRegistrationViewControls::m_OpacitySlider, m_SelListener, Ui_QmitkRigidRegistrationViewControls::m_ShowRedGreenValues, OpacityUpdate(), SelListenerRigidRegistration, and ShowRedGreen().

{
  m_Deactivated = false;
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  QmitkFunctionality::Activated();
  if (m_SelListener.IsNull())
  {
    m_SelListener = berry::ISelectionListener::Pointer(new SelListenerRigidRegistration(this));
    this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener(/*"org.mitk.views.datamanager",*/ m_SelListener);
    berry::ISelection::ConstPointer sel(
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
    m_CurrentSelection = sel.Cast<const IStructuredSelection>();
    m_SelListener.Cast<SelListenerRigidRegistration>()->DoSelectionChanged(sel);
  }
  this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
  this->ShowRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());
  this->ClearTransformationLists();
  this->CheckCalculateEnabled();
  /*
  m_Deactivated = false;
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    QmitkFunctionality::Activated();
    if (m_SelListener.IsNull())
    {
      m_SelListener = berry::ISelectionListener::Pointer(new SelListenerRigidRegistration(this));
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener(/ *"org.mitk.views.datamanager",* / m_SelListener);
      berry::ISelection::ConstPointer sel(
        this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
      m_CurrentSelection = sel.Cast<const IStructuredSelection>();
      m_SelListener.Cast<SelListenerRigidRegistration>()->DoSelectionChanged(sel);
    }
    this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
    this->ShowRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());
    this->ClearTransformationLists();
    this->CheckCalculateEnabled();*/

}

void QmitkRigidRegistrationView::AddNewTransformationToUndoList ( ) [protected, slot]

Adds a new Transformation to the undo list and enables the undo button.

Definition at line 519 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), m_MovingNode, m_RedoChildGeometryList, m_RedoGeometryList, m_UndoChildGeometryList, m_UndoGeometryList, SetRedoEnabled(), and SetUndoEnabled().

Referenced by CreateConnections().

{
  mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
  m_UndoGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingData->GetGeometry(0)->Clone().GetPointer()));
  unsigned long size;
  mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
  size = children->Size();
  std::map<mitk::DataNode::Pointer, mitk::Geometry3D*> childGeometries;
  for (unsigned long i = 0; i < size; ++i)
  {
    childGeometries.insert(std::pair<mitk::DataNode::Pointer, mitk::Geometry3D*>(children->GetElement(i), children->GetElement(i)->GetData()->GetGeometry()));
  }
  m_UndoChildGeometryList.push_back(childGeometries);
  m_RedoGeometryList.clear();
  m_RedoChildGeometryList.clear();
  this->SetUndoEnabled(true);
  this->SetRedoEnabled(false);
}

void QmitkRigidRegistrationView::AlignCenters ( ) [protected, slot]

Automatically aligns the image centers.

Definition at line 907 of file QmitkRigidRegistrationView.cpp.

References int(), m_Controls, m_FixedNode, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XTransSlider, Ui_QmitkRigidRegistrationViewControls::m_YTransSlider, and Ui_QmitkRigidRegistrationViewControls::m_ZTransSlider.

Referenced by CreateConnections().

{
  if (m_FixedNode.IsNotNull() && m_MovingNode.IsNotNull())
  {
    mitk::Point3D fixedPoint = m_FixedNode->GetData()->GetGeometry()->GetCenter();
    mitk::Point3D movingPoint = m_MovingNode->GetData()->GetGeometry()->GetCenter();
    mitk::Vector3D translateVec;
    translateVec =  fixedPoint - movingPoint;
    m_Controls.m_XTransSlider->setValue((int)m_Controls.m_XTransSlider->value() + (int)translateVec[0]);
    m_Controls.m_YTransSlider->setValue((int)m_Controls.m_YTransSlider->value() + (int)translateVec[1]);
    m_Controls.m_ZTransSlider->setValue((int)m_Controls.m_ZTransSlider->value() + (int)translateVec[2]);
  }
}

void QmitkRigidRegistrationView::Calculate ( ) [protected, slot]

Starts the registration process.

Definition at line 1125 of file QmitkRigidRegistrationView.cpp.

Referenced by CreateConnections().

{
  m_Controls.qmitkRigidRegistrationSelector1->SetFixedNode(m_FixedNode);
  m_Controls.qmitkRigidRegistrationSelector1->SetMovingNode(m_MovingNode);
  if (m_FixedMaskNode.IsNotNull() && m_Controls.m_UseFixedImageMask->isChecked())
  {
    m_Controls.qmitkRigidRegistrationSelector1->SetFixedMaskNode(m_FixedMaskNode);
  }
  else
  {
    m_Controls.qmitkRigidRegistrationSelector1->SetFixedMaskNode(NULL);
  }
  if (m_MovingMaskNode.IsNotNull() && m_Controls.m_UseMovingImageMask->isChecked())
  {
    m_Controls.qmitkRigidRegistrationSelector1->SetMovingMaskNode(m_MovingMaskNode);
  }
  else
  {
    m_Controls.qmitkRigidRegistrationSelector1->SetMovingMaskNode(NULL);
  }
  m_Controls.frame_2->setEnabled(false);
  m_Controls.frame_3->setEnabled(false);
  m_Controls.m_CalculateTransformation->setEnabled(false);
  m_Controls.m_StopOptimization->setEnabled(true);
  m_Controls.qmitkRigidRegistrationSelector1->CalculateTransformation(((QmitkSliderNavigatorWidget*)m_Controls.timeSlider)->GetPos());
  m_Controls.m_StopOptimization->setEnabled(false);
  m_Controls.frame_2->setEnabled(true);
  m_Controls.frame_3->setEnabled(true);
  m_Controls.m_CalculateTransformation->setEnabled(true);
  m_Controls.qmitkRigidRegistrationSelector1->StopOptimization(false);
}

bool QmitkRigidRegistrationView::CheckCalculate ( ) [protected, slot]

checks if registration is possible

Definition at line 512 of file QmitkRigidRegistrationView.cpp.

References m_FixedNode, and m_MovingNode.

{
  if(m_MovingNode==m_FixedNode)
    return false;
  return true;
}

void QmitkRigidRegistrationView::CheckCalculateEnabled ( ) [protected, slot]

Definition at line 931 of file QmitkRigidRegistrationView.cpp.

References QmitkRigidRegistrationSelectorView::GetSelectedTransform(), Ui_QmitkRigidRegistrationViewControls::m_CalculateTransformation, m_Controls, m_FixedDimension, m_FixedNode, Ui_QmitkRigidRegistrationViewControls::m_ManualFrame, m_MovingDimension, m_MovingNode, and Ui_QmitkRigidRegistrationViewControls::qmitkRigidRegistrationSelector1.

Referenced by Activated(), CreateConnections(), CreateQtPartControl(), FixedSelected(), MovingImageChanged(), MovingSelected(), and UndoTransformation().

{
  if (m_FixedNode.IsNotNull() && m_MovingNode.IsNotNull())
  {
    m_Controls.m_ManualFrame->setEnabled(true);
    m_Controls.m_CalculateTransformation->setEnabled(true);
    if ( (m_FixedDimension != m_MovingDimension && std::max<int>(m_FixedDimension, m_MovingDimension) != 4) || m_FixedDimension < 2 /*|| m_FixedDimension > 3*/)
    {
      m_Controls.m_CalculateTransformation->setEnabled(false);
    }
    else if (m_Controls.qmitkRigidRegistrationSelector1->GetSelectedTransform() < 5 &&  (m_FixedDimension < 2) /*|| m_FixedDimension > 3)*/)
    {
      m_Controls.m_CalculateTransformation->setEnabled(false);
    }
    else if ((m_Controls.qmitkRigidRegistrationSelector1->GetSelectedTransform() > 4 && m_Controls.qmitkRigidRegistrationSelector1->GetSelectedTransform() < 13) && !(m_FixedDimension > 2))
    {
      m_Controls.m_CalculateTransformation->setEnabled(false);
    }
    else if (m_Controls.qmitkRigidRegistrationSelector1->GetSelectedTransform() > 12 &&  m_FixedDimension != 2)
    {
      m_Controls.m_CalculateTransformation->setEnabled(false);
    }
  }
  else
  {
    m_Controls.m_CalculateTransformation->setEnabled(false);
    m_Controls.m_ManualFrame->setEnabled(false);
  }
}

void QmitkRigidRegistrationView::CheckForMaskImages ( ) [protected, slot]

Definition at line 1214 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_FixedMaskNode, m_MovingMaskNode, Ui_QmitkRigidRegistrationViewControls::m_UseFixedImageMask, and Ui_QmitkRigidRegistrationViewControls::m_UseMovingImageMask.

Referenced by FixedSelected(), and MovingSelected().

{
  if (m_FixedMaskNode.IsNotNull())
  {
    m_Controls.m_UseFixedImageMask->show();
  }
  else
  {
    m_Controls.m_UseFixedImageMask->hide();
  }
  if (m_MovingMaskNode.IsNotNull())
  {
    m_Controls.m_UseMovingImageMask->show();
  }
  else
  {
    m_Controls.m_UseMovingImageMask->hide();
  }
}

void QmitkRigidRegistrationView::ClearTransformationLists ( ) [protected, slot]

Clears the undo and redo lists and sets the undo and redo buttons to disabled.

Definition at line 677 of file QmitkRigidRegistrationView.cpp.

References m_RedoChildGeometryList, m_RedoGeometryList, m_UndoChildGeometryList, m_UndoGeometryList, SetRedoEnabled(), and SetUndoEnabled().

Referenced by Activated(), and Deactivated().

{
  this->SetUndoEnabled(false);
  this->SetRedoEnabled(false);
  m_UndoGeometryList.clear();
  m_UndoChildGeometryList.clear();
  m_RedoGeometryList.clear();
  m_RedoChildGeometryList.clear();
}

void QmitkRigidRegistrationView::CreateConnections ( ) [virtual]

method for creating the connections of main and control widget

Definition at line 236 of file QmitkRigidRegistrationView.cpp.

Referenced by CreateQtPartControl().

{
  connect( m_Controls.m_ManualRegistrationCheckbox, SIGNAL(toggled(bool)), this, SLOT(ShowManualRegistrationFrame(bool)));
  connect((QObject*)(m_Controls.m_SwitchImages),SIGNAL(clicked()),this,SLOT(SwitchImages()));
  connect(m_Controls.m_ShowRedGreenValues, SIGNAL(toggled(bool)), this, SLOT(ShowRedGreen(bool)));
  connect(m_Controls.m_UseFixedImageMask, SIGNAL(toggled(bool)), this, SLOT(UseFixedMaskImageChecked(bool)));
  connect(m_Controls.m_UseMovingImageMask, SIGNAL(toggled(bool)), this, SLOT(UseMovingMaskImageChecked(bool)));
  connect(m_Controls.m_RigidTransform, SIGNAL(currentChanged(int)), this, SLOT(TabChanged(int)));
  connect(m_Controls.m_OpacitySlider, SIGNAL(valueChanged(int)), this, SLOT(OpacityUpdate(int)));
  connect(m_Controls.m_CalculateTransformation, SIGNAL(clicked()), this, SLOT(Calculate()));
  connect(m_Controls.m_UndoTransformation,SIGNAL(clicked()),this,SLOT(UndoTransformation()));
  connect(m_Controls.m_RedoTransformation,SIGNAL(clicked()),this,SLOT(RedoTransformation()));
  connect(m_Controls.m_AutomaticTranslation,SIGNAL(clicked()),this,SLOT(AlignCenters()));
  connect(m_Controls.m_StopOptimization,SIGNAL(clicked()), this , SLOT(StopOptimizationClicked()));
  connect(m_Controls.m_XTransSlider, SIGNAL(valueChanged(int)), this, SLOT(xTrans_valueChanged(int)));
  connect(m_Controls.m_YTransSlider, SIGNAL(valueChanged(int)), this, SLOT(yTrans_valueChanged(int)));
  connect(m_Controls.m_ZTransSlider, SIGNAL(valueChanged(int)), this, SLOT(zTrans_valueChanged(int)));
  connect(m_Controls.m_XRotSlider, SIGNAL(valueChanged(int)), this, SLOT(xRot_valueChanged(int)));
  connect(m_Controls.m_YRotSlider, SIGNAL(valueChanged(int)), this, SLOT(yRot_valueChanged(int)));
  connect(m_Controls.m_ZRotSlider, SIGNAL(valueChanged(int)), this, SLOT(zRot_valueChanged(int)));
  connect(m_Controls.m_XScaleSlider, SIGNAL(valueChanged(int)), this, SLOT(xScale_valueChanged(int)));
  connect(m_Controls.m_YScaleSlider, SIGNAL(valueChanged(int)), this, SLOT(yScale_valueChanged(int)));
  connect(m_Controls.m_ZScaleSlider, SIGNAL(valueChanged(int)), this, SLOT(zScale_valueChanged(int)));
  connect(m_Controls.m_LoadRigidRegistrationParameter, SIGNAL(clicked()), m_Controls.qmitkRigidRegistrationSelector1, SLOT(LoadRigidRegistrationParameter()));
  connect(m_Controls.m_SaveRigidRegistrationParameter, SIGNAL(clicked()), m_Controls.qmitkRigidRegistrationSelector1, SLOT(SaveRigidRegistrationParameter()));
  connect(m_Controls.m_LoadRigidRegistrationTestParameter, SIGNAL(clicked()), m_Controls.qmitkRigidRegistrationSelector1, SLOT(LoadRigidRegistrationTestParameter()));
  connect(m_Controls.m_SaveRigidRegistrationTestParameter, SIGNAL(clicked()), m_Controls.qmitkRigidRegistrationSelector1, SLOT(SaveRigidRegistrationTestParameter()));
  connect(m_Controls.qmitkRigidRegistrationSelector1,SIGNAL(OptimizerChanged(double)),this,SLOT(SetOptimizerValue( double )));
  connect(m_Controls.qmitkRigidRegistrationSelector1,SIGNAL(TransformChanged()),this,SLOT(CheckCalculateEnabled()));
  connect(m_Controls.qmitkRigidRegistrationSelector1,SIGNAL(AddNewTransformationToUndoList()),this,SLOT(AddNewTransformationToUndoList()));
}

void QmitkRigidRegistrationView::CreateQtPartControl ( QWidget * parent ) [virtual]

method for creating the applications main widget

Implements berry::QtViewPart.

Definition at line 191 of file QmitkRigidRegistrationView.cpp.

{
  m_Controls.setupUi(parent);
  m_Controls.m_ManualFrame->hide();
  m_Controls.timeSlider->hide();
  m_Controls.TextLabelFixed->hide();
  m_Controls.m_FixedLabel->hide();
  m_Controls.TextLabelMoving->hide();
  m_Controls.m_MovingLabel->hide();
  m_Controls.m_UseFixedImageMask->hide();
  m_Controls.m_UseMovingImageMask->hide();
  m_Controls.m_OpacityLabel->setEnabled(false);
  m_Controls.m_OpacitySlider->setEnabled(false);
  m_Controls.label->setEnabled(false);
  m_Controls.label_2->setEnabled(false);
  m_Controls.m_ShowRedGreenValues->setEnabled(false);
  m_Controls.m_SwitchImages->hide();
  if (m_Controls.m_RigidTransform->currentIndex() == 1)
  {
    m_Controls.frame->show();
  }
  else
  {
    m_Controls.frame->hide();
  }
  m_Controls.m_ManualFrame->setEnabled(false);
  m_Parent->setEnabled(false);

  this->CreateConnections();
  this->CheckCalculateEnabled();
}

void QmitkRigidRegistrationView::DataNodeHasBeenRemoved ( const mitk::DataNode * node )

Definition at line 370 of file QmitkRigidRegistrationView.cpp.

Referenced by QmitkRigidRegistrationView().

{
  if(node == m_FixedNode || node == m_MovingNode)
  {
    m_Controls.m_StatusLabel->show();
    m_Controls.TextLabelFixed->hide();
    m_Controls.m_FixedLabel->hide();
    m_Controls.TextLabelMoving->hide();
    m_Controls.m_MovingLabel->hide();
    m_Controls.m_OpacityLabel->setEnabled(false);
    m_Controls.m_OpacitySlider->setEnabled(false);
    m_Controls.label->setEnabled(false);
    m_Controls.label_2->setEnabled(false);
    m_Controls.m_ShowRedGreenValues->setEnabled(false);
    m_Controls.m_SwitchImages->hide();
  }
}

void QmitkRigidRegistrationView::Deactivated ( ) [virtual]

Method which is called whenever the functionality is deselected in MITK.

Reimplemented from QmitkFunctionality.

Definition at line 327 of file QmitkRigidRegistrationView.cpp.

References ClearTransformationLists(), berry::WorkbenchPart::GetSite(), m_Deactivated, m_FixedNode, m_MovingNode, m_SelListener, berry::ISelectionService::RemovePostSelectionListener(), and SetImageColor().

{
  m_Deactivated = true;
  this->SetImageColor(false);
  if (m_FixedNode.IsNotNull())
    m_FixedNode->SetOpacity(1.0);
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  this->ClearTransformationLists();
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;
  /*
  m_Deactivated = true;
    this->SetImageColor(false);
    m_FixedNode = NULL;
    m_MovingNode = NULL;
    this->ClearTransformationLists();
    berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
    if(s)
      s->RemovePostSelectionListener(m_SelListener);
    m_SelListener = NULL;
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    QmitkFunctionality::Deactivated();*/

}

void QmitkRigidRegistrationView::FixedSelected ( mitk::DataNode::Pointer fixedImage ) [protected, slot]

sets the fixed Image according to TreeNodeSelector widget

Definition at line 388 of file QmitkRigidRegistrationView.cpp.

References CheckCalculateEnabled(), CheckForMaskImages(), QmitkFunctionality::GetActiveStdMultiWidget(), QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), mitk::BaseController::GetTime(), QmitkStdMultiWidget::GetTimeNavigationController(), m_Controls, m_FixedColor, m_FixedDimension, Ui_QmitkRigidRegistrationViewControls::m_FixedLabel, m_FixedMaskNode, m_FixedNode, m_MultiWidget, m_ShowRedGreen, Ui_QmitkRigidRegistrationViewControls::m_SwitchImages, m_TimeStepperAdapter, Ui_QmitkRigidRegistrationViewControls::qmitkRigidRegistrationSelector1, QmitkRigidRegistrationSelectorView::SetFixedDimension(), QmitkRigidRegistrationSelectorView::SetFixedNode(), SetImageColor(), Ui_QmitkRigidRegistrationViewControls::TextLabelFixed, Ui_QmitkRigidRegistrationViewControls::timeSlider, and UpdateTimestep().

Referenced by SwitchImages().

{
  if (m_FixedNode.IsNotNull())
  {
    this->SetImageColor(false);
    m_FixedNode->SetOpacity(1.0);
  }
  m_FixedNode = fixedImage;
  if (m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetOpacity(0.5);
    m_FixedNode->SetVisibility(true);
    m_Controls.TextLabelFixed->setText(QString::fromStdString(m_FixedNode->GetName()));
    m_Controls.m_FixedLabel->show();
    m_Controls.TextLabelFixed->show();
    m_Controls.m_SwitchImages->show();
    mitk::ColorProperty::Pointer colorProperty;
    colorProperty = dynamic_cast<mitk::ColorProperty*>(m_FixedNode->GetProperty("color"));
    if ( colorProperty.IsNotNull() )
    {
      m_FixedColor = colorProperty->GetColor();
    }
    this->SetImageColor(m_ShowRedGreen);
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    if (dynamic_cast<mitk::Image*>(m_FixedNode->GetData()))
    {
      m_FixedDimension = dynamic_cast<mitk::Image*>(m_FixedNode->GetData())->GetDimension();
      m_Controls.qmitkRigidRegistrationSelector1->SetFixedDimension(m_FixedDimension);
      m_Controls.qmitkRigidRegistrationSelector1->SetFixedNode(m_FixedNode);
    }

    bool hasMask = false;
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_FixedNode);
    unsigned long size;
    size = children->Size();
    for (unsigned long i = 0; i < size; ++i)
    {
      mitk::BoolProperty::Pointer isMaskProp = dynamic_cast<mitk::BoolProperty*>(children->GetElement(i)->GetProperty("binary"));
      if(isMaskProp.IsNotNull() && isMaskProp->GetValue() == true)
      {
        m_FixedMaskNode = children->GetElement(i);
        hasMask = true;
        this->CheckForMaskImages();
        break;
      }
    }
    if (!hasMask)
    {
      this->CheckForMaskImages();
      m_FixedMaskNode = NULL;
    }
  }
  else
  {
    m_Controls.m_FixedLabel->hide();
    m_Controls.TextLabelFixed->hide();
    m_Controls.m_SwitchImages->hide();
  }
  this->CheckCalculateEnabled();
  if(this->GetActiveStdMultiWidget())
  {
    m_TimeStepperAdapter = new QmitkStepperAdapter((QObject*) m_Controls.timeSlider, m_MultiWidget->GetTimeNavigationController()->GetTime(), "sliceNavigatorTimeFromRigidRegistration");
    connect( m_TimeStepperAdapter, SIGNAL( Refetch() ), this, SLOT( UpdateTimestep() ) );
  }
}

void QmitkRigidRegistrationView::Hidden ( ) [virtual]

Called when this functionality is hidden ( no matter what IsExclusiveFunctionality() returns )

Reimplemented from QmitkFunctionality.

Definition at line 355 of file QmitkRigidRegistrationView.cpp.

{
  /*m_Deactivated = true;
  this->SetImageColor(false);
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  this->ClearTransformationLists();
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;
  //mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  //QmitkFunctionality::Deactivated();*/
}

void QmitkRigidRegistrationView::MovingImageChanged ( ) [protected, slot]

Definition at line 1096 of file QmitkRigidRegistrationView.cpp.

Referenced by MovingSelected(), xRot_valueChanged(), xScale_valueChanged(), xTrans_valueChanged(), yRot_valueChanged(), yScale_valueChanged(), yTrans_valueChanged(), zRot_valueChanged(), zScale_valueChanged(), and zTrans_valueChanged().

{
  if (dynamic_cast<mitk::Image*>(m_MovingNode->GetData()))
  {
    m_Controls.m_XTransSlider->setValue(0);
    m_Controls.m_YTransSlider->setValue(0);
    m_Controls.m_ZTransSlider->setValue(0);
    translationParams[0]=0;
    translationParams[1]=0;
    translationParams[2]=0;
    m_Controls.m_XRotSlider->setValue(0);
    m_Controls.m_YRotSlider->setValue(0);
    m_Controls.m_ZRotSlider->setValue(0);
    rotationParams[0]=0;
    rotationParams[1]=0;
    rotationParams[2]=0;
    m_Controls.m_XScaleSlider->setValue(0);
    m_Controls.m_YScaleSlider->setValue(0);
    m_Controls.m_ZScaleSlider->setValue(0);
    scalingParams[0]=0;
    scalingParams[1]=0;
    scalingParams[2]=0;
    m_MovingDimension = dynamic_cast<mitk::Image*>(m_MovingNode->GetData())->GetDimension();
    m_Controls.qmitkRigidRegistrationSelector1->SetMovingDimension(m_MovingDimension);
    m_Controls.qmitkRigidRegistrationSelector1->SetMovingNode(m_MovingNode);
    this->CheckCalculateEnabled();
  }
}

void QmitkRigidRegistrationView::MovingSelected ( mitk::DataNode::Pointer movingImage ) [protected, slot]

sets the moving Image according to TreeNodeSelector widget

Definition at line 454 of file QmitkRigidRegistrationView.cpp.

References CheckCalculateEnabled(), CheckForMaskImages(), QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_Controls, m_FixedNode, m_MovingColor, Ui_QmitkRigidRegistrationViewControls::m_MovingLabel, m_MovingMaskNode, m_MovingNode, m_Opacity, m_OriginalOpacity, m_ShowRedGreen, MovingImageChanged(), OpacityUpdate(), Ui_QmitkRigidRegistrationViewControls::qmitkRigidRegistrationSelector1, SetImageColor(), QmitkRigidRegistrationSelectorView::SetMovingNodeChildren(), and Ui_QmitkRigidRegistrationViewControls::TextLabelMoving.

Referenced by SwitchImages().

{
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_OriginalOpacity);
    if (m_FixedNode == m_MovingNode)
      m_FixedNode->SetOpacity(0.5);
    this->SetImageColor(false);
  }
  m_MovingNode = movingImage;
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetVisibility(true);
    m_Controls.TextLabelMoving->setText(QString::fromStdString(m_MovingNode->GetName()));
    m_Controls.m_MovingLabel->show();
    m_Controls.TextLabelMoving->show();
    mitk::ColorProperty::Pointer colorProperty;
    colorProperty = dynamic_cast<mitk::ColorProperty*>(m_MovingNode->GetProperty("color"));
    if ( colorProperty.IsNotNull() )
    {
      m_MovingColor = colorProperty->GetColor();
    }
    this->SetImageColor(m_ShowRedGreen);
    m_MovingNode->GetFloatProperty("opacity", m_OriginalOpacity);
    this->OpacityUpdate(m_Opacity);

    bool hasMask = false;
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    m_Controls.qmitkRigidRegistrationSelector1->SetMovingNodeChildren(children);
    unsigned long size;
    size = children->Size();
    for (unsigned long i = 0; i < size; ++i)
    {
      mitk::BoolProperty::Pointer isMaskProp = dynamic_cast<mitk::BoolProperty*>(children->GetElement(i)->GetProperty("binary"));
      if(isMaskProp.IsNotNull() && isMaskProp->GetValue() == true)
      {
        m_MovingMaskNode = children->GetElement(i);
        hasMask = true;
        this->CheckForMaskImages();
        break;
      }
    }
    if (!hasMask)
    {
      m_MovingMaskNode = NULL;
      this->CheckForMaskImages();
    }
  }
  else
  {
    m_Controls.m_MovingLabel->hide();
    m_Controls.TextLabelMoving->hide();
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  this->MovingImageChanged();
  this->CheckCalculateEnabled();
}

void QmitkRigidRegistrationView::OpacityUpdate ( float opacity ) [protected, slot]

Sets the selected opacity for moving image.

Parameters:

opacity the selected opacity

Definition at line 661 of file QmitkRigidRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_MovingNode, and m_Opacity.

Referenced by Activated(), CreateConnections(), MovingSelected(), and OpacityUpdate().

{
  m_Opacity = opacity;
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_Opacity);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkRigidRegistrationView::OpacityUpdate ( int opacity ) [protected, slot]

Sets the selected opacity for moving image.

Parameters:

opacity the selected opacity

Definition at line 671 of file QmitkRigidRegistrationView.cpp.

References OpacityUpdate().

{
  float fValue = ((float)opacity)/100.0f;
  this->OpacityUpdate(fValue);
}

void QmitkRigidRegistrationView::RedoTransformation ( ) [protected, slot]

Redo the last registration.

Definition at line 586 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_MovingNode, m_MultiWidget, m_RedoChildGeometryList, m_RedoGeometryList, m_UndoChildGeometryList, m_UndoGeometryList, QmitkStdMultiWidget::mitkWidget4, SetRedoEnabled(), and SetUndoEnabled().

Referenced by CreateConnections().

{
  if(!m_RedoGeometryList.empty())
  {
    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    m_UndoGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingData->GetGeometry(0)->Clone().GetPointer()));
    unsigned long size;
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    size = children->Size();
    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*> childGeometries;
    for (unsigned long i = 0; i < size; ++i)
    {
      childGeometries.insert(std::pair<mitk::DataNode::Pointer, mitk::Geometry3D*>(children->GetElement(i), children->GetElement(i)->GetData()->GetGeometry()));
    }
    m_UndoChildGeometryList.push_back(childGeometries);

    movingData->SetGeometry(m_RedoGeometryList.back());
    m_RedoGeometryList.pop_back();

    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*> oldChildGeometries;
    oldChildGeometries = m_RedoChildGeometryList.back();
    m_RedoChildGeometryList.pop_back();
    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*>::iterator iter;
    for (unsigned long j = 0; j < size; ++j)
    {
      iter = oldChildGeometries.find(children->GetElement(j));
      children->GetElement(j)->GetData()->SetGeometry((*iter).second);
    }

    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingNode->SetMapper(1, NULL);
    mitk::RenderingManager::GetInstance()->RequestUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());

    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    this->SetUndoEnabled(true);
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
  if(!m_RedoGeometryList.empty())
  {
    this->SetRedoEnabled(true);
  }
  else
  {
    this->SetRedoEnabled(false);
  }
}

void QmitkRigidRegistrationView::Rotate ( int * rotateVector ) [protected, slot]

Rotates the moving image in x, y and z direction given by rotateVector.

Parameters:

rotateVector Contains the rotation around x, y and z axis.

Definition at line 731 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_MovingNode, m_RedoGeometryList, and m_RotateSliderPos.

Referenced by xRot_valueChanged(), yRot_valueChanged(), and zRot_valueChanged().

{
  if (m_MovingNode.IsNotNull())
  {
    mitk::Vector3D rotateVec;

    rotateVec[0] = rotateVector[0] - m_RotateSliderPos[0];
    rotateVec[1] = rotateVector[1] - m_RotateSliderPos[1];
    rotateVec[2] = rotateVector[2] - m_RotateSliderPos[2];

    m_RotateSliderPos[0] = rotateVector[0];
    m_RotateSliderPos[1] = rotateVector[1];
    m_RotateSliderPos[2] = rotateVector[2];

    vtkMatrix4x4* rotationMatrix = vtkMatrix4x4::New();
    vtkMatrix4x4* translationMatrix = vtkMatrix4x4::New();
    rotationMatrix->Identity();
    translationMatrix->Identity();

    double (*rotMatrix)[4] = rotationMatrix->Element;
    double (*transMatrix)[4] = translationMatrix->Element;

    mitk::Point3D centerBB = m_MovingNode->GetData()->GetGeometry()->GetCenter();

    transMatrix[0][3] = centerBB[0];
    transMatrix[1][3] = centerBB[1];
    transMatrix[2][3] = centerBB[2];

    translationMatrix->Invert();

    m_MovingNode->GetData()->GetGeometry()->Compose( translationMatrix );
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    unsigned long size;
    size = children->Size();
    mitk::DataNode::Pointer childNode;
    for (unsigned long i = 0; i < size; ++i)
    {
      childNode = children->GetElement(i);
      childNode->GetData()->GetGeometry()->Compose( translationMatrix );
      childNode->GetData()->Modified();
    }

    double radianX = rotateVec[0] * vnl_math::pi / 180;
    double radianY = rotateVec[1] * vnl_math::pi / 180;
    double radianZ = rotateVec[2] * vnl_math::pi / 180;

    if ( rotateVec[0] != 0 )
    {
      rotMatrix[1][1] = cos( radianX );
      rotMatrix[1][2] = -sin( radianX );
      rotMatrix[2][1] = sin( radianX );
      rotMatrix[2][2] = cos( radianX );
    }
    else if ( rotateVec[1] != 0 )
    {
      rotMatrix[0][0] = cos( radianY );
      rotMatrix[0][2] = sin( radianY );
      rotMatrix[2][0] = -sin( radianY );
      rotMatrix[2][2] = cos( radianY );
    }
    else if ( rotateVec[2] != 0 )
    {
      rotMatrix[0][0] = cos( radianZ );
      rotMatrix[0][1] = -sin( radianZ );
      rotMatrix[1][0] = sin( radianZ );
      rotMatrix[1][1] = cos( radianZ );
    }

    m_MovingNode->GetData()->GetGeometry()->Compose( rotationMatrix );
    for (unsigned long i = 0; i < size; ++i)
    {
      childNode = children->GetElement(i);
      childNode->GetData()->GetGeometry()->Compose( rotationMatrix );
      childNode->GetData()->Modified();
    }

    translationMatrix->Invert();

    m_MovingNode->GetData()->GetGeometry()->Compose( translationMatrix );
    for (unsigned long i = 0; i < size; ++i)
    {
      childNode = children->GetElement(i);
      childNode->GetData()->GetGeometry()->Compose( rotationMatrix );
      childNode->GetData()->Modified();
    }
    m_MovingNode->GetData()->Modified();
    m_RedoGeometryList.clear();
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
}

void QmitkRigidRegistrationView::Scale ( int * scaleVector ) [protected, slot]

Scales the moving image in x, y and z direction given by scaleVector.

Parameters:

scaleVector Contains the scaling around x, y and z axis.

Definition at line 822 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_MovingNode, m_RedoGeometryList, and m_ScaleSliderPos.

Referenced by xScale_valueChanged(), yScale_valueChanged(), and zScale_valueChanged().

{
  if (m_MovingNode.IsNotNull())
  {

    mitk::Vector3D scaleVec;

    scaleVec[0] = scaleVector[0] - m_ScaleSliderPos[0];
    scaleVec[1] = scaleVector[1] - m_ScaleSliderPos[1];
    scaleVec[2] = scaleVector[2] - m_ScaleSliderPos[2];

    m_ScaleSliderPos[0] = scaleVector[0];
    m_ScaleSliderPos[1] = scaleVector[1];
    m_ScaleSliderPos[2] = scaleVector[2];

    vtkMatrix4x4* scalingMatrix = vtkMatrix4x4::New();
    scalingMatrix->Identity();

    double (*scaleMatrix)[4] = scalingMatrix->Element;

    if (scaleVec[0] >= 0)
    {
      for(int i = 0; i<scaleVec[0]; i++)
      {
        scaleMatrix[0][0] *= 0.95;
      }
    }
    else
    {
      for(int i = 0; i<-scaleVec[0]; i++)
      {
        scaleMatrix[0][0] *= 1/0.95;
      }
    }

    if (scaleVec[1] >= 0)
    {
      for(int i = 0; i<scaleVec[1]; i++)
      {
        scaleMatrix[1][1] *= 0.95;
      }
    }
    else
    {
      for(int i = 0; i<-scaleVec[1]; i++)
      {
        scaleMatrix[1][1] *= 1/0.95;
      }
    }

    if (scaleVec[2] >= 0)
    {
      for(int i = 0; i<scaleVec[2]; i++)
      {
        scaleMatrix[2][2] *= 0.95;
      }
    }
    else
    {
      for(int i = 0; i<-scaleVec[2]; i++)
      {
        scaleMatrix[2][2] *= 1/0.95;
      }
    }

    scalingMatrix->Invert();

    m_MovingNode->GetData()->GetGeometry()->Compose( scalingMatrix );
    m_MovingNode->GetData()->Modified();
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    unsigned long size;
    size = children->Size();
    mitk::DataNode::Pointer childNode;
    for (unsigned long i = 0; i < size; ++i)
    {
      childNode = children->GetElement(i);
      childNode->GetData()->GetGeometry()->Compose( scalingMatrix );
      childNode->GetData()->Modified();
    }
    m_RedoGeometryList.clear();

    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
}

void QmitkRigidRegistrationView::SetImageColor ( bool redGreen ) [protected, slot]

Sets the images to grayvalues or fixed image to red and moving image to green.

Parameters:

redGreen if true, then images will be shown in red and green

Definition at line 640 of file QmitkRigidRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_FixedColor, m_FixedNode, m_MovingColor, and m_MovingNode.

Referenced by Deactivated(), FixedSelected(), MovingSelected(), and ShowRedGreen().

{
  if (!redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(m_FixedColor);
  }
  if (!redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(m_MovingColor);
  }
  if (redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(1.0f, 0.0f, 0.0f);
  }
  if (redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(0.0f, 1.0f, 0.0f);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkRigidRegistrationView::SetImagesVisible ( berry::ISelection::ConstPointer ) [protected, slot]

Definition at line 1184 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), and m_CurrentSelection.

{
  if (this->m_CurrentSelection->Size() == 0)
  {
    // show all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(true);
      }
    }
  }
  else
  {
    // hide all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(false);
      }
    }
  }
}

void QmitkRigidRegistrationView::SetOptimizerValue ( double value ) [protected, slot]

Definition at line 1157 of file QmitkRigidRegistrationView.cpp.

References m_Controls, and Ui_QmitkRigidRegistrationViewControls::m_OptimizerValueLCD.

Referenced by CreateConnections().

{
  m_Controls.m_OptimizerValueLCD->display(value);
}

void QmitkRigidRegistrationView::SetRedoEnabled ( bool enable ) [protected, slot]

Definition at line 926 of file QmitkRigidRegistrationView.cpp.

References m_Controls, and Ui_QmitkRigidRegistrationViewControls::m_RedoTransformation.

Referenced by AddNewTransformationToUndoList(), ClearTransformationLists(), RedoTransformation(), and UndoTransformation().

{
  m_Controls.m_RedoTransformation->setEnabled(enable);
}

void QmitkRigidRegistrationView::SetUndoEnabled ( bool enable ) [protected, slot]

Definition at line 921 of file QmitkRigidRegistrationView.cpp.

References m_Controls, and Ui_QmitkRigidRegistrationViewControls::m_UndoTransformation.

Referenced by AddNewTransformationToUndoList(), ClearTransformationLists(), RedoTransformation(), and UndoTransformation().

{
  m_Controls.m_UndoTransformation->setEnabled(enable);
}

void QmitkRigidRegistrationView::ShowManualRegistrationFrame ( bool show ) [protected, slot]

Changes the visibility of the manual registration methods accordingly to the checkbox "Manual Registration" in GUI.

Parameters:

show	if true, then manual registration methods will be shown

Definition at line 1172 of file QmitkRigidRegistrationView.cpp.

References m_Controls, and Ui_QmitkRigidRegistrationViewControls::m_ManualFrame.

Referenced by CreateConnections().

{
  if (show)
  {
    m_Controls.m_ManualFrame->show();
  }
  else
  {
    m_Controls.m_ManualFrame->hide();
  }
}

void QmitkRigidRegistrationView::ShowRedGreen ( bool show ) [protected, slot]

Stores whether the image will be shown in gray values or in red for fixed image and green for moving image.

Parameters:

show	if true, then images will be shown in red and green

Definition at line 634 of file QmitkRigidRegistrationView.cpp.

References m_ShowRedGreen, and SetImageColor().

Referenced by Activated(), and CreateConnections().

{
  m_ShowRedGreen = redGreen;
  this->SetImageColor(m_ShowRedGreen);
}

void QmitkRigidRegistrationView::StdMultiWidgetAvailable ( QmitkStdMultiWidget & stdMultiWidget ) [virtual]

Sets the StdMultiWidget and connects it to the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 223 of file QmitkRigidRegistrationView.cpp.

References m_MultiWidget, QmitkFunctionality::m_Parent, and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

{
  m_Parent->setEnabled(true);
  m_MultiWidget = &stdMultiWidget;
  m_MultiWidget->SetWidgetPlanesVisibility(true);
}

void QmitkRigidRegistrationView::StdMultiWidgetNotAvailable ( ) [virtual]

Removes the StdMultiWidget and disconnects it from the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 230 of file QmitkRigidRegistrationView.cpp.

References m_MultiWidget, and QmitkFunctionality::m_Parent.

{
  m_Parent->setEnabled(false);
  m_MultiWidget = NULL;
}

void QmitkRigidRegistrationView::StopOptimizationClicked ( ) [protected, slot]

Definition at line 1162 of file QmitkRigidRegistrationView.cpp.

References m_Controls, Ui_QmitkRigidRegistrationViewControls::qmitkRigidRegistrationSelector1, and QmitkRigidRegistrationSelectorView::StopOptimization().

Referenced by CreateConnections().

{
  m_Controls.qmitkRigidRegistrationSelector1->StopOptimization(true);
}

void QmitkRigidRegistrationView::SwitchImages ( ) [protected, slot]

Definition at line 1270 of file QmitkRigidRegistrationView.cpp.

References FixedSelected(), m_FixedNode, m_MovingNode, and MovingSelected().

Referenced by CreateConnections().

{
  mitk::DataNode::Pointer newMoving = m_FixedNode;
  mitk::DataNode::Pointer newFixed = m_MovingNode;
  this->FixedSelected(newFixed);
  this->MovingSelected(newMoving);
}

void QmitkRigidRegistrationView::TabChanged ( int index ) [protected, slot]

Definition at line 1258 of file QmitkRigidRegistrationView.cpp.

References Ui_QmitkRigidRegistrationViewControls::frame, and m_Controls.

Referenced by CreateConnections().

{
  if (index == 0)
  {
    m_Controls.frame->hide();
  }
  else
  {
    m_Controls.frame->show();
  }
}

void QmitkRigidRegistrationView::Translate ( int * translateVector ) [protected, slot]

Translates the moving image in x, y and z direction given by translateVector.

Parameters:

translateVector Contains the translation in x, y and z direction.

Definition at line 687 of file QmitkRigidRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_MovingNode, m_RedoGeometryList, and m_TranslateSliderPos.

Referenced by xTrans_valueChanged(), yTrans_valueChanged(), and zTrans_valueChanged().

{
  if (m_MovingNode.IsNotNull())
  {

    mitk::Vector3D translateVec;

    translateVec[0] = translateVector[0] - m_TranslateSliderPos[0];
    translateVec[1] = translateVector[1] - m_TranslateSliderPos[1];
    translateVec[2] = translateVector[2] - m_TranslateSliderPos[2];

    m_TranslateSliderPos[0] = translateVector[0];
    m_TranslateSliderPos[1] = translateVector[1];
    m_TranslateSliderPos[2] = translateVector[2];

    vtkMatrix4x4* translationMatrix = vtkMatrix4x4::New();
    translationMatrix->Identity();

    double (*transMatrix)[4] = translationMatrix->Element;

    transMatrix[0][3] = -translateVec[0];
    transMatrix[1][3] = -translateVec[1];
    transMatrix[2][3] = -translateVec[2];

    translationMatrix->Invert();

    m_MovingNode->GetData()->GetGeometry()->Compose( translationMatrix );
    m_MovingNode->GetData()->Modified();
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    unsigned long size;
    size = children->Size();
    mitk::DataNode::Pointer childNode;
    for (unsigned long i = 0; i < size; ++i)
    {
      childNode = children->GetElement(i);
      childNode->GetData()->GetGeometry()->Compose( translationMatrix );
      childNode->GetData()->Modified();
    }
    m_RedoGeometryList.clear();

    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
}

void QmitkRigidRegistrationView::UndoTransformation ( ) [protected, slot]

Undo the last registration.

Definition at line 538 of file QmitkRigidRegistrationView.cpp.

References CheckCalculateEnabled(), QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), m_MovingNode, m_MultiWidget, m_RedoChildGeometryList, m_RedoGeometryList, m_UndoChildGeometryList, m_UndoGeometryList, QmitkStdMultiWidget::mitkWidget4, SetRedoEnabled(), and SetUndoEnabled().

Referenced by CreateConnections().

{
  if(!m_UndoGeometryList.empty())
  {
    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    m_RedoGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingData->GetGeometry(0)->Clone().GetPointer()));
    unsigned long size;
    mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
    size = children->Size();
    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*> childGeometries;
    for (unsigned long i = 0; i < size; ++i)
    {
      childGeometries.insert(std::pair<mitk::DataNode::Pointer, mitk::Geometry3D*>(children->GetElement(i), children->GetElement(i)->GetData()->GetGeometry()));
    }
    m_RedoChildGeometryList.push_back(childGeometries);

    movingData->SetGeometry(m_UndoGeometryList.back());
    m_UndoGeometryList.pop_back();
    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*> oldChildGeometries;
    oldChildGeometries = m_UndoChildGeometryList.back();
    m_UndoChildGeometryList.pop_back();
    std::map<mitk::DataNode::Pointer, mitk::Geometry3D*>::iterator iter;
    for (unsigned long j = 0; j < size; ++j)
    {
      iter = oldChildGeometries.find(children->GetElement(j));
      children->GetElement(j)->GetData()->SetGeometry((*iter).second);
    }

    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingNode->SetMapper(1, NULL);
    mitk::RenderingManager::GetInstance()->RequestUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());

    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    this->SetRedoEnabled(true);
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
  if(!m_UndoGeometryList.empty())
  {
    this->SetUndoEnabled(true);
  }
  else
  {
    this->SetUndoEnabled(false);
  }
  this->CheckCalculateEnabled();
}

void QmitkRigidRegistrationView::UpdateTimestep ( ) [protected, slot]

Definition at line 1167 of file QmitkRigidRegistrationView.cpp.

References mitk::RenderingManager::GetInstance().

Referenced by FixedSelected().

{
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkRigidRegistrationView::UseFixedMaskImageChecked ( bool checked ) [protected, slot]

Definition at line 1234 of file QmitkRigidRegistrationView.cpp.

References m_FixedMaskNode.

Referenced by CreateConnections().

{
  if (checked)
  {
    m_FixedMaskNode->SetVisibility(true);
  }
  else
  {
    m_FixedMaskNode->SetVisibility(false);
  }
}

void QmitkRigidRegistrationView::UseMovingMaskImageChecked ( bool checked ) [protected, slot]

Definition at line 1246 of file QmitkRigidRegistrationView.cpp.

References m_MovingMaskNode.

Referenced by CreateConnections().

{
  if (checked)
  {
    m_MovingMaskNode->SetVisibility(true);
  }
  else
  {
    m_MovingMaskNode->SetVisibility(false);
  }
}

void QmitkRigidRegistrationView::Visible ( ) [virtual]

Called when this functionality becomes visible ( no matter what IsExclusiveFunctionality() returns )

Reimplemented from QmitkFunctionality.

Definition at line 306 of file QmitkRigidRegistrationView.cpp.

{
  /*
  m_Deactivated = false;
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  QmitkFunctionality::Activated();
  if (m_SelListener.IsNull())
  {
    m_SelListener = berry::ISelectionListener::Pointer(new SelListenerRigidRegistration(this));
    this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener("org.mitk.views.datamanager", m_SelListener);
    berry::ISelection::ConstPointer sel(
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
    m_CurrentSelection = sel.Cast<const IStructuredSelection>();
    m_SelListener.Cast<SelListenerRigidRegistration>()->DoSelectionChanged(sel);
  }
  this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
  this->ShowRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());
  this->ClearTransformationLists();
  this->CheckCalculateEnabled();*/
}

void QmitkRigidRegistrationView::xRot_valueChanged ( int v ) [protected, slot]

Definition at line 1006 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_YRotSlider, Ui_QmitkRigidRegistrationViewControls::m_ZRotSlider, MovingImageChanged(), Rotate(), and rotationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    rotationParams[0]=v;
    rotationParams[1]=m_Controls.m_YRotSlider->value();
    rotationParams[2]=m_Controls.m_ZRotSlider->value();
    Rotate(rotationParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::xScale_valueChanged ( int v ) [protected, slot]

Definition at line 1051 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_YScaleSlider, Ui_QmitkRigidRegistrationViewControls::m_ZScaleSlider, MovingImageChanged(), Scale(), and scalingParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    scalingParams[0]=v;
    scalingParams[1]=m_Controls.m_YScaleSlider->value();
    scalingParams[2]=m_Controls.m_ZScaleSlider->value();
    Scale(scalingParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::xTrans_valueChanged ( int v ) [protected, slot]

Definition at line 961 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_YTransSlider, Ui_QmitkRigidRegistrationViewControls::m_ZTransSlider, MovingImageChanged(), Translate(), and translationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    translationParams[0]=v;
    translationParams[1]=m_Controls.m_YTransSlider->value();
    translationParams[2]=m_Controls.m_ZTransSlider->value();
    Translate(translationParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::yRot_valueChanged ( int v ) [protected, slot]

Definition at line 1021 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XRotSlider, Ui_QmitkRigidRegistrationViewControls::m_ZRotSlider, MovingImageChanged(), Rotate(), and rotationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    rotationParams[0]=m_Controls.m_XRotSlider->value();
    rotationParams[1]=v;
    rotationParams[2]=m_Controls.m_ZRotSlider->value();
    Rotate(rotationParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::yScale_valueChanged ( int v ) [protected, slot]

Definition at line 1066 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XScaleSlider, Ui_QmitkRigidRegistrationViewControls::m_ZScaleSlider, MovingImageChanged(), Scale(), and scalingParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    scalingParams[0]=m_Controls.m_XScaleSlider->value();
    scalingParams[1]=v;
    scalingParams[2]=m_Controls.m_ZScaleSlider->value();
    Scale(scalingParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::yTrans_valueChanged ( int v ) [protected, slot]

Definition at line 976 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XTransSlider, Ui_QmitkRigidRegistrationViewControls::m_ZTransSlider, MovingImageChanged(), Translate(), and translationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    translationParams[0]=m_Controls.m_XTransSlider->value();
    translationParams[1]=v;
    translationParams[2]=m_Controls.m_ZTransSlider->value();
    Translate(translationParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::zRot_valueChanged ( int v ) [protected, slot]

Definition at line 1036 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XRotSlider, Ui_QmitkRigidRegistrationViewControls::m_YRotSlider, MovingImageChanged(), Rotate(), and rotationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    rotationParams[0]=m_Controls.m_XRotSlider->value();
    rotationParams[1]=m_Controls.m_YRotSlider->value();
    rotationParams[2]=v;
    Rotate(rotationParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::zScale_valueChanged ( int v ) [protected, slot]

Definition at line 1081 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XScaleSlider, Ui_QmitkRigidRegistrationViewControls::m_YScaleSlider, MovingImageChanged(), Scale(), and scalingParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    scalingParams[0]=m_Controls.m_XScaleSlider->value();
    scalingParams[1]=m_Controls.m_YScaleSlider->value();
    scalingParams[2]=v;
    Scale(scalingParams);
  }
  else
  {
    MovingImageChanged();
  }
}

void QmitkRigidRegistrationView::zTrans_valueChanged ( int v ) [protected, slot]

Definition at line 991 of file QmitkRigidRegistrationView.cpp.

References m_Controls, m_MovingNode, Ui_QmitkRigidRegistrationViewControls::m_XTransSlider, Ui_QmitkRigidRegistrationViewControls::m_YTransSlider, MovingImageChanged(), Translate(), and translationParams.

Referenced by CreateConnections().

{
  if (m_MovingNode.IsNotNull())
  {
    translationParams[0]=m_Controls.m_XTransSlider->value();
    translationParams[1]=m_Controls.m_YTransSlider->value();
    translationParams[2]=v;
    Translate(translationParams);
  }
  else
  {
    MovingImageChanged();
  }
}
