The DeformableRegistration functionality is used to perform deformable registration. More...

#include <QmitkDeformableRegistrationView.h>

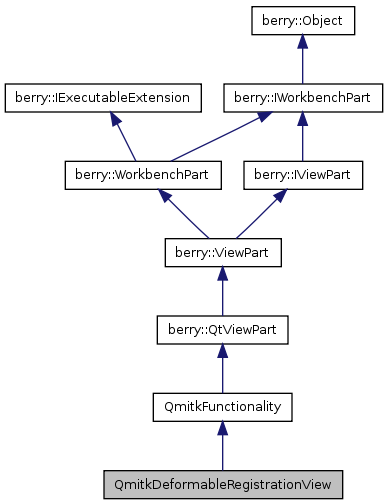

Inheritance diagram for QmitkDeformableRegistrationView:

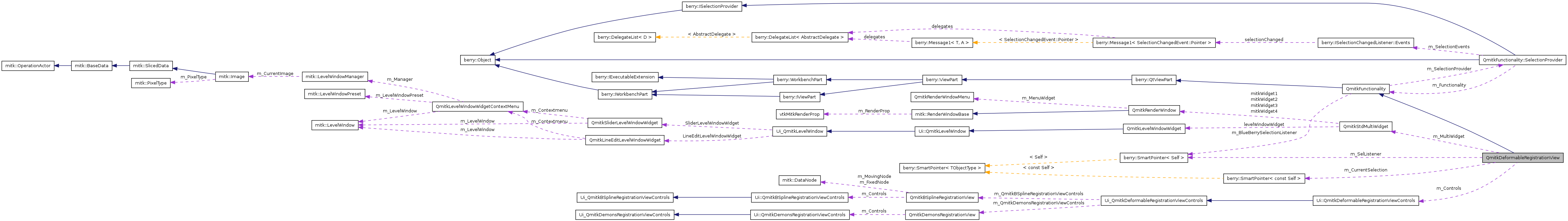

Collaboration diagram for QmitkDeformableRegistrationView:

Signals
void	reinitFixed (const mitk::Geometry3D *)
	Signal that informs about that the fixed image should be reinitialized in the multi-widget.
void	reinitMoving (const mitk::Geometry3D *)
	Signal that informs about that the moving image should be reinitialized in the multi-widget.
void	calculateBSplineRegistration ()
	Signal that informs about that the BSpline registration should be performed.
Public Member Functions
	QmitkDeformableRegistrationView (QObject parent=0, const char name=0)
	default constructor
virtual	~QmitkDeformableRegistrationView ()
	default destructor
virtual void	CreateQtPartControl (QWidget *parent)
	method for creating the applications main widget
virtual void	StdMultiWidgetAvailable (QmitkStdMultiWidget &stdMultiWidget)
	Sets the StdMultiWidget and connects it to the functionality.
virtual void	StdMultiWidgetNotAvailable ()
	Removes the StdMultiWidget and disconnects it from the functionality.
virtual void	CreateConnections ()
	method for creating the connections of main and control widget
virtual void	Activated ()
	Method which is called when this functionality is selected in MITK.
virtual void	Deactivated ()
	Method which is called whenever the functionality is deselected in MITK.
virtual void	Visible ()
virtual void	Hidden ()
void	DataNodeHasBeenRemoved (const mitk::DataNode *node)
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.deformableregistration"
Protected Slots
void	FixedSelected (mitk::DataNode::Pointer fixedImage)
void	MovingSelected (mitk::DataNode::Pointer movingImage)
bool	CheckCalculate ()
void	ShowRedGreen (bool show)
void	OpacityUpdate (float opacity)
void	OpacityUpdate (int opacity)
	Sets the selected opacity for moving image.
void	SetImageColor (bool redGreen)
void	CheckCalculateEnabled ()
	Checks whether the registration can be performed.
void	Calculate ()
	Performs the registration.
void	ApplyDeformationField ()
void	SetImagesVisible (berry::ISelection::ConstPointer selection)
void	TabChanged (int index)
void	SwitchImages ()
Protected Attributes
berry::ISelectionListener::Pointer	m_SelListener
berry::IStructuredSelection::ConstPointer	m_CurrentSelection
QmitkStdMultiWidget *	m_MultiWidget
Ui::QmitkDeformableRegistrationViewControls	m_Controls
mitk::DataNode::Pointer	m_MovingNode
mitk::DataNode::Pointer	m_FixedNode
bool	m_ShowRedGreen
float	m_Opacity
float	m_OriginalOpacity
mitk::Color	m_FixedColor
mitk::Color	m_MovingColor
bool	m_Deactivated
Friends
struct	SelListenerDeformableRegistration

Detailed Description

The DeformableRegistration functionality is used to perform deformable registration.

This functionality allows you to register two 2D as well as two 3D images in a non rigid manner. Register means to align two images, so that they become as similar as possible. Therefore you can select from different deformable registration methods. Registration results will directly be applied to the Moving Image. The result is shown in the multi-widget.

For more informations see: QmitkDeformableRegistrationUserManual

See also:: QmitkFunctionality

Definition at line 45 of file QmitkDeformableRegistrationView.h.

Constructor & Destructor Documentation

QmitkDeformableRegistrationView::QmitkDeformableRegistrationView	(	QObject *	parent = `0`,
		const char *	name = `0`
	)

default constructor

Definition at line 168 of file QmitkDeformableRegistrationView.cpp.

References DataNodeHasBeenRemoved(), and QmitkFunctionality::GetDataStorage().

: QmitkFunctionality() , m_MultiWidget(NULL), m_MovingNode(NULL), m_FixedNode(NULL), m_ShowRedGreen(false),
  m_Opacity(0.5), m_OriginalOpacity(1.0), m_Deactivated(false)
{
  this->GetDataStorage()->RemoveNodeEvent.AddListener(mitk::MessageDelegate1<QmitkDeformableRegistrationView,
    const mitk::DataNode*> ( this, &QmitkDeformableRegistrationView::DataNodeHasBeenRemoved ));
}

QmitkDeformableRegistrationView::~QmitkDeformableRegistrationView ( ) [virtual]

default destructor

Definition at line 176 of file QmitkDeformableRegistrationView.cpp.

References berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNotNull(), m_SelListener, and berry::ISelectionService::RemovePostSelectionListener().

{
  if (m_SelListener.IsNotNull())
  {
    berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
    if(s)
      s->RemovePostSelectionListener(m_SelListener);
    m_SelListener = NULL;
  }
}

Member Function Documentation

void QmitkDeformableRegistrationView::Activated ( ) [virtual]

Method which is called when this functionality is selected in MITK.

Reimplemented from QmitkFunctionality.

Definition at line 324 of file QmitkDeformableRegistrationView.cpp.

References berry::SmartPointer< TObjectType >::Cast(), mitk::RenderingManager::GetInstance(), berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNull(), m_Controls, m_CurrentSelection, m_Deactivated, Ui_QmitkDeformableRegistrationViewControls::m_OpacitySlider, m_SelListener, Ui_QmitkDeformableRegistrationViewControls::m_ShowRedGreenValues, OpacityUpdate(), SelListenerDeformableRegistration, and ShowRedGreen().

{
  m_Deactivated = false;
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  QmitkFunctionality::Activated();
  if (m_SelListener.IsNull())
  {
    m_SelListener = berry::ISelectionListener::Pointer(new SelListenerDeformableRegistration(this));
    this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener(/*"org.mitk.views.datamanager",*/ m_SelListener);
    berry::ISelection::ConstPointer sel(
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
    m_CurrentSelection = sel.Cast<const IStructuredSelection>();
    m_SelListener.Cast<SelListenerDeformableRegistration>()->DoSelectionChanged(sel);
  }
  this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
  this->ShowRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());
}

void QmitkDeformableRegistrationView::ApplyDeformationField ( ) [protected, slot]

Prints the values of the deformationfield

Definition at line 238 of file QmitkDeformableRegistrationView.cpp.

References mitk::CastToItkImage(), mitk::CastToMitkImage(), QmitkFunctionality::GetDefaultDataStorage(), mitk::RenderingManager::GetInstance(), QmitkBSplineRegistrationView::m_Controls, m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_DeformationField, m_FixedNode, m_MovingNode, Ui_QmitkDeformableRegistrationViewControls::m_QmitkBSplineRegistrationViewControls, mitk::StringProperty::New(), mitk::DataNode::New(), and mitk::Image::New().

Referenced by CreateConnections().

{

  ImageReaderType::Pointer reader  = ImageReaderType::New();
  reader->SetFileName( m_Controls.m_QmitkBSplineRegistrationViewControls->m_Controls.m_DeformationField->text().toStdString() );
  reader->Update();

  DeformationFieldType::Pointer deformationField = reader->GetOutput();

  mitk::Image * mimage = dynamic_cast<mitk::Image*> (m_MovingNode->GetData());
  mitk::Image * fimage = dynamic_cast<mitk::Image*> (m_FixedNode->GetData());

  typedef itk::Image<float, 3> FloatImageType;

  FloatImageType::Pointer itkMovingImage = FloatImageType::New();
  FloatImageType::Pointer itkFixedImage = FloatImageType::New();
  mitk::CastToItkImage(mimage, itkMovingImage);
  mitk::CastToItkImage(fimage, itkFixedImage);

  typedef itk::WarpImageFilter<
                            FloatImageType,
                            FloatImageType,
                            DeformationFieldType  >     WarperType;

  typedef itk::LinearInterpolateImageFunction<
                                    FloatImageType,
                                    double          >  InterpolatorType;

  WarperType::Pointer warper = WarperType::New();
  InterpolatorType::Pointer interpolator = InterpolatorType::New();

  warper->SetInput( itkMovingImage );
  warper->SetInterpolator( interpolator );
  warper->SetOutputSpacing( itkFixedImage->GetSpacing() );
  warper->SetOutputOrigin( itkFixedImage->GetOrigin() );
  warper->SetOutputDirection (itkFixedImage->GetDirection() );
  warper->SetDeformationField( deformationField );
  warper->Update();

  FloatImageType::Pointer outputImage = warper->GetOutput();
  mitk::Image::Pointer result = mitk::Image::New();

  mitk::CastToMitkImage(outputImage, result);

  // Create new DataNode
  mitk::DataNode::Pointer newNode = mitk::DataNode::New();
  newNode->SetData( result );
  newNode->SetProperty( "name", mitk::StringProperty::New("warped image") );

  // add the new datatree node to the datatree
  this->GetDefaultDataStorage()->Add(newNode);
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();

  //Image::Pointer outputImage = this->GetOutput();
  //mitk::CastToMitkImage( warper->GetOutput(), outputImage );


}

void QmitkDeformableRegistrationView::Calculate ( ) [protected, slot]

Performs the registration.

Definition at line 541 of file QmitkDeformableRegistrationView.cpp.

References calculateBSplineRegistration(), QmitkDemonsRegistrationView::CalculateTransformation(), QmitkFunctionality::GetDataStorage(), QmitkDemonsRegistrationView::GetResultDeformationfield(), QmitkDemonsRegistrationView::GetResultImage(), m_Controls, Ui_QmitkDeformableRegistrationViewControls::m_DeformableTransform, m_FixedNode, m_MovingNode, Ui_QmitkDeformableRegistrationViewControls::m_QmitkBSplineRegistrationViewControls, Ui_QmitkDeformableRegistrationViewControls::m_QmitkDemonsRegistrationViewControls, mitk::VectorImageMapper2D::New(), mitk::LevelWindowProperty::New(), mitk::DataNode::New(), mitk::LevelWindow::SetAuto(), QmitkBSplineRegistrationView::SetFixedNode(), QmitkDemonsRegistrationView::SetFixedNode(), QmitkBSplineRegistrationView::SetMovingNode(), and QmitkDemonsRegistrationView::SetMovingNode().

Referenced by CreateConnections().

{
  if (m_Controls.m_DeformableTransform->tabText(m_Controls.m_DeformableTransform->currentIndex()) == "Demons")
  {
    m_Controls.m_QmitkDemonsRegistrationViewControls->SetFixedNode(m_FixedNode);
    m_Controls.m_QmitkDemonsRegistrationViewControls->SetMovingNode(m_MovingNode);
    try
    {
      m_Controls.m_QmitkDemonsRegistrationViewControls->CalculateTransformation();
    }
    catch (itk::ExceptionObject& excpt)
    {
      QMessageBox::information( NULL, "Registration exception", excpt.GetDescription(), QMessageBox::Ok );
      return;
    }
    mitk::Image::Pointer resultImage = m_Controls.m_QmitkDemonsRegistrationViewControls->GetResultImage();
    mitk::Image::Pointer resultDeformationField = m_Controls.m_QmitkDemonsRegistrationViewControls->GetResultDeformationfield();
    if (resultImage.IsNotNull())
    {
      mitk::DataNode::Pointer resultImageNode = mitk::DataNode::New();
      resultImageNode->SetData(resultImage);
      mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
      mitk::LevelWindow levelWindow;
      levelWindow.SetAuto( resultImage );
      levWinProp->SetLevelWindow(levelWindow);
      resultImageNode->GetPropertyList()->SetProperty("levelwindow",levWinProp);
      resultImageNode->SetStringProperty("name", "DeformableRegistrationResultImage");
      this->GetDataStorage()->Add(resultImageNode, m_MovingNode);
    }
    if (resultDeformationField.IsNotNull())
    {
      mitk::DataNode::Pointer resultDeformationFieldNode = mitk::DataNode::New();
      resultDeformationFieldNode->SetData(resultDeformationField);
      mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
      mitk::LevelWindow levelWindow;
      levelWindow.SetAuto( resultDeformationField );
      levWinProp->SetLevelWindow(levelWindow);
      resultDeformationFieldNode->GetPropertyList()->SetProperty("levelwindow",levWinProp);
      resultDeformationFieldNode->SetStringProperty("name", "DeformableRegistrationResultDeformationField");
      mitk::VectorImageMapper2D::Pointer mapper = mitk::VectorImageMapper2D::New();
      resultDeformationFieldNode->SetMapper(1, mapper);
      resultDeformationFieldNode->SetVisibility(false);
      this->GetDataStorage()->Add(resultDeformationFieldNode, m_MovingNode);
    }
  }

  else if (m_Controls.m_DeformableTransform->tabText(m_Controls.m_DeformableTransform->currentIndex()) == "B-Spline")
  {
    m_Controls.m_QmitkBSplineRegistrationViewControls->SetFixedNode(m_FixedNode);
    m_Controls.m_QmitkBSplineRegistrationViewControls->SetMovingNode(m_MovingNode);
    emit calculateBSplineRegistration();
  }
}

void QmitkDeformableRegistrationView::calculateBSplineRegistration ( ) [signal]

Signal that informs about that the BSpline registration should be performed.

Referenced by Calculate(), and CreateConnections().

bool QmitkDeformableRegistrationView::CheckCalculate ( ) [protected, slot]

checks if registration is possible

Definition at line 479 of file QmitkDeformableRegistrationView.cpp.

References m_FixedNode, and m_MovingNode.

{
  if(m_MovingNode==m_FixedNode)
    return false;
  return true;
}

void QmitkDeformableRegistrationView::CheckCalculateEnabled ( ) [protected, slot]

Checks whether the registration can be performed.

Definition at line 529 of file QmitkDeformableRegistrationView.cpp.

References Ui_QmitkDeformableRegistrationViewControls::m_CalculateTransformation, m_Controls, m_FixedNode, and m_MovingNode.

Referenced by CreateQtPartControl(), FixedSelected(), and MovingSelected().

{
  if (m_FixedNode.IsNotNull() && m_MovingNode.IsNotNull())
  {
    m_Controls.m_CalculateTransformation->setEnabled(true);
  }
  else
  {
    m_Controls.m_CalculateTransformation->setEnabled(false);
  }
}

void QmitkDeformableRegistrationView::CreateConnections ( ) [virtual]

method for creating the connections of main and control widget

Definition at line 310 of file QmitkDeformableRegistrationView.cpp.

Referenced by CreateQtPartControl().

{
  connect(m_Controls.m_ShowRedGreenValues, SIGNAL(toggled(bool)), this, SLOT(ShowRedGreen(bool)));
  connect(m_Controls.m_DeformableTransform, SIGNAL(currentChanged(int)), this, SLOT(TabChanged(int)));
  connect(m_Controls.m_OpacitySlider, SIGNAL(sliderMoved(int)), this, SLOT(OpacityUpdate(int)));
  connect(m_Controls.m_CalculateTransformation, SIGNAL(clicked()), this, SLOT(Calculate()));
  connect((QObject*)(m_Controls.m_SwitchImages),SIGNAL(clicked()),this,SLOT(SwitchImages()));
  connect(this,SIGNAL(calculateBSplineRegistration()),m_Controls.m_QmitkBSplineRegistrationViewControls,SLOT(CalculateTransformation()));
  connect( (QObject*)(m_Controls.m_QmitkBSplineRegistrationViewControls->m_Controls.m_ApplyDeformationField),
    SIGNAL(clicked()),
    (QObject*) this,
    SLOT(ApplyDeformationField()) );
}

void QmitkDeformableRegistrationView::CreateQtPartControl ( QWidget * parent ) [virtual]

method for creating the applications main widget

Implements berry::QtViewPart.

Definition at line 187 of file QmitkDeformableRegistrationView.cpp.

{
  m_Controls.setupUi(parent);
  m_Parent->setEnabled(false);
  this->CreateConnections();
  m_Controls.TextLabelFixed->hide();
  m_Controls.m_SwitchImages->hide();
  m_Controls.m_FixedLabel->hide();
  m_Controls.TextLabelMoving->hide();
  m_Controls.m_MovingLabel->hide();
  m_Controls.m_OpacityLabel->setEnabled(false);
  m_Controls.m_OpacitySlider->setEnabled(false);
  m_Controls.label->setEnabled(false);
  m_Controls.label_2->setEnabled(false);
  m_Controls.m_ShowRedGreenValues->setEnabled(false);
  m_Controls.m_DeformableTransform->hide();
  if (m_Controls.m_DeformableTransform->currentIndex() == 0)
  {
    m_Controls.m_QmitkDemonsRegistrationViewControls->show();
    m_Controls.m_QmitkBSplineRegistrationViewControls->hide();
  }
  else
  {
    m_Controls.m_QmitkDemonsRegistrationViewControls->hide();
    m_Controls.m_QmitkBSplineRegistrationViewControls->show();
  }
  this->CheckCalculateEnabled();
}

void QmitkDeformableRegistrationView::DataNodeHasBeenRemoved ( const mitk::DataNode * node )

Definition at line 216 of file QmitkDeformableRegistrationView.cpp.

Referenced by QmitkDeformableRegistrationView().

{
  if(node == m_FixedNode || node == m_MovingNode)
  {
    m_Controls.m_StatusLabel->show();
    m_Controls.TextLabelFixed->hide();
    m_Controls.m_SwitchImages->hide();
    m_Controls.m_FixedLabel->hide();
    m_Controls.TextLabelMoving->hide();
    m_Controls.m_MovingLabel->hide();
    m_Controls.m_OpacityLabel->setEnabled(false);
    m_Controls.m_OpacitySlider->setEnabled(false);
    m_Controls.label->setEnabled(false);
    m_Controls.label_2->setEnabled(false);
    m_Controls.m_ShowRedGreenValues->setEnabled(false);
    m_Controls.m_DeformableTransform->hide();
    m_Controls.m_CalculateTransformation->setEnabled(false);
  }

}

void QmitkDeformableRegistrationView::Deactivated ( ) [virtual]

Method which is called whenever the functionality is deselected in MITK.

Reimplemented from QmitkFunctionality.

Definition at line 361 of file QmitkDeformableRegistrationView.cpp.

References berry::WorkbenchPart::GetSite(), m_Deactivated, m_FixedNode, m_MovingNode, m_OriginalOpacity, m_SelListener, berry::ISelectionService::RemovePostSelectionListener(), and SetImageColor().

{
  m_Deactivated = true;
  this->SetImageColor(false);
  if (m_FixedNode.IsNotNull())
    m_FixedNode->SetOpacity(1.0);
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_OriginalOpacity);
  }
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;
}

void QmitkDeformableRegistrationView::FixedSelected ( mitk::DataNode::Pointer fixedImage ) [protected, slot]

sets the fixed Image according to TreeNodeSelector widget

Definition at line 398 of file QmitkDeformableRegistrationView.cpp.

References CheckCalculateEnabled(), mitk::RenderingManager::GetInstance(), m_Controls, m_FixedColor, Ui_QmitkDeformableRegistrationViewControls::m_FixedLabel, m_FixedNode, m_ShowRedGreen, Ui_QmitkDeformableRegistrationViewControls::m_SwitchImages, mitk::BoolProperty::New(), SetImageColor(), and Ui_QmitkDeformableRegistrationViewControls::TextLabelFixed.

Referenced by SwitchImages().

{
  if (fixedImage.IsNotNull())
  {
    if (m_FixedNode != fixedImage)
    {
      // remove changes on previous selected node
      if (m_FixedNode.IsNotNull())
      {
        this->SetImageColor(false);
        m_FixedNode->SetOpacity(1.0);
        m_FixedNode->SetVisibility(false);
        m_FixedNode->SetProperty("selectedFixedImage", mitk::BoolProperty::New(false));
      }
      // get selected node
      m_FixedNode = fixedImage;
      m_FixedNode->SetOpacity(0.5);
      m_Controls.TextLabelFixed->setText(QString::fromStdString(m_FixedNode->GetName()));
      m_Controls.m_FixedLabel->show();
      m_Controls.TextLabelFixed->show();
      m_Controls.m_SwitchImages->show();
      mitk::ColorProperty::Pointer colorProperty;
      colorProperty = dynamic_cast<mitk::ColorProperty*>(m_FixedNode->GetProperty("color"));
      if ( colorProperty.IsNotNull() )
      {
        m_FixedColor = colorProperty->GetColor();
      }
      this->SetImageColor(m_ShowRedGreen);
      m_FixedNode->SetVisibility(true);
      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    }
  }
  else
  {
    m_FixedNode = fixedImage;
    m_Controls.m_FixedLabel->hide();
    m_Controls.TextLabelFixed->hide();
    m_Controls.m_SwitchImages->hide();
  }
  this->CheckCalculateEnabled();
}

void QmitkDeformableRegistrationView::Hidden ( ) [virtual]

Called when this functionality is hidden ( no matter what IsExclusiveFunctionality() returns )

Reimplemented from QmitkFunctionality.

Definition at line 379 of file QmitkDeformableRegistrationView.cpp.

{
  /*
  m_Deactivated = true;
  this->SetImageColor(false);
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_OriginalOpacity);
  }
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;*/
  //mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  //QmitkFunctionality::Deactivated();
}

void QmitkDeformableRegistrationView::MovingSelected ( mitk::DataNode::Pointer movingImage ) [protected, slot]

sets the moving Image according to TreeNodeSelector widget

Definition at line 440 of file QmitkDeformableRegistrationView.cpp.

References CheckCalculateEnabled(), mitk::RenderingManager::GetInstance(), m_Controls, m_FixedNode, m_MovingColor, Ui_QmitkDeformableRegistrationViewControls::m_MovingLabel, m_MovingNode, m_Opacity, m_OriginalOpacity, m_ShowRedGreen, OpacityUpdate(), SetImageColor(), and Ui_QmitkDeformableRegistrationViewControls::TextLabelMoving.

Referenced by SwitchImages().

{
  if (movingImage.IsNotNull())
  {
    if (m_MovingNode != movingImage)
    {
      if (m_MovingNode.IsNotNull())
      {
        m_MovingNode->SetOpacity(m_OriginalOpacity);
        if (m_FixedNode == m_MovingNode)
          m_FixedNode->SetOpacity(0.5);
        this->SetImageColor(false);
      }
      m_MovingNode = movingImage;
      m_Controls.TextLabelMoving->setText(QString::fromStdString(m_MovingNode->GetName()));
      m_Controls.m_MovingLabel->show();
      m_Controls.TextLabelMoving->show();
      mitk::ColorProperty::Pointer colorProperty;
      colorProperty = dynamic_cast<mitk::ColorProperty*>(m_MovingNode->GetProperty("color"));
      if ( colorProperty.IsNotNull() )
      {
        m_MovingColor = colorProperty->GetColor();
      }
      this->SetImageColor(m_ShowRedGreen);
      m_MovingNode->GetFloatProperty("opacity", m_OriginalOpacity);
      this->OpacityUpdate(m_Opacity);
      m_MovingNode->SetVisibility(true);
      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    }
  }
  else
  {
    m_MovingNode = NULL;
    m_Controls.m_MovingLabel->hide();
    m_Controls.TextLabelMoving->hide();
  }
  this->CheckCalculateEnabled();
}

void QmitkDeformableRegistrationView::OpacityUpdate ( float opacity ) [protected, slot]

set the selected opacity for moving image

Parameters:

opacity the selected opacity

Definition at line 513 of file QmitkDeformableRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_MovingNode, and m_Opacity.

Referenced by Activated(), CreateConnections(), MovingSelected(), and OpacityUpdate().

{
  m_Opacity = opacity;
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_Opacity);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkDeformableRegistrationView::OpacityUpdate ( int opacity ) [protected, slot]

Sets the selected opacity for moving image.

Parameters:

opacity the selected opacity

Definition at line 523 of file QmitkDeformableRegistrationView.cpp.

References OpacityUpdate().

{
  float fValue = ((float)opacity)/100.0f;
  this->OpacityUpdate(fValue);
}

void QmitkDeformableRegistrationView::reinitFixed ( const mitk::Geometry3D * ) [signal]

Signal that informs about that the fixed image should be reinitialized in the multi-widget.

void QmitkDeformableRegistrationView::reinitMoving ( const mitk::Geometry3D * ) [signal]

Signal that informs about that the moving image should be reinitialized in the multi-widget.

void QmitkDeformableRegistrationView::SetImageColor ( bool redGreen ) [protected, slot]

sets the images to grayvalues or fixed image to red and moving image to green

Parameters:

redGreen if true, then images will be shown in red and green

Definition at line 492 of file QmitkDeformableRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_FixedColor, m_FixedNode, m_MovingColor, and m_MovingNode.

Referenced by Deactivated(), FixedSelected(), MovingSelected(), and ShowRedGreen().

{
  if (!redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(m_FixedColor);
  }
  if (!redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(m_MovingColor);
  }
  if (redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(1.0f, 0.0f, 0.0f);
  }
  if (redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(0.0f, 1.0f, 0.0f);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkDeformableRegistrationView::SetImagesVisible ( berry::ISelection::ConstPointer selection ) [protected, slot]

Definition at line 595 of file QmitkDeformableRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), and m_CurrentSelection.

{
  if (this->m_CurrentSelection->Size() == 0)
  {
    // show all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(true);
      }
    }
  }
  else
  {
    // hide all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(false);
      }
    }
  }
}

void QmitkDeformableRegistrationView::ShowRedGreen ( bool show ) [protected, slot]

stores whether the image will be shown in grayvalues or in red for fixed image and green for moving image

Parameters:

show	if true, then images will be shown in red and green

Definition at line 486 of file QmitkDeformableRegistrationView.cpp.

References m_ShowRedGreen, and SetImageColor().

Referenced by Activated(), and CreateConnections().

{
  m_ShowRedGreen = redGreen;
  this->SetImageColor(m_ShowRedGreen);
}

void QmitkDeformableRegistrationView::StdMultiWidgetAvailable ( QmitkStdMultiWidget & stdMultiWidget ) [virtual]

Sets the StdMultiWidget and connects it to the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 297 of file QmitkDeformableRegistrationView.cpp.

References m_MultiWidget, QmitkFunctionality::m_Parent, and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

{
  m_Parent->setEnabled(true);
  m_MultiWidget = &stdMultiWidget;
  m_MultiWidget->SetWidgetPlanesVisibility(true);
}

void QmitkDeformableRegistrationView::StdMultiWidgetNotAvailable ( ) [virtual]

Removes the StdMultiWidget and disconnects it from the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 304 of file QmitkDeformableRegistrationView.cpp.

References m_MultiWidget, and QmitkFunctionality::m_Parent.

{
  m_Parent->setEnabled(false);
  m_MultiWidget = NULL;
}

void QmitkDeformableRegistrationView::SwitchImages ( ) [protected, slot]

Definition at line 639 of file QmitkDeformableRegistrationView.cpp.

References FixedSelected(), m_FixedNode, m_MovingNode, and MovingSelected().

Referenced by CreateConnections().

{
  mitk::DataNode::Pointer newMoving = m_FixedNode;
  mitk::DataNode::Pointer newFixed = m_MovingNode;
  this->FixedSelected(newFixed);
  this->MovingSelected(newMoving);
}

void QmitkDeformableRegistrationView::TabChanged ( int index ) [protected, slot]

Definition at line 625 of file QmitkDeformableRegistrationView.cpp.

References m_Controls, Ui_QmitkDeformableRegistrationViewControls::m_QmitkBSplineRegistrationViewControls, and Ui_QmitkDeformableRegistrationViewControls::m_QmitkDemonsRegistrationViewControls.

Referenced by CreateConnections().

{
  if (index == 0)
  {
    m_Controls.m_QmitkDemonsRegistrationViewControls->show();
    m_Controls.m_QmitkBSplineRegistrationViewControls->hide();
  }
  else
  {
    m_Controls.m_QmitkDemonsRegistrationViewControls->hide();
    m_Controls.m_QmitkBSplineRegistrationViewControls->show();
  }
}

void QmitkDeformableRegistrationView::Visible ( ) [virtual]

Called when this functionality becomes visible ( no matter what IsExclusiveFunctionality() returns )

Reimplemented from QmitkFunctionality.

Definition at line 342 of file QmitkDeformableRegistrationView.cpp.

{
  /*
  m_Deactivated = false;
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  QmitkFunctionality::Activated();
  if (m_SelListener.IsNull())
  {
    m_SelListener = berry::ISelectionListener::Pointer(new SelListenerDeformableRegistration(this));
    this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener("org.mitk.views.datamanager", m_SelListener);
    berry::ISelection::ConstPointer sel(
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
    m_CurrentSelection = sel.Cast<const IStructuredSelection>();
    m_SelListener.Cast<SelListenerDeformableRegistration>()->DoSelectionChanged(sel);
  }
  this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
  this->ShowRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());*/
}
