Widget for deformable demons registration. More...

#include <QmitkBSplineRegistrationView.h>

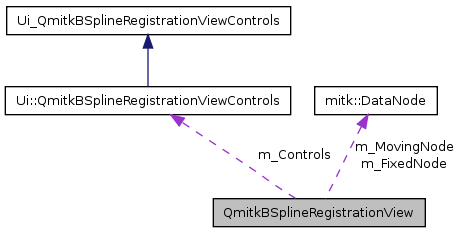

Collaboration diagram for QmitkBSplineRegistrationView:

Public Slots
void	CalculateTransformation ()
Public Member Functions
	QmitkBSplineRegistrationView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkBSplineRegistrationView ()
int	GetNumberOfIterations ()
void	SetFixedNode (mitk::DataNode *fixedNode)
void	SetMovingNode (mitk::DataNode *movingNode)
Public Attributes
Ui::QmitkBSplineRegistrationViewControls	m_Controls
Protected Slots
void	PrintDeformationField ()
void	SelectDeformationField ()
void	OptimizerSelected (int optimizer)
void	HideAllOptimizerFrames ()
Protected Member Functions
void	setOptimizerParameters ()
Protected Attributes
mitk::DataNode *	m_FixedNode
mitk::DataNode *	m_MovingNode
mitk::OptimizerParameters::Pointer	m_OptimizerParameters

Detailed Description

Widget for deformable demons registration.

Displays options for demons registration.

Definition at line 32 of file QmitkBSplineRegistrationView.h.

Constructor & Destructor Documentation

QmitkBSplineRegistrationView::QmitkBSplineRegistrationView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 38 of file QmitkBSplineRegistrationView.cpp.

References Ui_QmitkBSplineRegistrationViewControls::m_BrowseDeformationField, m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_OptimizerSelector, Ui_QmitkBSplineRegistrationViewControls::m_OptimizerWidgetStack, Ui_QmitkBSplineRegistrationViewControls::m_PrintDeformField, OptimizerSelected(), PrintDeformationField(), SelectDeformationField(), and Ui_QmitkBSplineRegistrationViewControls::setupUi().

                                                                                            : QWidget( parent, f ),
m_FixedNode(NULL), m_MovingNode(NULL)
{
  m_Controls.setupUi(parent);

  QObject::connect( (QObject*)(m_Controls.m_PrintDeformField),
              SIGNAL(clicked()),
              (QObject*) this,
              SLOT(PrintDeformationField()) );




  QObject::connect( (QObject*)(m_Controls.m_BrowseDeformationField),
              SIGNAL(clicked()),
              (QObject*) this,
              SLOT(SelectDeformationField()) );

  connect( m_Controls.m_OptimizerSelector, SIGNAL(activated(int)), m_Controls.m_OptimizerWidgetStack, SLOT(setCurrentIndex(int)));
  connect( m_Controls.m_OptimizerSelector, SIGNAL(activated(int)), this, SLOT(OptimizerSelected(int)));

}

QmitkBSplineRegistrationView::~QmitkBSplineRegistrationView ( )

Definition at line 61 of file QmitkBSplineRegistrationView.cpp.

{
}

Member Function Documentation

void QmitkBSplineRegistrationView::CalculateTransformation ( ) [slot]

Definition at line 133 of file QmitkBSplineRegistrationView.cpp.

References mitk::DataNode::GetData(), mitk::RenderingManager::GetInstance(), mitk::DataNode::GetPropertyList(), m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_DeformationField, m_FixedNode, m_MovingNode, Ui_QmitkBSplineRegistrationViewControls::m_NumberOfGridNodes, m_OptimizerParameters, Ui_QmitkBSplineRegistrationViewControls::m_SaveDeformFieldCheck, mitk::LevelWindowProperty::New(), mitk::BSplineRegistration::New(), mitk::LevelWindow::SetAuto(), mitk::DataNode::SetData(), setOptimizerParameters(), and mitk::PropertyList::SetProperty().

{
  if (m_FixedNode != NULL && m_MovingNode != NULL)
  {
    mitk::Image::Pointer fimage = dynamic_cast<mitk::Image*>(m_FixedNode->GetData());
    mitk::Image::Pointer mimage = dynamic_cast<mitk::Image*>(m_MovingNode->GetData());


    mitk::BSplineRegistration::Pointer registration = mitk::BSplineRegistration::New();

    registration->SetSaveResult(false);
    registration->SetReferenceImage(fimage);
    registration->SetInput(mimage);

    // Read out optimizer parameters from the interface
    setOptimizerParameters();

    registration->SetNumberOfGridPoints( m_Controls.m_NumberOfGridNodes->text().toInt() );
    registration->SetOptimizerParameters(m_OptimizerParameters);
    registration->SetUpdateInputImage(true);

    if(m_Controls.m_SaveDeformFieldCheck->isChecked())
    {
      // Set some parameters to save the deformation field
      registration->SetSaveDeformationField(true);
      registration->SetDeformationFileName( m_Controls.m_DeformationField->text().toStdString() );
    }


    try
    {
      registration->Update();
    }
    catch (itk::ExceptionObject& excpt)
    {
      QMessageBox::information( this, "Registration exception", excpt.GetDescription(), QMessageBox::Ok );
    }

    mitk::Image::Pointer image = registration->GetOutput();

    if (image.IsNotNull())
    {
      m_MovingNode->SetData(image);
      mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
      mitk::LevelWindow levelWindow;
      levelWindow.SetAuto( image );
      levWinProp->SetLevelWindow(levelWindow);
      m_MovingNode->GetPropertyList()->SetProperty("levelwindow",levWinProp);
    }

    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  }
}

int QmitkBSplineRegistrationView::GetNumberOfIterations ( )

void QmitkBSplineRegistrationView::HideAllOptimizerFrames ( ) [protected, slot]

Definition at line 79 of file QmitkBSplineRegistrationView.cpp.

References m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_GradientDescentFrame, and Ui_QmitkBSplineRegistrationViewControls::m_LBFGSFrame.

Referenced by OptimizerSelected().

{
  m_Controls.m_LBFGSFrame->hide();
  m_Controls.m_GradientDescentFrame->hide();
}

void QmitkBSplineRegistrationView::OptimizerSelected ( int optimizer ) [protected, slot]

Definition at line 66 of file QmitkBSplineRegistrationView.cpp.

References HideAllOptimizerFrames(), m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_GradientDescentFrame, and Ui_QmitkBSplineRegistrationViewControls::m_LBFGSFrame.

Referenced by QmitkBSplineRegistrationView().

{
  HideAllOptimizerFrames();
  if(optimizer == 0)
  {
    m_Controls.m_LBFGSFrame->show();
  }
  else if(optimizer == 1)
  {
    m_Controls.m_GradientDescentFrame->show();
  }
}

void QmitkBSplineRegistrationView::PrintDeformationField ( ) [protected, slot]

Prints the values of the deformationfield

Definition at line 113 of file QmitkBSplineRegistrationView.cpp.

References m_Controls, and Ui_QmitkBSplineRegistrationViewControls::m_DeformationField.

Referenced by QmitkBSplineRegistrationView().

{

  ImageReaderType::Pointer reader  = ImageReaderType::New();
  reader->SetFileName(  m_Controls.m_DeformationField->text().toStdString()  );
  reader->Update();

  DeformationFieldType::Pointer deformationField = reader->GetOutput();


  typedef itk::ImageRegionIterator<DeformationFieldType> IteratorType;
  IteratorType deformIter(deformationField, deformationField->GetRequestedRegion());

  for(deformIter.GoToBegin(); !deformIter.IsAtEnd(); ++deformIter)
  {
    std::cout << deformIter.Get() << std::endl;
  }
}

void QmitkBSplineRegistrationView::SelectDeformationField ( ) [protected, slot]

Select a deformation field

Definition at line 85 of file QmitkBSplineRegistrationView.cpp.

References m_Controls, and Ui_QmitkBSplineRegistrationViewControls::m_DeformationField.

Referenced by QmitkBSplineRegistrationView().

{
  // SELECT FOLDER DIALOG
  QFileDialog* w = new QFileDialog( this, "Select Deformation Field" );
  w->setFileMode( QFileDialog::ExistingFiles );
  w->setFilter( "Images (*.mhd)" );
  w->setDirectory("G:\\home\\vanbrugg\\testimages\\deformable");

  // RETRIEVE SELECTION
  if ( w->exec() != QDialog::Accepted )
  {
    return;
    cout << "Failed to load" << endl;
  }

  QStringList filenames = w->selectedFiles();
  QStringList::Iterator it = filenames.begin();
  if( it != filenames.end() ) {
    std::string filename = ( *it ).toStdString();
    ++it;
    QString qStr = QString( filename.c_str() );
    m_Controls.m_DeformationField->setText(qStr);
  }

}

void QmitkBSplineRegistrationView::SetFixedNode ( mitk::DataNode * fixedNode )

Definition at line 208 of file QmitkBSplineRegistrationView.cpp.

References m_FixedNode.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  m_FixedNode = fixedNode;
}

void QmitkBSplineRegistrationView::SetMovingNode ( mitk::DataNode * movingNode )

Definition at line 213 of file QmitkBSplineRegistrationView.cpp.

References m_MovingNode.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  m_MovingNode = movingNode;
}

void QmitkBSplineRegistrationView::setOptimizerParameters ( ) [protected]

Definition at line 187 of file QmitkBSplineRegistrationView.cpp.

References mitk::OptimizerParameters::GRADIENTDESCENTOPTIMIZER, mitk::OptimizerParameters::LBFGSOPTIMIZER, m_Controls, Ui_QmitkBSplineRegistrationViewControls::m_DefaultStepLength, Ui_QmitkBSplineRegistrationViewControls::m_FunctionEvaluations, Ui_QmitkBSplineRegistrationViewControls::m_GradConvTolerance, Ui_QmitkBSplineRegistrationViewControls::m_LearningRateGradientDescent, Ui_QmitkBSplineRegistrationViewControls::m_LineSearchAccuracy, Ui_QmitkBSplineRegistrationViewControls::m_NumberOfIterationsGradientDescent, m_OptimizerParameters, Ui_QmitkBSplineRegistrationViewControls::m_OptimizerSelector, and mitk::OptimizerParameters::New().

Referenced by CalculateTransformation().

{
  m_OptimizerParameters = mitk::OptimizerParameters::New();

  if(m_Controls.m_OptimizerSelector->currentText() == "LBFGSOptimizer")
  {
    m_OptimizerParameters->SetOptimizer(mitk::OptimizerParameters::LBFGSOPTIMIZER);
    m_OptimizerParameters->SetGradientConvergenceToleranceLBFGS( m_Controls.m_GradConvTolerance->text().toFloat() );
    m_OptimizerParameters->SetLineSearchAccuracyLBFGS( m_Controls.m_LineSearchAccuracy->text().toFloat() );
    m_OptimizerParameters->SetDefaultStepLengthLBFGS( m_Controls.m_DefaultStepLength->text().toFloat() );
    m_OptimizerParameters->SetNumberOfIterationsLBFGS( m_Controls.m_FunctionEvaluations->text().toInt() );
  }
  else if(m_Controls.m_OptimizerSelector->currentText() == "Gradient Descent")
  {
    m_OptimizerParameters->SetOptimizer(mitk::OptimizerParameters::GRADIENTDESCENTOPTIMIZER);
    m_OptimizerParameters->SetLearningRateGradientDescent( m_Controls.m_LearningRateGradientDescent->text().toFloat() );
    m_OptimizerParameters->SetNumberOfIterationsGradientDescent (m_Controls.m_NumberOfIterationsGradientDescent->text().toInt() );
  }
}
