Widget for deformable demons registration. More...

#include <QmitkDemonsRegistrationView.h>

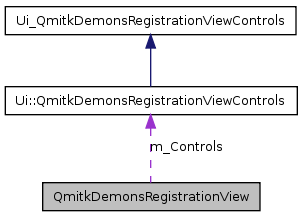

Collaboration diagram for QmitkDemonsRegistrationView:

Public Slots
void	CalculateTransformation ()
Public Member Functions
	QmitkDemonsRegistrationView (QWidget *parent=0, Qt::WindowFlags f=0)
	~QmitkDemonsRegistrationView ()
int	GetNumberOfIterations ()
float	GetStandardDeviation ()
void	SetFixedNode (mitk::DataNode *fixedNode)
void	SetMovingNode (mitk::DataNode *movingNode)
void	UseHistogramMatching (bool useHM)
mitk::Image::Pointer	GetResultImage ()
mitk::Image::Pointer	GetResultDeformationfield ()
Protected Attributes
Ui::QmitkDemonsRegistrationViewControls	m_Controls
mitk::DataNode::Pointer	m_FixedNode
mitk::DataNode::Pointer	m_MovingNode
mitk::Image::Pointer	m_ResultImage
mitk::Image::Pointer	m_ResultDeformationField

Detailed Description

Widget for deformable demons registration.

Displays options for demons registration.

Definition at line 31 of file QmitkDemonsRegistrationView.h.

Constructor & Destructor Documentation

QmitkDemonsRegistrationView::QmitkDemonsRegistrationView	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 32 of file QmitkDemonsRegistrationView.cpp.

References m_Controls, Ui_QmitkDemonsRegistrationViewControls::m_Iterations, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfHistogramLevels, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfMatchPoints, Ui_QmitkDemonsRegistrationViewControls::m_StandardDeviation, and Ui_QmitkDemonsRegistrationViewControls::setupUi().

                                                                                          : QWidget( parent, f ),
m_FixedNode(NULL), m_MovingNode(NULL), m_ResultImage(NULL), m_ResultDeformationField(NULL)
{
  m_Controls.setupUi(parent);

  QValidator* validatorHistogramLevels = new QIntValidator(1, 20000000, this);
  m_Controls.m_NumberOfHistogramLevels->setValidator(validatorHistogramLevels);

  QValidator* validatorMatchPoints = new QIntValidator(1, 20000000, this);
  m_Controls.m_NumberOfMatchPoints->setValidator(validatorMatchPoints);

  QValidator* validatorIterations = new QIntValidator(1, 20000000, this);
  m_Controls.m_Iterations->setValidator(validatorIterations);

  QValidator* validatorStandardDeviation = new QDoubleValidator(0, 20000000, 2, this);
  m_Controls.m_StandardDeviation->setValidator(validatorStandardDeviation);
}

QmitkDemonsRegistrationView::~QmitkDemonsRegistrationView ( )

Definition at line 50 of file QmitkDemonsRegistrationView.cpp.

{
}

Member Function Documentation

void QmitkDemonsRegistrationView::CalculateTransformation ( ) [slot]

Definition at line 75 of file QmitkDemonsRegistrationView.cpp.

References mitk::ProgressBar::GetInstance(), mitk::SlicedData::GetLargestPossibleRegion(), mitk::ImportItkImage(), m_Controls, m_FixedNode, Ui_QmitkDemonsRegistrationViewControls::m_Iterations, m_MovingNode, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfHistogramLevels, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfMatchPoints, Ui_QmitkDemonsRegistrationViewControls::m_RegistrationSelection, m_ResultDeformationField, m_ResultImage, Ui_QmitkDemonsRegistrationViewControls::m_StandardDeviation, Ui_QmitkDemonsRegistrationViewControls::m_ThresholdAtMeanIntensity, Ui_QmitkDemonsRegistrationViewControls::m_UseHistogramMatching, mitk::SymmetricForcesDemonsRegistration::New(), mitk::HistogramMatching::New(), and mitk::DemonsRegistration::New().

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  if (m_FixedNode.IsNotNull() && m_MovingNode.IsNotNull())
  {
    mitk::Image::Pointer fimage = dynamic_cast<mitk::Image*>(m_FixedNode->GetData());
    mitk::Image::Pointer mimage = dynamic_cast<mitk::Image*>(m_MovingNode->GetData());
    // workaround to ensure that fimage covers a bigger region than mimage
    mitk::Image::RegionType fimageRegion = fimage->GetLargestPossibleRegion();
    mitk::Image::RegionType mimageRegion = mimage->GetLargestPossibleRegion();
    if (!((fimageRegion.GetSize(0)>=mimageRegion.GetSize(0))&&(fimageRegion.GetSize(1)>=mimageRegion.GetSize(1))
        &&(fimageRegion.GetSize(2)>=mimageRegion.GetSize(2))))
    {
      QMessageBox::information(NULL,"Registration","Fixed image must be equal or bigger in size than moving image.");
      return;
    }
    if ( m_Controls.m_RegistrationSelection->currentIndex() == 0)
    {
      mitk::DemonsRegistration::Pointer registration = mitk::DemonsRegistration::New();
      registration->SetSaveDeformationField(false);
      registration->SetSaveResult(false);
      registration->SetReferenceImage(fimage);
      registration->SetNumberOfIterations(atoi(m_Controls.m_Iterations->text().toLatin1()));
      registration->SetStandardDeviation(atof(m_Controls.m_StandardDeviation->text().toLatin1()));
      if (m_Controls.m_UseHistogramMatching->isChecked())
      {
        mitk::HistogramMatching::Pointer histogramMatching = mitk::HistogramMatching::New();
        histogramMatching->SetReferenceImage(fimage);
        histogramMatching->SetInput(mimage);
        histogramMatching->SetNumberOfHistogramLevels(atoi(m_Controls.m_NumberOfHistogramLevels->text().toLatin1()));
        histogramMatching->SetNumberOfMatchPoints(atoi(m_Controls.m_NumberOfMatchPoints->text().toLatin1()));
        histogramMatching->SetThresholdAtMeanIntensity(m_Controls.m_ThresholdAtMeanIntensity->isChecked());
        histogramMatching->Update();
        mitk::Image::Pointer histimage = histogramMatching->GetOutput();
        if (histimage.IsNotNull())
        {
          registration->SetInput(histimage);
        }
        else
        {
          registration->SetInput(mimage);
        }
      }
      else
      {
        registration->SetInput(mimage);
      }
      try
      {
        registration->Update();
      }
      catch (itk::ExceptionObject& excpt)
      {
        QMessageBox::information( this, "Registration exception", excpt.GetDescription(), QMessageBox::Ok );
        mitk::ProgressBar::GetInstance()->Progress(4);
        return;
      }
      m_ResultImage = registration->GetOutput();
      typedef itk::Image<itk::Vector<float,3>, 3> VectorImageType;
      VectorImageType::Pointer deformationField = registration->GetDeformationField();
      m_ResultDeformationField = mitk::ImportItkImage(deformationField);
    }
    else if(m_Controls.m_RegistrationSelection->currentIndex() == 1)
    {
      mitk::SymmetricForcesDemonsRegistration::Pointer registration = mitk::SymmetricForcesDemonsRegistration::New();
      registration->SetSaveDeformationField(false);
      registration->SetSaveResult(false);
      registration->SetReferenceImage(fimage);
      registration->SetNumberOfIterations(atoi(m_Controls.m_Iterations->text().toLatin1()));
      registration->SetStandardDeviation(atof(m_Controls.m_StandardDeviation->text().toLatin1()));
      if (m_Controls.m_UseHistogramMatching->isChecked())
      {
        mitk::HistogramMatching::Pointer histogramMatching = mitk::HistogramMatching::New();
        histogramMatching->SetReferenceImage(fimage);
        histogramMatching->SetInput(mimage);
        histogramMatching->SetNumberOfHistogramLevels(atoi(m_Controls.m_NumberOfHistogramLevels->text().toLatin1()));
        histogramMatching->SetNumberOfMatchPoints(atoi(m_Controls.m_NumberOfMatchPoints->text().toLatin1()));
        histogramMatching->SetThresholdAtMeanIntensity(m_Controls.m_ThresholdAtMeanIntensity->isChecked());
        histogramMatching->Update();
        mitk::Image::Pointer histimage = histogramMatching->GetOutput();
        if (histimage.IsNotNull())
        {
          registration->SetInput(histimage);
        }
        else
        {
          registration->SetInput(mimage);
        }
      }
      else
      {
        registration->SetInput(mimage);
      }
      try
      {
        registration->Update();
      }
      catch (itk::ExceptionObject& excpt)
      {
        QMessageBox::information( this, "Registration exception", excpt.GetDescription(), QMessageBox::Ok );
        mitk::ProgressBar::GetInstance()->Progress(4);
        return;
      }
      m_ResultImage = registration->GetOutput();
      typedef itk::Image<itk::Vector<float,3>, 3> VectorImageType;
      VectorImageType::Pointer deformationField = registration->GetDeformationField();
      m_ResultDeformationField = mitk::ImportItkImage(deformationField);
    }
  }
}

int QmitkDemonsRegistrationView::GetNumberOfIterations ( )

Definition at line 55 of file QmitkDemonsRegistrationView.cpp.

References m_Controls, and Ui_QmitkDemonsRegistrationViewControls::m_Iterations.

{
  return atoi(m_Controls.m_Iterations->text().toLatin1());
}

mitk::Image::Pointer QmitkDemonsRegistrationView::GetResultDeformationfield ( )

Definition at line 70 of file QmitkDemonsRegistrationView.cpp.

References m_ResultDeformationField.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  return m_ResultDeformationField;
}

mitk::Image::Pointer QmitkDemonsRegistrationView::GetResultImage ( )

Definition at line 65 of file QmitkDemonsRegistrationView.cpp.

References m_ResultImage.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  return m_ResultImage;
}

float QmitkDemonsRegistrationView::GetStandardDeviation ( )

Definition at line 60 of file QmitkDemonsRegistrationView.cpp.

References m_Controls, and Ui_QmitkDemonsRegistrationViewControls::m_StandardDeviation.

{
  return atof(m_Controls.m_StandardDeviation->text().toLatin1());
}

void QmitkDemonsRegistrationView::SetFixedNode ( mitk::DataNode * fixedNode )

Definition at line 185 of file QmitkDemonsRegistrationView.cpp.

References m_FixedNode.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  m_FixedNode = fixedNode;
}

void QmitkDemonsRegistrationView::SetMovingNode ( mitk::DataNode * movingNode )

Definition at line 190 of file QmitkDemonsRegistrationView.cpp.

References m_MovingNode.

Referenced by QmitkDeformableRegistrationView::Calculate().

{
  m_MovingNode = movingNode;
}

void QmitkDemonsRegistrationView::UseHistogramMatching ( bool useHM )

Definition at line 195 of file QmitkDemonsRegistrationView.cpp.

References m_Controls, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfHistogramLevels, Ui_QmitkDemonsRegistrationViewControls::m_NumberOfMatchPoints, Ui_QmitkDemonsRegistrationViewControls::m_ThresholdAtMeanIntensity, Ui_QmitkDemonsRegistrationViewControls::numberOfHistogramLevels, Ui_QmitkDemonsRegistrationViewControls::numberOfMatchPoints, and Ui_QmitkDemonsRegistrationViewControls::thresholdAtMeanIntensity.

{
  if (useHM)
  {
    m_Controls.numberOfHistogramLevels->setEnabled(true);
    m_Controls.m_NumberOfHistogramLevels->setEnabled(true);
    m_Controls.numberOfMatchPoints->setEnabled(true);
    m_Controls.m_NumberOfMatchPoints->setEnabled(true);
    m_Controls.thresholdAtMeanIntensity->setEnabled(true);
    m_Controls.m_ThresholdAtMeanIntensity->setEnabled(true);
  }
  else
  {
    m_Controls.numberOfHistogramLevels->setEnabled(false);
    m_Controls.m_NumberOfHistogramLevels->setEnabled(false);
    m_Controls.numberOfMatchPoints->setEnabled(false);
    m_Controls.m_NumberOfMatchPoints->setEnabled(false);
    m_Controls.thresholdAtMeanIntensity->setEnabled(false);
    m_Controls.m_ThresholdAtMeanIntensity->setEnabled(false);
  }
}
