Vtk-based mapper for VolumeData. More...

#include <mitkVolumeDataVtkMapper3D.h>

Inheritance diagram for mitk::VolumeDataVtkMapper3D:

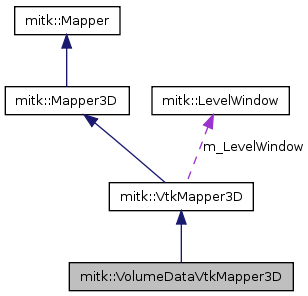

Collaboration diagram for mitk::VolumeDataVtkMapper3D:

Public Types
typedef VolumeDataVtkMapper3D	Self
typedef VtkMapper3D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual const mitk::Image *	GetInput ()
virtual void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer)
	Apply color and opacity read from the PropertyList.
virtual void	EnableMask ()
virtual void	DisableMask ()
Image::Pointer	GetMask ()
bool	SetMask (const Image *mask)
virtual void	UpdateMask ()
virtual bool	IsLODEnabled (BaseRenderer *renderer=NULL) const
virtual vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer)
Static Public Member Functions
static Pointer	New ()
static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=NULL, bool overwrite=false)
	Set default values of properties used by this mapper to node.
Protected Member Functions
	VolumeDataVtkMapper3D ()
virtual	~VolumeDataVtkMapper3D ()
virtual void	GenerateData (mitk::BaseRenderer *renderer)
	Generate the data needed for rendering into renderer.
void	CreateDefaultTransferFunctions ()
void	UpdateTransferFunctions (mitk::BaseRenderer *renderer)
void	SetPreferences ()
void	SetClippingPlane (vtkRenderWindowInteractor *interactor)
void	DelClippingPlane ()
Protected Attributes
vtkImageShiftScale *	m_ImageCast
vtkImageChangeInformation *	m_UnitSpacingImageFilter
vtkVolumeProperty *	m_VolumePropertyLow
vtkVolumeProperty *	m_VolumePropertyMed
vtkVolumeProperty *	m_VolumePropertyHigh
vtkVolumeTextureMapper2D *	m_T2DMapper
vtkVolumeRayCastMapper *	m_HiResMapper
vtkImageResample *	m_Resampler
vtkLODProp3D *	m_VolumeLOD
vtkCubeSource *	m_BoundingBox
vtkPolyDataMapper *	m_BoundingBoxMapper
vtkActor *	m_BoundingBoxActor
vtkAssembly *	m_Prop3DAssembly
vtkPlane *	m_ClippingPlane
vtkImplicitPlaneWidget *	m_PlaneWidget
vtkImageData *	m_Mask
vtkImageMask *	m_ImageMaskFilter
vtkPiecewiseFunction *	m_DefaultOpacityTransferFunction
vtkPiecewiseFunction *	m_DefaultGradientTransferFunction
vtkColorTransferFunction *	m_DefaultColorTransferFunction
int	m_LowResID
int	m_MedResID
int	m_HiResID
bool	m_PlaneSet
double	m_PlaneNormalA
double	m_PlaneNormalB
double	m_PlaneNormalC
std::set< vtkRenderWindow * >	m_RenderWindowInitialized

Detailed Description

Vtk-based mapper for VolumeData.

Definition at line 65 of file mitkVolumeDataVtkMapper3D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::VolumeDataVtkMapper3D::ConstPointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 68 of file mitkVolumeDataVtkMapper3D.h.

typedef itk::SmartPointer<Self> mitk::VolumeDataVtkMapper3D::Pointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 68 of file mitkVolumeDataVtkMapper3D.h.

typedef VolumeDataVtkMapper3D mitk::VolumeDataVtkMapper3D::Self

Reimplemented from mitk::VtkMapper3D.

Definition at line 68 of file mitkVolumeDataVtkMapper3D.h.

typedef VtkMapper3D mitk::VolumeDataVtkMapper3D::Superclass

Reimplemented from mitk::VtkMapper3D.

Definition at line 68 of file mitkVolumeDataVtkMapper3D.h.

Constructor & Destructor Documentation

mitk::VolumeDataVtkMapper3D::VolumeDataVtkMapper3D ( ) [protected]

Definition at line 70 of file mitkVolumeDataVtkMapper3D.cpp.

References CreateDefaultTransferFunctions(), m_BoundingBox, m_BoundingBoxActor, m_BoundingBoxMapper, m_ClippingPlane, m_HiResID, m_HiResMapper, m_ImageCast, m_ImageMaskFilter, m_MedResID, m_PlaneSet, m_PlaneWidget, m_Resampler, m_UnitSpacingImageFilter, m_VolumeLOD, m_VolumePropertyHigh, m_VolumePropertyLow, m_VolumePropertyMed, and New().

: m_Mask( NULL )
{
  m_PlaneSet = false;

  m_ClippingPlane = vtkPlane::New();
  m_PlaneWidget = vtkImplicitPlaneWidget::New();

  /*
  m_T2DMapper =  vtkVolumeTextureMapper2D::New();
  m_T2DMapper->SetMaximumNumberOfPlanes( 100 );
*/
  m_HiResMapper = vtkVolumeRayCastMapper::New();
  m_HiResMapper->SetSampleDistance(1.0); // 4 rays for every pixel

  m_HiResMapper->IntermixIntersectingGeometryOn();
  m_HiResMapper->SetNumberOfThreads( itk::MultiThreader::GetGlobalDefaultNumberOfThreads() );
  /*
  vtkVolumeRayCastCompositeFunction* compositeFunction = vtkVolumeRayCastCompositeFunction::New();
  compositeFunction->SetCompositeMethodToClassifyFirst();
  m_HiResMapper->SetVolumeRayCastFunction(compositeFunction);
  compositeFunction->Delete();

  vtkVolumeRayCastMIPFunction* mipFunction = vtkVolumeRayCastMIPFunction::New();
  m_HiResMapper->SetVolumeRayCastFunction(mipFunction);
  mipFunction->Delete();
 */

  vtkFiniteDifferenceGradientEstimator* gradientEstimator =
  vtkFiniteDifferenceGradientEstimator::New();
  m_HiResMapper->SetGradientEstimator(gradientEstimator);
  gradientEstimator->Delete();

  m_VolumePropertyLow = vtkVolumeProperty::New();
  m_VolumePropertyMed = vtkVolumeProperty::New();
  m_VolumePropertyHigh = vtkVolumeProperty::New();

  m_VolumeLOD = vtkLODProp3D::New();
  m_VolumeLOD->VisibilityOff();

  m_HiResID = m_VolumeLOD->AddLOD(m_HiResMapper,m_VolumePropertyHigh,0.0); // RayCast

//  m_LowResID = m_VolumeLOD->AddLOD(m_T2DMapper,m_VolumePropertyLow,0.0); // TextureMapper2D


  m_MedResID = m_VolumeLOD->AddLOD(m_HiResMapper,m_VolumePropertyMed,0.0); // RayCast


  m_Resampler = vtkImageResample::New();
  m_Resampler->SetAxisMagnificationFactor(0,0.25);
  m_Resampler->SetAxisMagnificationFactor(1,0.25);
  m_Resampler->SetAxisMagnificationFactor(2,0.25);

  // For abort rendering mechanism
  m_VolumeLOD->AutomaticLODSelectionOff();


  m_BoundingBox = vtkCubeSource::New();
  m_BoundingBox->SetXLength( 0.0 );
  m_BoundingBox->SetYLength( 0.0 );
  m_BoundingBox->SetZLength( 0.0 );

  m_BoundingBoxMapper = vtkPolyDataMapper::New();
  m_BoundingBoxMapper->SetInput( m_BoundingBox->GetOutput() );

  m_BoundingBoxActor = vtkActor::New();
  m_BoundingBoxActor->SetMapper( m_BoundingBoxMapper );
  m_BoundingBoxActor->GetProperty()->SetColor( 1.0, 1.0, 1.0 );
  m_BoundingBoxActor->GetProperty()->SetRepresentationToWireframe();


  // BoundingBox rendering is not working due to problem with assembly
  // transformation; see bug #454
  // If commenting in the following, do not forget to comment in the
  // m_Prop3DAssembly->Delete() line in the destructor.
  //m_Prop3DAssembly = vtkAssembly::New();
  //m_Prop3DAssembly->AddPart( m_VolumeLOD );
  //m_Prop3DAssembly->AddPart( m_BoundingBoxActor );
  //m_Prop3D = m_Prop3DAssembly;

  m_ImageCast = vtkImageShiftScale::New();
  m_ImageCast->SetOutputScalarTypeToUnsignedShort();
  m_ImageCast->ClampOverflowOn();

  m_UnitSpacingImageFilter = vtkImageChangeInformation::New();
  m_UnitSpacingImageFilter->SetInput(m_ImageCast->GetOutput());
  m_UnitSpacingImageFilter->SetOutputSpacing( 1.0, 1.0, 1.0 );

  m_ImageMaskFilter = vtkImageMask::New();
  m_ImageMaskFilter->SetMaskedOutputValue(0xffff);

  this->m_Resampler->SetInput( this->m_UnitSpacingImageFilter->GetOutput() );
  this->m_HiResMapper->SetInput( this->m_UnitSpacingImageFilter->GetOutput() );

//  m_T2DMapper->SetInput(m_Resampler->GetOutput());


  this->CreateDefaultTransferFunctions();
}

mitk::VolumeDataVtkMapper3D::~VolumeDataVtkMapper3D ( ) [protected, virtual]

Definition at line 175 of file mitkVolumeDataVtkMapper3D.cpp.

{
  m_UnitSpacingImageFilter->Delete();
  m_ImageCast->Delete();
//  m_T2DMapper->Delete();
  m_HiResMapper->Delete();
  m_Resampler->Delete();
  m_VolumePropertyLow->Delete();
  m_VolumePropertyMed->Delete();
  m_VolumePropertyHigh->Delete();
  m_VolumeLOD->Delete();
  m_ClippingPlane->Delete();
  m_PlaneWidget->Delete();
  // m_Prop3DAssembly->Delete();
  m_BoundingBox->Delete();
  m_BoundingBoxMapper->Delete();
  m_BoundingBoxActor->Delete();
  m_ImageMaskFilter->Delete();
  m_DefaultColorTransferFunction->Delete();
  m_DefaultOpacityTransferFunction->Delete();
  m_DefaultGradientTransferFunction->Delete();

  if (m_Mask)
  {
    m_Mask->Delete();
  }
}

Member Function Documentation

void mitk::VolumeDataVtkMapper3D::ApplyProperties	(	vtkActor *	actor,
		mitk::BaseRenderer *	renderer
	)		`[virtual]`

Apply color and opacity read from the PropertyList.

Reimplemented from mitk::VtkMapper3D.

Definition at line 572 of file mitkVolumeDataVtkMapper3D.cpp.

{

}

void mitk::VolumeDataVtkMapper3D::CreateDefaultTransferFunctions ( ) [protected]

Definition at line 391 of file mitkVolumeDataVtkMapper3D.cpp.

Referenced by VolumeDataVtkMapper3D().

{
  m_DefaultOpacityTransferFunction = vtkPiecewiseFunction::New();
  m_DefaultOpacityTransferFunction->AddPoint( 0.0, 0.0 );
  m_DefaultOpacityTransferFunction->AddPoint( 255.0, 0.8 );
  m_DefaultOpacityTransferFunction->ClampingOn();

  m_DefaultGradientTransferFunction = vtkPiecewiseFunction::New();
  m_DefaultGradientTransferFunction->AddPoint( 0.0, 0.0 );
  m_DefaultGradientTransferFunction->AddPoint( 255.0, 0.8 );
  m_DefaultGradientTransferFunction->ClampingOn();

  m_DefaultColorTransferFunction = vtkColorTransferFunction::New();
  m_DefaultColorTransferFunction->AddRGBPoint( 0.0, 0.0, 0.0, 0.0 );
  m_DefaultColorTransferFunction->AddRGBPoint( 127.5, 1, 1, 0.0 );
  m_DefaultColorTransferFunction->AddRGBPoint( 255.0, 0.8, 0.2, 0 );
  m_DefaultColorTransferFunction->ClampingOn();
}

void mitk::VolumeDataVtkMapper3D::DelClippingPlane ( ) [protected]

Definition at line 565 of file mitkVolumeDataVtkMapper3D.cpp.

{
//  m_T2DMapper->RemoveAllClippingPlanes();
  m_HiResMapper->RemoveAllClippingPlanes();
  m_PlaneSet = false;
}

void mitk::VolumeDataVtkMapper3D::DisableMask ( ) [virtual]

Definition at line 659 of file mitkVolumeDataVtkMapper3D.cpp.

{
  if (this->m_Mask)
  {
    this->m_Mask->Delete();
    this->m_Mask = 0;
  }
}

void mitk::VolumeDataVtkMapper3D::EnableMask ( ) [virtual]

Definition at line 634 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Image::GetDimensions().

{
  if (!this->m_Mask)
  {
    const Image *orig_image = this->GetInput();
    unsigned int *dimensions = orig_image->GetDimensions();

    this->m_Mask = vtkImageData::New();
    this->m_Mask->SetDimensions(dimensions[0], dimensions[1], dimensions[2]);
    this->m_Mask->SetScalarTypeToUnsignedChar();
    this->m_Mask->SetNumberOfScalarComponents(1);
    this->m_Mask->AllocateScalars();

    unsigned char *mask_data = static_cast<unsigned char*>(this->m_Mask->GetScalarPointer());
    unsigned int size = dimensions[0] * dimensions[1] * dimensions[2];

    for (unsigned int i = 0u; i < size; ++i)
    {
      *mask_data++ = 1u;
    }
    this->m_ImageMaskFilter->SetMaskInput(this->m_Mask);
    this->m_ImageMaskFilter->Modified();
  }
}

void mitk::VolumeDataVtkMapper3D::GenerateData ( mitk::BaseRenderer * renderer ) [protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 203 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Geometry3D::GetBounds(), mitk::ColorProperty::GetColor(), mitk::BaseRenderer::GetCurrentWorldGeometry(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::BaseData::GetTimeSlicedGeometry(), mitk::EnumerationProperty::GetValueAsId(), mitk::Image::GetVtkImageData(), mitk::BaseData::IsInitialized(), MITK_ERROR, MITK_INFO, mitk::FloatProperty::New(), mitk::BoolProperty::New(), mitk::RenderingManager::SetClippingPlaneStatus(), mitk::RenderingManager::SetNextLOD(), mitk::RenderingManager::SetShading(), mitk::RenderingManager::SetShadingValues(), VTK_RAY_CAST_COMPOSITE_FUNCTION, and VTK_VOLUME_RAY_CAST_MIP_FUNCTION.

{
  SetVtkMapperImmediateModeRendering(m_BoundingBoxMapper);

  mitk::Image *input = const_cast< mitk::Image * >( this->GetInput() );
  if ( !input || !input->IsInitialized() )
    return;

  vtkRenderWindow* renderWindow = renderer->GetRenderWindow();

  bool volumeRenderingEnabled = true;

  if (this->IsVisible(renderer)==false ||
      this->GetDataNode() == NULL ||
      dynamic_cast<mitk::BoolProperty*>(GetDataNode()->GetProperty("volumerendering",renderer))==NULL ||
      dynamic_cast<mitk::BoolProperty*>(GetDataNode()->GetProperty("volumerendering",renderer))->GetValue() == false
    )
  {
    volumeRenderingEnabled = false;

    // Check if a bounding box should be displayed around the dataset
    // (even if volume rendering is disabled)
    bool hasBoundingBox = false;
    this->GetDataNode()->GetBoolProperty( "bounding box", hasBoundingBox );

    if ( !hasBoundingBox )
    {
      m_BoundingBoxActor->VisibilityOff();
    }
    else
    {
      m_BoundingBoxActor->VisibilityOn();

      const BoundingBox::BoundsArrayType &bounds =
        input->GetTimeSlicedGeometry()->GetBounds();

      m_BoundingBox->SetBounds(
        bounds[0], bounds[1],
        bounds[2], bounds[3],
        bounds[4], bounds[5] );

      ColorProperty *colorProperty;
      if ( this->GetDataNode()->GetProperty(
        colorProperty, "color" ) )
      {
        const mitk::Color &color = colorProperty->GetColor();
        m_BoundingBoxActor->GetProperty()->SetColor(
          color[0], color[1], color[2] );
      }
      else
      {
        m_BoundingBoxActor->GetProperty()->SetColor(
          1.0, 1.0, 1.0 );
      }
    }
  }

  // Don't do anything if VR is disabled
  if ( !volumeRenderingEnabled )
  {
    m_VolumeLOD->VisibilityOff();
    return;
  }
  else
  {
        mitk::VtkVolumeRenderingProperty* vrp=dynamic_cast<mitk::VtkVolumeRenderingProperty*>(GetDataNode()->GetProperty("volumerendering configuration",renderer));
        if(vrp)
        {
          int renderingValue = vrp->GetValueAsId();

          switch(renderingValue)
          {
              case  VTK_VOLUME_RAY_CAST_MIP_FUNCTION:
              {
                  vtkVolumeRayCastMIPFunction* mipFunction = vtkVolumeRayCastMIPFunction::New();
                  m_HiResMapper->SetVolumeRayCastFunction(mipFunction);
                  mipFunction->Delete();
                  MITK_INFO <<"in switch" <<std::endl;
                  break;
              }

              case VTK_RAY_CAST_COMPOSITE_FUNCTION:
              {
                  vtkVolumeRayCastCompositeFunction* compositeFunction = vtkVolumeRayCastCompositeFunction::New();
                  compositeFunction->SetCompositeMethodToClassifyFirst();
                  m_HiResMapper->SetVolumeRayCastFunction(compositeFunction);
                  compositeFunction->Delete();
                  break;
              }
              default:
                  MITK_ERROR <<"Warning: invalid volume rendering option.  " << std::endl;

          }
        }
    m_VolumeLOD->VisibilityOn();
  }

  this->SetPreferences();
/*
  switch ( mitk::RenderingManager::GetInstance()->GetNextLOD( renderer ) )
  {
  case 0:
    m_VolumeLOD->SetSelectedLODID(m_MedResID);  m_LowResID );
    break;

  default:
  case 1:
    m_VolumeLOD->SetSelectedLODID( m_HiResID );
    break;
  }
*/
  m_VolumeLOD->SetSelectedLODID( m_HiResID );

  assert(input->GetTimeSlicedGeometry());

  const Geometry3D* worldgeometry = renderer->GetCurrentWorldGeometry();
  if(worldgeometry==NULL)
  {
    GetDataNode()->SetProperty("volumerendering",mitk::BoolProperty::New(false));
    return;
  }

  vtkImageData *inputData = input->GetVtkImageData( this->GetTimestep() );
  if(inputData==NULL)
    return;


  m_ImageCast->SetInput( inputData );

  //If mask exists, process mask before resampling.
  if (this->m_Mask)
  {
    this->m_ImageMaskFilter->SetImageInput(this->m_UnitSpacingImageFilter->GetOutput());
    this->m_Resampler->SetInput(this->m_ImageMaskFilter->GetOutput());
    this->m_HiResMapper->SetInput(this->m_ImageMaskFilter->GetOutput());
  }
  else
  {
    this->m_Resampler->SetInput(this->m_UnitSpacingImageFilter->GetOutput());
    this->m_HiResMapper->SetInput(this->m_UnitSpacingImageFilter->GetOutput());
  }

  this->UpdateTransferFunctions( renderer );

  vtkRenderWindowInteractor *interactor = renderWindow->GetInteractor();

  float frameRate;
  if( this->GetDataNode()->GetFloatProperty( "framerate", frameRate ) && frameRate > 0 && frameRate <= 60)
  {
    interactor->SetDesiredUpdateRate(  frameRate );
    interactor->SetStillUpdateRate( frameRate );
  }
  else if( frameRate > 60 )
  {
    this->GetDataNode()->SetProperty( "framerate",mitk::FloatProperty::New(60));
    interactor->SetDesiredUpdateRate(  60 );
    interactor->SetStillUpdateRate( 60 );
  }
  else
  {
    this->GetDataNode()->SetProperty( "framerate",mitk::FloatProperty::New(0.00001));
    interactor->SetDesiredUpdateRate(  0.00001 );
    interactor->SetStillUpdateRate( 0.00001 );
  }

  if ( m_RenderWindowInitialized.find( renderWindow ) == m_RenderWindowInitialized.end() )
  {
    m_RenderWindowInitialized.insert( renderWindow );

    mitk::RenderingManager::GetInstance()->SetNextLOD( 0, renderer );

    mitk::RenderingManager::GetInstance()->SetShading( true, 0 );
    mitk::RenderingManager::GetInstance()->SetShading( true, 1 );
    //mitk::RenderingManager::GetInstance()->SetShading( true, 2 );

    mitk::RenderingManager::GetInstance()->SetShadingValues(
      m_VolumePropertyHigh->GetAmbient(),
      m_VolumePropertyHigh->GetDiffuse(),
      m_VolumePropertyHigh->GetSpecular(),
      m_VolumePropertyHigh->GetSpecularPower());

    mitk::RenderingManager::GetInstance()->SetClippingPlaneStatus(false);
  }

  this->SetClippingPlane( interactor );
}

virtual const char* mitk::VolumeDataVtkMapper3D::GetClassName ( ) const [virtual]

Reimplemented from mitk::VtkMapper3D.

const mitk::Image * mitk::VolumeDataVtkMapper3D::GetInput ( void ) [virtual]

Definition at line 65 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Mapper::GetData().

{
  return static_cast<const mitk::Image*> ( GetData() );
}

mitk::Image::Pointer mitk::VolumeDataVtkMapper3D::GetMask ( )

Definition at line 668 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Image::New(), and mitk::Image::ReferenceMemory.

{
  if (this->m_Mask)
  {
    Image::Pointer mask = Image::New();

    mask->Initialize(this->m_Mask);
    mask->SetImportVolume(this->m_Mask->GetScalarPointer(), 0, 0, Image::ReferenceMemory);
    mask->SetGeometry(this->GetInput()->GetGeometry());
    return mask;
  }

  return 0;
}

vtkProp * mitk::VolumeDataVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer ) [virtual]

Implements mitk::VtkMapper3D.

Definition at line 170 of file mitkVolumeDataVtkMapper3D.cpp.

{
  return m_VolumeLOD;
}

bool mitk::VolumeDataVtkMapper3D::IsLODEnabled ( mitk::BaseRenderer * renderer = NULL ) const [virtual]

Returns true if this Mapper currently allows for Level-of-Detail rendering. This reflects whether this Mapper currently invokes StartEvent, EndEvent, and ProgressEvent on BaseRenderer.

Reimplemented from mitk::Mapper.

Definition at line 620 of file mitkVolumeDataVtkMapper3D.cpp.

{
  return false;


  // Volume mapper is LOD enabled if volumerendering is enabled
  /*
  return
    dynamic_cast<mitk::BoolProperty*>(GetDataNode()->GetProperty("volumerendering",renderer)) != NULL &&
    dynamic_cast<mitk::BoolProperty*>(GetDataNode()->GetProperty("volumerendering",renderer))->GetValue() == true;
  */
}

static Pointer mitk::VolumeDataVtkMapper3D::New ( ) [static]

Referenced by mitk::CoreObjectFactory::CreateMapper(), mitkDataNodeTestClass::TestMapperSetting(), and VolumeDataVtkMapper3D().

void mitk::VolumeDataVtkMapper3D::SetClippingPlane ( vtkRenderWindowInteractor * interactor ) [protected]

Definition at line 524 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Image::GetDimension(), mitk::BaseData::GetGeometry(), mitk::RenderingManager::GetInstance(), mitk::Geometry3D::GetOrigin(), and mitk::Image::GetVtkImageData().

{

  if(mitk::RenderingManager::GetInstance()->GetClippingPlaneStatus()) //if clipping plane is enabled
  {

    if(!m_PlaneSet)
    {
    m_PlaneWidget->SetInteractor(interactor);
    m_PlaneWidget->SetPlaceFactor(1.0);
    m_PlaneWidget->SetInput(m_UnitSpacingImageFilter->GetOutput());
    m_PlaneWidget->OutlineTranslationOff(); //disables scaling of the bounding box
#if (VTK_MAJOR_VERSION >= 5)
    m_PlaneWidget->ScaleEnabledOff(); //disables scaling of the bounding box
#endif
    m_PlaneWidget->DrawPlaneOff(); //clipping plane is transparent
    mitk::Image* input  = const_cast<mitk::Image *>(this->GetInput());

    /*places the widget within the specified bounds*/
    m_PlaneWidget->PlaceWidget(
        input->GetGeometry()->GetOrigin()[0],(input->GetGeometry()->GetOrigin()[0])+(input->GetDimension(0))*(input->GetVtkImageData()->GetSpacing()[0]),                               input->GetGeometry()->GetOrigin()[1],(input->GetGeometry()->GetOrigin()[1])+(input->GetDimension(1))*(input->GetVtkImageData()->GetSpacing()[1]),                               input->GetGeometry()->GetOrigin()[2],(input->GetGeometry()->GetOrigin()[2])+(input->GetDimension(2))*(input->GetVtkImageData()->GetSpacing()[2]));

//    m_T2DMapper->AddClippingPlane(m_ClippingPlane);
    m_HiResMapper->AddClippingPlane(m_ClippingPlane);
    }

    m_PlaneWidget->GetPlane(m_ClippingPlane);
    m_PlaneSet = true;
  }
  else //if clippingplane is disabled
  {
    if(m_PlaneSet) //if plane exists
    {
    DelClippingPlane();
    }
  }

}

void mitk::VolumeDataVtkMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `NULL`,
		bool	overwrite = `false`
	)		`[static]`

Set default values of properties used by this mapper to node.

Parameters:

node	The node for which the properties are set
overwrite	overwrite existing properties (default: false)
renderer	defines which property list of node is used (default: NULL, i.e. default property list)

Reimplemented from mitk::Mapper.

Definition at line 577 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::DataNode::AddProperty(), mitk::DataNode::GetData(), mitk::DataNode::GetProperty(), mitk::TransferFunctionProperty::New(), mitk::TransferFunctionInitializer::New(), mitk::TransferFunction::New(), mitk::LookupTableProperty::New(), mitk::LookupTable::New(), mitk::LevelWindowProperty::New(), mitk::VtkVolumeRenderingProperty::New(), mitk::BoolProperty::New(), mitk::LevelWindow::SetAuto(), and mitk::DataNode::SetProperty().

Referenced by mitk::CoreObjectFactory::SetDefaultProperties().

{
  node->AddProperty( "volumerendering", mitk::BoolProperty::New( false ), renderer, overwrite );
  node->AddProperty( "volumerendering configuration", mitk::VtkVolumeRenderingProperty::New( 1 ), renderer, overwrite );
  node->AddProperty( "binary", mitk::BoolProperty::New( false ), renderer, overwrite );

  mitk::Image::Pointer image = dynamic_cast<mitk::Image*>(node->GetData());
  if(image.IsNotNull() && image->IsInitialized())
  {
    if((overwrite) || (node->GetProperty("levelwindow", renderer)==NULL))
    {
      mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
      mitk::LevelWindow levelwindow;
      levelwindow.SetAuto( image );
      levWinProp->SetLevelWindow( levelwindow );
      node->SetProperty( "levelwindow", levWinProp, renderer );
    }
    if((overwrite) || (node->GetProperty("LookupTable", renderer)==NULL))
    {
      // add a default rainbow lookup table for color mapping
      mitk::LookupTable::Pointer mitkLut = mitk::LookupTable::New();
      vtkLookupTable* vtkLut = mitkLut->GetVtkLookupTable();
      vtkLut->SetHueRange(0.6667, 0.0);
      vtkLut->SetTableRange(0.0, 20.0);
      vtkLut->Build();
      mitk::LookupTableProperty::Pointer mitkLutProp = mitk::LookupTableProperty::New();
      mitkLutProp->SetLookupTable(mitkLut);
      node->SetProperty( "LookupTable", mitkLutProp );
    }
    if((overwrite) || (node->GetProperty("TransferFunction", renderer)==NULL))
    {
      // add a default transfer function
      mitk::TransferFunction::Pointer tf = mitk::TransferFunction::New();
      mitk::TransferFunctionInitializer::Pointer tfInit = mitk::TransferFunctionInitializer::New(tf);
      tfInit->SetTransferFunctionMode(0);
      node->SetProperty ( "TransferFunction", mitk::TransferFunctionProperty::New ( tf.GetPointer() ) );
    }
  }

  Superclass::SetDefaultProperties(node, renderer, overwrite);
}

bool mitk::VolumeDataVtkMapper3D::SetMask ( const Image * mask )

Definition at line 691 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::Image::GetPixelType(), and mitk::Image::GetVtkImageData().

{
  if (this->m_Mask)
  {
    if (mask->GetPixelType() == PixelType(typeid(unsigned char)))
    {
      Image *img = const_cast<Image*>(mask);

      this->m_Mask->DeepCopy(img->GetVtkImageData());
      this->m_ImageMaskFilter->Modified();
      return true;
    }
  }

  return false;
}

void mitk::VolumeDataVtkMapper3D::SetPreferences ( ) [protected]

Definition at line 474 of file mitkVolumeDataVtkMapper3D.cpp.

{
  //LOD 0
  /*if(mitk::RenderingManager::GetInstance()->GetShading(0))
  {
    m_VolumePropertyLow->ShadeOn();
    m_VolumePropertyLow->SetAmbient(mitk::RenderingManager::GetInstance()->GetShadingValues()[0]);
    m_VolumePropertyLow->SetDiffuse(mitk::RenderingManager::GetInstance()->GetShadingValues()[1]);
    m_VolumePropertyLow->SetSpecular(mitk::RenderingManager::GetInstance()->GetShadingValues()[2]);
    m_VolumePropertyLow->SetSpecularPower(mitk::RenderingManager::GetInstance()->GetShadingValues()[3]);
  }
  else*/
  {
    m_VolumePropertyLow->ShadeOff();
  }

  //LOD 1
  /*if(mitk::RenderingManager::GetInstance()->GetShading(1))
  {
    m_VolumePropertyMed->ShadeOn();
    m_VolumePropertyMed->SetAmbient(mitk::RenderingManager::GetInstance()->GetShadingValues()[0]);
    m_VolumePropertyMed->SetDiffuse(mitk::RenderingManager::GetInstance()->GetShadingValues()[1]);
    m_VolumePropertyMed->SetSpecular(mitk::RenderingManager::GetInstance()->GetShadingValues()[2]);
    m_VolumePropertyMed->SetSpecularPower(mitk::RenderingManager::GetInstance()->GetShadingValues()[3]);
  }
  else*/
  {
    m_VolumePropertyMed->ShadeOff();
  }

  //LOD 2
  /*
  if(mitk::RenderingManager::GetInstance()->GetShading(2))
  {
    m_VolumePropertyHigh->ShadeOn();
    //Shading Properties
    m_VolumePropertyHigh->SetAmbient(mitk::RenderingManager::GetInstance()->GetShadingValues()[0]);
    m_VolumePropertyHigh->SetDiffuse(mitk::RenderingManager::GetInstance()->GetShadingValues()[1]);
    m_VolumePropertyHigh->SetSpecular(mitk::RenderingManager::GetInstance()->GetShadingValues()[2]);
    m_VolumePropertyHigh->SetSpecularPower(mitk::RenderingManager::GetInstance()->GetShadingValues()[3]);
  }
  else
  {
    m_VolumePropertyHigh->ShadeOff();
  }
  */

}

void mitk::VolumeDataVtkMapper3D::UpdateMask ( ) [virtual]

Definition at line 683 of file mitkVolumeDataVtkMapper3D.cpp.

{
  if (this->m_Mask)
  {
    this->m_ImageMaskFilter->Modified();
  }
}

void mitk::VolumeDataVtkMapper3D::UpdateTransferFunctions ( mitk::BaseRenderer * renderer ) [protected]

Definition at line 410 of file mitkVolumeDataVtkMapper3D.cpp.

References mitk::TransferFunctionProperty::GetValue().

{
  vtkPiecewiseFunction *opacityTransferFunction = NULL;
  vtkPiecewiseFunction *gradientTransferFunction = NULL;
  vtkColorTransferFunction *colorTransferFunction = NULL;

  mitk::LookupTableProperty::Pointer lookupTableProp;
  lookupTableProp = dynamic_cast<mitk::LookupTableProperty*>(this->GetDataNode()->GetProperty("LookupTable"));
  mitk::TransferFunctionProperty::Pointer transferFunctionProp = dynamic_cast<mitk::TransferFunctionProperty*>(this->GetDataNode()->GetProperty("TransferFunction"));

  if ( transferFunctionProp.IsNotNull() )   {

    opacityTransferFunction = transferFunctionProp->GetValue()->GetScalarOpacityFunction();
    gradientTransferFunction = transferFunctionProp->GetValue()->GetGradientOpacityFunction();
    colorTransferFunction = transferFunctionProp->GetValue()->GetColorTransferFunction();
  }
  else if (lookupTableProp.IsNotNull() )
  {
    lookupTableProp->GetLookupTable()->CreateOpacityTransferFunction(opacityTransferFunction);
    opacityTransferFunction->ClampingOn();
    lookupTableProp->GetLookupTable()->CreateGradientTransferFunction(gradientTransferFunction);
    gradientTransferFunction->ClampingOn();
    lookupTableProp->GetLookupTable()->CreateColorTransferFunction(colorTransferFunction);
    colorTransferFunction->ClampingOn();
  }
  else
  {
    opacityTransferFunction = m_DefaultOpacityTransferFunction;
    gradientTransferFunction = m_DefaultGradientTransferFunction;
    colorTransferFunction = m_DefaultColorTransferFunction;

    float rgb[3]={1.0f,1.0f,1.0f};
    // check for color prop and use it for rendering if it exists
    if(GetColor(rgb, renderer))
    {
      colorTransferFunction->AddRGBPoint( 0.0, 0.0, 0.0, 0.0 );
      colorTransferFunction->AddRGBPoint( 127.5, rgb[0], rgb[1], rgb[2] );
      colorTransferFunction->AddRGBPoint( 255.0, rgb[0], rgb[1], rgb[2] );
    }
  }

  if (this->m_Mask)
  {
    opacityTransferFunction->AddPoint(0xffff, 0.0);
  }

  m_VolumePropertyLow->SetColor( colorTransferFunction );
  m_VolumePropertyLow->SetScalarOpacity( opacityTransferFunction );
  m_VolumePropertyLow->SetGradientOpacity( gradientTransferFunction );
  m_VolumePropertyLow->SetInterpolationTypeToNearest();

  m_VolumePropertyMed->SetColor( colorTransferFunction );
  m_VolumePropertyMed->SetScalarOpacity( opacityTransferFunction );
  m_VolumePropertyMed->SetGradientOpacity( gradientTransferFunction );
  m_VolumePropertyMed->SetInterpolationTypeToNearest();

  m_VolumePropertyHigh->SetColor( colorTransferFunction );
  m_VolumePropertyHigh->SetScalarOpacity( opacityTransferFunction );
  m_VolumePropertyHigh->SetGradientOpacity( gradientTransferFunction );
  m_VolumePropertyHigh->SetInterpolationTypeToLinear();
}
