#include <mitkEnumerationProperty.h>

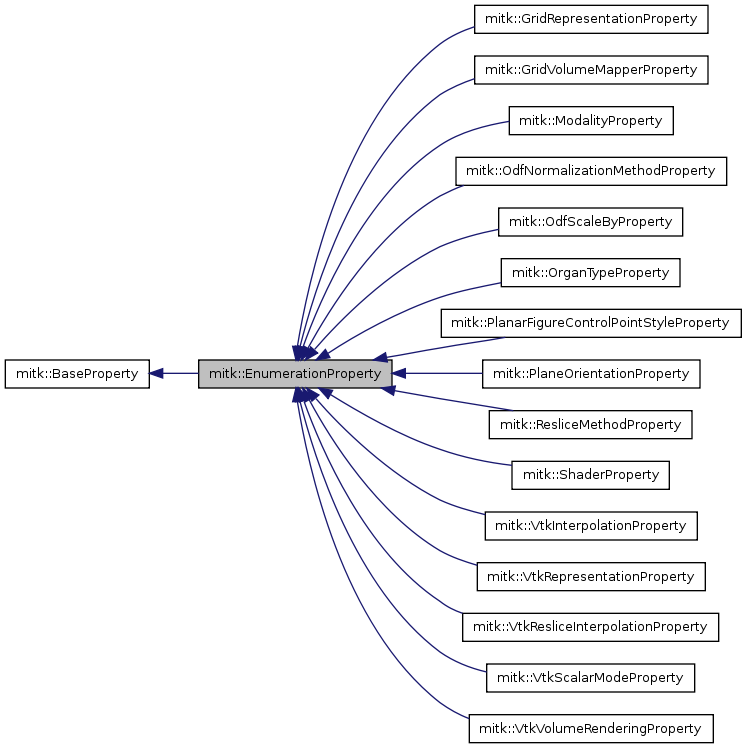

Inheritance diagram for mitk::EnumerationProperty:

Collaboration diagram for mitk::EnumerationProperty:

Public Types
typedef EnumerationProperty	Self
typedef BaseProperty	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
typedef unsigned int	IdType
typedef std::map< IdType, std::string >	EnumIdsContainerType
typedef std::map< std::string, IdType >	EnumStringsContainerType
typedef EnumIdsContainerType::const_iterator	EnumConstIterator
Public Member Functions
virtual const char *	GetClassName () const
virtual bool	AddEnum (const std::string &name, const IdType &id)
virtual bool	SetValue (const std::string &name)
virtual bool	SetValue (const IdType &id)
virtual IdType	GetValueAsId () const
virtual std::string	GetValueAsString () const
virtual void	Clear ()
virtual EnumIdsContainerType::size_type	Size () const
virtual EnumConstIterator	Begin () const
virtual EnumConstIterator	End () const
virtual std::string	GetEnumString (const IdType &id) const
virtual IdType	GetEnumId (const std::string &name) const
virtual bool	IsValidEnumerationValue (const IdType &val) const
virtual bool	IsValidEnumerationValue (const std::string &val) const
virtual bool	operator== (const BaseProperty &property) const
	Subclasses must implement this operator==. Operator== which is used by PropertyList to check whether a property has been changed.
const EnumIdsContainerType &	GetEnumIds () const
const EnumStringsContainerType &	GetEnumStrings () const
EnumIdsContainerType &	GetEnumIds ()
EnumStringsContainerType &	GetEnumStrings ()
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	EnumerationProperty ()

Detailed Description

This class may be used to store properties similar to enumeration values. Each enumeration value is identified via a string representation and a id. Note, that both string representation and id MUST be unique. This is checked when inserting a new enumeration value. Please note that you have to add valid enumeration values before you may use the Get/SetValue methods.

To use the class enumeration property you have 2 choices:

1. Directly use the class and add your possible enumeration values via AddEnum(name, id). NOte that the ids do not have to be in any order, they just have to be unique. The current value is set via SetValue(...) and retrieved via GetValueAsId() or GetValueAsString(). 2. Create a subclass, which adds the possible enumeration values in its constructor and maybe adds some additional convenience functions to set/get the value. NOte that you should override AddEnum(...) as protected so that the user may not add additional invalid enumeration values. As example see mitk::VtkRepresentationProperty or mitk::VtkInterpolationProperty

Definition at line 49 of file mitkEnumerationProperty.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::EnumerationProperty::ConstPointer

Reimplemented from mitk::BaseProperty.

Reimplemented in mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, and mitk::PlanarFigureControlPointStyleProperty.

Definition at line 53 of file mitkEnumerationProperty.h.

typedef EnumIdsContainerType::const_iterator mitk::EnumerationProperty::EnumConstIterator

Type used for iterators over all defined enumeration values.

Definition at line 77 of file mitkEnumerationProperty.h.

typedef std::map<IdType, std::string> mitk::EnumerationProperty::EnumIdsContainerType

Type used to store a mapping from enumeration id to enumeration string/ description

Definition at line 66 of file mitkEnumerationProperty.h.

typedef std::map<std::string, IdType> mitk::EnumerationProperty::EnumStringsContainerType

Type used to store a mapping from enumeration string/description to enumeration id

Definition at line 72 of file mitkEnumerationProperty.h.

typedef unsigned int mitk::EnumerationProperty::IdType

Represents the unique id which is asigned to each enumeration value

Definition at line 55 of file mitkEnumerationProperty.h.

typedef itk::SmartPointer<Self> mitk::EnumerationProperty::Pointer

Reimplemented from mitk::BaseProperty.

Reimplemented in mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, and mitk::PlanarFigureControlPointStyleProperty.

Definition at line 53 of file mitkEnumerationProperty.h.

Constructor & Destructor Documentation

mitk::EnumerationProperty::EnumerationProperty ( ) [protected]

Default constructor. The current value of the enumeration is undefined.

Definition at line 26 of file mitkEnumerationProperty.cpp.

{
  m_CurrentValue = 0;
}

Member Function Documentation

bool mitk::EnumerationProperty::AddEnum	(	const std::string &	name,
		const IdType &	id
	)		`[virtual]`

Adds an enumeration value into the enumeration. The name and id provided must be unique. This is checked while adding the new enumeration value. If it is not unique, false is returned. If addition was successful, true is returned.

Parameters:

name	the unique string representation of the enumeration value
id	the unique integer representation of the enumeration value

Returns:: true, if the name/id combination was successfully added to the enumeration values or true otherwise

Reimplemented in mitk::PlaneOrientationProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, and mitk::PlanarFigureControlPointStyleProperty.

Definition at line 32 of file mitkEnumerationProperty.cpp.

{
  if ( ( ! IsValidEnumerationValue( name ) ) && ( ! IsValidEnumerationValue( id ) ) )
  {
    GetEnumIds().insert( std::make_pair( id, name ) );
    GetEnumStrings().insert( std::make_pair( name, id ) );
    return true;
  }
  else
  {
    return false;
  }
}

mitk::EnumerationProperty::EnumConstIterator mitk::EnumerationProperty::Begin ( ) const [virtual]

Provides access to the set of known enumeration values. The string representation may be accessed via iterator->second, the id may be access via iterator->first

Returns:: an iterator over all enumeration values.

Definition at line 101 of file mitkEnumerationProperty.cpp.

Referenced by QmitkDataManagerView::SurfaceRepresentationMenuAboutToShow().

{
  return GetEnumIds().begin();
}

void mitk::EnumerationProperty::Clear ( ) [virtual]

Clears all possible enumeration values and the current enumeration value.

Definition at line 86 of file mitkEnumerationProperty.cpp.

{
  GetEnumIds().clear();
  GetEnumStrings().clear();
  m_CurrentValue = 0;
}

mitk::EnumerationProperty::EnumConstIterator mitk::EnumerationProperty::End ( ) const [virtual]

Specifies the end of the range of the known enumeration values.

Returns:: an iterator pointing past the last known element of the possible enumeration values.

Definition at line 107 of file mitkEnumerationProperty.cpp.

Referenced by QmitkDataManagerView::SurfaceRepresentationMenuAboutToShow().

{
  return GetEnumIds().end();
}

virtual const char* mitk::EnumerationProperty::GetClassName ( ) const [virtual]

Reimplemented from mitk::BaseProperty.

Reimplemented in mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, and mitk::PlanarFigureControlPointStyleProperty.

mitk::EnumerationProperty::IdType mitk::EnumerationProperty::GetEnumId ( const std::string & name ) const [virtual]

Returns the integer representation for the given string.

Parameters:

name	the enumeration name for which the integer representation should be determined if the name is invalid, the return value is unspecified.

Returns:: the integer representation of the given enumeration value

Definition at line 126 of file mitkEnumerationProperty.cpp.

{
  if ( IsValidEnumerationValue( name ) )
  {
    return  GetEnumStrings().find( name )->second;
  }
  else
  {
    return 0;
  }
}

const mitk::EnumerationProperty::EnumIdsContainerType & mitk::EnumerationProperty::GetEnumIds ( ) const

Definition at line 175 of file mitkEnumerationProperty.cpp.

{
  std::string className = this->GetNameOfClass(); // virtual!
  return s_IdMapForClassName[ className ];
}

mitk::EnumerationProperty::EnumIdsContainerType & mitk::EnumerationProperty::GetEnumIds ( )

Definition at line 168 of file mitkEnumerationProperty.cpp.

{
  std::string className = this->GetNameOfClass(); // virtual!
  return s_IdMapForClassName[ className ];
}

std::string mitk::EnumerationProperty::GetEnumString ( const IdType & id ) const [virtual]

Returns the string representation for the given id.

Parameters:

id	the id for which the string representation should be determined if id is invalid, the return value is unspecified.

Returns:: the string representation of the given enumeration value

Definition at line 113 of file mitkEnumerationProperty.cpp.

{
  if ( IsValidEnumerationValue( id ) )
  {
    return GetEnumIds().find( id )->second;
  }
  else
  {
    return "invalid enum id or enums empty";
  }
}

const mitk::EnumerationProperty::EnumStringsContainerType & mitk::EnumerationProperty::GetEnumStrings ( ) const

Definition at line 189 of file mitkEnumerationProperty.cpp.

{
  std::string className = this->GetNameOfClass(); // virtual!
  return s_StringMapForClassName[ className ];
}

mitk::EnumerationProperty::EnumStringsContainerType & mitk::EnumerationProperty::GetEnumStrings ( )

Definition at line 182 of file mitkEnumerationProperty.cpp.

{
  std::string className = this->GetNameOfClass(); // virtual!
  return s_StringMapForClassName[ className ];
}

mitk::EnumerationProperty::IdType mitk::EnumerationProperty::GetValueAsId ( ) const [virtual]

Returns the id of the current enumeration value. If it was not yet set, the return value is unspecified

Definition at line 75 of file mitkEnumerationProperty.cpp.

Referenced by mitk::VolumeDataVtkMapper3D::GenerateData(), mitk::ImageMapperGL2D::GenerateData(), and QmitkRenderWindowMenu::OnCrossHairMenuAboutToShow().

{
  return m_CurrentValue;
}

std::string mitk::EnumerationProperty::GetValueAsString ( ) const [virtual]

Returns the string representation of the current enumeration value. If it was not yet set, the return value is unspecified

Reimplemented from mitk::BaseProperty.

Definition at line 80 of file mitkEnumerationProperty.cpp.

Referenced by mitk::ShaderRepository::ApplyProperties(), QmitkDataManagerView::SurfaceRepresentationActionToggled(), and QmitkDataManagerView::SurfaceRepresentationMenuAboutToShow().

{
  return GetEnumString( m_CurrentValue );
}

bool mitk::EnumerationProperty::IsValidEnumerationValue ( const std::string & val ) const [virtual]

Determines if a given string representation of an enumeration value is valid or not

Parameters:

val	the string to check

Returns:: true if the given value is valid or false otherwise

Definition at line 162 of file mitkEnumerationProperty.cpp.

{
  return ( GetEnumStrings().find( val ) != GetEnumStrings().end() );
}

bool mitk::EnumerationProperty::IsValidEnumerationValue ( const IdType & val ) const [virtual]

Determines if a given integer representation of an enumeration value is valid or not

Parameters:

val	the integer value to check

Returns:: true if the given value is valid or false otherwise

Definition at line 156 of file mitkEnumerationProperty.cpp.

Referenced by QmitkDataManagerView::SurfaceRepresentationActionToggled().

{
  return ( GetEnumIds().find( val ) != GetEnumIds().end() );
}

static Pointer mitk::EnumerationProperty::New ( ) [static]

Reimplemented in mitk::ModalityProperty, mitk::PlaneOrientationProperty, mitk::ResliceMethodProperty, mitk::ShaderProperty, mitk::VtkInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkScalarModeProperty, mitk::VtkVolumeRenderingProperty, mitk::OdfNormalizationMethodProperty, mitk::OdfScaleByProperty, mitk::GridRepresentationProperty, mitk::GridVolumeMapperProperty, mitk::OrganTypeProperty, and mitk::PlanarFigureControlPointStyleProperty.

Referenced by mitkEnumerationPropertyTest().

bool mitk::EnumerationProperty::operator== ( const BaseProperty & property ) const [virtual]

Subclasses must implement this operator==. Operator== which is used by PropertyList to check whether a property has been changed.

Implements mitk::BaseProperty.

Definition at line 139 of file mitkEnumerationProperty.cpp.

{
  const Self * other = dynamic_cast<const Self*>( &property );

  if ( other == NULL )
    return false;

  if ( this->Size() != other->Size() )
    return false;

  if ( this->GetValueAsId() != other->GetValueAsId() )
    return false;

  return std::equal( this->Begin(), this->End(), other->Begin() );
}

bool mitk::EnumerationProperty::SetValue ( const std::string & name ) [virtual]

Sets the current value of the enumeration

Parameters:

name	the string representation of the enumeration value to set

Returns:: true if the value was successfully set (i.e. it was valid), or false, if the name provided is incalid.

Definition at line 47 of file mitkEnumerationProperty.cpp.

Referenced by mitk::GridRepresentationProperty::GridRepresentationProperty(), mitk::GridVolumeMapperProperty::GridVolumeMapperProperty(), mitk::OdfNormalizationMethodProperty::OdfNormalizationMethodProperty(), mitk::OdfScaleByProperty::OdfScaleByProperty(), mitk::PlanarFigureControlPointStyleProperty::PlanarFigureControlPointStyleProperty(), mitk::PlaneOrientationProperty::PlaneOrientationProperty(), mitk::ResliceMethodProperty::ResliceMethodProperty(), QmitkDataManagerView::SurfaceRepresentationActionToggled(), mitk::VtkInterpolationProperty::VtkInterpolationProperty(), mitk::VtkRepresentationProperty::VtkRepresentationProperty(), mitk::VtkResliceInterpolationProperty::VtkResliceInterpolationProperty(), and mitk::VtkVolumeRenderingProperty::VtkVolumeRenderingProperty().

{
  if ( IsValidEnumerationValue( name ) )
  {
    m_CurrentValue = GetEnumId( name );
    Modified();
    return true;
  }
  else
  {
    return false;
  }
}

bool mitk::EnumerationProperty::SetValue ( const IdType & id ) [virtual]

Sets the current value of the enumeration

Parameters:

id	the integer representation of the enumeration value to set

Returns:: true if the value was successfully set (i.e. it was valid), or false, if the id provided is invalid.

Definition at line 61 of file mitkEnumerationProperty.cpp.

{
  if ( IsValidEnumerationValue( id ) )
  {
    m_CurrentValue = id;
    Modified();
    return true;
  }
  else
  {
    return false;
  }
}

mitk::EnumerationProperty::EnumIdsContainerType::size_type mitk::EnumerationProperty::Size ( ) const [virtual]

Determines the number of enumeration values which have been added via AddEnum(...).

Returns:: the number of enumeration values associated with this Enumeration Property

Definition at line 94 of file mitkEnumerationProperty.cpp.

Referenced by mitk::OrganTypeProperty::AddEnumerationTypes(), and mitk::ModalityProperty::AddEnumerationTypes().

{
  return GetEnumIds().size();
}

The documentation for this class was generated from the following files:
