Mapper to resample and display 2D slices of a 3D image. More...
#include <mitkImageMapperGL2D.h>
Classes | |
| class | RendererInfo |
| Internal storage class for data needed for rendering into a renderer. More... | |
Public Types | |
| typedef ImageMapperGL2D | Self |
| typedef GLMapper2D | Superclass |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer < const Self > | ConstPointer |
| typedef mitk::Image | InputImageType |
| typedef InputImageType::Pointer | InputImagePointer |
| typedef InputImageType::ConstPointer | InputImageConstPointer |
| typedef SlicedData::RegionType | InputImageRegionType |
Public Member Functions | |
| virtual const char * | GetClassName () const |
| const InputImageType * | GetInput (void) |
| Get the Image to map. | |
| virtual void | GenerateAllData () |
| Calls Update() for all associated renderers. | |
| virtual void | Paint (mitk::BaseRenderer *renderer) |
| Renders the (priorly) resampled image onto the screen. | |
| virtual void | Update (mitk::BaseRenderer *renderer) |
| Checks whether this mapper needs to update itself and generate data. | |
| virtual void | ApplyProperties (mitk::BaseRenderer *renderer) |
| Apply color and opacity read from the PropertyList. | |
| virtual int | GetAssociatedChannelNr (mitk::BaseRenderer *renderer) |
| Get the internal id of the renderer. | |
| const RendererInfo * | GetRendererInfo (mitk::BaseRenderer *renderer) |
| Get the RendererInfo for renderer. | |
| virtual void | Clear () |
| Release memory allocated for buffering. | |
Static Public Member Functions | |
| static Pointer | New () |
| static void | SetDefaultProperties (mitk::DataNode *node, mitk::BaseRenderer *renderer=NULL, bool overwrite=false) |
| Set default values of properties used by this mapper to node. | |
Protected Types | |
| typedef std::map< BaseRenderer *, RendererInfo > | RendererInfoMap |
Protected Member Functions | |
| ImageMapperGL2D () | |
| virtual | ~ImageMapperGL2D () |
| virtual void | GenerateData (mitk::BaseRenderer *renderer) |
| RendererInfo & | AccessRendererInfo (mitk::BaseRenderer *renderer) |
| Get the RendererInfo for renderer. | |
| void | DeleteRendererCallback (itk::Object *object, const itk::EventObject &) |
| double | CalculateSpacing (const mitk::Geometry3D *geometry, const mitk::Vector3D &d) const |
| bool | LineIntersectZero (vtkPoints *points, int p1, int p2, vtkFloatingPointType *bounds) |
| bool | CalculateClippedPlaneBounds (const Geometry3D *boundingGeometry, const PlaneGeometry *planeGeometry, vtkFloatingPointType *bounds) |
Protected Attributes | |
| RendererInfoMap | m_RendererInfo |
| Map of instances of RendererInfo. | |
| vtkGeneralTransform * | m_ComposedResliceTransform |
Static Protected Attributes | |
| static int | numRenderer = 0 |
| Number of renderers data is stored for. | |
Mapper to resample and display 2D slices of a 3D image.
Currently implemented for mapping on PlaneGeometry and AbstractTransformGeometry. The resulting 2D image (by reslicing the underlying 3D input image appropriately) can either be directly rendered in a 2D view or just be calculated to be used later on by another rendering entity, e.g. in texture mapping in a 3D view.
This results in a flipped version when used for texture mapping. Furthermore, not the complete rectangular area described by the Geometry2D from the renderer is resampled, if the Geometry2D is larger than the image dimension in the requested direction. This results in a stretched version when used for texture mapping.
Properties that can be set for images and influence the imageMapper2D are:
The default properties are:
If the modality-property is set for an image, the mapper uses modality-specific default properties, e.g. color maps, if they are defined.
Definition at line 98 of file mitkImageMapperGL2D.h.
| typedef itk::SmartPointer<const Self> mitk::ImageMapperGL2D::ConstPointer |
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
Definition at line 104 of file mitkImageMapperGL2D.h.
Definition at line 112 of file mitkImageMapperGL2D.h.
Definition at line 111 of file mitkImageMapperGL2D.h.
Definition at line 113 of file mitkImageMapperGL2D.h.
Some convenient typedefs.
Definition at line 107 of file mitkImageMapperGL2D.h.
| typedef itk::SmartPointer<Self> mitk::ImageMapperGL2D::Pointer |
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
Definition at line 104 of file mitkImageMapperGL2D.h.
typedef std::map<BaseRenderer*,RendererInfo> mitk::ImageMapperGL2D::RendererInfoMap [protected] |
Definition at line 281 of file mitkImageMapperGL2D.h.
Standard class typedefs.
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
Definition at line 104 of file mitkImageMapperGL2D.h.
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
Definition at line 104 of file mitkImageMapperGL2D.h.
| mitk::ImageMapperGL2D::ImageMapperGL2D | ( | ) | [protected] |
Definition at line 54 of file mitkImageMapperGL2D.cpp.
{
}
| mitk::ImageMapperGL2D::~ImageMapperGL2D | ( | ) | [protected, virtual] |
Definition at line 59 of file mitkImageMapperGL2D.cpp.
{
this->Clear();
this->InvokeEvent( itk::DeleteEvent() );
}
| RendererInfo& mitk::ImageMapperGL2D::AccessRendererInfo | ( | mitk::BaseRenderer * | renderer ) | [inline, protected] |
Get the RendererInfo for renderer.
Definition at line 235 of file mitkImageMapperGL2D.h.
References DeleteRendererCallback(), mitk::ImageMapperGL2D::RendererInfo::Initialize(), mitk::ImageMapperGL2D::RendererInfo::IsInitialized(), and numRenderer.
{
RendererInfo& rendererInfo = m_RendererInfo[renderer];
if(rendererInfo.IsInitialized()==false)
{
// Add observer for renderer reset events (RendererInfo will
// automatically be removed from list when a Renderer is deleted)
//
// Note: observer ID is passed to rendererInfo, which will take
// responsiblity to remove the observer upon its destruction
typedef itk::MemberCommand< ImageMapperGL2D > MemberCommandType;
MemberCommandType::Pointer deleteRendererCommand =
MemberCommandType::New();
deleteRendererCommand->SetCallbackFunction(
this, &ImageMapperGL2D::DeleteRendererCallback );
unsigned long observerID = renderer->AddObserver(
BaseRenderer::RendererResetEvent(), deleteRendererCommand );
// Initialize RendererInfo
rendererInfo.Initialize( ImageMapperGL2D::numRenderer++, renderer, observerID );
}
return rendererInfo;
}
| void mitk::ImageMapperGL2D::ApplyProperties | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Apply color and opacity read from the PropertyList.
Reimplemented from mitk::GLMapper2D.
Definition at line 939 of file mitkImageMapperGL2D.cpp.
References iil4mitkImage::COLOR_ALPHA, mitk::ImageMapperGL2D::RendererInfo::Get_iil4mitkImage(), mitk::LevelWindow::GetLowerWindowBound(), mitk::LevelWindow::GetUpperWindowBound(), iil4mitkImage::INTENSITY_ALPHA, mitk::ImageMapperGL2D::RendererInfo::m_TextureInterpolation, MITK_WARN, iil4mitkPicImage::setBinary(), iil4mitkItem::setColor(), iil4mitkPicImage::setColors(), iil4mitkPicImage::setExtrema(), iil4mitkPicImage::setOpacityExtrema(), iil4mitkPicImage::setOutline(), and iil4mitkPicImage::setOutlineWidth().
{
RendererInfo &rendererInfo = this->AccessRendererInfo( renderer );
iil4mitkPicImage *image = rendererInfo.Get_iil4mitkImage();
assert( image != NULL );
float rgba[4]= { 1.0f, 1.0f, 1.0f, 1.0f };
float opacity = 1.0f;
// check for color prop and use it for rendering if it exists
GetColor( rgba, renderer );
// check for opacity prop and use it for rendering if it exists
GetOpacity( opacity, renderer );
rgba[3] = opacity;
// check for interpolation properties
bool textureInterpolation = false;
GetDataNode()->GetBoolProperty(
"texture interpolation", textureInterpolation, renderer
);
rendererInfo.m_TextureInterpolation = textureInterpolation;
mitk::LevelWindow levelWindow;
mitk::LevelWindow opacLevelWindow;
bool binary = false;
this->GetDataNode()->GetBoolProperty( "binary", binary, renderer );
if ( binary )
{
image->setExtrema(0, 1);
image->setOpacityExtrema( 0.0, 255.0 );
image->setBinary(true);
bool binaryOutline = false;
if ( this->GetInput()->GetPixelType().GetBpe() <= 8 )
{
if (this->GetDataNode()->GetBoolProperty( "outline binary", binaryOutline, renderer ))
{
image->setOutline(binaryOutline);
float binaryOutlineWidth(1.0);
if (this->GetDataNode()->GetFloatProperty( "outline width", binaryOutlineWidth, renderer ))
{
image->setOutlineWidth(binaryOutlineWidth);
}
}
}
else
{
//this->GetDataNode()->SetBoolProperty( "outline binary", false, renderer );
//this->GetDataNode()->SetFloatProperty( "opacity", 0.3, renderer );
//set opacity
//rgba[3] = 0.3;
MITK_WARN << "Type of all binary images should be (un)signed char. Outline does not work on other pixel types!";
}
}
else
{
if( !this->GetLevelWindow( levelWindow, renderer, "levelWindow" ) )
{
this->GetLevelWindow( levelWindow, renderer );
}
image->setExtrema( levelWindow.GetLowerWindowBound(), levelWindow.GetUpperWindowBound() );
// obtain opacity level window
if( this->GetLevelWindow( opacLevelWindow, renderer, "opaclevelwindow" ) )
{
image->setOpacityExtrema( opacLevelWindow.GetLowerWindowBound(), opacLevelWindow.GetUpperWindowBound() );
}
else
{
image->setOpacityExtrema( 0.0, 255.0 );
}
}
bool useColor = false;
GetDataNode()->GetBoolProperty( "use color", useColor, renderer );
mitk::LookupTableProperty::Pointer LookupTableProp;
if ( !useColor )
{
LookupTableProp = dynamic_cast<mitk::LookupTableProperty*>(
this->GetDataNode()->GetProperty("LookupTable"));
if ( LookupTableProp.IsNull() )
{
useColor = true;
}
}
if ( useColor || binary )
{
// If lookup table use is NOT requested (or we have a binary image...):
m_iil4mitkMode = iil4mitkImage::INTENSITY_ALPHA;
image->setColor( rgba[0], rgba[1], rgba[2], rgba[3] );
}
else
{
// If lookup table use is requested:
m_iil4mitkMode = iil4mitkImage::COLOR_ALPHA;
// only update the lut, when the properties have changed...
if ( LookupTableProp->GetLookupTable()->GetMTime()
<= this->GetDataNode()->GetPropertyList()->GetMTime() )
{
LookupTableProp->GetLookupTable()->ChangeOpacityForAll( opacity );
LookupTableProp->GetLookupTable()->ChangeOpacity(0, 0.0);
}
image->setColors(LookupTableProp->GetLookupTable()->GetRawLookupTable());
}
}
| bool mitk::ImageMapperGL2D::CalculateClippedPlaneBounds | ( | const Geometry3D * | boundingGeometry, |
| const PlaneGeometry * | planeGeometry, | ||
| vtkFloatingPointType * | bounds | ||
| ) | [protected] |
Definition at line 819 of file mitkImageMapperGL2D.cpp.
References mitk::Geometry3D::GetBoundingBox(), mitk::Geometry3D::GetFloatSpacing(), mitk::Geometry3D::GetImageGeometry(), and mitk::Geometry3D::GetVtkTransform().
{
// Clip the plane with the bounding geometry. To do so, the corner points
// of the bounding box are transformed by the inverse transformation
// matrix, and the transformed bounding box edges derived therefrom are
// clipped with the plane z=0. The resulting min/max values are taken as
// bounds for the image reslicer.
const mitk::BoundingBox *boundingBox = boundingGeometry->GetBoundingBox();
mitk::BoundingBox::PointType bbMin = boundingBox->GetMinimum();
mitk::BoundingBox::PointType bbMax = boundingBox->GetMaximum();
mitk::BoundingBox::PointType bbCenter = boundingBox->GetCenter();
vtkPoints *points = vtkPoints::New();
if(boundingGeometry->GetImageGeometry())
{
points->InsertPoint( 0, bbMin[0]-0.5, bbMin[1]-0.5, bbMin[2]-0.5 );
points->InsertPoint( 1, bbMin[0]-0.5, bbMin[1]-0.5, bbMax[2]-0.5 );
points->InsertPoint( 2, bbMin[0]-0.5, bbMax[1]-0.5, bbMax[2]-0.5 );
points->InsertPoint( 3, bbMin[0]-0.5, bbMax[1]-0.5, bbMin[2]-0.5 );
points->InsertPoint( 4, bbMax[0]-0.5, bbMin[1]-0.5, bbMin[2]-0.5 );
points->InsertPoint( 5, bbMax[0]-0.5, bbMin[1]-0.5, bbMax[2]-0.5 );
points->InsertPoint( 6, bbMax[0]-0.5, bbMax[1]-0.5, bbMax[2]-0.5 );
points->InsertPoint( 7, bbMax[0]-0.5, bbMax[1]-0.5, bbMin[2]-0.5 );
}
else
{
points->InsertPoint( 0, bbMin[0], bbMin[1], bbMin[2] );
points->InsertPoint( 1, bbMin[0], bbMin[1], bbMax[2] );
points->InsertPoint( 2, bbMin[0], bbMax[1], bbMax[2] );
points->InsertPoint( 3, bbMin[0], bbMax[1], bbMin[2] );
points->InsertPoint( 4, bbMax[0], bbMin[1], bbMin[2] );
points->InsertPoint( 5, bbMax[0], bbMin[1], bbMax[2] );
points->InsertPoint( 6, bbMax[0], bbMax[1], bbMax[2] );
points->InsertPoint( 7, bbMax[0], bbMax[1], bbMin[2] );
}
vtkPoints *newPoints = vtkPoints::New();
vtkTransform *transform = vtkTransform::New();
transform->Identity();
transform->Concatenate(
planeGeometry->GetVtkTransform()->GetLinearInverse()
);
transform->Concatenate( boundingGeometry->GetVtkTransform() );
transform->TransformPoints( points, newPoints );
bounds[0] = bounds[2] = 10000000.0;
bounds[1] = bounds[3] = -10000000.0;
bounds[4] = bounds[5] = 0.0;
this->LineIntersectZero( newPoints, 0, 1, bounds );
this->LineIntersectZero( newPoints, 1, 2, bounds );
this->LineIntersectZero( newPoints, 2, 3, bounds );
this->LineIntersectZero( newPoints, 3, 0, bounds );
this->LineIntersectZero( newPoints, 0, 4, bounds );
this->LineIntersectZero( newPoints, 1, 5, bounds );
this->LineIntersectZero( newPoints, 2, 6, bounds );
this->LineIntersectZero( newPoints, 3, 7, bounds );
this->LineIntersectZero( newPoints, 4, 5, bounds );
this->LineIntersectZero( newPoints, 5, 6, bounds );
this->LineIntersectZero( newPoints, 6, 7, bounds );
this->LineIntersectZero( newPoints, 7, 4, bounds );
// clean up vtk data
points->Delete();
newPoints->Delete();
transform->Delete();
if ( (bounds[0] > 9999999.0) || (bounds[2] > 9999999.0)
|| (bounds[1] < -9999999.0) || (bounds[3] < -9999999.0) )
{
return false;
}
else
{
// The resulting bounds must be adjusted by the plane spacing, since we
// we have so far dealt with index coordinates
const float *planeSpacing = planeGeometry->GetFloatSpacing();
bounds[0] *= planeSpacing[0];
bounds[1] *= planeSpacing[0];
bounds[2] *= planeSpacing[1];
bounds[3] *= planeSpacing[1];
bounds[4] *= planeSpacing[2];
bounds[5] *= planeSpacing[2];
return true;
}
}
| double mitk::ImageMapperGL2D::CalculateSpacing | ( | const mitk::Geometry3D * | geometry, |
| const mitk::Vector3D & | d | ||
| ) | const [protected] |
Definition at line 770 of file mitkImageMapperGL2D.cpp.
References mitk::Geometry3D::GetSpacing(), and QuadProgPP::sqrt().
{
// The following can be derived from the ellipsoid equation
//
// 1 = x^2/a^2 + y^2/b^2 + z^2/c^2
//
// where (a,b,c) = spacing of original volume (ellipsoid radii)
// and (x,y,z) = scaled coordinates of vector d (according to ellipsoid)
//
const mitk::Vector3D &spacing = geometry->GetSpacing();
double scaling = d[0]*d[0] / (spacing[0] * spacing[0])
+ d[1]*d[1] / (spacing[1] * spacing[1])
+ d[2]*d[2] / (spacing[2] * spacing[2]);
scaling = sqrt( scaling );
return ( sqrt( d[0]*d[0] + d[1]*d[1] + d[2]*d[2] ) / scaling );
}
| void mitk::ImageMapperGL2D::Clear | ( | ) | [virtual] |
Release memory allocated for buffering.
Definition at line 926 of file mitkImageMapperGL2D.cpp.
{
RendererInfoMap::iterator it, end = m_RendererInfo.end();
for ( it = m_RendererInfo.begin(); it != end; ++it )
{
it->second.RemoveObserver();
it->second.Squeeze();
}
m_RendererInfo.clear();
}
| void mitk::ImageMapperGL2D::DeleteRendererCallback | ( | itk::Object * | object, |
| const itk::EventObject & | |||
| ) | [protected] |
Definition at line 1121 of file mitkImageMapperGL2D.cpp.
Referenced by AccessRendererInfo().
{
mitk::BaseRenderer *renderer = dynamic_cast< mitk::BaseRenderer* >( object );
if ( renderer )
{
m_RendererInfo.erase( renderer );
}
}
| void mitk::ImageMapperGL2D::GenerateAllData | ( | ) | [virtual] |
Calls Update() for all associated renderers.
Definition at line 914 of file mitkImageMapperGL2D.cpp.
{
RendererInfoMap::iterator it, end = m_RendererInfo.end();
for ( it = m_RendererInfo.begin(); it != end; ++it)
{
this->Update( it->first );
}
}
| void mitk::ImageMapperGL2D::GenerateData | ( | mitk::BaseRenderer * | renderer ) | [protected, virtual] |
Does the actual resampling, without rendering the image yet.
Reimplemented from mitk::Mapper.
Reimplemented in mitk::DiffusionImageMapper< TPixelType >.
Definition at line 318 of file mitkImageMapperGL2D.cpp.
References Pic2vtk::convert(), mitk::Geometry3D::GetAxisVector(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::BaseRenderer::GetCurrentWorldGeometry2DNode(), mitk::Image::GetDimension(), mitk::Geometry3D::GetExtent(), mitk::Geometry3D::GetExtentInMM(), mitk::TimeSlicedGeometry::GetGeometry3D(), mitk::VtkResliceInterpolationProperty::GetInterpolation(), mitk::SlicedData::GetLargestPossibleRegion(), mitk::PlaneGeometry::GetNormal(), mitk::Geometry3D::GetOrigin(), mitk::Geometry3D::GetParametricExtent(), mitk::AbstractTransformGeometry::GetParametricExtentInMM(), mitk::AbstractTransformGeometry::GetPlane(), mitk::DataNode::GetProperty(), mitk::Geometry2D::GetReferenceGeometry(), mitk::BaseData::GetTimeSlicedGeometry(), mitk::GenericProperty< T >::GetValue(), mitk::EnumerationProperty::GetValueAsId(), mitk::AbstractTransformGeometry::GetVtkAbstractTransform(), mitk::Image::GetVtkImageData(), mitk::Geometry3D::GetVtkTransform(), mitk::Geometry3D::IsValid(), mitk::Image::IsVolumeSet(), mitk::ImageMapperGL2D::RendererInfo::m_Extent, mitk::ImageMapperGL2D::RendererInfo::m_Image, mitk::ImageMapperGL2D::RendererInfo::m_LastUpdateTime, mitk::ImageMapperGL2D::RendererInfo::m_Overlap, mitk::ImageMapperGL2D::RendererInfo::m_Pic, mitk::ImageMapperGL2D::RendererInfo::m_PixelsPerMM, mitk::ImageMapperGL2D::RendererInfo::m_ReferenceGeometry, mitk::ImageMapperGL2D::RendererInfo::m_Reslicer, mitk::ImageMapperGL2D::RendererInfo::m_TSFilter, mitk::ImageMapperGL2D::RendererInfo::m_UnitSpacingImageFilter, MITK_WARN, mitkIpPicDescriptor, iil4mitkImage::RGB, iil4mitkImage::RGBA, mitk::ImageMapperGL2D::RendererInfo::Set_iil4mitkImage(), iil4mitkPicImage::setImage(), iil4mitkImage::setInterpolation(), iil4mitkImage::setRegion(), mitk::SlicedData::SetRequestedRegion(), vtkMitkThickSlicesFilter::SetThickSliceMode(), mitk::ImageMapperGL2D::RendererInfo::Squeeze(), and mitk::Geometry3D::WorldToIndex().
{
mitk::Image *input = const_cast< mitk::ImageMapperGL2D::InputImageType * >(
this->GetInput()
);
input->Update();
if ( input == NULL )
{
return;
}
RendererInfo &rendererInfo = this->AccessRendererInfo( renderer );
rendererInfo.Squeeze();
iil4mitkPicImage *image = new iil4mitkPicImage( 512 );
rendererInfo.Set_iil4mitkImage( image );
this->ApplyProperties( renderer );
const Geometry2D *worldGeometry = renderer->GetCurrentWorldGeometry2D();
if( ( worldGeometry == NULL ) || ( !worldGeometry->IsValid() ) || ( !worldGeometry->GetReferenceGeometry() ))
{
return;
}
// check if there is something to display.
if ( ! input->IsVolumeSet( this->GetTimestep() ) ) return;
Image::RegionType requestedRegion = input->GetLargestPossibleRegion();
requestedRegion.SetIndex( 3, this->GetTimestep() );
requestedRegion.SetSize( 3, 1 );
requestedRegion.SetSize( 4, 1 );
input->SetRequestedRegion( &requestedRegion );
input->Update();
vtkImageData* inputData = input->GetVtkImageData( this->GetTimestep() );
if ( inputData == NULL )
{
return;
}
vtkFloatingPointType spacing[3];
inputData->GetSpacing( spacing );
// how big the area is in physical coordinates: widthInMM x heightInMM pixels
mitk::ScalarType widthInMM, heightInMM;
// where we want to sample
Point3D origin;
Vector3D right, bottom, normal;
Vector3D rightInIndex, bottomInIndex;
// take transform of input image into account
const TimeSlicedGeometry *inputTimeGeometry = input->GetTimeSlicedGeometry();
const Geometry3D* inputGeometry = inputTimeGeometry->GetGeometry3D( this->GetTimestep() );
ScalarType mmPerPixel[2];
// Bounds information for reslicing (only reuqired if reference geometry
// is present)
vtkFloatingPointType bounds[6];
bool boundsInitialized = false;
for ( int i = 0; i < 6; ++i )
{
bounds[i] = 0.0;
}
// Do we have a simple PlaneGeometry?
if ( dynamic_cast< const PlaneGeometry * >( worldGeometry ) != NULL )
{
const PlaneGeometry *planeGeometry =
static_cast< const PlaneGeometry * >( worldGeometry );
origin = planeGeometry->GetOrigin();
right = planeGeometry->GetAxisVector( 0 );
bottom = planeGeometry->GetAxisVector( 1 );
normal = planeGeometry->GetNormal();
bool inPlaneResampleExtentByGeometry = false;
GetDataNode()->GetBoolProperty(
"in plane resample extent by geometry",
inPlaneResampleExtentByGeometry, renderer
);
if ( inPlaneResampleExtentByGeometry )
{
// Resampling grid corresponds to the current world geometry. This
// means that the spacing of the output 2D image depends on the
// currently selected world geometry, and *not* on the image itself.
rendererInfo.m_Extent[0] = worldGeometry->GetExtent( 0 );
rendererInfo.m_Extent[1] = worldGeometry->GetExtent( 1 );
}
else
{
// Resampling grid corresponds to the input geometry. This means that
// the spacing of the output 2D image is directly derived from the
// associated input image, regardless of the currently selected world
// geometry.
inputGeometry->WorldToIndex( origin, right, rightInIndex );
inputGeometry->WorldToIndex( origin, bottom, bottomInIndex );
rendererInfo.m_Extent[0] = rightInIndex.GetNorm();
rendererInfo.m_Extent[1] = bottomInIndex.GetNorm();
}
// Get the extent of the current world geometry and calculate resampling
// spacing therefrom.
widthInMM = worldGeometry->GetExtentInMM( 0 );
heightInMM = worldGeometry->GetExtentInMM( 1 );
mmPerPixel[0] = widthInMM / rendererInfo.m_Extent[0];
mmPerPixel[1] = heightInMM / rendererInfo.m_Extent[1];
right.Normalize();
bottom.Normalize();
normal.Normalize();
origin += right * ( mmPerPixel[0] * 0.5 );
origin += bottom * ( mmPerPixel[1] * 0.5 );
widthInMM -= mmPerPixel[0];
heightInMM -= mmPerPixel[1];
// Use inverse transform of the input geometry for reslicing the 3D image
rendererInfo.m_Reslicer->SetResliceTransform(
inputGeometry->GetVtkTransform()->GetLinearInverse() );
// Set background level to TRANSLUCENT (see Geometry2DDataVtkMapper3D)
rendererInfo.m_Reslicer->SetBackgroundLevel( -32768 );
// If a reference geometry does exist (as would usually be the case for
// PlaneGeometry), store it in rendererInfo so that we have access to it
// in Paint.
//
// Note: this is currently not strictly required, but could facilitate
// correct plane clipping.
if ( worldGeometry->GetReferenceGeometry() )
{
rendererInfo.m_ReferenceGeometry = worldGeometry->GetReferenceGeometry();
// Calculate the actual bounds of the transformed plane clipped by the
// dataset bounding box; this is required for drawing the texture at the
// correct position during 3D mapping.
boundsInitialized = this->CalculateClippedPlaneBounds(
rendererInfo.m_ReferenceGeometry, planeGeometry, bounds );
}
}
// Do we have an AbstractTransformGeometry?
else if ( dynamic_cast< const AbstractTransformGeometry * >( worldGeometry ) )
{
const mitk::AbstractTransformGeometry* abstractGeometry =
dynamic_cast< const AbstractTransformGeometry * >(worldGeometry);
rendererInfo.m_Extent[0] = abstractGeometry->GetParametricExtent(0);
rendererInfo.m_Extent[1] = abstractGeometry->GetParametricExtent(1);
widthInMM = abstractGeometry->GetParametricExtentInMM(0);
heightInMM = abstractGeometry->GetParametricExtentInMM(1);
mmPerPixel[0] = widthInMM / rendererInfo.m_Extent[0];
mmPerPixel[1] = heightInMM / rendererInfo.m_Extent[1];
origin = abstractGeometry->GetPlane()->GetOrigin();
right = abstractGeometry->GetPlane()->GetAxisVector(0);
right.Normalize();
bottom = abstractGeometry->GetPlane()->GetAxisVector(1);
bottom.Normalize();
normal = abstractGeometry->GetPlane()->GetNormal();
normal.Normalize();
// Use a combination of the InputGeometry *and* the possible non-rigid
// AbstractTransformGeometry for reslicing the 3D Image
vtkGeneralTransform *composedResliceTransform = vtkGeneralTransform::New();
composedResliceTransform->Identity();
composedResliceTransform->Concatenate(
inputGeometry->GetVtkTransform()->GetLinearInverse() );
composedResliceTransform->Concatenate(
abstractGeometry->GetVtkAbstractTransform()
);
rendererInfo.m_Reslicer->SetResliceTransform( composedResliceTransform );
composedResliceTransform->UnRegister( NULL ); // decrease RC
// Set background level to BLACK instead of translucent, to avoid
// boundary artifacts (see Geometry2DDataVtkMapper3D)
rendererInfo.m_Reslicer->SetBackgroundLevel( -1023 );
}
else
{
return;
}
// Make sure that the image to display has a certain minimum size.
if ( (rendererInfo.m_Extent[0] <= 2) && (rendererInfo.m_Extent[1] <= 2) )
{
return;
}
// Initialize the interpolation mode for resampling; switch to nearest
// neighbor if the input image is too small.
if ( (input->GetDimension() >= 3) && (input->GetDimension(2) > 1) )
{
VtkResliceInterpolationProperty *resliceInterpolationProperty;
this->GetDataNode()->GetProperty(
resliceInterpolationProperty, "reslice interpolation" );
int interpolationMode = VTK_RESLICE_NEAREST;
if ( resliceInterpolationProperty != NULL )
{
interpolationMode = resliceInterpolationProperty->GetInterpolation();
}
switch ( interpolationMode )
{
case VTK_RESLICE_NEAREST:
rendererInfo.m_Reslicer->SetInterpolationModeToNearestNeighbor();
break;
case VTK_RESLICE_LINEAR:
rendererInfo.m_Reslicer->SetInterpolationModeToLinear();
break;
case VTK_RESLICE_CUBIC:
rendererInfo.m_Reslicer->SetInterpolationModeToCubic();
break;
}
}
else
{
rendererInfo.m_Reslicer->SetInterpolationModeToNearestNeighbor();
}
int thickSlicesMode = 0;
int thickSlicesNum = 1;
// Thick slices parameters
if( inputData->GetNumberOfScalarComponents() == 1 ) // for now only single component are allowed
{
DataNode *dn=renderer->GetCurrentWorldGeometry2DNode();
if(dn)
{
ResliceMethodProperty *resliceMethodEnumProperty=0;
if( dn->GetProperty( resliceMethodEnumProperty, "reslice.thickslices" ) && resliceMethodEnumProperty )
thickSlicesMode = resliceMethodEnumProperty->GetValueAsId();
IntProperty *intProperty=0;
if( dn->GetProperty( intProperty, "reslice.thickslices.num" ) && intProperty )
{
thickSlicesNum = intProperty->GetValue();
if(thickSlicesNum < 1) thickSlicesNum=1;
if(thickSlicesNum > 10) thickSlicesNum=10;
}
}
else
{
MITK_WARN << "no associated widget plane data tree node found";
}
}
rendererInfo.m_UnitSpacingImageFilter->SetInput( inputData );
rendererInfo.m_Reslicer->SetInput( rendererInfo.m_UnitSpacingImageFilter->GetOutput() );
//rendererInfo.m_Reslicer->SetOutputOrigin( 0.0, 0.0, 0.0 );
//rendererInfo.m_Reslicer->SetOutputDimensionality( 3 );
rendererInfo.m_PixelsPerMM[0] = 1.0 / mmPerPixel[0];
rendererInfo.m_PixelsPerMM[1] = 1.0 / mmPerPixel[1];
//calulate the originArray and the orientations for the reslice-filter
double originArray[3];
itk2vtk( origin, originArray );
rendererInfo.m_Reslicer->SetResliceAxesOrigin( originArray );
double cosines[9];
// direction of the X-axis of the sampled result
vnl2vtk( right.Get_vnl_vector(), cosines );
// direction of the Y-axis of the sampled result
vnl2vtk( bottom.Get_vnl_vector(), cosines + 3 );
// normal of the plane
vnl2vtk( normal.Get_vnl_vector(), cosines + 6 );
rendererInfo.m_Reslicer->SetResliceAxesDirectionCosines( cosines );
int xMin, xMax, yMin, yMax;
if ( boundsInitialized )
{
// Calculate output extent (integer values)
xMin = static_cast< int >( bounds[0] / mmPerPixel[0] + 0.5 );
xMax = static_cast< int >( bounds[1] / mmPerPixel[0] + 0.5 );
yMin = static_cast< int >( bounds[2] / mmPerPixel[1] + 0.5 );
yMax = static_cast< int >( bounds[3] / mmPerPixel[1] + 0.5 );
// Calculate the extent by which the maximal plane (due to plane rotation)
// overlaps the regular plane size.
rendererInfo.m_Overlap[0] = -xMin;
rendererInfo.m_Overlap[1] = -yMin;
}
else
{
// If no reference geometry is available, we also don't know about the
// maximum plane size; so the overlap is just ignored
rendererInfo.m_Overlap.Fill( 0.0 );
xMin = yMin = 0;
xMax = static_cast< int >( rendererInfo.m_Extent[0]
- rendererInfo.m_PixelsPerMM[0] + 0.5 );
yMax = static_cast< int >( rendererInfo.m_Extent[1]
- rendererInfo.m_PixelsPerMM[1] + 0.5 );
}
// Disallow huge dimensions
if ( (xMax-xMin) * (yMax-yMin) > 4096*4096 )
{
return;
}
// Calculate dataset spacing in plane z direction (NOT spacing of current
// world geometry)
double dataZSpacing = 1.0;
normal.Normalize();
Vector3D normInIndex;
inputGeometry->WorldToIndex( origin, normal, normInIndex );
if(thickSlicesMode > 0)
{
dataZSpacing = 1.0 / normInIndex.GetNorm();
rendererInfo.m_Reslicer->SetOutputDimensionality( 3 );
rendererInfo.m_Reslicer->SetOutputExtent( xMin, xMax-1, yMin, yMax-1, -thickSlicesNum, 0+thickSlicesNum );
}
else
{
rendererInfo.m_Reslicer->SetOutputDimensionality( 2 );
rendererInfo.m_Reslicer->SetOutputExtent( xMin, xMax-1, yMin, yMax-1, 0, 0 );
}
rendererInfo.m_Reslicer->SetOutputOrigin( 0.0, 0.0, 0.0 );
rendererInfo.m_Reslicer->SetOutputSpacing( mmPerPixel[0], mmPerPixel[1], dataZSpacing );
// xMax and yMax are meant exclusive until now, whereas
// SetOutputExtent wants an inclusive bound. Thus, we need
// to subtract 1.
// Do the reslicing. Modified() is called to make sure that the reslicer is
// executed even though the input geometry information did not change; this
// is necessary when the input /em data, but not the /em geometry changes.
// The reslicing result is used both for 2D and for 3D mapping. 2D mapping
// currently uses PIC data structures, while 3D mapping uses VTK data. Thus,
// the reslicing result needs to be stored twice.
// 1. Check the result
vtkImageData* reslicedImage = 0;
if(thickSlicesMode>0)
{
rendererInfo.m_TSFilter->SetThickSliceMode( thickSlicesMode-1 );
rendererInfo.m_TSFilter->SetInput( rendererInfo.m_Reslicer->GetOutput() );
rendererInfo.m_TSFilter->Modified();
rendererInfo.m_TSFilter->Update();
reslicedImage = rendererInfo.m_TSFilter->GetOutput();
}
else
{
rendererInfo.m_Reslicer->Modified();
rendererInfo.m_Reslicer->Update();
reslicedImage = rendererInfo.m_Reslicer->GetOutput();
}
if((reslicedImage == NULL) || (reslicedImage->GetDataDimension() < 1))
{
MITK_WARN << "reslicer returned empty image";
return;
}
// 2. Convert the resampling result to PIC image format
mitkIpPicDescriptor *pic = Pic2vtk::convert( reslicedImage );
if (pic == NULL)
{
return;
}
bool imageIs2D = true;
if ( pic->dim == 1 )
{
pic->dim = 2;
pic->n[1] = 1;
imageIs2D = false;
}
assert( pic->dim == 2 );
rendererInfo.m_Pic = pic;
if ( pic->bpe == 24 && reslicedImage->GetScalarType()==VTK_UNSIGNED_CHAR ) // RGB image
m_iil4mitkMode = iil4mitkImage::RGB;
else if ( pic->bpe == 32 && reslicedImage->GetScalarType()==VTK_UNSIGNED_CHAR ) // RGBA image
m_iil4mitkMode = iil4mitkImage::RGBA;
image->setImage( pic, m_iil4mitkMode );
image->setInterpolation( false );
image->setRegion( 0, 0, pic->n[0], pic->n[1] );
// 3. Store the result in a VTK image
if ( imageIs2D )
{
if ( rendererInfo.m_Image == NULL )
{
rendererInfo.m_Image = vtkImageData::New();//reslicedImage;
}
rendererInfo.m_Image->DeepCopy( reslicedImage );
rendererInfo.m_Image->Update();
}
else
{
if ( rendererInfo.m_Image != NULL )
{
rendererInfo.m_Image->Delete();
}
rendererInfo.m_Image = NULL;
}
// We have been modified
rendererInfo.m_LastUpdateTime.Modified();
}
| int mitk::ImageMapperGL2D::GetAssociatedChannelNr | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Get the internal id of the renderer.
Definition at line 309 of file mitkImageMapperGL2D.cpp.
References mitk::ImageMapperGL2D::RendererInfo::GetRendererID().
{
RendererInfo &rendererInfo = this->AccessRendererInfo( renderer );
return rendererInfo.GetRendererID();
}
| virtual const char* mitk::ImageMapperGL2D::GetClassName | ( | ) | const [virtual] |

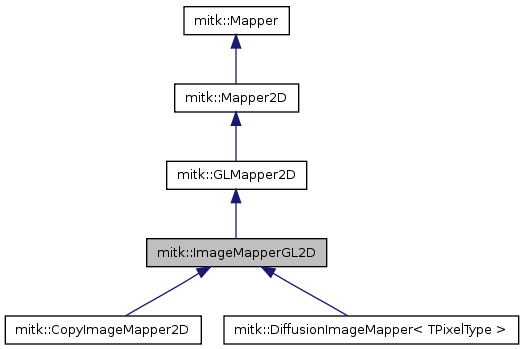

Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
| const mitk::ImageMapperGL2D::InputImageType * mitk::ImageMapperGL2D::GetInput | ( | void | ) |
Get the Image to map.
Definition at line 302 of file mitkImageMapperGL2D.cpp.
{
return static_cast< const mitk::ImageMapperGL2D::InputImageType * >( this->GetData() );
}
| const RendererInfo* mitk::ImageMapperGL2D::GetRendererInfo | ( | mitk::BaseRenderer * | renderer ) | [inline] |
Get the RendererInfo for renderer.
Definition at line 216 of file mitkImageMapperGL2D.h.
{
return &this->AccessRendererInfo(renderer);
}
| bool mitk::ImageMapperGL2D::LineIntersectZero | ( | vtkPoints * | points, |
| int | p1, | ||
| int | p2, | ||
| vtkFloatingPointType * | bounds | ||
| ) | [protected] |
Definition at line 792 of file mitkImageMapperGL2D.cpp.
{
vtkFloatingPointType point1[3];
vtkFloatingPointType point2[3];
points->GetPoint( p1, point1 );
points->GetPoint( p2, point2 );
if ( (point1[2] * point2[2] <= 0.0) && (point1[2] != point2[2]) )
{
double x, y;
x = ( point1[0] * point2[2] - point1[2] * point2[0] ) / ( point2[2] - point1[2] );
y = ( point1[1] * point2[2] - point1[2] * point2[1] ) / ( point2[2] - point1[2] );
if ( x < bounds[0] ) { bounds[0] = x; }
if ( x > bounds[1] ) { bounds[1] = x; }
if ( y < bounds[2] ) { bounds[2] = y; }
if ( y > bounds[3] ) { bounds[3] = y; }
bounds[4] = bounds[5] = 0.0;
return true;
}
return false;
}
| static Pointer mitk::ImageMapperGL2D::New | ( | ) | [static] |
Method for creation through the object factory.
Reimplemented in mitk::CopyImageMapper2D, and mitk::DiffusionImageMapper< TPixelType >.
Referenced by mitk::CoreObjectFactory::CreateMapper(), mitk::ImageMapperGL2D::RendererInfo::Initialize(), SetDefaultProperties(), and mitkDataNodeTestClass::TestMapperSetting().
| void mitk::ImageMapperGL2D::Paint | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Renders the (priorly) resampled image onto the screen.
Implements mitk::GLMapper2D.
Definition at line 67 of file mitkImageMapperGL2D.cpp.
References mitk::VolumeCalculator::ComputeVolume(), iil4mitkPicImage::display(), mitk::ImageMapperGL2D::RendererInfo::Get_iil4mitkImage(), mitk::DataNode::GetBoolProperty(), mitk::Image::GetCountOfMaxValuedVoxelsNoRecompute(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::DataNode::GetData(), mitk::Image::GetDimension(), mitk::BaseRenderer::GetDisplayGeometry(), mitk::DisplayGeometry::GetDisplayHeight(), mitk::DisplayGeometry::GetDisplayWidth(), mitk::DataNode::GetFloatProperty(), mitk::DisplayGeometry::GetOriginInMM(), mitk::DataNode::GetProperty(), mitk::BaseRenderer::GetRenderWindow(), mitk::Image::GetScalarValueMax(), mitk::DisplayGeometry::GetSizeInMM(), mitk::SlicedData::GetSlicedGeometry(), mitk::Geometry3D::GetSpacing(), mitk::DataNode::GetStringProperty(), mitk::BaseRenderer::GetTimeStep(), GL_CLIP_PLANE0, GL_CLIP_PLANE1, GL_CLIP_PLANE2, GL_CLIP_PLANE3, GL_FALSE, GL_MODELVIEW, GL_PROJECTION, GL_TRUE, glClipPlane(), glDepthMask(), glDisable(), glEnable(), glLoadIdentity(), glMatrixMode(), glOrtho(), iil4mitkImage::height(), iil4mitkPicImage::image(), mitk::Geometry2D::IndexToWorld(), mitk::ImageMapperGL2D::RendererInfo::m_Overlap, mitk::ImageMapperGL2D::RendererInfo::m_PixelsPerMM, mitk::ImageMapperGL2D::RendererInfo::m_TextureInterpolation, mitkIpPicDescriptor, iil4mitkImage::setInterpolation(), iil4mitkImage::width(), mitk::DisplayGeometry::WorldToDisplay(), and mitk::VtkPropRenderer::WriteSimpleText().
{
if ( !this->IsVisible( renderer ) )
{
return;
}
this->Update( renderer );
RendererInfo &rendererInfo = this->AccessRendererInfo( renderer );
iil4mitkPicImage *image = rendererInfo.Get_iil4mitkImage();
if ( ( image == NULL ) || ( image->image() == NULL ) )
{
return;
}
const mitk::DisplayGeometry *displayGeometry = renderer->GetDisplayGeometry();
Vector2D topLeft = displayGeometry->GetOriginInMM();
Vector2D bottomRight = topLeft + displayGeometry->GetSizeInMM();
topLeft[0] *= rendererInfo.m_PixelsPerMM[0];
topLeft[1] *= rendererInfo.m_PixelsPerMM[1];
bottomRight[0] *= rendererInfo.m_PixelsPerMM[0];
bottomRight[1] *= rendererInfo.m_PixelsPerMM[1];
topLeft += rendererInfo.m_Overlap;
bottomRight += rendererInfo.m_Overlap;
Vector2D diag = ( topLeft - bottomRight );
//float size = diag.GetNorm();
glMatrixMode( GL_PROJECTION );
glLoadIdentity();
glOrtho( topLeft[0], bottomRight[0], topLeft[1], bottomRight[1], 0.0, 1.0 );
glMatrixMode( GL_MODELVIEW );
glDepthMask(GL_FALSE);
// Define clipping planes to clip the image according to the bounds
// correlating to the current world geometry. The "extent" of the bounds
// needs to be enlarged by an "overlap" factor, in order to make the
// remaining area are large enough to cover rotated planes also.
//
// Note that this can be improved on, by not merely using a large enough
// rectangle for clipping, but using the side surfaces of the transformed
// 3D bounds as clipping planes instead. This would clip even rotates
// planes at their exact intersection lines with the 3D bounding box.
//GLdouble eqn0[4] = { 1.0, 0.0, 0.0, 0.0 };
//GLdouble eqn1[4] = { -1.0, 0.0, 0.0, rendererInfo.m_Extent[0]
// + 2.0 * rendererInfo.m_Overlap[0]/* - rendererInfo.m_PixelsPerMM[0]*/ };
//MITK_INFO << "X: " << rendererInfo.m_Extent[0]
// + 2.0 * rendererInfo.m_Overlap[0] - rendererInfo.m_PixelsPerMM[0] << std::endl;
//GLdouble eqn2[4] = { 0.0, 1.0, 0.0, 0.0 };
//GLdouble eqn3[4] = { 0.0, -1.0, 0.0, rendererInfo.m_Extent[1]
// + 2.0 * rendererInfo.m_Overlap[1]/* - rendererInfo.m_PixelsPerMM[1]*/ };
//MITK_INFO << "Y:" << rendererInfo.m_Extent[1]
// + 2.0 * rendererInfo.m_Overlap[1] - rendererInfo.m_PixelsPerMM[1] << std::endl;
// IW commented out the previous lines and reverted to rev. 9358
// (version before rev. 9443) See bug #625
GLdouble eqn0[4] = {0.0, 1.0, 0.0, 0.0};
GLdouble eqn1[4] = {1.0, 0.0, 0.0, 0.0};
GLdouble eqn2[4] = {-1.0, 0.0 , 0.0, image->width()};
GLdouble eqn3[4] = {0, -1.0, 0.0, image->height() };
glClipPlane( GL_CLIP_PLANE0, eqn0 );
glEnable( GL_CLIP_PLANE0 );
glClipPlane( GL_CLIP_PLANE1, eqn1 );
glEnable( GL_CLIP_PLANE1 );
glClipPlane( GL_CLIP_PLANE2, eqn2 );
glEnable( GL_CLIP_PLANE2 );
glClipPlane( GL_CLIP_PLANE3, eqn3 );
glEnable( GL_CLIP_PLANE3 );
// Render the image
image->setInterpolation( rendererInfo.m_TextureInterpolation );
image->display( renderer->GetRenderWindow() );
// Disable the utilized clipping planes
glDisable( GL_CLIP_PLANE0 );
glDisable( GL_CLIP_PLANE1 );
glDisable( GL_CLIP_PLANE2 );
glDisable( GL_CLIP_PLANE3 );
// display volume property, if it exists and should be displayed
bool shouldShowVolume = false, binary = false;
float segmentationVolume = -1.0;
mitk::DataNode *node = this->GetDataNode();
mitk::Image* mitkimage = dynamic_cast<mitk::Image*>(node->GetData());
// Check if a volume in ml can be drawn in the image.
// This is the case if:
// 1. The property "showVolume" is true AND [
// 2.1 The image has a volume stored as property (3D case) OR
// 2.2 The image is 3D or 4D and binary, so the volume can be calculated ]
if (
(node->GetBoolProperty("showVolume", shouldShowVolume)) &&
(shouldShowVolume) &&
(
(node->GetFloatProperty("volume", segmentationVolume) )
||
(mitkimage != NULL &&
mitkimage->GetDimension() >= 3 &&
node->GetBoolProperty("binary", binary) &&
binary)
)
)
{
// calculate screen position for text by searching for the object border
mitkIpPicDescriptor* pic = image->image();
// search object border in current slice
int s_x = 0;
int s_y = 0;
int s_n = 0;
for(unsigned int y=0;y<pic->n[1];y++)
for(unsigned int x=0;x<pic->n[0];x++)
{
bool set=false;
switch ( pic->bpe )
{
case 8: {
mitkIpInt1_t *current = static_cast< mitkIpInt1_t *>( pic->data );
current += y*pic->n[0] + x;
if(current[0]) set=true;
break; }
case 16: {
mitkIpInt2_t *current = static_cast< mitkIpInt2_t *>( pic->data );
current += y*pic->n[0] + x;
if(current[0]) set=true;
break; }
case 24: {
mitkIpInt1_t *current = static_cast< mitkIpInt1_t *>( pic->data );
current += ( y*pic->n[0] + x )*3;
if(current[0]||current[1]||current[2]) set=true;
break; }
}
if(set)
{
s_x+=x;
s_y+=y;
s_n++;
}
}
// if an object has been found, draw annotation
if ( s_n>0 )
{
// make sure a segmentation volume is present
if( segmentationVolume <= 0 )
{
// if not, check if the image is truly binary
if( mitkimage->GetScalarValueMax( renderer->GetTimeStep() ) == 1 )
{
// if yes, get the volume from image statistics
segmentationVolume = mitk::VolumeCalculator::ComputeVolume(
mitkimage->GetSlicedGeometry()->GetSpacing(), mitkimage->GetCountOfMaxValuedVoxelsNoRecompute(renderer->GetTimeStep()));
}
}
// create text
std::stringstream volumeString;
volumeString << std::fixed << std::setprecision(1) << segmentationVolume;
std::string unit;
if (node->GetStringProperty("volume annotation unit", unit))
{
volumeString << " " << unit;
}
else
{
volumeString << " ml";
}
// draw text
mitk::VtkPropRenderer* OpenGLrenderer = dynamic_cast<mitk::VtkPropRenderer*>( renderer );
//calc index pos
Point2D pt2D;
pt2D[0] = s_x/double(s_n);
pt2D[1] = s_y/double(s_n);
//calc index pos with spacing
const Geometry2D *worldGeometry = renderer->GetCurrentWorldGeometry2D();
//calc display coord
worldGeometry->IndexToWorld( pt2D, pt2D );
displayGeometry->WorldToDisplay( pt2D, pt2D );
mitk::ColorProperty::Pointer annotationColorProp;
mitk::Color annotationColor;
annotationColor.Set(0,1,0);
if (node->GetProperty(annotationColorProp, "volume annotation color"))
{
annotationColor = annotationColorProp->GetColor();
}
OpenGLrenderer->WriteSimpleText(volumeString.str(), pt2D[0]+1, pt2D[1]-1,0,0,0); //this is a shadow
OpenGLrenderer->WriteSimpleText(volumeString.str(), pt2D[0] , pt2D[1] ,annotationColor.GetRed()
,annotationColor.GetGreen()
,annotationColor.GetBlue());
}
}
//glPushMatrix();
glMatrixMode( GL_PROJECTION );
glLoadIdentity();
glOrtho(
0.0, displayGeometry->GetDisplayWidth(),
0.0, displayGeometry->GetDisplayHeight(),
0.0, 1.0
);
glDepthMask(GL_TRUE);
//glMatrixMode( GL_MODELVIEW );
//glPopMatrix();
}
| void mitk::ImageMapperGL2D::SetDefaultProperties | ( | mitk::DataNode * | node, |
| mitk::BaseRenderer * | renderer = NULL, |
||
| bool | overwrite = false |
||
| ) | [static] |
Set default values of properties used by this mapper to node.
| node | The node for which the properties are set |
| overwrite | overwrite existing properties (default: false) |
| renderer | defines which property list of node is used (default: NULL, i.e. default property list) |
Reimplemented from mitk::Mapper.
Reimplemented in mitk::DiffusionImageMapper< TPixelType >.
Definition at line 1235 of file mitkImageMapperGL2D.cpp.
References mitk::DataNode::AddProperty(), mitk::DataNode::GetData(), mitk::DataNode::GetProperty(), mitk::DataNodeFactory::m_TextureInterpolationActive, New(), mitk::IntProperty::New(), mitk::ColorProperty::New(), mitk::VtkResliceInterpolationProperty::New(), mitk::FloatProperty::New(), mitk::BoolProperty::New(), mitk::LevelWindow::SetAuto(), mitk::Mapper::SetDefaultProperties(), mitk::DataNode::SetProperty(), mitk::LevelWindow::SetRangeMinMax(), and mitk::LevelWindow::SetWindowBounds().
Referenced by mitk::CoreObjectFactory::SetDefaultProperties().
{
mitk::Image::Pointer image = dynamic_cast<mitk::Image*>(node->GetData());
// Properties common for both images and segmentations
node->AddProperty( "use color", mitk::BoolProperty::New( true ), renderer, overwrite );
node->AddProperty( "outline binary", mitk::BoolProperty::New( false ), renderer, overwrite );
node->AddProperty( "outline width", mitk::FloatProperty::New( 1.0 ), renderer, overwrite );
if(image->IsRotated()) node->AddProperty( "reslice interpolation", mitk::VtkResliceInterpolationProperty::New(VTK_RESLICE_CUBIC) );
else node->AddProperty( "reslice interpolation", mitk::VtkResliceInterpolationProperty::New() );
node->AddProperty( "texture interpolation", mitk::BoolProperty::New( mitk::DataNodeFactory::m_TextureInterpolationActive ) ); // set to user configurable default value (see global options)
node->AddProperty( "in plane resample extent by geometry", mitk::BoolProperty::New( false ) );
node->AddProperty( "bounding box", mitk::BoolProperty::New( false ) );
// some more properties specific for a binary...
if(image->GetScalarValueMax() == image->GetScalarValue2ndMin()&& image->GetScalarValueMin() == image->GetScalarValue2ndMax())
{
node->AddProperty( "opacity", mitk::FloatProperty::New(0.3f), renderer, overwrite );
node->AddProperty( "color", ColorProperty::New(1.0,0.0,0.0), renderer, overwrite );
node->AddProperty( "binary", mitk::BoolProperty::New( true ), renderer, overwrite );
node->AddProperty("layer", mitk::IntProperty::New(10), renderer, overwrite);
}
else //...or image type object
{
node->AddProperty( "opacity", mitk::FloatProperty::New(1.0f), renderer, overwrite );
node->AddProperty( "color", ColorProperty::New(1.0,1.0,1.0), renderer, overwrite );
node->AddProperty( "binary", mitk::BoolProperty::New( false ), renderer, overwrite );
node->AddProperty("layer", mitk::IntProperty::New(0), renderer, overwrite);
}
if(image.IsNotNull() && image->IsInitialized())
{
if((overwrite) || (node->GetProperty("levelwindow", renderer)==NULL))
{
mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
mitk::LevelWindow levelwindow;
levelwindow.SetAuto( image );
levWinProp->SetLevelWindow( levelwindow );
node->SetProperty( "levelwindow", levWinProp, renderer );
}
if(((overwrite) || (node->GetProperty("opaclevelwindow", renderer)==NULL))
&& *(image->GetPixelType().GetItkTypeId()) == typeid(itk::RGBAPixel<unsigned char>))
{
mitk::LevelWindow opaclevwin;
opaclevwin.SetRangeMinMax(0,255);
opaclevwin.SetWindowBounds(0,255);
mitk::LevelWindowProperty::Pointer prop = mitk::LevelWindowProperty::New(opaclevwin);
node->SetProperty( "opaclevelwindow", prop, renderer );
}
if((overwrite) || (node->GetProperty("LookupTable", renderer)==NULL))
{
// add a default rainbow lookup table for color mapping
mitk::LookupTable::Pointer mitkLut = mitk::LookupTable::New();
vtkLookupTable* vtkLut = mitkLut->GetVtkLookupTable();
vtkLut->SetHueRange(0.6667, 0.0);
vtkLut->SetTableRange(0.0, 20.0);
vtkLut->Build();
mitk::LookupTableProperty::Pointer mitkLutProp = mitk::LookupTableProperty::New();
mitkLutProp->SetLookupTable(mitkLut);
node->SetProperty( "LookupTable", mitkLutProp );
}
}
Superclass::SetDefaultProperties(node, renderer, overwrite);
}
| void mitk::ImageMapperGL2D::Update | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Checks whether this mapper needs to update itself and generate data.
Reimplemented from mitk::Mapper.
Definition at line 1055 of file mitkImageMapperGL2D.cpp.
References mitk::ImageMapperGL2D::RendererInfo::Get_iil4mitkImage(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::BaseRenderer::GetCurrentWorldGeometry2DUpdateTime(), mitk::BaseRenderer::GetDisplayGeometryUpdateTime(), mitk::PropertyList::GetMTime(), mitk::DataNode::GetMTime(), mitk::DataNode::GetPropertyList(), mitk::BaseData::GetTimeSlicedGeometry(), mitk::TimeSlicedGeometry::GetTimeSteps(), mitk::TimeSlicedGeometry::IsValidTime(), mitk::ImageMapperGL2D::RendererInfo::m_LastUpdateTime, and mitk::SlicedData::UpdateOutputInformation().
{
mitk::Image* data = const_cast<mitk::ImageMapperGL2D::InputImageType *>(
this->GetInput()
);
if ( data == NULL )
{
return;
}
if ( !IsVisible(renderer) )
{
return;
}
// Calculate time step of the input data for the specified renderer (integer value)
this->CalculateTimeStep( renderer );
// Check if time step is valid
const TimeSlicedGeometry *dataTimeGeometry = data->GetTimeSlicedGeometry();
if ( ( dataTimeGeometry == NULL )
|| ( dataTimeGeometry->GetTimeSteps() == 0 )
|| ( !dataTimeGeometry->IsValidTime( this->GetTimestep() ) ) )
{
return;
}
const DataNode *node = this->GetDataNode();
RendererInfo& rendererInfo = AccessRendererInfo( renderer );
iil4mitkPicImage* image = rendererInfo.Get_iil4mitkImage();
data->UpdateOutputInformation();
if ( (image == NULL)
|| (rendererInfo.m_LastUpdateTime < node->GetMTime())
|| (rendererInfo.m_LastUpdateTime < data->GetPipelineMTime())
|| (rendererInfo.m_LastUpdateTime
< renderer->GetCurrentWorldGeometry2DUpdateTime())
|| (rendererInfo.m_LastUpdateTime
< renderer->GetDisplayGeometryUpdateTime()) )
{
this->GenerateData( renderer );
}
else if ( rendererInfo.m_LastUpdateTime
< renderer->GetCurrentWorldGeometry2D()->GetMTime() )
{
this->GenerateData( renderer );
}
else if ( (rendererInfo.m_LastUpdateTime < node->GetPropertyList()->GetMTime())
|| (rendererInfo.m_LastUpdateTime
< node->GetPropertyList(renderer)->GetMTime()) )
{
this->GenerateData( renderer );
// since we have checked that nothing important has changed, we can set
// m_LastUpdateTime to the current time
rendererInfo.m_LastUpdateTime.Modified();
}
}
vtkGeneralTransform* mitk::ImageMapperGL2D::m_ComposedResliceTransform [protected] |
Definition at line 289 of file mitkImageMapperGL2D.h.
RendererInfoMap mitk::ImageMapperGL2D::m_RendererInfo [protected] |
Map of instances of RendererInfo.
Definition at line 287 of file mitkImageMapperGL2D.h.
int mitk::ImageMapperGL2D::numRenderer = 0 [static, protected] |
Number of renderers data is stored for.
Definition at line 278 of file mitkImageMapperGL2D.h.
Referenced by AccessRendererInfo().
1.7.2
