mitk::Geometry2DDataMapper2D Class Reference
[Mapper Classes]

OpenGL-based mapper to display a Geometry2D in a 2D window. More...

#include <mitkGeometry2DDataMapper2D.h>

Inheritance diagram for mitk::Geometry2DDataMapper2D:
Inheritance graph
[legend]

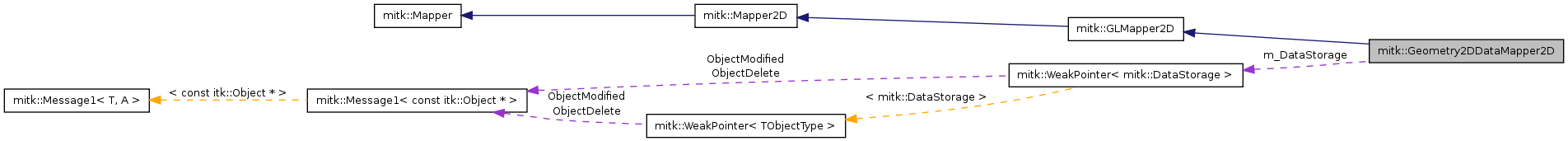

Collaboration diagram for mitk::Geometry2DDataMapper2D:
Collaboration graph
[legend]

List of all members.

Public Types

typedef Geometry2DDataMapper2D Self
typedef GLMapper2D Superclass
typedef itk::SmartPointer< Self > Pointer
typedef itk::SmartPointer
< const Self > 		ConstPointer

Public Member Functions

virtual const char * GetClassName () const
const Geometry2DData * GetInput ()
 Get the Geometry2DData to map.
virtual void Paint (BaseRenderer *renderer)
 Do the painting into the renderer.
virtual void SetDatastorageAndGeometryBaseNode (mitk::DataStorage::Pointer ds, mitk::DataNode::Pointer parent)
virtual void ApplyProperties (BaseRenderer *renderer)

Static Public Member Functions

static Pointer New ()

Protected Types

typedef std::vector< DataNode * > NodesVectorType

Protected Member Functions

 Geometry2DDataMapper2D ()
virtual ~Geometry2DDataMapper2D ()
virtual void GenerateData ()
 Generate the data needed for rendering (independent of a specific renderer)
void DrawOrientationArrow (Point2D &outerPoint, Point2D &innerPoint, const PlaneGeometry *planeGeometry, const PlaneGeometry *rendererPlaneGeometry, const DisplayGeometry *displayGeometry, bool positiveOrientation=true)

Protected Attributes

SurfaceGLMapper2D::Pointer m_SurfaceMapper
mitk::WeakPointer
< mitk::DataStorage > 		m_DataStorage
 DataStorage that will be searched for sub nodes.
DataNode::Pointer m_ParentNode
 parent node that will be used to search for sub nodes
NodesVectorType m_OtherGeometry2Ds
bool m_RenderOrientationArrows
bool m_ArrowOrientationPositive

Detailed Description

OpenGL-based mapper to display a Geometry2D in a 2D window.

Currently implemented for mapping on PlaneGeometry. The result is normally a line. An important usage of this class is to show the orientation of the slices displayed in other 2D windows.

Properties that can be set and influence the Geometry2DDataMapper2D are:

Definition at line 49 of file mitkGeometry2DDataMapper2D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::Geometry2DDataMapper2D::ConstPointer

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkGeometry2DDataMapper2D.h.

typedef std::vector<DataNode*> mitk::Geometry2DDataMapper2D::NodesVectorType [protected]

Definition at line 89 of file mitkGeometry2DDataMapper2D.h.

typedef itk::SmartPointer<Self> mitk::Geometry2DDataMapper2D::Pointer

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkGeometry2DDataMapper2D.h.

typedef Geometry2DDataMapper2D mitk::Geometry2DDataMapper2D::Self

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkGeometry2DDataMapper2D.h.

typedef GLMapper2D mitk::Geometry2DDataMapper2D::Superclass

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkGeometry2DDataMapper2D.h.

Constructor & Destructor Documentation

mitk::Geometry2DDataMapper2D::Geometry2DDataMapper2D (  ) [protected]

Definition at line 33 of file mitkGeometry2DDataMapper2D.cpp.

: m_SurfaceMapper( NULL ), m_DataStorage(NULL), m_ParentNode(NULL),
  m_OtherGeometry2Ds(), m_RenderOrientationArrows( false ),
  m_ArrowOrientationPositive( true )
{
}
mitk::Geometry2DDataMapper2D::~Geometry2DDataMapper2D (  ) [protected, virtual]

Definition at line 41 of file mitkGeometry2DDataMapper2D.cpp.

{
}

Member Function Documentation

void mitk::Geometry2DDataMapper2D::ApplyProperties ( BaseRenderer *  renderer ) [virtual]

Applies properties specific to this mapper

Reimplemented from mitk::GLMapper2D.

Definition at line 408 of file mitkGeometry2DDataMapper2D.cpp.

References mitk::PlaneOrientationProperty::GetPlaneDecoration(), mitk::PlaneOrientationProperty::PLANE_DECORATION_NEGATIVE_ORIENTATION, and mitk::PlaneOrientationProperty::PLANE_DECORATION_POSITIVE_ORIENTATION.

{
  Superclass::ApplyProperties(renderer);

  PlaneOrientationProperty* decorationProperty;
  this->GetDataNode()->GetProperty( decorationProperty, "decoration", renderer );
  if ( decorationProperty != NULL )
  {
    if ( decorationProperty->GetPlaneDecoration() ==
      PlaneOrientationProperty::PLANE_DECORATION_POSITIVE_ORIENTATION )
    {
      m_RenderOrientationArrows = true;
      m_ArrowOrientationPositive = true;
    }
    else if ( decorationProperty->GetPlaneDecoration() ==
      PlaneOrientationProperty::PLANE_DECORATION_NEGATIVE_ORIENTATION )
    {
      m_RenderOrientationArrows = true;
      m_ArrowOrientationPositive = false;
    }
    else
    {
      m_RenderOrientationArrows = false;
    }
  }
}
void mitk::Geometry2DDataMapper2D::DrawOrientationArrow ( Point2D &  outerPoint,
Point2D &  innerPoint,
const PlaneGeometry *  planeGeometry,
const PlaneGeometry *  rendererPlaneGeometry,
const DisplayGeometry *  displayGeometry,
bool  positiveOrientation = true
) [protected]
void mitk::Geometry2DDataMapper2D::GenerateData (  ) [protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

Reimplemented from mitk::Mapper.

Definition at line 52 of file mitkGeometry2DDataMapper2D.cpp.

References mitk::Geometry2DData::GetGeometry2D(), and mitk::NodePredicateDataType::New().

{
  // collect all Geometry2DDatas accessible from the DataStorage
  m_OtherGeometry2Ds.clear();
  if (m_DataStorage.IsNull())
    return;

  mitk::NodePredicateDataType::Pointer p = mitk::NodePredicateDataType::New("Geometry2DData");
  mitk::DataStorage::SetOfObjects::ConstPointer all = m_DataStorage->GetDerivations(m_ParentNode, p, false);
  for (mitk::DataStorage::SetOfObjects::ConstIterator it = all->Begin(); it != all->End(); ++it)
  {
    if(it->Value().IsNull())
      continue;

    BaseData* data = it->Value()->GetData();
    if (data == NULL)
      continue;

    Geometry2DData* geometry2dData = dynamic_cast<Geometry2DData*>(data);
    if(geometry2dData == NULL)
      continue;

    PlaneGeometry* planegeometry = dynamic_cast<PlaneGeometry*>(geometry2dData->GetGeometry2D());
    if (planegeometry != NULL)
      m_OtherGeometry2Ds.push_back(it->Value());
  }
}
virtual const char* mitk::Geometry2DDataMapper2D::GetClassName (  ) const [virtual]

Reimplemented from mitk::Mapper2D.

const mitk::Geometry2DData * mitk::Geometry2DDataMapper2D::GetInput ( void   )

Get the Geometry2DData to map.

Definition at line 46 of file mitkGeometry2DDataMapper2D.cpp.

{
  return static_cast<const Geometry2DData * > ( GetData() );
}
static Pointer mitk::Geometry2DDataMapper2D::New (  ) [static]

Referenced by QmitkStdMultiWidget::AddDisplayPlaneSubTree(), mitk::CoreObjectFactory::CreateMapper(), and mitkDataNodeTestClass::TestMapperSetting().

void mitk::Geometry2DDataMapper2D::Paint ( BaseRenderer *  renderer ) [virtual]

Do the painting into the renderer.

Implements mitk::GLMapper2D.

Definition at line 81 of file mitkGeometry2DDataMapper2D.cpp.

References mitk::Line< TCoordRep, NPointDimension >::BoxLineIntersection(), mitk::Geometry3D::GetBoundingBox(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::Line< TCoordRep, NPointDimension >::GetDirection(), mitk::BaseRenderer::GetDisplayGeometry(), mitk::Geometry3D::GetImageGeometry(), mitk::Geometry3D::GetIndexToWorldTransform(), mitk::Line< TCoordRep, NPointDimension >::GetPoint(), mitk::Line< TCoordRep, NPointDimension >::GetPoint1(), mitk::Geometry2D::GetReferenceGeometry(), GL_LINES, glBegin(), glEnd(), glVertex2f(), mitk::PlaneGeometry::IntersectionLine(), mitk::Geometry2D::Map(), mitk::SurfaceGLMapper2D::New(), mitk::SmartPointerProperty::New(), mitk::Geometry2DDataToSurfaceFilter::New(), mitk::Line< TCoordRep, NPointDimension >::SetPoints(), QuadProgPP::sort(), QuadProgPP::t(), mitk::Line< TCoordRep, NPointDimension >::Transform(), and mitk::DisplayGeometry::WorldToDisplay().

{
  if ( !this->IsVisible(renderer) )
  {
    return;
  }

  Geometry2DData::Pointer input = const_cast< Geometry2DData * >(this->GetInput());

  // intersecting with ourself?
  if ( input.IsNull() || (this->GetInput()->GetGeometry2D() ==
       renderer->GetCurrentWorldGeometry2D()) )
  {
    return; // do nothing!
  }

  const PlaneGeometry *inputPlaneGeometry =
    dynamic_cast< const PlaneGeometry * >( input->GetGeometry2D() );

  const PlaneGeometry *worldPlaneGeometry =
    dynamic_cast< const PlaneGeometry* >(
      renderer->GetCurrentWorldGeometry2D() );

  if ( worldPlaneGeometry && inputPlaneGeometry
    && inputPlaneGeometry->GetReferenceGeometry() )
  {
    DisplayGeometry *displayGeometry = renderer->GetDisplayGeometry();
    assert( displayGeometry );

    const Geometry3D *referenceGeometry =
      inputPlaneGeometry->GetReferenceGeometry();

    // calculate intersection of the plane data with the border of the
    // world geometry rectangle
    Point2D lineFrom, lineTo;

    typedef Geometry3D::TransformType TransformType;
    const TransformType *transform = dynamic_cast< const TransformType * >(
      referenceGeometry->GetIndexToWorldTransform() );

    TransformType::Pointer inverseTransform = TransformType::New();
    transform->GetInverse( inverseTransform );

    Line3D crossLine, otherCrossLine;

    // Calculate the intersection line of the input plane with the world plane
    if ( worldPlaneGeometry->IntersectionLine(
          inputPlaneGeometry, crossLine ) )
    {
      BoundingBox::PointType boundingBoxMin, boundingBoxMax;
      boundingBoxMin = referenceGeometry->GetBoundingBox()->GetMinimum();
      boundingBoxMax = referenceGeometry->GetBoundingBox()->GetMaximum();
      if(referenceGeometry->GetImageGeometry())
      {
        for(unsigned int i = 0; i < 3; ++i)
        {
          boundingBoxMin[i]-=0.5;
          boundingBoxMax[i]-=0.5;
        }
      }

      crossLine.Transform( *inverseTransform );
      Point3D point1, point2;

      // Then, clip this line with the (transformed) bounding box of the
      // reference geometry.
      if ( crossLine.BoxLineIntersection(
        boundingBoxMin[0], boundingBoxMin[1], boundingBoxMin[2],
        boundingBoxMax[0], boundingBoxMax[1], boundingBoxMax[2],
        crossLine.GetPoint(), crossLine.GetDirection(),
        point1, point2 ) == 2 )
      {
        // Transform the resulting line start and end points into display
        // coordinates.
        worldPlaneGeometry->Map(
          transform->TransformPoint( point1 ), lineFrom );
        worldPlaneGeometry->Map(
          transform->TransformPoint( point2 ), lineTo );

        Line< ScalarType, 2 > line, otherLine;
        line.SetPoints( lineFrom, lineTo );

        displayGeometry->WorldToDisplay( lineFrom, lineFrom );
        displayGeometry->WorldToDisplay( lineTo, lineTo );

        ScalarType lengthInDisplayUnits = (lineTo - lineFrom).GetNorm();

        // lineParams stores the individual segments of the line, which are
        // separated by a gap each (to mark the intersection with another
        // displayed line)
        std::vector< ScalarType > lineParams;
        lineParams.reserve( m_OtherGeometry2Ds.size() + 2 );
        lineParams.push_back( 0.0 );
        lineParams.push_back( 1.0 );

        Vector2D d, dOrth;

        // Now iterate through all other lines displayed in this window and
        // calculate the positions of intersection with the line to be
        // rendered; these positions will be stored in lineParams to form a
        // gap afterwards.
        NodesVectorType::iterator otherPlanesIt = m_OtherGeometry2Ds.begin();
        NodesVectorType::iterator otherPlanesEnd = m_OtherGeometry2Ds.end();
        while ( otherPlanesIt != otherPlanesEnd )
        {
          PlaneGeometry *otherPlane = static_cast< PlaneGeometry * >(
            static_cast< Geometry2DData * >(
              (*otherPlanesIt)->GetData() )->GetGeometry2D() );

          // Just as with the original line, calculate the intersaction with
          // the world geometry...
          if ( (otherPlane != inputPlaneGeometry)
            && worldPlaneGeometry->IntersectionLine(
                 otherPlane, otherCrossLine ) )
          {
            // ... and clip the resulting line segment with the reference
            // geometry bounding box.
            otherCrossLine.Transform( *inverseTransform );
            if ( otherCrossLine.BoxLineIntersection(
              boundingBoxMin[0], boundingBoxMin[1], boundingBoxMin[2],
              boundingBoxMax[0], boundingBoxMax[1], boundingBoxMax[2],
              otherCrossLine.GetPoint(), otherCrossLine.GetDirection(),
              point1, point2 ) == 2 )
            {
              worldPlaneGeometry->Map(
                transform->TransformPoint( point1 ), lineFrom );
              worldPlaneGeometry->Map(
                transform->TransformPoint( point2 ), lineTo );

              // By means of the dot product, calculate the gap position as
              // parametric value in the range [0, 1]
              otherLine.SetPoints( lineFrom, lineTo );
              d = otherLine.GetDirection();
              dOrth[0] = -d[1]; dOrth[1] = d[0];

              ScalarType t, norm;
              t = ( otherLine.GetPoint1() - line.GetPoint1() ) * dOrth;
              norm = line.GetDirection() * dOrth;

              if ( fabs( norm ) > eps )
              {
                t /= norm;
                if ( (t > 0.0) && (t < 1.0) )
                {
                  lineParams.push_back(t);
                }
              }
            }
          }
          ++otherPlanesIt;
        }

        // Apply color and opacity read from the PropertyList.
        this->ApplyProperties( renderer );

        ScalarType gapSizeInPixel = 10.0;
        ScalarType gapSizeInParamUnits =
          1.0 / lengthInDisplayUnits * gapSizeInPixel;

        std::sort( lineParams.begin(), lineParams.end() );

        Point2D p1, p2;
        ScalarType p1Param, p2Param;

        p1Param = lineParams[0];
        p1 = line.GetPoint( p1Param );
        displayGeometry->WorldToDisplay( p1, p1 );

        // Iterate over all line segments and display each, with a gap
        // inbetween.
        unsigned int i, preLastLineParam = lineParams.size() - 1;
        for ( i = 1; i < preLastLineParam; ++i )
        {
          p2Param = lineParams[i] - gapSizeInParamUnits * 0.5;
          p2 = line.GetPoint( p2Param );

          if ( p2Param > p1Param )
          {
            // Convert intersection points (until now mm) to display
            // coordinates (units).
            displayGeometry->WorldToDisplay( p2, p2 );

            // draw
            glBegin (GL_LINES);
            glVertex2f(p1[0],p1[1]);
            glVertex2f(p2[0],p2[1]);
            glEnd ();

            if ( (i == 1) && (m_RenderOrientationArrows) )
            {
              // Draw orientation arrow for first line segment
              this->DrawOrientationArrow( p1, p2,
                inputPlaneGeometry, worldPlaneGeometry, displayGeometry,
                m_ArrowOrientationPositive );
            }
          }

          p1Param = p2Param + gapSizeInParamUnits;
          p1 = line.GetPoint( p1Param );
          displayGeometry->WorldToDisplay( p1, p1 );
        }

        // Draw last line segment
        p2Param = lineParams[i];
        p2 = line.GetPoint( p2Param );
        displayGeometry->WorldToDisplay( p2, p2 );
        glBegin( GL_LINES );
        glVertex2f( p1[0], p1[1] );
        glVertex2f( p2[0], p2[1] );
        glEnd();


        // Draw orientation arrows
        if ( m_RenderOrientationArrows )
        {
          this->DrawOrientationArrow( p2, p1,
            inputPlaneGeometry, worldPlaneGeometry, displayGeometry,
            m_ArrowOrientationPositive );
          if ( preLastLineParam < 2 )
          {
            // If we only have one line segment, draw other arrow, too
            this->DrawOrientationArrow( p1, p2,
              inputPlaneGeometry, worldPlaneGeometry, displayGeometry,
              m_ArrowOrientationPositive );
          }
        }
      }
    }
  }
  else
  {
    Geometry2DDataToSurfaceFilter::Pointer surfaceCreator;
    SmartPointerProperty::Pointer surfacecreatorprop;
    surfacecreatorprop = dynamic_cast< SmartPointerProperty * >(
      GetDataNode()->GetProperty(
        "surfacegeometry", renderer));

    if( (surfacecreatorprop.IsNull()) ||
        (surfacecreatorprop->GetSmartPointer().IsNull()) ||
        ((surfaceCreator = dynamic_cast< Geometry2DDataToSurfaceFilter * >(
          surfacecreatorprop->GetSmartPointer().GetPointer())).IsNull())
      )
    {
      surfaceCreator = Geometry2DDataToSurfaceFilter::New();
      surfacecreatorprop = SmartPointerProperty::New(surfaceCreator);
      surfaceCreator->PlaceByGeometryOn();
      GetDataNode()->SetProperty( "surfacegeometry", surfacecreatorprop );
    }

    surfaceCreator->SetInput( input );

    // Clip the Geometry2D with the reference geometry bounds (if available)
    if ( input->GetGeometry2D()->HasReferenceGeometry() )
    {
      surfaceCreator->SetBoundingBox(
        input->GetGeometry2D()->GetReferenceGeometry()->GetBoundingBox()
      );
    }

    int res;
    bool usegeometryparametricbounds = true;
    if ( GetDataNode()->GetIntProperty("xresolution", res, renderer))
    {
      surfaceCreator->SetXResolution(res);
      usegeometryparametricbounds=false;
    }
    if (GetDataNode()->GetIntProperty("yresolution", res, renderer))
    {
      surfaceCreator->SetYResolution(res);
      usegeometryparametricbounds=false;
    }
    surfaceCreator->SetUseGeometryParametricBounds(usegeometryparametricbounds);

    // Calculate the surface of the Geometry2D
    surfaceCreator->Update();

    if (m_SurfaceMapper.IsNull())
    {
      m_SurfaceMapper=SurfaceGLMapper2D::New();
    }
    m_SurfaceMapper->SetSurface(surfaceCreator->GetOutput());
    m_SurfaceMapper->SetDataNode(GetDataNode());

    m_SurfaceMapper->Paint(renderer);
  }
}
void mitk::Geometry2DDataMapper2D::SetDatastorageAndGeometryBaseNode ( mitk::DataStorage::Pointer  ds,
mitk::DataNode::Pointer  parent
) [virtual]

Definition at line 436 of file mitkGeometry2DDataMapper2D.cpp.

{
  if (ds.IsNotNull())
  {
    m_DataStorage = ds;
  }
  if (parent.IsNotNull())
  {
    m_ParentNode = parent;
  }
}

Member Data Documentation

bool mitk::Geometry2DDataMapper2D::m_ArrowOrientationPositive [protected]

Definition at line 93 of file mitkGeometry2DDataMapper2D.h.

mitk::WeakPointer<mitk::DataStorage> mitk::Geometry2DDataMapper2D::m_DataStorage [protected]

DataStorage that will be searched for sub nodes.

Definition at line 86 of file mitkGeometry2DDataMapper2D.h.

NodesVectorType mitk::Geometry2DDataMapper2D::m_OtherGeometry2Ds [protected]

Definition at line 90 of file mitkGeometry2DDataMapper2D.h.

DataNode::Pointer mitk::Geometry2DDataMapper2D::m_ParentNode [protected]

parent node that will be used to search for sub nodes

Definition at line 87 of file mitkGeometry2DDataMapper2D.h.

bool mitk::Geometry2DDataMapper2D::m_RenderOrientationArrows [protected]

Definition at line 92 of file mitkGeometry2DDataMapper2D.h.

SurfaceGLMapper2D::Pointer mitk::Geometry2DDataMapper2D::m_SurfaceMapper [protected]

Definition at line 84 of file mitkGeometry2DDataMapper2D.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated on Tue Oct 19 2010 16:20:16 for mitk by  doxygen 1.7.2
