Implements a weak reference to an object. More...

#include <mitkWeakPointer.h>

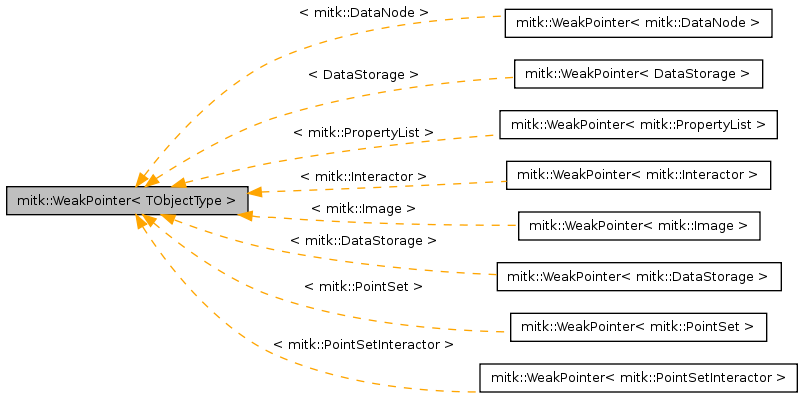

Inheritance diagram for mitk::WeakPointer< TObjectType >:

Collaboration diagram for mitk::WeakPointer< TObjectType >:

Public Types
typedef TObjectType	ObjectType
typedef Message1< const itk::Object * >	itkObjectEvent
Public Member Functions
	WeakPointer ()
	WeakPointer (const WeakPointer< ObjectType > &p)
	WeakPointer (ObjectType *p)
	~WeakPointer ()
ObjectType *	operator-> () const
	operator ObjectType * () const
template<typename R >
bool	operator== (R r) const
template<typename R >
bool	operator!= (R r) const
ObjectType *	GetPointer () const
bool	operator< (const WeakPointer &r) const
bool	operator> (const WeakPointer &r) const
bool	operator<= (const WeakPointer &r) const
bool	operator>= (const WeakPointer &r) const
bool	IsNotNull () const
bool	IsNull () const
WeakPointer &	operator= (const WeakPointer &r)
WeakPointer &	operator= (ObjectType *r)
ObjectType *	Print (std::ostream &os) const
void	OnObjectDelete (const itk::Object *caller, const itk::EventObject &)
	Gets called when the object is deleted or modified.
void	OnObjectModified (const itk::Object *caller, const itk::EventObject &)
Public Attributes
itkObjectEvent	ObjectDelete
	AddEvent is emitted when the object pointed to gets deleted.
itkObjectEvent	ObjectModified
	AddEvent is emitted when the object pointed to gets modified.

Detailed Description

template<class TObjectType>
class mitk::WeakPointer< TObjectType >

Implements a weak reference to an object.

Extends the standard itk WeakPointer by listening to delete events of itk::Objects. When an itk::Object is deleted the WeakPointer sets its internal Pointer to 0. This enables checking against 0 and avoids crashes by accessing changed memory. Furthermore it dispatches Modified events with the mitkMessageDelegate system which is much easier to use.

Definition at line 40 of file mitkWeakPointer.h.

Member Typedef Documentation

template<class TObjectType>

typedef Message1<const itk::Object*> mitk::WeakPointer< TObjectType >::itkObjectEvent

Definition at line 46 of file mitkWeakPointer.h.

template<class TObjectType>

typedef TObjectType mitk::WeakPointer< TObjectType >::ObjectType

Extract infoirmation from template parameter.

Definition at line 44 of file mitkWeakPointer.h.

Constructor & Destructor Documentation

template<class TObjectType>

mitk::WeakPointer< TObjectType >::WeakPointer ( ) [inline]

Constructor.

Definition at line 56 of file mitkWeakPointer.h.

    : m_DeleteObserverTag(-1)
    , m_ModifiedObserverTag(-1)
    , m_Pointer(0)
  {
  }

template<class TObjectType>

mitk::WeakPointer< TObjectType >::WeakPointer ( const WeakPointer< ObjectType > & p ) [inline]

Copy constructor.

Definition at line 64 of file mitkWeakPointer.h.

    : m_DeleteObserverTag(-1)
    , m_ModifiedObserverTag(-1)
    , m_Pointer(p.m_Pointer)
  {
    this->AddDeleteAndModifiedObserver();
  }

template<class TObjectType>

mitk::WeakPointer< TObjectType >::WeakPointer ( ObjectType * p ) [inline]

Constructor to pointer p.

Definition at line 73 of file mitkWeakPointer.h.

    : m_DeleteObserverTag(-1),
      m_ModifiedObserverTag(-1),
      m_Pointer(p)
  {
    this->AddDeleteAndModifiedObserver();
  }

template<class TObjectType>

mitk::WeakPointer< TObjectType >::~WeakPointer ( ) [inline]

Destructor.

Definition at line 82 of file mitkWeakPointer.h.

  {
    this->RemoveDeleteAndModifiedObserver();

    m_Pointer = 0;
  }

Member Function Documentation

template<class TObjectType>

ObjectType* mitk::WeakPointer< TObjectType >::GetPointer ( ) const [inline]

Access function to pointer.

Definition at line 110 of file mitkWeakPointer.h.

Referenced by QmitkImageCropper::CropImage(), QmitkDataStorageTreeModel::GetDataStorage(), QmitkDataStorageTableModel::GetDataStorage(), QmitkDataStorageComboBox::GetDataStorage(), QmitkPropertiesTableModel::GetPropertyList(), mitk::WeakPointer< mitk::PointSetInteractor >::operator=(), mitk::SimpleHistogramCache::operator[](), QmitkDataStorageTableModel::SetDataStorage(), QmitkDataStorageComboBox::SetDataStorage(), QmitkPropertiesTableModel::SetPropertyList(), and QmitkImageCropper::SurroundingCheck().

    { return m_Pointer; }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::IsNotNull ( ) const [inline]

Test if the pointer has been initialized

Definition at line 130 of file mitkWeakPointer.h.

Referenced by QmitkMeasurement::AddFigureToDataStorage(), QmitkImageCropper::CreateNewBoundingObject(), QmitkVolumetryView::CreateOverlayChild(), QmitkSlicesInterpolator::GetDataStorage(), mitk::SegmentationSink::InsertBelowGroupNode(), mitk::SegmentationSink::LookForPointerTargetBelowGroupNode(), QmitkMeasurement::NodeAddedInDataStorage(), QmitkVolumetryView::OnCalculateVolume(), QmitkColourImageProcessingView::OnConvertImageMaskColorToRGBAImage(), QmitkColourImageProcessingView::OnConvertToRGBAImage(), QmitkVolumetryView::OnImageSelected(), QmitkSlicesInterpolator::OnInterpolationActivated(), QmitkSimpleMeasurement::OnSelectionChanged(), QmitkVolumetryView::OnTimeSeriesButtonClicked(), QmitkPropertiesTableModel::Reset(), QmitkDataStorageTableModel::Reset(), QmitkDataStorageComboBox::Reset(), QmitkDataStorageTreeModel::SetDataStorage(), QmitkDataStorageComboBox::SetDataStorage(), QmitkPointListViewWidget::SetPointSet(), QmitkPropertiesTableModel::SetPropertyList(), QmitkImageCropper::SurroundingCheck(), QmitkVolumetryView::UpdateSlider(), and QmitkDataStorageComboBox::~QmitkDataStorageComboBox().

  { return m_Pointer != 0; }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::IsNull ( ) const [inline]

Definition at line 132 of file mitkWeakPointer.h.

Referenced by QmitkDataStorageTreeModel::AddNode(), QmitkImageCropper::CropImage(), QmitkPointListViewWidget::keyPressEvent(), mitkWeakPointerTest(), QmitkColourImageProcessingView::OnCombineRGBA(), QmitkColourImageProcessingView::OnConvertImageMaskColorToRGBAImage(), QmitkColourImageProcessingView::OnConvertToRGBAImage(), QmitkVolumeVisualizationView::OnEnableLOD(), QmitkVolumeVisualizationView::OnEnableRendering(), QmitkVolumeVisualizationView::OnRenderMode(), QmitkMeasurement::PlanarFigureInitialized(), and QmitkPointListViewWidget::Update().

  { return m_Pointer == 0; }

template<class TObjectType>

void mitk::WeakPointer< TObjectType >::OnObjectDelete	(	const itk::Object *	caller,
		const itk::EventObject &
	)		`[inline]`

Gets called when the object is deleted or modified.

Definition at line 159 of file mitkWeakPointer.h.

  {
    // do not unsubscribe from this object. this would invalidate the iterator of the
    // event listener vector (in itk::Object) and would lead to a crash
    // instead: do nothing->object is going to be dead soon...
    //this->RemoveDeleteAndModifiedObserver();
    m_Pointer = 0;
    m_DeleteObserverTag = -1;
    m_ModifiedObserverTag = -1;
    ObjectDelete.Send(caller);

  }

template<class TObjectType>

void mitk::WeakPointer< TObjectType >::OnObjectModified	(	const itk::Object *	caller,
		const itk::EventObject &
	)		`[inline]`

Definition at line 172 of file mitkWeakPointer.h.

  {
    ObjectModified.Send(caller);
  }

template<class TObjectType>

mitk::WeakPointer< TObjectType >::operator ObjectType * ( ) const [inline]

Return pointer to object.

Definition at line 94 of file mitkWeakPointer.h.

    { return m_Pointer; }

template<class TObjectType>

template<typename R >

bool mitk::WeakPointer< TObjectType >::operator!= ( R r ) const [inline]

Definition at line 104 of file mitkWeakPointer.h.

    {
    return (m_Pointer != (ObjectType*)r);
    }

template<class TObjectType>

ObjectType* mitk::WeakPointer< TObjectType >::operator-> ( ) const [inline]

Overload operator ->.

Definition at line 90 of file mitkWeakPointer.h.

    { return m_Pointer; }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::operator< ( const WeakPointer< TObjectType > & r ) const [inline]

Comparison of pointers. Less than comparison.

Definition at line 114 of file mitkWeakPointer.h.

    { return (void*)m_Pointer < (void*) r.m_Pointer; }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::operator<= ( const WeakPointer< TObjectType > & r ) const [inline]

Comparison of pointers. Less than or equal to comparison.

Definition at line 122 of file mitkWeakPointer.h.

    { return (void*)m_Pointer <= (void*) r.m_Pointer; }

template<class TObjectType>

WeakPointer& mitk::WeakPointer< TObjectType >::operator= ( ObjectType * r ) [inline]

Overload operator assignment.

Definition at line 140 of file mitkWeakPointer.h.

  {
    this->RemoveDeleteAndModifiedObserver();
    m_Pointer = r;
    this->AddDeleteAndModifiedObserver();
    return *this;
  }

template<class TObjectType>

WeakPointer& mitk::WeakPointer< TObjectType >::operator= ( const WeakPointer< TObjectType > & r ) [inline]

Overload operator assignment.

Definition at line 136 of file mitkWeakPointer.h.

Referenced by mitk::WeakPointer< mitk::PointSetInteractor >::operator=().

    { return this->operator = (r.GetPointer()); }

template<class TObjectType>

template<typename R >

bool mitk::WeakPointer< TObjectType >::operator== ( R r ) const [inline]

Template comparison operators.

Definition at line 99 of file mitkWeakPointer.h.

    {
    return (m_Pointer == (ObjectType*)r);
    }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::operator> ( const WeakPointer< TObjectType > & r ) const [inline]

Comparison of pointers. Greater than comparison.

Definition at line 118 of file mitkWeakPointer.h.

    { return (void*)m_Pointer > (void*) r.m_Pointer; }

template<class TObjectType>

bool mitk::WeakPointer< TObjectType >::operator>= ( const WeakPointer< TObjectType > & r ) const [inline]

Comparison of pointers. Greater than or equal to comparison.

Definition at line 126 of file mitkWeakPointer.h.

    { return (void*)m_Pointer >= (void*) r.m_Pointer; }

template<class TObjectType>

ObjectType* mitk::WeakPointer< TObjectType >::Print ( std::ostream & os ) const [inline]

Function to print object pointed to.

Definition at line 149 of file mitkWeakPointer.h.

  {
  // This prints the object pointed to by the pointer
  (*m_Pointer).Print(os);
  return m_Pointer;
  }

Member Data Documentation

template<class TObjectType>

itkObjectEvent mitk::WeakPointer< TObjectType >::ObjectDelete

AddEvent is emitted when the object pointed to gets deleted.

Definition at line 49 of file mitkWeakPointer.h.

Referenced by mitk::WeakPointer< mitk::PointSetInteractor >::OnObjectDelete(), QmitkDataStorageTreeModel::SetDataStorage(), QmitkPointListViewWidget::SetPointSet(), and QmitkPropertiesTableModel::SetPropertyList().

template<class TObjectType>

itkObjectEvent mitk::WeakPointer< TObjectType >::ObjectModified

AddEvent is emitted when the object pointed to gets modified.

Definition at line 53 of file mitkWeakPointer.h.

Referenced by mitk::WeakPointer< mitk::PointSetInteractor >::OnObjectModified(), and QmitkPointListViewWidget::SetPointSet().

The documentation for this class was generated from the following file:

mitkWeakPointer.h
