The PointBasedRegistration functionality is used to perform point based registration. More...

#include <QmitkPointBasedRegistrationView.h>

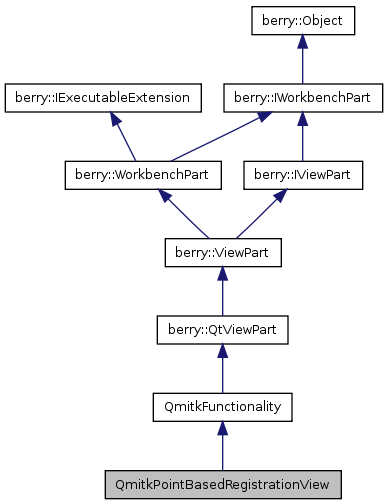

Inheritance diagram for QmitkPointBasedRegistrationView:

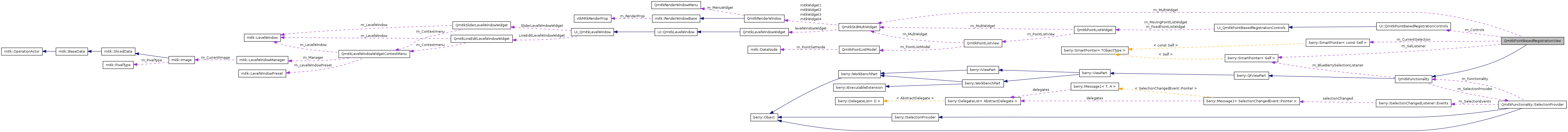

Collaboration diagram for QmitkPointBasedRegistrationView:

Public Member Functions
	QmitkPointBasedRegistrationView (QObject parent=0, const char name=0)
	Default constructor.
virtual	~QmitkPointBasedRegistrationView ()
	Default destructor.
virtual void	CreateQtPartControl (QWidget *parent)
	method for creating the applications main widget
virtual void	StdMultiWidgetAvailable (QmitkStdMultiWidget &stdMultiWidget)
	Sets the StdMultiWidget and connects it to the functionality.
virtual void	StdMultiWidgetNotAvailable ()
	Removes the StdMultiWidget and disconnects it from the functionality.
virtual void	CreateConnections ()
	Method for creating the connections of main and control widget.
virtual void	Activated ()
virtual void	Deactivated ()
virtual void	Visible ()
virtual void	Hidden ()
void	DataNodeHasBeenRemoved (const mitk::DataNode *node)
	Helper method for testing.
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.pointbasedregistration"
Protected Slots
void	FixedSelected (mitk::DataNode::Pointer fixedImage)
	Sets the fixed Image according to TreeNodeSelector widget.
void	MovingSelected (mitk::DataNode::Pointer movingImage)
	Sets the moving Image according to TreeNodeSelector widget.
void	calculateLandmarkbased ()
	Calculates registration with vtkLandmarkTransform.
void	calculateLandmarkWarping ()
	Calculates registration with itkLandmarkWarping.
void	calculateLandmarkbasedWithICP ()
	Calculates registration with ICP and vtkLandmarkTransform.
void	HideMovingImage (bool hide)
	lets the fixed image become invisible and the moving image visible
void	HideFixedImage (bool hide)
	lets the moving image become invisible and the fixed image visible
bool	CheckCalculate ()
	Checks if registration is possible.
void	UndoTransformation ()
	Performs an undo for the last transform.
void	RedoTransformation ()
	Performs a redo for the last undo transform.
void	showRedGreen (bool show)
	Stores whether the image will be shown in grayvalues or in red for fixed image and green for moving image.
void	OpacityUpdate (float opacity)
	Sets the selected opacity for moving image.
void	OpacityUpdate (int opacity)
	Sets the selected opacity for moving image.
void	updateMovingLandmarksList ()
	Updates the moving landmarks.
void	updateFixedLandmarksList ()
	Updates the fixed landmarks.
void	setImageColor (bool redGreen)
	Sets the images to gray values or fixed image to red and moving image to green.
void	clearTransformationLists ()
	Clears the undo and redo transformation lists.
void	checkLandmarkError ()
	Calculates the landmark error for the selected transformation.
void	transformationChanged (int transform)
	Changes the transformation type and calls checkLandmarkError().
bool	checkCalculateEnabled ()
	Checks whether the registration can be performed.
void	calculate ()
	Performs the registration.
void	SetImagesVisible (berry::ISelection::ConstPointer)
void	SwitchImages ()
Protected Attributes
berry::ISelectionListener::Pointer	m_SelListener
berry::IStructuredSelection::ConstPointer	m_CurrentSelection
QmitkStdMultiWidget *	m_MultiWidget
Ui::QmitkPointBasedRegistrationControls	m_Controls
mitk::PointSet::Pointer	m_FixedLandmarks
mitk::PointSet::Pointer	m_MovingLandmarks
mitk::DataNode::Pointer	m_MovingPointSetNode
mitk::DataNode::Pointer	m_FixedPointSetNode
mitk::DataNode::Pointer	m_MovingNode
mitk::DataNode::Pointer	m_FixedNode
std::list < mitk::Geometry3D::Pointer >	m_UndoGeometryList
std::list < mitk::Geometry3D::Pointer >	m_UndoPointsGeometryList
std::list < mitk::Geometry3D::Pointer >	m_RedoGeometryList
std::list < mitk::Geometry3D::Pointer >	m_RedoPointsGeometryList
bool	m_ShowRedGreen
float	m_Opacity
float	m_OriginalOpacity
mitk::Color	m_FixedColor
mitk::Color	m_MovingColor
int	m_Transformation
bool	m_HideFixedImage
bool	m_HideMovingImage
std::string	m_OldFixedLabel
std::string	m_OldMovingLabel
bool	m_Deactivated
int	m_CurrentFixedLandmarksObserverID
int	m_CurrentMovingLandmarksObserverID
itk::SimpleMemberCommand < QmitkPointBasedRegistrationView > ::Pointer	m_FixedLandmarksChangedCommand
itk::SimpleMemberCommand < QmitkPointBasedRegistrationView > ::Pointer	m_MovingLandmarksChangedCommand
Friends
struct	SelListenerPointBasedRegistration

Detailed Description

The PointBasedRegistration functionality is used to perform point based registration.

This functionality allows you to register 2D as well as 3D images in a rigid and deformable manner via corresponding PointSets. Register means to align two images, so that they become as similar as possible. Therefore you have to set corresponding points in both images, which will be matched. The movement, which has to be performed on the points to align them will be performed on the moving image as well. The result is shown in the multi-widget.

For more informations see: QmitkPointBasedRegistrationUserManual

See also:: QmitkFunctionality

Definition at line 54 of file QmitkPointBasedRegistrationView.h.

Constructor & Destructor Documentation

QmitkPointBasedRegistrationView::QmitkPointBasedRegistrationView	(	QObject *	parent = `0`,
		const char *	name = `0`
	)

Default constructor.

Definition at line 209 of file QmitkPointBasedRegistrationView.cpp.

References DataNodeHasBeenRemoved(), QmitkFunctionality::GetDataStorage(), m_FixedLandmarksChangedCommand, m_MovingLandmarksChangedCommand, updateFixedLandmarksList(), and updateMovingLandmarksList().

: QmitkFunctionality(), m_SelListener(0), m_MultiWidget(NULL), m_FixedLandmarks(NULL), m_MovingLandmarks(NULL), m_MovingNode(NULL),
m_FixedNode(NULL), m_ShowRedGreen(false), m_Opacity(0.5), m_OriginalOpacity(1.0), m_Transformation(0), m_HideFixedImage(false), m_HideMovingImage(false),
m_OldFixedLabel(""), m_OldMovingLabel(""), m_Deactivated (false), m_CurrentFixedLandmarksObserverID(0), m_CurrentMovingLandmarksObserverID(0)
{
  m_FixedLandmarksChangedCommand = itk::SimpleMemberCommand<QmitkPointBasedRegistrationView>::New();
  m_FixedLandmarksChangedCommand->SetCallbackFunction(this, &QmitkPointBasedRegistrationView::updateFixedLandmarksList);
  m_MovingLandmarksChangedCommand = itk::SimpleMemberCommand<QmitkPointBasedRegistrationView>::New();
  m_MovingLandmarksChangedCommand->SetCallbackFunction(this, &QmitkPointBasedRegistrationView::updateMovingLandmarksList);

  this->GetDataStorage()->RemoveNodeEvent.AddListener(mitk::MessageDelegate1<QmitkPointBasedRegistrationView,
    const mitk::DataNode*> ( this, &QmitkPointBasedRegistrationView::DataNodeHasBeenRemoved ));

}

QmitkPointBasedRegistrationView::~QmitkPointBasedRegistrationView ( ) [virtual]

Default destructor.

Definition at line 224 of file QmitkPointBasedRegistrationView.cpp.

References QmitkPointListWidget::DeactivateInteractor(), berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNotNull(), m_Controls, Ui_QmitkPointBasedRegistrationControls::m_FixedPointListWidget, m_FixedPointSetNode, Ui_QmitkPointBasedRegistrationControls::m_MovingPointListWidget, m_MovingPointSetNode, m_OldFixedLabel, m_OldMovingLabel, m_SelListener, mitk::StringProperty::New(), berry::ISelectionService::RemovePostSelectionListener(), and QmitkPointListWidget::SetPointSetNode().

{
  if(m_SelListener.IsNotNull())
  {
    berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
    if(s)
      s->RemovePostSelectionListener(m_SelListener);
    m_SelListener = NULL;
  }
  if (m_FixedPointSetNode.IsNotNull())
  {
    m_Controls.m_FixedPointListWidget->DeactivateInteractor(true);
    m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldFixedLabel));
  }
  if (m_MovingPointSetNode.IsNotNull())
  {
    m_Controls.m_MovingPointListWidget->DeactivateInteractor(true);
    m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
  }
  m_Controls.m_FixedPointListWidget->SetPointSetNode(NULL);
  m_Controls.m_MovingPointListWidget->SetPointSetNode(NULL);
}

Member Function Documentation

void QmitkPointBasedRegistrationView::Activated ( ) [virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:: IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 311 of file QmitkPointBasedRegistrationView.cpp.

References berry::SmartPointer< TObjectType >::Cast(), clearTransformationLists(), mitk::RenderingManager::GetInstance(), berry::WorkbenchPart::GetSite(), berry::SmartPointer< TObjectType >::IsNull(), m_Controls, m_CurrentSelection, m_Deactivated, Ui_QmitkPointBasedRegistrationControls::m_OpacitySlider, m_SelListener, Ui_QmitkPointBasedRegistrationControls::m_ShowRedGreenValues, OpacityUpdate(), SelListenerPointBasedRegistration, and showRedGreen().

{

  m_Deactivated = false;
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  QmitkFunctionality::Activated();
  this->clearTransformationLists();
  if (m_SelListener.IsNull())
  {
    m_SelListener = berry::ISelectionListener::Pointer(new SelListenerPointBasedRegistration(this));
    this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->AddPostSelectionListener(/*"org.mitk.views.datamanager",*/ m_SelListener);
    berry::ISelection::ConstPointer sel(
      this->GetSite()->GetWorkbenchWindow()->GetSelectionService()->GetSelection("org.mitk.views.datamanager"));
    m_CurrentSelection = sel.Cast<const IStructuredSelection>();
    m_SelListener.Cast<SelListenerPointBasedRegistration>()->DoSelectionChanged(sel);
  }
  this->OpacityUpdate(m_Controls.m_OpacitySlider->value());
  this->showRedGreen(m_Controls.m_ShowRedGreenValues->isChecked());



}

void QmitkPointBasedRegistrationView::calculate ( ) [protected, slot]

Performs the registration.

Definition at line 1289 of file QmitkPointBasedRegistrationView.cpp.

References calculateLandmarkbased(), calculateLandmarkbasedWithICP(), calculateLandmarkWarping(), m_Controls, m_FixedLandmarks, m_MovingLandmarks, m_Transformation, and Ui_QmitkPointBasedRegistrationControls::m_UseICP.

Referenced by CreateConnections().

{
  if (m_Transformation == 0 || m_Transformation == 1 || m_Transformation == 2)
  {
    if (m_Controls.m_UseICP->isChecked())
    {
      if (m_MovingLandmarks->GetSize() == 1 && m_FixedLandmarks->GetSize() == 1)
      {
        this->calculateLandmarkbased();
      }
      else
      {
        this->calculateLandmarkbasedWithICP();
      }
    }
    else
    {
      this->calculateLandmarkbased();
    }
  }
  else
  {
    this->calculateLandmarkWarping();
  }
}

void QmitkPointBasedRegistrationView::calculateLandmarkbased ( ) [protected, slot]

Calculates registration with vtkLandmarkTransform.

Definition at line 1095 of file QmitkPointBasedRegistrationView.cpp.

References CheckCalculate(), checkLandmarkError(), mitk::RenderingManager::GetInstance(), berry::SmartPointer< TObjectType >::GetPointer(), m_Controls, m_FixedLandmarks, m_MovingLandmarks, m_MovingNode, m_RedoGeometryList, m_RedoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_RedoTransformation, m_Transformation, m_UndoGeometryList, m_UndoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_UndoTransformation, and matrix().

Referenced by calculate().

{
  if(CheckCalculate())
  {
    mitk::Geometry3D::Pointer pointsGeometry = m_MovingLandmarks->GetGeometry(0);
    mitk::AffineGeometryFrame3D::Pointer movingLandmarksGeometry = m_MovingLandmarks->GetGeometry(0)->Clone();
    m_UndoPointsGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingLandmarksGeometry.GetPointer()));

    mitk::BaseData::Pointer originalData = m_MovingNode->GetData();
    mitk::AffineGeometryFrame3D::Pointer originalDataGeometry = originalData->GetGeometry(0)->Clone();
    m_UndoGeometryList.push_back(static_cast<mitk::Geometry3D *>(originalDataGeometry.GetPointer()));

    vtkIdType pointId;
    vtkPoints* vPointsSource=vtkPoints::New();
    for(pointId = 0; pointId < m_MovingLandmarks->GetSize(); ++pointId)
    {
      mitk::Point3D sourcePoint = m_MovingLandmarks->GetPoint(pointId);
      vPointsSource->InsertNextPoint(sourcePoint[0],sourcePoint[1],sourcePoint[2]);
    }
    vtkPoints* vPointsTarget=vtkPoints::New();
    for(pointId=0; pointId<m_FixedLandmarks->GetSize();++pointId)
    {
      mitk::Point3D targetPoint=m_FixedLandmarks->GetPoint(pointId);
      vPointsTarget->InsertNextPoint(targetPoint[0],targetPoint[1],targetPoint[2]);
    }

    vtkLandmarkTransform * transform= vtkLandmarkTransform::New();
    transform->SetSourceLandmarks(vPointsSource);
    transform->SetTargetLandmarks(vPointsTarget);
    if(m_Transformation==0)
    {
      transform->SetModeToRigidBody();
    }
    if(m_Transformation==1)
    {
      transform->SetModeToSimilarity();
    }
    if(m_Transformation==2)
    {
      transform->SetModeToAffine();
    }
    vtkMatrix4x4 * matrix=transform->GetMatrix();
    double determinant = fabs(matrix->Determinant());
    if((determinant < mitk::eps) || (determinant > 100) || (determinant < 0.01)
      || (determinant==itk::NumericTraits<double>::infinity())
      || (determinant==itk::NumericTraits<double>::quiet_NaN())
      || (determinant==itk::NumericTraits<double>::signaling_NaN())
      || (determinant==-itk::NumericTraits<double>::infinity())
      || (determinant==-itk::NumericTraits<double>::quiet_NaN())
      || (determinant==-itk::NumericTraits<double>::signaling_NaN())
      || (!(determinant <= 0) && !(determinant > 0)))
    {
      QMessageBox msgBox;
      msgBox.setText("Suspicious determinant of matrix calculated.\n"
        "Please select more points or other points!" );
      msgBox.exec();
      return;
    }
    pointsGeometry->Compose(matrix);
    m_MovingLandmarks->GetTimeSlicedGeometry()->UpdateInformation();

    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    mitk::Geometry3D::Pointer movingGeometry = movingData->GetGeometry(0);
    movingGeometry->Compose(matrix);
    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    m_Controls.m_UndoTransformation->setEnabled(true);
    m_Controls.m_RedoTransformation->setEnabled(false);
    m_RedoGeometryList.clear();
    m_RedoPointsGeometryList.clear();
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    this->checkLandmarkError();
  }
}

void QmitkPointBasedRegistrationView::calculateLandmarkbasedWithICP ( ) [protected, slot]

Calculates registration with ICP and vtkLandmarkTransform.

Definition at line 1000 of file QmitkPointBasedRegistrationView.cpp.

References CheckCalculate(), checkLandmarkError(), mitk::RenderingManager::GetInstance(), berry::SmartPointer< TObjectType >::GetPointer(), m_Controls, m_FixedLandmarks, m_MovingLandmarks, m_MovingNode, m_RedoGeometryList, m_RedoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_RedoTransformation, m_Transformation, m_UndoGeometryList, m_UndoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_UndoTransformation, and matrix().

Referenced by calculate().

{
  if(CheckCalculate())
  {
    mitk::Geometry3D::Pointer pointsGeometry = m_MovingLandmarks->GetGeometry(0);
    mitk::AffineGeometryFrame3D::Pointer movingLandmarksGeometry = m_MovingLandmarks->GetGeometry(0)->Clone();
    m_UndoPointsGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingLandmarksGeometry.GetPointer()));

    mitk::BaseData::Pointer originalData = m_MovingNode->GetData();
    mitk::AffineGeometryFrame3D::Pointer originalDataGeometry = originalData->GetGeometry(0)->Clone();
    m_UndoGeometryList.push_back(static_cast<mitk::Geometry3D *>(originalDataGeometry.GetPointer()));

    vtkIdType pointId;
    vtkPoints* vPointsSource=vtkPoints::New();
    vtkCellArray* vCellsSource=vtkCellArray::New();
    for(pointId=0; pointId<m_MovingLandmarks->GetSize();++pointId)
    {
      mitk::Point3D pointSource=m_MovingLandmarks->GetPoint(pointId);
      vPointsSource->InsertNextPoint(pointSource[0],pointSource[1],pointSource[2]);
      vCellsSource->InsertNextCell(1, &pointId);
    }

    vtkPoints* vPointsTarget=vtkPoints::New();
    vtkCellArray* vCellsTarget = vtkCellArray::New();
    for(pointId=0; pointId<m_FixedLandmarks->GetSize();++pointId)
    {
      mitk::Point3D pointTarget=m_FixedLandmarks->GetPoint(pointId);
      vPointsTarget->InsertNextPoint(pointTarget[0],pointTarget[1],pointTarget[2]);
      vCellsTarget->InsertNextCell(1, &pointId);
    }

    vtkPolyData* vPointSetSource=vtkPolyData::New();
    vtkPolyData* vPointSetTarget=vtkPolyData::New();

    vPointSetTarget->SetPoints(vPointsTarget);
    vPointSetTarget->SetVerts(vCellsTarget);
    vPointSetSource->SetPoints(vPointsSource);
    vPointSetSource->SetVerts(vCellsSource);

    vtkIterativeClosestPointTransform * icp=vtkIterativeClosestPointTransform::New();
    icp->SetCheckMeanDistance(1);
    icp->SetSource(vPointSetSource);
    icp->SetTarget(vPointSetTarget);
    icp->SetMaximumNumberOfIterations(50);
    icp->StartByMatchingCentroidsOn();
    vtkLandmarkTransform * transform=icp->GetLandmarkTransform();
    if(m_Transformation==0)
    {
      transform->SetModeToRigidBody();
    }
    if(m_Transformation==1)
    {
      transform->SetModeToSimilarity();
    }
    if(m_Transformation==2)
    {
      transform->SetModeToAffine();
    }

    vtkMatrix4x4 * matrix=icp->GetMatrix();

    double determinant = fabs(matrix->Determinant());
    if((determinant < mitk::eps) || (determinant > 100) || (determinant < 0.01)
      || (determinant==itk::NumericTraits<double>::infinity())
      || (determinant==itk::NumericTraits<double>::quiet_NaN())
      || (determinant==itk::NumericTraits<double>::signaling_NaN())
      || (determinant==-itk::NumericTraits<double>::infinity())
      || (determinant==-itk::NumericTraits<double>::quiet_NaN())
      || (determinant==-itk::NumericTraits<double>::signaling_NaN())
      || (!(determinant <= 0) && !(determinant > 0)))
    {
      QMessageBox msgBox;
      msgBox.setText("Suspicious determinant of matrix calculated by ICP.\n"
        "Please select more points or other points!" );
      msgBox.exec();
      return;
    }

    pointsGeometry->Compose(matrix);
    m_MovingLandmarks->GetTimeSlicedGeometry()->UpdateInformation();

    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    mitk::Geometry3D::Pointer movingGeometry = movingData->GetGeometry(0);
    movingGeometry->Compose(matrix);
    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    m_Controls.m_UndoTransformation->setEnabled(true);
    m_Controls.m_RedoTransformation->setEnabled(false);
    m_RedoGeometryList.clear();
    m_RedoPointsGeometryList.clear();
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    this->checkLandmarkError();
  }
}

void QmitkPointBasedRegistrationView::calculateLandmarkWarping ( ) [protected, slot]

Calculates registration with itkLandmarkWarping.

Definition at line 1169 of file QmitkPointBasedRegistrationView.cpp.

References mitk::CastToItkImage(), mitk::CastToMitkImage(), checkLandmarkError(), clearTransformationLists(), mitk::UndoStackItem::ExecuteIncrement(), mitk::UndoController::GetCurrentUndoModel(), mitk::RenderingManager::GetInstance(), mitk::LandmarkWarping::GetTransformedTargetLandmarks(), mitk::UndoStackItem::IncCurrObjectEventId(), int(), m_FixedLandmarks, m_FixedNode, m_MovingLandmarks, m_MovingNode, mitk::LevelWindowProperty::New(), mitk::Image::New(), mitk::OpMOVE, mitk::LandmarkWarping::Register(), mitk::LevelWindow::SetAuto(), mitk::LandmarkWarping::SetFixedImage(), mitk::LandmarkWarping::SetLandmarks(), and mitk::LandmarkWarping::SetMovingImage().

Referenced by calculate().

{
  mitk::LandmarkWarping* registration = new mitk::LandmarkWarping();

  mitk::LandmarkWarping::FixedImageType::Pointer fixedImage = mitk::LandmarkWarping::FixedImageType::New();
  mitk::Image::Pointer fimage = dynamic_cast<mitk::Image*>(m_FixedNode->GetData());
  mitk::LandmarkWarping::MovingImageType::Pointer movingImage = mitk::LandmarkWarping::MovingImageType::New();
  mitk::Image::Pointer mimage = dynamic_cast<mitk::Image*>(m_MovingNode->GetData());
  if (fimage.IsNotNull() && /*fimage->GetDimension() == 2 || */ fimage->GetDimension() == 3 && mimage.IsNotNull() && mimage->GetDimension() == 3)
  {
    mitk::CastToItkImage(fimage, fixedImage);
    mitk::CastToItkImage(mimage, movingImage);

    registration->SetFixedImage(fixedImage);
    registration->SetMovingImage(movingImage);
    unsigned int pointId;
    mitk::Point3D sourcePoint, targetPoint;
    mitk::LandmarkWarping::LandmarkContainerType::Pointer fixedLandmarks = mitk::LandmarkWarping::LandmarkContainerType::New();
    mitk::LandmarkWarping::LandmarkPointType point;
    for(pointId = 0; pointId < (unsigned int)m_FixedLandmarks->GetSize(); ++pointId)
    {
      fimage->GetGeometry(0)->WorldToItkPhysicalPoint(m_FixedLandmarks->GetPoint(pointId), point);
      fixedLandmarks->InsertElement( pointId, point);
    }
    mitk::LandmarkWarping::LandmarkContainerType::Pointer movingLandmarks = mitk::LandmarkWarping::LandmarkContainerType::New();
    for(pointId = 0; pointId < (unsigned int)m_MovingLandmarks->GetSize(); ++pointId)
    {
      mitk::BaseData::Pointer fixedData = m_FixedNode->GetData();
      mitk::Geometry3D::Pointer fixedGeometry = fixedData->GetGeometry(0);
      fixedGeometry->WorldToItkPhysicalPoint(m_MovingLandmarks->GetPoint(pointId), point);
      movingLandmarks->InsertElement( pointId, point);
    }
    registration->SetLandmarks(fixedLandmarks.GetPointer(), movingLandmarks.GetPointer());
    mitk::LandmarkWarping::MovingImageType::Pointer output = registration->Register();
    if (output.IsNotNull())
    {
      mitk::Image::Pointer image = mitk::Image::New();
      mitk::CastToMitkImage(output, image);
      m_MovingNode->SetData(image);
      mitk::LevelWindowProperty::Pointer levWinProp = mitk::LevelWindowProperty::New();
      mitk::LevelWindow levelWindow;
      levelWindow.SetAuto( image );
      levWinProp->SetLevelWindow(levelWindow);
      m_MovingNode->GetPropertyList()->SetProperty("levelwindow",levWinProp);
      movingLandmarks = registration->GetTransformedTargetLandmarks();
      mitk::PointSet::PointDataIterator it;
      it = m_MovingLandmarks->GetPointSet()->GetPointData()->Begin();
      //increase the eventId to encapsulate the coming operations
      mitk::OperationEvent::IncCurrObjectEventId();
      mitk::OperationEvent::ExecuteIncrement();
      for(pointId=0; pointId<movingLandmarks->Size();++pointId, ++it)
      {
        int position = it->Index();
        mitk::PointSet::PointType pt = m_MovingLandmarks->GetPoint(position);
        mitk::Point3D undoPoint = ( pt );
        point = movingLandmarks->GetElement(pointId);
        fimage->GetGeometry(0)->ItkPhysicalPointToWorld(point, pt);
        mitk::PointOperation* doOp = new mitk::PointOperation(mitk::OpMOVE, pt, position);
        //undo operation
        mitk::PointOperation* undoOp = new mitk::PointOperation(mitk::OpMOVE, undoPoint, position);
        mitk::OperationEvent* operationEvent = new mitk::OperationEvent(m_MovingLandmarks, doOp, undoOp, "Move point");
        mitk::UndoController::GetCurrentUndoModel()->SetOperationEvent(operationEvent);

        //execute the Operation
        m_MovingLandmarks->ExecuteOperation(doOp);
      }
      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
      this->clearTransformationLists();
      this->checkLandmarkError();
    }
  }
}

bool QmitkPointBasedRegistrationView::CheckCalculate ( ) [protected, slot]

Checks if registration is possible.

Definition at line 760 of file QmitkPointBasedRegistrationView.cpp.

References checkCalculateEnabled(), m_FixedLandmarks, m_FixedNode, m_FixedPointSetNode, m_MovingLandmarks, m_MovingNode, and m_MovingPointSetNode.

Referenced by calculateLandmarkbased(), calculateLandmarkbasedWithICP(), updateFixedLandmarksList(), and updateMovingLandmarksList().

{
  if((m_MovingPointSetNode.IsNull())||(m_FixedPointSetNode.IsNull()||m_FixedLandmarks.IsNull()||m_MovingLandmarks.IsNull()))
    return false;
  if(m_MovingNode==m_FixedNode)
    return false;
  return this->checkCalculateEnabled();
}

bool QmitkPointBasedRegistrationView::checkCalculateEnabled ( ) [protected, slot]

Checks whether the registration can be performed.

Definition at line 1242 of file QmitkPointBasedRegistrationView.cpp.

References Ui_QmitkPointBasedRegistrationControls::m_Calculate, m_Controls, m_FixedLandmarks, m_MovingLandmarks, m_Transformation, and Ui_QmitkPointBasedRegistrationControls::m_UseICP.

Referenced by CheckCalculate(), CreateConnections(), and transformationChanged().

{
  if (m_FixedLandmarks.IsNotNull() && m_MovingLandmarks.IsNotNull())
  {
    int fixedPoints = m_FixedLandmarks->GetSize();
    int movingPoints = m_MovingLandmarks->GetSize();
    if (m_Transformation == 0 || m_Transformation == 1 || m_Transformation == 2)
    {
      if (m_Controls.m_UseICP->isChecked())
      {
        if((movingPoints > 0 && fixedPoints > 0))
        {
          m_Controls.m_Calculate->setEnabled(true);
          return true;
        }
        else
        {
          m_Controls.m_Calculate->setEnabled(false);
          return false;
        }
      }
      else
      {
        if ((movingPoints == fixedPoints) && movingPoints > 0)
        {
          m_Controls.m_Calculate->setEnabled(true);
          return true;
        }
        else
        {
          m_Controls.m_Calculate->setEnabled(false);
          return false;
        }
      }
    }
    else
    {
      m_Controls.m_Calculate->setEnabled(true);
      return true;
    }
  }
  else
  {
    return false;
  }
}

void QmitkPointBasedRegistrationView::checkLandmarkError ( ) [protected, slot]

Calculates the landmark error for the selected transformation.

Definition at line 904 of file QmitkPointBasedRegistrationView.cpp.

References QuadProgPP::dist(), m_Controls, m_FixedLandmarks, Ui_QmitkPointBasedRegistrationControls::m_MeanError, Ui_QmitkPointBasedRegistrationControls::m_MeanErrorLCD, m_MovingLandmarks, m_Transformation, Ui_QmitkPointBasedRegistrationControls::m_UseICP, and QuadProgPP::sqrt().

Referenced by calculateLandmarkbased(), calculateLandmarkbasedWithICP(), calculateLandmarkWarping(), CreateConnections(), RedoTransformation(), transformationChanged(), UndoTransformation(), updateFixedLandmarksList(), and updateMovingLandmarksList().

{
  double totalDist = 0, dist = 0, dist2 = 0;
  mitk::Point3D point1, point2, point3;
  double p1[3], p2[3];
  if(m_Transformation < 3)
  {
    if (m_Controls.m_UseICP->isChecked())
    {
      if (m_MovingLandmarks.IsNotNull() && m_FixedLandmarks.IsNotNull()&& m_MovingLandmarks->GetSize() != 0 && m_FixedLandmarks->GetSize() != 0)
      {
        for(int pointId = 0; pointId < m_MovingLandmarks->GetSize(); ++pointId)
        {
          point1 = m_MovingLandmarks->GetPoint(pointId);
          point2 = m_FixedLandmarks->GetPoint(0);
          p1[0] = point1[0]; p1[1] = point1[1]; p1[2] = point1[2];
          p2[0] = point2[0]; p2[1] = point2[1]; p2[2] = point2[2];
          dist = vtkMath::Distance2BetweenPoints(p1, p2);
          for(int pointId2 = 1; pointId2 < m_FixedLandmarks->GetSize(); ++pointId2)
          {
            point2 = m_FixedLandmarks->GetPoint(pointId2);
            p1[0] = point1[0]; p1[1] = point1[1]; p1[2] = p1[2];
            p2[0] = point2[0]; p2[1] = point2[1]; p2[2] = p2[2];
            dist2 = vtkMath::Distance2BetweenPoints(p1, p2);
            if (dist2 < dist)
            {
              dist = dist2;
            }
          }
          totalDist += dist;
        }
        m_Controls.m_MeanErrorLCD->display(sqrt(totalDist/m_FixedLandmarks->GetSize()));
        m_Controls.m_MeanErrorLCD->show();
        m_Controls.m_MeanError->show();
      }
      else
      {
        m_Controls.m_MeanErrorLCD->hide();
        m_Controls.m_MeanError->hide();
      }
    }
    else
    {
      if (m_MovingLandmarks.IsNotNull() && m_FixedLandmarks.IsNotNull() && m_MovingLandmarks->GetSize() != 0 && m_FixedLandmarks->GetSize() != 0 && m_MovingLandmarks->GetSize() == m_FixedLandmarks->GetSize())
      {
        for(int pointId = 0; pointId < m_MovingLandmarks->GetSize(); ++pointId)
        {
          point1 = m_MovingLandmarks->GetPoint(pointId);
          point2 = m_FixedLandmarks->GetPoint(pointId);
          p1[0] = point1[0]; p1[1] = point1[1]; p1[2] = point1[2];
          p2[0] = point2[0]; p2[1] = point2[1]; p2[2] = point2[2];
          totalDist += vtkMath::Distance2BetweenPoints(p1, p2);
        }
        m_Controls.m_MeanErrorLCD->display(sqrt(totalDist/m_FixedLandmarks->GetSize()));
        m_Controls.m_MeanErrorLCD->show();
        m_Controls.m_MeanError->show();
      }
      else
      {
        m_Controls.m_MeanErrorLCD->hide();
        m_Controls.m_MeanError->hide();
      }
    }
  }
  else
  {
    if (m_MovingLandmarks.IsNotNull() && m_FixedLandmarks.IsNotNull() && m_MovingLandmarks->GetSize() != 0 && m_FixedLandmarks->GetSize() != 0 && m_MovingLandmarks->GetSize() == m_FixedLandmarks->GetSize())
    {
      for(int pointId = 0; pointId < m_MovingLandmarks->GetSize(); ++pointId)
      {
        point1 = m_MovingLandmarks->GetPoint(pointId);
        point2 = m_FixedLandmarks->GetPoint(pointId);
        p1[0] = point1[0]; p1[1] = point1[1]; p1[2] = point1[2];
        p2[0] = point2[0]; p2[1] = point2[1]; p2[2] = point2[2];
        totalDist += vtkMath::Distance2BetweenPoints(p1, p2);
      }
      m_Controls.m_MeanErrorLCD->display(sqrt(totalDist/m_FixedLandmarks->GetSize()));
      m_Controls.m_MeanErrorLCD->show();
      m_Controls.m_MeanError->show();
    }
    else
    {
      m_Controls.m_MeanErrorLCD->hide();
      m_Controls.m_MeanError->hide();
    }
  }
}

void QmitkPointBasedRegistrationView::clearTransformationLists ( ) [protected, slot]

Clears the undo and redo transformation lists.

Definition at line 892 of file QmitkPointBasedRegistrationView.cpp.

References m_Controls, Ui_QmitkPointBasedRegistrationControls::m_MeanError, Ui_QmitkPointBasedRegistrationControls::m_MeanErrorLCD, m_RedoGeometryList, m_RedoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_RedoTransformation, m_UndoGeometryList, m_UndoPointsGeometryList, and Ui_QmitkPointBasedRegistrationControls::m_UndoTransformation.

Referenced by Activated(), calculateLandmarkWarping(), Deactivated(), and MovingSelected().

{
  m_Controls.m_UndoTransformation->setEnabled(false);
  m_Controls.m_RedoTransformation->setEnabled(false);
  m_Controls.m_MeanErrorLCD->hide();
  m_Controls.m_MeanError->hide();
  m_UndoGeometryList.clear();
  m_UndoPointsGeometryList.clear();
  m_RedoGeometryList.clear();
  m_RedoPointsGeometryList.clear();
}

void QmitkPointBasedRegistrationView::CreateConnections ( ) [virtual]

Method for creating the connections of main and control widget.

Definition at line 292 of file QmitkPointBasedRegistrationView.cpp.

Referenced by CreateQtPartControl().

{
  connect( (QObject*)(m_Controls.m_FixedPointListWidget), SIGNAL(EditPointSets(bool)), (QObject*)(m_Controls.m_MovingPointListWidget), SLOT(DeactivateInteractor(bool)));
  connect( (QObject*)(m_Controls.m_MovingPointListWidget), SIGNAL(EditPointSets(bool)), (QObject*)(m_Controls.m_FixedPointListWidget), SLOT(DeactivateInteractor(bool)));
  connect( (QObject*)(m_Controls.m_FixedPointListWidget), SIGNAL(EditPointSets(bool)), this, SLOT(HideMovingImage(bool)));
  connect( (QObject*)(m_Controls.m_MovingPointListWidget), SIGNAL(EditPointSets(bool)), this, SLOT(HideFixedImage(bool)));
  connect( (QObject*)(m_Controls.m_FixedPointListWidget), SIGNAL(PointListChanged()), this, SLOT(updateFixedLandmarksList()));
  connect( (QObject*)(m_Controls.m_MovingPointListWidget), SIGNAL(PointListChanged()), this, SLOT(updateMovingLandmarksList()));
  connect((QObject*)(m_Controls.m_Calculate),SIGNAL(clicked()),this,SLOT(calculate()));
  connect((QObject*)(m_Controls.m_SwitchImages),SIGNAL(clicked()),this,SLOT(SwitchImages()));
  connect((QObject*)(m_Controls.m_UndoTransformation),SIGNAL(clicked()),this,SLOT(UndoTransformation()));
  connect((QObject*)(m_Controls.m_RedoTransformation),SIGNAL(clicked()),this,SLOT(RedoTransformation()));
  connect((QObject*)(m_Controls.m_ShowRedGreenValues),SIGNAL(toggled(bool)),this,SLOT(showRedGreen(bool)));
  connect((QObject*)(m_Controls.m_OpacitySlider),SIGNAL(valueChanged(int)),this,SLOT(OpacityUpdate(int)));
  connect((QObject*)(m_Controls.m_SelectedTransformationClass),SIGNAL(activated(int)), this,SLOT(transformationChanged(int)));
  connect((QObject*)(m_Controls.m_UseICP),SIGNAL(toggled(bool)), this,SLOT(checkCalculateEnabled()));
  connect((QObject*)(m_Controls.m_UseICP),SIGNAL(toggled(bool)), this,SLOT(checkLandmarkError()));
}

void QmitkPointBasedRegistrationView::CreateQtPartControl ( QWidget * parent ) [virtual]

method for creating the applications main widget

Implements berry::QtViewPart.

Definition at line 247 of file QmitkPointBasedRegistrationView.cpp.

{
  m_Controls.setupUi(parent);
  m_Parent->setEnabled(false);
  m_Controls.m_MeanErrorLCD->hide();
  m_Controls.m_MeanError->hide();
  m_Controls.TextLabelFixed->hide();
  m_Controls.line2->hide();
  m_Controls.m_FixedPointListWidget->hide();
  m_Controls.m_FixedLabel->hide();
  m_Controls.TextLabelMoving->hide();
  m_Controls.m_MovingLabel->hide();
  m_Controls.line1->hide();
  m_Controls.m_MovingPointListWidget->hide();
  m_Controls.m_OpacityLabel->hide();
  m_Controls.m_OpacitySlider->hide();
  m_Controls.label->hide();
  m_Controls.label_2->hide();
  m_Controls.m_SwitchImages->hide();
  m_Controls.m_ShowRedGreenValues->setEnabled(false);

  this->CreateConnections();

  // let the point set widget know about the multi widget (cross hair updates)
  m_Controls.m_FixedPointListWidget->SetMultiWidget( m_MultiWidget );
  m_Controls.m_MovingPointListWidget->SetMultiWidget( m_MultiWidget );
}

void QmitkPointBasedRegistrationView::DataNodeHasBeenRemoved ( const mitk::DataNode * node )

Helper method for testing.

Helper method for testing

Definition at line 457 of file QmitkPointBasedRegistrationView.cpp.

Referenced by QmitkPointBasedRegistrationView().

{
  if(node == m_FixedNode || node == m_MovingNode)
  {
    m_Controls.m_StatusLabel->show();
    m_Controls.TextLabelFixed->hide();
    m_Controls.m_FixedLabel->hide();
    m_Controls.line2->hide();
    m_Controls.m_FixedPointListWidget->hide();
    m_Controls.TextLabelMoving->hide();
    m_Controls.m_MovingLabel->hide();
    m_Controls.line1->hide();
    m_Controls.m_MovingPointListWidget->hide();
    m_Controls.m_OpacityLabel->hide();
    m_Controls.m_OpacitySlider->hide();
    m_Controls.label->hide();
    m_Controls.label_2->hide();
    m_Controls.m_SwitchImages->hide();
    m_Controls.m_ShowRedGreenValues->setEnabled(false);
  }

}

void QmitkPointBasedRegistrationView::Deactivated ( ) [virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:: IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 339 of file QmitkPointBasedRegistrationView.cpp.

{

  m_Deactivated = true;
  if (m_FixedPointSetNode.IsNotNull())
    m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldFixedLabel));
  m_Controls.m_FixedPointListWidget->SetPointSetNode(NULL);
  m_Controls.m_FixedPointListWidget->DeactivateInteractor(true);
  if (m_MovingPointSetNode.IsNotNull())
    m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
  m_Controls.m_MovingPointListWidget->SetPointSetNode(NULL);
  m_Controls.m_MovingPointListWidget->DeactivateInteractor(true);
  this->setImageColor(false);
  if (m_FixedNode.IsNotNull())
    m_FixedNode->SetOpacity(1.0);
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_OriginalOpacity);
  }
  this->clearTransformationLists();
  if (m_FixedPointSetNode.IsNotNull() && m_FixedLandmarks.IsNotNull() && m_FixedLandmarks->GetSize() == 0)
  {
    this->GetDataStorage()->Remove(m_FixedPointSetNode);
  }
  if (m_MovingPointSetNode.IsNotNull() && m_MovingLandmarks.IsNotNull() && m_MovingLandmarks->GetSize() == 0)
  {
    this->GetDataStorage()->Remove(m_MovingPointSetNode);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  if(m_FixedLandmarks.IsNotNull())
    m_FixedLandmarks->RemoveObserver(m_CurrentFixedLandmarksObserverID);
  m_FixedLandmarks = NULL;
  if(m_MovingLandmarks.IsNotNull())
    m_MovingLandmarks->RemoveObserver(m_CurrentMovingLandmarksObserverID);
  m_MovingLandmarks = NULL;
  m_FixedPointSetNode = NULL;
  m_MovingPointSetNode = NULL;
  m_Controls.m_FixedLabel->hide();
  m_Controls.TextLabelFixed->hide();
  m_Controls.line2->hide();
  m_Controls.m_FixedPointListWidget->hide();
  m_Controls.m_MovingLabel->hide();
  m_Controls.TextLabelMoving->hide();
  m_Controls.line1->hide();
  m_Controls.m_MovingPointListWidget->hide();
  m_Controls.m_OpacityLabel->hide();
  m_Controls.m_OpacitySlider->hide();
  m_Controls.label->hide();
  m_Controls.label_2->hide();
  m_Controls.m_SwitchImages->hide();
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;

}

void QmitkPointBasedRegistrationView::FixedSelected ( mitk::DataNode::Pointer fixedImage ) [protected, slot]

Sets the fixed Image according to TreeNodeSelector widget.

Definition at line 480 of file QmitkPointBasedRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), mitk::RenderingManager::GetInstance(), Ui_QmitkPointBasedRegistrationControls::line2, m_Controls, m_CurrentFixedLandmarksObserverID, m_FixedColor, Ui_QmitkPointBasedRegistrationControls::m_FixedLabel, m_FixedLandmarks, m_FixedLandmarksChangedCommand, m_FixedNode, Ui_QmitkPointBasedRegistrationControls::m_FixedPointListWidget, m_FixedPointSetNode, m_OldFixedLabel, m_ShowRedGreen, Ui_QmitkPointBasedRegistrationControls::m_SwitchImages, mitk::ColorProperty::New(), mitk::DataNode::New(), mitk::PointSet::New(), mitk::StringProperty::New(), setImageColor(), QmitkPointListWidget::SetPointSetNode(), and Ui_QmitkPointBasedRegistrationControls::TextLabelFixed.

Referenced by SwitchImages().

{
  if(m_FixedLandmarks.IsNotNull())
    m_FixedLandmarks->RemoveObserver(m_CurrentFixedLandmarksObserverID);
  if (fixedImage.IsNotNull())
  {
    if (m_FixedNode != fixedImage)
    {
      // remove changes on previous selected node
      if (m_FixedNode.IsNotNull())
      {
        this->setImageColor(false);
        m_FixedNode->SetOpacity(1.0);
        if (m_FixedPointSetNode.IsNotNull())
        {
          m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldFixedLabel));
        }
      }
      // get selected node
      m_FixedNode = fixedImage;
      m_FixedNode->SetOpacity(0.5);
      m_FixedNode->SetVisibility(true);
      m_Controls.m_FixedLabel->setText(QString::fromStdString(m_FixedNode->GetName()));
      m_Controls.m_FixedLabel->show();
      m_Controls.m_SwitchImages->show();
      m_Controls.TextLabelFixed->show();
      m_Controls.line2->show();
      m_Controls.m_FixedPointListWidget->show();
      mitk::ColorProperty::Pointer colorProperty;
      colorProperty = dynamic_cast<mitk::ColorProperty*>(m_FixedNode->GetProperty("color"));
      if ( colorProperty.IsNotNull() )
      {
        m_FixedColor = colorProperty->GetColor();
      }
      this->setImageColor(m_ShowRedGreen);

      bool hasPointSetNode = false;
      mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_FixedNode);
      unsigned long size;
      size = children->Size();
      for (unsigned long i = 0; i < size; ++i)
      {
        mitk::StringProperty::Pointer nameProp = dynamic_cast<mitk::StringProperty*>(children->GetElement(i)->GetProperty("name"));
        if(nameProp.IsNotNull() && nameProp->GetValueAsString()=="PointBasedRegistrationNode")
        {
          m_FixedPointSetNode=children->GetElement(i);
          m_FixedLandmarks = dynamic_cast<mitk::PointSet*> (m_FixedPointSetNode->GetData());
          this->GetDataStorage()->Remove(m_FixedPointSetNode);
          hasPointSetNode = true;
          break;
        }
      }
      if (!hasPointSetNode)
      {
        m_FixedLandmarks = mitk::PointSet::New();
        m_FixedPointSetNode = mitk::DataNode::New();
        m_FixedPointSetNode->SetData(m_FixedLandmarks);
        m_FixedPointSetNode->SetProperty("name", mitk::StringProperty::New("PointBasedRegistrationNode"));
      }
      m_FixedPointSetNode->GetStringProperty("label", m_OldFixedLabel);
      m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New("F "));
      m_FixedPointSetNode->SetProperty("color", mitk::ColorProperty::New(0.0f, 1.0f, 1.0f));
      m_FixedPointSetNode->SetVisibility(true);
      m_Controls.m_FixedPointListWidget->SetPointSetNode(m_FixedPointSetNode);
      this->GetDataStorage()->Add(m_FixedPointSetNode, m_FixedNode);

      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    }
    if (m_FixedPointSetNode.IsNull())
    {
      m_FixedLandmarks = mitk::PointSet::New();
      m_FixedPointSetNode = mitk::DataNode::New();
      m_FixedPointSetNode->SetData(m_FixedLandmarks);
      m_FixedPointSetNode->SetProperty("name", mitk::StringProperty::New("PointBasedRegistrationNode"));

      m_FixedPointSetNode->GetStringProperty("label", m_OldFixedLabel);
      m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New("F "));
      m_FixedPointSetNode->SetProperty("color", mitk::ColorProperty::New(0.0f, 1.0f, 1.0f));
      m_FixedPointSetNode->SetVisibility(true);
      m_Controls.m_FixedPointListWidget->SetPointSetNode(m_FixedPointSetNode);
      this->GetDataStorage()->Add(m_FixedPointSetNode, m_FixedNode);

      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    }
  }
  else
  {
    m_FixedNode = NULL;
    if (m_FixedPointSetNode.IsNotNull())
      m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldFixedLabel));
    m_FixedPointSetNode = NULL;
    m_FixedLandmarks = NULL;
    m_Controls.m_FixedPointListWidget->SetPointSetNode(m_FixedPointSetNode);
    m_Controls.m_FixedLabel->hide();
    m_Controls.TextLabelFixed->hide();
    m_Controls.line2->hide();
    m_Controls.m_FixedPointListWidget->hide();
    m_Controls.m_SwitchImages->hide();
  }
  if(m_FixedLandmarks.IsNotNull())
    m_CurrentFixedLandmarksObserverID = m_FixedLandmarks->AddObserver(itk::ModifiedEvent(), m_FixedLandmarksChangedCommand);
}

void QmitkPointBasedRegistrationView::Hidden ( ) [virtual]

Called when this functionality is hidden ( no matter what IsExclusiveFunctionality() returns )

Reimplemented from QmitkFunctionality.

Definition at line 398 of file QmitkPointBasedRegistrationView.cpp.

{
  /*
  m_Deactivated = true;
  if (m_FixedPointSetNode.IsNotNull())
    m_FixedPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldFixedLabel));
  m_Controls.m_FixedPointListWidget->SetPointSetNode(NULL);
  m_Controls.m_FixedPointListWidget->DeactivateInteractor(true);
  if (m_MovingPointSetNode.IsNotNull())
    m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
  m_Controls.m_MovingPointListWidget->SetPointSetNode(NULL);
  m_Controls.m_MovingPointListWidget->DeactivateInteractor(true);
  this->setImageColor(false);
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_OriginalOpacity);
  }
  this->clearTransformationLists();
  if (m_FixedPointSetNode.IsNotNull() && m_FixedLandmarks.IsNotNull() && m_FixedLandmarks->GetSize() == 0)
  {
    this->GetDataStorage()->Remove(m_FixedPointSetNode);
  }
  if (m_MovingPointSetNode.IsNotNull() && m_MovingLandmarks.IsNotNull() && m_MovingLandmarks->GetSize() == 0)
  {
    this->GetDataStorage()->Remove(m_MovingPointSetNode);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  m_FixedNode = NULL;
  m_MovingNode = NULL;
  if(m_FixedLandmarks.IsNotNull())
    m_FixedLandmarks->RemoveObserver(m_CurrentFixedLandmarksObserverID);
  m_FixedLandmarks = NULL;
  if(m_MovingLandmarks.IsNotNull())
    m_MovingLandmarks->RemoveObserver(m_CurrentMovingLandmarksObserverID);
  m_MovingLandmarks = NULL;
  m_FixedPointSetNode = NULL;
  m_MovingPointSetNode = NULL;
  m_Controls.m_FixedLabel->hide();
  m_Controls.TextLabelFixed->hide();
  m_Controls.line2->hide();
  m_Controls.m_FixedPointListWidget->hide();
  m_Controls.m_MovingLabel->hide();
  m_Controls.TextLabelMoving->hide();
  m_Controls.line1->hide();
  m_Controls.m_MovingPointListWidget->hide();
  m_Controls.m_OpacityLabel->hide();
  m_Controls.m_OpacitySlider->hide();
  m_Controls.label->hide();
  m_Controls.label_2->hide();
  m_Controls.m_SwitchImages->hide();
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemovePostSelectionListener(m_SelListener);
  m_SelListener = NULL;
  //mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  //QmitkFunctionality::Deactivated();*/
}

void QmitkPointBasedRegistrationView::HideFixedImage ( bool hide ) [protected, slot]

lets the moving image become invisible and the fixed image visible

Definition at line 724 of file QmitkPointBasedRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_FixedNode, m_HideFixedImage, and m_HideMovingImage.

Referenced by CreateConnections().

{
  m_HideFixedImage = hide;
  if(m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetVisibility(!hide);
  }
  if (hide)
  {
    //this->reinitMovingClicked();
  }
  if (!m_HideMovingImage && !m_HideFixedImage)
  {
    //this->globalReinitClicked();
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkPointBasedRegistrationView::HideMovingImage ( bool hide ) [protected, slot]

lets the fixed image become invisible and the moving image visible

Definition at line 742 of file QmitkPointBasedRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_HideFixedImage, m_HideMovingImage, and m_MovingNode.

Referenced by CreateConnections().

{
  m_HideMovingImage = hide;
  if(m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetVisibility(!hide);
  }
  if (hide)
  {
    //this->reinitFixedClicked();
  }
  if (!m_HideMovingImage && !m_HideFixedImage)
  {
    //this->globalReinitClicked();
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkPointBasedRegistrationView::MovingSelected ( mitk::DataNode::Pointer movingImage ) [protected, slot]

Sets the moving Image according to TreeNodeSelector widget.

Definition at line 583 of file QmitkPointBasedRegistrationView.cpp.

Referenced by SwitchImages().

{
  if(m_MovingLandmarks.IsNotNull())
    m_MovingLandmarks->RemoveObserver(m_CurrentMovingLandmarksObserverID);
  if (movingImage.IsNotNull())
  {
    if (m_MovingNode != movingImage)
    {
      if (m_MovingNode.IsNotNull())
      {
        m_MovingNode->SetOpacity(m_OriginalOpacity);
        if (m_FixedNode == m_MovingNode)
          m_FixedNode->SetOpacity(0.5);
        this->setImageColor(false);
        if (m_MovingNode != m_FixedNode)
        {
          m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
        }
        else
        {
          m_OldFixedLabel = m_OldMovingLabel;
        }
      }
      if (m_MovingPointSetNode.IsNotNull())
        m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
      m_MovingNode = movingImage;
      m_MovingNode->SetVisibility(true);
      m_Controls.m_MovingLabel->setText(QString::fromStdString(m_MovingNode->GetName()));
      m_Controls.m_MovingLabel->show();
      m_Controls.TextLabelMoving->show();
      m_Controls.line1->show();
      m_Controls.m_MovingPointListWidget->show();
      m_Controls.m_OpacityLabel->show();
      m_Controls.m_OpacitySlider->show();
      m_Controls.label->show();
      m_Controls.label_2->show();
      mitk::ColorProperty::Pointer colorProperty;
      colorProperty = dynamic_cast<mitk::ColorProperty*>(m_MovingNode->GetProperty("color"));
      if ( colorProperty.IsNotNull() )
      {
        m_MovingColor = colorProperty->GetColor();
      }
      this->setImageColor(m_ShowRedGreen);
      m_MovingNode->GetFloatProperty("opacity", m_OriginalOpacity);
      this->OpacityUpdate(m_Opacity);
      bool hasPointSetNode = false;
      mitk::DataStorage::SetOfObjects::ConstPointer children = this->GetDataStorage()->GetDerivations(m_MovingNode);
      unsigned long size;
      size = children->Size();
      for (unsigned long i = 0; i < size; ++i)
      {
        mitk::StringProperty::Pointer nameProp = dynamic_cast<mitk::StringProperty*>(children->GetElement(i)->GetProperty("name"));
        if(nameProp.IsNotNull() && nameProp->GetValueAsString()=="PointBasedRegistrationNode")
        {
          m_MovingPointSetNode=children->GetElement(i);
          m_MovingLandmarks = dynamic_cast<mitk::PointSet*> (m_MovingPointSetNode->GetData());
          this->GetDataStorage()->Remove(m_MovingPointSetNode);
          hasPointSetNode = true;
          break;
        }
      }
      if (!hasPointSetNode)
      {
        m_MovingLandmarks = mitk::PointSet::New();
        m_MovingPointSetNode = mitk::DataNode::New();
        m_MovingPointSetNode->SetData(m_MovingLandmarks);
        m_MovingPointSetNode->SetProperty("name", mitk::StringProperty::New("PointBasedRegistrationNode"));
      }
      this->GetDataStorage()->Add(m_MovingPointSetNode, m_MovingNode);
      m_MovingPointSetNode->GetStringProperty("label", m_OldMovingLabel);
      m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New("M "));
      m_MovingPointSetNode->SetProperty("color", mitk::ColorProperty::New(1.0f, 1.0f, 0.0f));
      m_MovingPointSetNode->SetVisibility(true);
      m_Controls.m_MovingPointListWidget->SetPointSetNode(m_MovingPointSetNode);
      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
      this->clearTransformationLists();
      this->OpacityUpdate(m_Opacity);
    }
    if (m_MovingPointSetNode.IsNull())
    {
      m_MovingLandmarks = mitk::PointSet::New();
      m_MovingPointSetNode = mitk::DataNode::New();
      m_MovingPointSetNode->SetData(m_MovingLandmarks);
      m_MovingPointSetNode->SetProperty("name", mitk::StringProperty::New("PointBasedRegistrationNode"));

      m_MovingPointSetNode->GetStringProperty("label", m_OldMovingLabel);
      m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New("M "));
      m_MovingPointSetNode->SetProperty("color", mitk::ColorProperty::New(1.0f, 1.0f, 0.0f));
      m_MovingPointSetNode->SetVisibility(true);
      m_Controls.m_MovingPointListWidget->SetPointSetNode(m_MovingPointSetNode);
      this->GetDataStorage()->Add(m_MovingPointSetNode, m_MovingNode);

      mitk::RenderingManager::GetInstance()->RequestUpdateAll();

    }




  }
  else
  {
    m_MovingNode = NULL;
    if (m_MovingPointSetNode.IsNotNull())
      m_MovingPointSetNode->SetProperty("label", mitk::StringProperty::New(m_OldMovingLabel));
    m_MovingPointSetNode = NULL;
    m_MovingLandmarks = NULL;
    m_Controls.m_MovingPointListWidget->SetPointSetNode(m_MovingPointSetNode);
    m_Controls.m_MovingLabel->hide();
    m_Controls.TextLabelMoving->hide();
    m_Controls.line1->hide();
    m_Controls.m_MovingPointListWidget->hide();
    m_Controls.m_OpacityLabel->hide();
    m_Controls.m_OpacitySlider->hide();
    m_Controls.label->hide();
    m_Controls.label_2->hide();
  }
  if(m_MovingLandmarks.IsNotNull())
    m_CurrentMovingLandmarksObserverID = m_MovingLandmarks->AddObserver(itk::ModifiedEvent(), m_MovingLandmarksChangedCommand);
}

void QmitkPointBasedRegistrationView::OpacityUpdate ( float opacity ) [protected, slot]

Sets the selected opacity for moving image.

Parameters:

opacity the selected opacity

Definition at line 872 of file QmitkPointBasedRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_MovingNode, and m_Opacity.

Referenced by Activated(), CreateConnections(), MovingSelected(), and OpacityUpdate().

{
  if (opacity > 1)
  {
    opacity = opacity/100.0f;
  }
  m_Opacity = opacity;
  if (m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetOpacity(m_Opacity);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkPointBasedRegistrationView::OpacityUpdate ( int opacity ) [protected, slot]

Sets the selected opacity for moving image.

Parameters:

opacity the selected opacity

Definition at line 886 of file QmitkPointBasedRegistrationView.cpp.

References OpacityUpdate().

{
  float fValue = ((float)opacity)/100.0f;
  this->OpacityUpdate(fValue);
}

void QmitkPointBasedRegistrationView::RedoTransformation ( ) [protected, slot]

Performs a redo for the last undo transform.

Definition at line 807 of file QmitkPointBasedRegistrationView.cpp.

References checkLandmarkError(), mitk::RenderingManager::GetInstance(), berry::SmartPointer< TObjectType >::GetPointer(), m_Controls, m_MovingLandmarks, m_MovingNode, m_MovingPointSetNode, m_MultiWidget, m_RedoGeometryList, m_RedoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_RedoTransformation, m_UndoGeometryList, m_UndoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_UndoTransformation, and QmitkStdMultiWidget::mitkWidget4.

Referenced by CreateConnections().

{
  if(!m_RedoPointsGeometryList.empty())
  {
    mitk::AffineGeometryFrame3D::Pointer movingLandmarksGeometry = m_MovingLandmarks->GetGeometry(0)->Clone();
    m_UndoPointsGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingLandmarksGeometry.GetPointer()));
    m_MovingLandmarks->SetGeometry(m_RedoPointsGeometryList.back());
    m_RedoPointsGeometryList.pop_back();
    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingPointSetNode->SetMapper(1, NULL);

    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    mitk::AffineGeometryFrame3D::Pointer movingGeometry = movingData->GetGeometry(0)->Clone();
    m_UndoGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingGeometry.GetPointer()));
    movingData->SetGeometry(m_RedoGeometryList.back());
    m_RedoGeometryList.pop_back();
    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingNode->SetMapper(1, NULL);
    mitk::RenderingManager::GetInstance()->RequestUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());

    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    m_MovingLandmarks->GetTimeSlicedGeometry()->UpdateInformation();
    m_Controls.m_UndoTransformation->setEnabled(true);
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    this->checkLandmarkError();
  }
  if(!m_RedoPointsGeometryList.empty())
  {
    m_Controls.m_RedoTransformation->setEnabled(true);
  }
  else
  {
    m_Controls.m_RedoTransformation->setEnabled(false);
  }
}

void QmitkPointBasedRegistrationView::setImageColor ( bool redGreen ) [protected, slot]

Sets the images to gray values or fixed image to red and moving image to green.

Parameters:

redGreen if true, then images will be shown in red and green

Definition at line 851 of file QmitkPointBasedRegistrationView.cpp.

References mitk::RenderingManager::GetInstance(), m_FixedColor, m_FixedNode, m_MovingColor, and m_MovingNode.

Referenced by Deactivated(), FixedSelected(), MovingSelected(), and showRedGreen().

{
  if (!redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(m_FixedColor);
  }
  if (!redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(m_MovingColor);
  }
  if (redGreen && m_FixedNode.IsNotNull())
  {
    m_FixedNode->SetColor(1.0f, 0.0f, 0.0f);
  }
  if (redGreen && m_MovingNode.IsNotNull())
  {
    m_MovingNode->SetColor(0.0f, 1.0f, 0.0f);
  }
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkPointBasedRegistrationView::SetImagesVisible ( berry::ISelection::ConstPointer ) [protected, slot]

Definition at line 1315 of file QmitkPointBasedRegistrationView.cpp.

References QmitkFunctionality::GetDataStorage(), and m_CurrentSelection.

{
  if (this->m_CurrentSelection->Size() == 0)
  {
    // show all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(true);
      }
    }
  }
  else
  {
    // hide all images
    mitk::DataStorage::SetOfObjects::ConstPointer setOfObjects = this->GetDataStorage()->GetAll();
    for (mitk::DataStorage::SetOfObjects::ConstIterator nodeIt = setOfObjects->Begin()
      ; nodeIt != setOfObjects->End(); ++nodeIt)  // for each node
    {
      if ( (nodeIt->Value().IsNotNull()) && (nodeIt->Value()->GetProperty("visible")) && dynamic_cast<mitk::Geometry2DData*>(nodeIt->Value()->GetData())==NULL)
      {
        nodeIt->Value()->SetVisibility(false);
      }
    }
  }
}

void QmitkPointBasedRegistrationView::showRedGreen ( bool show ) [protected, slot]

Stores whether the image will be shown in grayvalues or in red for fixed image and green for moving image.

Parameters:

show	if true, then images will be shown in red and green

Definition at line 845 of file QmitkPointBasedRegistrationView.cpp.

References m_ShowRedGreen, and setImageColor().

Referenced by Activated(), and CreateConnections().

{
  m_ShowRedGreen = redGreen;
  this->setImageColor(m_ShowRedGreen);
}

void QmitkPointBasedRegistrationView::StdMultiWidgetAvailable ( QmitkStdMultiWidget & stdMultiWidget ) [virtual]

Sets the StdMultiWidget and connects it to the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 275 of file QmitkPointBasedRegistrationView.cpp.

References m_Controls, Ui_QmitkPointBasedRegistrationControls::m_FixedPointListWidget, Ui_QmitkPointBasedRegistrationControls::m_MovingPointListWidget, m_MultiWidget, QmitkFunctionality::m_Parent, QmitkPointListWidget::SetMultiWidget(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

{
  m_Parent->setEnabled(true);
  m_MultiWidget = &stdMultiWidget;
  m_MultiWidget->SetWidgetPlanesVisibility(true);
  m_Controls.m_FixedPointListWidget->SetMultiWidget( m_MultiWidget );
  m_Controls.m_MovingPointListWidget->SetMultiWidget( m_MultiWidget );
}

void QmitkPointBasedRegistrationView::StdMultiWidgetNotAvailable ( ) [virtual]

Removes the StdMultiWidget and disconnects it from the functionality.

Reimplemented from QmitkFunctionality.

Definition at line 284 of file QmitkPointBasedRegistrationView.cpp.

References m_Controls, Ui_QmitkPointBasedRegistrationControls::m_FixedPointListWidget, Ui_QmitkPointBasedRegistrationControls::m_MovingPointListWidget, m_MultiWidget, QmitkFunctionality::m_Parent, and QmitkPointListWidget::SetMultiWidget().

{
  m_Parent->setEnabled(false);
  m_MultiWidget = NULL;
  m_Controls.m_FixedPointListWidget->SetMultiWidget( NULL );
  m_Controls.m_MovingPointListWidget->SetMultiWidget( NULL );
}

void QmitkPointBasedRegistrationView::SwitchImages ( ) [protected, slot]

Definition at line 1345 of file QmitkPointBasedRegistrationView.cpp.

References FixedSelected(), m_FixedNode, m_MovingNode, and MovingSelected().

Referenced by CreateConnections().

{
  mitk::DataNode::Pointer newMoving = m_FixedNode;
  mitk::DataNode::Pointer newFixed = m_MovingNode;
  this->FixedSelected(newFixed);
  this->MovingSelected(newMoving);
}

void QmitkPointBasedRegistrationView::transformationChanged ( int transform ) [protected, slot]

Changes the transformation type and calls checkLandmarkError().

Definition at line 992 of file QmitkPointBasedRegistrationView.cpp.

References checkCalculateEnabled(), checkLandmarkError(), and m_Transformation.

Referenced by CreateConnections().

{
  m_Transformation = transform;
  this->checkCalculateEnabled();
  this->checkLandmarkError();
}

void QmitkPointBasedRegistrationView::UndoTransformation ( ) [protected, slot]

Performs an undo for the last transform.

Definition at line 769 of file QmitkPointBasedRegistrationView.cpp.

References checkLandmarkError(), mitk::RenderingManager::GetInstance(), berry::SmartPointer< TObjectType >::GetPointer(), m_Controls, m_MovingLandmarks, m_MovingNode, m_MovingPointSetNode, m_MultiWidget, m_RedoGeometryList, m_RedoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_RedoTransformation, m_UndoGeometryList, m_UndoPointsGeometryList, Ui_QmitkPointBasedRegistrationControls::m_UndoTransformation, and QmitkStdMultiWidget::mitkWidget4.

Referenced by CreateConnections().

{
  if(!m_UndoPointsGeometryList.empty())
  {
    mitk::AffineGeometryFrame3D::Pointer movingLandmarksGeometry = m_MovingLandmarks->GetGeometry(0)->Clone();
    m_RedoPointsGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingLandmarksGeometry.GetPointer()));
    m_MovingLandmarks->SetGeometry(m_UndoPointsGeometryList.back());
    m_UndoPointsGeometryList.pop_back();
    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingPointSetNode->SetMapper(1, NULL);

    mitk::BaseData::Pointer movingData = m_MovingNode->GetData();
    mitk::AffineGeometryFrame3D::Pointer movingGeometry = movingData->GetGeometry(0)->Clone();
    m_RedoGeometryList.push_back(static_cast<mitk::Geometry3D *>(movingGeometry.GetPointer()));
    movingData->SetGeometry(m_UndoGeometryList.back());
    m_UndoGeometryList.pop_back();
    //\FIXME when geometry is substituted the matrix referenced by the actor created by the mapper
    //is still pointing to the old one. Workaround: delete mapper
    m_MovingNode->SetMapper(1, NULL);
    mitk::RenderingManager::GetInstance()->RequestUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());

    movingData->GetTimeSlicedGeometry()->UpdateInformation();
    m_MovingLandmarks->GetTimeSlicedGeometry()->UpdateInformation();
    m_Controls.m_RedoTransformation->setEnabled(true);
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    this->checkLandmarkError();
  }
  if(!m_UndoPointsGeometryList.empty())
  {
    m_Controls.m_UndoTransformation->setEnabled(true);
  }
  else
  {
    m_Controls.m_UndoTransformation->setEnabled(false);
  }
}

void QmitkPointBasedRegistrationView::updateFixedLandmarksList ( ) [protected, slot]

Updates the fixed landmarks.

Definition at line 717 of file QmitkPointBasedRegistrationView.cpp.

References CheckCalculate(), checkLandmarkError(), m_FixedLandmarks, and m_FixedPointSetNode.

Referenced by CreateConnections(), and QmitkPointBasedRegistrationView().

{
  m_FixedLandmarks = dynamic_cast<mitk::PointSet*>(m_FixedPointSetNode->GetData());
  this->checkLandmarkError();
  this->CheckCalculate();
}

void QmitkPointBasedRegistrationView::updateMovingLandmarksList ( ) [protected, slot]

Updates the moving landmarks.

Definition at line 704 of file QmitkPointBasedRegistrationView.cpp.

References CheckCalculate(), checkLandmarkError(), m_MovingLandmarks, and m_MovingPointSetNode.

Referenced by CreateConnections(), and QmitkPointBasedRegistrationView().

{
//  mitk::PointSet* ps = mitk::PointSet::New();
//  ps = dynamic_cast<mitk::PointSet*>(m_MovingPointSetNode->GetData());
//  mitk::DataNode::Pointer tmpPtr = m_MovingPointSetNode;
//  m_MovingLandmarks = 0;
//  m_MovingLandmarks = (ps);
  m_MovingLandmarks = dynamic_cast<mitk::PointSet*>(m_MovingPointSetNode->GetData());
//  m_Controls.m_MovingPointListWidget->SetPointSetNode(m_MovingPointSetNode);    //Workaround: m_MovingPointListWidget->m_PointListView->m_PointListModel loses the pointer on the pointsetnode
  this->checkLandmarkError();
  this->CheckCalculate();
}
