mitk::SegmentationSink Class Reference

#include <mitkSegmentationSink.h>

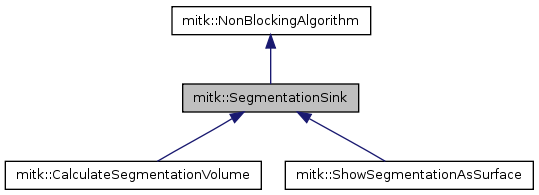

Inheritance diagram for mitk::SegmentationSink:

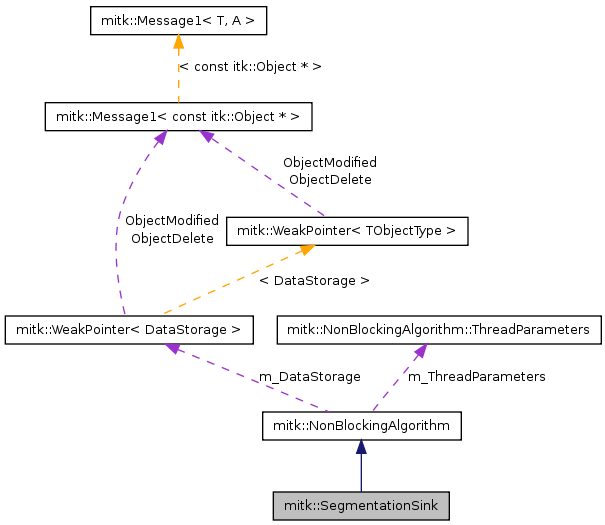

Collaboration diagram for mitk::SegmentationSink:

List of all members.

Public Types
typedef SegmentationSink	Self
typedef NonBlockingAlgorithm	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
Static Public Member Functions
static Pointer	New (void)
Protected Member Functions
	SegmentationSink ()
virtual	~SegmentationSink ()
virtual void	Initialize (const NonBlockingAlgorithm *other=NULL)
virtual bool	ReadyToRun ()
virtual bool	ThreadedUpdateFunction ()
void	InsertBelowGroupNode (mitk::DataNode *node)
	to be called by subclasses when they want to insert some resulting object (binary image, surface, ...) into the data tree
DataNode *	LookForPointerTargetBelowGroupNode (const char *name)
DataNode *	GetGroupNode ()

---

Detailed Description

Definition at line 27 of file mitkSegmentationSink.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SegmentationSink::ConstPointer

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 31 of file mitkSegmentationSink.h.

typedef itk::SmartPointer<Self> mitk::SegmentationSink::Pointer

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 31 of file mitkSegmentationSink.h.

typedef SegmentationSink mitk::SegmentationSink::Self

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 31 of file mitkSegmentationSink.h.

typedef NonBlockingAlgorithm mitk::SegmentationSink::Superclass

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 31 of file mitkSegmentationSink.h.

---

Constructor & Destructor Documentation

mitk::SegmentationSink::SegmentationSink

(

)

[protected]

Definition at line 24 of file mitkSegmentationSink.cpp.

{
}

mitk::SegmentationSink::~SegmentationSink

(

)

[protected, virtual]

Definition at line 28 of file mitkSegmentationSink.cpp.

{
}

---

Member Function Documentation

virtual ::itk::LightObject::Pointer mitk::SegmentationSink::CreateAnother

(

void

)

const [inline, virtual]

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 32 of file mitkSegmentationSink.h.

:


virtual const char* mitk::SegmentationSink::GetClassName

(

)

const [virtual]

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

DataNode * mitk::SegmentationSink::GetGroupNode

(

)

[protected]

Definition at line 83 of file mitkSegmentationSink.cpp.

References mitk::NonBlockingAlgorithm::GetPointerParameter().

Referenced by InsertBelowGroupNode().

{
  DataNode::Pointer groupNode;
  GetPointerParameter("Group node", groupNode);

  return groupNode.GetPointer();
}

void mitk::SegmentationSink::Initialize

(

const NonBlockingAlgorithm *

other = NULL )

[protected, virtual]

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::ShowSegmentationAsSurface.

Definition at line 32 of file mitkSegmentationSink.cpp.

References mitk::NonBlockingAlgorithm::GetParameter(), mitk::NonBlockingAlgorithm::GetPointerParameter(), mitk::NonBlockingAlgorithm::Initialize(), mitk::NonBlockingAlgorithm::SetParameter(), mitk::NonBlockingAlgorithm::SetPointerParameter(), and mitk::NonBlockingAlgorithm::UnDefineTriggerParameter().

{
  Superclass::Initialize(other);
  // sinks should be called explicitly from the tool, because otherwise the order of setting "Input" and "Group node" would matter
  UnDefineTriggerParameter("Input");

  // some basedata output
  DataNode::Pointer groupNode;
  bool showResult(true);

  if (other)
  {
    other->GetPointerParameter("Group node", groupNode);
    other->GetParameter("Show result", showResult);
  }

  SetPointerParameter("Group node", groupNode );
  SetParameter("Show result", showResult );
}

void mitk::SegmentationSink::InsertBelowGroupNode

(

mitk::DataNode *

node )

[protected]

to be called by subclasses when they want to insert some resulting object (binary image, surface, ...) into the data tree

Definition at line 69 of file mitkSegmentationSink.cpp.

References mitk::DataNode::GetData(), GetGroupNode(), mitk::RenderingManager::GetInstance(), mitk::WeakPointer< TObjectType >::IsNotNull(), mitk::NonBlockingAlgorithm::m_DataStorage, and mitk::RenderingManager::RequestUpdateAll().

{
  DataNode* groupNode = GetGroupNode();

  if (m_DataStorage.IsNotNull())
  {
    if (node)
      node->GetData()->DisconnectPipeline();
    m_DataStorage->Add( node, groupNode );
  }

  RenderingManager::GetInstance()->RequestUpdateAll();
}

DataNode * mitk::SegmentationSink::LookForPointerTargetBelowGroupNode

(

const char *

name )

[protected]

Definition at line 91 of file mitkSegmentationSink.cpp.

References mitk::NonBlockingAlgorithm::GetPointerParameter(), mitk::WeakPointer< TObjectType >::IsNotNull(), and mitk::NonBlockingAlgorithm::m_DataStorage.

{
  DataNode::Pointer groupNode;
  GetPointerParameter("Group node", groupNode);

  if (groupNode.IsNotNull() && m_DataStorage.IsNotNull())
  {
    return m_DataStorage->GetNamedDerivedNode(name, groupNode, true);
  }

  return NULL;

}

static Pointer mitk::SegmentationSink::New

(

void

)

[inline, static]

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 32 of file mitkSegmentationSink.h.

:


bool mitk::SegmentationSink::ReadyToRun

(

)

[protected, virtual]

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 52 of file mitkSegmentationSink.cpp.

References mitk::NonBlockingAlgorithm::GetPointerParameter().

{
  Image::Pointer image;
  GetPointerParameter("Input", image);

  DataNode::Pointer groupNode;
  GetPointerParameter("Group node", groupNode);

  return image.IsNotNull() && groupNode.IsNotNull();
}

bool mitk::SegmentationSink::ThreadedUpdateFunction

(

)

[protected, virtual]

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSurface.

Definition at line 63 of file mitkSegmentationSink.cpp.

{
  return true;
}

---

The documentation for this class was generated from the following files:

• mitkSegmentationSink.h
• mitkSegmentationSink.cpp
