mitk::CalculateSegmentationVolume Class Reference

#include <mitkCalculateSegmentationVolume.h>

Inheritance diagram for mitk::CalculateSegmentationVolume:

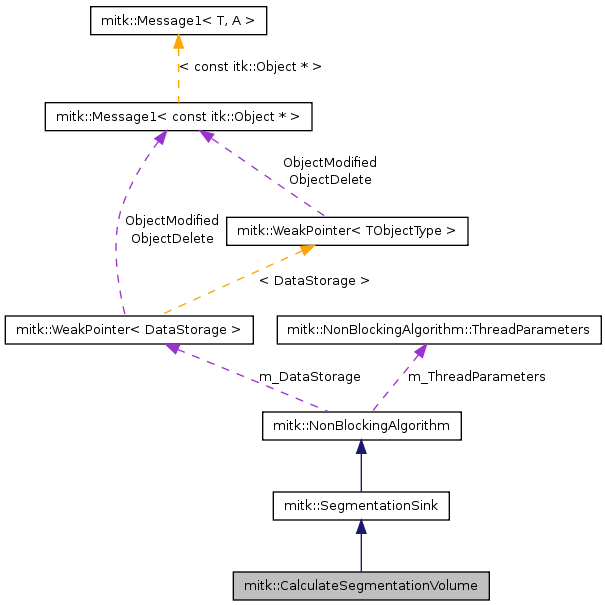

Collaboration diagram for mitk::CalculateSegmentationVolume:

List of all members.

Public Types
typedef CalculateSegmentationVolume	Self
typedef SegmentationSink	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
Static Public Member Functions
static Pointer	New (void)
Protected Member Functions
	CalculateSegmentationVolume ()
virtual	~CalculateSegmentationVolume ()
virtual bool	ReadyToRun ()
virtual bool	ThreadedUpdateFunction ()
template<typename TPixel , unsigned int VImageDimension>
void	ItkImageProcessing (itk::Image< TPixel, VImageDimension > *itkImage, TPixel *dummy=NULL)

---

Detailed Description

Definition at line 28 of file mitkCalculateSegmentationVolume.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::CalculateSegmentationVolume::ConstPointer

Reimplemented from mitk::SegmentationSink.

Definition at line 32 of file mitkCalculateSegmentationVolume.h.

typedef itk::SmartPointer<Self> mitk::CalculateSegmentationVolume::Pointer

Reimplemented from mitk::SegmentationSink.

Definition at line 32 of file mitkCalculateSegmentationVolume.h.

typedef CalculateSegmentationVolume mitk::CalculateSegmentationVolume::Self

Reimplemented from mitk::SegmentationSink.

Definition at line 32 of file mitkCalculateSegmentationVolume.h.

typedef SegmentationSink mitk::CalculateSegmentationVolume::Superclass

Reimplemented from mitk::SegmentationSink.

Definition at line 32 of file mitkCalculateSegmentationVolume.h.

---

Constructor & Destructor Documentation

mitk::CalculateSegmentationVolume::CalculateSegmentationVolume

(

)

[protected]

Definition at line 21 of file mitkCalculateSegmentationVolume.cpp.

{

mitk::CalculateSegmentationVolume::~CalculateSegmentationVolume

(

)

[protected, virtual]

Definition at line 26 of file mitkCalculateSegmentationVolume.cpp.

{
}

---

Member Function Documentation

virtual ::itk::LightObject::Pointer mitk::CalculateSegmentationVolume::CreateAnother

(

void

)

const [inline, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkCalculateSegmentationVolume.h.

:


virtual const char* mitk::CalculateSegmentationVolume::GetClassName

(

)

const [virtual]

Reimplemented from mitk::SegmentationSink.

template<typename TPixel , unsigned int VImageDimension>

void mitk::CalculateSegmentationVolume::ItkImageProcessing	(	itk::Image< TPixel, VImageDimension > *	itkImage,
		TPixel *	dummy = NULL
	)		[protected]

Definition at line 32 of file mitkCalculateSegmentationVolume.cpp.

{
}


template < typename TPixel, unsigned int VImageDimension >
void CalculateSegmentationVolume::ItkImageProcessing( itk::Image< TPixel, VImageDimension >* itkImage, TPixel* itkNotUsed(dummy) )
{
  itk::ImageRegionConstIteratorWithIndex<itk::Image<TPixel, VImageDimension> > iterBinaryImage( itkImage, itkImage->GetLargestPossibleRegion() );
  typename itk::ImageRegionConstIteratorWithIndex<itk::Image<TPixel, VImageDimension> >::IndexType currentIndex;
  typename itk::ImageRegionConstIteratorWithIndex<itk::Image<TPixel, VImageDimension> >::IndexType minIndex;
  for (unsigned int i = 0; i < VImageDimension; ++i) minIndex[i] = std::numeric_limits<long int>::max();

  typename itk::ImageRegionConstIteratorWithIndex<itk::Image<TPixel, VImageDimension> >::IndexType maxIndex;
  for (unsigned int i = 0; i < VImageDimension; ++i) maxIndex[i] = std::numeric_limits<long int>::min();

  m_CenterOfMass.Fill(0.0);

  m_Volume = 0;
  while (!iterBinaryImage.IsAtEnd())
  {
    if ( iterBinaryImage.Get() > static_cast<TPixel>(0.0) )
    {
      // update center of mass
      currentIndex = iterBinaryImage.GetIndex();
      itk::Vector<float, VImageDimension> currentPoint;
      for (unsigned int i = 0; i < VImageDimension; ++i) currentPoint[i] = currentIndex[i];

      m_CenterOfMass =    (m_CenterOfMass * ( static_cast<float>(m_Volume) / static_cast<float>(m_Volume+1) ) )  // e.g. 3 points:   old center * 2/3 + currentPoint * 1/3;
             + currentPoint / static_cast<float>(m_Volume+1);

      // update number of voxels
      ++m_Volume;

      // update bounding box
      for (unsigned int i = 0; i < VImageDimension; ++i)
      {
        if (currentIndex[i] < minIndex[i]) minIndex[i] = currentIndex[i];
        if (currentIndex[i] > maxIndex[i]) maxIndex[i] = currentIndex[i];
      }
    }

    ++iterBinaryImage;
  }

  m_MinIndexOfBoundingBox[2] = 0.0;
  m_MaxIndexOfBoundingBox[2] = 0.0;
  for (unsigned int i = 0; i < VImageDimension; ++i)

static Pointer mitk::CalculateSegmentationVolume::New

(

void

)

[inline, static]

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkCalculateSegmentationVolume.h.

:


bool mitk::CalculateSegmentationVolume::ReadyToRun

(

)

[protected, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 81 of file mitkCalculateSegmentationVolume.cpp.

{

bool mitk::CalculateSegmentationVolume::ThreadedUpdateFunction

(

)

[protected, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 90 of file mitkCalculateSegmentationVolume.cpp.

{
  // get image
  Image::Pointer image;
  GetPointerParameter("Input", image);

  AccessFixedDimensionByItk( image.GetPointer(), ItkImageProcessing, 3 ); // some magic to call the correctly templated function (we only do 3D images here!)

  // consider single voxel volume
  Vector3D spacing = image->GetSlicedGeometry()->GetSpacing(); // spacing in mm
  float volumeML = (ScalarType) m_Volume * spacing[0] * spacing[1] * spacing[2] / 1000.0; // convert to ml

  DataNode* groupNode = GetGroupNode();
  if (groupNode)
  {
    groupNode->SetProperty( "volume", FloatProperty::New(volumeML) );
    groupNode->SetProperty( "centerOfMass", Vector3DProperty::New(m_CenterOfMass) );
    groupNode->SetProperty( "boundingBoxMinimum", Vector3DProperty::New(m_MinIndexOfBoundingBox) );
    groupNode->SetProperty( "boundingBoxMaximum", Vector3DProperty::New(m_MaxIndexOfBoundingBox) );

---

The documentation for this class was generated from the following files:

• mitkCalculateSegmentationVolume.h
• mitkCalculateSegmentationVolume.cpp
