#include <mitkShowSegmentationAsSurface.h>

Inheritance diagram for mitk::ShowSegmentationAsSurface:

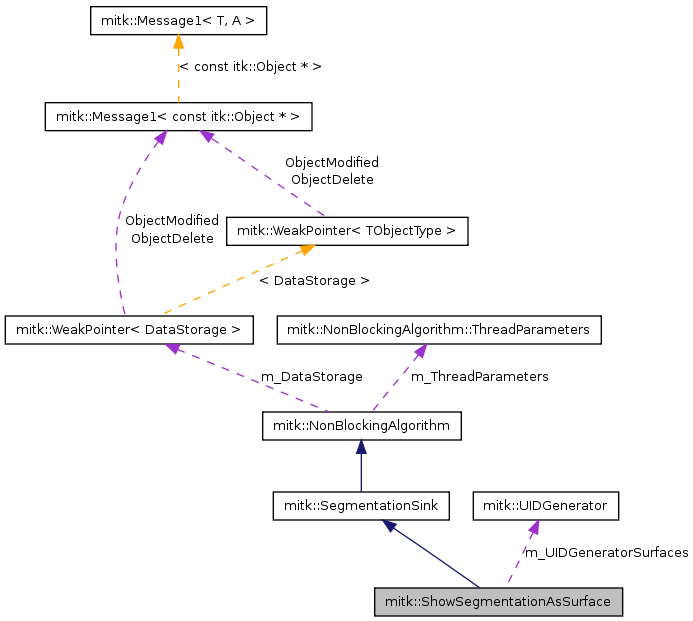

Collaboration diagram for mitk::ShowSegmentationAsSurface:

Public Types
typedef ShowSegmentationAsSurface	Self
typedef SegmentationSink	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
Static Public Member Functions
static Pointer	New (void)
Protected Member Functions
	ShowSegmentationAsSurface ()
virtual	~ShowSegmentationAsSurface ()
virtual void	Initialize (const NonBlockingAlgorithm *other=NULL)
virtual bool	ReadyToRun ()
virtual bool	ThreadedUpdateFunction ()
virtual void	ThreadedUpdateSuccessful ()

Detailed Description

Definition at line 29 of file mitkShowSegmentationAsSurface.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ShowSegmentationAsSurface::ConstPointer

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkShowSegmentationAsSurface.h.

typedef itk::SmartPointer<Self> mitk::ShowSegmentationAsSurface::Pointer

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkShowSegmentationAsSurface.h.

typedef ShowSegmentationAsSurface mitk::ShowSegmentationAsSurface::Self

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkShowSegmentationAsSurface.h.

typedef SegmentationSink mitk::ShowSegmentationAsSurface::Superclass

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkShowSegmentationAsSurface.h.

Constructor & Destructor Documentation

mitk::ShowSegmentationAsSurface::ShowSegmentationAsSurface ( ) [protected]

Definition at line 22 of file mitkShowSegmentationAsSurface.cpp.

mitk::ShowSegmentationAsSurface::~ShowSegmentationAsSurface ( ) [protected, virtual]

Definition at line 29 of file mitkShowSegmentationAsSurface.cpp.

:m_UIDGeneratorSurfaces("Surface_"),
 m_AddToTree(false)

Member Function Documentation

virtual ::itk::LightObject::Pointer mitk::ShowSegmentationAsSurface::CreateAnother ( void ) const [inline, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 34 of file mitkShowSegmentationAsSurface.h.

virtual const char* mitk::ShowSegmentationAsSurface::GetClassName ( ) const [virtual]

Reimplemented from mitk::SegmentationSink.

void mitk::ShowSegmentationAsSurface::Initialize ( const NonBlockingAlgorithm * other = NULL ) [protected, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 33 of file mitkShowSegmentationAsSurface.cpp.

{
}

void ShowSegmentationAsSurface::Initialize(const NonBlockingAlgorithm* other)
{
  Superclass::Initialize(other);

  bool syncVisibility(false);

  if (other)
  {
    other->GetParameter("Sync visibility", syncVisibility);
  }

  SetParameter("Sync visibility", syncVisibility );
  SetParameter("Median kernel size", 3u);

static Pointer mitk::ShowSegmentationAsSurface::New ( void ) [inline, static]

Reimplemented from mitk::SegmentationSink.

Definition at line 34 of file mitkShowSegmentationAsSurface.h.

Referenced by QmitkSegmentationPostProcessing::InternalCreateSurface(), and mitk::CreateSurfaceTool::ProcessOneWorkingData().

bool mitk::ShowSegmentationAsSurface::ReadyToRun ( ) [protected, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 55 of file mitkShowSegmentationAsSurface.cpp.

{
  try
  {
    Image::Pointer image;
    GetPointerParameter("Input", image);

bool mitk::ShowSegmentationAsSurface::ThreadedUpdateFunction ( ) [protected, virtual]

Reimplemented from mitk::SegmentationSink.

Definition at line 71 of file mitkShowSegmentationAsSurface.cpp.

  {
    return false;
  }
}


bool ShowSegmentationAsSurface::ThreadedUpdateFunction()
{
  Image::Pointer image;
  GetPointerParameter("Input", image);

  bool smooth(true);
  GetParameter("Smooth", smooth);

  bool applyMedian(true);
  GetParameter("Apply median", applyMedian);

  bool decimateMesh(true);
  GetParameter("Decimate mesh", decimateMesh);

  unsigned int medianKernelSize(3);
  GetParameter("Median kernel size", medianKernelSize);

  float gaussianSD(1.5);
  GetParameter("Gaussian SD", gaussianSD );

  float reductionRate(0.8);
  GetParameter("Decimation rate", reductionRate );

  MITK_INFO << "Creating polygon model with smoothing " << smooth << " gaussianSD " << gaussianSD
                                         << " median " << applyMedian << " median kernel " << medianKernelSize
                                         << " mesh reduction " << decimateMesh << " reductionRate " << reductionRate;

  ManualSegmentationToSurfaceFilter::Pointer surfaceFilter = ManualSegmentationToSurfaceFilter::New();
  surfaceFilter->SetInput( image );
  surfaceFilter->SetThreshold( 1 ); //expects binary image with zeros and ones

  surfaceFilter->SetUseGaussianImageSmooth(smooth); // apply gaussian to thresholded image ?
  if (smooth)
  {
    surfaceFilter->InterpolationOn();
    surfaceFilter->SetGaussianStandardDeviation( gaussianSD );
    //surfaceFilter->SetGaussianStandardDeviation( 3 );
    //surfaceFilter->SetUseGaussianImageSmooth(true);
  }

  surfaceFilter->SetMedianFilter3D(applyMedian); // apply median to segmentation before marching cubes ?
  if (applyMedian)
  {
    surfaceFilter->SetMedianKernelSize(medianKernelSize, medianKernelSize, medianKernelSize); // apply median to segmentation before marching cubes
  }

  if (decimateMesh)
  {
    surfaceFilter->SetDecimate( ImageToSurfaceFilter::DecimatePro );
    surfaceFilter->SetTargetReduction( reductionRate );
  }
  else
  {
    surfaceFilter->SetDecimate( ImageToSurfaceFilter::NoDecimation );
  }

  surfaceFilter->UpdateLargestPossibleRegion();

  // calculate normals for nicer display
  m_Surface = surfaceFilter->GetOutput();

  vtkPolyData* polyData = m_Surface->GetVtkPolyData();

  if (!polyData) throw std::logic_error("Could not create polygon model");

  polyData->SetVerts(0);
  polyData->SetLines(0);

  if ( smooth || applyMedian || decimateMesh)
  {
    vtkPolyDataNormals* normalsGen = vtkPolyDataNormals::New();

    normalsGen->SetInput( polyData );
    normalsGen->Update();

    m_Surface->SetVtkPolyData( normalsGen->GetOutput() );

    normalsGen->Delete();
  }

void mitk::ShowSegmentationAsSurface::ThreadedUpdateSuccessful ( ) [protected, virtual]

Reimplemented from mitk::NonBlockingAlgorithm.

Definition at line 158 of file mitkShowSegmentationAsSurface.cpp.

  {
    m_Surface->SetVtkPolyData( polyData );
  }

  return true;
}

void ShowSegmentationAsSurface::ThreadedUpdateSuccessful()
{
  m_Node = LookForPointerTargetBelowGroupNode("Surface representation");

  m_AddToTree = m_Node.IsNull();

  if (m_AddToTree)
  {
    m_Node = DataNode::New();

    bool wireframe(false);
    GetParameter("Wireframe", wireframe );
    if (wireframe)
    {
      VtkRepresentationProperty *np = dynamic_cast<VtkRepresentationProperty*>(m_Node->GetProperty("material.representation"));
      if (np)
        np->SetRepresentationToWireframe();
    }

    m_Node->SetProperty("opacity", FloatProperty::New(0.3) );
    m_Node->SetProperty("line width", IntProperty::New(1) );
    m_Node->SetProperty("scalar visibility", BoolProperty::New(false) );

    std::string uid = m_UIDGeneratorSurfaces.GetUID();
    m_Node->SetProperty( "FILENAME", StringProperty::New( uid + ".vtk" ) ); // undocumented feature of Image::WriteXMLData
    std::string groupNodesName ("surface");

    DataNode* groupNode = GetGroupNode();
    if (groupNode)
    {
      groupNode->GetName( groupNodesName );
    }
    m_Node->SetProperty( "name", StringProperty::New(groupNodesName) );

    // synchronize this object's color with the parent's color
    //surfaceNode->SetProperty( "color", parentNode->GetProperty( "color" ) );
    //surfaceNode->SetProperty( "visible", parentNode->GetProperty( "visible" ) );
  }

  m_Node->SetData( m_Surface );

  if (m_AddToTree)
  {

    DataNode* groupNode = GetGroupNode();
    if (groupNode)
    {
      groupNode->SetProperty( "Surface representation", SmartPointerProperty::New(m_Node) );
      BaseProperty* colorProp = groupNode->GetProperty("color");
      if (colorProp)
        m_Node->ReplaceProperty("color", colorProp);
      else
        m_Node->SetProperty("color", ColorProperty::New(1.0, 1.0, 0.0));

      bool showResult(true);
      GetParameter("Show result", showResult );

      bool syncVisibility(false);
      GetParameter("Sync visibility", syncVisibility );

      Image::Pointer image;
      GetPointerParameter("Input", image);

      BaseProperty* organTypeProp = image->GetProperty("organ type");
      if (organTypeProp)
        m_Surface->SetProperty("organ type", organTypeProp);

      BaseProperty* visibleProp = groupNode->GetProperty("visible");
      if (visibleProp && syncVisibility)
        m_Node->ReplaceProperty("visible", visibleProp);
      else
        m_Node->SetProperty("visible", BoolProperty::New(showResult));

The documentation for this class was generated from the following files:

mitk::ShowSegmentationAsSurface Class Reference
