SeedsImage class for storing seeds-images. More...

#include <mitkSeedsImage.h>

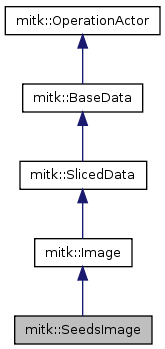

Inheritance diagram for mitk::SeedsImage:

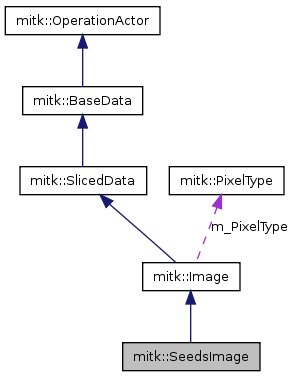

Collaboration diagram for mitk::SeedsImage:

Public Types
typedef SeedsImage	Self
typedef Image	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual mitk::Point3D	GetLastPoint ()
void	Initialize ()
virtual void	ExecuteOperation (Operation *operation)
	handles operations
void	ClearBuffer ()
Static Public Member Functions
static Pointer	New ()
Protected Types
typedef itk::Image< float, 3 >	MaskImageType
typedef itk::GaussianSpatialFunction < int, 3 >	GaussianFunction3DType
typedef itk::GaussianSpatialFunction < int, 2 >	GaussianFunction2DType
typedef itk::BinaryBallStructuringElement < short, 3 >	BallStructuringElement3DType
typedef itk::BinaryBallStructuringElement < short, 2 >	BallStructuringElement2DType
Protected Member Functions
	SeedsImage ()
virtual	~SeedsImage ()
template<typename SeedsImageType >
itk::NeighborhoodIterator < SeedsImageType > &	GetNit (SeedsImageType *image)
template<typename SeedsImageType >
void	AddSeedPoint (SeedsImageType *itkImage)
	sets a sphere of seeds around the point
template<typename SeedsImageType >
void	PointInterpolation (SeedsImageType *itkImage)
	interpolates a tube of seeds between two points
template<typename SeedsImageType >
void	ClearBuffer (SeedsImageType *itkImage)
	interpolates a tube of seeds between two points
Protected Attributes
mitk::Point3D	m_Point
mitk::Point3D	m_LastPoint
mitk::Vector3D	m_Spacing
int	orig_size [3]
int	m_DrawState
int	m_Radius
float	delta_x
float	delta_y
float	delta_z
float	sphere_distance
GaussianFunction3DType::Pointer	m_GaussianFunction3D
GaussianFunction2DType::Pointer	m_GaussianFunction2D
BallStructuringElement3DType	m_StructuringElement3D
BallStructuringElement2DType	m_StructuringElement2D

Detailed Description

SeedsImage class for storing seeds-images.

Handles operations for drawing seeds.

Definition at line 39 of file mitkSeedsImage.h.

Member Typedef Documentation

typedef itk::BinaryBallStructuringElement< short, 2 > mitk::SeedsImage::BallStructuringElement2DType [protected]

Definition at line 96 of file mitkSeedsImage.h.

typedef itk::BinaryBallStructuringElement< short, 3 > mitk::SeedsImage::BallStructuringElement3DType [protected]

Definition at line 94 of file mitkSeedsImage.h.

typedef itk::SmartPointer<const Self> mitk::SeedsImage::ConstPointer

Reimplemented from mitk::Image.

Definition at line 44 of file mitkSeedsImage.h.

typedef itk::GaussianSpatialFunction< int, 2 > mitk::SeedsImage::GaussianFunction2DType [protected]

Definition at line 91 of file mitkSeedsImage.h.

typedef itk::GaussianSpatialFunction< int, 3 > mitk::SeedsImage::GaussianFunction3DType [protected]

Definition at line 89 of file mitkSeedsImage.h.

typedef itk::Image<float,3> mitk::SeedsImage::MaskImageType [protected]

Definition at line 87 of file mitkSeedsImage.h.

typedef itk::SmartPointer<Self> mitk::SeedsImage::Pointer

Reimplemented from mitk::Image.

Definition at line 44 of file mitkSeedsImage.h.

typedef SeedsImage mitk::SeedsImage::Self

Reimplemented from mitk::Image.

Definition at line 44 of file mitkSeedsImage.h.

typedef Image mitk::SeedsImage::Superclass

Reimplemented from mitk::Image.

Definition at line 44 of file mitkSeedsImage.h.

Constructor & Destructor Documentation

mitk::SeedsImage::SeedsImage ( ) [protected]

Definition at line 31 of file mitkSeedsImage.cpp.

References m_GaussianFunction2D, m_GaussianFunction3D, and New().

{
  m_GaussianFunction3D = GaussianFunction3DType::New();
  m_GaussianFunction2D = GaussianFunction2DType::New();
}

mitk::SeedsImage::~SeedsImage ( ) [protected, virtual]

Definition at line 37 of file mitkSeedsImage.cpp.

{
}

Member Function Documentation

template<typename SeedsImageType >

void mitk::SeedsImage::AddSeedPoint ( SeedsImageType * itkImage ) [protected]

sets a sphere of seeds around the point

Definition at line 121 of file mitkSeedsImage.cpp.

References int().

{
  typedef itk::NeighborhoodIterator< SeedsImageType >
    NeighborhoodIteratorType;
  typedef typename NeighborhoodIteratorType::IndexType IndexType;

  NeighborhoodIteratorType& nit = this->GetNit< SeedsImageType >( itkImage );

  const unsigned int dimension =
    ::itk::GetImageDimension<SeedsImageType>::ImageDimension;

  mitk::Point3D index;
  this->GetGeometry()->WorldToIndex( m_Point, index );

  IndexType itkIndex;
  unsigned int d;
  for ( d = 0; d < dimension; ++d )
  {
    itkIndex[d] = (int)(index[d] + 0.5);
  }
  nit.SetLocation( itkIndex );


  unsigned int i;
  for ( i = 0; i < nit.Size(); ++i )
  {
    if ( nit[i] != 0 )
    {
      try
      {
        nit.SetPixel( i, m_DrawState );
      }
      catch( itk::RangeError & )
      {
      }
    }
  }
}

void mitk::SeedsImage::ClearBuffer ( )

Definition at line 216 of file mitkSeedsImage.cpp.

References AccessByItk.

{
  AccessByItk(this, ClearBuffer);
}

template<typename SeedsImageType >

void mitk::SeedsImage::ClearBuffer ( SeedsImageType * itkImage ) [protected]

interpolates a tube of seeds between two points

Definition at line 222 of file mitkSeedsImage.cpp.

{
  itkImage->FillBuffer(0);
}

void mitk::SeedsImage::ExecuteOperation ( mitk::Operation * operation ) [virtual]

handles operations

Reimplemented from mitk::BaseData.

Definition at line 48 of file mitkSeedsImage.cpp.

References AccessByItk, mitk::DrawOperation::GetDrawState(), mitk::RenderingManager::GetInstance(), mitk::Operation::GetOperationType(), mitk::DrawOperation::GetPoint(), mitk::DrawOperation::GetRadius(), mitk::OpADD, mitk::OpMOVE, mitk::OpUNDOADD, mitk::OpUNDOMOVE, and mitk::RenderingManager::RequestUpdateAll().

{
  //mitkCheckOperationTypeMacro(SeedsOperation, operation, seedsOp);
  m_Spacing = this->GetGeometry()->GetSpacing();
  for(unsigned int i=0; i<this->GetDimension(); i++)
    orig_size[i] = this->GetDimension(i);

  mitk::DrawOperation * seedsOp =
    dynamic_cast< mitk::DrawOperation * >( operation );

  if ( seedsOp != NULL )
  {
    m_DrawState = seedsOp->GetDrawState();

    if (m_Radius != seedsOp->GetRadius())
    {
      m_Radius = seedsOp->GetRadius();
    }

    switch (operation->GetOperationType())
    {
    case mitk::OpADD:
      {
        m_Point = seedsOp->GetPoint();
        m_LastPoint = m_Point;
        AccessByItk(this, AddSeedPoint);
        break;
      }
    case mitk::OpMOVE:
      {
        m_Point = seedsOp->GetPoint();
        AccessByItk(this, AddSeedPoint);
        AccessByItk(this, PointInterpolation);
        m_LastPoint = m_Point;
        break;
      }
    case mitk::OpUNDOADD:
      {
        m_Point = seedsOp->GetPoint();
        m_LastPoint = m_Point;
        m_DrawState = 0;

        // todo - operation is not equal with its inverse operation - possible
        // approximation problems in the function PointInterpolation()
        m_Radius = m_Radius+4;
        AccessByItk(this, AddSeedPoint);
        break;
      }
    case mitk::OpUNDOMOVE:
      {
        m_Point = seedsOp->GetPoint();
        m_DrawState = 0;

        // todo - operation is not equal with its inverse operation - possible
        // approximation problems in the function PointInterpolation()
        m_Radius = m_Radius+4;
        AccessByItk(this, AddSeedPoint);
        AccessByItk(this, PointInterpolation);
        m_LastPoint = m_Point;
        break;
      }
    }

    //*todo has to be done here, cause of update-pipeline not working yet
    mitk::RenderingManager::GetInstance()->RequestUpdateAll();
    //mitk::RenderingManager::GetInstance()->ForceImmediateUpdateAll();

    this->Modified();
  }
}

virtual const char* mitk::SeedsImage::GetClassName ( ) const [virtual]

Reimplemented from mitk::Image.

virtual mitk::Point3D mitk::SeedsImage::GetLastPoint ( ) [virtual]

template<typename SeedsImageType >

itk::NeighborhoodIterator< SeedsImageType > & mitk::SeedsImage::GetNit ( SeedsImageType * image ) [protected]

Definition at line 229 of file mitkSeedsImage.cpp.

References QuadProgPP::dist().

{
  typedef itk::NeighborhoodIterator< SeedsImageType >
    NeighborhoodIteratorType;
  typedef typename NeighborhoodIteratorType::OffsetType OffsetType;
  typedef typename NeighborhoodIteratorType::SizeType SizeType;
  typedef itk::GaussianSpatialFunction< int, SeedsImageType::ImageDimension >
    GaussianFunctionType;

  static SeedsImageType* iteratedImage = 0;
  static NeighborhoodIteratorType nit;
  static typename GaussianFunctionType::Pointer gaussianFunction
    = GaussianFunctionType::New();

  if ( iteratedImage != image )
  {
    SizeType radius;
    radius.Fill( m_Radius);
    nit.Initialize( radius, image, image->GetBufferedRegion() );
    iteratedImage = image;
  }

  nit.SetRadius( m_Radius );

  unsigned int i;
  for ( i = 0; i < nit.GetCenterNeighborhoodIndex()*2+1; ++i )
  {
    OffsetType offset = nit.GetOffset( i );

    typename GaussianFunctionType::InputType point;
    double dist = 0;
    unsigned int d;
    for ( d = 0; d < SeedsImageType::ImageDimension; ++d )
    {
      point[d] = offset[d];
      dist += offset[d] * offset[d];
    }
  }

  return nit;
}

void mitk::SeedsImage::Initialize ( void ) [virtual]

Reimplemented from mitk::Image.

Definition at line 41 of file mitkSeedsImage.cpp.

{
  Superclass::Initialize();
  m_Radius = 1;
}

static Pointer mitk::SeedsImage::New ( ) [static]

Reimplemented from mitk::Image.

Referenced by SeedsImage(), and mitkDataNodeExtTestClass::TestDataSetting().

template<typename SeedsImageType >

void mitk::SeedsImage::PointInterpolation ( SeedsImageType * itkImage ) [protected]

interpolates a tube of seeds between two points

Definition at line 162 of file mitkSeedsImage.cpp.

References int().

{
  typedef itk::NeighborhoodIterator< SeedsImageType >
    NeighborhoodIteratorType;
  typedef typename NeighborhoodIteratorType::IndexType IndexType;


  NeighborhoodIteratorType& nit = this->GetNit< SeedsImageType >( itkImage );

  const unsigned int dimension =
    ::itk::GetImageDimension<SeedsImageType>::ImageDimension;

  mitk::Point3D indexBegin, indexEnd;
  this->GetGeometry()->WorldToIndex( m_Point, indexBegin );
  this->GetGeometry()->WorldToIndex( m_LastPoint, indexEnd );

  IndexType itkIndexBegin, itkIndexEnd;
  unsigned int d;
  for ( d = 0; d < dimension; ++d )
  {
    itkIndexBegin[d] = (int)(indexBegin[d] + 0.5);
    itkIndexEnd[d] = (int)(indexEnd[d] + 0.5);
  }


  typedef itk::LineConstIterator< SeedsImageType > LineIteratorType;
  LineIteratorType lit( itkImage, itkIndexBegin, itkIndexEnd );

  // Disable warnings (which would otherwise be displayed if line leaves the
  // region).
  bool warningDisplay = itk::Object::GetGlobalWarningDisplay();
  itk::Object::GlobalWarningDisplayOff();
  for ( lit.GoToBegin(); !lit.IsAtEnd(); ++lit )
  {
    nit.SetLocation( lit.GetIndex() );

    unsigned int i;
    for ( i = 0; i < nit.Size(); ++i )
    {
      if ( nit[i] != 0 )
      {
        try
        {
          nit.SetPixel( i, m_DrawState );
        }
        catch( itk::RangeError & )
        {
        }
      }
    }
  }
  itk::Object::SetGlobalWarningDisplay( warningDisplay );
}
