OpenGL-based mapper to display a mitk::PointSet in a 2D window. More...
#include <mitkPointSetGLMapper2D.h>
Public Types | |
| typedef PointSetGLMapper2D | Self |
| typedef GLMapper2D | Superclass |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer < const Self > | ConstPointer |
Public Member Functions | |
| virtual const char * | GetClassName () const |
| virtual const mitk::PointSet * | GetInput (void) |
| Get the PointDataList to map. | |
| virtual void | Paint (mitk::BaseRenderer *renderer) |
| Do the painting into the renderer. | |
| virtual void | ApplyProperties (mitk::BaseRenderer *renderer) |
| Apply color and opacity read from the PropertyList. | |
Static Public Member Functions | |
| static Pointer | New () |
| static void | SetDefaultProperties (mitk::DataNode *node, mitk::BaseRenderer *renderer=NULL, bool overwrite=false) |
| Set default values of properties used by this mapper to node. | |
Protected Member Functions | |
| PointSetGLMapper2D () | |
| virtual | ~PointSetGLMapper2D () |
Protected Attributes | |
| bool | m_Polygon |
| bool | m_ShowPoints |
| bool | m_ShowDistances |
| int | m_DistancesDecimalDigits |
| bool | m_ShowAngles |
| bool | m_ShowDistantLines |
| int | m_LineWidth |
| int | m_PointLineWidth |
| int | m_Point2DSize |
OpenGL-based mapper to display a mitk::PointSet in a 2D window.
This mapper can actually more than just draw a number of points of a mitk::PointSet. If you set the right properties of the mitk::DataNode, which contains the point set, then this mapper will also draw lines connecting the points, and calculate and display distances and angles between adjacent points. Here is a complete list of boolean properties, which might be of interest:
BUG 1321 - possible new features: point-2d-size (length of lines in cross/diamond) point-linewidth
Definition at line 58 of file mitkPointSetGLMapper2D.h.
| typedef itk::SmartPointer<const Self> mitk::PointSetGLMapper2D::ConstPointer |

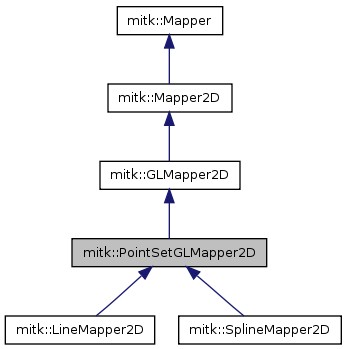

Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Definition at line 61 of file mitkPointSetGLMapper2D.h.
| typedef itk::SmartPointer<Self> mitk::PointSetGLMapper2D::Pointer |
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Definition at line 61 of file mitkPointSetGLMapper2D.h.
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Definition at line 61 of file mitkPointSetGLMapper2D.h.
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Definition at line 61 of file mitkPointSetGLMapper2D.h.
| mitk::PointSetGLMapper2D::PointSetGLMapper2D | ( | ) | [protected] |
Definition at line 33 of file mitkPointSetGLMapper2D.cpp.
: m_Polygon(false), m_ShowPoints(true), m_ShowDistances(false), m_DistancesDecimalDigits(1), m_ShowAngles(false), m_ShowDistantLines(true), m_LineWidth(1) { }
| mitk::PointSetGLMapper2D::~PointSetGLMapper2D | ( | ) | [protected, virtual] |
Definition at line 45 of file mitkPointSetGLMapper2D.cpp.
{
}
| void mitk::PointSetGLMapper2D::ApplyProperties | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Apply color and opacity read from the PropertyList.
Reimplemented from mitk::GLMapper2D.
Reimplemented in mitk::SplineMapper2D.
Definition at line 55 of file mitkPointSetGLMapper2D.cpp.
References mitk::GLMapper2D::ApplyProperties(), mitk::DataNode::GetBoolProperty(), and mitk::DataNode::GetIntProperty().
{
GLMapper2D::ApplyProperties( renderer );
const mitk::DataNode* node=GetDataNode();
if( node == NULL )
return;
node->GetBoolProperty("show contour", m_Polygon);
node->GetBoolProperty("show points", m_ShowPoints);
node->GetBoolProperty("show distances", m_ShowDistances);
node->GetIntProperty("distance decimal digits", m_DistancesDecimalDigits);
node->GetBoolProperty("show angles", m_ShowAngles);
node->GetBoolProperty("show distant lines", m_ShowDistantLines);
node->GetIntProperty("line width", m_LineWidth);
node->GetIntProperty("point line width", m_PointLineWidth);
node->GetIntProperty("point 2D size", m_Point2DSize);
}
| virtual const char* mitk::PointSetGLMapper2D::GetClassName | ( | ) | const [virtual] |
Reimplemented from mitk::Mapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
| const mitk::PointSet * mitk::PointSetGLMapper2D::GetInput | ( | void | ) | [virtual] |
Get the PointDataList to map.
Reimplemented in mitk::LineMapper2D.
Definition at line 50 of file mitkPointSetGLMapper2D.cpp.
{
return static_cast<const mitk::PointSet * > ( GetData() );
}
| static Pointer mitk::PointSetGLMapper2D::New | ( | ) | [static] |
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Referenced by mitk::CoreObjectFactory::CreateMapper(), and mitkDataNodeTestClass::TestMapperSetting().
| void mitk::PointSetGLMapper2D::Paint | ( | mitk::BaseRenderer * | renderer ) | [virtual] |
Do the painting into the renderer.
!define a new ColorProp to be able to pass alpha value
!define a new ColorProp to be able to pass alpha value
Implements mitk::GLMapper2D.
Reimplemented in mitk::LineMapper2D, and mitk::SplineMapper2D.
Definition at line 98 of file mitkPointSetGLMapper2D.cpp.
References QuadProgPP::distance(), mitk::DataNode::GetColor(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::BaseRenderer::GetDisplayGeometry(), mitk::PropertyList::GetProperty(), mitk::DataNode::GetPropertyList(), mitk::Geometry3D::GetTimeBounds(), mitk::TimeSlicedGeometry::GetTimeSteps(), GL_CURRENT_COLOR, GL_LINE_LOOP, GL_LINES, GL_POINTS, glBegin(), glColor3f(), glColor4f(), glEnd(), glGetFloatv(), glLineWidth(), glPointSize(), glVertex2fv(), mitk::TimeSlicedGeometry::IsValidTime(), makePerpendicularVector2D(), mitk::TimeSlicedGeometry::MSToTimeStep(), selectedColor, and mitk::VtkPropRenderer::WriteSimpleText().
Referenced by mitk::SplineMapper2D::Paint(), and mitk::LineMapper2D::Paint().
{
const mitk::DataNode* node=GetDataNode();
if( node == NULL )
return;
const int text2dDistance = 10;
if(IsVisible(renderer)==false) return;
// @FIXME: Logik fuer update
bool updateNeccesary=true;
if (updateNeccesary)
{
// ok, das ist aus GenerateData kopiert
mitk::PointSet::Pointer input = const_cast<mitk::PointSet*>(this->GetInput());
// Get the TimeSlicedGeometry of the input object
const TimeSlicedGeometry* inputTimeGeometry = input->GetTimeSlicedGeometry();
if (( inputTimeGeometry == NULL ) || ( inputTimeGeometry->GetTimeSteps() == 0 ) )
{
return;
}
//
// get the world time
//
const Geometry2D* worldGeometry = renderer->GetCurrentWorldGeometry2D();
assert( worldGeometry != NULL );
ScalarType time = worldGeometry->GetTimeBounds()[ 0 ];
//
// convert the world time in time steps of the input object
//
int timeStep=0;
if ( time > ScalarTypeNumericTraits::NonpositiveMin() )
timeStep = inputTimeGeometry->MSToTimeStep( time );
if ( inputTimeGeometry->IsValidTime( timeStep ) == false )
{
return;
}
mitk::PointSet::DataType::Pointer itkPointSet = input->GetPointSet( timeStep );
if ( itkPointSet.GetPointer() == NULL)
{
return;
}
mitk::DisplayGeometry::Pointer displayGeometry = renderer->GetDisplayGeometry();
assert(displayGeometry.IsNotNull());
//apply color and opacity read from the PropertyList
ApplyProperties(renderer);
vtkLinearTransform* transform = GetDataNode()->GetVtkTransform();
//List of the Points
PointSet::DataType::PointsContainerConstIterator it, end;
it = itkPointSet->GetPoints()->Begin();
end = itkPointSet->GetPoints()->End();
//iterator on the additional data of each point
PointSet::DataType::PointDataContainerIterator selIt, selEnd;
bool pointDataBroken = (itkPointSet->GetPointData()->Size() != itkPointSet->GetPoints()->Size());
selIt = itkPointSet->GetPointData()->Begin();
selEnd = itkPointSet->GetPointData()->End();
int counter = 0;
//for writing text
int j = 0;
//for switching back to old color after using selected color
float recallColor[4];
glGetFloatv(GL_CURRENT_COLOR,recallColor);
//get the properties for coloring the points
float unselectedColor[4] = {1.0, 1.0, 0.0, 1.0};//yellow
//check if there is an unselected property
if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(renderer)->GetProperty("unselectedcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(renderer)->GetProperty("unselectedcolor"))->GetValue();
unselectedColor[0] = tmpColor[0];
unselectedColor[1] = tmpColor[1];
unselectedColor[2] = tmpColor[2];
unselectedColor[3] = 1.0f;
}
else if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(NULL)->GetProperty("unselectedcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(NULL)->GetProperty("unselectedcolor"))->GetValue();
unselectedColor[0] = tmpColor[0];
unselectedColor[1] = tmpColor[1];
unselectedColor[2] = tmpColor[2];
unselectedColor[3] = 1.0f;
}
else
{
//get the color from the dataNode
node->GetColor(unselectedColor, NULL);
}
//get selected property
float selectedColor[4] = {1.0, 0.0, 0.6, 1.0};
if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(renderer)->GetProperty("selectedcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(renderer)->GetProperty("selectedcolor"))->GetValue();
selectedColor[0] = tmpColor[0];
selectedColor[1] = tmpColor[1];
selectedColor[2] = tmpColor[2];
selectedColor[3] = 1.0f;
}
else if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(NULL)->GetProperty("selectedcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(NULL)->GetProperty("selectedcolor"))->GetValue();
selectedColor[0] = tmpColor[0];
selectedColor[1] = tmpColor[1];
selectedColor[2] = tmpColor[2];
selectedColor[3] = 1.0f;
}
//check if there is an pointLineWidth property
if (dynamic_cast<mitk::IntProperty*>(node->GetPropertyList(renderer)->GetProperty("point line width")) != NULL)
{
m_PointLineWidth = dynamic_cast<mitk::IntProperty *>(this->GetDataNode()->GetPropertyList(renderer)->GetProperty("point line width"))->GetValue();
}
else if (dynamic_cast<mitk::IntProperty*>(node->GetPropertyList(NULL)->GetProperty("point line width")) != NULL)
{
m_PointLineWidth = dynamic_cast<mitk::IntProperty *>(this->GetDataNode()->GetPropertyList(NULL)->GetProperty("point line width"))->GetValue();
}
//check if there is an point 2D size property
if (dynamic_cast<mitk::IntProperty*>(node->GetPropertyList(renderer)->GetProperty("point 2D size")) != NULL)
{
m_Point2DSize = dynamic_cast<mitk::IntProperty *>(this->GetDataNode()->GetPropertyList(renderer)->GetProperty("point 2D size"))->GetValue();
}
else if (dynamic_cast<mitk::IntProperty*>(node->GetPropertyList(NULL)->GetProperty("point 2D size")) != NULL)
{
m_Point2DSize = dynamic_cast<mitk::IntProperty *>(this->GetDataNode()->GetPropertyList(NULL)->GetProperty("point 2D size"))->GetValue();
}
Point3D p; // currently visited point
Point3D lastP; // last visited point
Vector3D vec; // p - lastP
Vector3D lastVec; // lastP - point before lastP
vec.Fill(0);
mitk::Point3D projected_p; // p projected on viewplane
Point2D pt2d; // projected_p in display coordinates
Point2D lastPt2d; // last projected_p in display coordinates
Point2D preLastPt2d;// projected_p in display coordinates before lastPt2d
while(it!=end) // iterate over all points
{
lastP = p; // valid only for counter > 0
lastVec = vec; // valid only for counter > 1
preLastPt2d = lastPt2d; // valid only for counter > 1
lastPt2d = pt2d; // valid only for counter > 0
float vtkp[3];
itk2vtk(it->Value(), vtkp);
transform->TransformPoint(vtkp, vtkp);
vtk2itk(vtkp,p);
vec = p-lastP; // valid only for counter > 0
displayGeometry->Project(p, projected_p);
Vector3D diff=p-projected_p;
ScalarType scalardiff = diff.GetSquaredNorm();
//MouseOrientation
bool isInputDevice=false;
bool isRendererSlice = scalardiff < 0.00001; //cause roundoff error
if(this->GetDataNode()->GetBoolProperty("inputdevice",isInputDevice) && isInputDevice && !isRendererSlice )
{
displayGeometry->Map(projected_p, pt2d);
displayGeometry->WorldToDisplay(pt2d, pt2d);
//Point size depending of distance to slice
/*float p_size = (1/scalardiff)*10*m_Point2DSize;
if(p_size < m_Point2DSize * 0.6 )
p_size = m_Point2DSize * 0.6 ;
else if ( p_size > m_Point2DSize )
p_size = m_Point2DSize;*/
float p_size = (1/scalardiff)*100.0;
if(p_size < 6.0 )
p_size = 6.0 ;
else if ( p_size > 10.0 )
p_size = 10.0;
//draw Point
float opacity = (p_size<8)?0.3:1.0;//don't get the opacity from the node? Feature not a bug! Otehrwise the 2D cross is hardly seen.
glColor4f(unselectedColor[0],unselectedColor[1],unselectedColor[2],opacity);
glPointSize(p_size);
//glShadeModel(GL_FLAT);
glBegin (GL_POINTS);
glVertex2fv(&pt2d[0]);
glEnd ();
}
//for point set
if(!isInputDevice && ( (scalardiff<4.0) || (m_Polygon)))
{
Point2D tmp;
displayGeometry->Map(projected_p, pt2d);
displayGeometry->WorldToDisplay(pt2d, pt2d);
Vector2D horz,vert;
horz[0]=(float)m_Point2DSize-scalardiff*2; horz[1]=0;
vert[0]=0; vert[1]=(float)m_Point2DSize-scalardiff*2;
// now paint text if available
if (dynamic_cast<mitk::StringProperty *>(this->GetDataNode()
->GetProperty("label")) != NULL)
{
const char * pointLabel = dynamic_cast<mitk::StringProperty *>(
this->GetDataNode()->GetProperty("label"))->GetValue();
std::string l = pointLabel;
if (input->GetSize()>1)
{
// char buffer[20];
// sprintf(buffer,"%d",it->Index());
std::stringstream ss;
ss << it->Index();
l.append(ss.str());
}
if (unselectedColor != NULL)
{
mitk::VtkPropRenderer* OpenGLrenderer = dynamic_cast<mitk::VtkPropRenderer*>( renderer );
float rgb[3];//yellow
rgb[0] = unselectedColor[0]; rgb[1] = unselectedColor[1]; rgb[2] = unselectedColor[2];
OpenGLrenderer->WriteSimpleText(l, pt2d[0] + text2dDistance, pt2d[1] + text2dDistance,rgb[0], rgb[1],rgb[2]);
}
else
{
mitk::VtkPropRenderer* OpenGLrenderer = dynamic_cast<mitk::VtkPropRenderer*>( renderer );
OpenGLrenderer->WriteSimpleText(l, pt2d[0] + text2dDistance, pt2d[1] + text2dDistance,0.0,1.0,0.0);
}
}
if((m_ShowPoints) && (scalardiff<4.0))
{
//check if the point is to be marked as selected
if(selIt != selEnd || pointDataBroken)
{
bool addAsSelected = false;
if (pointDataBroken)
addAsSelected = false;
else if (selIt->Value().selected)
addAsSelected = true;
else
addAsSelected = false;
if (addAsSelected)
{
horz[0]=(float)m_Point2DSize;
vert[1]=(float)m_Point2DSize;
glColor3f(selectedColor[0],selectedColor[1],selectedColor[2]);
glLineWidth(m_PointLineWidth);
//a diamond around the point with the selected color
glBegin (GL_LINE_LOOP);
tmp=pt2d-horz; glVertex2fv(&tmp[0]);
tmp=pt2d+vert; glVertex2fv(&tmp[0]);
tmp=pt2d+horz; glVertex2fv(&tmp[0]);
tmp=pt2d-vert; glVertex2fv(&tmp[0]);
glEnd ();
glLineWidth(1);
//the actual point in the specified color to see the usual color of the point
glColor3f(unselectedColor[0],unselectedColor[1],unselectedColor[2]);
glPointSize(1);
glBegin (GL_POINTS);
tmp=pt2d; glVertex2fv(&tmp[0]);
glEnd ();
}
else //if not selected
{
glColor3f(unselectedColor[0],unselectedColor[1],unselectedColor[2]);
glLineWidth(m_PointLineWidth);
//drawing crosses
glBegin (GL_LINES);
tmp=pt2d-horz; glVertex2fv(&tmp[0]);
tmp=pt2d+horz; glVertex2fv(&tmp[0]);
tmp=pt2d-vert; glVertex2fv(&tmp[0]);
tmp=pt2d+vert; glVertex2fv(&tmp[0]);
glEnd ();
glLineWidth(1);
}
}
}
bool drawLinesEtc = true;
if (!m_ShowDistantLines && counter > 0) // check, whether this line should be drawn
{
ScalarType currentDistance = displayGeometry->GetWorldGeometry()->SignedDistance(p);
ScalarType lastDistance = displayGeometry->GetWorldGeometry()->SignedDistance(lastP);
if ( currentDistance * lastDistance > 0.5 ) // points on same side of plane
drawLinesEtc = false;
}
if ( m_Polygon && counter > 0 && drawLinesEtc) // draw a line
{
//get contour color property
float contourColor[4] = {unselectedColor[0], unselectedColor[1], unselectedColor[2], unselectedColor[3]};//so if no property set, then use unselected color
if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(renderer)->GetProperty("contourcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(renderer)->GetProperty("contourcolor"))->GetValue();
contourColor[0] = tmpColor[0];
contourColor[1] = tmpColor[1];
contourColor[2] = tmpColor[2];
contourColor[3] = 1.0f;
}
else if (dynamic_cast<mitk::ColorProperty*>(node->GetPropertyList(NULL)->GetProperty("contourcolor")) != NULL)
{
mitk::Color tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetPropertyList(NULL)->GetProperty("contourcolor"))->GetValue();
contourColor[0] = tmpColor[0];
contourColor[1] = tmpColor[1];
contourColor[2] = tmpColor[2];
contourColor[3] = 1.0f;
}
//set this color
glColor3f(contourColor[0],contourColor[1],contourColor[2]);
glLineWidth( m_LineWidth );
glBegin (GL_LINES);
glVertex2fv(&pt2d[0]);
glVertex2fv(&lastPt2d[0]);
glEnd ();
glLineWidth(1.0);
if(m_ShowDistances) // calculate and print a distance
{
std::stringstream buffer;
float distance = vec.GetNorm();
buffer<<std::fixed <<std::setprecision(m_DistancesDecimalDigits)<<distance<<" mm";
Vector2D vec2d = pt2d-lastPt2d;
makePerpendicularVector2D(vec2d, vec2d);
Vector2D pos2d = (lastPt2d.GetVectorFromOrigin()+pt2d)*0.5+vec2d*text2dDistance;
mitk::VtkPropRenderer* OpenGLrenderer = dynamic_cast<mitk::VtkPropRenderer*>( renderer );
OpenGLrenderer->WriteSimpleText(buffer.str(), pos2d[0], pos2d[1]);
//this->WriteTextXY(pos2d[0], pos2d[1], buffer.str(),renderer);
}
if(m_ShowAngles && counter > 1 ) // calculate and print the angle btw. two lines
{
std::stringstream buffer;
//buffer << angle(vec.Get_vnl_vector(), -lastVec.Get_vnl_vector())*180/vnl_math::pi << "�";
buffer << angle(vec.Get_vnl_vector(), -lastVec.Get_vnl_vector())*180/vnl_math::pi << (char)176;
Vector2D vec2d = pt2d-lastPt2d;
vec2d.Normalize();
Vector2D lastVec2d = lastPt2d-preLastPt2d;
lastVec2d.Normalize();
vec2d=vec2d-lastVec2d;
vec2d.Normalize();
Vector2D pos2d = lastPt2d.GetVectorFromOrigin()+vec2d*text2dDistance*text2dDistance;
mitk::VtkPropRenderer* OpenGLrenderer = dynamic_cast<mitk::VtkPropRenderer*>( renderer );
OpenGLrenderer->WriteSimpleText(buffer.str(), pos2d[0], pos2d[1]);
//this->WriteTextXY(pos2d[0], pos2d[1], buffer.str(),renderer);
}
}
counter++;
}
++it;
if(selIt != selEnd && !pointDataBroken)
++selIt;
j++;
}
//recall the color to the same color before this drawing
glColor3f(recallColor[0],recallColor[1],recallColor[2]);
}
}
| void mitk::PointSetGLMapper2D::SetDefaultProperties | ( | mitk::DataNode * | node, |
| mitk::BaseRenderer * | renderer = NULL, |
||
| bool | overwrite = false |
||
| ) | [static] |
Set default values of properties used by this mapper to node.
| node | The node for which the properties are set |
| overwrite | overwrite existing properties (default: false) |
| renderer | defines which property list of node is used (default: NULL, i.e. default property list) |
Reimplemented from mitk::Mapper.
Definition at line 484 of file mitkPointSetGLMapper2D.cpp.
References mitk::DataNode::AddProperty(), mitk::BoolProperty::New(), and mitk::IntProperty::New().
Referenced by mitk::CoreObjectFactory::SetDefaultProperties().
{
node->AddProperty( "line width", mitk::IntProperty::New(2), renderer, overwrite ); // width of the line from one point to another
node->AddProperty( "point line width", mitk::IntProperty::New(1), renderer, overwrite ); //width of the cross marking a point
node->AddProperty( "point 2D size", mitk::IntProperty::New(8), renderer, overwrite ); // length of the cross marking a point // length of an edge of the box marking a point
node->AddProperty( "show contour", mitk::BoolProperty::New(false), renderer, overwrite ); // contour of the line between points
node->AddProperty( "show points", mitk::BoolProperty::New(true), renderer, overwrite ); //show or hide points
node->AddProperty( "show distances", mitk::BoolProperty::New(false), renderer, overwrite ); //show or hide distance measure (not always available)
node->AddProperty( "distance decimal digits", mitk::IntProperty::New(2), renderer, overwrite ); //set the number of decimal digits to be shown
node->AddProperty( "show angles", mitk::BoolProperty::New(false), renderer, overwrite ); //show or hide angle measurement (not always available)
node->AddProperty( "show distant lines", mitk::BoolProperty::New(false), renderer, overwrite ); //show the line between to points from a distant view (equals "always on top" option)
node->AddProperty( "layer", mitk::IntProperty::New(1), renderer, overwrite ); // default to draw pointset above images (they have a default layer of 0)
Superclass::SetDefaultProperties(node, renderer, overwrite);
}
int mitk::PointSetGLMapper2D::m_DistancesDecimalDigits [protected] |
Definition at line 82 of file mitkPointSetGLMapper2D.h.
int mitk::PointSetGLMapper2D::m_LineWidth [protected] |
Definition at line 85 of file mitkPointSetGLMapper2D.h.
Referenced by mitk::SplineMapper2D::Paint().
int mitk::PointSetGLMapper2D::m_Point2DSize [protected] |
Definition at line 87 of file mitkPointSetGLMapper2D.h.
int mitk::PointSetGLMapper2D::m_PointLineWidth [protected] |
Definition at line 86 of file mitkPointSetGLMapper2D.h.
bool mitk::PointSetGLMapper2D::m_Polygon [protected] |
Definition at line 79 of file mitkPointSetGLMapper2D.h.
bool mitk::PointSetGLMapper2D::m_ShowAngles [protected] |
Definition at line 83 of file mitkPointSetGLMapper2D.h.
bool mitk::PointSetGLMapper2D::m_ShowDistances [protected] |
Definition at line 81 of file mitkPointSetGLMapper2D.h.
bool mitk::PointSetGLMapper2D::m_ShowDistantLines [protected] |
Definition at line 84 of file mitkPointSetGLMapper2D.h.
bool mitk::PointSetGLMapper2D::m_ShowPoints [protected] |
Definition at line 80 of file mitkPointSetGLMapper2D.h.
1.7.2
