controls the camera used by the associated BaseRenderer More...

#include <mitkCameraController.h>

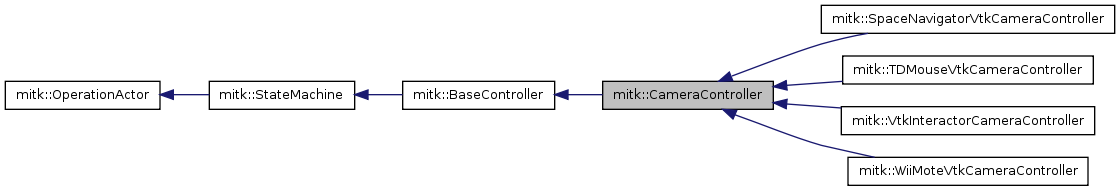

Inheritance diagram for mitk::CameraController:

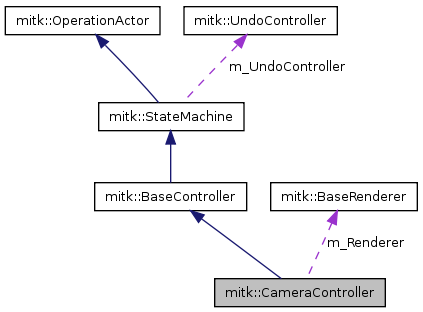

Collaboration diagram for mitk::CameraController:

Public Types
enum	StandardView { ANTERIOR, POSTERIOR, SINISTER, DEXTER, CRANIAL, CAUDAL }
Public Member Functions
	mitkClassMacro (CameraController, BaseController)
	mitkNewMacro1Param (Self, const char *)
virtual void	SetRenderer (BaseRenderer *_arg)
virtual void	SetZoomFactor (double _arg)
virtual const BaseRenderer *	GetRenderer () const
virtual double	GetZoomFactor () const
virtual void	Resize (int w, int h)
	Implemented in sub-classes.
virtual void	MousePressEvent (mitk::MouseEvent *)
	Implemented in sub-classes.
virtual void	MouseReleaseEvent (mitk::MouseEvent *)
	Implemented in sub-classes.
virtual void	MouseMoveEvent (mitk::MouseEvent *)
	Implemented in sub-classes.
virtual void	KeyPressEvent (mitk::KeyEvent *)
	Implemented in sub-classes.
virtual void	SetViewToAnterior ()
virtual void	SetViewToPosterior ()
virtual void	SetViewToSinister ()
virtual void	SetViewToDexter ()
virtual void	SetViewToCranial ()
virtual void	SetViewToCaudal ()
virtual void	SetStandardView (StandardView view)
Protected Member Functions
	CameraController (const char *type=NULL)
	Default Constructor.
virtual	~CameraController ()
	Default Destructor.
Protected Attributes
const BaseRenderer *	m_Renderer
double	m_ZoomFactor
	zoom factor used for the standard view camera

Detailed Description

controls the camera used by the associated BaseRenderer

Subclass of BaseController. Controls the camera used by the associated BaseRenderer.

Definition at line 36 of file mitkCameraController.h.

Member Enumeration Documentation

enum mitk::CameraController::StandardView

Enumerator:

ANTERIOR
POSTERIOR
SINISTER
DEXTER
CRANIAL
CAUDAL

Definition at line 39 of file mitkCameraController.h.

{ ANTERIOR,POSTERIOR,SINISTER,DEXTER,CRANIAL,CAUDAL };

Constructor & Destructor Documentation

mitk::CameraController::CameraController ( const char * type = NULL ) [protected]

Default Constructor.

Definition at line 28 of file mitkCameraController.cpp.

                                                        : BaseController(type), m_Renderer(NULL), m_ZoomFactor(1.0)
{}

mitk::CameraController::~CameraController ( ) [protected, virtual]

Default Destructor.

Definition at line 32 of file mitkCameraController.cpp.

{}

Member Function Documentation

virtual const BaseRenderer* mitk::CameraController::GetRenderer ( ) const [virtual]

virtual double mitk::CameraController::GetZoomFactor ( ) const [virtual]

void mitk::CameraController::KeyPressEvent ( mitk::KeyEvent * ) [virtual]

Implemented in sub-classes.

Reimplemented in mitk::VtkInteractorCameraController.

Definition at line 52 of file mitkCameraController.cpp.

{}

mitk::CameraController::mitkClassMacro	(	CameraController	,
		BaseController
	)

mitk::CameraController::mitkNewMacro1Param	(	Self	,
		const char *
	)

Method for creation through New

Reimplemented from mitk::BaseController.

void mitk::CameraController::MouseMoveEvent ( mitk::MouseEvent * ) [virtual]

Implemented in sub-classes.

Reimplemented in mitk::VtkInteractorCameraController.

Definition at line 48 of file mitkCameraController.cpp.

Referenced by mitk::ConferenceEventMapper::MapEvent().

{}

void mitk::CameraController::MousePressEvent ( mitk::MouseEvent * ) [virtual]

Implemented in sub-classes.

Reimplemented in mitk::VtkInteractorCameraController.

Definition at line 40 of file mitkCameraController.cpp.

Referenced by mitk::ConferenceEventMapper::MapEvent().

{}

void mitk::CameraController::MouseReleaseEvent ( mitk::MouseEvent * ) [virtual]

Implemented in sub-classes.

Reimplemented in mitk::VtkInteractorCameraController.

Definition at line 44 of file mitkCameraController.cpp.

Referenced by mitk::ConferenceEventMapper::MapEvent().

{}

void mitk::CameraController::Resize	(	int	w,
		int	h
	)		`[virtual]`

Implemented in sub-classes.

Reimplemented in mitk::VtkInteractorCameraController.

Definition at line 36 of file mitkCameraController.cpp.

{}

virtual void mitk::CameraController::SetRenderer ( BaseRenderer * _arg ) [virtual]

Referenced by mitk::BaseRenderer::SetCameraController().

void mitk::CameraController::SetStandardView ( StandardView view ) [virtual]

Definition at line 92 of file mitkCameraController.cpp.

References mitk::DataStorage::ComputeBoundingBox(), mitk::BaseRenderer::GetVtkRenderer(), and mitk::RenderingManager::RequestUpdateAll().

{
  const mitk::VtkPropRenderer* glRenderer = dynamic_cast<const mitk::VtkPropRenderer*>(m_Renderer);
  if (glRenderer == NULL)
    return;
  vtkRenderer* vtkRenderer = glRenderer->GetVtkRenderer();
  assert (vtkRenderer);

  mitk::BoundingBox::Pointer bb;
  mitk::DataStorage* ds = m_Renderer->GetDataStorage();
  if (ds != NULL)
    bb = ds->ComputeBoundingBox();
  else
    return;

  mitk::Point3D middle = bb->GetCenter();
  vtkRenderer->GetActiveCamera()->SetFocalPoint(middle[0], middle[1], middle[2]);
  switch(view)
  {
  case ANTERIOR:
  case POSTERIOR:
  case SINISTER:
  case DEXTER:
    vtkRenderer->GetActiveCamera()->SetViewUp(0,0,1);
    break;
  case CRANIAL:
  case CAUDAL:
    vtkRenderer->GetActiveCamera()->SetViewUp(0,-1,0);
  }
  switch(view)
  {
  case ANTERIOR:
    vtkRenderer->GetActiveCamera()->SetPosition(middle[0],-100000,middle[2]);
    break;
  case POSTERIOR:
    vtkRenderer->GetActiveCamera()->SetPosition(middle[0],+100000,middle[2]);
    break;
  case SINISTER:
    vtkRenderer->GetActiveCamera()->SetPosition(+100000,middle[1],middle[2]);
    break;
  case DEXTER:
    vtkRenderer->GetActiveCamera()->SetPosition(-100000,middle[1],middle[2]);
    break;
  case CRANIAL:
    vtkRenderer->GetActiveCamera()->SetPosition(middle[0],middle[1],100000);
    break;
  case CAUDAL:
    vtkRenderer->GetActiveCamera()->SetPosition(middle[0],middle[1],-100000);
    break;
  }
  vtkRenderer->ResetCamera();
  double *cameraPosition = vtkRenderer->GetActiveCamera()->GetPosition();
  switch(view)
  {
  case ANTERIOR:
  case POSTERIOR:
    vtkRenderer->GetActiveCamera()->SetPosition(cameraPosition[0],cameraPosition[1] / m_ZoomFactor,cameraPosition[2]);
    break;

  case SINISTER:
  case DEXTER:
    vtkRenderer->GetActiveCamera()->SetPosition(cameraPosition[0] / m_ZoomFactor,cameraPosition[1],cameraPosition[2]);
    break;

  case CRANIAL:
  case CAUDAL:
    vtkRenderer->GetActiveCamera()->SetPosition(cameraPosition[0],cameraPosition[1],cameraPosition[2] / m_ZoomFactor);
    break;
  }
  vtkRenderer->ResetCameraClippingRange();

  mitk::RenderingManager* rm = m_Renderer->GetRenderingManager();
  rm->RequestUpdateAll();
}

void mitk::CameraController::SetViewToAnterior ( ) [virtual]

Definition at line 56 of file mitkCameraController.cpp.

{
  this->SetStandardView(ANTERIOR);
}

void mitk::CameraController::SetViewToCaudal ( ) [virtual]

Definition at line 86 of file mitkCameraController.cpp.

{
  this->SetStandardView(CAUDAL);
}

void mitk::CameraController::SetViewToCranial ( ) [virtual]

Definition at line 80 of file mitkCameraController.cpp.

{
  this->SetStandardView(CRANIAL);
}

void mitk::CameraController::SetViewToDexter ( ) [virtual]

Definition at line 74 of file mitkCameraController.cpp.

{
  this->SetStandardView(DEXTER);
}

void mitk::CameraController::SetViewToPosterior ( ) [virtual]

Definition at line 62 of file mitkCameraController.cpp.

{
  this->SetStandardView(POSTERIOR);
}

void mitk::CameraController::SetViewToSinister ( ) [virtual]

Definition at line 68 of file mitkCameraController.cpp.

{
  this->SetStandardView(SINISTER);
}

virtual void mitk::CameraController::SetZoomFactor ( double _arg ) [virtual]

Member Data Documentation

const BaseRenderer* mitk::CameraController::m_Renderer [protected]

Definition at line 84 of file mitkCameraController.h.

double mitk::CameraController::m_ZoomFactor [protected]

zoom factor used for the standard view camera

Definition at line 86 of file mitkCameraController.h.

The documentation for this class was generated from the following files:
