mitk::LandmarkProjectorBasedCurvedGeometry Class Reference [Geometry Classes]

Superclass of AbstractTransformGeometry sub-classes defined by a set of landmarks. More...

#include <mitkLandmarkProjectorBasedCurvedGeometry.h>

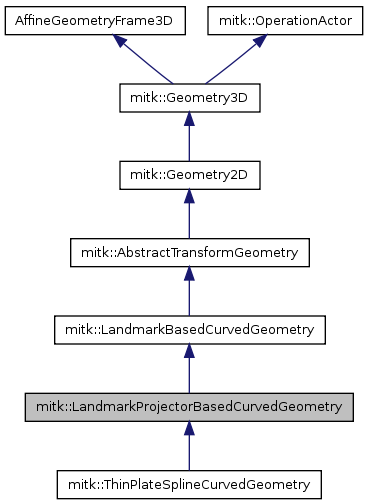

Inheritance diagram for mitk::LandmarkProjectorBasedCurvedGeometry:

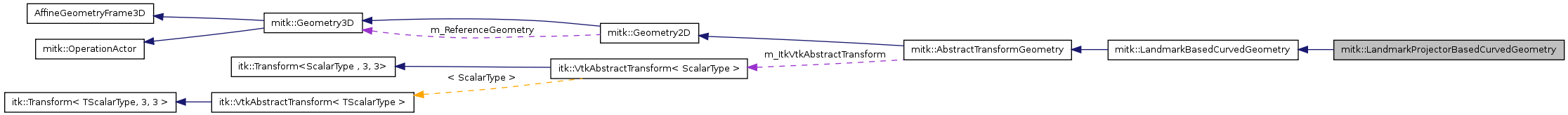

Collaboration diagram for mitk::LandmarkProjectorBasedCurvedGeometry:

List of all members.

Public Types
typedef LandmarkProjectorBasedCurvedGeometry	Self
typedef LandmarkBasedCurvedGeometry	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
	Method for creation through the object factory.
void	SetLandmarkProjector (mitk::LandmarkProjector *aLandmarkProjector)
virtual const mitk::LandmarkProjector *	GetLandmarkProjector ()
virtual void	SetFrameGeometry (const mitk::Geometry3D *frameGeometry)
	Set the frame geometry which is used as the standard part of an Geometry3D (IndexToWorldTransform and bounding box)
virtual void	ComputeGeometry ()
virtual vtkAbstractTransform *	GetInterpolatingAbstractTransform () const
Protected Member Functions
	LandmarkProjectorBasedCurvedGeometry ()
virtual	~LandmarkProjectorBasedCurvedGeometry ()
void	InitializeGeometry (Self *newGeometry) const
Protected Attributes
mitk::LandmarkProjector::Pointer	m_LandmarkProjector
vtkAbstractTransform *	m_InterpolatingAbstractTransform

---

Detailed Description

Superclass of AbstractTransformGeometry sub-classes defined by a set of landmarks.

Definition at line 32 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::LandmarkProjectorBasedCurvedGeometry::ConstPointer

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 35 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

typedef itk::SmartPointer<Self> mitk::LandmarkProjectorBasedCurvedGeometry::Pointer

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 35 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

typedef LandmarkProjectorBasedCurvedGeometry mitk::LandmarkProjectorBasedCurvedGeometry::Self

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 35 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

typedef LandmarkBasedCurvedGeometry mitk::LandmarkProjectorBasedCurvedGeometry::Superclass

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 35 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

---

Constructor & Destructor Documentation

mitk::LandmarkProjectorBasedCurvedGeometry::LandmarkProjectorBasedCurvedGeometry

(

)

[protected]

Definition at line 22 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

  : m_LandmarkProjector(NULL), m_InterpolatingAbstractTransform(NULL)
{
}

mitk::LandmarkProjectorBasedCurvedGeometry::~LandmarkProjectorBasedCurvedGeometry

(

)

[protected, virtual]

Definition at line 27 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

{
  if(m_InterpolatingAbstractTransform!=NULL)
    m_InterpolatingAbstractTransform->Delete();
}

---

Member Function Documentation

void mitk::LandmarkProjectorBasedCurvedGeometry::ComputeGeometry

(

)

[virtual]

Implements mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 63 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

{
  if(m_LandmarkProjector.IsNull())
  {
    itkExceptionMacro(<< "m_LandmarkProjector is not set.");
  }
  m_LandmarkProjector->ProjectLandmarks(m_TargetLandmarks);
  SetPlane(m_LandmarkProjector->GetParameterPlane());
}

virtual const char* mitk::LandmarkProjectorBasedCurvedGeometry::GetClassName

(

)

const [virtual]

Method for creation through the object factory.

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

virtual vtkAbstractTransform* mitk::LandmarkProjectorBasedCurvedGeometry::GetInterpolatingAbstractTransform

(

)

const [virtual]

virtual const mitk::LandmarkProjector* mitk::LandmarkProjectorBasedCurvedGeometry::GetLandmarkProjector

(

)

[virtual]

void mitk::LandmarkProjectorBasedCurvedGeometry::InitializeGeometry

(

Self *

newGeometry )

const [protected]

Reimplemented from mitk::LandmarkBasedCurvedGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 73 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

{
  Superclass::InitializeGeometry(newGeometry);
  newGeometry->SetLandmarkProjector(m_LandmarkProjector);
  newGeometry->ComputeGeometry();
}

void mitk::LandmarkProjectorBasedCurvedGeometry::SetFrameGeometry

(

const mitk::Geometry3D *

frameGeometry )

[virtual]

Set the frame geometry which is used as the standard part of an Geometry3D (IndexToWorldTransform and bounding box)

Maybe used as a hint within which the interpolation shall occur by concrete sub-classes.

See also:

CalculateFrameGeometry

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 56 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

{
  Superclass::SetFrameGeometry(frameGeometry);
  if(m_LandmarkProjector.IsNotNull())
    m_LandmarkProjector->SetFrameGeometry(frameGeometry);
}

void mitk::LandmarkProjectorBasedCurvedGeometry::SetLandmarkProjector

(

mitk::LandmarkProjector *

aLandmarkProjector )

Definition at line 33 of file mitkLandmarkProjectorBasedCurvedGeometry.cpp.

References mitk::LandmarkProjector::SetFrameGeometry().

{
  itkDebugMacro("setting LandmarkProjector to " << aLandmarkProjector );
  if(m_LandmarkProjector != aLandmarkProjector)
  {
    m_LandmarkProjector = aLandmarkProjector;
    if(m_LandmarkProjector.IsNotNull())
    {
      if(m_FrameGeometry.IsNotNull())
        m_LandmarkProjector->SetFrameGeometry(m_FrameGeometry);

      if(m_InterpolatingAbstractTransform == NULL)
      {
        itkWarningMacro(<<"m_InterpolatingAbstractTransform not set.");
      }
      m_LandmarkProjector->SetInterpolatingAbstractTransform(GetInterpolatingAbstractTransform());

      SetVtkAbstractTransform(m_LandmarkProjector->GetCompleteAbstractTransform());
    }
    Modified();
  }
}

---

Member Data Documentation

vtkAbstractTransform* mitk::LandmarkProjectorBasedCurvedGeometry::m_InterpolatingAbstractTransform [protected]

Definition at line 54 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

Referenced by mitk::ThinPlateSplineCurvedGeometry::ThinPlateSplineCurvedGeometry().

mitk::LandmarkProjector::Pointer mitk::LandmarkProjectorBasedCurvedGeometry::m_LandmarkProjector [protected]

Definition at line 52 of file mitkLandmarkProjectorBasedCurvedGeometry.h.

---

The documentation for this class was generated from the following files:

• mitkLandmarkProjectorBasedCurvedGeometry.h
• mitkLandmarkProjectorBasedCurvedGeometry.cpp
