mitk::ExternAbstractTransformGeometry Class Reference [Geometry Classes]

Identical with AbstractTransformGeometry, except that it can be externally configured. More...

#include <mitkExternAbstractTransformGeometry.h>

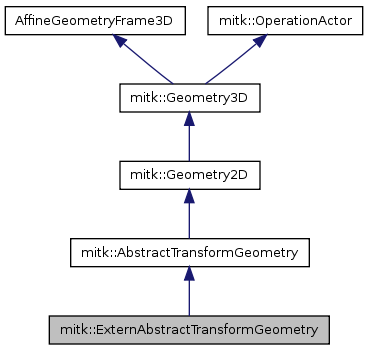

Inheritance diagram for mitk::ExternAbstractTransformGeometry:

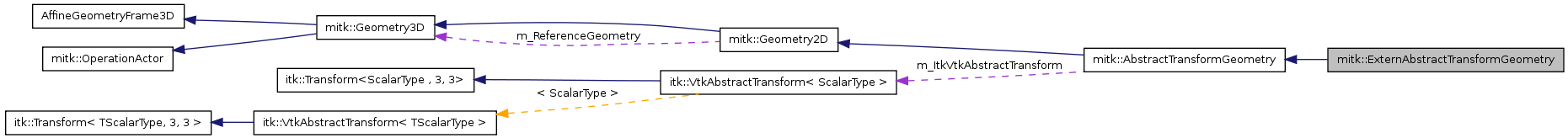

Collaboration diagram for mitk::ExternAbstractTransformGeometry:

List of all members.

Public Types
typedef ExternAbstractTransformGeometry	Self
typedef AbstractTransformGeometry	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
	Method for creation through the object factory.
virtual void	SetVtkAbstractTransform (vtkAbstractTransform *aVtkAbstractTransform)
	Set the vtkAbstractTransform (stored in m_VtkAbstractTransform)
virtual void	SetPlane (const mitk::PlaneGeometry *aPlane)
	Set the rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by ExternAbstractTransformGeometry.
virtual void	SetParametricBounds (const BoundingBox::BoundsArrayType &bounds)
	Set the parametric bounds.
virtual AffineGeometryFrame3D::Pointer	Clone () const
	clones the geometry
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	ExternAbstractTransformGeometry ()
virtual	~ExternAbstractTransformGeometry ()
void	InitializeGeometry (Self *newGeometry) const

---

Detailed Description

Identical with AbstractTransformGeometry, except that it can be externally configured.

In contrast to its superclass (AbstractTransformGeometry), this class provides write access to the vtkAbstractTransform and m_Plane.

Note:

The PlaneGeometry is cloned, not linked/referenced.

The bounds of the PlaneGeometry are used as the parametric bounds.

See also:

AbstractTransformGeometry

Definition at line 38 of file mitkExternAbstractTransformGeometry.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ExternAbstractTransformGeometry::ConstPointer

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 41 of file mitkExternAbstractTransformGeometry.h.

typedef itk::SmartPointer<Self> mitk::ExternAbstractTransformGeometry::Pointer

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 41 of file mitkExternAbstractTransformGeometry.h.

typedef ExternAbstractTransformGeometry mitk::ExternAbstractTransformGeometry::Self

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 41 of file mitkExternAbstractTransformGeometry.h.

typedef AbstractTransformGeometry mitk::ExternAbstractTransformGeometry::Superclass

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 41 of file mitkExternAbstractTransformGeometry.h.

---

Constructor & Destructor Documentation

mitk::ExternAbstractTransformGeometry::ExternAbstractTransformGeometry

(

)

[protected]

Definition at line 22 of file mitkExternAbstractTransformGeometry.cpp.

{
}

mitk::ExternAbstractTransformGeometry::~ExternAbstractTransformGeometry

(

)

[protected, virtual]

Definition at line 26 of file mitkExternAbstractTransformGeometry.cpp.

{
}

---

Member Function Documentation

mitk::AffineGeometryFrame3D::Pointer mitk::ExternAbstractTransformGeometry::Clone

(

)

const [virtual]

clones the geometry

Overwrite in all sub-classes. Normally looks like:

  //##  Self::Pointer newGeometry = Self::New();
  //##  newGeometry->Initialize();
  //##  InitializeGeometry(newGeometry);
  //##  return newGeometry.GetPointer();
  //##

See also:

InitializeGeometry

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 53 of file mitkExternAbstractTransformGeometry.cpp.

{
  Self::Pointer newGeometry = Self::New();
  newGeometry->Initialize();
  InitializeGeometry(newGeometry);
  return newGeometry.GetPointer();
}

virtual const char* mitk::ExternAbstractTransformGeometry::GetClassName

(

)

const [virtual]

Method for creation through the object factory.

Reimplemented from mitk::AbstractTransformGeometry.

void mitk::ExternAbstractTransformGeometry::InitializeGeometry

(

Self *

newGeometry )

const [protected]

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 61 of file mitkExternAbstractTransformGeometry.cpp.

{
  Superclass::InitializeGeometry(newGeometry);
}

static Pointer mitk::ExternAbstractTransformGeometry::New

(

)

[static]

Method for creation through the object factory.

Reimplemented from mitk::AbstractTransformGeometry.

Referenced by mitkAbstractTransformGeometryTest().

void mitk::ExternAbstractTransformGeometry::SetParametricBounds

(

const BoundingBox::BoundsArrayType &

bounds )

[virtual]

Set the parametric bounds.

Protected in this class, made public in some sub-classes, e.g., ExternAbstractTransformGeometry.

Reimplemented from mitk::Geometry3D.

Definition at line 40 of file mitkExternAbstractTransformGeometry.cpp.

{
  Superclass::SetParametricBounds(bounds);
  //@warning affine-transforms and bounding-box should be set by specific sub-classes!
  SetBounds(bounds);

  if(m_Plane.IsNotNull())
  {
    m_Plane->SetSizeInUnits(bounds[1]-bounds[0], bounds[3]-bounds[2]);
    m_Plane->SetBounds(bounds);
  }
}

void mitk::ExternAbstractTransformGeometry::SetPlane

(

const mitk::PlaneGeometry *

aPlane )

[virtual]

Set the rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by ExternAbstractTransformGeometry.

Note:

The bounds of the PlaneGeometry are used as the parametric bounds.

The PlaneGeometry is cloned, not linked/referenced.

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 35 of file mitkExternAbstractTransformGeometry.cpp.

{
  Superclass::SetPlane(aPlane);
}

void mitk::ExternAbstractTransformGeometry::SetVtkAbstractTransform

(

vtkAbstractTransform *

aVtkAbstractTransform )

[virtual]

Set the vtkAbstractTransform (stored in m_VtkAbstractTransform)

Reimplemented from mitk::AbstractTransformGeometry.

Definition at line 30 of file mitkExternAbstractTransformGeometry.cpp.

{
  Superclass::SetVtkAbstractTransform(aVtkAbstractTransform);
}

---

The documentation for this class was generated from the following files:

• mitkExternAbstractTransformGeometry.h
• mitkExternAbstractTransformGeometry.cpp
