OpenGL-based mapper to display a 2d cut through a poly data OpenGL-based mapper to display a 2D cut through a poly data. The result is normally a line. This class can be added to any data object, which is rendered in 3D via a vtkPolyData. More...

#include <mitkUnstructuredGridMapper2D.h>

Inheritance diagram for mitk::UnstructuredGridMapper2D:

[legend]

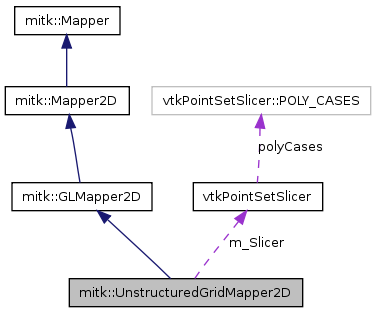

Collaboration diagram for mitk::UnstructuredGridMapper2D:

[legend]

List of all members.

Public Types
typedef UnstructuredGridMapper2D	Self
typedef GLMapper2D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	Paint (mitk::BaseRenderer *renderer)
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	UnstructuredGridMapper2D ()
virtual	~UnstructuredGridMapper2D ()
virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer)
virtual void	GenerateData (BaseRenderer *)
	Generate the data needed for rendering into renderer.
virtual vtkAbstractMapper3D *	GetVtkAbstractMapper3D (BaseRenderer *renderer)
virtual vtkPointSet *	GetVtkPointSet (BaseRenderer *renderer)
virtual vtkScalarsToColors *	GetVtkLUT (BaseRenderer *renderer)
virtual bool	IsConvertibleToVtkPointSet (BaseRenderer *renderer)
Protected Attributes
vtkPlane *	m_Plane
vtkPointSetSlicer *	m_Slicer
vtkPointSet *	m_VtkPointSet
vtkScalarsToColors *	m_ScalarsToColors
vtkPiecewiseFunction *	m_ScalarsToOpacity
mitk::ColorProperty::Pointer	m_Color
mitk::IntProperty::Pointer	m_LineWidth
mitk::BoolProperty::Pointer	m_Outline
mitk::BoolProperty::Pointer	m_ScalarVisibility
mitk::VtkScalarModeProperty::Pointer	m_ScalarMode

Detailed Description

OpenGL-based mapper to display a 2d cut through a poly data OpenGL-based mapper to display a 2D cut through a poly data. The result is normally a line. This class can be added to any data object, which is rendered in 3D via a vtkPolyData.

Definition at line 49 of file mitkUnstructuredGridMapper2D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::UnstructuredGridMapper2D::ConstPointer

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkUnstructuredGridMapper2D.h.

typedef itk::SmartPointer<Self> mitk::UnstructuredGridMapper2D::Pointer

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkUnstructuredGridMapper2D.h.

typedef UnstructuredGridMapper2D mitk::UnstructuredGridMapper2D::Self

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkUnstructuredGridMapper2D.h.

typedef GLMapper2D mitk::UnstructuredGridMapper2D::Superclass

Reimplemented from mitk::Mapper2D.

Definition at line 53 of file mitkUnstructuredGridMapper2D.h.

Constructor & Destructor Documentation

mitk::UnstructuredGridMapper2D::UnstructuredGridMapper2D ( ) [protected]

Definition at line 530 of file mitkUnstructuredGridMapper2D.cpp.

References vtkPointSetSlicer::New().

{
    m_Plane = vtkPlane::New();
    m_Slicer = vtkPointSetSlicer::New();

    m_Slicer->SetSlicePlane( m_Plane );

    m_ScalarsToColors = 0;
    m_ScalarsToOpacity = 0;
    m_VtkPointSet = 0;

    //m_LUT = vtkLookupTable::New();
    //m_LUT->SetTableRange( 0, 255 );
    //m_LUT->SetNumberOfColors( 255 );
    //m_LUT->SetRampToLinear ();
    //m_LUT->Build();
}

mitk::UnstructuredGridMapper2D::~UnstructuredGridMapper2D ( ) [protected, virtual]

Definition at line 550 of file mitkUnstructuredGridMapper2D.cpp.

{
  m_Slicer->Delete();
  m_Plane->Delete();

  if (m_ScalarsToOpacity != 0) m_ScalarsToOpacity->UnRegister(0);
  if (m_ScalarsToColors != 0) m_ScalarsToColors->UnRegister(0);
  if (m_VtkPointSet != 0) m_VtkPointSet->UnRegister(0);
}

Member Function Documentation

void mitk::UnstructuredGridMapper2D::GenerateData ( ) [protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

Reimplemented from mitk::Mapper.

Definition at line 52 of file mitkUnstructuredGridMapper2D.cpp.

References mitk::Mapper::GetDataNode(), m_Color, m_LineWidth, m_Outline, m_ScalarMode, m_ScalarVisibility, and New().

{
  mitk::DataNode::ConstPointer node = this->GetDataNode();
  if ( node.IsNull() )
    return;


  if (!node->GetProperty(m_ScalarMode, "scalar mode"))
  {
    m_ScalarMode = mitk::VtkScalarModeProperty::New(0);
  }

  if (!node->GetProperty(m_ScalarVisibility, "scalar visibility"))
  {
    m_ScalarVisibility = mitk::BoolProperty::New(true);
  }

  if (!node->GetProperty(m_Outline, "outline polygons"))
  {
    m_Outline = mitk::BoolProperty::New(false);
  }

  if (!node->GetProperty(m_Color, "color"))
  {
    m_Color = mitk::ColorProperty::New(1.0f, 1.0f, 1.0f);
  }

  if (!node->GetProperty(m_LineWidth, "line width"))
  {
    m_LineWidth = mitk::IntProperty::New(1);
  }

}

void mitk::UnstructuredGridMapper2D::GenerateData ( mitk::BaseRenderer * renderer ) [protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 86 of file mitkUnstructuredGridMapper2D.cpp.

{
  mitk::BaseData::Pointer input = const_cast<mitk::BaseData*>( this->GetData() );
  assert( input );

  input->Update();

  if (m_VtkPointSet) m_VtkPointSet->UnRegister(0);
  m_VtkPointSet = this->GetVtkPointSet(renderer);
  assert(m_VtkPointSet);
  m_VtkPointSet->Register(0);

  if (m_ScalarVisibility->GetValue())
  {
    mitk::DataNode::ConstPointer node = this->GetDataNode();
    mitk::TransferFunctionProperty::Pointer transferFuncProp;
    node->GetProperty(transferFuncProp, "TransferFunction", renderer);
    if (transferFuncProp.IsNotNull())
    {
      mitk::TransferFunction::Pointer tf = transferFuncProp->GetValue();
      if (m_ScalarsToColors) m_ScalarsToColors->UnRegister(0);
      m_ScalarsToColors = static_cast<vtkScalarsToColors*>(tf->GetColorTransferFunction());
      m_ScalarsToColors->Register(0);

      if (m_ScalarsToOpacity) m_ScalarsToOpacity->UnRegister(0);
      m_ScalarsToOpacity = tf->GetScalarOpacityFunction();
      m_ScalarsToOpacity->Register(0);
    }
    else
    {
      if (m_ScalarsToColors) m_ScalarsToColors->UnRegister(0);
      m_ScalarsToColors = this->GetVtkLUT(renderer);
      assert(m_ScalarsToColors);
      m_ScalarsToColors->Register(0);

      float opacity;
      node->GetOpacity(opacity, renderer);
      if (m_ScalarsToOpacity) m_ScalarsToOpacity->UnRegister(0);
      m_ScalarsToOpacity = vtkPiecewiseFunction::New();
      double range[2];
      m_VtkPointSet->GetScalarRange(range);
      m_ScalarsToOpacity->AddSegment(range[0], opacity, range[1], opacity);
    }
  }
}

virtual const char* mitk::UnstructuredGridMapper2D::GetClassName ( ) const [virtual]

Reimplemented from mitk::Mapper2D.

vtkAbstractMapper3D * mitk::UnstructuredGridMapper2D::GetVtkAbstractMapper3D ( mitk::BaseRenderer * renderer ) [protected, virtual]

Determines, if the associated BaseData is mapped three-dimensionally (mapper-slot id 2) with a class convertable to vtkAbstractMapper3D().

Returns:: NULL if it is not convertable or the appropriate Mapper otherwise

Definition at line 386 of file mitkUnstructuredGridMapper2D.cpp.

References mitk::Mapper::Update().

{
  //MITK_INFO << "GETVTKABSTRACTMAPPER3D\n";
  mitk::DataNode::ConstPointer node = this->GetDataNode();
  if ( node.IsNull() )
    return 0;

  mitk::VtkMapper3D::Pointer mitkMapper = dynamic_cast< mitk::VtkMapper3D* > ( node->GetMapper( 2 ) );
  if ( mitkMapper.IsNull() )
  {
    return 0;
  }

  mitkMapper->Update(renderer);

  vtkAssembly* assembly = dynamic_cast<vtkAssembly*>(mitkMapper->GetVtkProp(renderer));
  if (assembly)
  {
          vtkProp3DCollection* collection = assembly->GetParts();
          collection->InitTraversal();
    vtkProp3D* prop3d = 0;
          do
          {
            prop3d = collection->GetNextProp3D();
      vtkActor* actor = dynamic_cast<vtkActor*>( prop3d );
      if (actor)
      {
        return dynamic_cast<vtkAbstractMapper3D*>( actor->GetMapper() );
      }

      vtkVolume* volume = dynamic_cast<vtkVolume*>( prop3d );
      if (volume)
      {
        return dynamic_cast<vtkAbstractMapper3D*>( volume->GetMapper() );
      }
    } while (prop3d != collection->GetLastProp3D());
  }
  else
  {
    vtkActor* actor = dynamic_cast<vtkActor*>( mitkMapper->GetVtkProp(renderer) );
    if (actor)
    {
      return dynamic_cast<vtkAbstractMapper3D*>( actor->GetMapper() );
    }

    vtkVolume* volume = dynamic_cast<vtkVolume*>( mitkMapper->GetVtkProp(renderer) );
    if (volume)
    {
      return dynamic_cast<vtkAbstractMapper3D*>( volume->GetMapper() );
    }
  }
  return 0;
}

vtkScalarsToColors * mitk::UnstructuredGridMapper2D::GetVtkLUT ( mitk::BaseRenderer * renderer ) [protected, virtual]

Determines the LookupTable used by the associated vtkMapper. returns the LUT if possible, otherwise NULL.

Definition at line 480 of file mitkUnstructuredGridMapper2D.cpp.

References MITK_INFO, and mitk::Mapper::Update().

{
  //MITK_INFO << "GETVTKLUT\n";
  vtkMapper * mapper = dynamic_cast<vtkMapper*>(GetVtkAbstractMapper3D(renderer));
  if (mapper)
    return mapper->GetLookupTable();
  else
  {
    mitk::DataNode::ConstPointer node = this->GetDataNode();
    if ( node.IsNull() )
      return 0;

    mitk::VtkMapper3D::Pointer mitkMapper = dynamic_cast< mitk::VtkMapper3D* > ( node->GetMapper( 2 ) );
    if ( mitkMapper.IsNull() )
    {
      //MITK_INFO << "mitkMapper is null\n";
      return 0;
    }

    mitkMapper->Update(renderer);

    vtkVolume* volume = dynamic_cast<vtkVolume*>( mitkMapper->GetVtkProp(renderer) );
    if (volume)
    {
      //MITK_INFO << "found volume prop\n";
      return static_cast<vtkScalarsToColors*>(volume->GetProperty()->GetRGBTransferFunction());
    }

    vtkAssembly* assembly = dynamic_cast<vtkAssembly*>(mitkMapper->GetVtkProp(renderer));
    if (assembly)
    {
      //MITK_INFO << "found assembly prop\n";
      mitk::TransferFunctionProperty::Pointer transferFuncProp;
      node->GetProperty(transferFuncProp, "TransferFunction", 0);
      if (transferFuncProp.IsNotNull())
      {
        MITK_INFO << "return colortransferfunction\n";
        return static_cast<vtkScalarsToColors*>(transferFuncProp->GetValue()->GetColorTransferFunction());
      }
    }
    return 0;
  }
}

vtkPointSet * mitk::UnstructuredGridMapper2D::GetVtkPointSet ( mitk::BaseRenderer * renderer ) [protected, virtual]

Determines the pointset object to be cut. returns the pointset if possible, otherwise NULL.

Definition at line 444 of file mitkUnstructuredGridMapper2D.cpp.

{
  //MITK_INFO << "GETVTKPOINTSET\n";
  vtkAbstractMapper3D * abstractMapper = GetVtkAbstractMapper3D(renderer);
  if ( abstractMapper == 0 )
  {
    // try to get data from the node
    mitk::DataNode::ConstPointer node = this->GetDataNode();
    if ( node.IsNull() )
      return 0;
    mitk::BaseData::Pointer data = node->GetData();
    mitk::UnstructuredGrid::Pointer grid = dynamic_cast<mitk::UnstructuredGrid*>(data.GetPointer());
    if (!grid.IsNull())
      return static_cast<vtkPointSet*>(grid->GetVtkUnstructuredGrid());

      return 0;
  }
  else
  {
    vtkMapper* mapper = dynamic_cast<vtkMapper*>(abstractMapper);
    if (mapper)
    {
      return dynamic_cast<vtkPointSet*>(mapper->GetInput());
    }
    vtkAbstractVolumeMapper* volMapper = dynamic_cast<vtkAbstractVolumeMapper*>(abstractMapper);
    if (volMapper)
    {
      return dynamic_cast<vtkPointSet*>(volMapper->GetDataSetInput());
    }
  }

  return 0;
}

bool mitk::UnstructuredGridMapper2D::IsConvertibleToVtkPointSet ( mitk::BaseRenderer * renderer ) [protected, virtual]

Checks if this mapper can be used to generate cuts through the associated base data.

Returns:: true if yes or false if not.

Definition at line 525 of file mitkUnstructuredGridMapper2D.cpp.

{
    return ( GetVtkPointSet(renderer) != 0 );
}

static Pointer mitk::UnstructuredGridMapper2D::New ( ) [static]

Referenced by mitk::CoreExtObjectFactory::CreateMapper(), GenerateData(), and mitkDataNodeExtTestClass::TestMapperSetting().

void mitk::UnstructuredGridMapper2D::Paint ( mitk::BaseRenderer * renderer ) [virtual]

Renders a cut through a pointset by cutting trough the n-cells, producing (n-1)-cells.

Parameters:

renderer the render to render in.

Implements mitk::GLMapper2D.

Definition at line 132 of file mitkUnstructuredGridMapper2D.cpp.

References mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::BaseRenderer::GetDisplayGeometry(), mitk::Geometry3D::GetOrigin(), GL_BLEND, GL_FILL, GL_FRONT_AND_BACK, GL_LINE, GL_LINE_LOOP, GL_ONE_MINUS_SRC_ALPHA, GL_POLYGON, GL_SRC_ALPHA, glBegin(), glBlendFunc(), glColor4f(), glColor4fv(), glDisable(), glEnable(), glEnd(), glLineWidth(), glPolygonMode(), and glVertex2f().

{
  if ( IsVisible( renderer ) == false )
    return ;

  vtkLinearTransform * vtktransform = GetDataNode()->GetVtkTransform();
  vtkLinearTransform * inversetransform = vtktransform->GetLinearInverse();

  Geometry2D::ConstPointer worldGeometry = renderer->GetCurrentWorldGeometry2D();
  PlaneGeometry::ConstPointer worldPlaneGeometry = dynamic_cast<const PlaneGeometry*>( worldGeometry.GetPointer() );

  Point3D point;
  Vector3D normal;

  if(worldPlaneGeometry.IsNotNull())
  {
    // set up vtkPlane according to worldGeometry
    point=worldPlaneGeometry->GetOrigin();
    normal=worldPlaneGeometry->GetNormal(); normal.Normalize();
    m_Plane->SetTransform((vtkAbstractTransform*)NULL);
  }
  else
  {
    //@FIXME: does not work correctly. Does m_Plane->SetTransform really transforms a "plane plane" into a "curved plane"?
    return;
    AbstractTransformGeometry::ConstPointer worldAbstractGeometry = dynamic_cast<const AbstractTransformGeometry*>(renderer->GetCurrentWorldGeometry2D());
    if(worldAbstractGeometry.IsNotNull())
    {
      // set up vtkPlane according to worldGeometry
      point=const_cast<mitk::BoundingBox*>(worldAbstractGeometry->GetParametricBoundingBox())->GetMinimum();
      FillVector3D(normal, 0, 0, 1);
      m_Plane->SetTransform(worldAbstractGeometry->GetVtkAbstractTransform()->GetInverse());
    }
    else
      return;
  }

  vtkFloatingPointType vp[ 3 ], vnormal[ 3 ];

  vnl2vtk(point.Get_vnl_vector(), vp);
  vnl2vtk(normal.Get_vnl_vector(), vnormal);

  //normally, we would need to transform the surface and cut the transformed surface with the cutter.
  //This might be quite slow. Thus, the idea is, to perform an inverse transform of the plane instead.
  //@todo It probably does not work for scaling operations yet:scaling operations have to be
  //dealed with after the cut is performed by scaling the contour.
  inversetransform->TransformPoint( vp, vp );
  inversetransform->TransformNormalAtPoint( vp, vnormal, vnormal );

  m_Plane->SetOrigin( vp );
  m_Plane->SetNormal( vnormal );

  // set data into cutter
  m_Slicer->SetInput( m_VtkPointSet );
  //    m_Cutter->GenerateCutScalarsOff();
  //    m_Cutter->SetSortByToSortByCell();

  // calculate the cut
  m_Slicer->Update();

  // fetch geometry
  mitk::DisplayGeometry::Pointer displayGeometry = renderer->GetDisplayGeometry();
  assert( displayGeometry );
  //  float toGL=displayGeometry->GetSizeInDisplayUnits()[1];

  //apply color and opacity read from the PropertyList
  ApplyProperties( renderer );

  // traverse the cut contour
  vtkPolyData * contour = m_Slicer->GetOutput();

  vtkPoints *vpoints = contour->GetPoints();
  vtkCellArray *vlines = contour->GetLines();
  vtkCellArray *vpolys = contour->GetPolys();
  vtkPointData *vpointdata = contour->GetPointData();
  vtkDataArray* vscalars = vpointdata->GetScalars();

  vtkCellData *vcelldata = contour->GetCellData();
  vtkDataArray* vcellscalars = vcelldata->GetScalars();

  const int numberOfLines = contour->GetNumberOfLines();
  const int numberOfPolys = contour->GetNumberOfPolys();

  const bool useCellData = m_ScalarMode->GetVtkScalarMode() == VTK_SCALAR_MODE_DEFAULT ||
              m_ScalarMode->GetVtkScalarMode() == VTK_SCALAR_MODE_USE_CELL_DATA;
  const bool usePointData = m_ScalarMode->GetVtkScalarMode() == VTK_SCALAR_MODE_USE_POINT_DATA;

  Point3D p;
  Point2D p2d;

  vlines->InitTraversal();
  vpolys->InitTraversal();

  mitk::Color outlineColor = m_Color->GetColor();

  glLineWidth((float)m_LineWidth->GetValue());

  for (int i = 0;i < numberOfLines;++i )
  {
    vtkIdType *cell(0);
    vtkIdType cellSize(0);

    vlines->GetNextCell( cellSize, cell );

    float rgba[4] = {outlineColor[0], outlineColor[1], outlineColor[2], 1.0f};
    if (m_ScalarVisibility->GetValue() && vcellscalars)
    {
      if ( useCellData )
      {  // color each cell according to cell data
        double scalar = vcellscalars->GetComponent( i, 0 );
        double rgb[3] = { 1.0f, 1.0f, 1.0f };
        m_ScalarsToColors->GetColor(scalar, rgb);
        rgba[0] = (float)rgb[0];
        rgba[1] = (float)rgb[1];
        rgba[2] = (float)rgb[2];
        rgba[3] = (float)m_ScalarsToOpacity->GetValue(scalar);
      }
      else if ( usePointData )
      {
        double scalar = vscalars->GetComponent( i, 0 );
        double rgb[3] = { 1.0f, 1.0f, 1.0f };
        m_ScalarsToColors->GetColor(scalar, rgb);
        rgba[0] = (float)rgb[0];
        rgba[1] = (float)rgb[1];
        rgba[2] = (float)rgb[2];
        rgba[3] = (float)m_ScalarsToOpacity->GetValue(scalar);
      }
    }

    glColor4fv( rgba );

    glBegin ( GL_LINE_LOOP );
    for ( int j = 0;j < cellSize;++j )
    {
      vpoints->GetPoint( cell[ j ], vp );
      //take transformation via vtktransform into account
      vtktransform->TransformPoint( vp, vp );

      vtk2itk( vp, p );

      //convert 3D point (in mm) to 2D point on slice (also in mm)
      worldGeometry->Map( p, p2d );

      //convert point (until now mm and in worldcoordinates) to display coordinates (units )
      displayGeometry->WorldToDisplay( p2d, p2d );

      //convert display coordinates ( (0,0) is top-left ) in GL coordinates ( (0,0) is bottom-left )
      //p2d[1]=toGL-p2d[1];

      //add the current vertex to the line
      glVertex2f( p2d[0], p2d[1] );
    }
    glEnd ();

  }

  bool polyOutline = m_Outline->GetValue();
  bool scalarVisibility = m_ScalarVisibility->GetValue();

  // only draw polygons if there are cell scalars
  // or the outline property is set to true
  if ((scalarVisibility && vcellscalars) || polyOutline)
  {
    glEnable(GL_BLEND);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
    glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);

    // cache the transformed points
    // a fixed size array is way faster than 'new'
    // slices through 3d cells usually do not generated
    // polygons with more than 6 vertices
    Point2D cachedPoints[10];

    for (int i = 0;i < numberOfPolys;++i )
    {
      vtkIdType *cell(0);
      vtkIdType cellSize(0);

      vpolys->GetNextCell( cellSize, cell );

      float rgba[4] = {1.0f, 1.0f, 1.0f, 0};
      if (scalarVisibility && vcellscalars)
      {
        if ( useCellData )
        {  // color each cell according to cell data
          double scalar = vcellscalars->GetComponent( i, 0 );
          double rgb[3] = { 1.0f, 1.0f, 1.0f };
          m_ScalarsToColors->GetColor(scalar, rgb);
          rgba[0] = (float)rgb[0];
          rgba[1] = (float)rgb[1];
          rgba[2] = (float)rgb[2];
          rgba[3] = (float)m_ScalarsToOpacity->GetValue(scalar);
        }
        else if ( usePointData )
        {
          double scalar = vscalars->GetComponent( i, 0 );
          double rgb[3] = { 1.0f, 1.0f, 1.0f };
          m_ScalarsToColors->GetColor(scalar, rgb);
          rgba[0] = (float)rgb[0];
          rgba[1] = (float)rgb[1];
          rgba[2] = (float)rgb[2];
          rgba[3] = (float)m_ScalarsToOpacity->GetValue(scalar);
        }
      }
      glColor4fv( rgba );

      glBegin( GL_POLYGON );
      for (int j = 0; j < cellSize; ++j)
      {
        vpoints->GetPoint( cell[ j ], vp );
        //take transformation via vtktransform into account
        vtktransform->TransformPoint( vp, vp );

        vtk2itk( vp, p );

        //convert 3D point (in mm) to 2D point on slice (also in mm)
        worldGeometry->Map( p, p2d );

        //convert point (until now mm and in worldcoordinates) to display coordinates (units )
        displayGeometry->WorldToDisplay( p2d, p2d );

        //convert display coordinates ( (0,0) is top-left ) in GL coordinates ( (0,0) is bottom-left )
        //p2d[1]=toGL-p2d[1];

        cachedPoints[j][0] = p2d[0];
        cachedPoints[j][1] = p2d[1];

        //add the current vertex to the line
        glVertex2f( p2d[0], p2d[1] );
      }
      glEnd();

      if (polyOutline)
      {
        glColor4f(outlineColor[0], outlineColor[1], outlineColor[2], 1.0f);

        glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
        glBegin( GL_POLYGON );
        //glPolygonOffset(1.0, 1.0);
        for (int j = 0; j < cellSize; ++j)
        {
          //add the current vertex to the line
          glVertex2f( cachedPoints[j][0], cachedPoints[j][1] );
        }
        glEnd();
      }
    }
    glDisable(GL_BLEND);
  }
}
