This class performes a symmetric forces demons registration between two images with the same modality. More...

#include <mitkSymmetricForcesDemonsRegistration.h>

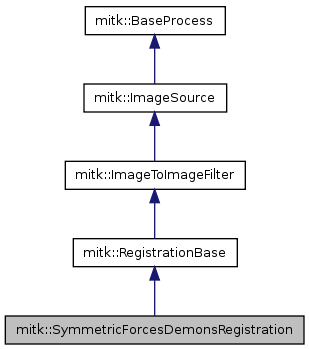

Inheritance diagram for mitk::SymmetricForcesDemonsRegistration:

Collaboration diagram for mitk::SymmetricForcesDemonsRegistration:

Public Types
typedef SymmetricForcesDemonsRegistration	Self
typedef RegistrationBase	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetNumberOfIterations (int iterations)
	Sets the number of iterations which will be performed during the registration process.
void	SetStandardDeviation (float deviation)
	Sets the standard deviation used by the symmetric forces demons registration.
void	SetSaveDeformationField (bool saveField)
	Sets whether the resulting deformation field should be saved or not.
void	SetDeformationFieldFileName (const char *fieldName)
	Sets the filename for the resulting deformation field.
void	SetSaveResult (bool saveResult)
	Sets whether the result should be saved or not.
void	SetResultFileName (const char *resultName)
	Sets the filename for the resulting deformed image.
itk::Image< class itk::Vector < float, 3 >, 3 >::Pointer	GetDeformationField ()
	Returns the deformation field, which results by the registration.
virtual void	GenerateData ()
	Starts the symmetric forces demons registration.
Static Public Member Functions
static Pointer	New ()
	Method for creation through the object factory.
Protected Member Functions
	SymmetricForcesDemonsRegistration ()
	Default constructor.
virtual	~SymmetricForcesDemonsRegistration ()
	Default destructor.
template<typename TPixel , unsigned int VImageDimension>
void	GenerateData2 (itk::Image< TPixel, VImageDimension > *itkImage1)
	Template class to perform the symmetric forces demons registration with any kind of image. Called by GenerateData().
Protected Attributes
int	m_Iterations
float	m_StandardDeviation
const char *	m_FieldName
const char *	m_ResultName
bool	m_SaveField
bool	m_SaveResult
itk::Image< class itk::Vector < float, 3 >, 3 >::Pointer	m_DeformationField

Detailed Description

This class performes a symmetric forces demons registration between two images with the same modality.

Author:: Daniel Stein

Definition at line 38 of file mitkSymmetricForcesDemonsRegistration.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SymmetricForcesDemonsRegistration::ConstPointer

Reimplemented from mitk::RegistrationBase.

Definition at line 43 of file mitkSymmetricForcesDemonsRegistration.h.

typedef itk::SmartPointer<Self> mitk::SymmetricForcesDemonsRegistration::Pointer

Reimplemented from mitk::RegistrationBase.

Definition at line 43 of file mitkSymmetricForcesDemonsRegistration.h.

typedef SymmetricForcesDemonsRegistration mitk::SymmetricForcesDemonsRegistration::Self

Reimplemented from mitk::RegistrationBase.

Definition at line 43 of file mitkSymmetricForcesDemonsRegistration.h.

typedef RegistrationBase mitk::SymmetricForcesDemonsRegistration::Superclass

Reimplemented from mitk::RegistrationBase.

Definition at line 43 of file mitkSymmetricForcesDemonsRegistration.h.

Constructor & Destructor Documentation

mitk::SymmetricForcesDemonsRegistration::SymmetricForcesDemonsRegistration ( ) [protected]

Default constructor.

Definition at line 25 of file mitkSymmetricForcesDemonsRegistration.cpp.

                                                                      :
    m_Iterations(50),
    m_StandardDeviation(1.0),
    m_FieldName("newField.mhd"),
    m_ResultName("deformedImage.mhd"),
    m_SaveField(true),
    m_SaveResult(true),
    m_DeformationField(NULL)
  {

mitk::SymmetricForcesDemonsRegistration::~SymmetricForcesDemonsRegistration ( ) [protected, virtual]

Default destructor.

Definition at line 37 of file mitkSymmetricForcesDemonsRegistration.cpp.

Member Function Documentation

virtual void mitk::SymmetricForcesDemonsRegistration::GenerateData ( ) [inline, virtual]

Starts the symmetric forces demons registration.

Reimplemented from mitk::ImageSource.

Definition at line 88 of file mitkSymmetricForcesDemonsRegistration.h.

References AccessByItk.

    {
      if (this->GetInput())
      {
        AccessByItk(this->GetInput(), GenerateData2);
      }
    }

template<typename TPixel , unsigned int VImageDimension>

void mitk::SymmetricForcesDemonsRegistration::GenerateData2 ( itk::Image< TPixel, VImageDimension > * itkImage1 ) [protected]

Template class to perform the symmetric forces demons registration with any kind of image. Called by GenerateData().

Definition at line 77 of file mitkSymmetricForcesDemonsRegistration.cpp.

References mitk::RegistrationBase::AddStepsToDo(), mitk::CastToItkImage(), mitk::CastToMitkImage(), mitk::ImageSource::GetOutput(), m_DeformationField, m_FieldName, m_Iterations, mitk::RegistrationBase::m_ReferenceImage, m_ResultName, m_SaveField, m_SaveResult, m_StandardDeviation, MITK_ERROR, New(), mitk::RegistrationBase::SetProgress(), and mitk::RegistrationBase::SetRemainingProgress().

  {
    typedef typename itk::Image< TPixel, VImageDimension >  FixedImageType;
    typedef typename itk::Image< TPixel, VImageDimension >  MovingImageType;

    typedef float InternalPixelType;
    typedef typename itk::Image< InternalPixelType, VImageDimension > InternalImageType;
    typedef typename itk::CastImageFilter< FixedImageType,
                                  InternalImageType > FixedImageCasterType;
    typedef typename itk::CastImageFilter< MovingImageType,
                                  InternalImageType > MovingImageCasterType;
    typedef typename itk::Vector< float, VImageDimension >    VectorPixelType;
    typedef typename itk::Image<  VectorPixelType, VImageDimension > DeformationFieldType;
    typedef typename itk::SymmetricForcesDemonsRegistrationFilter<
                                  InternalImageType,
                                  InternalImageType,
                                  DeformationFieldType>   RegistrationFilterType;
    typedef typename itk::WarpImageFilter<
                            MovingImageType,
                            MovingImageType,
                            DeformationFieldType  >     WarperType;
    typedef typename itk::LinearInterpolateImageFunction<
                                    MovingImageType,
                                    double          >  InterpolatorType;

    typedef  TPixel  OutputPixelType;
    typedef typename itk::Image< OutputPixelType, VImageDimension > OutputImageType;
    typedef typename itk::CastImageFilter<
                          MovingImageType,
                          OutputImageType > CastFilterType;
    typedef typename itk::ImageFileWriter< OutputImageType >  WriterType;
    typedef typename itk::ImageFileWriter< DeformationFieldType >  FieldWriterType;
    typedef  typename itk::InverseDeformationFieldImageFilter<DeformationFieldType, DeformationFieldType>  InverseFilterType;


    typename FixedImageType::Pointer fixedImage = FixedImageType::New();
    mitk::CastToItkImage(m_ReferenceImage, fixedImage);
    typename MovingImageType::Pointer movingImage = itkImage1;

    if (fixedImage.IsNotNull() && movingImage.IsNotNull())
    {
      typename RegistrationFilterType::Pointer filter = RegistrationFilterType::New();

      this->AddStepsToDo(4);
      itk::ReceptorMemberCommand<SymmetricForcesDemonsRegistration>::Pointer command = itk::ReceptorMemberCommand<SymmetricForcesDemonsRegistration>::New();
      command->SetCallbackFunction(this, &SymmetricForcesDemonsRegistration::SetProgress);
      filter->AddObserver( itk::IterationEvent(), command );

      typename FixedImageCasterType::Pointer fixedImageCaster = FixedImageCasterType::New();
      fixedImageCaster->SetInput(fixedImage);
      filter->SetFixedImage( fixedImageCaster->GetOutput() );
      typename MovingImageCasterType::Pointer movingImageCaster = MovingImageCasterType::New();
      movingImageCaster->SetInput(movingImage);
      filter->SetMovingImage(movingImageCaster->GetOutput());
      filter->SetNumberOfIterations( m_Iterations );
      filter->SetStandardDeviations( m_StandardDeviation );
      filter->Update();

      typename WarperType::Pointer warper = WarperType::New();
      typename InterpolatorType::Pointer interpolator = InterpolatorType::New();

      warper->SetInput( movingImage );
      warper->SetInterpolator( interpolator );
      warper->SetOutputSpacing( fixedImage->GetSpacing() );
      warper->SetOutputOrigin( fixedImage->GetOrigin() );
      warper->SetDeformationField( filter->GetOutput() );
      warper->Update();
      typename WriterType::Pointer      writer =  WriterType::New();
      typename CastFilterType::Pointer  caster =  CastFilterType::New();

      writer->SetFileName( m_ResultName );

      caster->SetInput( warper->GetOutput() );
      writer->SetInput( caster->GetOutput()   );
      if(m_SaveResult)
      {
        writer->Update();
      }
      Image::Pointer outputImage = this->GetOutput();
      mitk::CastToMitkImage( warper->GetOutput(), outputImage );

      if (VImageDimension == 2)
      {
        typedef DeformationFieldType  VectorImage2DType;
        typedef typename DeformationFieldType::PixelType Vector2DType;

        typename VectorImage2DType::ConstPointer vectorImage2D = filter->GetOutput();

        typename VectorImage2DType::RegionType  region2D = vectorImage2D->GetBufferedRegion();
        typename VectorImage2DType::IndexType   index2D  = region2D.GetIndex();
        typename VectorImage2DType::SizeType    size2D   = region2D.GetSize();


        typedef typename itk::Vector< float,       3 >  Vector3DType;
        typedef typename itk::Image< Vector3DType, 3 >  VectorImage3DType;

        typedef typename itk::ImageFileWriter< VectorImage3DType > WriterType;

        WriterType::Pointer writer3D = WriterType::New();

        VectorImage3DType::Pointer vectorImage3D = VectorImage3DType::New();

        VectorImage3DType::RegionType  region3D;
        VectorImage3DType::IndexType   index3D;
        VectorImage3DType::SizeType    size3D;

        index3D[0] = index2D[0];
        index3D[1] = index2D[1];
        index3D[2] = 0;

        size3D[0]  = size2D[0];
        size3D[1]  = size2D[1];
        size3D[2]  = 1;

        region3D.SetSize( size3D );
        region3D.SetIndex( index3D );

        typename VectorImage2DType::SpacingType spacing2D   = vectorImage2D->GetSpacing();
        VectorImage3DType::SpacingType spacing3D;

        spacing3D[0] = spacing2D[0];
        spacing3D[1] = spacing2D[1];
        spacing3D[2] = 1.0;

        vectorImage3D->SetSpacing( spacing3D );

        vectorImage3D->SetRegions( region3D );
        vectorImage3D->Allocate();

        typedef typename itk::ImageRegionConstIterator< VectorImage2DType > Iterator2DType;

        typedef typename itk::ImageRegionIterator< VectorImage3DType > Iterator3DType;

        Iterator2DType  it2( vectorImage2D, region2D );
        Iterator3DType  it3( vectorImage3D, region3D );

        it2.GoToBegin();
        it3.GoToBegin();

        Vector2DType vector2D;
        Vector3DType vector3D;

        vector3D[2] = 0; // set Z component to zero.

        while( !it2.IsAtEnd() )
        {
          vector2D = it2.Get();
          vector3D[0] = vector2D[0];
          vector3D[1] = vector2D[1];
          it3.Set( vector3D );
          ++it2;
          ++it3;
        }

        writer3D->SetInput( vectorImage3D );
        m_DeformationField = vectorImage3D;

        writer3D->SetFileName( m_FieldName );

        try
        {
          if(m_SaveField)
          {
            writer3D->Update();
          }
        }
        catch( itk::ExceptionObject & excp )
        {
          MITK_ERROR << excp << std::endl;
        }
      }
      else
      {
        typename FieldWriterType::Pointer      fieldwriter =  FieldWriterType::New();
        fieldwriter->SetFileName( m_FieldName );
        fieldwriter->SetInput( filter->GetOutput() );
        //m_DeformationField = filter->GetOutput();
        m_DeformationField = (itk::Image<itk::Vector<float, 3>,3> *)(filter->GetOutput()); //see BUG #3732
        if(m_SaveField)
        {
          fieldwriter->Update();
        }

      }
      this->SetRemainingProgress(4);
    }

virtual const char* mitk::SymmetricForcesDemonsRegistration::GetClassName ( ) const [virtual]

Reimplemented from mitk::RegistrationBase.

itk::Image< class itk::Vector< float, 3 >, 3 >::Pointer mitk::SymmetricForcesDemonsRegistration::GetDeformationField ( )

Returns the deformation field, which results by the registration.

Definition at line 71 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_DeformationField.

  {
    return m_DeformationField;

static Pointer mitk::SymmetricForcesDemonsRegistration::New ( ) [static]

Method for creation through the object factory.

Reimplemented from mitk::RegistrationBase.

Referenced by QmitkDemonsRegistrationView::CalculateTransformation(), GenerateData2(), and mitkSymmetricForcesDemonsRegistrationTest().

void mitk::SymmetricForcesDemonsRegistration::SetDeformationFieldFileName ( const char * fieldName )

Sets the filename for the resulting deformation field.

Definition at line 56 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_FieldName.

  {
    m_FieldName = fieldName;

void mitk::SymmetricForcesDemonsRegistration::SetNumberOfIterations ( int iterations )

Sets the number of iterations which will be performed during the registration process.

Definition at line 41 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_Iterations.

  {
    m_Iterations = iterations;

void mitk::SymmetricForcesDemonsRegistration::SetResultFileName ( const char * resultName )

Sets the filename for the resulting deformed image.

Definition at line 66 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_ResultName.

  {
    m_ResultName = resultName;

void mitk::SymmetricForcesDemonsRegistration::SetSaveDeformationField ( bool saveField )

Sets whether the resulting deformation field should be saved or not.

Definition at line 51 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_SaveField.

  {
    m_SaveField = saveField;

void mitk::SymmetricForcesDemonsRegistration::SetSaveResult ( bool saveResult )

Sets whether the result should be saved or not.

Definition at line 61 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_SaveResult.

  {
    m_SaveResult = saveResult;

void mitk::SymmetricForcesDemonsRegistration::SetStandardDeviation ( float deviation )

Sets the standard deviation used by the symmetric forces demons registration.

Definition at line 46 of file mitkSymmetricForcesDemonsRegistration.cpp.

References m_StandardDeviation.

  {
    m_StandardDeviation = deviation;

Member Data Documentation

itk::Image<class itk::Vector<float, 3>,3>::Pointer mitk::SymmetricForcesDemonsRegistration::m_DeformationField [protected]

Definition at line 120 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and GetDeformationField().

const char* mitk::SymmetricForcesDemonsRegistration::m_FieldName [protected]

Definition at line 116 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetDeformationFieldFileName().

int mitk::SymmetricForcesDemonsRegistration::m_Iterations [protected]

Definition at line 114 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetNumberOfIterations().

const char* mitk::SymmetricForcesDemonsRegistration::m_ResultName [protected]

Definition at line 117 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetResultFileName().

bool mitk::SymmetricForcesDemonsRegistration::m_SaveField [protected]

Definition at line 118 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetSaveDeformationField().

bool mitk::SymmetricForcesDemonsRegistration::m_SaveResult [protected]

Definition at line 119 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetSaveResult().

float mitk::SymmetricForcesDemonsRegistration::m_StandardDeviation [protected]

Definition at line 115 of file mitkSymmetricForcesDemonsRegistration.h.

Referenced by GenerateData2(), and SetStandardDeviation().

The documentation for this class was generated from the following files:

mitk::SymmetricForcesDemonsRegistration Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
