mitk::SubImageSelector Class Reference [Process Classes]

Base class of all classes providing access to parts of an image. More...

#include <mitkSubImageSelector.h>

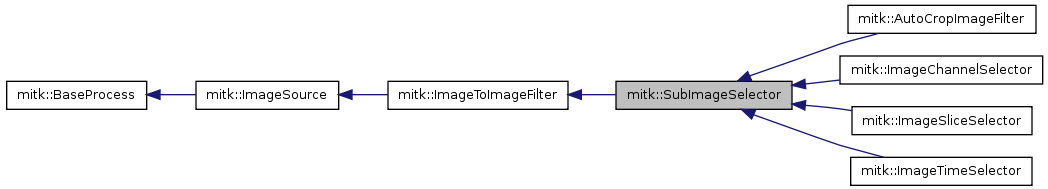

Inheritance diagram for mitk::SubImageSelector:

Collaboration diagram for mitk::SubImageSelector:

List of all members.

Public Member Functions
	mitkClassMacro (SubImageSelector, ImageToImageFilter)
virtual void	SetPosNr (int p)
	SubImageSelector ()
virtual	~SubImageSelector ()
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
mitk::Image::ImageDataItemPointer	GetSliceData (int s=0, int t=0, int n=0)
mitk::Image::ImageDataItemPointer	GetVolumeData (int t=0, int n=0)
mitk::Image::ImageDataItemPointer	GetChannelData (int n=0)
void	SetSliceItem (mitk::Image::ImageDataItemPointer dataItem, int s=0, int t=0, int n=0)
void	SetVolumeItem (mitk::Image::ImageDataItemPointer dataItem, int t=0, int n=0)
void	SetChannelItem (mitk::Image::ImageDataItemPointer dataItem, int n=0)

---

Detailed Description

Base class of all classes providing access to parts of an image.

Base class of all classes providing access to parts of an image, e.g., to a slice (mitk::ImageSilceSelector) or a volume at a specific time (mitk::ImageTimeSelector). If the input is generated by a ProcessObject, only the required data is requested.

Definition at line 37 of file mitkSubImageSelector.h.

---

Constructor & Destructor Documentation

mitk::SubImageSelector::SubImageSelector

(

)

Definition at line 71 of file mitkSubImageSelector.cpp.

{
}

mitk::SubImageSelector::~SubImageSelector

(

)

[virtual]

Definition at line 75 of file mitkSubImageSelector.cpp.

{
}

---

Member Function Documentation

mitk::Image::ImageDataItemPointer mitk::SubImageSelector::GetChannelData

(

int

n = 0 )

[protected]

Definition at line 40 of file mitkSubImageSelector.cpp.

References mitk::Image::GetChannelData().

{
  mitk::Image::Pointer input  = const_cast<mitk::Image*>(this->GetInput());
  return input->GetChannelData(n);
}

mitk::Image::ImageDataItemPointer mitk::SubImageSelector::GetSliceData	(	int	s = 0,
		int	t = 0,
		int	n = 0
	)		[protected]

Definition at line 28 of file mitkSubImageSelector.cpp.

References mitk::Image::GetSliceData().

{
  mitk::Image::Pointer input  = const_cast<mitk::Image*>(this->GetInput());
  return input->GetSliceData(s,t,n);
}

mitk::Image::ImageDataItemPointer mitk::SubImageSelector::GetVolumeData	(	int	t = 0,
		int	n = 0
	)		[protected]

Definition at line 34 of file mitkSubImageSelector.cpp.

References mitk::Image::GetVolumeData().

{
  mitk::Image::Pointer input  = const_cast<mitk::Image*>(this->GetInput());
  return input->GetVolumeData(t,n);
}

mitk::SubImageSelector::mitkClassMacro	(	SubImageSelector	,
		ImageToImageFilter
	)

Run-time type information (and related methods).

static Pointer mitk::SubImageSelector::New

(

)

[static]

Method for creation through the object factory.

Reimplemented from mitk::ImageToImageFilter.

Reimplemented in mitk::ImageChannelSelector, mitk::ImageSliceSelector, mitk::ImageTimeSelector, and mitk::AutoCropImageFilter.

void mitk::SubImageSelector::SetChannelItem	(	mitk::Image::ImageDataItemPointer	dataItem,
		int	n = 0
	)		[protected]

Definition at line 46 of file mitkSubImageSelector.cpp.

{
  mitk::Image::Pointer output  = this->GetOutput();
  if(output->IsValidChannel(n)==false) return;
  output->m_Channels[n]=dataItem;
}

void mitk::SubImageSelector::SetPosNr

(

int

p )

[virtual]

Definition at line 24 of file mitkSubImageSelector.cpp.

{
}

void mitk::SubImageSelector::SetSliceItem	(	mitk::Image::ImageDataItemPointer	dataItem,
		int	s = 0,
		int	t = 0,
		int	n = 0
	)		[protected]

Definition at line 62 of file mitkSubImageSelector.cpp.

{
  mitk::Image::Pointer output  = this->GetOutput();
  if(output->IsValidSlice(s,t,n)==false) return;
  int pos;
  pos=output->GetSliceIndex(s,t,n);
  output->m_Slices[pos]=dataItem;
}

void mitk::SubImageSelector::SetVolumeItem	(	mitk::Image::ImageDataItemPointer	dataItem,
		int	t = 0,
		int	n = 0
	)		[protected]

Definition at line 53 of file mitkSubImageSelector.cpp.

{
  mitk::Image::Pointer output  = this->GetOutput();
  if(output->IsValidVolume(t,n)==false) return;
  int pos;
  pos=output->GetVolumeIndex(t,n);
  output->m_Volumes[pos]=dataItem;
}

---

The documentation for this class was generated from the following files:

• mitkSubImageSelector.h
• mitkSubImageSelector.cpp
