Abstract base class for segmentation tools. More...

#include <mitkSegTool2D.h>

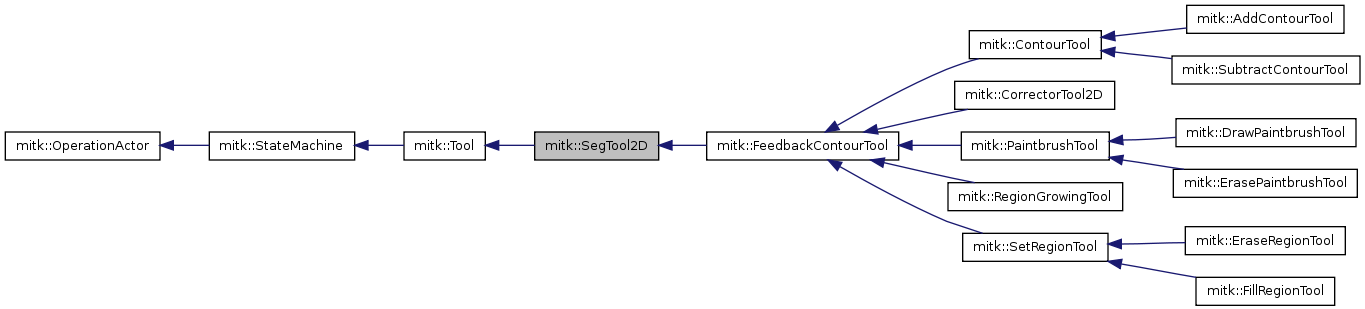

Inheritance diagram for mitk::SegTool2D:

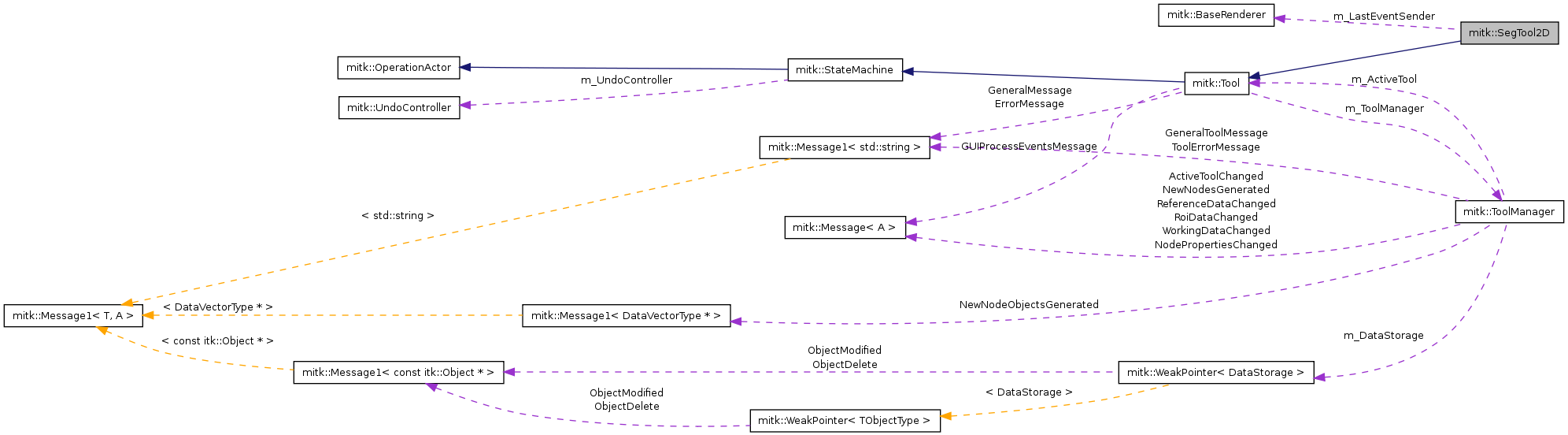

Collaboration diagram for mitk::SegTool2D:

Public Types
typedef SegTool2D	Self
typedef Tool	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Static Public Member Functions
static bool	DetermineAffectedImageSlice (const Image image, const PlaneGeometry plane, int &affectedDimension, int &affectedSlice)
	Calculates for a given Image and PlaneGeometry, which slice of the image (in index corrdinates) is meant by the plane.
Protected Member Functions
	SegTool2D ()
	SegTool2D (const char *)
virtual	~SegTool2D ()
virtual bool	OnMousePressed (Action , const StateEvent )
virtual bool	OnMouseMoved (Action , const StateEvent )
virtual bool	OnMouseReleased (Action , const StateEvent )
virtual bool	OnInvertLogic (Action , const StateEvent )
Image::Pointer	GetAffectedImageSliceAs2DImage (const PositionEvent , const Image image)
	Extract the slice of an image that the user just scribbles on.
Image::Pointer	GetAffectedWorkingSlice (const PositionEvent *)
	Extract the slice of the currently selected working image that the user just scribbles on.
Image::Pointer	GetAffectedReferenceSlice (const PositionEvent *)
	Extract the slice of the currently selected reference image that the user just scribbles on.
void	InteractiveSegmentationBugMessage (const std::string &message)

Detailed Description

Abstract base class for segmentation tools.

See also:: Tool

Implements 2D segmentation specific helper methods, that might be of use to all kind of 2D segmentation tools. At the moment these are:

Determination of the slice where the user paints upon (DetermineAffectedImageSlice)
Projection of a 3D contour onto a 2D plane/slice

SegTool2D tries to structure the interaction a bit. If you pass "PressMoveRelease" as the interaction type of your derived tool, you might implement the methods OnMousePressed, OnMouseMoved, and OnMouseReleased. Yes, your guess about when they are called is correct.

Warning:: Only to be instantiated by mitk::ToolManager.

$Author$

Definition at line 55 of file mitkSegTool2D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SegTool2D::ConstPointer

Reimplemented from mitk::Tool.

Reimplemented in mitk::AddContourTool, mitk::ContourTool, mitk::CorrectorTool2D, mitk::DrawPaintbrushTool, mitk::ErasePaintbrushTool, mitk::EraseRegionTool, mitk::FeedbackContourTool, mitk::FillRegionTool, mitk::PaintbrushTool, mitk::RegionGrowingTool, mitk::SetRegionTool, and mitk::SubtractContourTool.

Definition at line 59 of file mitkSegTool2D.h.

typedef itk::SmartPointer<Self> mitk::SegTool2D::Pointer

Reimplemented from mitk::Tool.

Reimplemented in mitk::AddContourTool, mitk::ContourTool, mitk::CorrectorTool2D, mitk::DrawPaintbrushTool, mitk::ErasePaintbrushTool, mitk::EraseRegionTool, mitk::FeedbackContourTool, mitk::FillRegionTool, mitk::PaintbrushTool, mitk::RegionGrowingTool, mitk::SetRegionTool, and mitk::SubtractContourTool.

Definition at line 59 of file mitkSegTool2D.h.

typedef SegTool2D mitk::SegTool2D::Self

Reimplemented from mitk::Tool.

Reimplemented in mitk::AddContourTool, mitk::ContourTool, mitk::CorrectorTool2D, mitk::DrawPaintbrushTool, mitk::ErasePaintbrushTool, mitk::EraseRegionTool, mitk::FeedbackContourTool, mitk::FillRegionTool, mitk::PaintbrushTool, mitk::RegionGrowingTool, mitk::SetRegionTool, and mitk::SubtractContourTool.

Definition at line 59 of file mitkSegTool2D.h.

typedef Tool mitk::SegTool2D::Superclass

Reimplemented from mitk::Tool.

Reimplemented in mitk::AddContourTool, mitk::ContourTool, mitk::CorrectorTool2D, mitk::DrawPaintbrushTool, mitk::ErasePaintbrushTool, mitk::EraseRegionTool, mitk::FeedbackContourTool, mitk::FillRegionTool, mitk::PaintbrushTool, mitk::RegionGrowingTool, mitk::SetRegionTool, and mitk::SubtractContourTool.

Definition at line 59 of file mitkSegTool2D.h.

Constructor & Destructor Documentation

mitk::SegTool2D::SegTool2D ( ) [protected]

mitk::SegTool2D::SegTool2D ( const char * type ) [protected]

Definition at line 30 of file mitkSegTool2D.cpp.

References CONNECT_ACTION, OnInvertLogic(), OnMouseMoved(), OnMousePressed(), and OnMouseReleased().

:Tool(type),
 m_LastEventSender(NULL),
 m_LastEventSlice(0)
{
  // great magic numbers
  CONNECT_ACTION( 80, OnMousePressed );
  CONNECT_ACTION( 90, OnMouseMoved );
  CONNECT_ACTION( 42, OnMouseReleased );
  CONNECT_ACTION( 49014, OnInvertLogic );
}

mitk::SegTool2D::~SegTool2D ( ) [protected, virtual]

Definition at line 42 of file mitkSegTool2D.cpp.

{
}

Member Function Documentation

bool mitk::SegTool2D::DetermineAffectedImageSlice	(	const Image *	image,
		const PlaneGeometry *	plane,
		int &	affectedDimension,
		int &	affectedSlice
	)		`[static]`

Calculates for a given Image and PlaneGeometry, which slice of the image (in index corrdinates) is meant by the plane.

Returns:: false, if no slice direction seems right (e.g. rotated planes)

Parameters:

affectedDimension	The image dimension, which is constant for all points in the plane, e.g. Transversal --> 2
affectedSlice	The index of the image slice

Definition at line 92 of file mitkSegTool2D.cpp.

References mitk::Geometry3D::GetAxisVector(), mitk::Geometry3D::GetCenter(), mitk::Image::GetDimension(), mitk::BaseData::GetGeometry(), mitk::PlaneGeometry::GetNormal(), mitk::SlicedData::GetSlicedGeometry(), MITK_DEBUG, mitk::Geometry2D::Project(), ROUND, and mitk::Geometry3D::WorldToIndex().

Referenced by QmitkSlicesInterpolator::GetSliceForWindowsID(), QmitkSlicesInterpolator::Interpolate(), QmitkSegmentationView::IsRenderWindowAligned(), mitk::PaintbrushTool::OnMouseMoved(), mitk::SetRegionTool::OnMouseReleased(), mitk::RegionGrowingTool::OnMouseReleased(), mitk::CorrectorTool2D::OnMouseReleased(), and mitk::ContourTool::OnMouseReleased().

{
  assert(image);
  assert(plane);

  // compare normal of plane to the three axis vectors of the image
  Vector3D normal       = plane->GetNormal();
  Vector3D imageNormal0 = image->GetSlicedGeometry()->GetAxisVector(0);
  Vector3D imageNormal1 = image->GetSlicedGeometry()->GetAxisVector(1);
  Vector3D imageNormal2 = image->GetSlicedGeometry()->GetAxisVector(2);

  normal.Normalize();
  imageNormal0.Normalize();
  imageNormal1.Normalize();
  imageNormal2.Normalize();

  imageNormal0.Set_vnl_vector( vnl_cross_3d<ScalarType>(normal.Get_vnl_vector(),imageNormal0.Get_vnl_vector()) );
  imageNormal1.Set_vnl_vector( vnl_cross_3d<ScalarType>(normal.Get_vnl_vector(),imageNormal1.Get_vnl_vector()) );
  imageNormal2.Set_vnl_vector( vnl_cross_3d<ScalarType>(normal.Get_vnl_vector(),imageNormal2.Get_vnl_vector()) );

  double eps( 0.00001 );
  // transversal
  if ( imageNormal2.GetNorm() <= eps )
  {
    affectedDimension = 2;
  }
  // sagittal
  else if ( imageNormal1.GetNorm() <= eps )
  {
    affectedDimension = 1;
  }
  // frontal
  else if ( imageNormal0.GetNorm() <= eps )
  {
    affectedDimension = 0;
  }
  else
  {
    affectedDimension = -1; // no idea
    return false;
  }

  // determine slice number in image
  Geometry3D* imageGeometry = image->GetGeometry(0);
  Point3D testPoint = imageGeometry->GetCenter();
  Point3D projectedPoint;
  plane->Project( testPoint, projectedPoint );

  Point3D indexPoint;

  imageGeometry->WorldToIndex( projectedPoint, indexPoint );
  affectedSlice = ROUND( indexPoint[affectedDimension] );
  MITK_DEBUG << "indexPoint " << indexPoint << " affectedDimension " << affectedDimension << " affectedSlice " << affectedSlice;

  // check if this index is still within the image
  if ( affectedSlice < 0 || affectedSlice >= static_cast<int>(image->GetDimension(affectedDimension)) ) return false;

  return true;
}

mitk::Image::Pointer mitk::SegTool2D::GetAffectedImageSliceAs2DImage	(	const PositionEvent *	positionEvent,
		const Image *	image
	)		`[protected]`

Extract the slice of an image that the user just scribbles on.

Returns:: NULL if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position.

Definition at line 152 of file mitkSegTool2D.cpp.

References mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::Event::GetSender(), mitk::BaseRenderer::GetTimeStep(), and mitk::ExtractImageFilter::New().

Referenced by mitk::PaintbrushTool::OnMouseMoved(), mitk::SetRegionTool::OnMouseReleased(), mitk::CorrectorTool2D::OnMouseReleased(), and mitk::ContourTool::OnMouseReleased().

{
  if (!positionEvent) return NULL;

  assert( positionEvent->GetSender() ); // sure, right?
  unsigned int timeStep = positionEvent->GetSender()->GetTimeStep( image ); // get the timestep of the visible part (time-wise) of the image

  // first, we determine, which slice is affected
  const PlaneGeometry* planeGeometry( dynamic_cast<const PlaneGeometry*> (positionEvent->GetSender()->GetCurrentWorldGeometry2D() ) );

  if ( !image || !planeGeometry ) return NULL;

  int affectedDimension( -1 );
  int affectedSlice( -1 );
  if ( DetermineAffectedImageSlice( image, planeGeometry, affectedDimension, affectedSlice ) )
  {
    try
    {
      // now we extract the correct slice from the volume, resulting in a 2D image
      ExtractImageFilter::Pointer extractor= ExtractImageFilter::New();
      extractor->SetInput( image );
      extractor->SetSliceDimension( affectedDimension );
      extractor->SetSliceIndex( affectedSlice );
      extractor->SetTimeStep( timeStep );
      extractor->Update();

      // here we have a single slice that can be modified
      Image::Pointer slice = extractor->GetOutput();

      return slice;
    }
    catch(...)
    {
      // not working
      return NULL;
    }
  }
  else
  {
    return NULL;
  }
}

mitk::Image::Pointer mitk::SegTool2D::GetAffectedReferenceSlice ( const PositionEvent * positionEvent ) [protected]

Extract the slice of the currently selected reference image that the user just scribbles on.

Returns:: NULL if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position, or just no reference image is selected.

Definition at line 206 of file mitkSegTool2D.cpp.

Referenced by mitk::RegionGrowingTool::OnMousePressed().

{
  DataNode* referenceNode( m_ToolManager->GetReferenceData(0) );
  if ( !referenceNode ) return NULL;

  Image* referenceImage = dynamic_cast<Image*>(referenceNode->GetData());
  if ( !referenceImage ) return NULL;

  return GetAffectedImageSliceAs2DImage( positionEvent, referenceImage );
}

mitk::Image::Pointer mitk::SegTool2D::GetAffectedWorkingSlice ( const PositionEvent * positionEvent ) [protected]

Extract the slice of the currently selected working image that the user just scribbles on.

Returns:: NULL if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position, or just no working image is selected.

Definition at line 195 of file mitkSegTool2D.cpp.

Referenced by mitk::SetRegionTool::OnMousePressed(), mitk::RegionGrowingTool::OnMousePressed(), and mitk::PaintbrushTool::UpdateContour().

{
  DataNode* workingNode( m_ToolManager->GetWorkingData(0) );
  if ( !workingNode ) return NULL;

  Image* workingImage = dynamic_cast<Image*>(workingNode->GetData());
  if ( !workingImage ) return NULL;

  return GetAffectedImageSliceAs2DImage( positionEvent, workingImage );
}

virtual const char* mitk::SegTool2D::GetClassName ( ) const [virtual]

Reimplemented from mitk::Tool.

Reimplemented in mitk::AddContourTool, mitk::ContourTool, mitk::CorrectorTool2D, mitk::DrawPaintbrushTool, mitk::ErasePaintbrushTool, mitk::EraseRegionTool, mitk::FeedbackContourTool, mitk::FillRegionTool, mitk::PaintbrushTool, mitk::RegionGrowingTool, mitk::SetRegionTool, and mitk::SubtractContourTool.

void mitk::SegTool2D::InteractiveSegmentationBugMessage ( const std::string & message ) [protected]

Definition at line 217 of file mitkSegTool2D.cpp.

References MITK_ERROR.

{
  MITK_ERROR << "********************************************************************************" << std::endl
            << " " << message << std::endl
            << "********************************************************************************" << std::endl
            << "  " << std::endl
            << " If your image is rotated or the 2D views don't really contain the patient image, try to press the button next to the image selection. " << std::endl
            << "  " << std::endl
            << " Please file a BUG REPORT: " << std::endl
            << " http://bugs.mitk.org" << std::endl
            << " Contain the following information:" << std::endl
            << "  - What image were you working on?" << std::endl
            << "  - Which region of the image?" << std::endl
            << "  - Which tool did you use?" << std::endl
            << "  - What did you do?" << std::endl
            << "  - What happened (not)? What did you expect?" << std::endl;
}

bool mitk::SegTool2D::OnInvertLogic	(	Action *	,
		const StateEvent *	stateEvent
	)		`[protected, virtual]`

Reimplemented in mitk::ContourTool, mitk::PaintbrushTool, and mitk::SetRegionTool.

Definition at line 81 of file mitkSegTool2D.cpp.

References mitk::StateEvent::GetEvent(), and mitk::Event::GetSender().

Referenced by mitk::SetRegionTool::OnInvertLogic(), mitk::PaintbrushTool::OnInvertLogic(), mitk::ContourTool::OnInvertLogic(), and SegTool2D().

{
  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  if ( m_LastEventSender != positionEvent->GetSender() ) return false;
  if ( m_LastEventSlice  != m_LastEventSender->GetSlice() ) return false;

  return true;
}

bool mitk::SegTool2D::OnMouseMoved	(	Action *	,
		const StateEvent *	stateEvent
	)		`[protected, virtual]`

Reimplemented in mitk::ContourTool, mitk::CorrectorTool2D, mitk::PaintbrushTool, and mitk::RegionGrowingTool.

Definition at line 59 of file mitkSegTool2D.cpp.

References mitk::StateEvent::GetEvent(), and mitk::Event::GetSender().

Referenced by mitk::RegionGrowingTool::OnMouseMoved(), mitk::CorrectorTool2D::OnMouseMoved(), mitk::ContourTool::OnMouseMoved(), and SegTool2D().

{
  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  if ( m_LastEventSender != positionEvent->GetSender() ) return false;
  if ( m_LastEventSlice  != m_LastEventSender->GetSlice() ) return false;

  return true;
}

bool mitk::SegTool2D::OnMousePressed	(	Action *	,
		const StateEvent *	stateEvent
	)		`[protected, virtual]`

Reimplemented in mitk::ContourTool, mitk::CorrectorTool2D, mitk::PaintbrushTool, mitk::RegionGrowingTool, and mitk::SetRegionTool.

Definition at line 46 of file mitkSegTool2D.cpp.

References mitk::StateEvent::GetEvent(), mitk::BaseRenderer::GetMapperID(), mitk::Event::GetSender(), mitk::BaseRenderer::GetSlice(), and mitk::BaseRenderer::Standard2D.

Referenced by mitk::SetRegionTool::OnMousePressed(), mitk::RegionGrowingTool::OnMousePressed(), mitk::PaintbrushTool::OnMousePressed(), mitk::CorrectorTool2D::OnMousePressed(), mitk::ContourTool::OnMousePressed(), and SegTool2D().

{
  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  if ( positionEvent->GetSender()->GetMapperID() != BaseRenderer::Standard2D ) return false; // we don't want anything but 2D

  m_LastEventSender = positionEvent->GetSender();
  m_LastEventSlice = m_LastEventSender->GetSlice();

  return true;
}

bool mitk::SegTool2D::OnMouseReleased	(	Action *	,
		const StateEvent *	stateEvent
	)		`[protected, virtual]`

Reimplemented in mitk::ContourTool, mitk::CorrectorTool2D, mitk::PaintbrushTool, mitk::RegionGrowingTool, and mitk::SetRegionTool.

Definition at line 70 of file mitkSegTool2D.cpp.

References mitk::StateEvent::GetEvent(), and mitk::Event::GetSender().

Referenced by mitk::SetRegionTool::OnMouseReleased(), mitk::RegionGrowingTool::OnMouseReleased(), mitk::CorrectorTool2D::OnMouseReleased(), mitk::ContourTool::OnMouseReleased(), and SegTool2D().

{
  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  if ( m_LastEventSender != positionEvent->GetSender() ) return false;
  if ( m_LastEventSlice  != m_LastEventSender->GetSlice() ) return false;

  return true;
}

The documentation for this class was generated from the following files:

mitk::SegTool2D Class Reference [Interaction Classes, Classes related to InteractiveSegmentation]

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

mitk::SegTool2D Class Reference
[Interaction Classes, Classes related to InteractiveSegmentation]
