mitk::ContourTool Class Reference [Interaction Classes, Classes related to InteractiveSegmentation]

Simple contour filling tool. More...

#include <mitkContourTool.h>

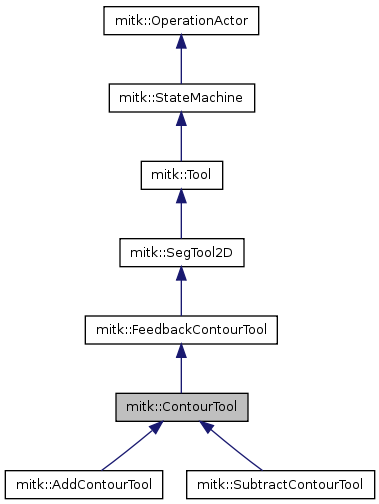

Inheritance diagram for mitk::ContourTool:

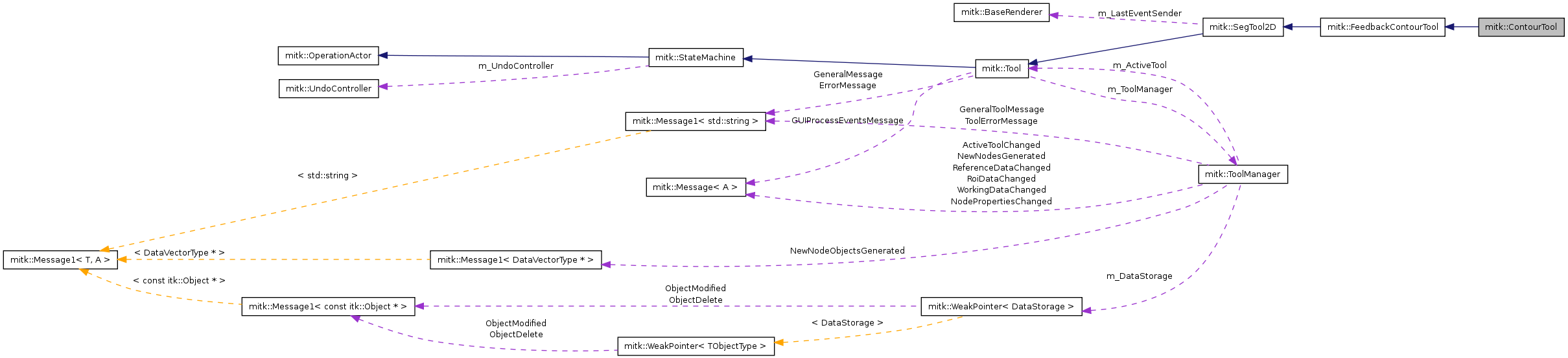

Collaboration diagram for mitk::ContourTool:

List of all members.

Public Types
typedef ContourTool	Self
typedef FeedbackContourTool	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Protected Member Functions
	ContourTool (int paintingPixelValue=1)
virtual	~ContourTool ()
virtual void	Activated ()
	Called when the tool gets activated (registered to mitk::GlobalInteraction).
virtual void	Deactivated ()
	Called when the tool gets deactivated (unregistered from mitk::GlobalInteraction).
virtual bool	OnMousePressed (Action *, const StateEvent *)
virtual bool	OnMouseMoved (Action *, const StateEvent *)
virtual bool	OnMouseReleased (Action *, const StateEvent *)
virtual bool	OnInvertLogic (Action *, const StateEvent *)
Protected Attributes
int	m_PaintingPixelValue

---

Detailed Description

Simple contour filling tool.

See also:

FeedbackContourTool

ExtractImageFilter

OverwriteSliceImageFilter

Fills a visible contour (from FeedbackContourTool) during mouse dragging. When the mouse button is released, ContourTool tries to extract a slice from the working image and fill in the (filled) contour as a binary image.

The painting "color" is defined by m_PaintingPixelValue, which is set in the constructor (by sub-classes) or during some event (e.g. in OnInvertLogic - when CTRL is pressed).

Warning:

Only to be instantiated by mitk::ToolManager.

$Author$

Definition at line 51 of file mitkContourTool.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ContourTool::ConstPointer

Reimplemented from mitk::FeedbackContourTool.

Reimplemented in mitk::AddContourTool, and mitk::SubtractContourTool.

Definition at line 55 of file mitkContourTool.h.

typedef itk::SmartPointer<Self> mitk::ContourTool::Pointer

Reimplemented from mitk::FeedbackContourTool.

Reimplemented in mitk::AddContourTool, and mitk::SubtractContourTool.

Definition at line 55 of file mitkContourTool.h.

typedef ContourTool mitk::ContourTool::Self

Reimplemented from mitk::FeedbackContourTool.

Reimplemented in mitk::AddContourTool, and mitk::SubtractContourTool.

Definition at line 55 of file mitkContourTool.h.

typedef FeedbackContourTool mitk::ContourTool::Superclass

Reimplemented from mitk::FeedbackContourTool.

Reimplemented in mitk::AddContourTool, and mitk::SubtractContourTool.

Definition at line 55 of file mitkContourTool.h.

---

Constructor & Destructor Documentation

mitk::ContourTool::ContourTool

(

int

paintingPixelValue = 1 )

[protected]

Definition at line 27 of file mitkContourTool.cpp.

:FeedbackContourTool("PressMoveReleaseWithCTRLInversion"),
 m_PaintingPixelValue(paintingPixelValue)
{
}

mitk::ContourTool::~ContourTool

(

)

[protected, virtual]

Definition at line 33 of file mitkContourTool.cpp.

{
}

---

Member Function Documentation

void mitk::ContourTool::Activated

(

)

[protected, virtual]

Called when the tool gets activated (registered to mitk::GlobalInteraction).

Derived tools should call their parents implementation.

Reimplemented from mitk::Tool.

Definition at line 37 of file mitkContourTool.cpp.

{
  Superclass::Activated();
}

void mitk::ContourTool::Deactivated

(

)

[protected, virtual]

Called when the tool gets deactivated (unregistered from mitk::GlobalInteraction).

Derived tools should call their parents implementation.

Reimplemented from mitk::Tool.

Definition at line 42 of file mitkContourTool.cpp.

{
  Superclass::Deactivated();
}

virtual const char* mitk::ContourTool::GetClassName

(

)

const [virtual]

Reimplemented from mitk::FeedbackContourTool.

Reimplemented in mitk::AddContourTool, and mitk::SubtractContourTool.

bool mitk::ContourTool::OnInvertLogic	(	Action *	action,
		const StateEvent *	stateEvent
	)		[protected, virtual]

Called when the CTRL key is pressed. Will change the painting pixel value from 0 to 1 or from 1 to 0.

Reimplemented from mitk::SegTool2D.

Definition at line 177 of file mitkContourTool.cpp.

References mitk::SegTool2D::OnInvertLogic(), mitk::FeedbackContourTool::SetFeedbackContourColor(), and mitk::FeedbackContourTool::SetFeedbackContourColorDefault().

{
  if (!FeedbackContourTool::OnInvertLogic(action, stateEvent)) return false;

  // Inversion only for 0 and 1 as painting values
  if (m_PaintingPixelValue == 1)
  {
    m_PaintingPixelValue = 0;
    FeedbackContourTool::SetFeedbackContourColor( 1.0, 0.0, 0.0 );
  }
  else if (m_PaintingPixelValue == 0)
  {
    m_PaintingPixelValue = 1;
    FeedbackContourTool::SetFeedbackContourColorDefault();
  }

  return true;
}

bool mitk::ContourTool::OnMouseMoved	(	Action *	action,
		const StateEvent *	stateEvent
	)		[protected, virtual]

Insert the point to the feedback contour.

Reimplemented from mitk::SegTool2D.

Definition at line 71 of file mitkContourTool.cpp.

References mitk::Contour::AddVertex(), mitk::StateEvent::GetEvent(), mitk::FeedbackContourTool::GetFeedbackContour(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::Event::GetSender(), mitk::DisplayPositionEvent::GetWorldPosition(), mitk::SegTool2D::OnMouseMoved(), and mitk::RenderingManager::RequestUpdate().

{
  if (!FeedbackContourTool::OnMouseMoved( action, stateEvent )) return false;

  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  Contour* contour = FeedbackContourTool::GetFeedbackContour();
  contour->AddVertex( positionEvent->GetWorldPosition() );

  assert( positionEvent->GetSender()->GetRenderWindow() );
  mitk::RenderingManager::GetInstance()->RequestUpdate( positionEvent->GetSender()->GetRenderWindow() );

  return true;
}

bool mitk::ContourTool::OnMousePressed	(	Action *	action,
		const StateEvent *	stateEvent
	)		[protected, virtual]

Just show the contour, insert the first point.

Reimplemented from mitk::SegTool2D.

Definition at line 50 of file mitkContourTool.cpp.

References mitk::Contour::AddVertex(), mitk::StateEvent::GetEvent(), mitk::FeedbackContourTool::GetFeedbackContour(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::Event::GetSender(), mitk::DisplayPositionEvent::GetWorldPosition(), mitk::Contour::Initialize(), mitk::SegTool2D::OnMousePressed(), mitk::RenderingManager::RequestUpdate(), and mitk::FeedbackContourTool::SetFeedbackContourVisible().

{
  if (!FeedbackContourTool::OnMousePressed( action, stateEvent )) return false;

  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  Contour* contour = FeedbackContourTool::GetFeedbackContour();
  contour->Initialize();
  contour->AddVertex( positionEvent->GetWorldPosition() );

  FeedbackContourTool::SetFeedbackContourVisible(true);
  assert( positionEvent->GetSender()->GetRenderWindow() );
  mitk::RenderingManager::GetInstance()->RequestUpdate( positionEvent->GetSender()->GetRenderWindow() );

  return true;
}

bool mitk::ContourTool::OnMouseReleased	(	Action *	action,
		const StateEvent *	stateEvent
	)		[protected, virtual]

Close the contour, project it to the image slice and fill it in 2D.

Reimplemented from mitk::SegTool2D.

Definition at line 90 of file mitkContourTool.cpp.

References mitk::SegTool2D::DetermineAffectedImageSlice(), mitk::FeedbackContourTool::FillContourInSlice(), mitk::SegTool2D::GetAffectedImageSliceAs2DImage(), mitk::BaseRenderer::GetCurrentWorldGeometry2D(), mitk::StateEvent::GetEvent(), mitk::FeedbackContourTool::GetFeedbackContour(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::Event::GetSender(), mitk::BaseRenderer::GetTimeStep(), MITK_ERROR, mitk::OverwriteSliceImageFilter::New(), mitk::SegTool2D::OnMouseReleased(), mitk::FeedbackContourTool::ProjectContourTo2DSlice(), mitk::RenderingManager::RequestUpdate(), and mitk::FeedbackContourTool::SetFeedbackContourVisible().

{
  // 1. Hide the feedback contour, find out which slice the user clicked, find out which slice of the toolmanager's working image corresponds to that
  FeedbackContourTool::SetFeedbackContourVisible(false);

  const PositionEvent* positionEvent = dynamic_cast<const PositionEvent*>(stateEvent->GetEvent());
  if (!positionEvent) return false;

  assert( positionEvent->GetSender()->GetRenderWindow() );
  mitk::RenderingManager::GetInstance()->RequestUpdate( positionEvent->GetSender()->GetRenderWindow() );

  if (!FeedbackContourTool::OnMouseReleased( action, stateEvent )) return false;

  DataNode* workingNode( m_ToolManager->GetWorkingData(0) );
  if (!workingNode) return false;

  Image* image = dynamic_cast<Image*>(workingNode->GetData());
  const PlaneGeometry* planeGeometry( dynamic_cast<const PlaneGeometry*> (positionEvent->GetSender()->GetCurrentWorldGeometry2D() ) );
  if ( !image || !planeGeometry ) return false;

  int affectedDimension( -1 );
  int affectedSlice( -1 );
  if ( SegTool2D::DetermineAffectedImageSlice( image, planeGeometry, affectedDimension, affectedSlice ) )
  {
    // 2. Slice is known, now we try to get it as a 2D image and project the contour into index coordinates of this slice
    Image::Pointer slice = SegTool2D::GetAffectedImageSliceAs2DImage( positionEvent, image );

    if ( slice.IsNull() )
    {
      MITK_ERROR << "Unable to extract slice." << std::endl;
      return false;
    }

    /*
    DataNode::Pointer debugNode = DataNode::New();
    debugNode->SetData( slice );
    debugNode->SetProperty( "name", StringProperty::New("extracted slice") );
    debugNode->SetProperty( "color", ColorProperty::New(1.0, 0.0, 0.0) );
    debugNode->SetProperty( "layer", FloatProperty::New(100) );
    m_ToolManager->GetDataStorage()->Add( debugNode );
    */

    Contour* feedbackContour( FeedbackContourTool::GetFeedbackContour() );
    Contour::Pointer projectedContour = FeedbackContourTool::ProjectContourTo2DSlice( slice, feedbackContour, true, false ); // true: actually no idea why this is neccessary, but it works :-(
                                                                                                                   // false: don't constrain the contour to the image's inside
    /*
    Contour::Pointer back = FeedbackContourTool::BackProjectContourFrom2DSlice( slice, projectedContour, true ); // true: actually no idea why this is neccessary, but it works :-(
    for (unsigned int idx = 0; idx < back->GetNumberOfPoints(); ++idx)
    {
      Point3D before = feedbackContour->GetPoints()->ElementAt(idx);
      Point3D inbtw = projectedContour->GetPoints()->ElementAt(idx);
      Point3D after = back->GetPoints()->ElementAt(idx);

      MITK_DEBUG << "before " << before << " zwischen " << inbtw << " after " << after;
    }
  */

    if (projectedContour.IsNull()) return false;

    FeedbackContourTool::FillContourInSlice( projectedContour, slice, m_PaintingPixelValue );

    // 5. Write the modified 2D working data slice back into the image
    OverwriteSliceImageFilter::Pointer slicewriter = OverwriteSliceImageFilter::New();
    slicewriter->SetInput( image );
    slicewriter->SetCreateUndoInformation( true );
    slicewriter->SetSliceImage( slice );
    slicewriter->SetSliceDimension( affectedDimension );
    slicewriter->SetSliceIndex( affectedSlice );
    slicewriter->SetTimeStep( positionEvent->GetSender()->GetTimeStep( image ) );
    slicewriter->Update();

    // 6. Make sure the result is drawn again --> is visible then.
    assert( positionEvent->GetSender()->GetRenderWindow() );

    mitk::RenderingManager::GetInstance()->RequestUpdate( positionEvent->GetSender()->GetRenderWindow() );
  }
  else
  {
    InteractiveSegmentationBugMessage( "FeedbackContourTool could not determine which slice of the image you are drawing on." );
  }

  return true;
}

---

Member Data Documentation

int mitk::ContourTool::m_PaintingPixelValue [protected]

Definition at line 71 of file mitkContourTool.h.

---

The documentation for this class was generated from the following files:

• mitkContourTool.h
• mitkContourTool.cpp
