mitk::ItkImageToImageFilterAdapter< TPixel > Class Template Reference [Process Classes]

adapter class, that encapsulates any itk::ImageToImageFilter More...

#include <mitkItkImageToImageFilterAdapter.h>

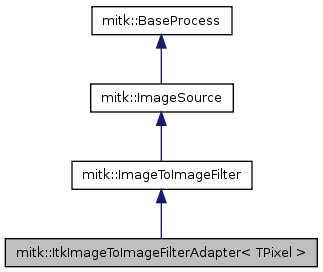

Inheritance diagram for mitk::ItkImageToImageFilterAdapter< TPixel >:

Collaboration diagram for mitk::ItkImageToImageFilterAdapter< TPixel >:

List of all members.

Public Types
typedef TPixel	PixelType
typedef itk::Image< PixelType, 3 >	ItkImageType
typedef itk::ImageToImageFilter < ItkImageType, ItkImageType >	ImageToImageFilterType
typedef ItkImageToImageFilterAdapter	Self
typedef ImageSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetFirstFilter (ImageToImageFilterType *_arg)
virtual ImageToImageFilterType *	GetFirstFilter ()
virtual void	SetLastFilter (ImageToImageFilterType *_arg)
virtual ImageToImageFilterType *	GetLastFilter ()
void	SetSingleFilter (typename ImageToImageFilterType::Pointer filter)
virtual void	GenerateOutputInformation ()
virtual void	GenerateData ()
	A version of GenerateData() specific for image processing filters.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	ItkImageToImageFilterAdapter ()
virtual	~ItkImageToImageFilterAdapter ()
Protected Attributes
ImageToImageFilterType::Pointer	m_FirstFilter
ImageToImageFilterType::Pointer	m_LastFilter

---

Detailed Description

template<typename TPixel>
class mitk::ItkImageToImageFilterAdapter< TPixel >

adapter class, that encapsulates any itk::ImageToImageFilter

This filter converts a mitk::Image to an itk::Image, executes the itkFilter and converts the itk::Image back to a mitk::Image as output. Either call SetSingleFilter() to encapsulate one itk::ImageToImageFilter, or SetFirstFilter() and SetLastFilter() to encapsulate a whole itk pipeline.

Definition at line 39 of file mitkItkImageToImageFilterAdapter.h.

---

Member Typedef Documentation

template<typename TPixel >

typedef itk::SmartPointer<const Self> mitk::ItkImageToImageFilterAdapter< TPixel >::ConstPointer

Definition at line 46 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef itk::ImageToImageFilter<ItkImageType, ItkImageType> mitk::ItkImageToImageFilterAdapter< TPixel >::ImageToImageFilterType

Definition at line 44 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef itk::Image<PixelType, 3> mitk::ItkImageToImageFilterAdapter< TPixel >::ItkImageType

Definition at line 43 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef TPixel mitk::ItkImageToImageFilterAdapter< TPixel >::PixelType

Definition at line 42 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef itk::SmartPointer<Self> mitk::ItkImageToImageFilterAdapter< TPixel >::Pointer

Definition at line 46 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef ItkImageToImageFilterAdapter mitk::ItkImageToImageFilterAdapter< TPixel >::Self

Definition at line 46 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

typedef ImageSource mitk::ItkImageToImageFilterAdapter< TPixel >::Superclass

Definition at line 46 of file mitkItkImageToImageFilterAdapter.h.

---

Constructor & Destructor Documentation

template<typename TPixel >

mitk::ItkImageToImageFilterAdapter< TPixel >::ItkImageToImageFilterAdapter

(

)

[protected]

Definition at line 31 of file mitkItkImageToImageFilterAdapter.txx.

: m_FirstFilter(NULL), m_LastFilter(NULL)
{
}

template<typename TPixel >

mitk::ItkImageToImageFilterAdapter< TPixel >::~ItkImageToImageFilterAdapter

(

)

[protected, virtual]

Definition at line 37 of file mitkItkImageToImageFilterAdapter.txx.

{
}

---

Member Function Documentation

template<typename TPixel >

void mitk::ItkImageToImageFilterAdapter< TPixel >::GenerateData

(

)

[virtual]

A version of GenerateData() specific for image processing filters.

This implementation will split the processing across multiple threads. The buffer is allocated by this method. Then the BeforeThreadedGenerateData() method is called (if provided). Then, a series of threads are spawned each calling ThreadedGenerateData(). After all the threads have completed processing, the AfterThreadedGenerateData() method is called (if provided). If an image processing filter cannot be threaded, the filter should provide an implementation of GenerateData(). That implementation is responsible for allocating the output buffer. If a filter an be threaded, it should NOT provide a GenerateData() method but should provide a ThreadedGenerateData() instead.

See also:

ThreadedGenerateData()

Reimplemented from mitk::ImageSource.

Definition at line 51 of file mitkItkImageToImageFilterAdapter.txx.

References mitk::CastToItkImage(), and mitk::CastToMitkImage().

{
  mitk::Image::Pointer outputImage = this->GetOutput();
  typename ImageToImageFilter::InputImageConstPointer inputImage = this->GetInput();
  if(inputImage.IsNull())
  {
    outputImage = NULL;
    return;
  }
  /* Check if there is an input Filter */
  if(m_FirstFilter.IsNull() || m_LastFilter.IsNull())
  {
    outputImage = const_cast<mitk::Image*>(inputImage.GetPointer());
    return;
  }
  /* convert input mitk image to itk image */
  mitk::Image::Pointer inputImageMitk = const_cast<mitk::Image*>(inputImage.GetPointer());  // const away cast, because FixedInput...Multiplexer Macro needs non const Pointer
  typename ItkImageType::Pointer itkImage = ItkImageType::New();
  //FixedInputDimensionMitkToItkFunctionMultiplexer(itkImage, ItkImageType , inputImageMitk, 3, MakeCastImageFilter);
  CastToItkImage(inputImageMitk, itkImage);
  /* check if image conversion failed */
  if (itkImage.IsNull())
  {
    std::cout << " can't convert input image to itk" << std::endl;
    outputImage = const_cast<mitk::Image*>(inputImage.GetPointer());
    return;
  }
  //m_ItkImageToImageFilter->SetInput(itkImage);
  m_FirstFilter->SetInput(itkImage);
  try
  {
    //m_ItkImageToImageFilter->Update();
    m_LastFilter->UpdateLargestPossibleRegion();
  }
  catch( itk::ExceptionObject & excep )
  {
    std::cerr << "mitk::ItkImageToImageFilterAdapter: Exception while executing ITK filter" << std::endl;
    std::cerr << excep << std::endl;
  }
  /* convert the itk image back to an mitk image and set it as output for this filter */
  //outputImage->InitializeByItk(m_LastFilter->GetOutput());
  //outputImage->SetVolume(m_LastFilter->GetOutput()->GetBufferPointer());
  //ItkImageType::Pointer itkOutputImage = m_LastFilter->GetOutput();
  //CastToMitkImage(itkOutputImage, outputImage);


  typename ItkImageType::Pointer itkOutputImage;
  itkOutputImage = m_LastFilter->GetOutput();


  CastToMitkImage(itkOutputImage, outputImage);
  /* copy the transform from source to result image */
  outputImage->SetGeometry(static_cast<Geometry3D*>(inputImage->GetGeometry()->Clone().GetPointer()));
}

template<typename TPixel >

void mitk::ItkImageToImageFilterAdapter< TPixel >::GenerateOutputInformation

(

void

)

[virtual]

Definition at line 45 of file mitkItkImageToImageFilterAdapter.txx.

{
  itkDebugMacro(<<"GenerateOutputInformation()");
}

template<typename TPixel >

virtual const char* mitk::ItkImageToImageFilterAdapter< TPixel >::GetClassName

(

)

const [virtual]

template<typename TPixel >

virtual ImageToImageFilterType* mitk::ItkImageToImageFilterAdapter< TPixel >::GetFirstFilter

(

)

[virtual]

template<typename TPixel >

virtual ImageToImageFilterType* mitk::ItkImageToImageFilterAdapter< TPixel >::GetLastFilter

(

)

[virtual]

template<typename TPixel >

static Pointer mitk::ItkImageToImageFilterAdapter< TPixel >::New

(

)

[static]

Method for creation through the object factory.

Reimplemented from mitk::ImageToImageFilter.

template<typename TPixel >

virtual void mitk::ItkImageToImageFilterAdapter< TPixel >::SetFirstFilter

(

ImageToImageFilterType *

_arg )

[virtual]

template<typename TPixel >

virtual void mitk::ItkImageToImageFilterAdapter< TPixel >::SetLastFilter

(

ImageToImageFilterType *

_arg )

[virtual]

template<typename TPixel >

void mitk::ItkImageToImageFilterAdapter< TPixel >::SetSingleFilter

(

typename ImageToImageFilterType::Pointer

filter )

Definition at line 108 of file mitkItkImageToImageFilterAdapter.txx.

{
  SetFirstFilter(filter);
  SetLastFilter(filter);
}

---

Member Data Documentation

template<typename TPixel >

ImageToImageFilterType::Pointer mitk::ItkImageToImageFilterAdapter< TPixel >::m_FirstFilter [protected]

Definition at line 63 of file mitkItkImageToImageFilterAdapter.h.

template<typename TPixel >

ImageToImageFilterType::Pointer mitk::ItkImageToImageFilterAdapter< TPixel >::m_LastFilter [protected]

Definition at line 64 of file mitkItkImageToImageFilterAdapter.h.

---

The documentation for this class was generated from the following files:

• mitkItkImageToImageFilterAdapter.h
• mitkItkImageToImageFilterAdapter.txx
