Data class containing a bounding-object created by extruding a Contour along a vector. More...

#include <mitkExtrudedContour.h>

Inheritance diagram for mitk::ExtrudedContour:

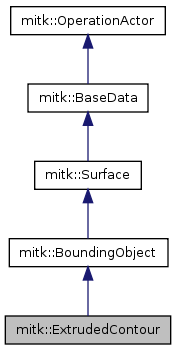

Collaboration diagram for mitk::ExtrudedContour:

Public Types
typedef ExtrudedContour	Self
typedef BoundingObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual mitk::ScalarType	GetVolume ()
virtual bool	IsInside (const Point3D &p) const
virtual void	UpdateOutputInformation ()
	Update the information for this BaseData (the geometry in particular) so that it can be used as an output of a BaseProcess.
virtual const mitk::Contour *	GetContour ()
	Contour to extrude.
virtual void	SetContour (mitk::Contour *_arg)
virtual const mitk::Vector3D &	GetVector ()
	Vector to specify the direction of the extrusion.
virtual void	SetVector (const mitk::Vector3D &_arg)
virtual bool	GetAutomaticVectorGeneration () const
virtual void	SetAutomaticVectorGeneration (bool _arg)
virtual void	AutomaticVectorGenerationOn ()
virtual void	AutomaticVectorGenerationOff ()
virtual const mitk::Vector3D &	GetRightVector ()
	Optional vector to specify the orientation of the bounding-box.
virtual void	SetRightVector (const mitk::Vector3D &_arg)
virtual const mitk::Geometry3D *	GetClippingGeometry ()
	Optional geometry for clipping the extruded contour.
virtual void	SetClippingGeometry (mitk::Geometry3D *_arg)
virtual unsigned long	GetMTime () const
	Get the modified time of the last change of the contents this data object or its geometry.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	ExtrudedContour ()
virtual	~ExtrudedContour ()
void	BuildSurface ()
void	BuildGeometry ()
Protected Attributes
mitk::Contour::Pointer	m_Contour
mitk::Vector3D	m_Vector
mitk::Vector3D	m_RightVector
mitk::Geometry3D::Pointer	m_ClippingGeometry
bool	m_AutomaticVectorGeneration
vtkPolygon *	m_Polygon
float	m_ProjectedContourBounds [6]
mitk::PlaneGeometry::Pointer	m_ProjectionPlane
float	m_Right [3]
	For fast projection on plane.
float	m_Down [3]
float	m_Normal [3]
float	m_Origin [3]
vtkLinearExtrusionFilter *	m_ExtrusionFilter
vtkTriangleFilter *	m_TriangleFilter
vtkDecimatePro *	m_Decimate
vtkLinearSubdivisionFilter *	m_SubdivisionFilter
vtkPlanes *	m_ClippingBox
vtkClipPolyData *	m_ClipPolyDataFilter
itk::TimeStamp	m_LastCalculateExtrusionTime

Detailed Description

Data class containing a bounding-object created by extruding a Contour along a vector.

The m_Contour is extruded in the direction m_Vector until reaching m_ClippingGeometry.

Definition at line 45 of file mitkExtrudedContour.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ExtrudedContour::ConstPointer

Reimplemented from mitk::BoundingObject.

Definition at line 48 of file mitkExtrudedContour.h.

typedef itk::SmartPointer<Self> mitk::ExtrudedContour::Pointer

Reimplemented from mitk::BoundingObject.

Definition at line 48 of file mitkExtrudedContour.h.

typedef ExtrudedContour mitk::ExtrudedContour::Self

Reimplemented from mitk::BoundingObject.

Definition at line 48 of file mitkExtrudedContour.h.

typedef BoundingObject mitk::ExtrudedContour::Superclass

Reimplemented from mitk::BoundingObject.

Definition at line 48 of file mitkExtrudedContour.h.

Constructor & Destructor Documentation

mitk::ExtrudedContour::ExtrudedContour ( ) [protected]

Definition at line 45 of file mitkExtrudedContour.cpp.

References mitk::BaseData::GetTimeSlicedGeometry(), mitk::TimeSlicedGeometry::Initialize(), m_ClippingBox, m_ClipPolyDataFilter, m_ExtrusionFilter, m_Polygon, m_ProjectionPlane, m_RightVector, m_SubdivisionFilter, m_TriangleFilter, m_Vector, and New().

  : m_Contour(NULL), m_ClippingGeometry(NULL), m_AutomaticVectorGeneration(false)
{
  GetTimeSlicedGeometry()->Initialize(1);

  FillVector3D(m_Vector, 0.0, 0.0, 1.0);
  m_RightVector.Fill(0.0);

  m_ExtrusionFilter = vtkLinearExtrusionFilter::New();

  m_ExtrusionFilter->CappingOff();
  m_ExtrusionFilter->SetExtrusionTypeToVectorExtrusion();

#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
  double vtkvector[3]={0,0,1};
#else
  float vtkvector[3]={0,0,1};
#endif
  // set extrusion vector
  m_ExtrusionFilter->SetVector(vtkvector);

  m_TriangleFilter = vtkTriangleFilter::New();
  m_TriangleFilter->SetInput(m_ExtrusionFilter->GetOutput());

  m_SubdivisionFilter = vtkLinearSubdivisionFilter::New();
  m_SubdivisionFilter->SetInput(m_TriangleFilter->GetOutput());
  m_SubdivisionFilter->SetNumberOfSubdivisions(4);

  m_ClippingBox = vtkPlanes::New();
  m_ClipPolyDataFilter = vtkClipPolyData::New();
  m_ClipPolyDataFilter->SetInput(m_SubdivisionFilter->GetOutput());
  m_ClipPolyDataFilter->SetClipFunction(m_ClippingBox);
  m_ClipPolyDataFilter->InsideOutOn();

  m_Polygon = vtkPolygon::New();

  m_ProjectionPlane = mitk::PlaneGeometry::New();
}

mitk::ExtrudedContour::~ExtrudedContour ( ) [protected, virtual]

Definition at line 84 of file mitkExtrudedContour.cpp.

{
  m_ClipPolyDataFilter->Delete();
  m_ClippingBox->Delete();
  m_SubdivisionFilter->Delete();
  m_TriangleFilter->Delete();
  m_ExtrusionFilter->Delete();
  m_Polygon->Delete();
}

Member Function Documentation

virtual void mitk::ExtrudedContour::AutomaticVectorGenerationOff ( ) [virtual]

virtual void mitk::ExtrudedContour::AutomaticVectorGenerationOn ( ) [virtual]

void mitk::ExtrudedContour::BuildGeometry ( ) [protected]

Definition at line 228 of file mitkExtrudedContour.cpp.

References QuadProgPP::dist(), QuadProgPP::max(), and min.

{
  if(m_Contour.IsNull())
    return;

//  Initialize(1);

  Vector3D nullvector; nullvector.Fill(0.0);
  float xProj[3];
  unsigned int i;
  unsigned int numPts = 20; //m_Contour->GetNumberOfPoints();
  mitk::Contour::PathPointer path = m_Contour->GetContourPath();
  mitk::Contour::PathType::InputType cstart = path->StartOfInput();
  mitk::Contour::PathType::InputType cend   = path->EndOfInput();
  mitk::Contour::PathType::InputType cstep  = (cend-cstart)/numPts;
  mitk::Contour::PathType::InputType ccur;

  // Part I: guarantee/calculate legal vectors

  m_Vector.Normalize();
  itk2vtk(m_Vector, m_Normal);
  // check m_Vector
  if(mitk::Equal(m_Vector, nullvector) || m_AutomaticVectorGeneration)
  {
    if ( m_AutomaticVectorGeneration == false)
      itkWarningMacro("Extrusion vector is 0 ("<< m_Vector << "); trying to use normal of polygon");

    vtkPoints *loopPoints = vtkPoints::New();
    //mitk::Contour::PointsContainerIterator pointsIt = m_Contour->GetPoints()->Begin();
#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
    double vtkpoint[3];
#else
    float vtkpoint[3];
#endif
    unsigned int i=0;
    for(i=0, ccur=cstart; i<numPts; ++i, ccur+=cstep)
    {
      itk2vtk(path->Evaluate(ccur), vtkpoint);
      loopPoints->InsertNextPoint(vtkpoint);
    }

    // Make sure points define a loop with a m_Normal
    vtkPolygon::ComputeNormal(loopPoints, m_Normal);
    loopPoints->Delete();

    vtk2itk(m_Normal, m_Vector);
    if(mitk::Equal(m_Vector, nullvector))
    {
      itkExceptionMacro("Cannot calculate normal of polygon");
    }
  }
  // check m_RightVector
  if((mitk::Equal(m_RightVector, nullvector)) || (mitk::Equal(m_RightVector*m_Vector, 0.0)==false))
  {
    if(mitk::Equal(m_RightVector, nullvector))
    {
      itkDebugMacro("Right vector is 0. Calculating.");
    }
    else
    {
      itkWarningMacro("Right vector ("<<m_RightVector<<") not perpendicular to extrusion vector "<<m_Vector<<": "<<m_RightVector*m_Vector);
    }
    // calculate a legal m_RightVector
    if( mitk::Equal( m_Vector[1], 0.0f ) == false )
    {
      FillVector3D( m_RightVector, 1.0f, -m_Vector[0]/m_Vector[1], 0.0f );
      m_RightVector.Normalize();
    }
    else
    {
      FillVector3D( m_RightVector, 0.0f, 1.0f, 0.0f );
    }
  }

  // calculate down-vector
  VnlVector rightDV = m_RightVector.Get_vnl_vector(); rightDV.normalize(); vnl2vtk(rightDV, m_Right);
  VnlVector downDV  = vnl_cross_3d( m_Vector.Get_vnl_vector(), rightDV ); downDV.normalize();  vnl2vtk(downDV,  m_Down);

  // Part II: calculate plane as base for extrusion, project the contour
  // on this plane and store as polygon for IsInside test and BoundingBox calculation

  // initialize m_ProjectionPlane, yet with origin at 0
  m_ProjectionPlane->InitializeStandardPlane(rightDV, downDV);

  // create vtkPolygon from contour and simultaneously determine 2D bounds of
  // contour projected on m_ProjectionPlane
  //mitk::Contour::PointsContainerIterator pointsIt = m_Contour->GetPoints()->Begin();
  m_Polygon->Points->Reset();
  m_Polygon->Points->SetNumberOfPoints(numPts);
  m_Polygon->PointIds->Reset();
  m_Polygon->PointIds->SetNumberOfIds(numPts);
  mitk::Point2D pt2d;
  mitk::Point3D pt3d;
  mitk::Point2D min, max;
  min.Fill(ScalarTypeNumericTraits::max());
  max.Fill(ScalarTypeNumericTraits::min());
  xProj[2]=0.0;
  for(i=0, ccur=cstart; i<numPts; ++i, ccur+=cstep)
  {
    pt3d.CastFrom(path->Evaluate(ccur));
    m_ProjectionPlane->Map(pt3d, pt2d);
    xProj[0]=pt2d[0];
    if(pt2d[0]<min[0]) min[0]=pt2d[0];
    if(pt2d[0]>max[0]) max[0]=pt2d[0];
    xProj[1]=pt2d[1];
    if(pt2d[1]<min[1]) min[1]=pt2d[1];
    if(pt2d[1]>max[1]) max[1]=pt2d[1];
    m_Polygon->Points->SetPoint(i, xProj);
    m_Polygon->PointIds->SetId(i, i);
  }
  // shift parametric origin to (0,0)
  for(i=0; i<numPts; ++i)
  {
#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
    double * pt = this->m_Polygon->Points->GetPoint(i);
#else
    float * pt = this->m_Polygon->Points->GetPoint(i);
#endif
    pt[0]-=min[0]; pt[1]-=min[1];
    itkDebugMacro( << i << ": (" << pt[0] << "," << pt[1] << "," << pt[2] << ")" );
  }
  this->m_Polygon->GetBounds(m_ProjectedContourBounds);
  //m_ProjectedContourBounds[4]=-1.0; m_ProjectedContourBounds[5]=1.0;

  // calculate origin (except translation along the normal) and bounds
  // of m_ProjectionPlane:
  //  origin is composed of the minimum x-/y-coordinates of the polygon,
  //  bounds from the extent of the polygon, both after projecting on the plane
  mitk::Point3D origin;
  m_ProjectionPlane->Map(min, origin);
  ScalarType bounds[6]={0, max[0]-min[0], 0, max[1]-min[1], 0, 1};
  m_ProjectionPlane->SetBounds(bounds);
  m_ProjectionPlane->SetOrigin(origin);

  // Part III: initialize geometry
  if(m_ClippingGeometry.IsNotNull())
  {
    ScalarType min_dist=ScalarTypeNumericTraits::max(), max_dist=ScalarTypeNumericTraits::min(), dist;
    unsigned char i;
    for(i=0; i<8; ++i)
    {
      dist = m_ProjectionPlane->SignedDistance( m_ClippingGeometry->GetCornerPoint(i) );
      if(dist<min_dist) min_dist=dist;
      if(dist>max_dist) max_dist=dist;
    }
    //incorporate translation along the normal into origin
    origin = origin+m_Vector*min_dist;
    m_ProjectionPlane->SetOrigin(origin);
    bounds[5]=max_dist-min_dist;
  }
  else
    bounds[5]=20;

  itk2vtk(origin, m_Origin);

  mitk::TimeSlicedGeometry::Pointer timeGeometry = this->GetTimeSlicedGeometry();
  mitk::Geometry3D::Pointer g3d = timeGeometry->GetGeometry3D( 0 );
  assert( g3d.IsNotNull() );
  g3d->SetBounds(bounds);
  g3d->SetIndexToWorldTransform(m_ProjectionPlane->GetIndexToWorldTransform());
  g3d->TransferItkToVtkTransform();
  timeGeometry->InitializeEvenlyTimed(g3d, 1);
}

void mitk::ExtrudedContour::BuildSurface ( ) [protected]

Definition at line 172 of file mitkExtrudedContour.cpp.

{
  if(m_Contour.IsNull())
  {
    SetVtkPolyData(NULL);
    return;
  }

  // set extrusion contour
  vtkPolyData *polyData = vtkPolyData::New();
  vtkCellArray *polys   = vtkCellArray::New();

  polys->InsertNextCell(m_Polygon->GetPointIds());
  polyData->SetPoints(m_Polygon->GetPoints());

  //float vtkpoint[3];
  //unsigned int i, numPts = m_Polygon->GetNumberOfPoints();
  //for(i=0; i<numPts; ++i)
  //{
  //  float * vtkpoint = this->m_Polygon->Points->GetPoint(i);

  //  pointids[i]=loopPoints->InsertNextPoint(vtkpoint);
  //}
  //polys->InsertNextCell( i, pointids );
  //delete [] pointids;

  //polyData->SetPoints( loopPoints );
  polyData->SetPolys( polys );
  polys->Delete();

  m_ExtrusionFilter->SetInput(polyData);

  polyData->Delete();

  // set extrusion scale factor
  m_ExtrusionFilter->SetScaleFactor(GetGeometry()->GetExtentInMM(2));
  SetVtkPolyData(m_SubdivisionFilter->GetOutput());
  //if(m_ClippingGeometry.IsNull())
  //{
  //  SetVtkPolyData(m_SubdivisionFilter->GetOutput());
  //}
  //else
  //{
  //  m_ClipPolyDataFilter->SetInput(m_SubdivisionFilter->GetOutput());
  //  mitk::BoundingBox::BoundsArrayType bounds=m_ClippingGeometry->GetBounds();

  //  m_ClippingBox->SetBounds(bounds[0], bounds[1], bounds[2], bounds[3], bounds[4], bounds[5]);
  //  m_ClippingBox->SetTransform(GetGeometry()->GetVtkTransform());
  //  m_ClipPolyDataFilter->SetClipFunction(m_ClippingBox);
  //  m_ClipPolyDataFilter->SetValue(0);
  //  SetVtkPolyData(m_ClipPolyDataFilter->GetOutput());
  //}

  m_LastCalculateExtrusionTime.Modified();
}

virtual bool mitk::ExtrudedContour::GetAutomaticVectorGeneration ( ) const [virtual]

virtual const char* mitk::ExtrudedContour::GetClassName ( ) const [virtual]

Reimplemented from mitk::BoundingObject.

virtual const mitk::Geometry3D* mitk::ExtrudedContour::GetClippingGeometry ( ) [virtual]

Optional geometry for clipping the extruded contour.

virtual const mitk::Contour* mitk::ExtrudedContour::GetContour ( ) [virtual]

Contour to extrude.

unsigned long mitk::ExtrudedContour::GetMTime ( ) const [virtual]

Get the modified time of the last change of the contents this data object or its geometry.

Reimplemented from mitk::BaseData.

Definition at line 392 of file mitkExtrudedContour.cpp.

{
  unsigned long latestTime = Superclass::GetMTime();
  if(m_Contour.IsNotNull())
  {
    unsigned long localTime;
    localTime = m_Contour->GetMTime();
    if(localTime > latestTime) latestTime = localTime;
  }
  return latestTime;
}

virtual const mitk::Vector3D& mitk::ExtrudedContour::GetRightVector ( ) [virtual]

Optional vector to specify the orientation of the bounding-box.

virtual const mitk::Vector3D& mitk::ExtrudedContour::GetVector ( ) [virtual]

Vector to specify the direction of the extrusion.

mitk::ScalarType mitk::ExtrudedContour::GetVolume ( ) [virtual]

Reimplemented from mitk::BoundingObject.

Definition at line 152 of file mitkExtrudedContour.cpp.

{
  return -1.0;
}

bool mitk::ExtrudedContour::IsInside ( const Point3D & p ) const [virtual]

Definition at line 94 of file mitkExtrudedContour.cpp.

References QuadProgPP::dist().

{
#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
  static double polygonNormal[3]={0.0,0.0,1.0};
#else
  static float polygonNormal[3]={0.0,0.0,1.0};
#endif


  // project point onto plane
  float xt[3];
  itk2vtk(worldPoint, xt);

  xt[0] = worldPoint[0]-m_Origin[0];
  xt[1] = worldPoint[1]-m_Origin[1];
  xt[2] = worldPoint[2]-m_Origin[2];

  float dist=xt[0]*m_Normal[0]+xt[1]*m_Normal[1]+xt[2]*m_Normal[2];
  xt[0] -= dist*m_Normal[0];
  xt[1] -= dist*m_Normal[1];
  xt[2] -= dist*m_Normal[2];

#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
    double x[3];
#else
   float x[3];
#endif

  x[0] = xt[0]*m_Right[0]+xt[1]*m_Right[1]+xt[2]*m_Right[2];
  x[1] = xt[0]*m_Down[0] +xt[1]*m_Down[1] +xt[2]*m_Down[2];
  x[2] = 0;

#if ((VTK_MAJOR_VERSION > 4) || ((VTK_MAJOR_VERSION==4) && (VTK_MINOR_VERSION>=4) ))
  // determine whether it's in the selection loop and then evaluate point
  // in polygon only if absolutely necessary.
  if ( x[0] >= this->m_ProjectedContourBounds[0] && x[0] <= this->m_ProjectedContourBounds[1] &&
    x[1] >= this->m_ProjectedContourBounds[2] && x[1] <= this->m_ProjectedContourBounds[3] &&
    this->m_Polygon->PointInPolygon(x, m_Polygon->Points->GetNumberOfPoints(),
    ((vtkDoubleArray *)this->m_Polygon->Points->GetData())->GetPointer(0),
    (double*)const_cast<mitk::ExtrudedContour*>(this)->m_ProjectedContourBounds, polygonNormal) == 1 )
    return true;
  else
    return false;
#else
  // determine whether it's in the selection loop and then evaluate point
  // in polygon only if absolutely necessary.
  if ( x[0] >= this->m_ProjectedContourBounds[0] && x[0] <= this->m_ProjectedContourBounds[1] &&
    x[1] >= this->m_ProjectedContourBounds[2] && x[1] <= this->m_ProjectedContourBounds[3] &&
    this->m_Polygon->PointInPolygon(x, m_Polygon->Points->GetNumberOfPoints(),
    ((vtkFloatArray *)this->m_Polygon->Points->GetData())->GetPointer(0),
    const_cast<mitk::ExtrudedContour*>(this)->m_ProjectedContourBounds, polygonNormal) == 1 )
    return true;
  else
    return false;
#endif

}

static Pointer mitk::ExtrudedContour::New ( ) [static]

Reimplemented from mitk::Surface.

Referenced by ExtrudedContour().

virtual void mitk::ExtrudedContour::SetAutomaticVectorGeneration ( bool _arg ) [virtual]

virtual void mitk::ExtrudedContour::SetClippingGeometry ( mitk::Geometry3D * _arg ) [virtual]

virtual void mitk::ExtrudedContour::SetContour ( mitk::Contour * _arg ) [virtual]

Referenced by mitk::ExtrudedContourInteractor::ExecuteAction().

virtual void mitk::ExtrudedContour::SetRightVector ( const mitk::Vector3D & _arg ) [inline, virtual]

Definition at line 71 of file mitkExtrudedContour.h.

virtual void mitk::ExtrudedContour::SetVector ( const mitk::Vector3D & _arg ) [inline, virtual]

Definition at line 63 of file mitkExtrudedContour.h.

Referenced by mitk::ExtrudedContourInteractor::ExecuteAction().

void mitk::ExtrudedContour::UpdateOutputInformation ( ) [virtual]

Update the information for this BaseData (the geometry in particular) so that it can be used as an output of a BaseProcess.

This method is used in the pipeline mechanism to propagate information and initialize the meta data associated with a BaseData. Any implementation of this method in a derived class is assumed to call its source's BaseProcess::UpdateOutputInformation() which determines modified times, LargestPossibleRegions, and any extra meta data like spacing, origin, etc. Default implementation simply call's it's source's UpdateOutputInformation().

Note:: Implementations of this methods in derived classes must take care that the geometry is updated by calling GetTimeSlicedGeometry()->UpdateInformation() after calling its source's BaseProcess::UpdateOutputInformation().

Reimplemented from mitk::Surface.

Definition at line 157 of file mitkExtrudedContour.cpp.

{
  if ( this->GetSource() )
  {
    this->GetSource()->UpdateOutputInformation();
  }
  if(GetMTime() > m_LastCalculateExtrusionTime)
  {
    BuildGeometry();
    BuildSurface();
  }
  //if ( ( m_CalculateBoundingBox ) && ( m_PolyDataSeries.size() > 0 ) )
  //  CalculateBoundingBox();
}
