Composite pattern for combination of different mappers. More...

#include <mitkCompositeMapper.h>

Inheritance diagram for mitk::CompositeMapper:

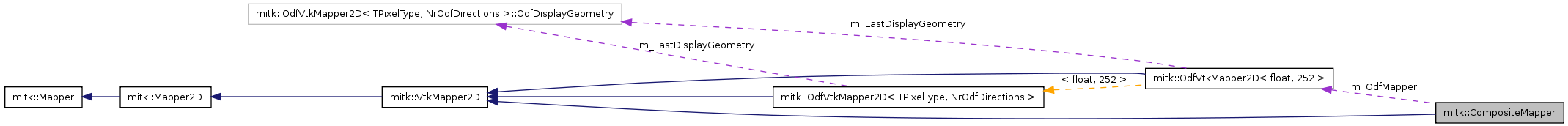

Collaboration diagram for mitk::CompositeMapper:

Public Types
typedef CompositeMapper	Self
typedef VtkMapper2D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	MitkRenderOverlay (BaseRenderer *renderer)
virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
void	SetDataNode (DataNode *node)
	Set the DataNode containing the data to map.
bool	IsVtkBased () const
	Returns whether this is an vtk-based mapper.
bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer.
void	ReleaseGraphicsResources (vtkWindow *window)
	Release vtk-based graphics resources. Must be overwritten in subclasses if vtkProps are used.
bool	IsLODEnabled (BaseRenderer *renderer) const
vtkProp *	GetProp (mitk::BaseRenderer *renderer)
void	SetGeometry3D (const mitk::Geometry3D *aGeometry3D)
	Set Geometry3D containing the all possible Geometry2D that may be requested for mapping.
void	Enable2DOpenGL ()
void	Disable2DOpenGL ()
Static Public Member Functions
static Pointer	New ()
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=NULL, bool overwrite=false)
	Set default values of properties used by this mapper to node.
Protected Member Functions
virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer)
virtual void	GenerateData (mitk::BaseRenderer *renderer)
	Generate the data needed for rendering into renderer.
	CompositeMapper ()
virtual	~CompositeMapper ()

Detailed Description

Composite pattern for combination of different mappers.

Definition at line 43 of file mitkCompositeMapper.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::CompositeMapper::ConstPointer

Reimplemented from mitk::VtkMapper2D.

Definition at line 47 of file mitkCompositeMapper.h.

typedef itk::SmartPointer<Self> mitk::CompositeMapper::Pointer

Reimplemented from mitk::VtkMapper2D.

Definition at line 47 of file mitkCompositeMapper.h.

typedef CompositeMapper mitk::CompositeMapper::Self

Reimplemented from mitk::VtkMapper2D.

Definition at line 47 of file mitkCompositeMapper.h.

typedef VtkMapper2D mitk::CompositeMapper::Superclass

Reimplemented from mitk::VtkMapper2D.

Definition at line 47 of file mitkCompositeMapper.h.

Constructor & Destructor Documentation

mitk::CompositeMapper::CompositeMapper ( ) [protected]

Definition at line 23 of file mitkCompositeMapper.cpp.

References New().

{
  m_OdfMapper = mitk::OdfVtkMapper2D<float,QBALL_ODFSIZE>::New();
  m_ImgMapper = mitk::CopyImageMapper2D::New();
}

mitk::CompositeMapper::~CompositeMapper ( ) [protected, virtual]

Definition at line 29 of file mitkCompositeMapper.cpp.

{
}

Member Function Documentation

void mitk::CompositeMapper::Disable2DOpenGL ( )

Definition at line 63 of file mitkCompositeMapper.cpp.

References GL_MODELVIEW, GL_PROJECTION, glMatrixMode(), glPopAttrib(), and glPopMatrix().

Referenced by MitkRenderOpaqueGeometry(), MitkRenderOverlay(), and MitkRenderTranslucentGeometry().

{
  glPopAttrib();
  glMatrixMode( GL_PROJECTION );
  glPopMatrix();
  glMatrixMode( GL_MODELVIEW );
  glPopMatrix();
}

void mitk::CompositeMapper::Enable2DOpenGL ( )

Definition at line 33 of file mitkCompositeMapper.cpp.

References GL_DEPTH_BUFFER_BIT, GL_DEPTH_TEST, GL_LIGHTING, GL_LIGHTING_BIT, GL_MODELVIEW, GL_PROJECTION, GL_VIEWPORT, glDisable(), glGetIntegerv(), glLoadIdentity(), glMatrixMode(), glOrtho(), glPushAttrib(), and glPushMatrix().

Referenced by MitkRenderOpaqueGeometry(), MitkRenderOverlay(), and MitkRenderTranslucentGeometry().

{
  GLint iViewport[4];

  // Get a copy of the viewport
  glGetIntegerv( GL_VIEWPORT, iViewport );

  // Save a copy of the projection matrix so that we can restore it
  // when it's time to do 3D rendering again.
  glMatrixMode( GL_PROJECTION );
  glPushMatrix();
  glLoadIdentity();

  // Set up the orthographic projection
  glOrtho(
    iViewport[0], iViewport[0]+iViewport[2],
    iViewport[1], iViewport[1]+iViewport[3],
    -1.0, 1.0
  );
  glMatrixMode( GL_MODELVIEW );
  glPushMatrix();
  glLoadIdentity();

  // Make sure depth testing and lighting are disabled for 2D rendering until
  // we are finished rendering in 2D
  glPushAttrib( GL_DEPTH_BUFFER_BIT | GL_LIGHTING_BIT );
  glDisable( GL_DEPTH_TEST );
  glDisable( GL_LIGHTING );
}

virtual void mitk::CompositeMapper::GenerateData ( ) [inline, protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

Reimplemented from mitk::Mapper.

Definition at line 144 of file mitkCompositeMapper.h.

References mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::GenerateData().

    {
      m_OdfMapper->GenerateData();
    }

virtual void mitk::CompositeMapper::GenerateData ( mitk::BaseRenderer * renderer ) [inline, protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 149 of file mitkCompositeMapper.h.

References mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::GenerateData(), and mitk::RenderingManager::GetInstance().

    {
      m_ImgMapper->GenerateData(renderer);
      if( mitk::RenderingManager::GetInstance()->GetNextLOD( renderer ) > 0 )
      {
        m_OdfMapper->GenerateData(renderer);
      }
    }

virtual const char* mitk::CompositeMapper::GetClassName ( ) const [virtual]

Reimplemented from mitk::VtkMapper2D.

vtkProp* mitk::CompositeMapper::GetProp ( mitk::BaseRenderer * renderer ) [inline, virtual]

Implements mitk::VtkMapper2D.

Definition at line 128 of file mitkCompositeMapper.h.

References mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::GetProp().

    {
      return m_OdfMapper->GetProp(renderer);
    }

bool mitk::CompositeMapper::HasVtkProp	(	const vtkProp *	,
		BaseRenderer *
	)		`[inline, virtual]`

Returns true if this mapper owns the specified vtkProp for the given BaseRenderer.

Note: returns false by default; should be implemented for VTK-based Mapper subclasses.

Reimplemented from mitk::Mapper.

Definition at line 100 of file mitkCompositeMapper.h.

References mitk::Mapper::HasVtkProp().

    {
      return m_OdfMapper->HasVtkProp(prop, renderer);
    }

bool mitk::CompositeMapper::IsLODEnabled ( BaseRenderer * ) const [inline, virtual]

Returns true if this Mapper currently allows for Level-of-Detail rendering. This reflects whether this Mapper currently invokes StartEvent, EndEvent, and ProgressEvent on BaseRenderer.

Reimplemented from mitk::Mapper.

Definition at line 123 of file mitkCompositeMapper.h.

References mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::IsLODEnabled().

    {
      return m_ImgMapper->IsLODEnabled(renderer) || m_OdfMapper->IsLODEnabled(renderer);
    }

bool mitk::CompositeMapper::IsVtkBased ( ) const [inline]

Returns whether this is an vtk-based mapper.

Reimplemented from mitk::Mapper.

Definition at line 95 of file mitkCompositeMapper.h.

References mitk::Mapper::IsVtkBased().

    {
      return m_OdfMapper->IsVtkBased();
    }

virtual void mitk::CompositeMapper::MitkRenderOpaqueGeometry ( BaseRenderer * renderer ) [inline, virtual]

Implements mitk::Mapper.

Definition at line 58 of file mitkCompositeMapper.h.

References Disable2DOpenGL(), Enable2DOpenGL(), mitk::RenderingManager::GetInstance(), and mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::MitkRenderOpaqueGeometry().

    {
      Enable2DOpenGL();
      m_ImgMapper->MitkRenderOpaqueGeometry(renderer);
      Disable2DOpenGL();
      m_OdfMapper->MitkRenderOpaqueGeometry(renderer);
      if( mitk::RenderingManager::GetInstance()->GetNextLOD( renderer ) == 0 )
      {
        renderer->Modified();
      }
    }

virtual void mitk::CompositeMapper::MitkRenderOverlay ( BaseRenderer * renderer ) [inline, virtual]

Implements mitk::Mapper.

Definition at line 50 of file mitkCompositeMapper.h.

References Disable2DOpenGL(), Enable2DOpenGL(), and mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::MitkRenderOverlay().

    {
      Enable2DOpenGL();
      m_ImgMapper->MitkRenderOverlay(renderer);
      Disable2DOpenGL();
      m_OdfMapper->MitkRenderOverlay(renderer);
    }

virtual void mitk::CompositeMapper::MitkRenderTranslucentGeometry ( BaseRenderer * renderer ) [inline, virtual]

Implements mitk::Mapper.

Definition at line 70 of file mitkCompositeMapper.h.

References Disable2DOpenGL(), Enable2DOpenGL(), and mitk::OdfVtkMapper2D< TPixelType, NrOdfDirections >::MitkRenderTranslucentGeometry().

    {
      Enable2DOpenGL();
      m_ImgMapper->MitkRenderTranslucentGeometry(renderer);
      Disable2DOpenGL();
      m_OdfMapper->MitkRenderTranslucentGeometry(renderer);
    }

static Pointer mitk::CompositeMapper::New ( ) [static]

Referenced by CompositeMapper(), mitk::DiffusionImagingObjectFactory::CreateMapper(), and SetDefaultProperties().

void mitk::CompositeMapper::ReleaseGraphicsResources ( vtkWindow * ) [inline, virtual]

Release vtk-based graphics resources. Must be overwritten in subclasses if vtkProps are used.

Reimplemented from mitk::Mapper.

Definition at line 105 of file mitkCompositeMapper.h.

References mitk::Mapper::ReleaseGraphicsResources().

    {
      m_ImgMapper->ReleaseGraphicsResources(window);
      m_OdfMapper->ReleaseGraphicsResources(window);
    }

void mitk::CompositeMapper::SetDataNode ( DataNode * _arg ) [inline, virtual]

Set the DataNode containing the data to map.

Reimplemented from mitk::Mapper.

Definition at line 88 of file mitkCompositeMapper.h.

References mitk::Mapper::m_DataNode, and mitk::Mapper::SetDataNode().

    {
      m_DataNode = node;
      m_ImgMapper->SetDataNode(node);
      m_OdfMapper->SetDataNode(node);
    }

static void mitk::CompositeMapper::SetDefaultProperties	(	DataNode *	node,
		BaseRenderer *	renderer = `NULL`,
		bool	overwrite = `false`
	)		`[inline, static]`

Set default values of properties used by this mapper to node.

Parameters:

node	The node for which the properties are set
overwrite	overwrite existing properties (default: false)
renderer	defines which property list of node is used (default: NULL, i.e. default property list)

Reimplemented from mitk::Mapper.

Definition at line 111 of file mitkCompositeMapper.h.

References mitk::DataNode::AddProperty(), New(), mitk::LevelWindow::SetRangeMinMax(), and mitk::LevelWindow::SetWindowBounds().

Referenced by mitk::DiffusionImagingObjectFactory::SetDefaultProperties().

    {
      mitk::OdfVtkMapper2D<float,QBALL_ODFSIZE>::SetDefaultProperties(node, renderer, overwrite);
      mitk::CopyImageMapper2D::SetDefaultProperties(node, renderer, overwrite);

      mitk::LevelWindow opaclevwin;
      opaclevwin.SetRangeMinMax(0,255);
      opaclevwin.SetWindowBounds(0,0);
      mitk::LevelWindowProperty::Pointer prop = mitk::LevelWindowProperty::New(opaclevwin);
      node->AddProperty( "opaclevelwindow", prop );
    }

void mitk::CompositeMapper::SetGeometry3D ( const mitk::Geometry3D * aGeometry3D ) [inline, virtual]

Set Geometry3D containing the all possible Geometry2D that may be requested for mapping.

See also:: m_Geometry3D

Reimplemented from mitk::Mapper2D.

Definition at line 133 of file mitkCompositeMapper.h.

References mitk::Mapper2D::SetGeometry3D().

    {
      m_ImgMapper->SetGeometry3D(aGeometry3D);
      m_OdfMapper->SetGeometry3D(aGeometry3D);
    }

The documentation for this class was generated from the following files:
