#include <QmitkVolumeVisualizationView.h>

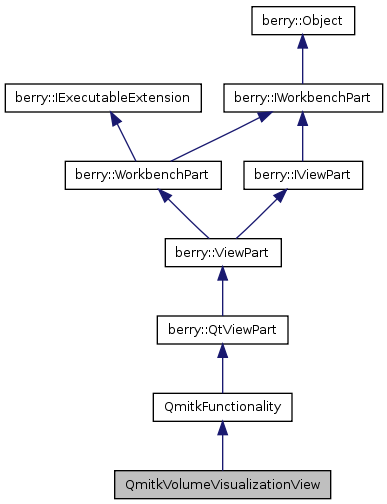

Inheritance diagram for QmitkVolumeVisualizationView:

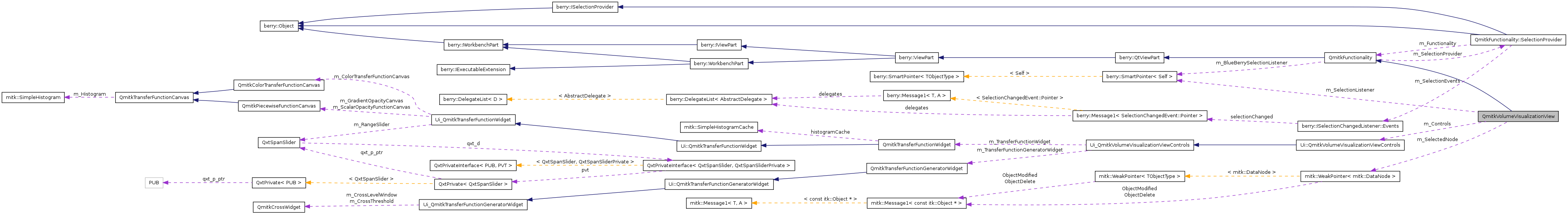

Collaboration diagram for QmitkVolumeVisualizationView:

Public Member Functions
void	SetFocus ()
	QmitkVolumeVisualizationView ()
virtual	~QmitkVolumeVisualizationView ()
virtual void	CreateQtPartControl (QWidget *parent)
virtual void	OnSelectionChanged (std::vector< mitk::DataNode * > nodes)
Protected Slots
void	OnEnableRendering (bool state)
void	OnEnableLOD (bool state)
void	OnRenderMode (int mode)
Protected Attributes
berry::ISelectionListener::Pointer	m_SelectionListener
Ui::QmitkVolumeVisualizationViewControls *	m_Controls

Detailed Description

Definition at line 41 of file QmitkVolumeVisualizationView.h.

Constructor & Destructor Documentation

QmitkVolumeVisualizationView::QmitkVolumeVisualizationView ( )

Definition at line 54 of file QmitkVolumeVisualizationView.cpp.

: QmitkFunctionality(),
  m_Controls(NULL)
{
}

QmitkVolumeVisualizationView::~QmitkVolumeVisualizationView ( ) [virtual]

Definition at line 60 of file QmitkVolumeVisualizationView.cpp.

{
}

Member Function Documentation

void QmitkVolumeVisualizationView::CreateQtPartControl ( QWidget * parent ) [virtual]

Implements berry::QtViewPart.

Definition at line 64 of file QmitkVolumeVisualizationView.cpp.

{

  if (!m_Controls)
  {
    m_Controls = new Ui::QmitkVolumeVisualizationViewControls;
    m_Controls->setupUi(parent);

    m_Controls->m_RenderMode->addItem("CPU raycast");
    m_Controls->m_RenderMode->addItem("CPU MIP raycast");
    m_Controls->m_RenderMode->addItem("GPU slicing");
// Only with VTK 5.6 or above
#if ((VTK_MAJOR_VERSION > 5) || ((VTK_MAJOR_VERSION==5) && (VTK_MINOR_VERSION>=6) ))
    m_Controls->m_RenderMode->addItem("GPU raycast");
    m_Controls->m_RenderMode->addItem("GPU MIP raycast");
#endif

    connect( m_Controls->m_EnableRenderingCB, SIGNAL( toggled(bool) ),this, SLOT( OnEnableRendering(bool) ));
    connect( m_Controls->m_EnableLOD, SIGNAL( toggled(bool) ),this, SLOT( OnEnableLOD(bool) ));
    connect( m_Controls->m_RenderMode, SIGNAL( activated(int) ),this, SLOT( OnRenderMode(int) ));

    connect( m_Controls->m_TransferFunctionGeneratorWidget, SIGNAL( SignalUpdateCanvas( ) ),   m_Controls->m_TransferFunctionWidget, SLOT( OnUpdateCanvas( ) ) );

    m_Controls->m_EnableRenderingCB->setEnabled(false);
    m_Controls->m_EnableLOD->setEnabled(false);
    m_Controls->m_RenderMode->setEnabled(false);
    m_Controls->m_TransferFunctionWidget->setEnabled(false);
    m_Controls->m_TransferFunctionGeneratorWidget->setEnabled(false);

    m_Controls->m_SelectedImageLabel->hide();
    m_Controls->m_ErrorImageLabel->hide();

  }
}

void QmitkVolumeVisualizationView::OnEnableLOD ( bool state ) [protected, slot]

Definition at line 273 of file QmitkVolumeVisualizationView.cpp.

References mitk::RenderingManager::GetInstance(), mitk::WeakPointer< TObjectType >::IsNull(), and mitk::BoolProperty::New().

Referenced by CreateQtPartControl().

{
  if(m_SelectedNode.IsNull())
    return;

  m_SelectedNode->SetProperty("volumerendering.uselod",mitk::BoolProperty::New(state));
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkVolumeVisualizationView::OnEnableRendering ( bool state ) [protected, slot]

Definition at line 263 of file QmitkVolumeVisualizationView.cpp.

References mitk::RenderingManager::GetInstance(), mitk::WeakPointer< TObjectType >::IsNull(), and mitk::BoolProperty::New().

Referenced by CreateQtPartControl().

{
  if(m_SelectedNode.IsNull())
    return;

  m_SelectedNode->SetProperty("volumerendering",mitk::BoolProperty::New(state));
  UpdateInterface();
  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkVolumeVisualizationView::OnRenderMode ( int mode ) [protected, slot]

Definition at line 282 of file QmitkVolumeVisualizationView.cpp.

References mitk::RenderingManager::GetInstance(), mitk::WeakPointer< TObjectType >::IsNull(), mitk::BoolProperty::New(), RM_CPU_MIP_RAYCAST, RM_GPU_COMPOSITE_RAYCAST, RM_GPU_COMPOSITE_SLICING, and RM_GPU_MIP_RAYCAST.

Referenced by CreateQtPartControl().

{
  if(m_SelectedNode.IsNull())
    return;

  bool usegpu=mode==RM_GPU_COMPOSITE_SLICING;
// Only with VTK 5.6 or above
#if ((VTK_MAJOR_VERSION > 5) || ((VTK_MAJOR_VERSION==5) && (VTK_MINOR_VERSION>=6) ))
  bool useray=(mode==RM_GPU_COMPOSITE_RAYCAST)||(mode==RM_GPU_MIP_RAYCAST);
#endif
  bool usemip=(mode==RM_GPU_MIP_RAYCAST)||(mode==RM_CPU_MIP_RAYCAST);

  m_SelectedNode->SetProperty("volumerendering.usegpu",mitk::BoolProperty::New(usegpu));
// Only with VTK 5.6 or above
#if ((VTK_MAJOR_VERSION > 5) || ((VTK_MAJOR_VERSION==5) && (VTK_MINOR_VERSION>=6) ))
  m_SelectedNode->SetProperty("volumerendering.useray",mitk::BoolProperty::New(useray));
#endif
  m_SelectedNode->SetProperty("volumerendering.usemip",mitk::BoolProperty::New(usemip));

  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkVolumeVisualizationView::OnSelectionChanged ( std::vector< mitk::DataNode * > nodes ) [virtual]

Invoked when the DataManager selection changed

Reimplemented from QmitkFunctionality.

Definition at line 100 of file QmitkVolumeVisualizationView.cpp.

References m_Controls, Ui_QmitkVolumeVisualizationViewControls::m_ErrorImageLabel, Ui_QmitkVolumeVisualizationViewControls::m_NoSelectedImageLabel, and Ui_QmitkVolumeVisualizationViewControls::m_SelectedImageLabel.

{
  bool weHadAnImageButItsNotThreeDeeOrFourDee = false;

  mitk::DataNode::Pointer node;

  for (std::vector<mitk::DataNode*>::iterator iter = nodes.begin();
       iter != nodes.end();
       ++iter)
  {
    mitk::DataNode::Pointer currentNode = *iter;

    if( currentNode.IsNotNull() && dynamic_cast<mitk::Image*>(currentNode->GetData()) )
    {
      if( dynamic_cast<mitk::Image*>(currentNode->GetData())->GetDimension()>=3 )
      {
        if (node.IsNull())
        {
          node = currentNode;
        }
      }
      else
      {
        weHadAnImageButItsNotThreeDeeOrFourDee = true;
      }
    }
  }

  if( node.IsNotNull() )
  {
    m_Controls->m_NoSelectedImageLabel->hide();
    m_Controls->m_ErrorImageLabel->hide();
    m_Controls->m_SelectedImageLabel->show();

    std::string  infoText;

    if (node->GetName().empty())
      infoText = std::string("Selected Image: [currently selected image has no name]");
    else
      infoText = std::string("Selected Image: ") + node->GetName();

    m_Controls->m_SelectedImageLabel->setText( QString( infoText.c_str() ) );

    m_SelectedNode = node;
  }
  else
  {
    if(weHadAnImageButItsNotThreeDeeOrFourDee)
    {
      m_Controls->m_NoSelectedImageLabel->hide();
      m_Controls->m_ErrorImageLabel->show();
      std::string  infoText;
      infoText = std::string("only 3D or 4D images are supported");
      m_Controls->m_ErrorImageLabel->setText( QString( infoText.c_str() ) );
    }
    else
    {
      m_Controls->m_SelectedImageLabel->hide();
      m_Controls->m_ErrorImageLabel->hide();
      m_Controls->m_NoSelectedImageLabel->show();
    }

    m_SelectedNode = 0;
  }

  UpdateInterface();
}
