#include <QmitkViewInitializationView.h>

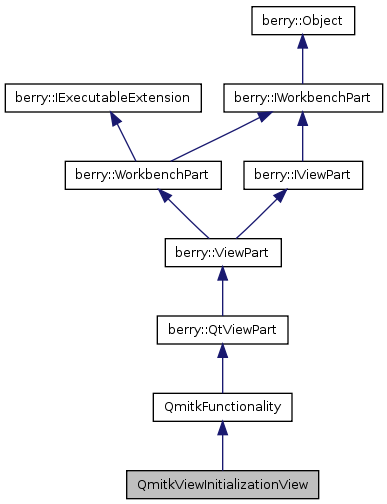

Inheritance diagram for QmitkViewInitializationView:

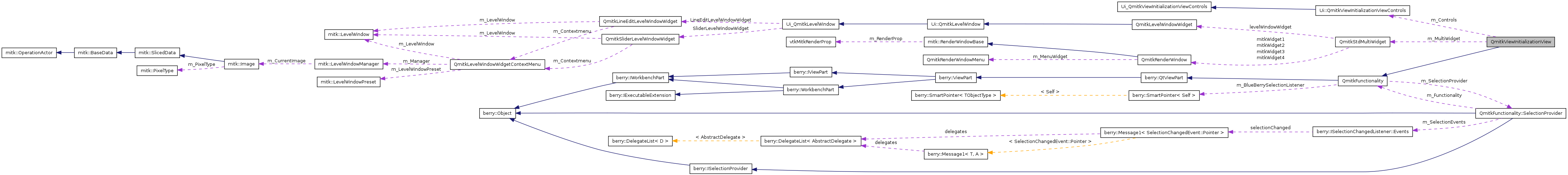

Collaboration diagram for QmitkViewInitializationView:

Public Member Functions
	QmitkViewInitializationView ()
virtual	~QmitkViewInitializationView ()
virtual void	CreateQtPartControl (QWidget *parent)
virtual void	CreateConnections ()
	Creation of the connections of main and control widget.
virtual void	Activated ()
	Called when the functionality is activated.
virtual void	Deactivated ()
virtual void	StdMultiWidgetAvailable (QmitkStdMultiWidget &stdMultiWidget)
virtual void	StdMultiWidgetNotAvailable ()
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.viewinitialization"
Protected Slots
virtual void	OnApply ()
virtual void	OnResetAll ()
Protected Member Functions
vtkRenderWindow *	GetSelectedRenderWindow ()
void	InitRenderWindowSelector ()
void	UpdateRendererList ()
Protected Attributes
Ui::QmitkViewInitializationViewControls *	m_Controls
QmitkStdMultiWidget *	m_MultiWidget
unsigned long	m_CommandTag

Detailed Description

QmitkViewInitializationView.

Document your class here.

See also:: QmitkFunctionality

Definition at line 39 of file QmitkViewInitializationView.h.

Constructor & Destructor Documentation

QmitkViewInitializationView::QmitkViewInitializationView ( )

Definition at line 36 of file QmitkViewInitializationView.cpp.

References m_CommandTag.

: QmitkFunctionality(),
  m_Controls(NULL),
  m_MultiWidget(NULL)
{
  m_CommandTag = 0;
}

QmitkViewInitializationView::~QmitkViewInitializationView ( ) [virtual]

Definition at line 44 of file QmitkViewInitializationView.cpp.

{
}

Member Function Documentation

void QmitkViewInitializationView::Activated ( ) [virtual]

Called when the functionality is activated.

Reimplemented from QmitkFunctionality.

Definition at line 78 of file QmitkViewInitializationView.cpp.

References InitRenderWindowSelector().

{
  //init render window selector (List Widget)
  this->InitRenderWindowSelector();
  QmitkFunctionality::Activated();
}

void QmitkViewInitializationView::CreateConnections ( ) [virtual]

Creation of the connections of main and control widget.

Definition at line 69 of file QmitkViewInitializationView.cpp.

References m_Controls, OnApply(), OnResetAll(), Ui_QmitkViewInitializationViewControls::pbApply, and Ui_QmitkViewInitializationViewControls::pbReset.

Referenced by CreateQtPartControl().

{
  if ( m_Controls )
  {
    connect( (QObject*)(m_Controls->pbApply), SIGNAL(clicked()),(QObject*) this, SLOT(OnApply()) );
    connect( (QObject*)(m_Controls->pbReset), SIGNAL(clicked()),(QObject*) this, SLOT(OnResetAll()) );
  }
}

void QmitkViewInitializationView::CreateQtPartControl ( QWidget * parent ) [virtual]

Implements berry::QtViewPart.

Definition at line 48 of file QmitkViewInitializationView.cpp.

References CreateConnections(), m_Controls, and Ui_QmitkViewInitializationViewControls::setupUi().

{
  if (!m_Controls)
  {
    // create GUI widgets
    m_Controls = new Ui::QmitkViewInitializationViewControls;
    m_Controls->setupUi(parent);
    this->CreateConnections();
  }
}

void QmitkViewInitializationView::Deactivated ( ) [virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:: IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 85 of file QmitkViewInitializationView.cpp.

References mitk::GlobalInteraction::GetInstance(), and m_CommandTag.

{
  mitk::FocusManager* fm = mitk::GlobalInteraction::GetInstance()->GetFocusManager();
  fm->RemoveObserver(m_CommandTag);
  QmitkFunctionality::Deactivated();
}

vtkRenderWindow * QmitkViewInitializationView::GetSelectedRenderWindow ( ) [protected]

Definition at line 125 of file QmitkViewInitializationView.cpp.

References mitk::BaseRenderer::baseRendererMap, m_Controls, and Ui_QmitkViewInitializationViewControls::m_lbRenderWindows.

Referenced by OnApply().

{
  int selectedItem = m_Controls->m_lbRenderWindows->currentRow();
  int itemNumber = 0;

  mitk::BaseRenderer::BaseRendererMapType::iterator mapit;
  for(mapit = mitk::BaseRenderer::baseRendererMap.begin();
    mapit != mitk::BaseRenderer::baseRendererMap.end();
    mapit++, itemNumber++)
  {
    if(itemNumber==selectedItem)
      break;
  }
   if(itemNumber==selectedItem)
  {
    return (*mapit).first;
  }
  return NULL;
}

void QmitkViewInitializationView::InitRenderWindowSelector ( ) [protected]

Definition at line 145 of file QmitkViewInitializationView.cpp.

References mitk::GlobalInteraction::GetInstance(), m_CommandTag, and UpdateRendererList().

Referenced by Activated().

{
  itk::SimpleMemberCommand<QmitkViewInitializationView>::Pointer updateRendererListCommand =
    itk::SimpleMemberCommand<QmitkViewInitializationView>::New();
  updateRendererListCommand->SetCallbackFunction( this, &QmitkViewInitializationView::UpdateRendererList );

  mitk::FocusManager* fm = mitk::GlobalInteraction::GetInstance()->GetFocusManager();
  m_CommandTag = fm->AddObserver(mitk::FocusEvent(), updateRendererListCommand);

  this->UpdateRendererList();
}

void QmitkViewInitializationView::OnApply ( ) [protected, virtual, slot]

Definition at line 93 of file QmitkViewInitializationView.cpp.

References Ui_QmitkViewInitializationViewControls::cbFrontSide, Ui_QmitkViewInitializationViewControls::cbRotated, Ui_QmitkViewInitializationViewControls::cbTop, mitk::SliceNavigationController::Frontal, mitk::BaseRenderer::GetInstance(), GetSelectedRenderWindow(), m_Controls, Ui_QmitkViewInitializationViewControls::rbFrontal, Ui_QmitkViewInitializationViewControls::rbSagittal, Ui_QmitkViewInitializationViewControls::rbTransversal, mitk::SliceNavigationController::Sagittal, and mitk::SliceNavigationController::Transversal.

Referenced by CreateConnections().

{
  mitk::SliceNavigationController::ViewDirection viewDirection( mitk::SliceNavigationController::Transversal );
  if( m_Controls->rbTransversal->isChecked() )
    viewDirection = mitk::SliceNavigationController::Transversal;

  else if( m_Controls->rbFrontal->isChecked())
    viewDirection = mitk::SliceNavigationController::Frontal;

  else if( m_Controls->rbSagittal->isChecked() )
    viewDirection = mitk::SliceNavigationController::Sagittal;

  vtkRenderWindow* renderwindow = this->GetSelectedRenderWindow();
  if(renderwindow != NULL)
  {
    mitk::BaseRenderer::GetInstance(renderwindow)->GetSliceNavigationController()->Update(viewDirection,
      m_Controls->cbTop->isChecked(),
      m_Controls->cbFrontSide->isChecked(),
      m_Controls->cbRotated->isChecked()
      );
    mitk::BaseRenderer::GetInstance(renderwindow)->GetDisplayGeometry()->Fit();
  }
}

void QmitkViewInitializationView::OnResetAll ( ) [protected, virtual, slot]

Definition at line 117 of file QmitkViewInitializationView.cpp.

References QmitkFunctionality::GetDefaultDataStorage(), and mitk::RenderingManager::GetInstance().

Referenced by CreateConnections().

{
  /* calculate bounding geometry of these nodes */
  mitk::TimeSlicedGeometry::Pointer bounds = this->GetDefaultDataStorage()->ComputeBoundingGeometry3D();
  /* initialize the views to the bounding geometry */
  mitk::RenderingManager::GetInstance()->InitializeViews(bounds);
}

void QmitkViewInitializationView::StdMultiWidgetAvailable ( QmitkStdMultiWidget & stdMultiWidget ) [virtual]

Called when a StdMultiWidget is available. Should not be used anymore, see GetActiveStdMultiWidget()

See also:: GetActiveStdMultiWidget()

Reimplemented from QmitkFunctionality.

Definition at line 59 of file QmitkViewInitializationView.cpp.

References m_MultiWidget.

{
  m_MultiWidget = &stdMultiWidget;
}

void QmitkViewInitializationView::StdMultiWidgetNotAvailable ( ) [virtual]

Called when no StdMultiWidget is available anymore. Should not be used anymore, see GetActiveStdMultiWidget()

See also:: GetActiveStdMultiWidget()

Reimplemented from QmitkFunctionality.

Definition at line 64 of file QmitkViewInitializationView.cpp.

References m_MultiWidget.

{
  m_MultiWidget = NULL;
}

void QmitkViewInitializationView::UpdateRendererList ( ) [protected]

Definition at line 157 of file QmitkViewInitializationView.cpp.

References mitk::BaseRenderer::baseRendererMap, mitk::FocusManager::GetFocused(), mitk::GlobalInteraction::GetInstance(), m_Controls, and Ui_QmitkViewInitializationViewControls::m_lbRenderWindows.

Referenced by InitRenderWindowSelector().

{
  vtkRenderWindow* focusedRenderWindow = NULL;

  mitk::FocusManager* fm = mitk::GlobalInteraction::GetInstance()->GetFocusManager();

  mitk::BaseRenderer::ConstPointer br = fm->GetFocused();

  if (br.IsNotNull())
  {
    focusedRenderWindow = br->GetRenderWindow();
  }

  int selectedItem = -1;
  int itemNumber = 0;
  m_Controls->m_lbRenderWindows->clear();


  for(mitk::BaseRenderer::BaseRendererMapType::iterator mapit = mitk::BaseRenderer::baseRendererMap.begin();
    mapit != mitk::BaseRenderer::baseRendererMap.end(); mapit++, itemNumber++)
  {
    if( (*mapit).second->GetName())
    {
      m_Controls->m_lbRenderWindows->addItem(QString((*mapit).second->GetName()));
      if(focusedRenderWindow==(*mapit).first)
        selectedItem = itemNumber;
    }
  }

  if (selectedItem>=0)
  {
    m_Controls->m_lbRenderWindows->setCurrentRow(selectedItem);
  }
  else
  {
    m_Controls->m_lbRenderWindows->clearSelection();
  }
}
