GUI widget for handling mitk::PointSet. More...

#include <QmitkPointListView.h>

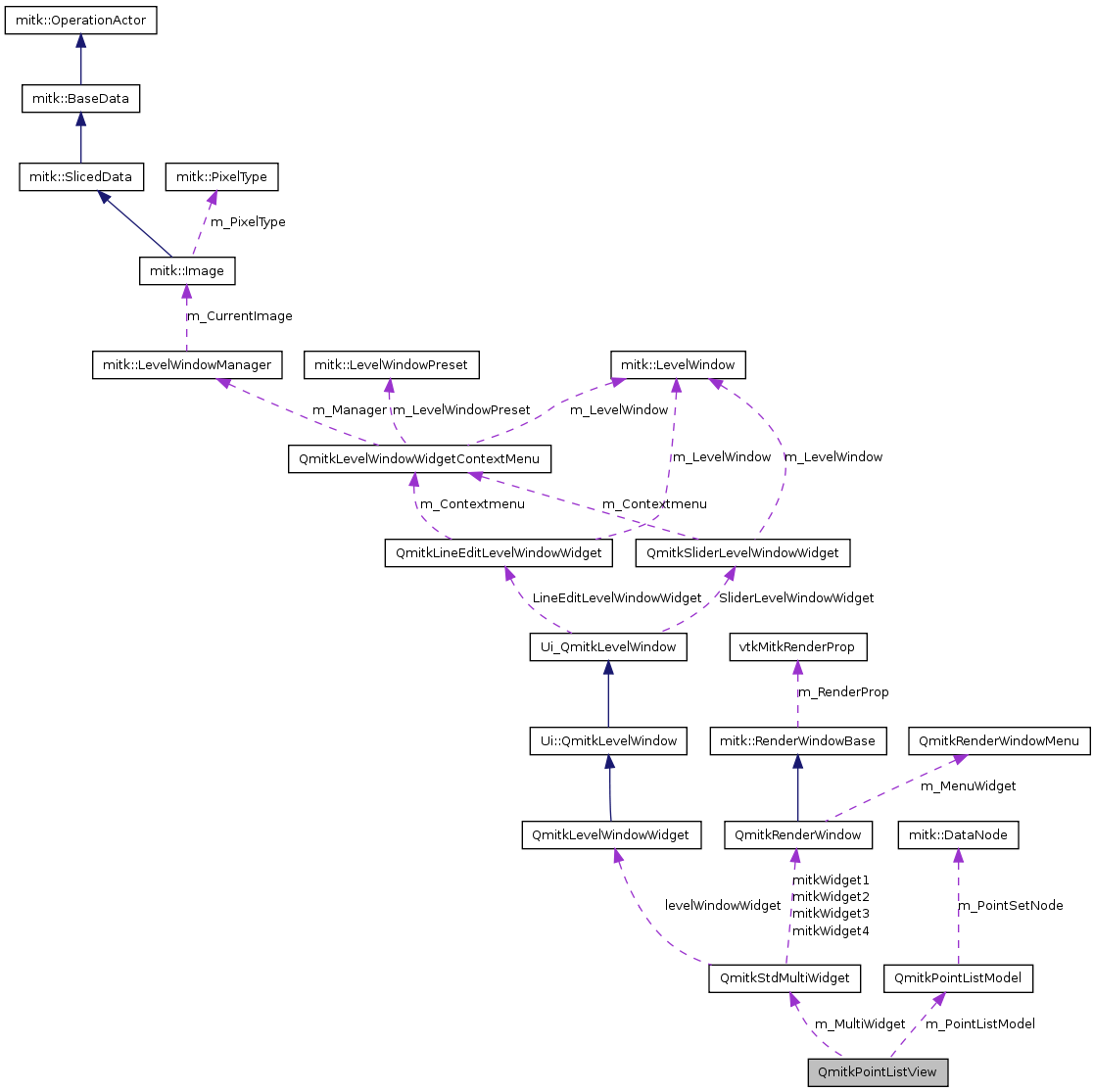

Collaboration diagram for QmitkPointListView:

Signals
void	SignalPointSelectionChanged ()
	this signal is emmitted, if the selection of a point in the pointset is changed
Public Member Functions
	QmitkPointListView (QWidget *parent=0)
	~QmitkPointListView ()
void	SetPointSetNode (mitk::DataNode *pointSetNode)
	assign a point set for observation
const mitk::PointSet *	GetPointSet () const
	which point set to work on
void	SetMultiWidget (QmitkStdMultiWidget *multiWidget)
	assign a QmitkStdMultiWidget for updating render window crosshair
QmitkStdMultiWidget *	GetMultiWidget () const
	return the QmitkStdMultiWidget that is used for updating render window crosshair
void	SetTimesStep (int i)
	which time step to display/model
Protected Slots
void	OnPointDoubleClicked (const QModelIndex &index)
	Filtering double click event for editing point coordinates via a dialog.
void	OnPointSetSelectionChanged ()
	called when the point set data structure changes
void	OnListViewSelectionChanged (const QItemSelection &selected, const QItemSelection &deselected)
	called when the selection of the view widget changes
void	fadeTimeStepOut ()
	fade the shown timestep out
void	ctxMenu (const QPoint &pos)
	open ContextMenu
void	SetFading (bool onOff)
	Turn TimeStep Fading On/Off.
void	ClearPointList ()
	Delete all points in the list.
void	ClearPointListTS ()
	delete all points in the list in the current timestep
Protected Member Functions
void	keyPressEvent (QKeyEvent *e)
	react to F2, F3 and DEL keys
void	wheelEvent (QWheelEvent *event)
	change timestep of the current pointset by mouse wheel
void	fadeTimeStepIn ()
	fade a label with the currently shown timestep in
Protected Attributes
QmitkPointListModel *	m_PointListModel
bool	m_SelfCall
bool	m_showFading
QmitkStdMultiWidget *	m_MultiWidget
	used to position the planes on a selected point
QLabel *	m_TimeStepFaderLabel

Detailed Description

GUI widget for handling mitk::PointSet.

Displays all the points in a mitk::PointSet graphically. Reacts automatically to changes in the PointSet's selection status. Updates PointSet's selection status when this list's selection changes.

If a QmitkStdMultiWidget is assigned via SetMultiWidget(), the crosshair of the QmitkStdMultiWidget is moved to the currently selected point.

Definition at line 41 of file QmitkPointListView.h.

Constructor & Destructor Documentation

QmitkPointListView::QmitkPointListView ( QWidget * parent = 0 )

Definition at line 32 of file QmitkPointListView.cpp.

References ctxMenu(), m_PointListModel, m_TimeStepFaderLabel, OnListViewSelectionChanged(), OnPointDoubleClicked(), and OnPointSetSelectionChanged().

  :QListView( parent ),
  m_PointListModel( new QmitkPointListModel() ),
  m_SelfCall( false ),
  m_showFading(false),
  m_MultiWidget( NULL)
{
  QListView::setAlternatingRowColors( true );

  // logic

  QListView::setSelectionBehavior( QAbstractItemView::SelectRows );
  QListView::setSelectionMode( QAbstractItemView::SingleSelection );
  QListView::setModel( m_PointListModel );
  QString tooltip = QString("Use the F2/F3 keys to move a point up/down, the Del key to remove a point\nand the mouse wheel to change the timestep.\n\nTimeStep:\t%1").arg(0);
  QListView::setToolTip(tooltip);
  //m_FadeTimer = new QTimer();
  this->setContextMenuPolicy(Qt::CustomContextMenu);

  m_TimeStepFaderLabel = new QLabel(this);
  QFont font("Arial", 17);
  m_TimeStepFaderLabel->setFont(font);

  //Define Size
  this->setMinimumHeight(40);

  //horizontal, vertical
  this->setSizePolicy(QSizePolicy::Ignored, QSizePolicy::Ignored);


  //connect
  connect( m_PointListModel, SIGNAL(SignalUpdateSelection()), this, SLOT(OnPointSetSelectionChanged()) );

  connect( this, SIGNAL(doubleClicked ( const QModelIndex & )),
           this, SLOT(OnPointDoubleClicked( const QModelIndex & )) );

  connect( QListView::selectionModel(), SIGNAL(selectionChanged(const QItemSelection &, const QItemSelection &)),
           this, SLOT(OnListViewSelectionChanged(const QItemSelection& , const QItemSelection&)) );

  connect(this, SIGNAL(customContextMenuRequested(const QPoint &)), this, SLOT(ctxMenu(const QPoint &)));

}

QmitkPointListView::~QmitkPointListView ( )

Definition at line 75 of file QmitkPointListView.cpp.

References m_PointListModel.

{
  delete m_PointListModel;
}

Member Function Documentation

void QmitkPointListView::ClearPointList ( ) [protected, slot]

Delete all points in the list.

Definition at line 348 of file QmitkPointListView.cpp.

References mitk::RenderingManager::GetInstance(), mitk::PointSet::GetPointSet(), QmitkPointListModel::GetPointSet(), m_PointListModel, and QmitkPointListModel::RemoveSelectedPoint().

Referenced by ctxMenu().

{
  if(!m_PointListModel->GetPointSet())
    return;
  mitk::PointSet::Pointer  curPS = m_PointListModel->GetPointSet();
  if ( curPS->GetSize() == 0)
    return;


  switch( QMessageBox::question( this, tr("Clear Points"),
                                 tr("Remove all points from the displayed list?"),
                                 QMessageBox::Yes | QMessageBox::No, QMessageBox::No))
  {
  case QMessageBox::Yes:
    {
      //        m_PointListModel->ClearList();
      //      /*
      //        if (curPS)
      //        {
      //            curPS->Clear();
      //        }
      //        */
      //        mitk::RenderingManager::GetInstance()->RequestUpdateAll();
      //        break;
      mitk::PointSet::PointsIterator it;
      mitk::PointSet::PointsContainer *curPsPoints;
      while( !curPS->IsEmpty(0))
      {
        curPsPoints = curPS->GetPointSet()->GetPoints();
        it = curPsPoints->Begin();
        curPS->SetSelectInfo(it->Index(),true);
        m_PointListModel->RemoveSelectedPoint();
      }
      mitk::RenderingManager::GetInstance()->RequestUpdateAll();
      break;
    }
  case QMessageBox::No:
  default:
    break;
  }
  // emit PointListChanged();
}

void QmitkPointListView::ClearPointListTS ( ) [protected, slot]

delete all points in the list in the current timestep

Definition at line 391 of file QmitkPointListView.cpp.

Referenced by ctxMenu().

{
  //    mitk::PointSet* /*::Pointer*/  curPS = m_PointListModel->GetPointSet();
  //    if ( curPS->GetSize() == 0)
  //        return;

  //     int ts = this->m_PointListModel->GetTimeStep();
  //    switch( QMessageBox::question( this, tr("Clear Points in Timestep"),
  //                                   tr("Remove all points from the list with the timestep %1?").arg(ts),
  //                                   QMessageBox::Yes | QMessageBox::No, QMessageBox::No))
  //    {
  //    case QMessageBox::Yes:
  //        if (curPS)
  //        {
  //            mitk::PointSet::DataType::Pointer curPSwithTS = curPS->GetPointSet(ts);
  //            //curPSwithTS->Clear();

  //        }
  //        mitk::RenderingManager::GetInstance()->RequestUpdateAll();
  //        break;

  //    case QMessageBox::No:
  //        default:
  //        break;
  //     }
  //   // emit PointListChanged();
}

void QmitkPointListView::ctxMenu ( const QPoint & pos ) [protected, slot]

open ContextMenu

Definition at line 303 of file QmitkPointListView.cpp.

References ClearPointList(), ClearPointListTS(), and SetFading().

Referenced by QmitkPointListView().

{
  QMenu *menu = new QMenu;
  //    menu->setStyle();
  //    menu->addAction(tr("Test Item"), this, SLOT(test_slot()));


  //add Fading check
  QAction *showFading = new QAction(this);
  showFading->setCheckable(false);  //TODO: reset when fading is working
  showFading->setEnabled(false);    //TODO: reset when fading is working
  showFading->setText("Fade TimeStep");
  connect(showFading, SIGNAL(triggered(bool)), this, SLOT(SetFading(bool)));
  menu->addAction(showFading);

  //add Clear action
  QAction *clearList = new QAction(this);
  clearList->setText("Clear List");
  connect(clearList, SIGNAL(triggered()), this, SLOT(ClearPointList()));
  menu->addAction(clearList);

  //add Clear TimeStep action
  QAction *clearTS = new QAction(this);
  clearTS->setText("Clear current time step");
  connect(clearTS, SIGNAL(triggered()), this, SLOT(ClearPointListTS()));
  menu->addAction(clearTS);

  //    //add "show time step in list" option
  //    QAction *viewTS = new QAction(this);
  //    viewTS->setText("Show time step in list");
  //    viewTS->setCheckable(true);
  //    viewTS->setChecked(false);
  //    connect(viewTS, SIGNAL(triggered(bool)), this, SLOT(ClearPointList(bool)));
  //    menu->addAction(viewTS);


  menu->exec(this->mapToGlobal(pos));

}

void QmitkPointListView::fadeTimeStepIn ( ) [protected]

fade a label with the currently shown timestep in

Definition at line 254 of file QmitkPointListView.cpp.

References fadeTimeStepOut(), QmitkPointListModel::GetTimeStep(), int(), m_PointListModel, and m_TimeStepFaderLabel.

Referenced by wheelEvent().

{
  //Setup Widget
  QWidget *m_TimeStepFader = new QWidget(this);
  QHBoxLayout *layout = new QHBoxLayout(m_TimeStepFader);

  int x = (int)(this->geometry().x()+this->width()*0.6);
  int y = (int)(this->geometry().y()+this->height()*0.8);
  m_TimeStepFader->move(x,y);
  m_TimeStepFader->resize(60, 55);
  m_TimeStepFader->setLayout(layout);
  m_TimeStepFader->setAttribute(Qt::WA_DeleteOnClose);

  //setup Label
  //    QLabel *label = new QLabel(QString("%1").arg(this->m_PointListModel->GetTimeStep()));

  layout->addWidget(m_TimeStepFaderLabel);
  m_TimeStepFaderLabel->setAlignment(Qt::AlignCenter);
  m_TimeStepFaderLabel->setFrameStyle(QFrame::StyledPanel | QFrame::Raised);
  m_TimeStepFaderLabel->setLineWidth(2);
  m_TimeStepFaderLabel->setText(QString("%1").arg(this->m_PointListModel->GetTimeStep()));

  //give the widget opacity and some colour
  QPalette pal = m_TimeStepFaderLabel->palette();
  QColor semiTransparentColor(139, 192, 223, 50);
  QColor labelTransparentColor(0,0,0,200);
  pal.setColor(m_TimeStepFaderLabel->backgroundRole(), semiTransparentColor);
  pal.setColor(m_TimeStepFaderLabel->foregroundRole(), labelTransparentColor);
  m_TimeStepFaderLabel->setAutoFillBackground(true);
  m_TimeStepFaderLabel->setPalette(pal);

  //show the widget
  m_TimeStepFader->show();

  //and start the timer
  m_TimeStepFaderLabel->setVisible(true);
  QTimer::singleShot(2000, this, SLOT(fadeTimeStepOut()));

}

void QmitkPointListView::fadeTimeStepOut ( ) [protected, slot]

fade the shown timestep out

Definition at line 296 of file QmitkPointListView.cpp.

References m_TimeStepFaderLabel.

Referenced by fadeTimeStepIn().

{

  m_TimeStepFaderLabel->hide();

}

QmitkStdMultiWidget * QmitkPointListView::GetMultiWidget ( ) const

return the QmitkStdMultiWidget that is used for updating render window crosshair

Definition at line 97 of file QmitkPointListView.cpp.

References m_MultiWidget.

{
  return m_MultiWidget;
}

const mitk::PointSet * QmitkPointListView::GetPointSet ( ) const

which point set to work on

Definition at line 85 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetPointSet(), and m_PointListModel.

{
  return m_PointListModel->GetPointSet();
}

void QmitkPointListView::keyPressEvent ( QKeyEvent * e ) [protected]

react to F2, F3 and DEL keys

Definition at line 193 of file QmitkPointListView.cpp.

References mitk::Key_Delete, mitk::Key_F2, mitk::Key_F3, m_PointListModel, QmitkPointListModel::MoveSelectedPointDown(), QmitkPointListModel::MoveSelectedPointUp(), and QmitkPointListModel::RemoveSelectedPoint().

{
  if (m_PointListModel == NULL)
    return;

  int key = e->key();

  switch (key)
  {
  case Qt::Key_F2:
    m_PointListModel->MoveSelectedPointUp();
    break;
  case Qt::Key_F3:
    m_PointListModel->MoveSelectedPointDown();
    break;
  case Qt::Key_Delete:
    m_PointListModel->RemoveSelectedPoint();
    break;
  default:
    break;
  }
}

void QmitkPointListView::OnListViewSelectionChanged	(	const QItemSelection &	selected,
		const QItemSelection &	deselected
	)		`[protected, slot]`

called when the selection of the view widget changes

Definition at line 148 of file QmitkPointListView.cpp.

References mitk::RenderingManager::GetInstance(), QmitkPointListModel::GetModelIndexForPointID(), mitk::PointSet::GetPoint(), mitk::PointSet::GetPointSet(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_MultiWidget, m_PointListModel, m_SelfCall, QmitkStdMultiWidget::MoveCrossToPosition(), mitk::PointSet::SetSelectInfo(), and SignalPointSelectionChanged().

Referenced by QmitkPointListView().

{
  if (m_SelfCall)
    return;

  mitk::PointSet* pointSet = const_cast<mitk::PointSet*>( m_PointListModel->GetPointSet() );

  if (pointSet == NULL)
    return;

  // (take care that this widget doesn't react to self-induced changes by setting m_SelfCall)
  m_SelfCall = true;

  // update selection of all points in pointset: select the one(s) that are selected in the view, deselect all others
  QModelIndexList selectedIndexes = selected.indexes();

  for (mitk::PointSet::PointsContainer::Iterator it = pointSet->GetPointSet(m_PointListModel->GetTimeStep())->GetPoints()->Begin();
  it != pointSet->GetPointSet(m_PointListModel->GetTimeStep())->GetPoints()->End(); ++it)
  {
    QModelIndex index;
    if (m_PointListModel->GetModelIndexForPointID(it->Index(), index))
    {
      if (selectedIndexes.indexOf(index) != -1) // index is found in the selected indices list
      {
        pointSet->SetSelectInfo(it->Index(), true, m_PointListModel->GetTimeStep());
        if ( m_MultiWidget != NULL)
        {
          m_MultiWidget->MoveCrossToPosition(pointSet->GetPoint(it->Index(), m_PointListModel->GetTimeStep()));
        }
      }
      else
      {
        pointSet->SetSelectInfo(it->Index(), false, m_PointListModel->GetTimeStep());
      }
    }
  }

  m_SelfCall = false;

  emit SignalPointSelectionChanged();

  mitk::RenderingManager::GetInstance()->RequestUpdateAll();
}

void QmitkPointListView::OnPointDoubleClicked ( const QModelIndex & index ) [protected, slot]

Filtering double click event for editing point coordinates via a dialog.

Definition at line 102 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetPointForModelIndex(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_PointListModel, and QmitkEditPointDialog::SetPoint().

Referenced by QmitkPointListView().

{
  mitk::PointSet::PointType p;
  mitk::PointSet::PointIdentifier id;
  m_PointListModel->GetPointForModelIndex(index, p, id);
  QmitkEditPointDialog _EditPointDialog(this);
  _EditPointDialog.SetPoint(m_PointListModel->GetPointSet(), id, m_PointListModel->GetTimeStep());
  _EditPointDialog.exec();
}

void QmitkPointListView::OnPointSetSelectionChanged ( ) [protected, slot]

called when the point set data structure changes

Definition at line 112 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetModelIndexForPointID(), mitk::PointSet::GetNumberOfSelected(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_PointListModel, m_SelfCall, MITK_ERROR, mitk::PointSet::SearchSelectedPoint(), and SignalPointSelectionChanged().

Referenced by QmitkPointListView().

{
  const mitk::PointSet* pointSet = m_PointListModel->GetPointSet();
  if (pointSet == NULL)
    return;

  // update this view's selection status as a result to changes in the point set data structure
  m_SelfCall = true;
  int timeStep = m_PointListModel->GetTimeStep();

  if ( pointSet->GetNumberOfSelected( timeStep ) > 1 )
  {
    MITK_ERROR << "Point set has multiple selected points. This view is not designed for more than one selected point.";
  }

  int selectedIndex = pointSet->SearchSelectedPoint( timeStep );

  if (selectedIndex == -1) // no selected point is found
  {
    m_SelfCall = false;
    return;
  }

  QModelIndex index;

  bool modelIndexOkay = m_PointListModel->GetModelIndexForPointID(selectedIndex, index);

  if (modelIndexOkay == true)
    QListView::selectionModel()->select( index , QItemSelectionModel::ClearAndSelect );

  emit SignalPointSelectionChanged();

  m_SelfCall = false;
}

void QmitkPointListView::SetFading ( bool onOff ) [protected, slot]

Turn TimeStep Fading On/Off.

Definition at line 343 of file QmitkPointListView.cpp.

References m_showFading.

Referenced by ctxMenu().

{
  m_showFading = onOff;
}

void QmitkPointListView::SetMultiWidget ( QmitkStdMultiWidget * multiWidget )

assign a QmitkStdMultiWidget for updating render window crosshair

Definition at line 90 of file QmitkPointListView.cpp.

References m_MultiWidget.

Referenced by QmitkPointListWidget::SetMultiWidget().

{
  m_MultiWidget = multiWidget;


}

void QmitkPointListView::SetPointSetNode ( mitk::DataNode * pointSetNode )

assign a point set for observation

Definition at line 80 of file QmitkPointListView.cpp.

References m_PointListModel, and QmitkPointListModel::SetPointSetNode().

Referenced by QmitkPointListWidget::OnNodeDeleted().

{
  m_PointListModel->SetPointSetNode( pointSetNode);
}

void QmitkPointListView::SetTimesStep ( int i )

which time step to display/model

void QmitkPointListView::SignalPointSelectionChanged ( ) [signal]

this signal is emmitted, if the selection of a point in the pointset is changed

Referenced by OnListViewSelectionChanged(), and OnPointSetSelectionChanged().

void QmitkPointListView::wheelEvent ( QWheelEvent * event ) [protected]

change timestep of the current pointset by mouse wheel

Definition at line 216 of file QmitkPointListView.cpp.

References fadeTimeStepIn(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), mitk::BaseData::GetTimeSteps(), int(), m_PointListModel, and QmitkPointListModel::SetTimeStep().

{


  if (!m_PointListModel || !m_PointListModel->GetPointSet() || (int)(m_PointListModel->GetPointSet()->GetTimeSteps()) == 1 /*|| !m_4DPointSet*/)
    return;


  int whe = event->delta();
  mitk::PointSet::Pointer ps = dynamic_cast<mitk::PointSet*>(m_PointListModel->GetPointSet());
  unsigned int numberOfTS = ps->GetTimeSteps();

  if(numberOfTS == 1)
    return;
  int currentTS =  this->m_PointListModel->GetTimeStep();
  if(whe > 0)
  {
    if((currentTS >= (int)(m_PointListModel->GetPointSet()->GetTimeSteps())))
      return;

    this->m_PointListModel->SetTimeStep(++currentTS);
  }
  else
  {

    if((currentTS <= 0))
      return;
    this->m_PointListModel->SetTimeStep(--currentTS);

  }


  QString tooltip = QString("Use the F2/F3 keys to move a point up/down, the Del key to remove a point\nand the mouse wheel to change the timestep.\n\nTimeStep:\t%1").arg(currentTS);
  this->setToolTip(tooltip);

  fadeTimeStepIn();
}
